Sub-aperture Keystone Transform Based Echo Simulation Method for High-squint SAR with a Curve Trajectory
-
摘要: 大机动条件下的曲线轨迹大斜视SAR系统传递函数具有复杂的多维空变性，现有的高效频域回波模拟算法均难以实现扩展场景的高精度回波模拟。为此，该文提出一种基于子孔径Keystone变换的机动SAR回波模拟方法。该方法根据距离徙动校正后的距离压缩函数对场景的距离压缩回波进行快速模拟，然后通过高精度的距离向逆处理实现扩展场景的回波模拟。为减少残余距离徙动对回波模拟精度的影响，距离向处理过程中采用子孔径Keystone变换的方法实现空变距离徙动的精确校正。理论分析和仿真结果表明，所提方法能够快速高精度地模拟扩展场景的机动平台大斜视SAR原始回波数据。
-
关键词:
- SAR /
- 回波模拟 /
- 曲线轨迹 /
- 子孔径Keystone变换
Abstract: The system transfer function of high-squint SAR system with curved trajectory has complex multi-dimensional spatial variability. The existing efficient frequency-domain echo simulation algorithms are difficult to achieve high-precision echo simulation of extended scenes. Therefore, a fast echo simulation method based on sub-aperture Keystone transform is proposed for maneuvering SAR. Based on the time-domain range compression function after range cell migration correction, the method calculates efficiently the range compression echo of scene, and then realizes the echo simulation of extended scene by high precision range inverse processing. In order to reduce the influence of residual range cell migration on the accuracy of echo simulation, the method of the Keystone transform of sub-aperture is used in range processing to achieve accurate correction of space-variant range cell migration in extended scenes. The theoretical analysis and simulation results show that the proposed method can quickly and accurately simulate the original echo data of extended scenes for high-squint SAR mounted on a maneuvering platform.-
Key words:
- SAR /
- Echo simulation /
- Curve trajectory /
- Sub-aperture Keystone transform
-

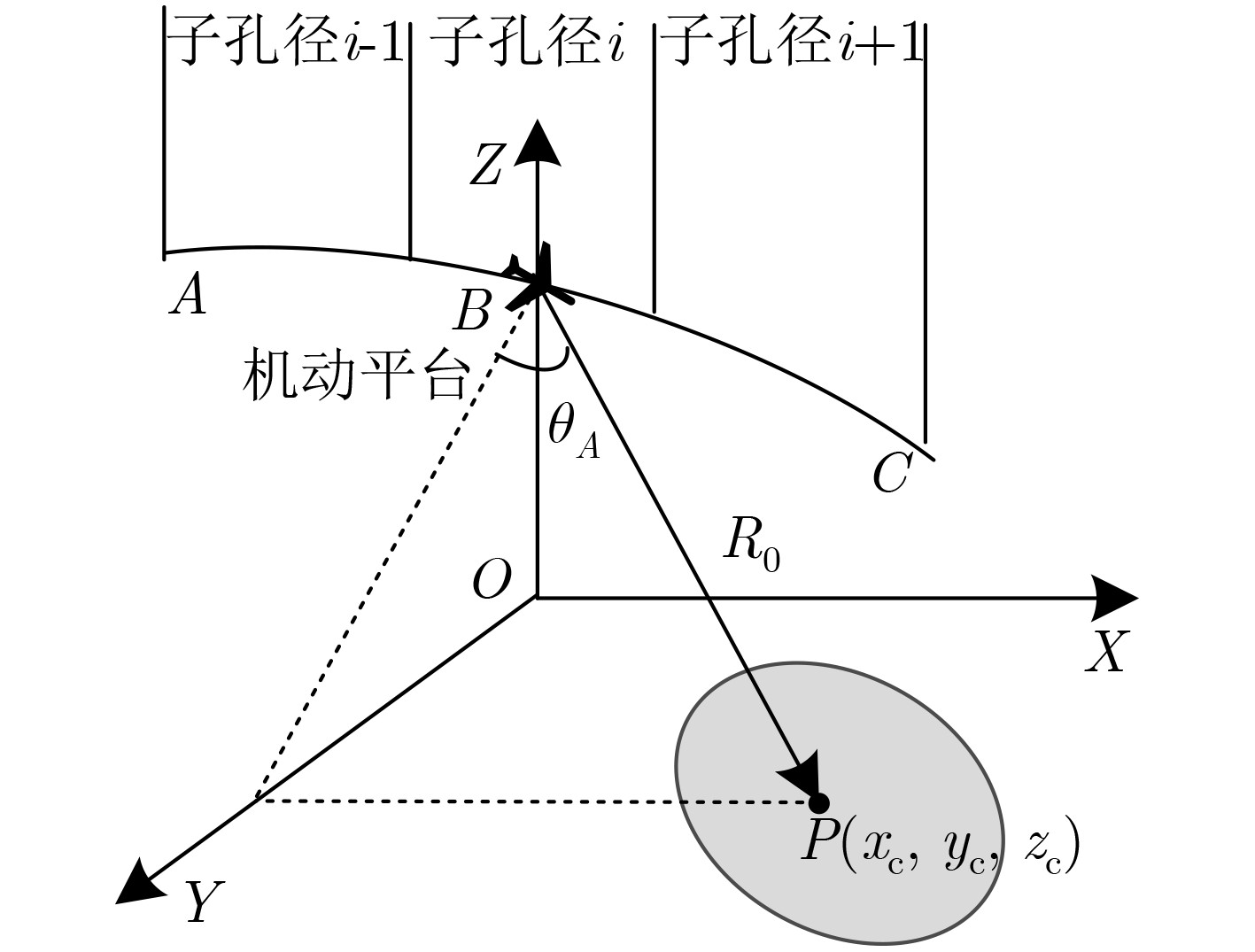

表 1 仿真参数
SAR系统参数 数值 运动参数 数值 载频 15 GHz 斜视角 60° 距离带宽 300 MHz 平台高度 4 km 距离过采样因子 1.2 中心斜距 13 km 合成孔径时间 3 s 速度 (150, 0, –35) m/s 脉冲宽度 5 µs 加速度 (2.2, 1.2, –0.8) m/s2 脉冲重复频率 2 kHz 加加速度 (0.2, 0.1, –0.1) m/s3 天线波束宽度 14°
下载: 导出CSV
表 2 点目标的方位向测量指标量化分析结果
点目标 PARE MWRE PSLRE(dB) ISLRE(dB) 1 1.3e-03 1.0e-04 6.1e-03 –2.8e-03 2 5.2e-06 1.0e-06 7.1e-06 8.7e-06 3 1.2e-05 2.1e-06 1.4e-04 3.2e-05 4 1.5e-04 5.2e-06 6.5e-04 6.8e-05
下载: 导出CSV
-
FRANCESCHETTI G, IODICE A, PERNA S, et al. SAR sensor trajectory deviations: Fourier domain formulation and extended scene simulation of raw signal[J]. IEEE Transactions on Geoscience and Remote Sensing, 2006, 44(9): 2323–2334. doi: 10.1109/tgrs.2006.873206 FRANCESCHETTI G, IODICE A, PERNA S, et al. Efficient simulation of airborne SAR raw data of extended scenes[J]. IEEE Transactions on Geoscience and Remote Sensing, 2006, 44(10): 2851–2860. doi: 10.1109/TGRS.2006.875786 DENG Bin, LI Xiang, WANG Hongqiang, et al. Fast raw-signal simulation of extended scenes for missile-borne SAR with constant acceleration[J]. IEEE Geoscience and Remote Sensing Letters, 2011, 8(1): 44–48. doi: 10.1109/LGRS.2010.2050675 刘昕, 张林让, 刘楠, 等. 基于级数反演法的变速运动SAR回波二维频域模拟算法[J]. 宇航学报, 2014, 35(7): 827–833. doi: 10.3873/j.issn.1000-1328.2014.07.012LIU Xin, ZHANG Linrang, LIU Nan, et al. 2-D fourier domain algorithm for side-looking SAR with variable velocity based on reversion of series[J]. Journal of Astronautics, 2014, 35(7): 827–833. doi: 10.3873/j.issn.1000-1328.2014.07.012 刁桂杰, 许小剑. 大斜视SAR原始数据的快速模拟算法研究[J]. 电子与信息学报, 2011, 33(3): 684–689. doi: 10.3724/SP.J.1146.2010.00498DIAO Guijie and XU Xiaojian. Fast algorithms for SAR raw data simulation with large squint angles[J]. Journal of Electronics &Information Technology, 2011, 33(3): 684–689. doi: 10.3724/SP.J.1146.2010.00498 DELL’AGLIO D A G, DI MARTINO G, IODICE A, et al. A unified formulation of SAR raw signals from extended scenes for all acquisition modes with application to simulation[J]. IEEE Transactions on Geoscience and Remote Sensing, 2018, 56(8): 4956–4967. doi: 10.1109/TGRS.2018.2844094 汪丙南, 张帆, 向茂生. 基于混合域的SAR回波快速算法[J]. 电子与信息学报, 2011, 33(3): 690–695. doi: 10.3724/SP.J.1146.2010.00555WANG Bingnan, ZHANG Fan, and XIANG Maosheng. SAR raw signal fast algorithm in mixed domain[J]. Journal of Electronics &Information Technology, 2011, 33(3): 690–695. doi: 10.3724/SP.J.1146.2010.00555 MENG Ziqiang, LI Yachao, LI Chunbiao, et al. A raw data simulator for bistatic forward-looking high-speed maneuvering-platform SAR[J]. Signal Processing, 2015, 117: 151–164. doi: 10.1016/j.sigpro.2015.05.008 HUAI Yuanyuan, LIANG Yi, DING Jinshan, et al. An inverse extended Omega-K algorithm for SAR raw data simulation with trajectory deviations[J]. IEEE Geoscience and Remote Sensing Letters, 2016, 13(6): 826–830. doi: 10.1109/LGRS.2016.2548240 LIAO Yi, ZHOU Song, and YANG Lei. Focusing of SAR with curved trajectory based on improved hyperbolic range equation[J]. IEEE Geoscience and Remote Sensing Letters, 2018, 15(3): 454–458. doi: 10.1109/lgrs.2018.2794471 党彦锋, 梁毅, 别博文, 等. 俯冲段大斜视SAR子孔径成像二维空变校正方法[J]. 电子与信息学报, 2018, 40(11): 2621–2629. doi: 10.11999/JEIT180021DANG Yanfeng, LIANG Yi, BIE Bowen, et al. Two-dimension space-variance correction approach for diving highly squinted SAR imaging with sub-aperture[J]. Journal of Electronics &Information Technology, 2018, 40(11): 2621–2629. doi: 10.11999/JEIT180021 李宁, 别博文, 邢孟道, 等. 基于多普勒重采样的恒加速度大斜视SAR成像算法[J]. 电子与信息学报, 2019, 41(12): 2873–2880. doi: 10.11999/JEIT180953LI Ning, BIE Bowen, XING Mengdao, et al. A doppler resampling based imaging algorithm for high squint SAR with constant acceleration[J]. Journal of Electronics &Information Technology, 2019, 41(12): 2873–2880. doi: 10.11999/JEIT180953 别博文, 孙路, 邢孟道, 等. 基于局部直角坐标和子区域处理的弹载SAR频域成像算法[J]. 电子与信息学报, 2018, 40(8): 1779–1786. doi: 10.11999/JEIT171107BIE Bowen, SUN Lu, XING Mengdao, et al. A frequency-domain algorithm based on local Cartesian coordinate and subregion processing for missile-borne SAR imaging[J]. Journal of Electronics &Information Technology, 2018, 40(8): 1779–1786. doi: 10.11999/JEIT171107 邓欢, 李亚超, 梅海文, 等. 弹载曲线轨迹双基SAR反向滤波PFA成像与图像畸变校正算法[J]. 电子与信息学报, 2018, 40(11): 2638–2644. doi: 10.11999/JEIT170994DENG Huan, LI Yachao, MEI Haiwen, et al. New back-filtering PFA imaging algorithm and distortion correction method for missile-borne bistatic SAR with curved track[J]. Journal of Electronics &Information Technology, 2018, 40(11): 2638–2644. doi: 10.11999/JEIT170994 DANG Yanfeng, LIANG Yi, BIE Bowen, et al. A range perturbation approach for correcting spatially variant range envelope in diving highly squinted SAR with nonlinear trajectory[J]. IEEE Geoscience and Remote Sensing Letters, 2018, 15(6): 858–862. doi: 10.1109/LGRS.2018.2812158 -
图(8) / 表(2)
