各向同性电离层低频一跳天波时延特性研究

周丽丽; 闫晶晶; 穆中林; 王桥桥; 刘承琳; 何立风

doi:10.11999/JEIT190528

各向同性电离层低频一跳天波时延特性研究

doi: 10.11999/JEIT190528

1.
陕西科技大学电子信息与人工智能学院西安 710021
2.
陕西科技大学电气与控制工程学院西安 710021
3.
空军工程大学航空工程学院西安 710038
4.
西安理工大学自动化与信息工程学院西安 710048

基金项目: 国家自然科学基金(61401261)，中国博士后科学基金(2016M600803)

详细信息

作者简介:
周丽丽：女，1981年生，副教授，研究方向为电波传播与电磁场计算

闫晶晶：女，1993年生，硕士生，研究方向为电波传播与电磁场计算

穆中林：男，1981年生，讲师，研究方向为电波传播、导航与控制

王桥桥：女，1995年生，硕士生，研究方向为控制工程

刘承琳：女，1998年生，本科生，研究方向为控制工程

何立风：男，1962年生，教授，研究方向为模式识别与人工智能

通讯作者:
周丽丽　zhoulili@sust.edu.cn

中图分类号: TN011
计量
- 文章访问数: 2813
- HTML全文浏览量: 1071
- PDF下载量: 81
- 被引次数: 0
出版历程
- 收稿日期: 2019-07-11
- 修回日期: 2020-02-20
- 网络出版日期: 2020-03-25
- 刊出日期: 2020-07-23

Study on Time Delay Characteristics of Low Frequency One-hop Sky Waves in the Isotropic Ionosphere

1.
School of Electronic Information and Artificial Intelligence, Shaanxi University of Science and Technology, Xi’an 710021, China
2.
School of Electrical and Control Engineering, Shaanxi University of Science and Technology, Xi’an 710021, China
3.
College of Aeronautics Engineering, Air Force Engineering University, Xi’an 710038, China
4.
School of Automation and Information Engineering, Xi’an University of Technology, Xi’an 710048, China

Funds: The National Natural Science Foundation of China (61401261), China Postdoctoral Science Foundation (2016M600803)

摘要

摘要:
低频天波的准确预测对于低电离层探测、远程导航授时具有重要意义。该文基于传统“波跳”理论和FDTD方法对地-电离层波导中天波传播时延特性进行研究。结合天地波时域分离技术，给出了100 kHz载频罗兰-C信号在均匀/指数渐变各向同性电离层条件下，距发射台200 km范围内采用两种方法计算的一跳天波时延随收发距离的变化规律。与“波跳”理论相比，该方法可同时考虑地面不规则、电离层昼夜参数分布不均匀的影响，计算精度更高。
- 低频电波 /
- “波跳”理论 /
- 一跳天波 /
- 时延
Abstract:
Accurate prediction of low-frequency sky-wave has significance for the lower ionosphere detection and remote navigation timing. The characteristics of sky-wave propagation time delay in the Earth-ionosphere waveguide are studied in this paper based on the traditional wave-hop theory and FDTD method. Time delay variations of 100 kHz one-hop sky waves are given under homogeneous/exponentially graded isotropic ionosphere waveguide models. The great-circle distance between the transmitter and the receiver is within 200 km. Together with a sky- and ground-wave separation technique in the time domain, the narrow-band Loran-C signals are employed in two methods. Compared to the results of wave-hop theory, the method in this paper has higher calculation accuracy by considering the influence of irregular earth and inhomogeneous distribution of ionospheric day-night parameters at the same time.
- Low-frequency wave /
- Wave-hop theory /
- One-hop sky wave /
- Time delay

HTML全文

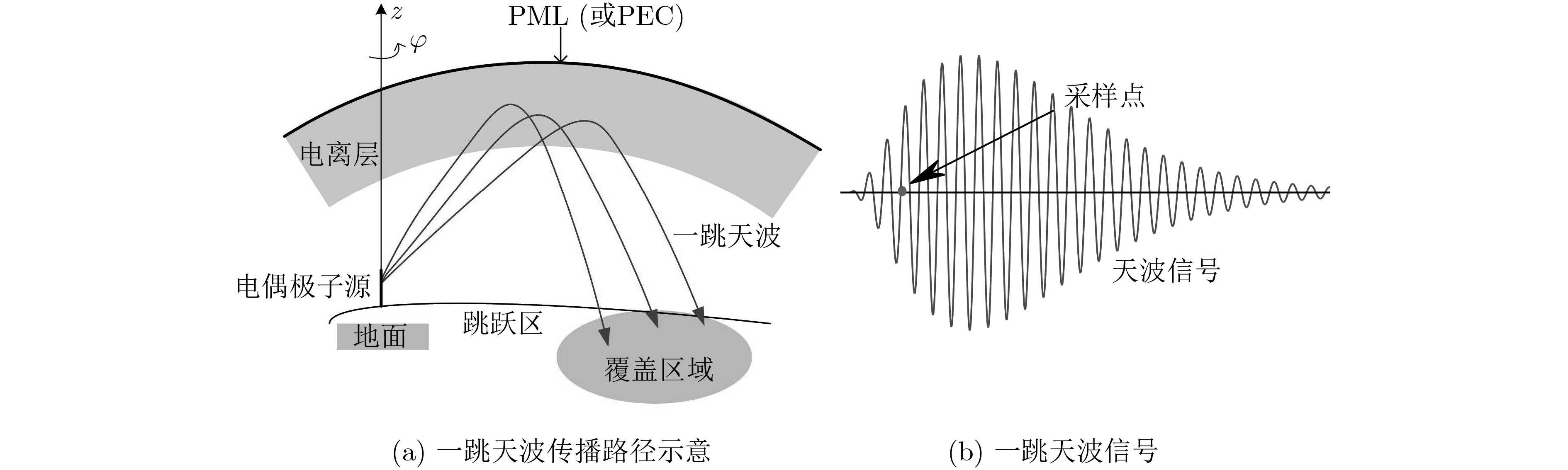

图 1 低频天地波传播示意图

下载: 全尺寸图片幻灯片

图 2 平地面、均匀电离层波导模型的一跳天波2次时延

下载: 全尺寸图片幻灯片

图 3 平地面、指数渐变(垂直方向)电离层波导模型的一跳天波2次时延

下载: 全尺寸图片幻灯片

图 4 平地面、跨昼夜过渡区域电离层波导模型的一跳天波2次时延

下载: 全尺寸图片幻灯片

图 5 复杂地面、指数渐变(垂直方向)电离层波导模型的一跳天波2次时延

下载: 全尺寸图片幻灯片

参考文献(16)

WANG J C H. Seasonal variation of LF/MF sky-wave field strengths[J]. IEEE Transactions on Broadcasting, 2008, 54(3): 437–440. doi: 10.1109/TBC.2008.919390

PU Yurong, YANG Hongjuan, WANG Lili, et al. Analysis and modeling of temporal variation properties for LF ground-wave propagation delay[J]. IEEE Antennas and Wireless Propagation Letters, 2019, 18(4): 641–645. doi: 10.1109/LAWP.2019.2900271

于文启, 陈建文, 李雪. 天波超视距雷达电离层相位污染时频校正方法综合性能评估[J]. 电子与信息学报, 2018, 40(4): 992–1001. doi: 10.11999/JEIT170701

YU Wenqi, CHEN Jianwen, and LI Xue. Comprehensive performance evaluation of ionosphere phase contamination time-frequency correction approaches in over-the-horizon radar[J]. Journal of Electronics &Information Technology, 2018, 40(4): 992–1001. doi: 10.11999/JEIT170701

WAKAI N, KURIHARA N, and OTSUKA A. Numerical method for calculating LF sky-wave, ground-wave and their resultant wave field strengths[J]. Electronics Letters, 2004, 40(5): 288–290. doi: 10.1049/el:20040207

CUMMER S A. Modeling electromagnetic propagation in the earth-ionosphere waveguide[J]. IEEE Transactions on Antennas and Propagation, 2000, 48(9): 1420–1429. doi: 10.1109/8.898776

XU Honglei, GU Tingting, ZHENG Juan, et al. LF sky wave propagation excited by a horizontal electric dipole towards understanding of its radiation mechanism[J]. ACES Journal, 2018, 33(6): 657–664.

刘军. 低频时码授时系统中的若干理论与工程设计实验研究[D]. [博士论文], 中国科学院研究生院(国家授时中心), 2002.

LIU Jun. The theory and the technique of engineering on low-frequency time-code in time service system[D]. [Ph.D. dissertation], National Time Service Center Chinese Academy of Sciences, 2002.

THÈVENOT M, BÉRENGER J P, MONEDIÈRE T, et al. A FDTD scheme for the computation of VLF-LF propagation in the anisotropic earth-ionosphere waveguide[J]. Annales Des Télécommunications, 1999, 54(5/6): 297–310. doi: 10.1007/BF02995540

BÉRENGER J P. FDTD computation of VLF-LF propagation in the earth-ionosphere waveguide[J]. Annales Des Télécommunications, 2002, 57(11/12): 1059–1090. doi: 10.1007/BF02999454

TEKBAS K, COSTEN F, BÉRENGER J P, et al. Subcell modeling of frequency-dependent thin layers in the FDTD method[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(1): 278–286. doi: 10.1109/TAP.2016.2628712

LI Yun, HUA Yu, YAN Baorong, et al. Experimental study on a modified method for propagation delay of long wave signal[J]. IEEE Antennas and Wireless Propagation Letters, 2019, 18(9): 1716–1720. doi: 10.1109/LAWP.2019.2926734

ZHANG Kai, WAN Guobin, LI Minchao, et al. Skywave delay estimation in enhanced Loran based on extended invariance principle weighted fourier transform and relaxation algorithm[J]. IET Radar, Sonar & Navigation, 2019, 13(8): 1344–1349. doi: 10.1049/iet-rsn.2018.5651

SON P W, RHEE J H, and SEO J. Novel multichain-based Loran positioning algorithm for resilient navigation[J]. IEEE Transactions on Aerospace and Electronic Systems, 2018, 54(2): 666–679. doi: 10.1109/TAES.2017.2762438

ZHOU Lili, XI Xiaoli, ZHANG Jinsheng, et al. A new method for Loran-C ASF calculation over irregular terrain[J]. IEEE Transactions on Aerospace and Electronic Systems, 2013, 49(3): 1738–1744. doi: 10.1109/TAES.2013.6558016

QIN Zilong, CUMMER S A, CHEN Mingli, et al. A comparative study of the ray theory model with the finite difference time domain model for lightning sferic transmission in earth-ionosphere waveguide[J]. Journal of Geophysical Research, 2019, 124(6): 3335–3349. doi: 10.1029/2018JD029440

KISELEVA O, BRANDELIK A, HÜBNER C, et al. A new far-field low-frequency electromagnetic method for measurement of temporal variations in subsurface electrical conductivity averaged over a transect[J]. Near Surface Geophysics, 2018, 16(5): 573–590. doi: 10.1002/nsg.12009
