分布式相参雷达LFM宽带去斜参数估计方法

周宝亮

周宝亮. 分布式相参雷达LFM宽带去斜参数估计方法[J]. 电子与信息学报, 2020, 42(7): 1566-1572. doi: 10.11999/JEIT190398
引用本文: 周宝亮. 分布式相参雷达LFM宽带去斜参数估计方法[J]. 电子与信息学报, 2020, 42(7): 1566-1572. doi: 10.11999/JEIT190398
Baoliang ZHOU. Distributed Coherent Radar LFM Wideband Stretch Parameter Estimation Method[J]. Journal of Electronics & Information Technology, 2020, 42(7): 1566-1572. doi: 10.11999/JEIT190398
Citation: Baoliang ZHOU. Distributed Coherent Radar LFM Wideband Stretch Parameter Estimation Method[J]. Journal of Electronics & Information Technology, 2020, 42(7): 1566-1572. doi: 10.11999/JEIT190398

分布式相参雷达LFM宽带去斜参数估计方法

doi: 10.11999/JEIT190398
详细信息
    作者简介:

    周宝亮:男,1985年生,高级工程师,研究方向为分布式孔径相参合成雷达技术

    通讯作者:

    周宝亮 zbluestc@126.com

  • 中图分类号: TN957

Distributed Coherent Radar LFM Wideband Stretch Parameter Estimation Method

  • 摘要:

    宽带分布式相参雷达技术能够有效提升目标测量精度和识别性能,具有重要的研究价值。针对现有雷达装备一般不具有同时对正负调频率宽带线性调频信号进行去斜处理的能力,即在接收相参合成阶段无法通过正负调频率宽带去斜方式获取宽带信号发射相参所需延时相位值的问题,该文利用单元雷达与目标之间存在延时差,将单元雷达发射的宽带线性调频信号等效为目标信号,对接收信号进行互相关处理获取发射相参合成所需的参数值,通过建模和仿真实现接收相参和发射相参合成处理,并对飞机目标进行1发2收相参探测试验,获得了理想的试验结果。该方法具有估计精度高、运算量小和时实性好的优势,可应用于分布式相参雷达工程实现。

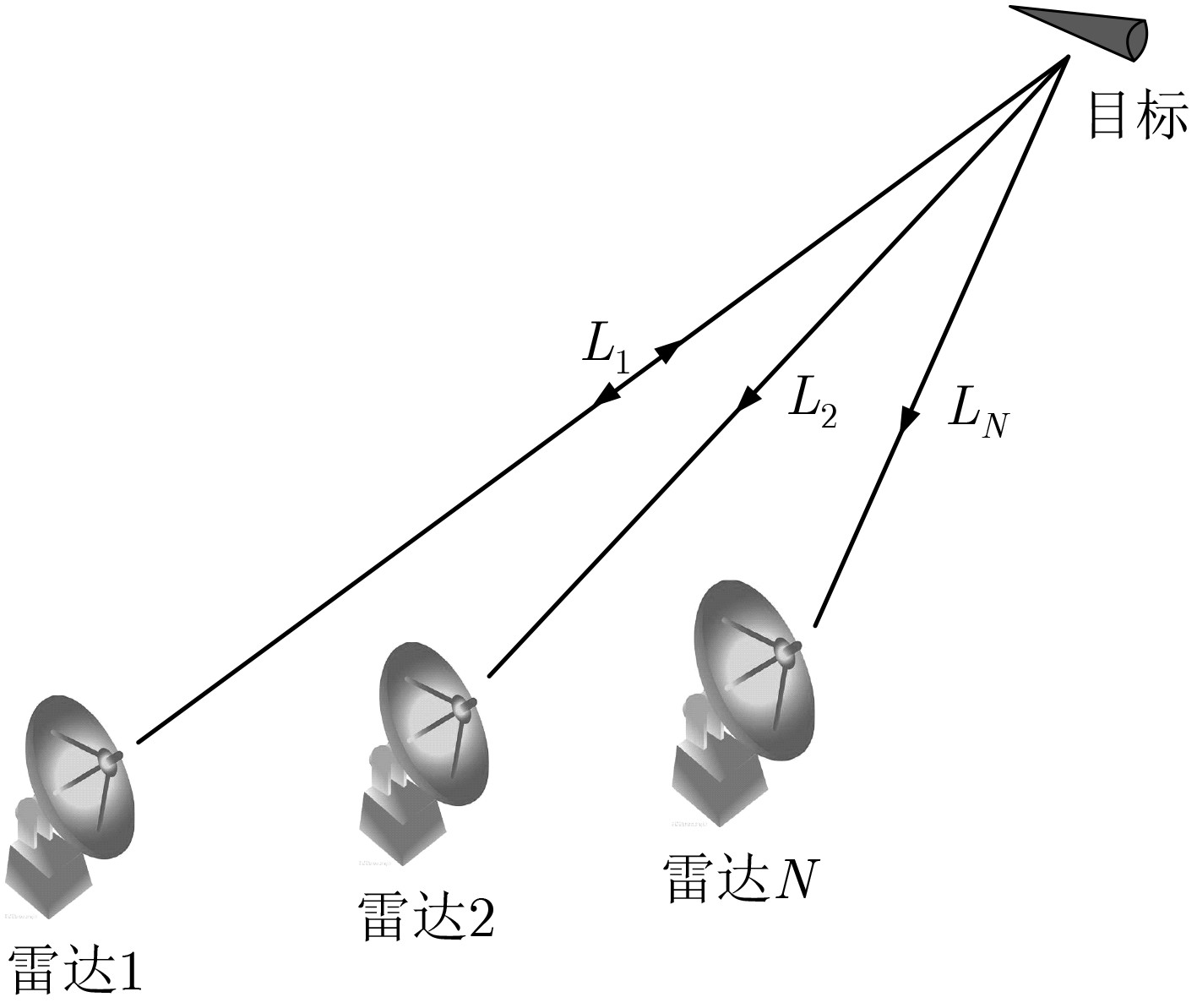

  • 图  1  分布式相参雷达1发多收模式

    图  2  分布式相参雷达多发多收模式

    图  3  单元雷达去斜结果

    图  4  接收相参合成结果

    图  5  互相关仿真结果

    图  6  互相关仿真结果

    图  7  发射信号相参合成结果

    图  8  接收相参合成结果

    图  9  相参合成信号幅度图

    表  1  仿真参数

    仿真名称数值
    雷达个数(部)2
    信号频率X波段
    信号带宽(GHz)2
    雷达1与目标距离(m)4.6
    雷达2与目标距离(m)10.5
    下载: 导出CSV
  • CUOMO K M, COUTTS S D, MCHARG J C, et al. Wideband aperture coherence processing for next generation radar (NexGen)[R]. Report ESC-TR-2004-087, 2004.
    COUTTS S, CUOMO K, MCHARG J, et al. Distributed coherent aperture measurements for next generation BMD radar[C]. The 4th IEEE Workshop on Sensor Array and Multichannel Processing, Waltham, USA, 2006: 390–393.
    BROOKNER E. Phased-array and radar breakthroughs[C]. 2007 IEEE Radar Conference, Boston, USA, 2007: 37–42.
    BROOKNER E. Phased-array and radar astounding breakthroughs-an update[C]. 2008 IEEE Radar Conference, Rome, Italy, 2008: 1–6. doi: 10.1109/RADAR.2008.4720771.
    National Research Council of the National Academies. Making sense of ballistic missile defense: An assessment of concepts and systems for U.S. boost-phase missile defense in comparison to other alternatives[R]. Washington: National Academies Press, 2012.
    鲁耀兵, 高红卫, 周宝亮. 分布式孔径相参合成雷达技术[J]. 雷达学报, 2017, 6(1): 55–64. doi: 10.12000/JR17014

    LU Yaobing, GAO Hongwei, and ZHOU Baoliang. Distributed aperture coherence-synthetic radar technology[J]. Journal of Radars, 2017, 6(1): 55–64. doi: 10.12000/JR17014
    周宝亮, 周东明, 高红卫, 等. 分布式孔径相参合成雷达联合天线增益分析[J]. 雷达学报, 2017, 6(4): 332–339. doi: 10.12000/JR17055

    ZHOU Baoliang, ZHOU Dongming, GAO Hongwei, et al. Distributed aperture coherence-synthetic radar joint antenna gain analysis[J]. Journal of Radars, 2017, 6(4): 332–339. doi: 10.12000/JR17055
    周宝亮, 高红卫, 文树梁, 等. 分布式相参雷达基线选择与标定误差分析[J]. 系统工程与电子技术, 2018, 40(11): 2438–2443. doi: 10.3969/j.issn.1001-506X.2018.11.08

    ZHOU Baoliang, GAO Hongwei, WEN Shuliang, et al. Distributed coherent radar baseline selection and calibration error analysis[J]. Systems Engineering and Electronics, 2018, 40(11): 2438–2443. doi: 10.3969/j.issn.1001-506X.2018.11.08
    周宝亮, 雷子健, 周东明, 等. 分布式孔径相参雷达预警探测技术[J]. 信号处理, 2018, 34(11): 1330–1338. doi: 10.16798/j.issn.1003-0530.2018.11.008

    ZHOU Baoliang, LEI Zijian, ZHOU Dongming, et al. Early-warning detection technology of distributed aperture coherent radar[J]. Journal of Signal Processing, 2018, 34(11): 1330–1338. doi: 10.16798/j.issn.1003-0530.2018.11.008
    周宝亮, 周东明, 高红卫, 等. 分布式孔径相参合成雷达系统设计与试验研究[J]. 现代防御技术, 2018, 46(3): 112–119. doi: 10.3969/j.issn.1009-086x.2018.03.017

    ZHOU Baoliang, ZHOU Dongming, GAO Hongwei, et al. Research on the distributed aperture coherence-synthetic radar system design and experiment[J]. Modern Defence Technology, 2018, 46(3): 112–119. doi: 10.3969/j.issn.1009-086x.2018.03.017
    李尚远, 肖雪迪, 郑小平. 基于微波光子学的分布式相参孔径雷达[J]. 雷达学报, 2019, 8(2): 178–188. doi: 10.12000/JR19024

    LI Shangyuan, XIAO Xuedi, and ZHENG Xiaoping. Distributed coherent aperture radar enabled by microwave photonics[J]. Journal of Radars, 2019, 8(2): 178–188. doi: 10.12000/JR19024
    GAO Hongwei, ZHOU Baoliang, ZHOU Dongming, et al. Performance analysis and experimental study on distributed aperture coherence-synthetic radar[C]. 2016 CIE International Conference on Radar, Guangzhou, China, 2016: 343–347. doi: 10.1109/RADAR.2016.8059191.
    LONG Teng, ZHANG Honggang, ZENG Tao, et al. High accuracy unambiguous angle estimation using multi-scale combination in distributed coherent aperture radar[J]. IET Radar, Sonar & Navigation, 2017, 11(7): 1090–1098. doi: 10.1049/iet-rsn.2016.0450
    ZENG Tao, YIN Pilei, and LIU Quanhua. Wideband distributed coherent aperture radar based on stepped frequency signal: theory and experimental results[J]. IET Radar, Sonar & Navigation, 2016, 10(4): 672–688. doi: 10.1049/iet-rsn.2015.0221
    SUN Peilin, TANG Jun, HE Qian, et al. Cramer–Rao bound of parameters estimation and coherence performance for next generation radar[J]. IET Radar, Sonar & Navigation, 2013, 7(5): 553–567. doi: 10.1049/iet-rsn.2012.0139
    宋靖, 周青松, 张剑云. 基于相关法的分布式全相参雷达相干参数估计及相参性能[J]. 电子与信息学报, 2015, 37(7): 1710–1715. doi: 10.11999/JEIT141339

    SONG Jing, ZHOU Qingsong, and ZHANG Jianyun. Coherent parameters estimation by cross-correlation for distributed aperture fully coherent radar[J]. Journal of Electronics &Information Technology, 2015, 37(7): 1710–1715. doi: 10.11999/JEIT141339
    刘兴华, 徐振海, 肖顺平. 分布式相参雷达几何布置约束条件[J]. 系统工程与电子技术, 2017, 39(8): 1723–1731. doi: 10.3969/j.issn.1001-506X.2017.08.09

    LIU Xinghua, XU Zhenhai, and XIAO Shunping. Geometric arrangement constraints of distributed coherent aperture radar[J]. Systems Engineering and Electronics, 2017, 39(8): 1723–1731. doi: 10.3969/j.issn.1001-506X.2017.08.09
    黄巍, 贺知明, 向敬成. 宽带雷达能量积累与信号检测方法研究[J]. 系统工程与电子技术, 2004, 26(7): 889–892. doi: 10.3321/j.issn:1001-506X.2004.07.011

    HUANG Wei, HE Zhiming, and XIANG Jingcheng. On detection methods of broadband radar signals[J]. Systems Engineering and Electronics, 2004, 26(7): 889–892. doi: 10.3321/j.issn:1001-506X.2004.07.011
    李巍, 齐巍, 丁赤飚, 等. 基于分布式雷达的宽带脉冲三维测距机制及方法研究[J]. 电子与信息学报, 2015, 37(3): 643–650. doi: 10.11999/JEIT140575

    LI Wei, QI Wei, DING Chibiao, et al. Research on mechanisms and methods in the 3D measurement with wide-band pulse based on distributed radar[J]. Journal of Electronics &Information Technology, 2015, 37(3): 643–650. doi: 10.11999/JEIT140575
