基于非局部操作的深度卷积神经网络车位占用检测算法

申铉京; 沈哲; 黄永平; 王玉

doi:10.11999/JEIT190349

基于非局部操作的深度卷积神经网络车位占用检测算法

doi: 10.11999/JEIT190349

申铉京¹,
沈哲¹,
黄永平¹,
王玉^2, ,

1.
吉林大学计算机科学与技术学院长春 130012
2.
吉林大学应用技术学院长春 130012

基金项目: 智慧法院智能化服务技术研究及支撑平台开发(2018YFC0830100)，国家自然科学基金(61672259, 61876070)，国家自然科学基金青年科学基金(61602203)，吉林省科技发展计划重点科技研发项目(20180201064SF)，吉林省优秀青年人才基金(20180520020JH)

详细信息

作者简介:
申铉京：男，1958年生，博士，教授，研究方向为图像处理与模式识别、多媒体信息安全、智能控制技术

沈哲：男，1995年生，硕士生，研究方向为图像处理与模式识别

黄永平：男，1964年生，博士，副教授，研究方向为图像处理与模式识别、智能控制与嵌入式系统

王玉：男，1983年生，博士，副教授，研究方向为图像处理与模式识别、多媒体信息技术

通讯作者:
王玉　wangyu001@jlu.edu.cn

中图分类号: TN911.73; TP391
计量
- 文章访问数: 1978
- HTML全文浏览量: 776
- PDF下载量: 101
- 被引次数: 0
出版历程
- 收稿日期: 2019-05-17
- 修回日期: 2020-01-04
- 网络出版日期: 2020-07-01
- 刊出日期: 2020-09-27

Deep Convolutional Neural Network for Parking Space Occupancy Detection Based on Non-local Operation

1.
College of Computer Science and Technology, Jilin University, Changchun 130012, China
2.
College of Applied Technology, Jilin University, Changchun 130012, China

Funds: The Intelligent Court Intelligent Service Technology Research and Support Platform Development (2018YFC0830100), The National Natural Science Foundation of China (61672259, 61876070), The National Natural Science Foundation of China Youth Science Foundation (61602203), The Key Scientific and Technological R & D Projects of Jilin Province Science and Technology Development Plan(20180201064SF), Jilin Province Outstanding Young Talent Fund Project (20180520020JH)

摘要

摘要: 随着城市交通智能化发展，准确高效地获取可用车位对于解决日益严峻的停车难问题至关重要。该文提出一种基于非局部操作的深度卷积神经网络车位占用检测算法。针对停车位图像特性，引入非局部操作，度量远距离像素间的相似性，直接获取边缘高频特征；使用小卷积核获取局部细节特征；以端到端的方式训练网络。实验中，通过设置不同卷积核尺寸和非局部模块层数，优化网络结构。实验结果表明，该文所提算法与传统的基于纹理特征的车位占用检测算法相比，无论在预测精度还是模型的泛化性能，均具有显著的优势。与当前广泛应用的基于局部特征提取的卷积神经网络相比，该算法具有较大的优势。在真实场景中，该算法同样具有较高精度，具备实际应用价值。
- 车位占用检测 /
- 纹理特征 /
- 卷积神经网络 /
- 非局部操作
Abstract: With the intelligent development of urban traffic, accurate and efficient access to available parking spaces is essential to solve the increasingly difficult problem of parking difficulties. Therefore, this paper proposes a deep convolutional neural network parking occupancy detection algorithm based on non-local operation. For the image characteristics of parking spaces, non-local operations are introduced, the similarity between distant pixels is measured, and the high-frequency features of the edges are directly obtained. The local details are obtained by using small convolution kernels, and the network is trained in an end-to-end manner. In the experiment, the network structure is optimized by setting different convolution kernel sizes and non-local module layers. The experimental results show that compared with the traditional texture feature-based parking space occupancy detection algorithm, the proposed algorithm has significant advantages in both prediction accuracy and generalization performance of the model. At the same time, compared with the currently widely used convolutional neural network based on local feature extraction, the algorithm also has great advantages. In real scenes, the algorithm also has high precision and has practical application value.
- Parking space occupancy detection /
- Texture feature /
- Convolutional neural network /
- Non-local operation

HTML全文

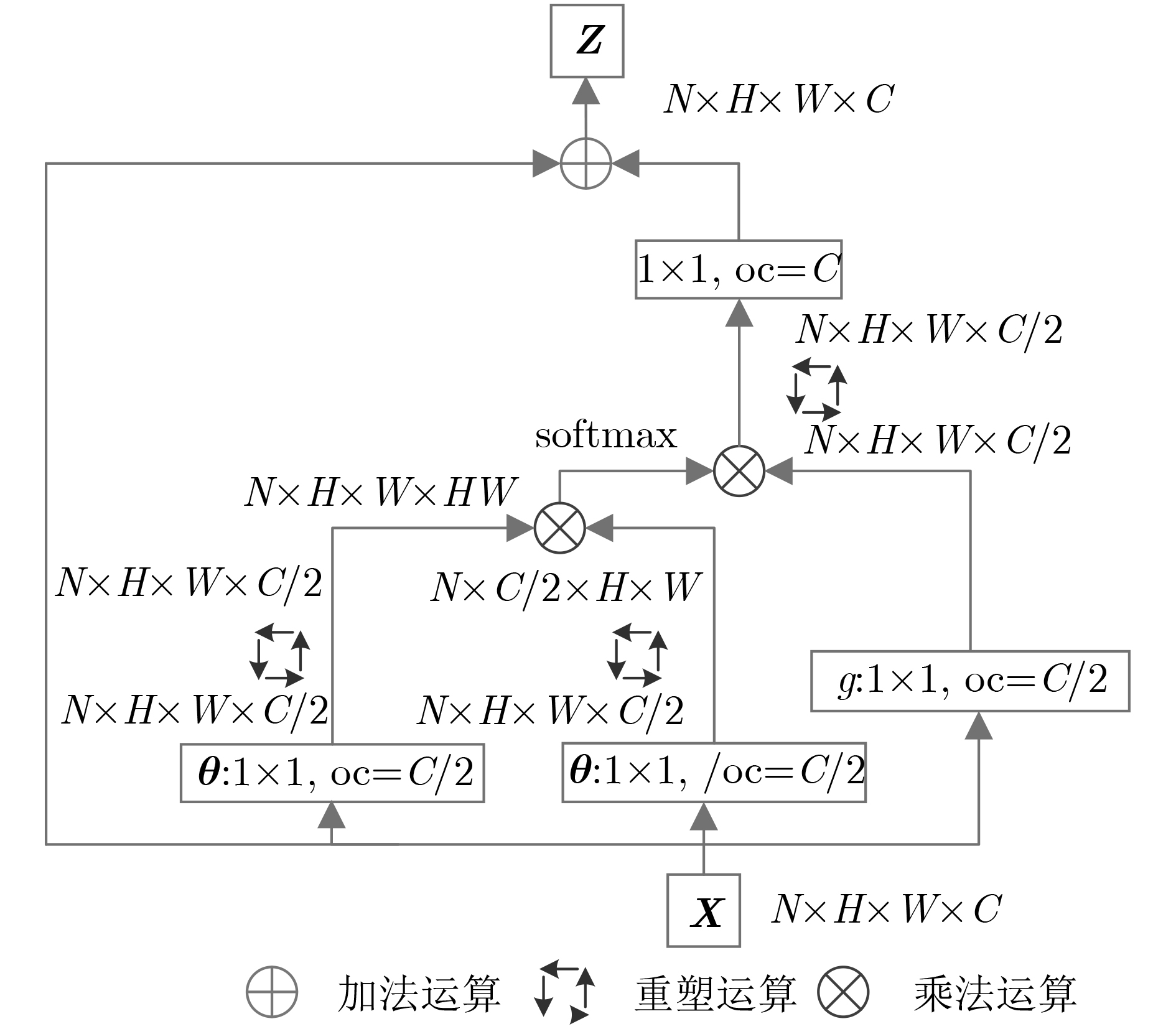

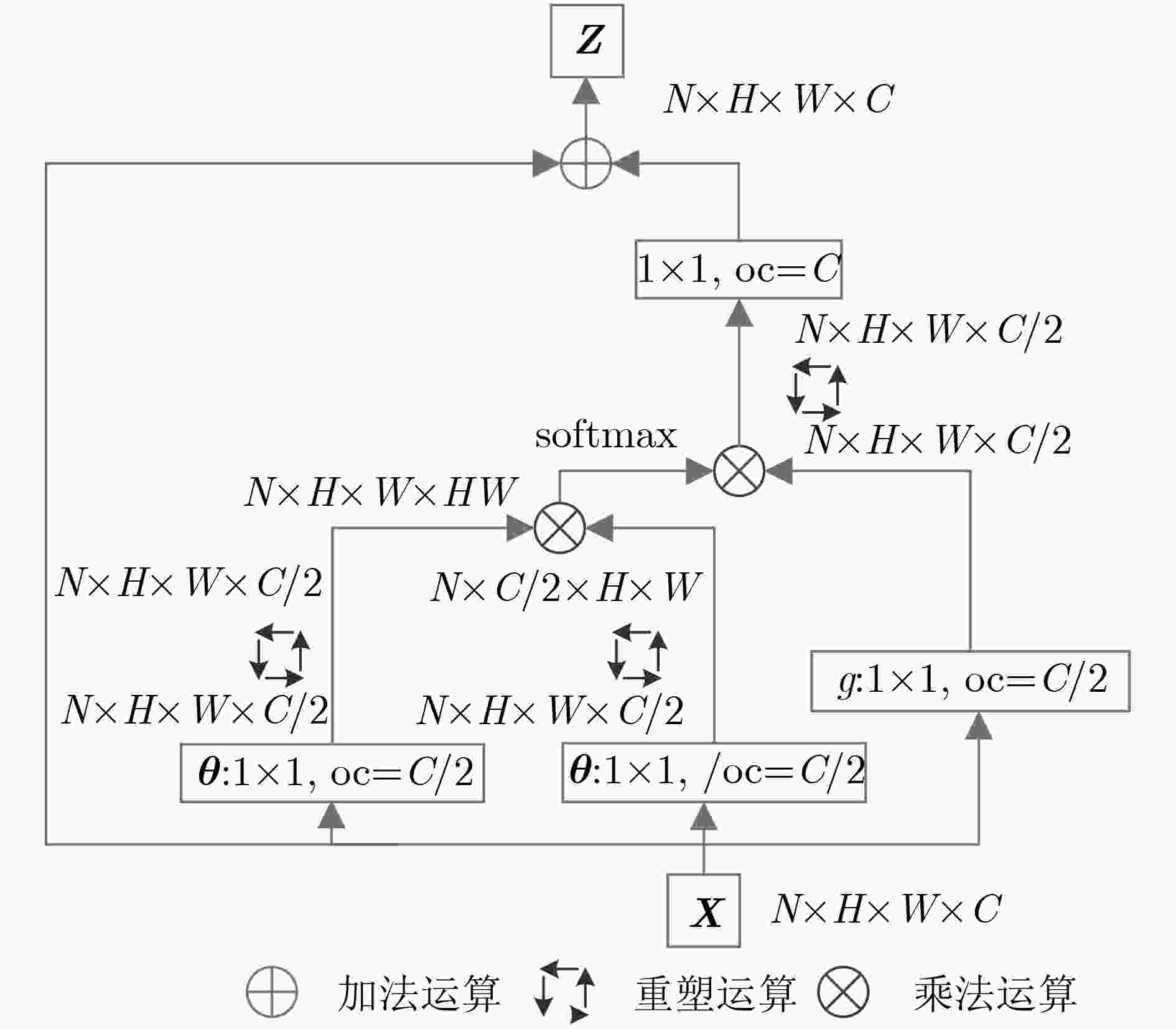

图 1 非局部模块

下载: 全尺寸图片幻灯片

图 2 停车位图像

下载: 全尺寸图片幻灯片

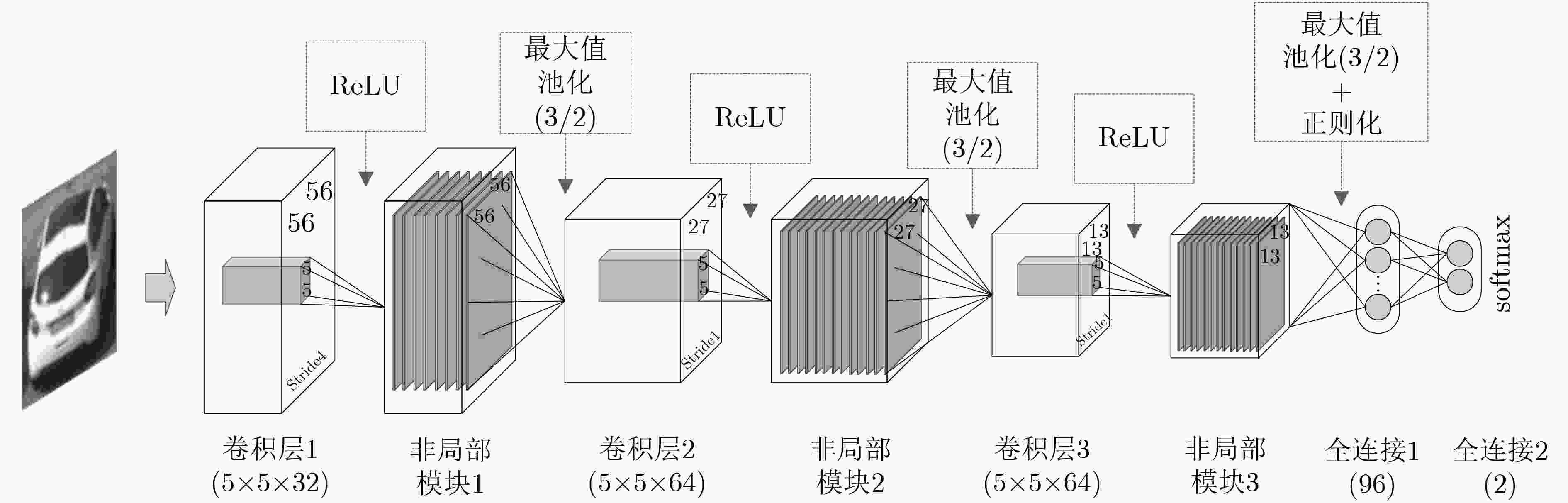

图 3 模型结构图

下载: 全尺寸图片幻灯片

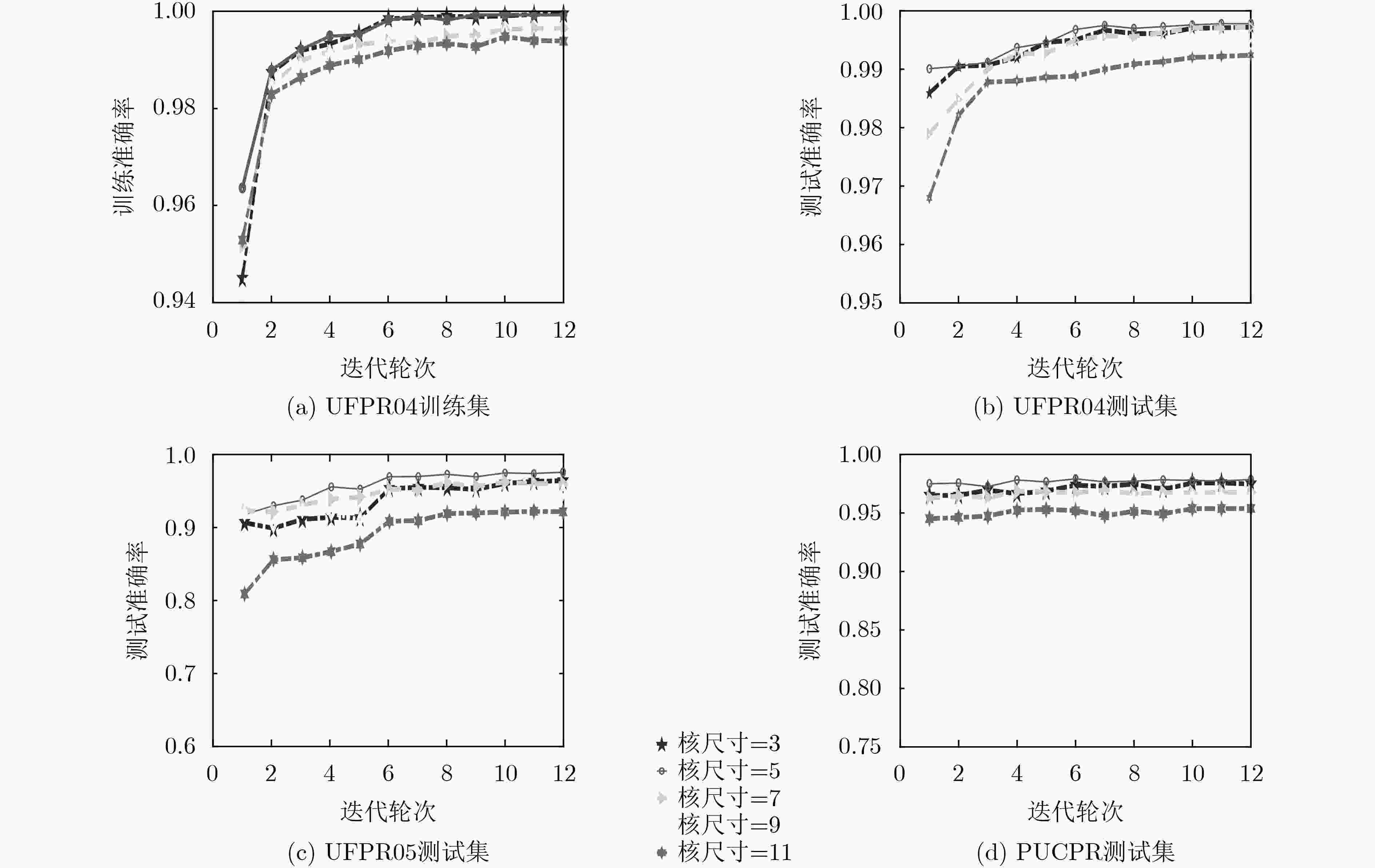

图 4 不同卷积核尺寸的准确率曲线图

下载: 全尺寸图片幻灯片

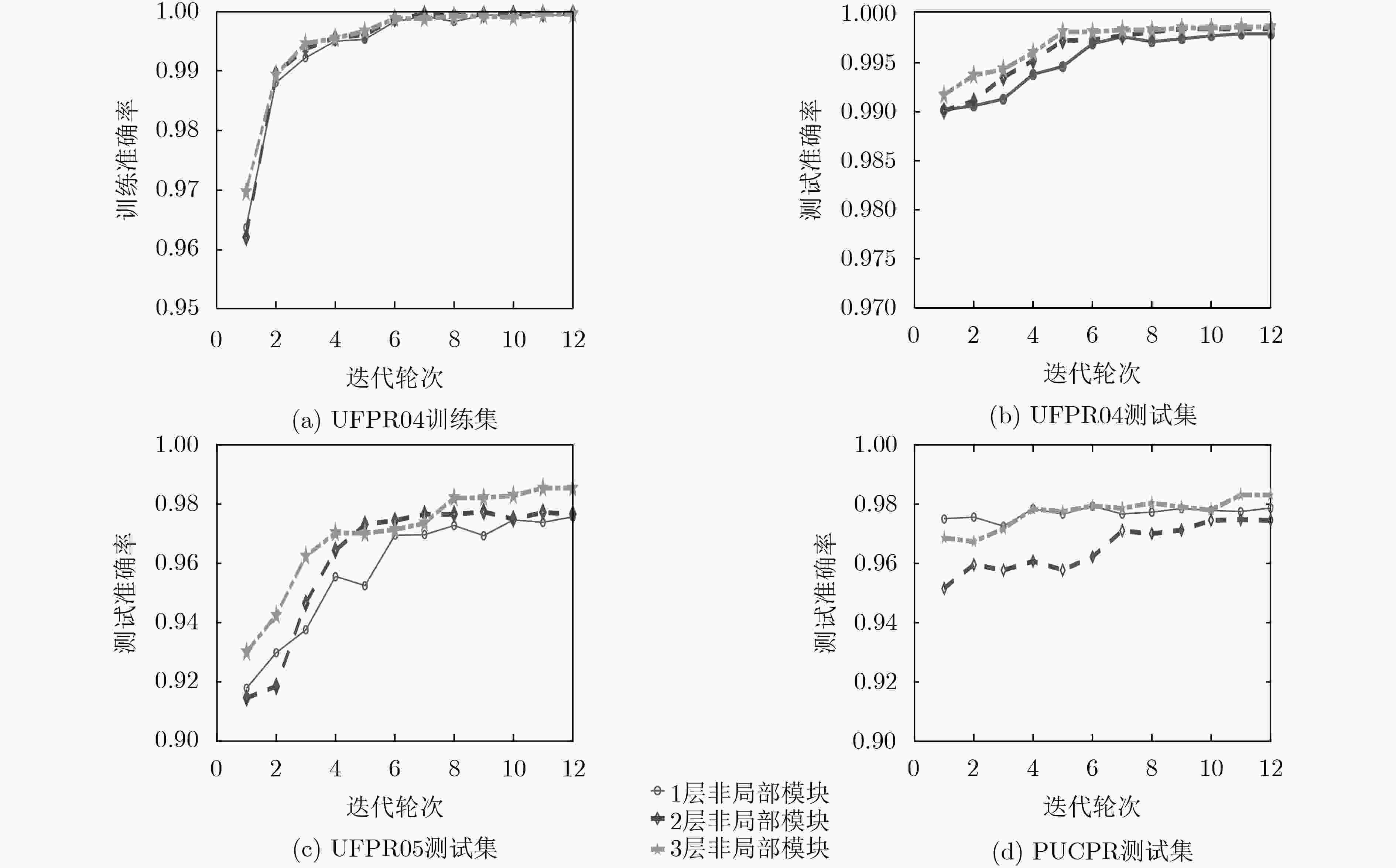

图 5 不同层数非局部模块的准确率曲线图

下载: 全尺寸图片幻灯片

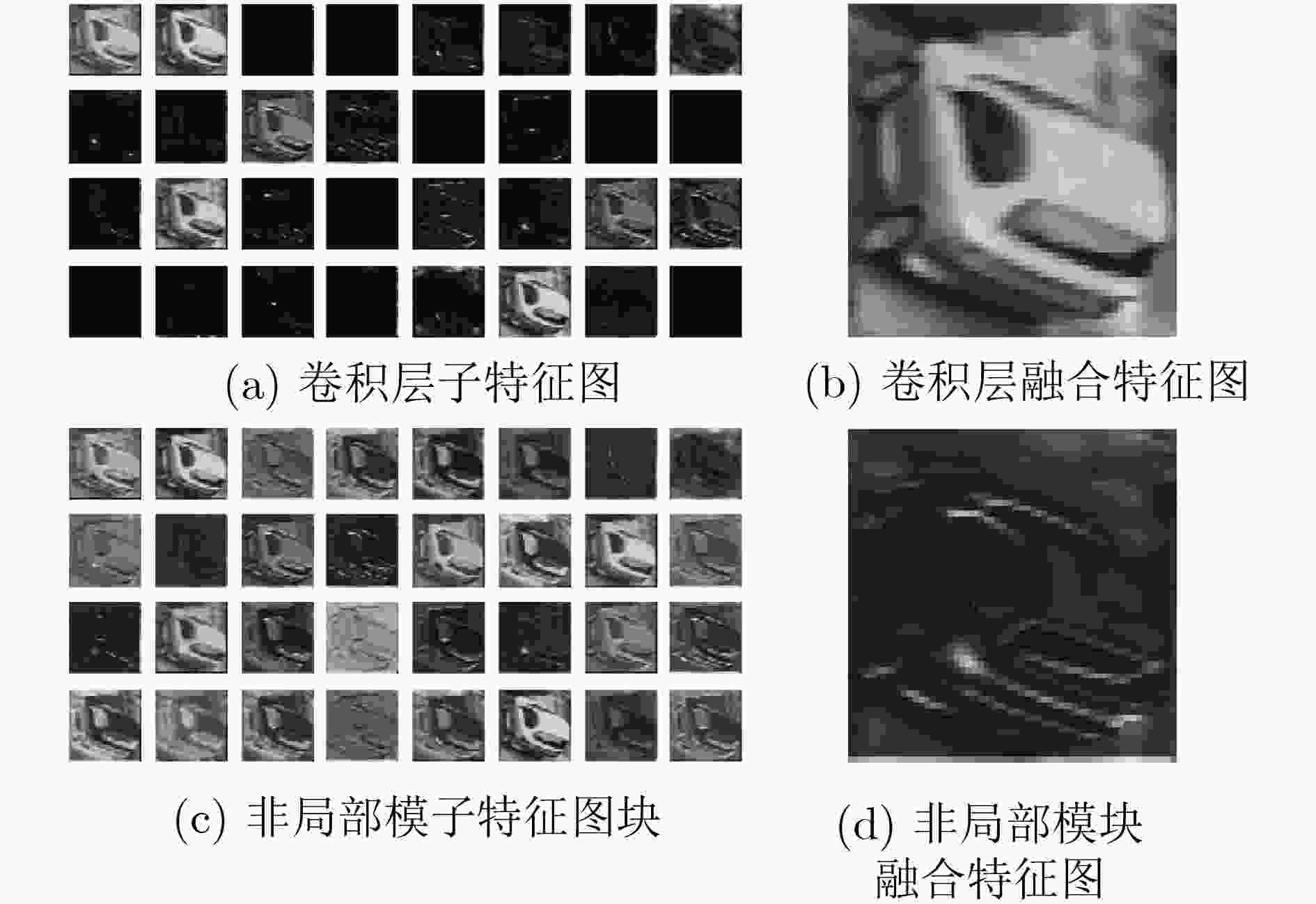

图 6 可视化的特征图

下载: 全尺寸图片幻灯片

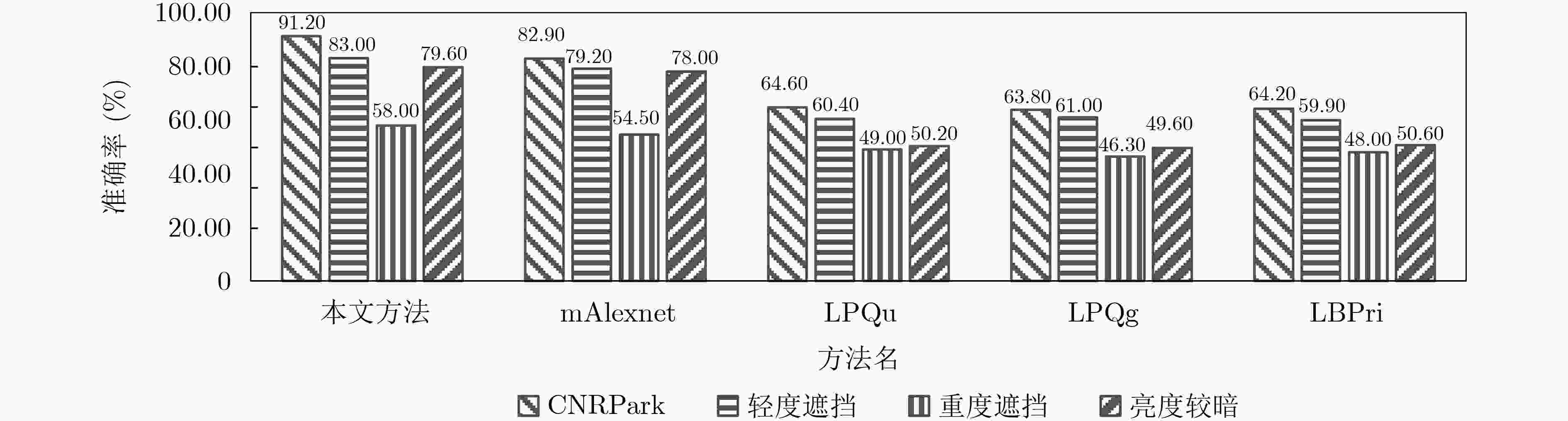

图 7 PKLot, CNRPark数据集间实验准确率对比柱状图

下载: 全尺寸图片幻灯片

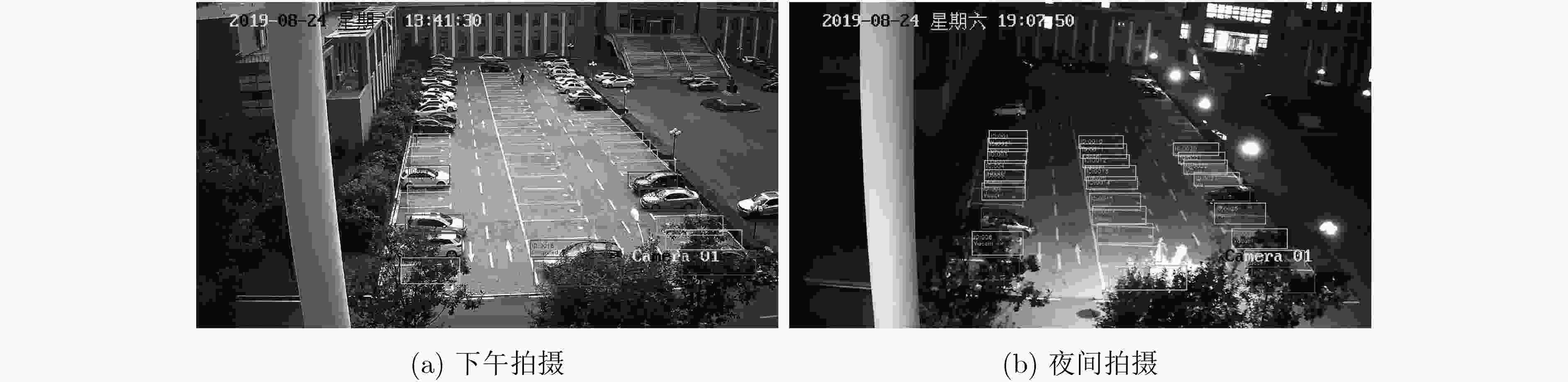

图 8 匡亚明楼停车场车位占用情况检测结果

下载: 全尺寸图片幻灯片

表 1 不同卷积核尺寸的准确率详细对比(%)

卷积核尺寸	训练精度	测试精度
卷积核尺寸	训练精度	UFPR04	UFPR05	PUCPR
3	99.97	99.74	96.40	97.48
5	99.90	99.78	97.67	97.85
7	99.56	99.72	96.00	96.78
9	99.44	99.41	94.81	96.38
11	99.41	99.25	92.18	95.39

下载: 导出CSV

表 2 不同层数非局部模块的准确率详细对比(%)

非局部模块层数	训练精度	测试精度
非局部模块层数	训练精度	UFPR04	UFPR05	PUCPR
1	99.90	99.78	97.67	97.85
2	99.96	99.81	97.65	97.55
3	99.95	99.85	98.55	98.35

下载: 导出CSV

表 3 不同方法的PKLot子数据集内测试准确率(%)

训练集	UFPR04	UFPR05	PUCPR
测试集	UFPR04	UFPR05	PUCPR
本文方法	99.85	99.62	99.92
mAlexnet	99.54	99.49	99.90
LPQu	99.50	98.90	99.58
Mean	99.64	99.30	99.61

下载: 导出CSV

表 4 不同方法的PKLot子数据集间测试准确率(%)

训练集	测试集	方法	精度
UFPR04	UFPR05	本文方法	98.55
		mAlexnet^[14]	93.29
		LPQg^[18]	84.92
		Max	88.33
	PUCPR	本文方法	98.31
		mAlexnet^[14]	98.27
		LPQg^[18]	84.25
		Mean	88.40
UFPR05	UFPR04	本文方法	94.45
		mAlexnet^[14]	93.69
		LPQg^[18]	85.76
		Mean	85.53
	PUCPR	本文方法	95.87
		mAlexnet^[14]	92.72
		LPQu^[17]	87.74
		Mean	89.83
PUCPR	UFPR04	本文方法	99.24
		mAlexnet^[14]	98.03
		LPQg^[18]	87.15
		Mean	88.88
	UFPR05	本文方法	98.89
		mAlexnet^[14]	96.00
		LBPri^[19]	82.78
		Mean	84.20

下载: 导出CSV

参考文献(19)

CAICEDO F, BLAZQUEZ C, and MIRANDA P. Prediction of parking space availability in real time[J]. Expert Systems with Applications, 2012, 39(8): 7281–7290. doi: 10.1016/j.eswa.2012.01.091

DEL POSTIGO C G, TORRES J, and MENÉNDEZ J M. Vacant parking area estimation through background subtraction and transience map analysis[J]. IET Intelligent Transport Systems, 2015, 9(9): 835–841. doi: 10.1049/iet-its.2014.0090

DAN N. Parking management system and method[P]. US, 20030144890, 2003.

TSAI L W, HSIEH J W, and FAN K C. Vehicle detection using normalized color and edge map[J]. IEEE Transactions on Image Processing, 2007, 16(3): 850–864. doi: 10.1109/tip.2007.891147

HUANG C C, TAI Yushu, and WANG S J. Vacant parking space detection based on plane-based Bayesian hierarchical framework[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2013, 23(9): 1598–1610. doi: 10.1109/tcsvt.2013.2254961

DELIBALTOV D, WU Wencheng, LOCE R P, et al. Parking lot occupancy determination from lamp-post camera images[C]. The 16th International IEEE Conference on Intelligent Transportation Systems, The Hague, Netherlands, 2013: 2387–2392. doi: 10.1109/itsc.2013.6728584.

LECUN Y, BENGIO Y, and HINTON G E. Deep learning[J]. Nature, 2015, 521(7553): 436–444. doi: 10.1038/nature14539

DE ALMEID P R L, OLIVEIRA L S, BRITTO JR A S, et al. PKLot–a robust dataset for parking lot classification[J]. Expert Systems with Applications, 2015, 42(11): 4937–4949. doi: 10.1016/j.eswa.2015.02.009

AMATO G, CARRARA F, FALCHI F, et al. Car parking occupancy detection using smart camera networks and deep learning[C]. 2016 IEEE Symposium on Computers and Communication, Messina, Italy, 2016: 1212–1217. doi: 10.1109/iscc.2016.7543901.

BUADES A, COLL B, and MOREL J M. A non-local algorithm for image denoising[C]. 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, San Diego, USA, 2005: 60–65. doi: 10.1109/cvpr.2005.38.

VASWANI A, SHAZEER N, PARMAR N, et al. Attention is all you need[C]. The 31st Conference on Neural Information Processing Systems, Long Beach, USA, 2017: 5998–6008.

WANG Xiaolong, GIRSHICK R, GUPTA A, et al. Non-local neural networks[C]. 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, USA, 2018: 7794–7803. doi: 10.1109/cvpr.2018.00813.

HE Kaiming, ZHANG Xiangyu, REN Shaoqing, et al. Deep residual learning for image recognition[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 770–778. doi: 10.1109/cvpr.2016.90.

AMATO G, CARRARA F, FALCHI F, et al. Deep learning for decentralized parking lot occupancy detection[J]. Expert Systems with Applications, 2017, 72: 327–334. doi: 10.1016/j.eswa.2016.10.055

KRIZHEVSKY A, SUTSKEVER I, and HINTON G E. ImageNet classification with deep convolutional neural networks[C]. The 25th International Conference on Neural Information Processing Systems, Red Hook, USA, 2012: 1097–1105.

NURULLAYEV S and LEE S W. Generalized parking occupancy analysis based on dilated convolutional neural network[J]. Sensors, 2019, 19(2): 277. doi: 10.3390/s19020277

OJANSIVU V and HEIKKILÄ J. Blur insensitive texture classification using local phase quantization[C]. The 3rd International Conference on Image and Signal Processing, Cherbourg-Octeville, France, 2008: 236–243. doi: 10.1007/978-3-540-69905-7_27.

RAHTU E, HEIKKILA J, OJANSIVU V, et al. Local phase quantization for blur-insensitive image analysis[J]. Image and Vision Computing, 2012, 30(8): 501–512. doi: 10.1016/j.imavis.2012.04.001

OJALA T, PIETIKAINEN M, and MAENPAA T. Multiresolution gray-scale and rotation invariant texture classification with local binary patterns[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2002, 24(7): 971–987. doi: 10.1109/tpami.2002.1017623
