基于重叠网络结构的服务功能链时空优化编排策略

谷允捷 胡宇翔 谢记超

谷允捷, 胡宇翔, 谢记超. 基于重叠网络结构的服务功能链时空优化编排策略[J]. 电子与信息学报, 2019, 41(11): 2675-2683. doi: 10.11999/JEIT190145
引用本文: 谷允捷, 胡宇翔, 谢记超. 基于重叠网络结构的服务功能链时空优化编排策略[J]. 电子与信息学报, 2019, 41(11): 2675-2683. doi: 10.11999/JEIT190145
Yunjie GU, Yuxiang HU, Jichao XIE. A Spatial and Temporal Optimal Method of Service Function Chain Orchestration Based on Overlay Network Structure[J]. Journal of Electronics & Information Technology, 2019, 41(11): 2675-2683. doi: 10.11999/JEIT190145
Citation: Yunjie GU, Yuxiang HU, Jichao XIE. A Spatial and Temporal Optimal Method of Service Function Chain Orchestration Based on Overlay Network Structure[J]. Journal of Electronics & Information Technology, 2019, 41(11): 2675-2683. doi: 10.11999/JEIT190145

基于重叠网络结构的服务功能链时空优化编排策略

doi: 10.11999/JEIT190145
基金项目: 国家重点研发计划(2017YFB0803204),国家自然科学基金(61521003, 61872382),广东省重点领域研发计划(2018B010113001)
详细信息
    作者简介:

    谷允捷:男,1994年生,博士生,研究方向为新型网络体系结构,网络功能虚拟化

    胡宇翔:男,1982年生,副研究员,研究方向为新型网络体系结构,软件定义网络

    谢记超:男,1995年生,硕士生,研究方向为网络安全、网络功能虚拟化与云安全

    通讯作者:

    谷允捷 lizardwhite@163.com

  • 中图分类号: TP393

A Spatial and Temporal Optimal Method of Service Function Chain Orchestration Based on Overlay Network Structure

Funds: The National Key Research and Development Project(2017YFB0803204), The National Natural Science Foundation of China (61521003, 61872382), The Research and Development Program in Key Areas of Guangdong Province (2018B010113001)
  • 摘要: 网络功能虚拟化(NFV)的引入大幅降低了互联网业务的运营成本。针对现有的服务功能链(SFC)编排方法无法在优化底层资源的同时保证业务时延性能的问题,该文提出一种基于重叠网络结构的SFC时空优化编排策略。在将计算、网络资源与细粒度时延约束纳入考虑的基础上,该策略通过建立重叠网络模型实现了计算与网络资源的分离,将构建SFC所需的资源开销与相关时延共同抽象化为重叠网络链路权重,从而使SFC编排问题转化为易于求解的最短路径问题。对于需要批量处理的SFC集合设计了基于重叠网络的模拟退火迭代优化编排算法(ONSA)。通过对比实验证明了该策略下编排方案的平均端到端时延、链路资源占用率与运营开销相对其他方案分别降低29.5%, 12.4%与15.2%,请求接受率提高22.3%,虚拟网络功能(VNF)负载均衡性能得到显著提升。

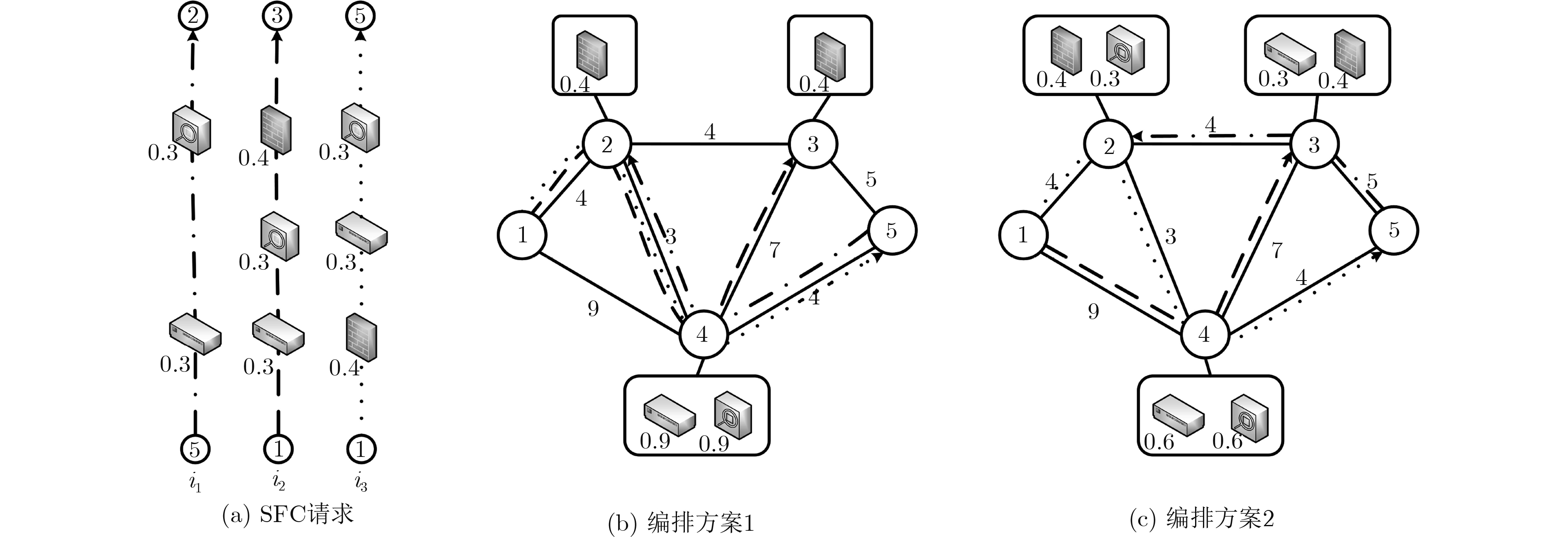

  • 图  1  SFC请求及两种编排方案

    图  2  SFC请求及其对应重叠网络

    图  3  已部署的VNF在底层网络分布情况

    图  4  服务请求处理时间

    图  5  请求接受率

    图  6  VNF负载强度分布变化

    图  7  链路资源利用率

    图  8  NFV系统运营开销

    图  9  请求接受率

    表  1  基于重叠网络的模拟退火迭代优化编排策略

     输入: $G = (V,E)$, $I$,底层网络状态
         SA参数$\{ {\tau _0},{\tau _{\min }},\rho ,L\} $
     输出: 集合$I$的时空优化编排方案${\rm{O}}{{\rm{S}}_{{\rm{opt}}}}$
     (1) $\forall i \in I$,随机部署$\beta _i^k$生成${\rm{O}}{{\rm{S}}_{{\rm{init}}}}$
     (2) 初始化参数,$\tau \leftarrow {\tau _0},{\rm{Objec}}{{\rm{t}}_{{\rm{now}}}} \leftarrow {\rm{Object}}({\rm{O}}{{\rm{S}}_{{\rm{init}}}})$
     (3) while $\tau > {\tau _{\min }}$ do
     (4)  for $l = 1:L$ do
     (5)    if (rand<0.5)
     (6)     计算$\bar C_{{\rm{load}}}^{}$与${p_{{\rm{rem}}}}$并选择释放实例$m$
     (7)     将经$m$处理的请求纳入${I_{{\rm{re}}}}$并释放$m$
     (8)   else
     (9)    $\forall i \in I$,将${\delta _i} > \delta _i^{s,o}$的请求纳入${I_{{\rm{re}}}}$
     (10)   end for
     (11)  for $i\;{\rm in}\;{I_{{\rm{re}}}}$ do
     (12)    依据$\beta _i^k$与底层网络状态构造${G_{{\rm{Overlay}}}}$
     (13)  删除资源不足的节点与链路
     (14)  计算链路权重$w_{{\rm{ver}}}^e$,$w_{{\rm{hor}}}^e$
     (15)  ${\rm{Path}}_{{\rm{Overlay}}}^i \leftarrow {\rm{Dijkstra}}(v_{{\rm{hor}}}^{1,{s_i}},v_{{\rm{hor}}}^{k + 1,{o_i}})$
     (16)  ${\rm{Pat}}{{\rm{h}}_i} \leftarrow {\rm{Path}}_{{\rm{Overlay}}}^i$
     (17)  end for
     (18)  ${\rm{Object}}({\rm{O}}{{\rm{S}}_{{\rm{new}}}}) = \sum\nolimits_{i \in I} {[\varepsilon {\varphi _i} + (1 + \varepsilon ){\delta _i}]} $
     (19)  if ${\Delta _{{\rm{Obj}}}} < 0$
     (20)    ${\rm{O}}{{\rm{S}}_{{\rm{now}}}} \leftarrow {\rm{O}}{{\rm{S}}_{{\rm{new}}}}$
     (21)  else
     (22)    ${P_{{\rm{acc}}}} = \exp ( - {\Delta _{{\rm{Obj}}}}/T)$
     (23)  $\tau \leftarrow \tau \rho $
     (24)  end while
     (25) ${\rm{O}}{{\rm{S}}_{{\rm{opt}}}} \leftarrow {\rm{O}}{{\rm{S}}_{{\rm{now}}}}$
    下载: 导出CSV

    表  2  VNF参数

    VNF实例化开销(MIPS)计算资源(MIPS)Packet处理时间(μs)
    Firewall56015
    Encryption56015
    IDS84020
    NAT46015
    下载: 导出CSV
  • 邬江兴. 新型网络技术发展思考[J]. 中国科学: 信息科学, 2018, 48(8): 1102–1111. doi: 10.1360/N112018-00062

    WU Jiangxing. Thoughts on the development of novel network technology[J]. CIENTIA SINICA Informationis, 2018, 48(8): 1102–1111. doi: 10.1360/N112018-00062
    HAN Bo, GOPALAKRISHNAN V, JI Lusheng, et al. Network function virtualization: Challenges and opportunities for innovations[J]. IEEE Communications Magazine, 2015, 53(2): 90–97. doi: 10.1109/mcom.2015.7045396
    QUINN E and NADEAU T. Problem statement for service function chaining[R]. IETF RFC-Informational, 2015.
    MOENS H and DE TURCK F. VNF-P: A model for efficient placement of virtualized network functions[C]. Proceedings of the 10th International Conference on Network and Service Management and Workshop, Rio de Janeiro, Brazil, 2014: 418–423.
    BARI F, CHOWDHURY S R, AHMED R, et al. Orchestrating virtualized network functions[J]. IEEE Transactions on Network and Service Management, 2016, 13(4): 725–739. doi: 10.1109/TNSM.2016.2569020
    JANG I, SUH D, PACK S, et al. Joint optimization of service function placement and flow distribution for service function chaining[J]. IEEE Journal on Selected Areas in Communications, 2017, 35(11): 2532–2541. doi: 10.1109/JSAC.2017.2760162
    史久根, 张径, 徐皓, 等. 一种面向运营成本优化的虚拟网络功能部署和路由分配策略[J]. 电子与信息学报, 2019, 41(4): 973–979. doi: 10.11999/JEIT180522

    SHI Jiugen, ZHANG Jing, XU Hao, et al. Joint optimization of virtualized network function placement and routing allocation for operational expenditure[J]. Journal of Electronics &Information Technology, 2019, 41(4): 973–979. doi: 10.11999/JEIT180522
    陈卓, 冯钢, 刘蓓, 等. 运营商网络中面向资源碎片优化的网络服务链构建策略[J]. 电子与信息学报, 2018, 40(4): 763–769. doi: 10.11999/JEIT170641

    CHEN Zhuo, FENG Gang, LIU Bei, et al. Construction policy of network service chain oriented to resource fragmentation optimization in operator network[J]. Journal of Electronics &Information Technology, 2018, 40(4): 763–769. doi: 10.11999/JEIT170641
    WEN Tao, YU Hongfang, SUN Gang, et al. Network function consolidation in service function chaining orchestration[C]. Proceedings of 2016 IEEE International Conference on Communications, Kuala Lumpur, Malaysia, 2016: 512–519.
    PEI Jianing, HONG Peilin, XUE Kaiping, et al. Efficiently embedding service function chains with dynamic virtual network function placement in geo-distributed cloud system[J]. IEEE Transactions on Parallel and Distributed Systems, 2018, 11(8): 367–379. doi: 10.1109/TPDS.2018.2880992
    陈卓, 冯钢, 刘蓓, 等. 运营商网络中面向时延优化的服务功能链迁移重配置策略[J]. 电子学报, 2018, 46(9): 2229–2237. doi: 10.3969/j.issn.0372-2112.2018.09.026

    CHEN Zhuo, FENG Gang, LIU Bei, et al. Delay optimization oriented service function chain migration and re-deployment in operator network[J]. Acta Electronica Sinica, 2018, 46(9): 2229–2237. doi: 10.3969/j.issn.0372-2112.2018.09.026
    ARTEAGA C H T, RISSOI F, and RENDON O M C. An adaptive scaling mechanism for managing performance variations in network functions virtualization: A case study in an NFV-based EPC[C]. Proceedings of the 13th International Conference on Network and Service Management, Tokyo, Japan, 2017: 1–7.
    LI Tong, BAUMBERGER D, HAHN S, et al. Efficient and scalable multiprocessor fair scheduling using distributed weighted round-robin[C]. Proceedings of the 14th ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming, Raleigh, USA, 2009: 65–74.
    AGARWAL S, MALANDRINO F, CHIASSERINI C F, et al. VNF placement and resource allocation for the support of vertical services in 5G networks[J]. IEEE/ACM Transactions on Networking, 2019, 27(1): 433–446. doi: 10.1109/TNET.2018.2890631
    LANGE S, GRIGORJEW A, ZINNER T, et al. A multi-objective heuristic for the optimization of virtual network function chain placement[C]. Proceedings of the 29th International Teletraffic Congress, Genoa, Italy, 2017: 152–161.
    WANG Xiaoke, WU Chuan, LE F, et al. Online VNF scaling in datacenters[C]. Proceedings of the IEEE 9th International Conference on Cloud Computing, San Francisco, USA, 2016: 140–147.
