改进射线描迹的低仰角散射斜延迟实时估计

吴文溢 钟方平 王万鹏 陈西宏 朱丹

吴文溢, 钟方平, 王万鹏, 陈西宏, 朱丹. 改进射线描迹的低仰角散射斜延迟实时估计[J]. 电子与信息学报, 2019, 41(10): 2366-2372. doi: 10.11999/JEIT190014
引用本文: 吴文溢, 钟方平, 王万鹏, 陈西宏, 朱丹. 改进射线描迹的低仰角散射斜延迟实时估计[J]. 电子与信息学报, 2019, 41(10): 2366-2372. doi: 10.11999/JEIT190014
Wenyi WU, Fangping ZHONG, Wanpeng WANG, Xihong CHEN, Dan ZHU. Real-time Estimation of Tropospheric Scattering Slant Delay of Low-elevation Obtained by Improved Ray Tracing[J]. Journal of Electronics & Information Technology, 2019, 41(10): 2366-2372. doi: 10.11999/JEIT190014
Citation: Wenyi WU, Fangping ZHONG, Wanpeng WANG, Xihong CHEN, Dan ZHU. Real-time Estimation of Tropospheric Scattering Slant Delay of Low-elevation Obtained by Improved Ray Tracing[J]. Journal of Electronics & Information Technology, 2019, 41(10): 2366-2372. doi: 10.11999/JEIT190014

改进射线描迹的低仰角散射斜延迟实时估计

doi: 10.11999/JEIT190014
基金项目: 国家自然科学基金(611701525)
详细信息
    作者简介:

    吴文溢:男,1993年生,工程师,硕士,研究方向为高精度时间同步技术研究

    钟方平:男,1966年生,研究员,博士生导师,研究方向为工程力学

    王万鹏:男,1975年生,高级工程师,研究方向为爆炸力学

    陈西宏:男,1964年生,教授,博士生导师,研究方向为大容量散射通信技术

    朱丹:女,1982年生,工程师,研究方向为工程防护

    通讯作者:

    吴文溢 18092161443@qq.com

  • 中图分类号: TN011

Real-time Estimation of Tropospheric Scattering Slant Delay of Low-elevation Obtained by Improved Ray Tracing

Funds: The National Natural Science Foundation of China (611701525)
  • 摘要: 针对任意测站的对流层散射斜延迟估算时存在探空气象数据不易实时获取的不足,该文提出一种利用地面气象参数内插改进射线描迹计算公式的对流层散射斜延迟估计算法。该算法利用中纬度大气气象参数公式推导了折射指数随地心距变化的关系式,并采用气象参数内插方法获取温度变化率和水汽压变化率,克服了射线描迹法对探空数据的依赖。根据亚洲地区6个国际GPS服务(IGS)测站2012年的实测气象数据,验证了该文算法解算天顶延迟年平均偏差的绝对值在1 cm以内;选取基线距离适宜的3个测站分成3组散射通信比对站,利用射线描迹法计算了其在0°~5°入射角下全年的斜延迟,结果表明,3组比对站进行单向传输的最大斜延迟为17.03~33.10 m;进行双向时间比对相互抵消95%时,时间延迟为2.88~5.52 ns。

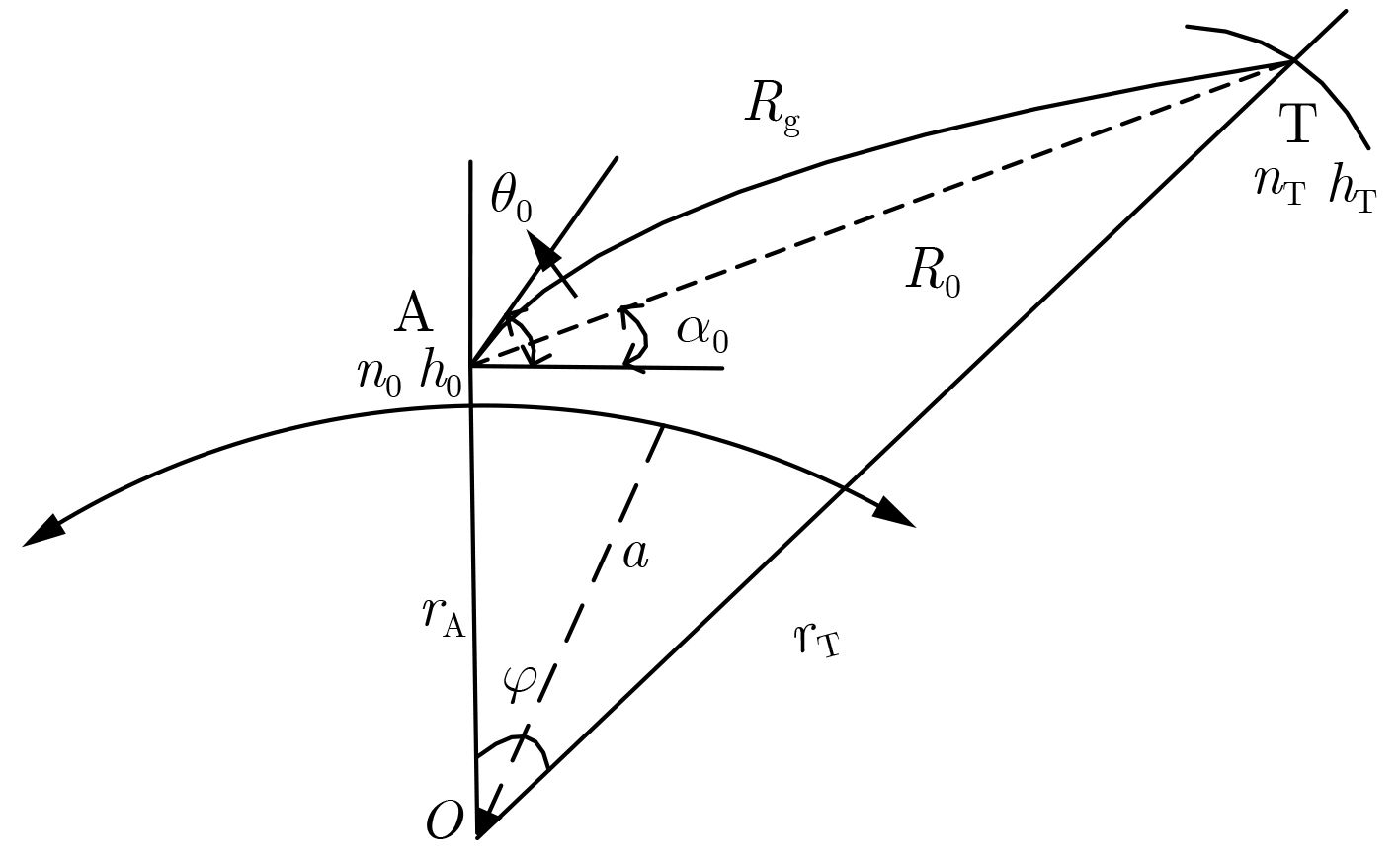

  • 图  1  射线描迹法示意图

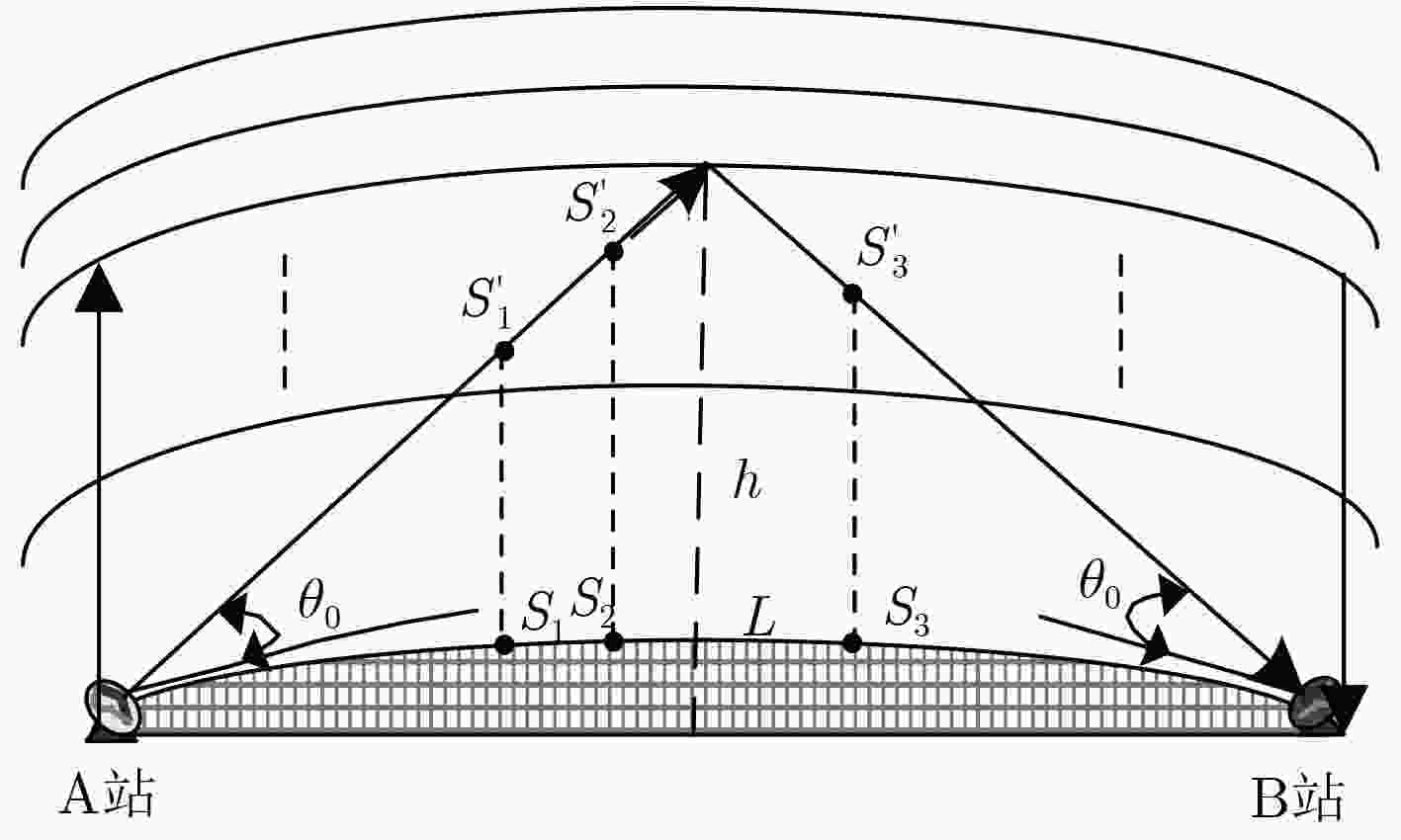

    图  2  对流层散射通信原理简化图

    图  3  测站平均偏差分布直方图

    图  4  对流层散射斜延迟

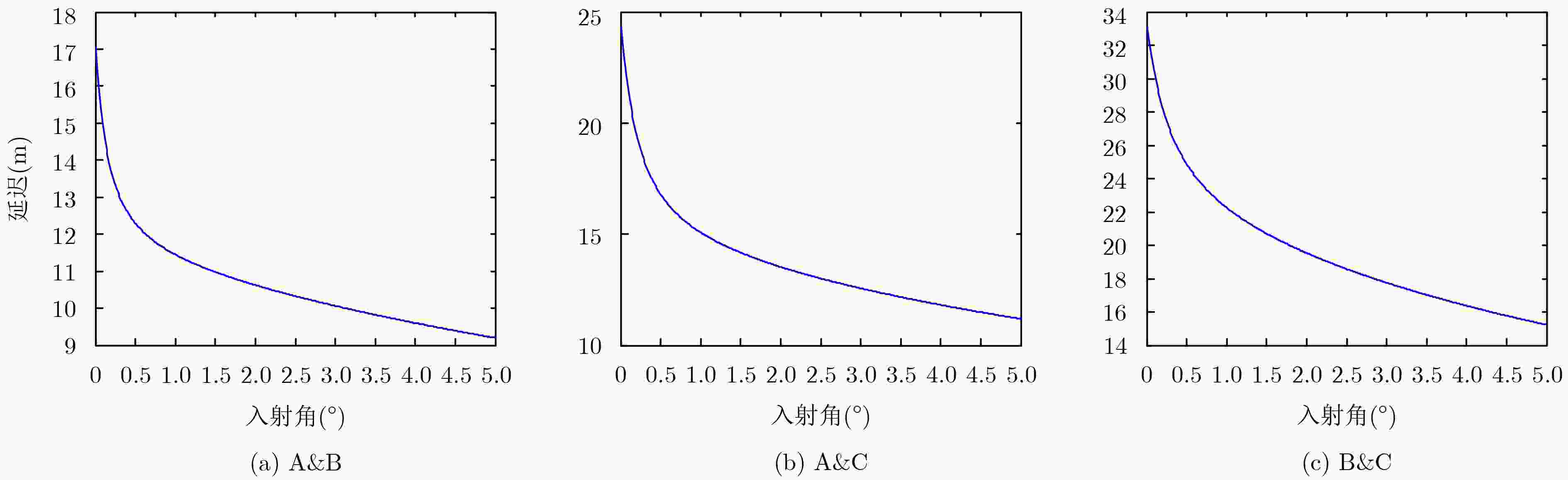

    图  5  最大延迟时刻对流层散射斜延迟随入射角变化图

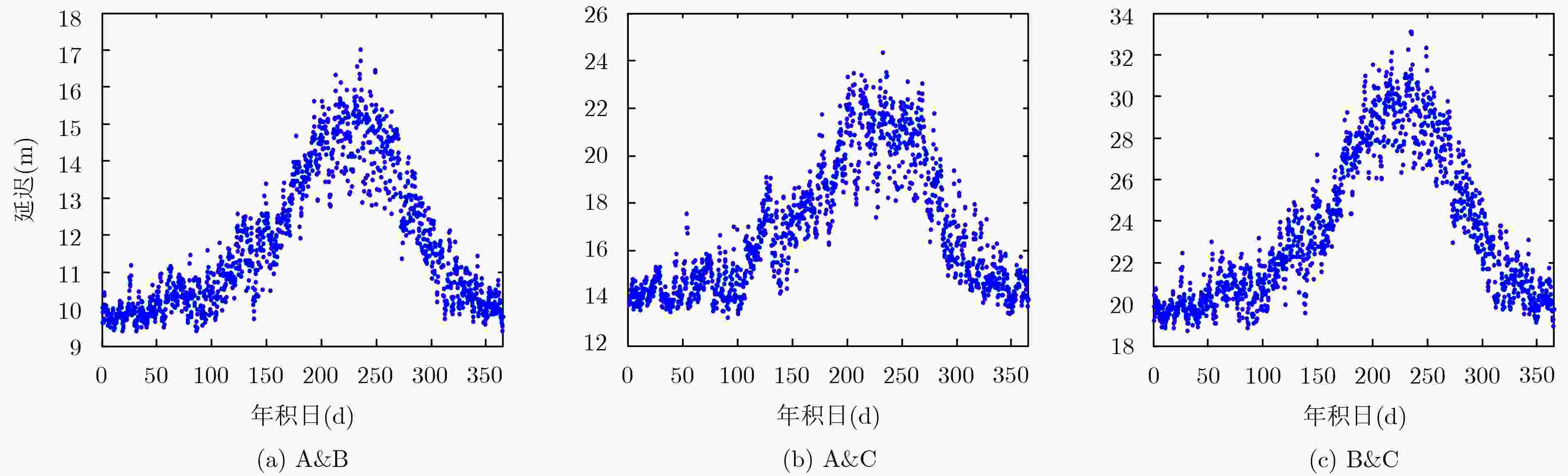

    图  6  0°入射角下一年对流层散射斜延迟变化图

    表  1  气象参数格网值

    $F{(^ \circ })$avgamp
    $\beta $$\lambda $$\beta $$\lambda $
    150.006302.770.0000.000
    300.006053.510.000250.33
    450.005582.570.000320.46
    600.005391.810.000810.74
    750.004531.550.000620.30
    下载: 导出CSV

    表  2  测站信息

    站名北纬($^\circ $)东经($^\circ $)海拔(m)
    TSKB36.11140.0967.30
    KSMV35.96140.6657.93
    KGNI35.71139.49123.50
    BJFS39.36115.5354.70
    WUHN30.31114.2127.00
    TWTF24.95121.16203.10
    下载: 导出CSV

    表  3  各模型统计结果(cm)

    测站UNB3m模型EGNOS模型本文算法
    平均偏差RMS平均偏差RMS平均偏差RMS
    TSKB–0.698.570.638.64–0.707.57
    KSMV–0.608.440.778.53–0.777.93
    KGNI–0.677.800.797.89–0.697.41
    BJFS–0.537.650.728.23–0.567.32
    WUHN–0.597.530.668.44–0.667.44
    TWTF–0.808.620.788.65–0.797.85
    下载: 导出CSV

    表  4  比对站情况表

    比对站A&BA&CB&C
    L(km)53.9670.06109.19
    ${\theta _0}$($^\circ $)$[0, 5)$$[0, 5)$$[0, 5)$
    下载: 导出CSV
  • PAN Minghai, HAN Qinghua, GONG Shufeng, et al. Impacts of space-time-frequency synchronization errors onwideband target echo characteristics of bistatic/multistatic radar[J]. Journal of Systems Engineering and Electronics, 2016, 27(3): 562–573. doi: 10.1109/JSEE.2016.00060
    万显荣, 孙绪望, 易建新, 等. 分布式数字广播电视外辐射源雷达系统同步设计与测试[J]. 雷达学报, 2017, 6(1): 65–72. doi: 10.12000/JR16134

    WAN Xianrong, SUN Xuwang, YI Jianxin, et al. Synchronous design and test of distributed passive radar systems based on digital broadcasting and television[J]. Journal of Radars, 2017, 6(1): 65–72. doi: 10.12000/JR16134
    WANG Zhengbo, ZHAO Lu, WANG Shiguang, et al. COMPASS time synchronization and dissemination-Toward centimetre positioning accuracy[J]. Science China Physics, Mechanics & Astronomy, 2014, 57(9): 1788–1804. doi: 10.1007/s11433-014-5508-z
    CHEN Xihong, LIU Qiang, HU Denghua, et al. Delay analysis of two way time transfer based on troposphere gradients[C]. The 10th International Conference on Wireless Communications, Networking and Mobile Computing, Beijing, China, 2014: 543–547.
    HUANG Yijun, FUJIEDA M, TAKIGUCHI H, et al. Stability improvement of an operational two-way satellite time and frequency transfer system[J]. Metrologia, 2016, 53(2): 881–890. doi: 10.1088/0026-1394/53/2/881
    SLIWCZYNSKI L, KREHLIK P, KOLODZIEJ J, et al. Fiber-optic time transfer for UTC-traceable synchronization for telecom networks[J]. IEEE Communications Standards Magazine, 2017, 1(1): 66–73. doi: 10.1109/MCOMSTD.2017.1600766ST
    刘强, 陈西宏, 薛伦生, 等. 基于映射函数的对流层双向时间比对斜延迟分析[J]. 电子科技大学学报, 2015, 44(5): 689–694. doi: 10.3969/j.issn.1001-0548.2015.05.009

    LIU Qiang, CHEN Xihong, XUE Lunsheng, et al. Slant propagation delay analysis in two way troposphere transfer based on mapping function[J]. Journal of University of Electronic Science and Technology of China, 2015, 44(5): 689–694. doi: 10.3969/j.issn.1001-0548.2015.05.009
    王红光, 吴振森, 朱庆林. 大气折射对雷达低仰角跟踪误差的影响分析[J]. 电子与信息学报, 2012, 34(8): 1893–1896. doi: 10.3724/SP.J.1146.2011.01186

    WANG Hongguang, WU Zhensen, and ZHU Qinglin. Influence analysis of atmospheric refraction on low-angle radar tracking errors[J]. Journal of Electronics &Information Technology, 2012, 34(8): 1893–1896. doi: 10.3724/SP.J.1146.2011.01186
    乔江, 杜晓燕, 卫佩佩. 一种对流层折射误差的实时简化修正方法[J]. 强激光与粒子束, 2018, 30(10): 103205. doi: 10.11884/HPLPB201830.180146

    QIAO Jiang, DU Xiaoyan, and WEI Peipei. Real-time simplified correction method for tropospheric refraction error[J]. High Power Laser and Particle Beams, 2018, 30(10): 103205. doi: 10.11884/HPLPB201830.180146
    吴文溢, 陈西宏, 刘少伟. 低仰角对流层散射斜延迟实时估计方法[J]. 电子与信息学报, 2017, 39(6): 1326–1332. doi: 10.11999/JEIT160776

    WU Wenyi, CHEN Xihong, and LIU Shaowei. Real-time estimation method for tropospheric scatter slant delay at low elevation[J]. Journal of Electronics &Information Technology, 2017, 39(6): 1326–1332. doi: 10.11999/JEIT160776
    卫佩佩, 杜晓燕, 江长荫. 基于射线描迹法微分形式的大气折射误差修正方法研究[J]. 电子与信息学报, 2018, 40(8): 1838–1846. doi: 10.11999/JEIT171131

    WEI Peipei, DU Xiaoyan, and JIANG Changyin. Atmosphere refractive error correction method based on ray tracing differential form[J]. Journal of Electronics &Information Technology, 2018, 40(8): 1838–1846. doi: 10.11999/JEIT171131
    陈西宏, 刘赞, 刘继业, 等. 低仰角下对流层散射斜延迟估计方法[J]. 电子与信息学报, 2016, 38(2): 408–412. doi: 10.11999/JEIT150628

    CHEN Xihong, LIU Zan, LIU Jiye, et al. Estimating tropospheric slant scatter delay at low elevation[J]. Journal of Electronics &Information Technology, 2016, 38(2): 408–412. doi: 10.11999/JEIT150628
    刘继业, 陈西宏, 刘赞. 对流层散射双向时间比对中对流层斜延迟实时估计[J]. 电子与信息学报, 2018, 40(3): 587–593. doi: 10.11999/JEIT170581

    LIU Jiye, CHEN Xihong, and LIU Zan. Real-time estimation of tropospheric slant delay in two-way troposphere time transfer[J]. Journal of Electronics &Information Technology, 2018, 40(3): 587–593. doi: 10.11999/JEIT170581
    卫佩佩, 杜晓燕, 江长荫. 对流层散射超视距信道传输损耗快慢衰落特性研究[J]. 电子与信息学报, 2018, 40(7): 1745–1751. doi: 10.11999/JEIT170952

    WEI Peipei, DU Xiaoyan, and JIANG Changyin. Study on tropospheric scatter beyond-line-of-sight channel transmission loss for short-term and long-term fading[J]. Journal of Electronics &Information Technology, 2018, 40(7): 1745–1751. doi: 10.11999/JEIT170952
    ERIKSSON D, MACMILLAN D S, and GIPSON J M. Tropospheric delay ray tracing applied in VLBI analysis[J]. Journal of Geophysical Research: Solid Earth, 2014, 119(12): 9156–9170. doi: 10.1002/2014JB011552
    LEANDRO R F, LANGLEY R B, and SANTOS M C. UNB3m_pack: A neutral atmosphere delay package for radiometric space techniques[J]. GPS Solutions, 2008, 12(1): 65–70. doi: 10.1007/s10291-007-0077-5
    孔建, 姚宜斌, 单路路, 等. GPT2w模型在南极地区精度分析[J]. 测绘学报, 2018, 47(10): 1316–1325. doi: 10.11947/j.AGCS.2018.20170487

    KONG Jian, YAO Yibin, SHAN Lulu, et al. The accuracy analysis of GPT2w at the Antarctic area[J]. Acta Geodaetica et Cartographica Sinica, 2018, 47(10): 1316–1325. doi: 10.11947/j.AGCS.2018.20170487
    姚宜斌, 徐星宇, 胡羽丰. GGOS对流层延迟产品精度分析及在PPP中的应用[J]. 测绘学报, 2017, 46(3): 278–287. doi: 10.11947/j.AGCS.2017.20160383

    YAO Yibin, XU Xingyu, and HU Yufeng. Precision analysis of GGOS tropospheric delay Product and its application in PPP[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(3): 278–287. doi: 10.11947/j.AGCS.2017.20160383
