基于图像协方差无关的增量特征提取方法研究

王肖锋 孙明月 葛为民

王肖锋, 孙明月, 葛为民. 基于图像协方差无关的增量特征提取方法研究[J]. 电子与信息学报, 2019, 41(11): 2768-2776. doi: 10.11999/JEIT181138
引用本文: 王肖锋, 孙明月, 葛为民. 基于图像协方差无关的增量特征提取方法研究[J]. 电子与信息学报, 2019, 41(11): 2768-2776. doi: 10.11999/JEIT181138
Xiaofeng WANG, Mingyue SUN, Weimin GE. An Incremental Feature Extraction Method without Estimating Image Covariance Matrix[J]. Journal of Electronics & Information Technology, 2019, 41(11): 2768-2776. doi: 10.11999/JEIT181138
Citation: Xiaofeng WANG, Mingyue SUN, Weimin GE. An Incremental Feature Extraction Method without Estimating Image Covariance Matrix[J]. Journal of Electronics & Information Technology, 2019, 41(11): 2768-2776. doi: 10.11999/JEIT181138

基于图像协方差无关的增量特征提取方法研究

doi: 10.11999/JEIT181138
基金项目: 国家重点研发计划(2017YFB1303304),天津市科技计划重大专项(17ZXZNGX00110),天津市自然科学重点基金(16JCZDJC30400)
详细信息
    作者简介:

    王肖锋:男,1977年生,博士,讲师,研究方向为发育机器人和机器学习

    孙明月:女,1994年生,硕士生,研究方向为机器人智能学习

    葛为民:男,1968年生,博士,教授,研究方向为机器人智能控制

    通讯作者:

    葛为民 geweimin@tjut.edu.cn

  • 中图分类号: TP391.41

An Incremental Feature Extraction Method without Estimating Image Covariance Matrix

Funds: The National Key R & D Plan of China (2017YFB1303304), The Tianjin Science and Technology Planed Key Project (17ZXZNGX00110), The Tianjin Natural Science Key Foundation (16JCZDJC30400)
  • 摘要: 针对2维主成分分析(2DPCA)算法无法实现在线特征提取及无法体现完整数据结构信息等问题,该文提出一种基于图像协方差无关的增量式2DPCA(I2DPCA)算法。该算法无需对图像协方差矩阵进行特征值分解奇异值分解,复杂度将大为降低,提高了特征提取速度。针对I2DPCA仅提取了横向特征的问题,又提出一种增量式行列顺序2DPCA(IRC2DPCA)算法,该算法对I2DPCA的特征矩阵再次进行纵向特征提取,保留了图像的横向与纵向结构信息,实现了行列两个方向上的特征提取与数据降维。最后,以自建的物块数据集、通用的ORL和Yale人脸数据集分别进行对比实验,结果表明,该文算法在收敛率、分类率及复杂度等性能方面均得到了显著提高,其收敛率达到99%以上,分类率可达97.6%,平均处理速度为29 帧/s,能够满足增量特征提取的实时处理需求。

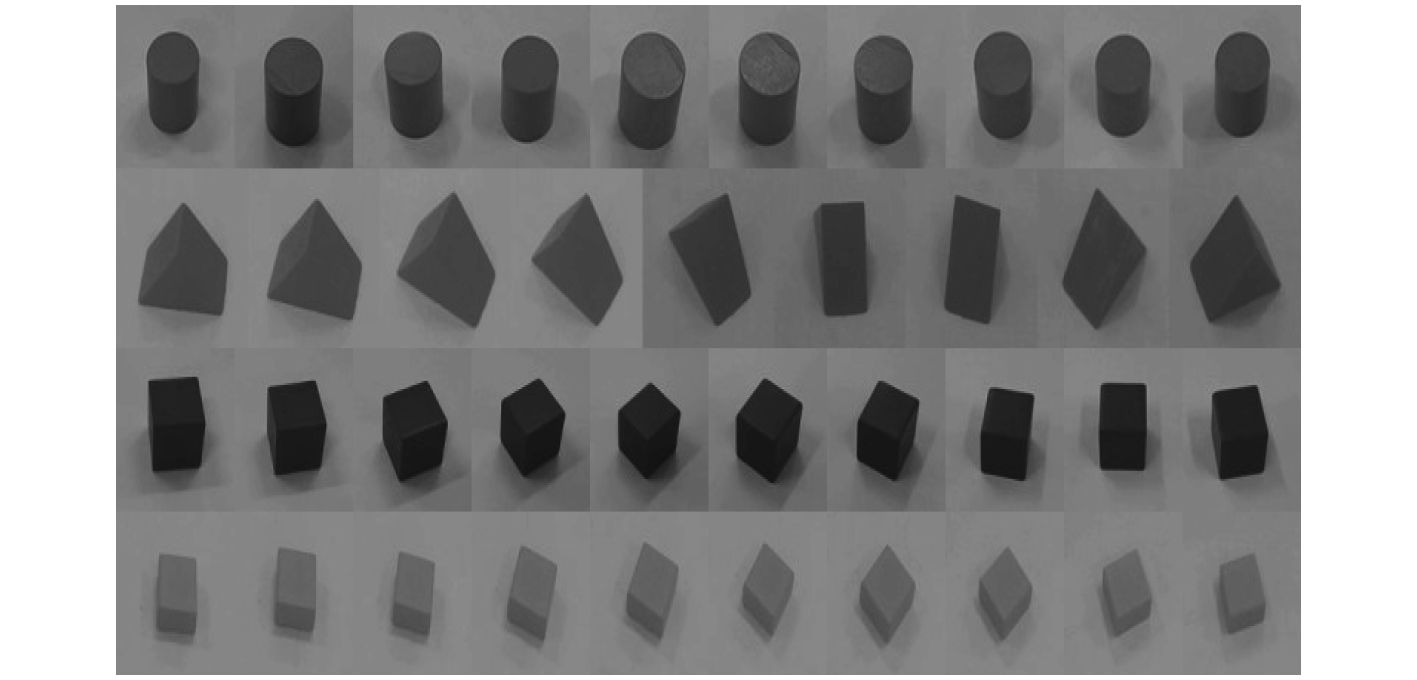

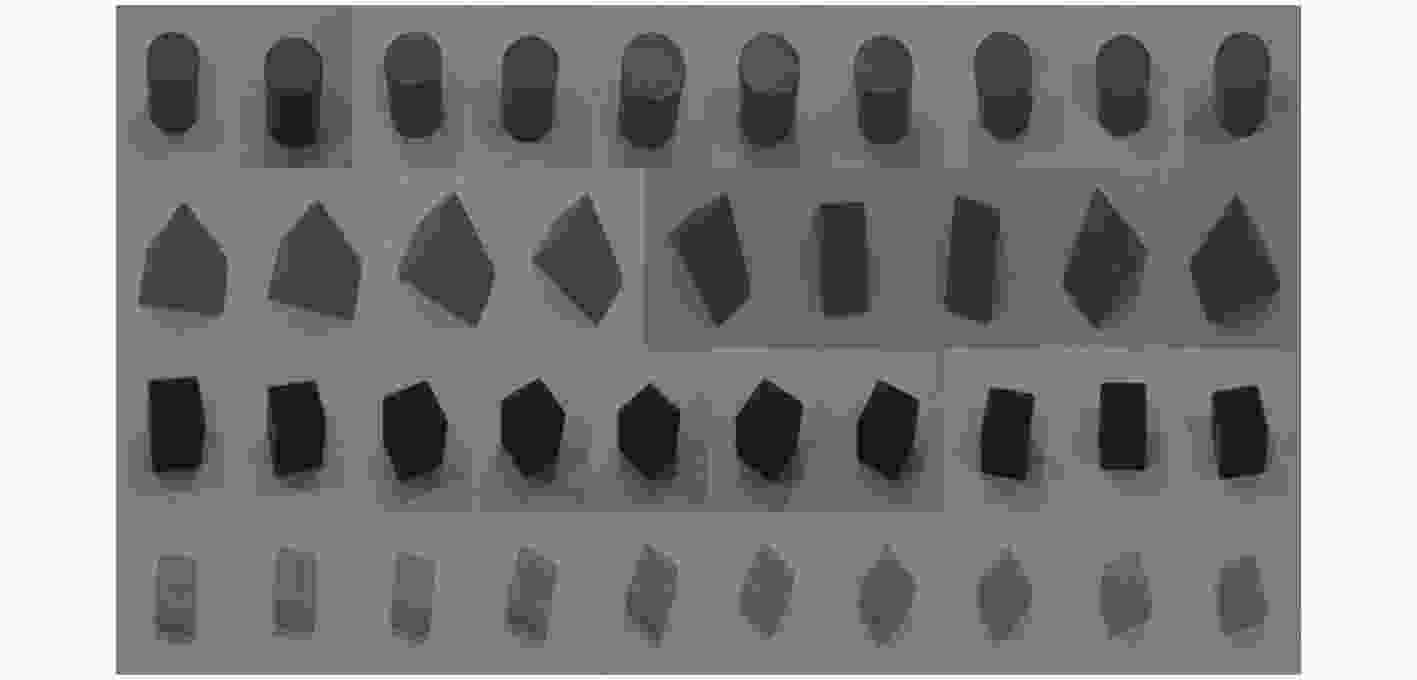

  • 图  1  部分物块样本图像

    图  2  部分ORL人脸样本图像

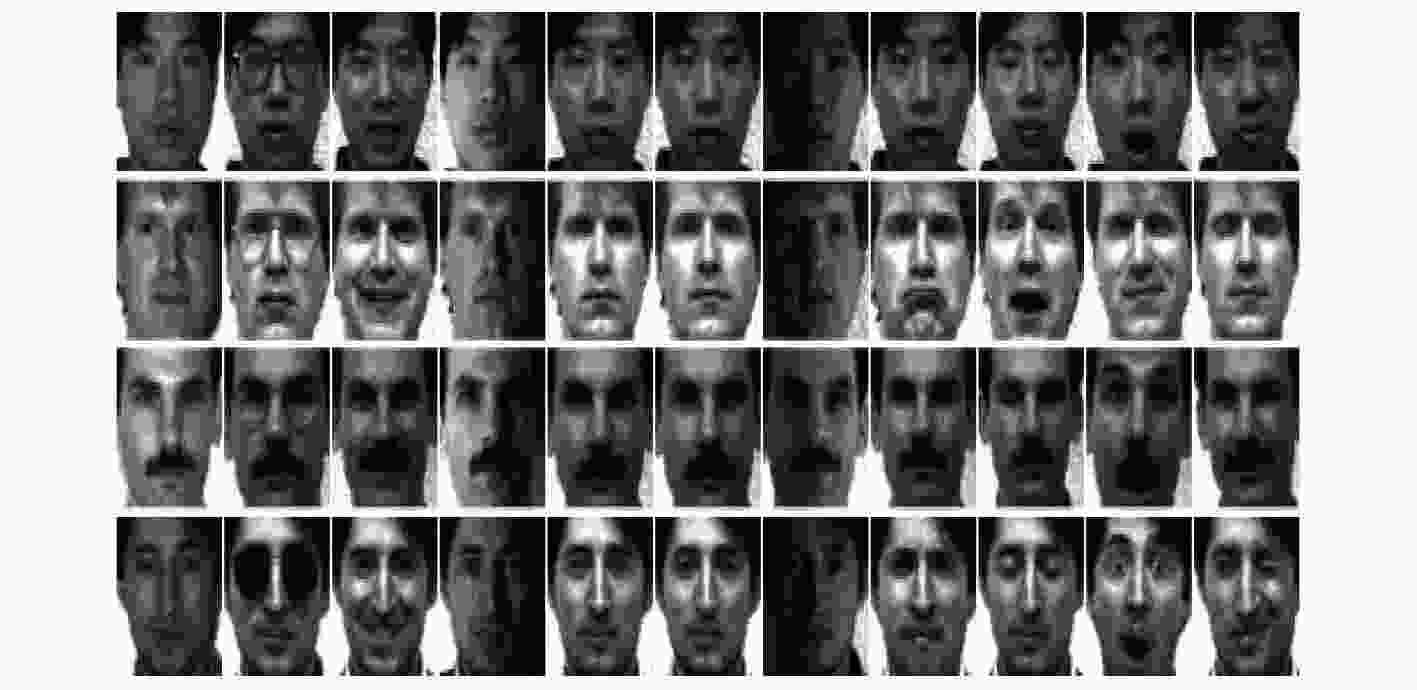

    图  3  部分Yale人脸样本图像

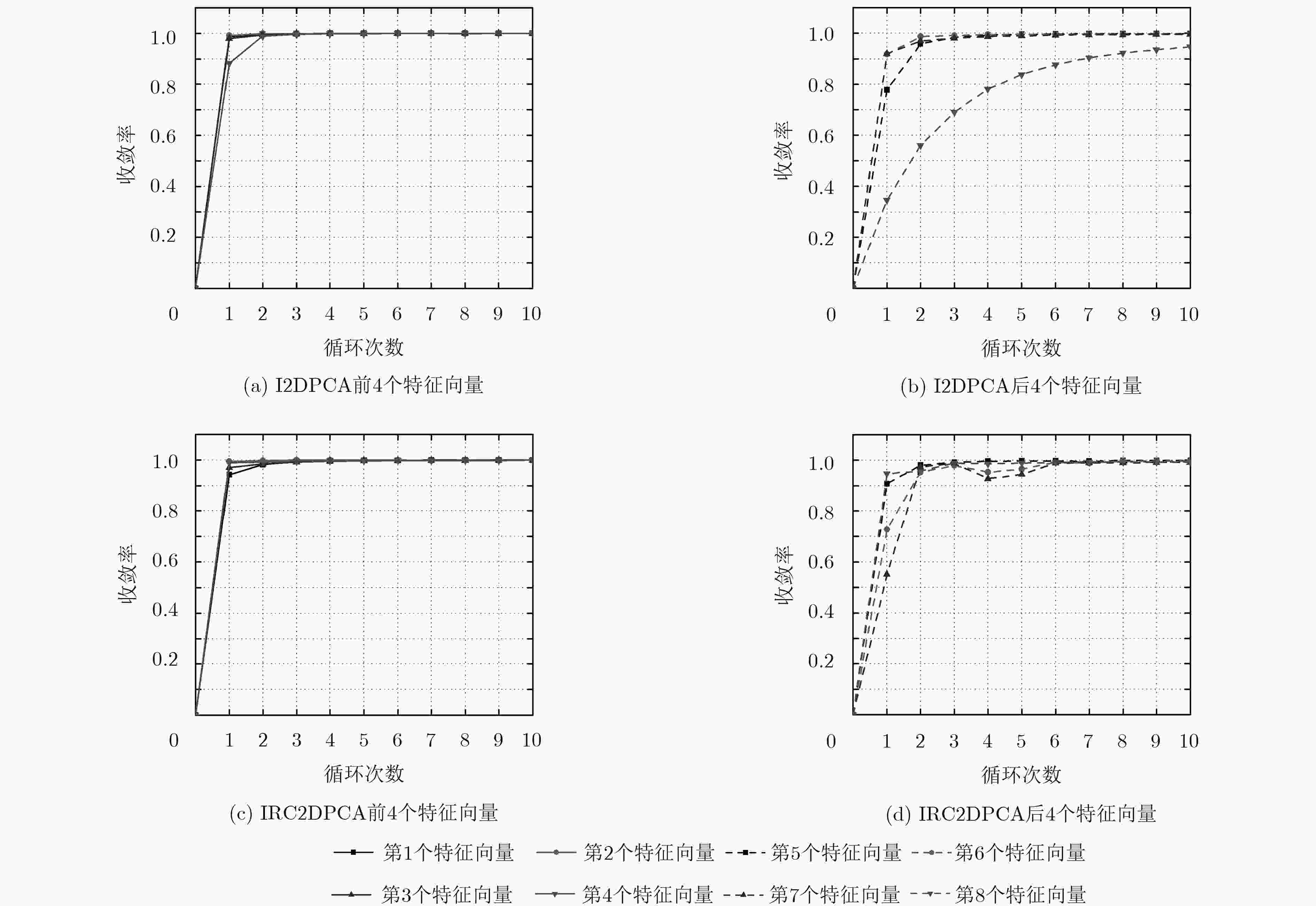

    图  4  物块数据集循环多次特征向量的收敛率

    表  1  不同数据集下特征向量收敛率的均值及标准差

    数据集输入次数I2DPCA(均值/标准差)IRC2DPCA(均值/标准差)
    前4个特征向量后4个特征向量前4个特征向量后4个特征向量
    物块$m = 2$0.99442/0.003610.86836/0.178260.98964/0.005730.96564/0.01135
    $m = 5$0.99924/0.000410.95478/0.158180.99824/0.001010.97302/0.01020
    $m = 10$0.99981/0.000100.98453/0.022250.99950/0.000300.99495/0.00322
    ORL$m = 2$0.99991/0.000040.89400/0.067630.99753/0.002030.98175/0.01027
    $m = 5$0.99997/0.000020.91620/0.051540.99951/0.000370.99441/0.00231
    $m = 10$0.99998/0.000010.92833/0.051630.99986/0.000100.99755/0.00074
    Yale$m = 2$0.93732/0.072440.96069/0.030260.99602/0.004410.98308/0.00659
    $m = 5$0.96001/0.046780.98261/0.016090.99924/0.000740.99528/0.00140
    $m = 10$0.97283/0.031800.99041/0.009700.99975/0.000240.99793/0.00088
    下载: 导出CSV

    表  2  物块数据集的最佳分类率

    每类训练
    样本数
    2DPCA
    (120×4)[8]
    RC2DPCA
    (8×8)[11]
    Angle-2DPCA
    (120×4)[12]
    BA2DPCA
    (8×8)[13]
    BDPCA
    (8×8)[10]
    IBDPCA
    (8×8)[17]
    I2DPCA
    (120×4)
    IRC2DPCA
    (8×8)
    L=100.9330.9270.9220.9310.9300.9300.9260.922
    L=250.9570.9600.9580.9610.9590.9590.9620.968
    L=500.9590.9610.9610.9610.9610.9670.9620.972
    L=750.9540.9570.9540.9570.9580.9560.9550.958
    L=1000.9660.9630.9660.9640.9630.9730.9710.976
    下载: 导出CSV

    表  3  ORL数据集的最佳分类率

    每类训练
    样本数
    2DPCA
    (112×4)[8]
    RC2DPCA
    (8×8)[11]
    Angle-2DPCA
    (112×4)[12]
    BA2DPCA
    (8×8)[13]
    BDPCA
    (8×8)[10]
    IBDPCA
    (8×8)[17]
    I2DPCA
    (112×4)
    IRC2DPCA
    (8×8)
    L=10.7440.7280.7420.7250.7280.7080.7360.717
    L=20.8500.8440.8500.8470.8470.8440.8470.841
    L=30.8680.8570.8680.8610.8610.8460.8640.857
    L=40.8880.8960.8880.8920.9040.9040.8830.900
    L=50.9050.9050.9050.9050.9150.9150.9050.925
    下载: 导出CSV

    表  4  Yale数据集的最佳分类率

    每类训练
    样本数
    2DPCA
    (100×4)[8]
    RC2DPCA
    (8×8)[11]
    Angle-2DPCA
    (100×4)[12]
    BA2DPCA
    (8×8)[13]
    BDPCA
    (8×8)[10]
    IBDPCA
    (8×8)[17]
    I2DPCA
    (100×4)
    IRC2DPCA
    (8×8)
    L=10.5600.5600.5600.5600.5600.5530.5730.560
    L=20.7190.7330.7190.7330.7410.7410.7260.726
    L=30.8000.8080.7920.8000.8170.8250.7920.825
    L=40.8570.8760.8570.8760.8760.8760.8570.867
    L=50.8560.8890.8560.8890.8890.8890.8560.889
    下载: 导出CSV

    表  5  物块数据集处理的所需时间对比(s)

    算法L=10L=25L=50L=75L=100
    特征提取分类识别特征提取分类识别特征提取分类识别特征提取分类识别特征提取分类识别
    2DPCA(120×4)[8]2.1525.2799.5686.56132.7457.99069.0659.015123.77910.319
    RC2DPCA(8×8)[11]2.0290.9419.2081.14032.6301.36266.4461.335115.3441.554
    Angle-2DPCA(120×4)[12]4.9911.09715.6041.17493.281.29667.7881.47157.6241.545
    BA2DPCA(8×8)[13]13.1171.17914.2611.19046.1071.20365.1051.25048.0891.233
    BDPCA(8×8)[10]2.3560.9339.4560.96632.9881.24867.5011.414127.391.556
    IBDPCA(8×8)[17]11.8260.86829.0741.05556.7781.22186.1201.408114.8451.604
    I2DPCA(120×4)3.1035.3617.3816.22514.6937.77821.9388.96329.03911.181
    IRC2DPCA(8×8)7.1590.84617.0471.04334.4131.26651.5771.44365.5101.669
    下载: 导出CSV

    表  6  物块数据集处理的所需内存对比(kB)

    算法L=10L=25L=50L=75L=100
    特征提取分类识别特征提取分类识别特征提取分类识别特征提取分类识别特征提取分类识别
    2DPCA(120×4)[8]16.65870.88937.58869.93572.75368.149107.94166.383143.17964.622
    RC2DPCA(8×8)[11]16.73611.35438.19911.42373.97711.227109.86710.805145.76410.612
    Angle-2DPCA(120×4)[12]16.09648.77416.09648.11816.08046.76816.08045.59616.08044.440
    BA2DPCA(8×8)[13]16.08021.64216.08821.14216.10420.5716.1220.50416.09620.036
    BDPCA(8×8)[10]16.37911.34537.04011.42771.66311.243106.43810.768141.16010.620
    IBDPCA(8×8)[17]8.83011.3828.49911.4038.48211.2188.47810.7808.48610.612
    I2DPCA(120×4)8.84770.8978.50369.9358.48668.1418.48666.3018.50364.602
    IRC2DPCA(8×8)8.51111.3508.50711.4198.48611.2438.53610.7978.51110.604
    下载: 导出CSV
