面向三维高效视频编码的深度图错误隐藏

周洋 吴佳忆 陆宇 殷海兵

周洋, 吴佳忆, 陆宇, 殷海兵. 面向三维高效视频编码的深度图错误隐藏[J]. 电子与信息学报, 2019, 41(11): 2760-2767. doi: 10.11999/JEIT180926
引用本文: 周洋, 吴佳忆, 陆宇, 殷海兵. 面向三维高效视频编码的深度图错误隐藏[J]. 电子与信息学报, 2019, 41(11): 2760-2767. doi: 10.11999/JEIT180926
Yang ZHOU, Jiayi WU, Yu LU, Haibing YIN. Depth Map Error Concealment for 3D High Efficiency Video Coding[J]. Journal of Electronics & Information Technology, 2019, 41(11): 2760-2767. doi: 10.11999/JEIT180926
Citation: Yang ZHOU, Jiayi WU, Yu LU, Haibing YIN. Depth Map Error Concealment for 3D High Efficiency Video Coding[J]. Journal of Electronics & Information Technology, 2019, 41(11): 2760-2767. doi: 10.11999/JEIT180926

面向三维高效视频编码的深度图错误隐藏

doi: 10.11999/JEIT180926
基金项目: 浙江省自然科学基金(LY17F020027),国家自然科学基金(61401132, 61572449)
详细信息
    作者简介:

    周洋:男,1979年生,副教授,硕士生导师,研究方向为视频分析和三维视频编解码

    吴佳忆:男,1994年生,硕士生,研究方向为视频差错控制技术

    陆宇:男,1977年生,讲师,研究方向为视频压缩技术

    殷海兵:男,1974年生,教授,研究方向为视频编码与压缩芯片设计

    通讯作者:

    周洋 zhouyang_hz@126.com

  • 中图分类号: TP391

Depth Map Error Concealment for 3D High Efficiency Video Coding

Funds: Zhejiang Province Natural Science Fundation (LY17F020027), The National Natural Science Foundation of China (61401132, 61572449)
  • 摘要: 基于多视点视频序列视点内、视点间存在的相关性,并结合视点间运动矢量共享技术,该文提出一种面向3维高效视频编码中深度序列传输丢包的错误隐藏算法。首先,根据3D高效视频编码(3D-HEVC)的分层B帧预测(HBP)结构和深度图纹理特征,将深度图丢失块分成运动块和静止块;然后,对于受损运动块,使用结合纹理结构的外边界匹配准则来选择相对最优的运动/视差矢量进行基于位移矢量补偿的错误掩盖,而对受损静止块采用参考帧直接拷贝进行快速错误隐藏;最后,使用参考帧拆分重组来获取新的运动/视差补偿块对修复质量较差的重建块进行质量提升。实验结果表明:相较于近年提出的对比算法,该文算法隐藏后的深度帧平均峰值信噪比(PSNR)能提升0.25~2.03 dB,结构相似度测量值(SSIM)能提升0.001~0.006,且修复区域的主观视觉质量与原始深度图更接近。

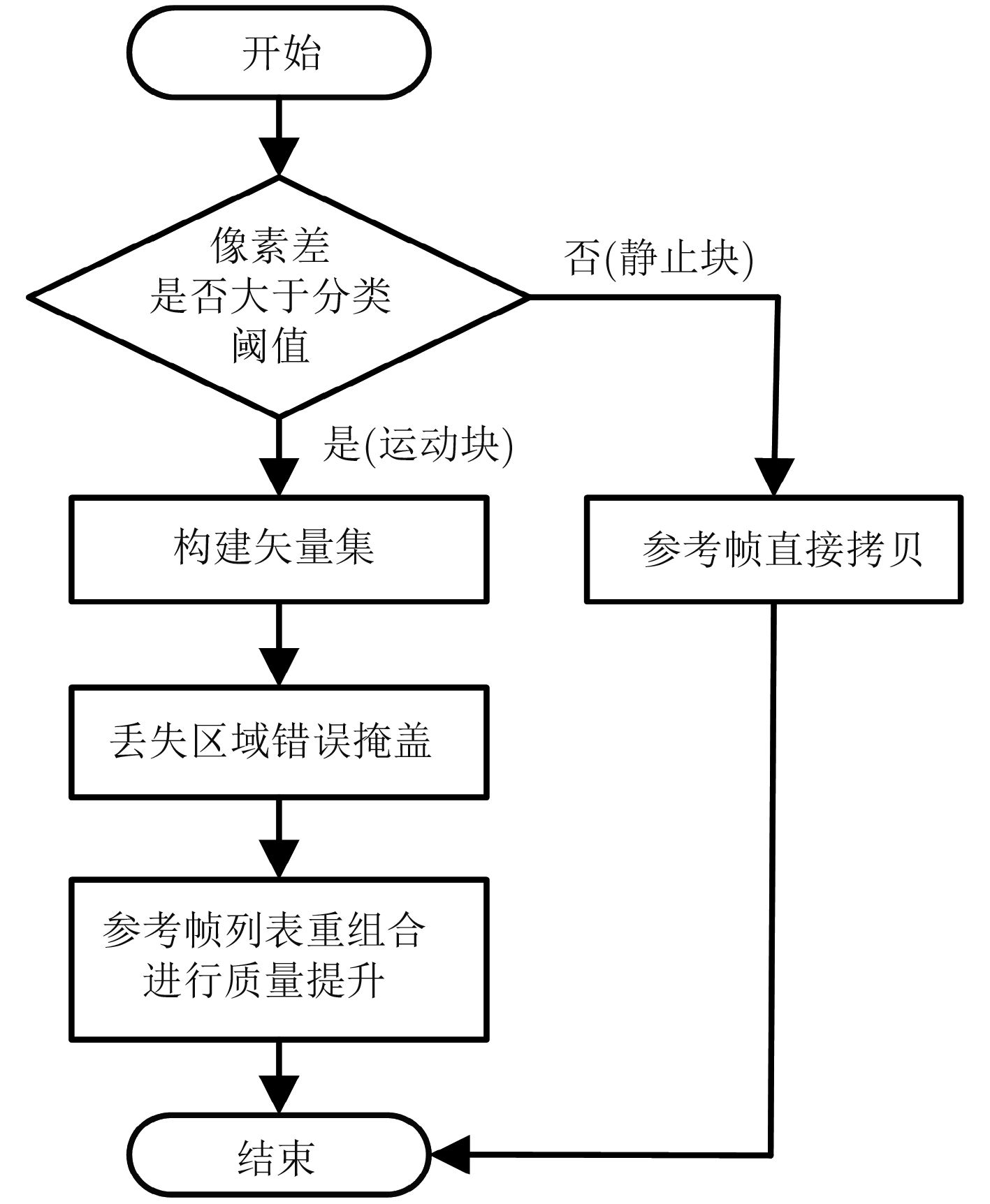

  • 图  1  算法总体流程图

    图  2  丢失块周围邻块位移矢量的选择

    图  3  PSNR逐帧测试结果曲线图

    图  4  Poznanstreet第3视点第3帧错误隐藏结果

    图  5  Kendo第3视点第3帧主观测试结果

    表  1  组合参考块对应表

    参考列表参考帧号L0L1
    R00R01R0KR10R11R1K
    L0R00P0B00B01B0iB0K
    R01P1B10B11B1iB1K
    PiBi0Bi1BiiBiK
    R0KPKBK0BK1BKiBKK
    L1R10B00B10Bi0BK0PK+1
    R11B01B11Bi1BK1PK+2
    B0iB1iBiiBKiPK+i
    R1KB0KB1KBiKBKKP2K
    下载: 导出CSV

    表  2  QP=30, 25时各测试序列重建图像平均PSNR计算结果(dB)

    QP序列原始错误率50%错误率25%错误率10%
    文献[6]文献[7]MVC本文算法文献[6]文献[7]MVC本文算法文献[6]文献[7]MVC本文算法
    30Kendo42.76136.40636.12235.89437.10337.89637.35936.78638.31039.44938.92538.02539.833
    Bookarrival39.92336.93235.91135.65637.52537.86537.17136.52638.28638.33837.69937.38938.747
    Poznanstreet44.02839.59338.83436.66240.86441.15541.02840.79941.89041.45041.21940.98342.171
    Balloon40.57438.71338.51237.69139.26939.51439.45638.34739.83939.70639.63838.48539.958
    25Kendo45.87436.73636.54836.09637.49939.22738.05837.28739.65541.36839.68839.13341.501
    Bookarrival41.62537.98136.73336.35438.27038.41137.48836.94739.92139.72839.19638.46340.187
    Poznanstreet46.12239.95538.92837.06641.56141.72341.17840.80242.31942.11341.79741.20742.622
    Balloon44.02240.82939.43439.15641.24741.89941.27740.89442.14942.23442.15841.08442.612
    下载: 导出CSV

    表  3  QP=30, 25时各测试序列重建图像平均SSIM计算结果

    QP序列原始错误率50%错误率25%错误率10%
    文献[6]文献[7]MVC本文算法文献[6]文献[7]MVC本文算法文献[6]文献[7]MVC本文算法
    30Kendo0.98670.97080.96880.96470.97210.97800.97760.97330.97850.98190.98160.97660.9822
    Bookarrival0.95650.94820.94570.94220.94950.95030.94810.94520.95100.95250.95180.94770.9534
    Poznanstreet0.97950.97320.97200.97140.97590.97460.97400.97380.97670.97510.97500.97440.9769
    Balloon0.97670.97380.97330.97200.97430.97450.97420.97360.97510.97470.97460.97430.9757
    25Kendo0.98740.97220.96960.96600.97510.97890.97830.97650.97960.98280.98240.97950.9832
    Bookarrival0.97010.95770.95470.95390.95980.96340.96270.96130.96410.96430.96420.96330.9655
    Poznanstreet0.98780.98180.98030.97960.98240.98250.98210.98160.98480.98430.98410.98240.9849
    Balloon0.98550.98100.98030.97960.98210.98340.98330.98280.98390.98410.98360.98350.9844
    下载: 导出CSV

    表  4  各测试序列解码运行时间(s)

    序列原解码文献[6]文献[7]MVC本文
    Kendo188.71231.45198.83192.07194.19
    Balloon172.35216.14178.13173.82174.69
    Bookarrival175.86219.35183.19177.18179.13
    Poznanstreet483.67558.15498.68484.68486.07
    下载: 导出CSV
  • LI Yufeng and CHEN Ruining. Motion vector recovery for video error concealment based on plane fitting[J]. Computer Engineering &Applications, 2018, 54(2): 182–187. doi: 10.3778/j.issn.1002-8331.1608-0085
    XU Dawen and WANG Rangding. Two-dimensional reversible data hiding-based approach for intra-frame error concealment in H.264/AVC[J]. Journal of Visual Communication& Image Representation, 2016, 47(2): 369–379. doi: 10.1016/j.jvcir.2013.12.008
    ZABIHI S M, GHANEI Y H, and MEHRSHAD N. Adaptive temporal error concealment method based on the MB behavior estimation in the video[C]. The 7th International Conference on Computer and Knowledge Engineering. Mashhad, Iran, 2017: 193–198.
    EL-SHAFAI W, EL-RABAIE S, EL-HALAWANY M M, et al. Recursive Bayesian filtering-based error concealment scheme for 3D video communication over severely lossy wireless channels[J]. Circuits Systems & Signal Processing, 2018(20): 1–32. doi: 10.1007/s00034-018-0786-8
    周洋, 蒋刚毅, 郁梅, 等. 面向HBP编码格式的立体视频B帧整帧丢失分层错误隐藏算法[J]. 电子与信息学报, 2014, 36(2): 377–383. doi: 10.3724/SP.J.1146.2013.00528

    ZHOU Yang, JIANG Gangyi, YU Mei, et al. A hierarchical error concealment algorithm for entire B-frame loss in stereoscopic video coding with hierarchical B pictures[J]. Journal of Electronics &Information Technology, 2014, 36(2): 377–383. doi: 10.3724/SP.J.1146.2013.00528
    SONG K, CHUNG T, OH Y, et al. Error concealment of multi-view video sequences using inter-view and intra-view correlations[J]. Journal of Visual Communication & Image Representation, 2009, 20(4): 281–292. doi: 10.1016/j.jvcir.2009.02.002
    PENG Yantsung and COSMAN P C. Weighted boundary matching error concealment for HEVC using block partition decisions[C]. The 48th Asilomar Conference on Signals, Systems & Computers, Grove, USA, 2014: 921–925. doi: 10.1109/ACSSC.2014.7094587.
    KHATTAK S, MAUGEY T, HAMZAOUI R, et al. Temporal and inter-view consistent error concealment technique for multiview plus depth video[J]. IEEE Transactions on Circuits & Systems for Video Technology, 2016, 26(5): 829–840. doi: 10.1109/TCSVT.2015.2418631
    LIU Shujie, CHEN Ying, WANG Yekui, et al. Frame loss error concealment for multiview video coding[C]. IEEE International Symposium on Circuits and Systems (ISCAS 2008), Washington, USA, 2008: 3470–3473.
    ZHOU Yuan, XIANG Wei, and WANG Gengkun. Frame loss concealment for multiview video transmission over wireless multimedia sensor networks[J]. IEEE Sensors Journal, 2015, 15(3): 1892–1901. doi: 10.1109/JSEN.2014.2366511
    HUANG Pincheng, LIN Jieru, LI Gwolong, et al. Improved depth-assisted error concealment algorithm for 3D video transmission[J]. IEEE Transactions on Multimedia, 2017, 19(11): 2625–2632. doi: 10.1109/TMM.2017.2694218
    TAI Shenchuan, WANG Chuenching, HONG Chienshiang, et al. An efficient full frame algorithm for object-based error concealment in 3D depth-based video[J]. Multimedia Tools & Applications, 2016, 75(16): 9927–9947. doi: 10.1007/s11042-015-2899-4
    时琳, 刘荣科, 李君烨. 基于深度信息的立体视频错误隐藏方法[J]. 电子与信息学报, 2012, 34(7): 1678–1684. doi: 10.3724/SP.J.1146.2011.01107

    SHI Ling, LIU Rongke, and LI Junye. Error concealment based on depth information for stereoscopic video coding[J]. Journal of Electronics &Information Technology, 2012, 34(7): 1678–1684. doi: 10.3724/SP.J.1146.2011.01107
    YANG Meng, LAN Xuguang, ZHENG Nanning, et al. Depth-assisted temporal error concealment for intra frame slices in 3-D video[J]. IEEE Transactions on Broadcasting, 2014, 60(2): 385–393. doi: 10.1109/TBC.2014.2321676
    YAN Bo and ZHOU Jie. Efficient frame concealment for depth image-based 3-D video transmission[J]. IEEE Transactions on Multimedia, 2012, 14(3): 936–941. doi: 10.1109/TMM.2012.2184743
    MERKLE P, MULLER K, MARPE D, et al. Depth intra coding for 3D video based on geometric primitives[J]. IEEE Transactions on Circuits & Systems for Video Technology, 2016, 26(3): 570–582. doi: 10.1109/TCSVT.2015.2407791
    HEWAGE C T E R, WORRALL S, DOGAN S, et al. Frame concealment algorithm for stereoscopic video using motion vector sharing[C]. 2008 IEEE International Conference on Multimedia and Expo, Hannover, Germany, 2008: 485–488. doi: 10.1109/ICME.2008.4607477.
    ASSUNCAO P, MARCELINO S, SOARES S, et al. Spatial error concealment for intra-coded depth maps in multiview video-plus-depth[J]. Multimedia Tools &Applications, 2017, 76(12): 13835–13858. doi: 10.1007/s11042-016-3766-7
    HTM Reference Software 14.0. http://hevc.kw.bbc.co.uk/git/w/jctvc-3de.git, 2016.
    WANG Zhou, BOVIK A C, SHEIKH H R, et al. Image quality assessment: From error visibility to structural similarity[J]. IEEE Transactions on Image Processing, 2004, 13(4): 600–612. doi: 10.3969/j.issn.1006-8961.2006.12.00.003
