Security Hybrid Beamforming Algorithm for Millimeter Wave Downlink Multiuser System
-
摘要:
毫米波混合波束成形结构受到日益广泛的认可，但缺乏以安全性为着眼点的混合波束成形算法研究，特别是当窃听者具有多用户译码能力时，系统安全性能无法得到保障。针对上述问题，该文基于人工噪声辅助的思想提出一种毫米波下行多用户系统安全混合波束成形算法。首先，将混合波束成形矩阵的模拟部分和数字部分解耦合独立求解，在充分考虑信道特性的基础上，通过最大化用户接收信号能量和迫零思想分别设计有用信号的模拟和数字波束成形矩阵；然后，通过SVD分解设计人工噪声的基带数字预编码矩阵，将人工噪声置于合法用户零空间。仿真结果表明，人工噪声辅助的安全混合波束成形算法有效解决了存在具有多用户译码能力窃听者时系统的安全问题。
Abstract:The millimeter-wave hybrid beamforming becomes a widely accepted beamforming method in millimeter-wave systems. However there is almost no hybrid beamforming algorithm based on security. Especially when the eavesdropper has multi-user decoding capability, the system security performance can not be guaranteed. To solve this problem, a security hybrid beamforming algorithm is proposed for millimeter wave downlink multiuser system based on artificial noise. First, the analog part and the digital part of the hybrid beamforming matrix are decoupled. Based on the channel characteristics, the analog and digital beamforming matrices of useful signals are designed by maximizing the user’s received signal energy and Zero-Forcing (ZF). Then, the artificial noise baseband digital precoding matrix is designed by Singular Value Decomposition (SVD), and the artificial noise is placed in null space of the legal users and worsening eavesdropping channel. Simulation results show that the artificial noise-assisted secure hybrid beamforming algorithm solves effectively the security problem of the system when there are multi-user decoding ability eavesdroppers.
-

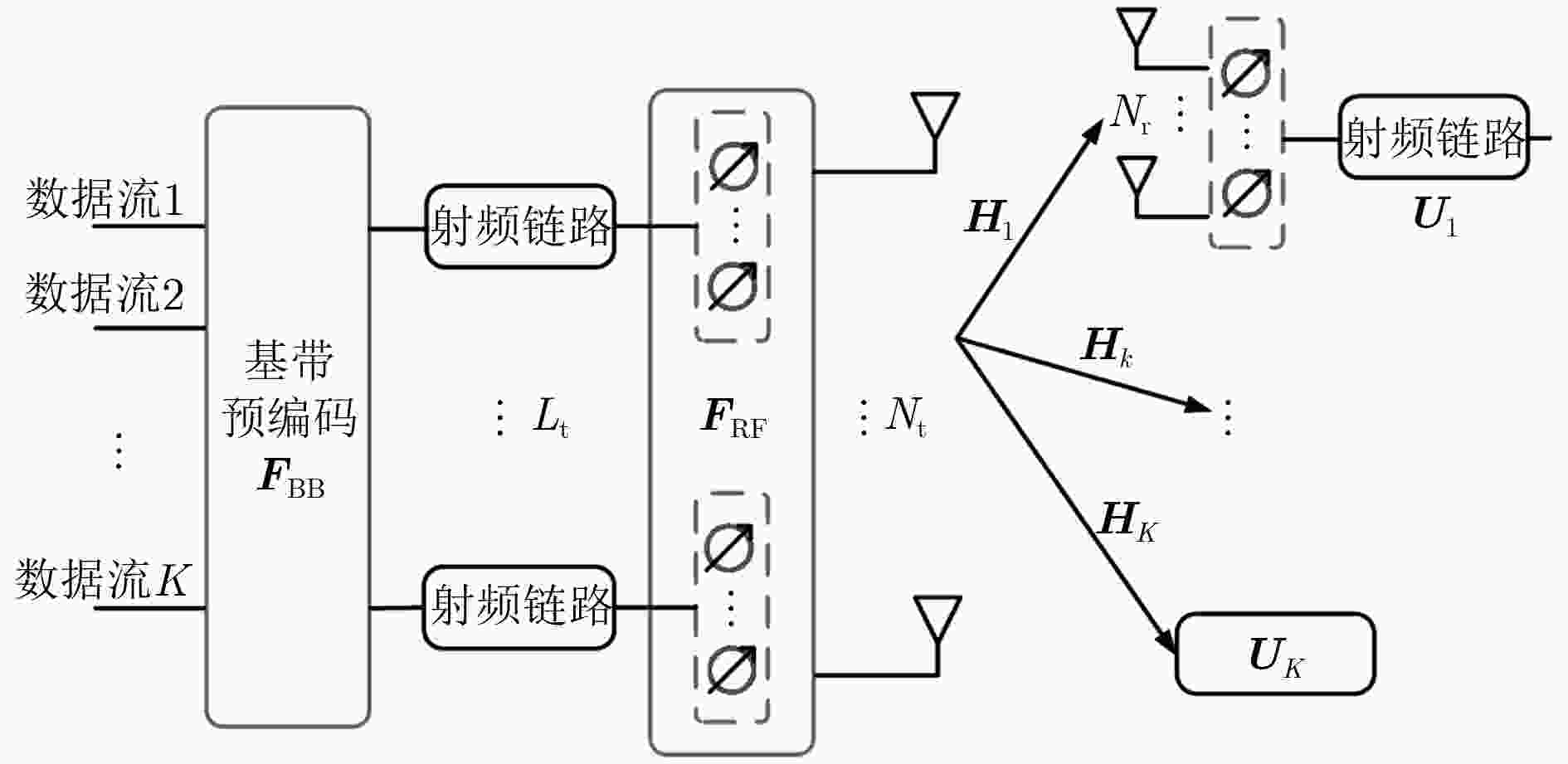

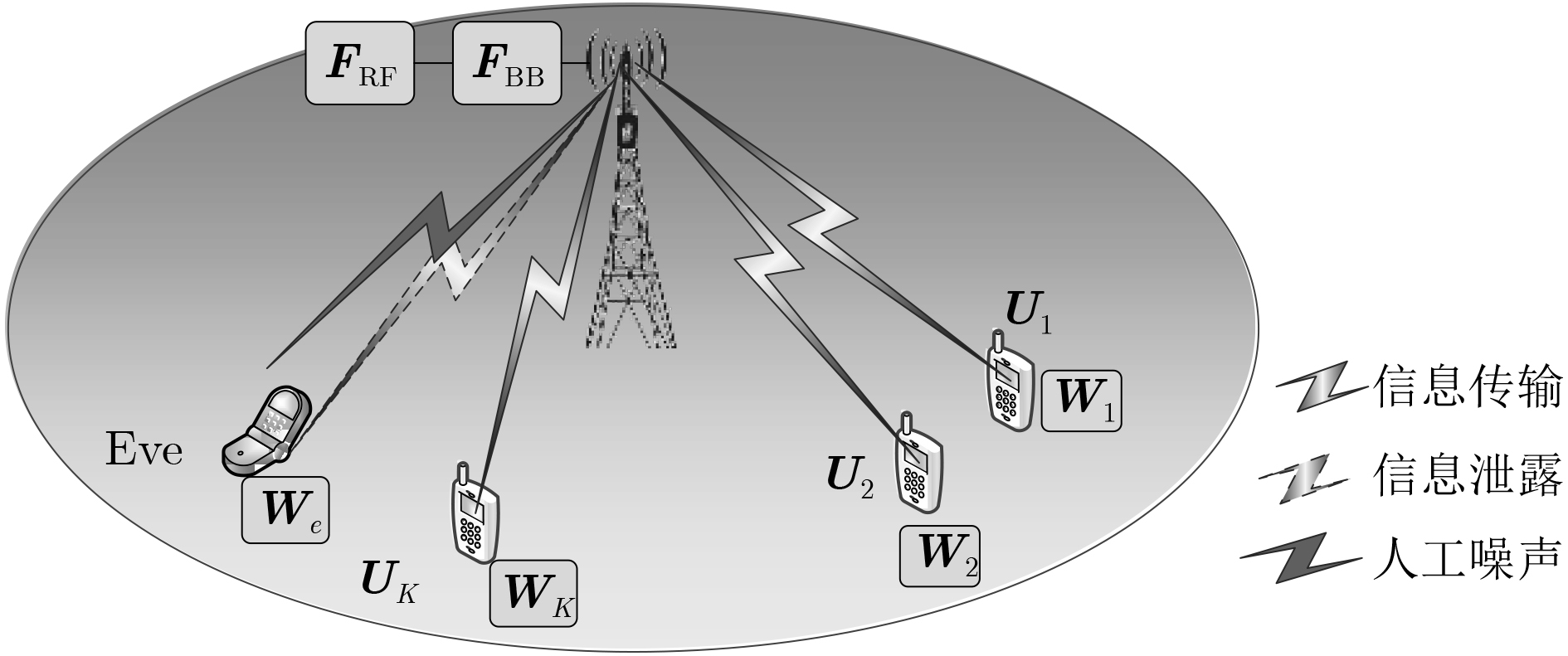

表 1 毫米波下行多用户系统安全混合波束成形算法
算法步骤： 输入：$\mathbb{F}$, $\mathbb{W} $, $P$, $\phi $； 第1阶段： 对每个用户$k$, $k = 1,2, ·\!·\!· ,K$ 基站和用户联合计算： $\left\{ {{{f}}_k^{*} ,{{W}}\!\!_k^{\ *}} \right\} = \mathop {\arg \max }\limits_{{{{W}}\!_k} \in {\mathcal{W}} , {{{f}}\!_k} \in {\mathcal{F}}} \left| {{{W}}\!\!_k^{\ \rm{H}}{{{H}}\!_k}{{f}}\!_k^{{\ \rm{RF}}}} \right|$ 用户$k$设置$ {{{W}}\!_k} = {{W}}\!_k^{\ *} $ 基站设置$ {{{F}}_{{\rm{RF}}}} = \left[ {{{f}}_1^ * ·\!·\!· {{f}}\!_K^{\ *} ,{{{v}}_{K + 1}} ·\!·\!· {{{v}}_{{L_{\rm t}}}}} \right]$ 第2阶段： 对每个用户$k$, $k = 1,2, ·\!·\!· ,K$ 用户计算等效基带信道矩阵${{\tilde{ H}}\!_k} = {{W}}\!_k^{\ \rm{H}}{{{H}}\!_k}{{{F}}_{{\rm{RF}}}}$ 用户向基站反馈信道状态信息${{\tilde{ H}}\!_k}$
基站计算${\tilde{ H}} = {\left[ {{\tilde{ H}}_1^{\rm{T}},{\tilde{ H}}_2^{\rm{T}}, ·\!·\!·, {\tilde{ H}}\!_K^{\rm{T}}} \right]^{\rm{T}}}$, ${{{F}}_{{\rm{BB}}}} = {{\tilde{ H}}^{\rm{H}}}{\left( {{\tilde{ H}}{{{\tilde{ H}}}^{\rm{H}}}} \right)^{ - 1}}$；基 站进行奇异值分解${\tilde{ H}} \!=\! {\tilde{ U}}\tilde {Σ} {{\tilde{ V}}^{\rm{H}}}$，设置${{{F}}_{{\rm{BB}},z}} \!=\!\! {\tilde{ V}}\left( {:,K + 1, ·\!·\!· ,{L_{\rm t}}} \right)$输出：基站端模拟预编码${{{F}}_{{\rm{RF}}}}$，基站端数字预编码${{{F}}_{{\rm{BB}}}}$，人工噪 声数字预编码${{{F}}_{{\rm{BB,}}z}}$，用户处模拟接收成形矩阵${{{W}}\!_k}$。

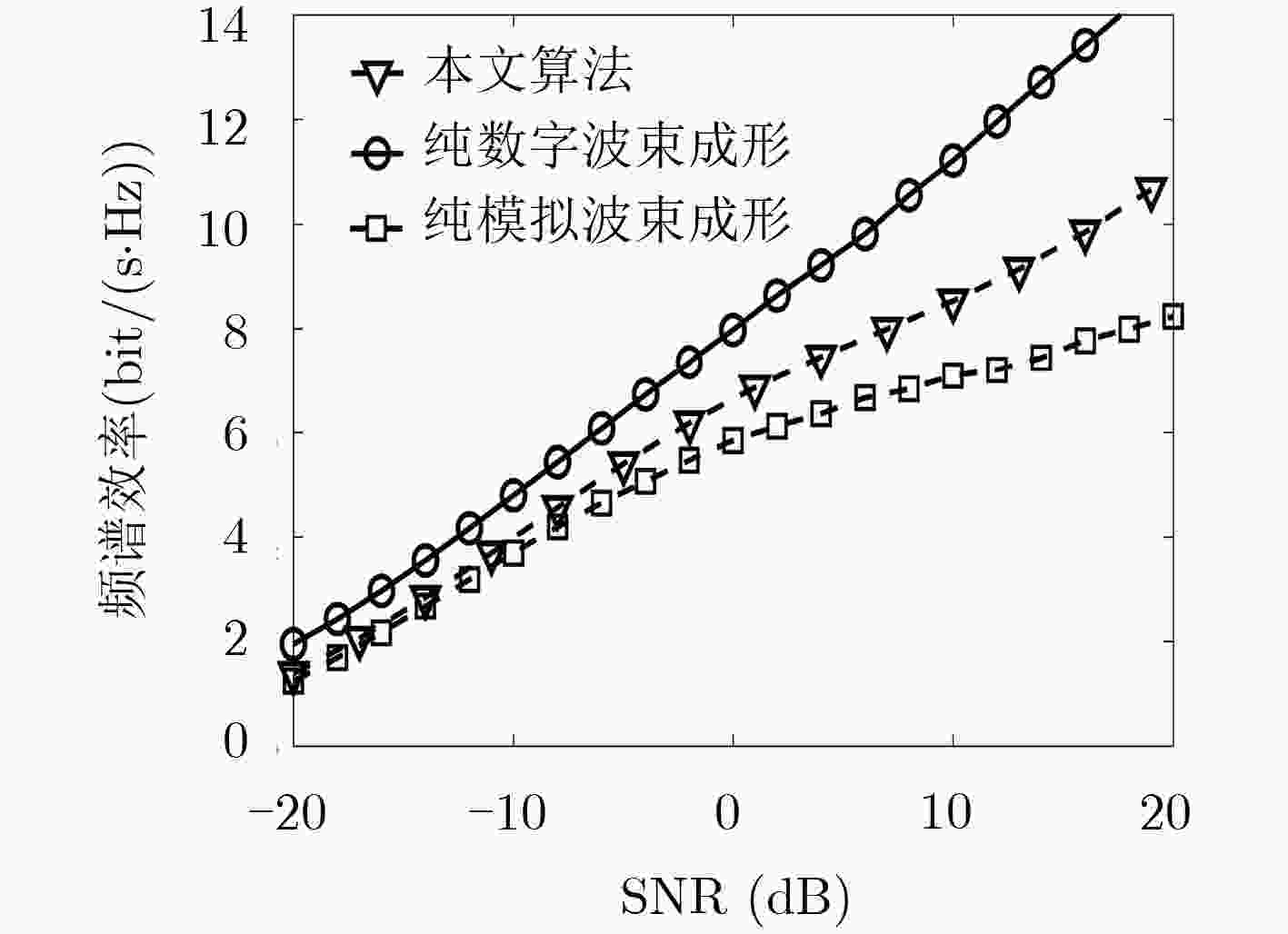

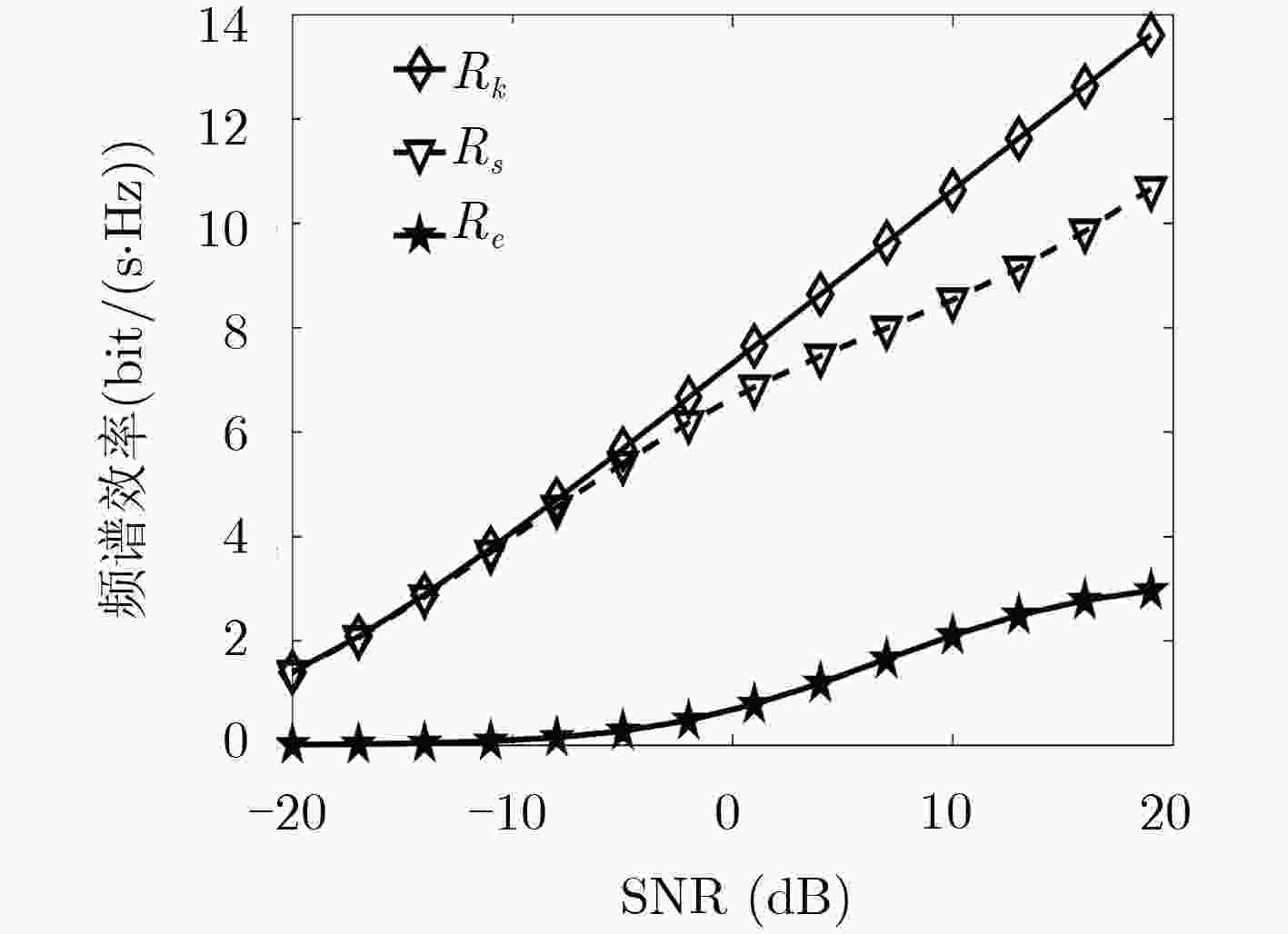

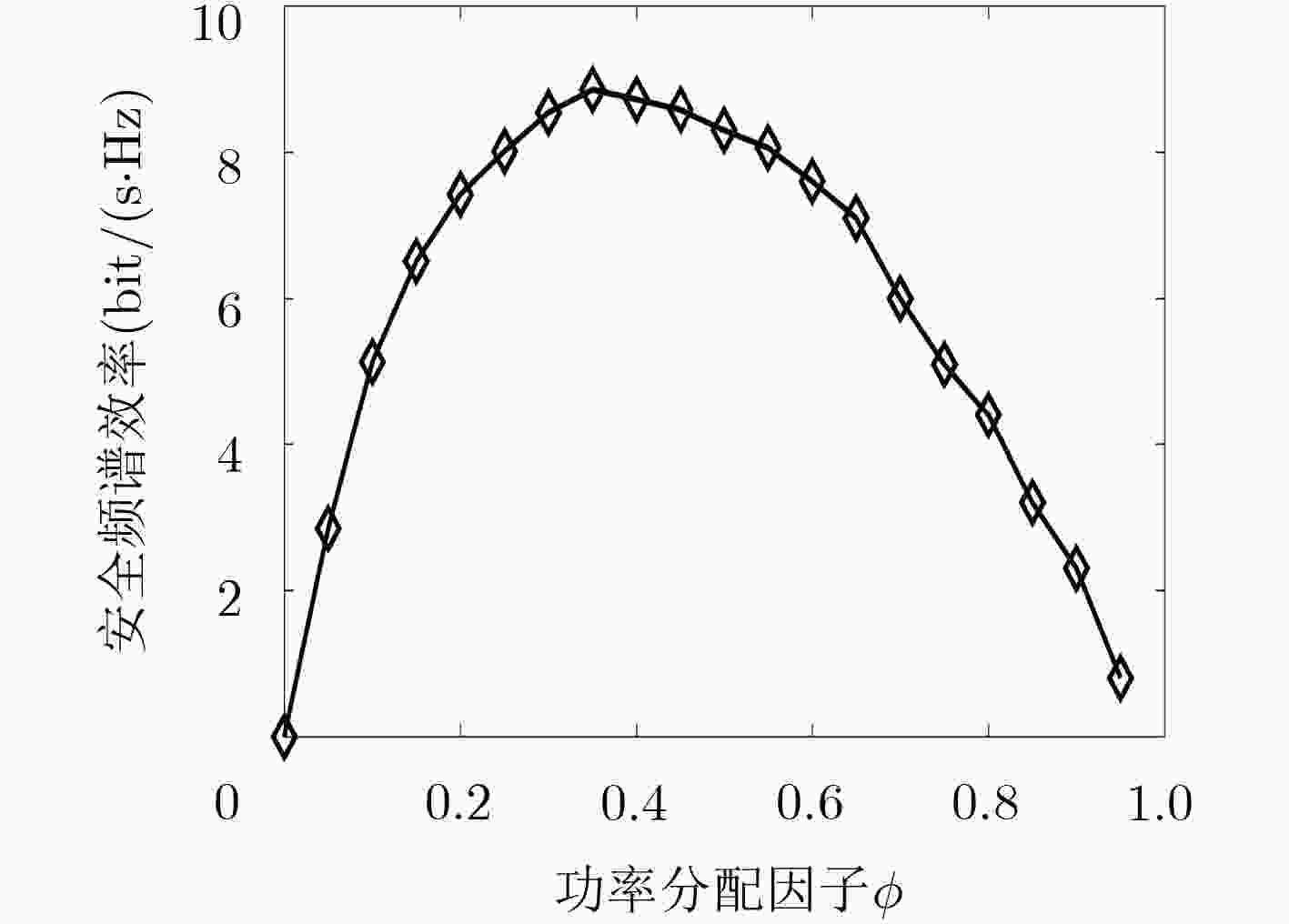

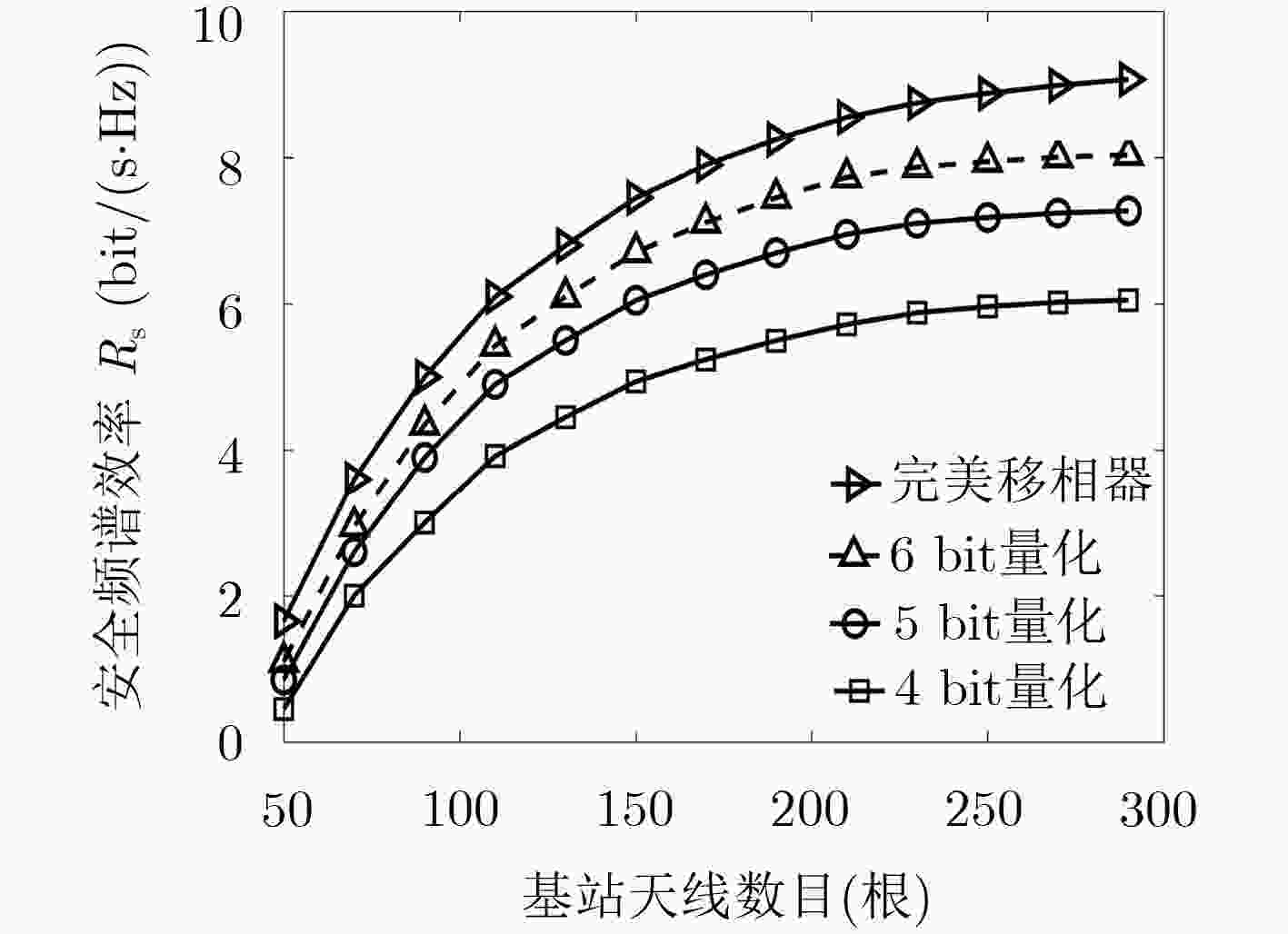

下载: 导出CSV
-
RAPPAPORT T S, SUN Shu, MAYZUS R, et al. Millimeter wave mobile communications for 5G cellular: It will work![J]. IEEE Access, 2013, 1: 335–349 doi: 10.1109/ACCESS.2013.2260813 RANGAN S, RAPPAPORT T S, and ERKIP E. Millimeter-wave cellular wireless networks: Potentials and challenges[J]. Proceedings of the IEEE, 2014, 102(3): 366–385 doi: 10.1109/JPROC.2014.2299397 WANG Chao and WANG Huiming. Physical layer security in millimeter wave cellular networks[J]. IEEE Transactions on Wireless Communications, 2016, 15(8): 5569–5585 doi: 10.1109/TWC.2016.2562010 WU Yongpeng, KHISTI A, XIAO Chengshan, et al. A survey of physical layer security techniques for 5G wireless networks and challenges ahead[J]. IEEE Journal on Selected Areas in Communications, 2018, 36(4): 679–695 doi: 10.1109/JSAC.2018.2825560 ANDREWS J G, BAI Tianyang, KULKARNIul M N, et al. Modeling and analyzing millimeter wave cellular systems[J]. IEEE Transactions on Communications, 2017, 65(1): 403–430 doi: 10.1109/TCOMM.2016.2618794 AYACH O E, HEATH R W, ABU-SURRA S, et al. Low complexity precoding for large millimeter wave MIMO systems[C]. IEEE International Conference on Communications, Ottawa, Canada, 2012: 3724–3729. AYACH O E, RAJAGOPAL S, ABU-SURRA S, et al. Spatially sparse precoding in millimeter wave MIMO systems[J]. IEEE Transactions on Wireless Communications, 2014, 13(3): 1499–1513 doi: 10.1109/TWC.2014.011714.130846 ALKHATEEB A, AYACH O E, LEUS G, et al. Channel estimation and hybrid precoding for millimeter wave cellular systems[J]. IEEE Journal of Selected Topics in Signal Processing, 2014, 8(5): 831–846 doi: 10.1109/JSTSP.2014.2334278 RAMADAN Y R, MINN H, and IBRAHIM A S. Hybrid analog–digital precoding design for secrecy mmWave MISO-OFDM systems[J]. IEEE Transactions on Communications, 2017, 65(11): 5009–5026 doi: 10.1109/TCOMM.2017.2734666 WANG Zihuan, LI Ming, TIAN Xiaowen, et al. Iterative hybrid precoder and combiner design for mmWave multiuser MIMO systems[J]. IEEE Communications Letters, 2017, 21(7): 1581–1584 doi: 10.1109/LCOMM.2017.2682087 CHEN Yajun, JI Xinsheng, HUANG Kaizhi, et al. Artificial noise-assisted physical layer security in D2D-enabled cellular networks[J]. EURASIP Journal on Wireless Communications and Networking, 2017, 2017: 178 doi: 10.1186/s13638-017-0969-1 ALKHATEEB A, LEUS G, and HEATH R W. Limited feedback hybrid precoding for multi-user millimeter wave systems[J]. IEEE Transactions on Wireless Communications, 2015, 14(11): 6481–6494 doi: 10.1109/TWC.2015.2455980 GONZALEZ-COMA J P, RODRIGUEZ-FERNANDEZ J, GONZALEZ-PRELCIC N, et al. Channel estimation and hybrid precoding for frequency selective multiuser mmWave MIMO systems[J]. IEEE Journal of Selected Topics in Signal Processing, 2018, 12(2): 353–367 doi: 10.1109/JSTSP.2018.2819130 黄天宇, 马林华, 胡星, 等. 一种实用的毫米波大规模MIMO混合预编码算法[J]. 电子与信息学报, 2017, 39(8): 1788–1795 doi: 10.11999/JEIT161211HUANG Tianyu, MA Linhua, HU Xing, et al. Practical hybrid precoding algorithm for millimeter wave massive MIMO[J]. Journal of Electronics &Information Technology, 2017, 39(8): 1788–1795 doi: 10.11999/JEIT161211 ZHU Jun, XU Wei, and WANG Ning. Secure massive MIMO systems with limited RF chains[J]. IEEE Transactions on Vehicular Technology, 2017, 66(6): 5455–5460 doi: 10.1109/TVT.2016.2615885 -
