Suppressed Non-local Spatial Intuitionistic Fuzzy C-means Image Segmentation Algorithm

Rong LAN,
Yang LIN^,

1.
School of Telecommunications and Information Engineering, Xi’an University of Posts and Telecommunications, Xi’an 710121, China
2.
Key Laboratory of Electronic Information Application Technology for Scene Investigation, Ministry of Public Security, Xi’an 710121, China
3.
International Joint Research Center for Wireless Communication and Information Processing, Shannxi Province Xi’an 710121, China

Funds: The National Natural Science Foundation of China (61571361, 61671377), Shaanxi Provincial Department of Education Scientific Research Plan (16JK1709), New Star Team of Xi’an University of Posts and Telecommunications (xyt2016-01)

摘要

摘要: 针对传统的模糊C-均值(FCM)算法没有考虑图像像素的空间邻域信息，对噪声敏感，算法收敛较慢等问题，该文提出一种抑制式非局部空间直觉模糊C-均值图像分割算法。首先，通过计算像素的非局部空间信息提高抗噪能力，克服传统的FCM算法只考虑图像单个像素的灰度特征信息的缺陷，提高分割精度。其次，根据直觉模糊集理论，通过“投票模型”自适应生成犹豫度作为抑制因子修正隶属度，提高算法的运行效率。实验结果表明，该算法对噪声鲁棒性较强并且有较好的分割性能。
- 图像分割 /
- 模糊C-均值 /
- 直觉模糊集 /
- 非局部空间信息 /
- 犹豫度
Abstract: In order to deal with these issues of the traditional Fuzzy C-Means (FCM) algorithm, such as without consideration of the spatial neighborhood information of pixels, noise sensitivity and low convergence speed, a suppressed non-local spatial intuitionistic fuzzy c-means image segmentation algorithm is proposed. Firstly, in order to improve the accuracy of segmentation image, the non-local spatial information of pixel is used to improve anti-noise ability, and to overcome the shortcomings of the traditional FCM algorithm, which only considers the gray characteristic information of single pixel. Secondly, by using the ‘voting model’ based on the intuitionistic fuzzy set theory, the hesitation degrees are adaptively generated as inhibitory factors to modify the membership degrees, and then the operating efficiency is increased. Experimental results show that the new algorithm is robust to noise and has better segmentation performance.
- Image segmentation /
- Fuzzy C-Means (FCM) /
- Intuitionistic fuzzy set /
- Non-local spatial information /
- Hesitation degree

HTML全文

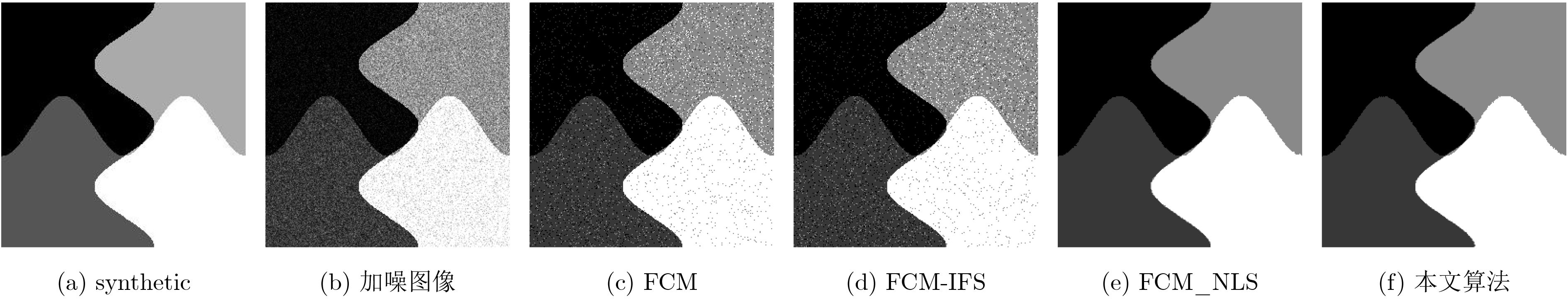

图 1 4种算法对synthetic的分割结果

下载: 全尺寸图片幻灯片

图 2 4种算法对#15088的分割结果

下载: 全尺寸图片幻灯片

图 3 4种算法对#42049的分割结果

下载: 全尺寸图片幻灯片

图 4 4种算法对#24063的分割结果

下载: 全尺寸图片幻灯片

图 5 4种算法对#118035的分割结果

下载: 全尺寸图片幻灯片

图 6 #15088, #24063随噪声水平变化的运行时间对比

下载: 全尺寸图片幻灯片

表 1 4种算法对人工图像的分割结果指标

分割算法	V_pc	V_pe
FCM	0.8449	0.3065
FCM-IFS	0.8431	0.3109
FCM_NLS	0.9223	0.1777
本文算法	0.9229	0.1765

下载: 导出CSV

表 2 4种算法的分割结果指标

测试图像	分割算法	V_pc	V_pe	PSNR	DC
#15088	FCM	0.8484	0.2535	3.2419	0.4046
	FCM-IFS	0.8581	0.2397	3.2490	0.4316
	FCM_NLS	0.9229	0.1502	8.0774	0.6364
	本文算法	0.9245	0.1477	8.0832	0.6400
#42049	FCM	0.8992	0.1790	2.2577	0.8517
	FCM-IFS	0.9010	0.1765	2.2609	0.8541
	FCM_NLS	0.9267	0.1371	10.5479	0.8947
	本文算法	0.9270	0.1369	10.5636	0.8937
#24063	FCM	0.7928	0.3778	4.0303	0.9239
	FCM-IFS	0.7956	0.3740	3.9493	0.9259
	FCM_NLS	0.8331	0.3262	7.1709	0.9707
	本文算法	0.8371	0.3208	7.9568	0.9741
#118035	FCM	0.8382	0.2927	3.0429	0.9438
	FCM-IFS	0.8377	0.2948	3.0053	0.9433
	FCM_NLS	0.8410	0.2936	11.0120	0.9519
	本文算法	0.8594	0.2693	11.7764	0.9487

下载: 导出CSV

表 3 强度0.02高斯噪声下两种算法运行时间对比

图像编号	FCM_NLS算法		本文算法
图像编号	运行时间(s)	迭代次数	运行时间(s)	迭代次数
#15088	439.63	24	423.17	13
#42049	421.56	23	420.66	14
#24063	436.69	37	418.97	20
#118035	404.66	64	405.08	19
#3096	427.91	94	413.07	36
#135069	433.81	38	426.97	26
#8068	442.48	19	408.73	14
#113044	436.53	28	405.51	18
#27	420.28	37	409.27	23
#101027	427.13	27	408.06	25

下载: 导出CSV

表 4 强度0.02高斯噪声下两种算法平均运行时间对比

算法	平均运行时间(s)	平均迭代次数
FCM_NLS	427.54	41
本算法	414.77	24

下载: 导出CSV

参考文献(22)

吴方, 何尾莲. 基于改进粗糙集概率模型的鲁棒医学图像分割算法[J]. 计算机应用研究, 2017, 34(8): 2546–2550. doi: 10.3969/j.issn.1001-3695.2017.08.069

WU Fang and HE Weilian. Improved probability model of rough set based robust medical image segmentation algorithm[J]. Application Research of Computers, 2017, 34(8): 2546–2550. doi: 10.3969/j.issn.1001-3695.2017.08.069

缪立军, 车自远. 基于自适应下采样的移动机器人视觉定位技术[J]. 应用光学, 2017, 38(3): 429–433. doi: 10.5768/JAO201738.0302008

MIAO Lijun and CHE Ziyuan. Visual locating of mobile robot based on adaptive down sampling[J]. Journal of Applied Optics, 2017, 38(3): 429–433. doi: 10.5768/JAO201738.0302008

张飞龙, 王顺芳, 赵剑华, 等. 基于图像分割及模糊隶属度的PCA人脸识别[J]. 计算机应用与软件, 2014, 31(5): 188–190. doi: 10.3969/j.issn.1000-386x.2014.05.048

ZHANG Feilong, WANG Shunfang, ZHAO Jianhua, et al. Face recognition with PCA based on image segmentation and fuzzy membership[J]. Computer Application and Software, 2014, 31(5): 188–190. doi: 10.3969/j.issn.1000-386x.2014.05.048

纪星波, 张海峰. 改进的指纹自适应阈值分割算法[J]. 杭州电子科技大学学报(自然科学版), 2015, 35(2): 65–69. doi: 10.13954/j.cnki.hdu.2015.02.016

JIN Xingbo and ZHANG Haifeng. The improved algorithm of fingerprint segmentation based on adaptive threshold[J]. Journal of Hanzhou Dianzi University(Natural Sciences), 2015, 35(2): 65–69. doi: 10.13954/j.cnki.hdu.2015.02.016

张博, 倪开灶, 王林军, 等. 基于背景矫正和图像分割定量分析光学元件表面疵病的新算法[J]. 光学学报, 2016, 36(9): 120–129. doi: 10.3788/AOS201636.0911004

ZHANG Bo, NI Kaizao, WANG Linjun, et al. New algorithm of detecting optical surface imperfection based on background correction and image segmentation[J]. Acta Optica Sinica, 2016, 36(9): 120–129. doi: 10.3788/AOS201636.0911004

申铉京, 刘翔, 陈海鹏. 基于多阈值Ostu准则的阈值分割快速计算[J]. 电子与信息学报, 2017, 39(1): 144–149. doi: 10.11999/JEIT160248

SHEN Xuanjing, LIU Xiang, and CHEN Haipeng. Fast computation of threshold based on multi-threshold Ostu criterion[J]. Journal of Electronics &Information Technology, 2017, 39(1): 144–149. doi: 10.11999/JEIT160248

肖明尧, 李雄飞, 张小利, 等. 基于多尺度的区域生长的图像分割算法[J]. 吉林大学学报(工学版), 2017, 5(47): 1591–1597. doi: 10.13229/j.cnki.jdxbgxb201705035

XIAO Mingyao, LI Xiongfei, ZHANG Xiaoli, et al. Medical image segmentation algorithm based on multi-scale region growing[J]. Journal of Jilin University(Engineering and Technology Edition), 2017, 5(47): 1591–1597. doi: 10.13229/j.cnki.jdxbgxb201705035

刘永学, 李春满, 毛亮. 基于边缘的多光谱遥感图像分割方法[J]. 遥感学报, 2006, 10(3): 350–356.

LIU Yongxue, LI Chunman, and MAO Liang. An algorithm of multi-spectral remote image segmentation based on edge information[J]. Journal of Remote Sensing, 2006, 10(3): 350–356.

赵凤, 刘汉强, 范九伦. 基于互补空间信息的多目标进化聚类图像分割[J]. 电子与信息学报, 2015, 37(3): 672–678. doi: 10.11999/JEIT140371

ZHAO Feng, LIU Hanqiang, and FAN Jiulun. Multi-objective evolutionary clustering with complementary spatial information for image segmentation[J]. Journal of Electronics &Information Technology, 2015, 37(3): 672–678. doi: 10.11999/JEIT140371

FAN Jiulun, ZHEN Wenzhi, and XIE Weixin. Suppressed fuzzy C-means clustering algorithm[J]. Pattern Recognition Letter, 2003, 24(9/10): 1607–1612.

兰蓉, 马姣婷. 基于直觉模糊C-均值聚类算法的图像分割[J]. 西安邮电大学学报, 2016, 21(3): 1–4. doi: 10.13682/j.issn.2095-6533.2016.04.010

LAN Rong and MA Jiaoting. Image segmentation based on intuitionstic fuzzy c-means clustering algorithm[J]. Journal of Xi’an University of Posts and Telecommunications, 2016, 21(3): 1–4. doi: 10.13682/j.issn.2095-6533.2016.04.010

AHMED M N, YAMANY S M, MOHAMED N, et al. A modified fuzzy c-means algorithm for bias filed estimation and segmentation of MRI data[J]. IEEE Transactions on Medical Imaging, 2002, 21(3): 193–199. doi: 10.1109/42.996338

CHEN S C and ZHANG D Q. Robust image segmentation using FCM with spatial constraints based on new kernel-induced distance measure[J]. IEEE Transactions on Systems, Man and Cybernetics. Part B: Cybernetics, 2004, 34(4): 1907–1916. doi: 10.1109/TSMCB.2004.831165

ZHAO Feng, JIAO Licheng, and LIU Hanqiang. Fuzzy c-means clustering with non local spatial information for noise image segmentation[J]. Frontiers of Computer Science in China, 2011, 5(1): 45–56. doi: 10.1007/s11704-010-0393-8

范九伦. 抑制式模糊C-均值聚类研究综述[J]. 西安邮电大学学报, 2014, 19(3): 1–5. doi: 10.13682/j.issn.2095-6533.2014.03.001

FAN Jiulun. A brief overview on suppressed fuzzy C-means clustering[J]. Journal of Xi’an University of Posts and Telecommunications, 2014, 19(3): 1–5. doi: 10.13682/j.issn.2095-6533.2014.03.001

BUADES A, COLL B, and MOREL J M. A non-local algorithm for image denoising[C]. Proceeding of IEEE International Conference on Computer Vision and Pattern Recognition, San Diego, USA, 2005: 60–65.

ATANASSOV K T. Intuitionistic fuzzy sets[J]. Fuzzy Sets and Systems, 1986, 20(1): 87–96. doi: 10.1016/S0165-0114(86)80034-3

赵凤. 基于模糊聚类的图像分割[M]. 西安: 西安电子科技大学出版社, 2015: 43.

ZHAO Feng. Fuzzy Clustering for Image Segmentation[M]. Xi’an: Publisher of Xidian University, 2015: 43.

LAN Rong, FAN Jiulun, LIU Ying, et al. Image thresholding by maximizing the similarity degree based on intuitionistic fuzzy sets[C]. Quantitative Logic and Soft Computing, Hangzhou, China, 2016: 631–640.

ZHAO Feng, JIAO Licheng and LIU Hanqiang. A multiobjective spatial fuzzy clustering algorithm for image segmentation[J]. Applied Soft Computing, 2015, 30: 48–57. doi: 10.1016/j.asoc.2015.01.039

XIE Xuanli and BENI G. A validity measure for fuzzy clustering[J]. IEEE Transactions on Pattern Analysis&Machine Intelligence, 1991, 13(13): 841–847.

DICE L R. Measures of the amount of ecologic association between species[J]. Ecology, 1945, 26(3): 297–302. doi: 10.2307/1932409
