基于自相关-倒谱联合分析的无人机旋翼转动频率估计方法

宋晨; 周良将; 吴一戎; 丁赤飚

doi:10.11999/JEIT180399

基于自相关-倒谱联合分析的无人机旋翼转动频率估计方法

doi: 10.11999/JEIT180399

1.
微波成像技术重点实验室北京 100190
2.
中国科学院电子学研究所北京 100190
3.
中国科学院大学北京 100049

详细信息

作者简介:
宋晨：男，1992年生，博士生，研究方向为雷达信号处理、目标检测与识别等

周良将：男，1981年生，副研究员，研究方向为合成孔径雷达系统设计、系统误差补偿及其相关信号处理技术

吴一戎：男，1963年生，研究员，中国科学院院士，研究方向为高分辨机载合成孔径雷达及运动补偿技术、SAR信号处理算法、遥感卫星地面处理与应用系统的体系结构、数据处理算法等

丁赤飚：男，1969年生，研究员，研究方向为先进合成孔径雷达系统和信号处理技术、数字信号处理、信息系统技术等

通讯作者:
周良将　ljzhou@mail.ie.ac.cn

中图分类号: TN957.51
计量
- 文章访问数: 2366
- HTML全文浏览量: 813
- PDF下载量: 168
- 被引次数: 0
出版历程
- 收稿日期: 2018-04-27
- 修回日期: 2018-11-02
- 网络出版日期: 2018-11-12
- 刊出日期: 2019-02-01

An Estimation Method of Rotation Frequency of Unmanned Aerial Vehicle Based on Auto-correlation and Cepstrum

1.
National Key Laboratory of Microwave Imaging Technology, Beijing 100190, China
2.
Institute of electronics, Chinese Academy of Sciences, Beijing 100190, China
3.
University of Chinese Academy of Sciences, Beijing 100049, China

摘要

摘要:
准确估计无人机旋翼转动频率对于无人机的检测与识别具有重要意义。该文针对调频连续波雷达的无人机目标回波模型，提出一种自相关-倒谱联合分析的无人机旋翼转动频率估计方法，推导了无人机旋翼转动频率与雷达回波倒谱输出中周期性时延的映射关系，通过加权均衡能够更有效地估计多旋翼无人机旋翼转动频率，弥补了传统方法的不足。通过仿真和实际场景实验验证了方法的有效性。
- 无人机 /
- 微多普勒 /
- 特征提取 /
- 参数估计 /
- 自相关-倒谱
Abstract:
Accurately estimating rotor rotation frequency of Unmanned Aerial Vehicle (UAV) is of great significance for UAV detection and recognition. For the UAV target echo model of LFMCW (Linear Frequency Modulated Continuous Wave) radar, this paper proposes an auto-correlation and cepstrum to estimate the rotor rotation frequency of UAV, which derives the mapping relationship between the rotor rotation frequency of UAV and the periodic delay in the radar echo cepstrum output, and more effectively estimates the rotor frequency of multi-rotor UAV by weighted equilibrium, making up for the shortages of traditional methods. The effectiveness of the method is verified by simulation and real scene experiments.
- Unmanned Aerial Vehicle (UAV) /
- Micro-Doppler /
- Feature extraction /
- Parameter estimation /
- Auto-correlation cepstrum

HTML全文

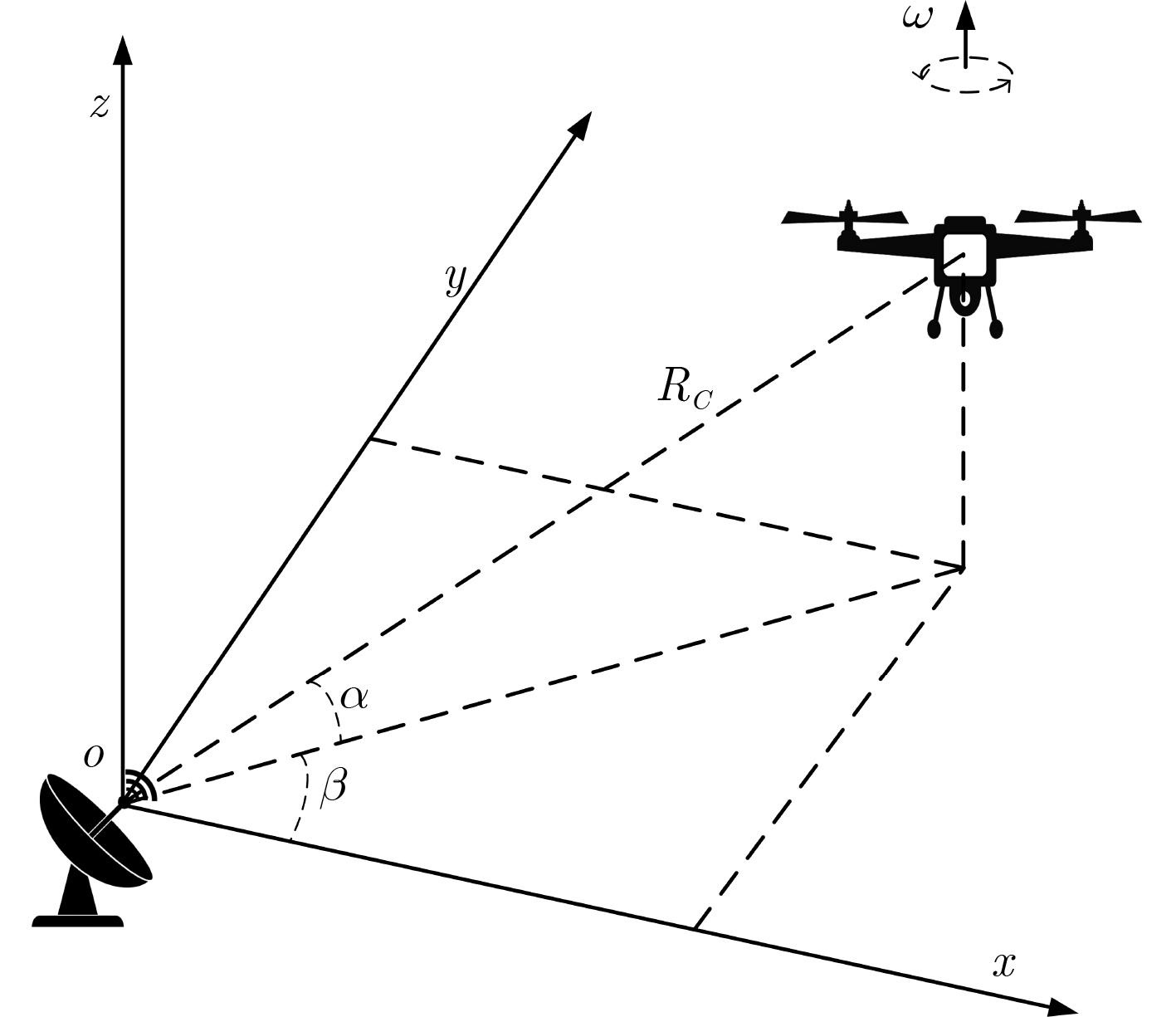

图 1 雷达观测多旋翼无人机几何模型

下载: 全尺寸图片幻灯片

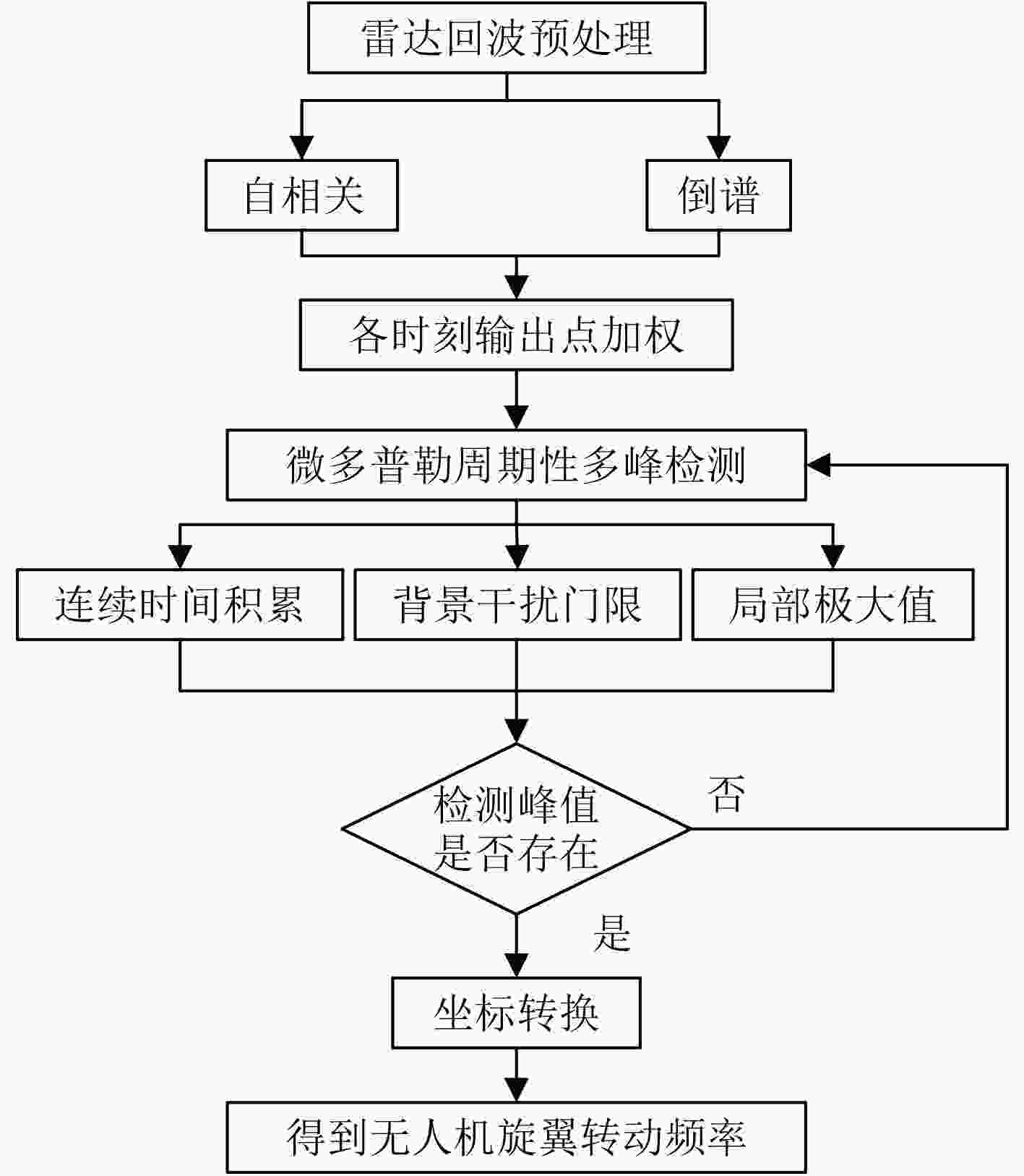

图 2 自相关-倒谱联合估计方法流程图

下载: 全尺寸图片幻灯片

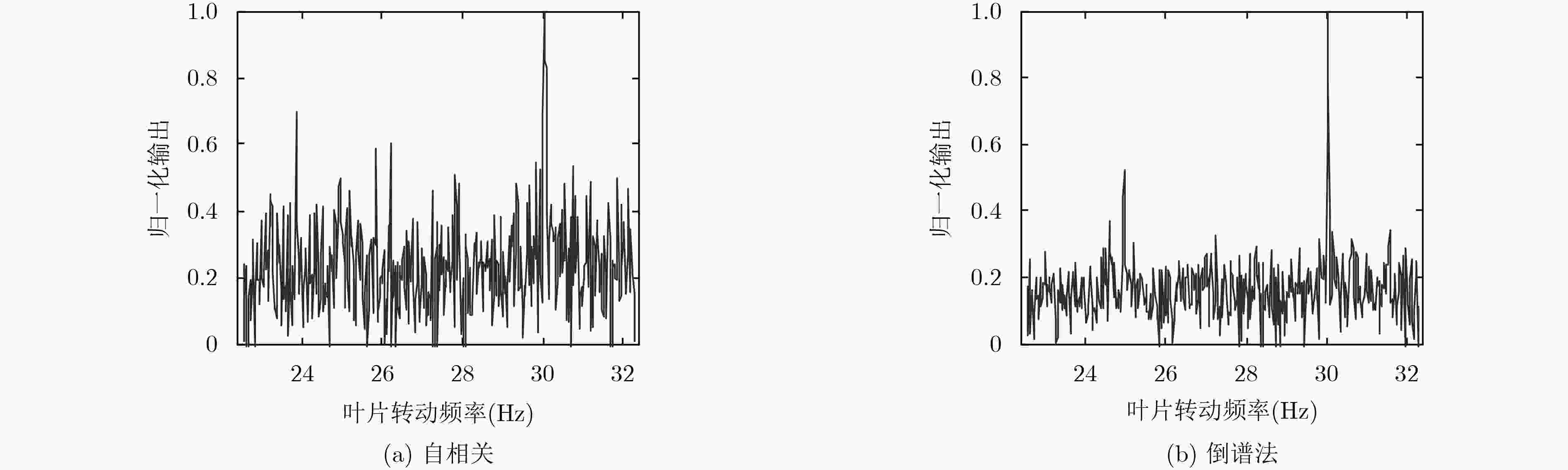

图 3 传统方法仿真结果对比

下载: 全尺寸图片幻灯片

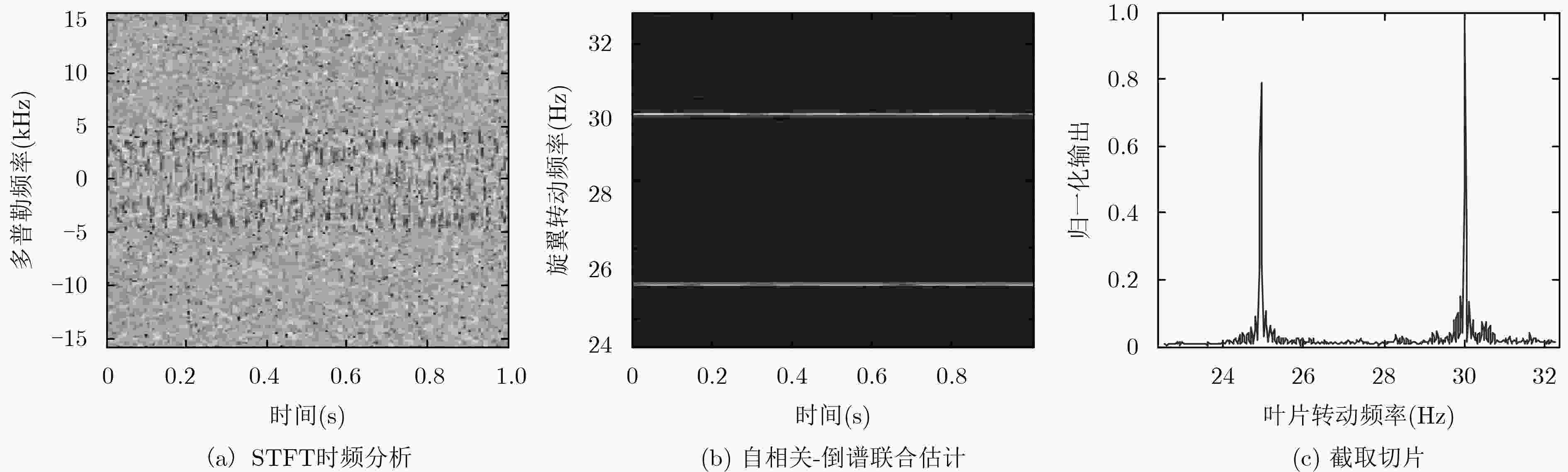

图 4 仿真结果对比

下载: 全尺寸图片幻灯片

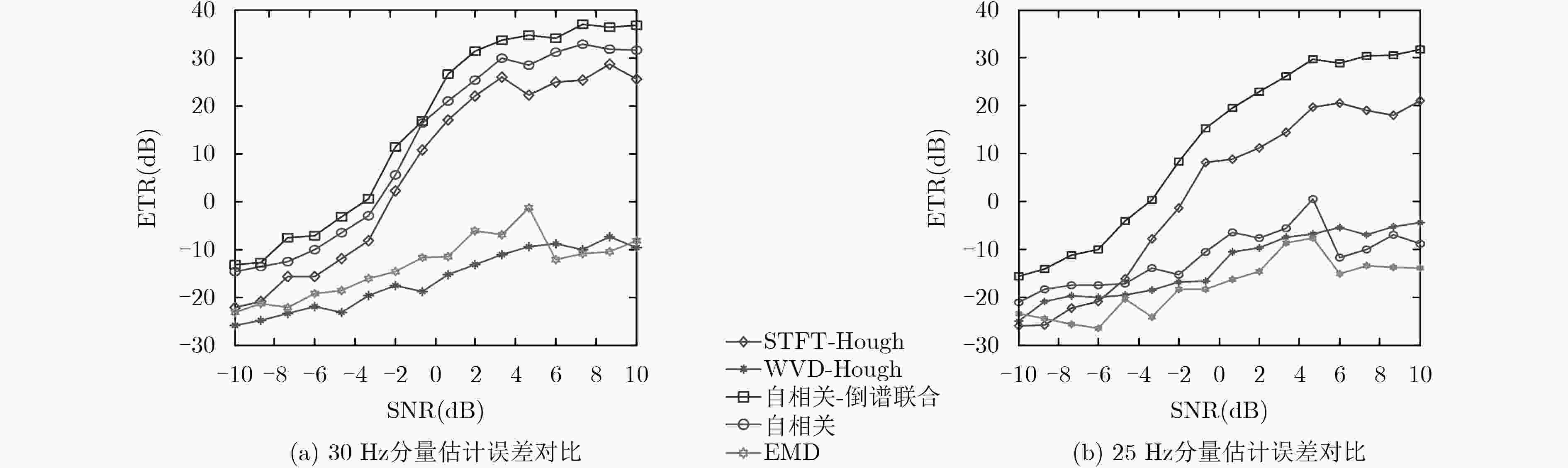

图 5 不同方法旋翼转动频率估计误差对比

下载: 全尺寸图片幻灯片

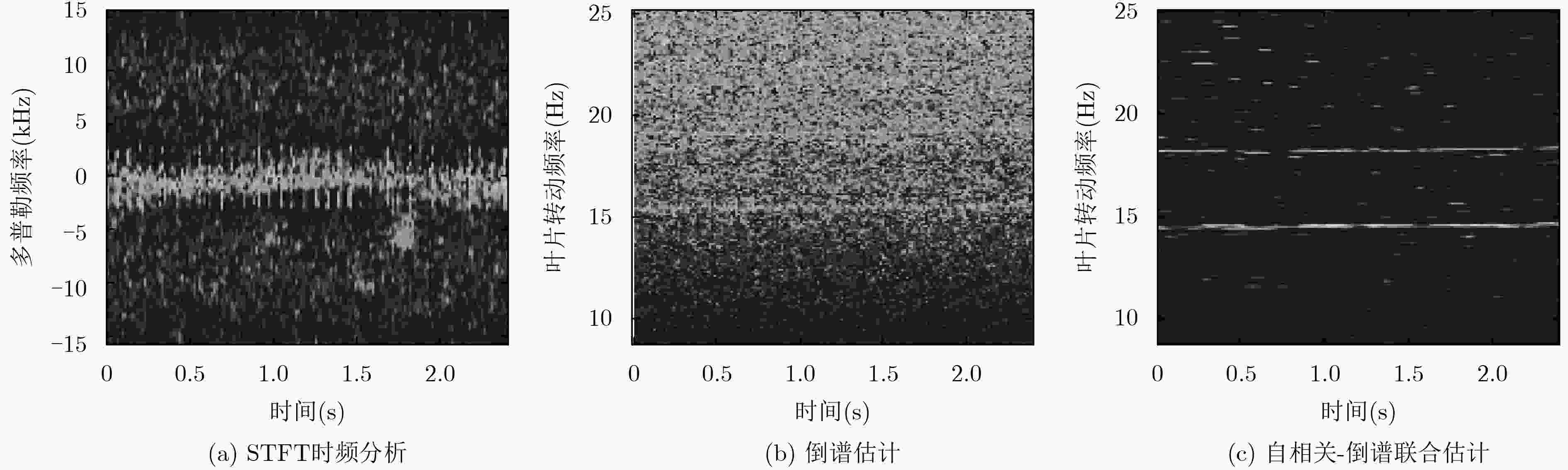

图 6 不同旋翼转动频率估计方法处理结果对比

下载: 全尺寸图片幻灯片

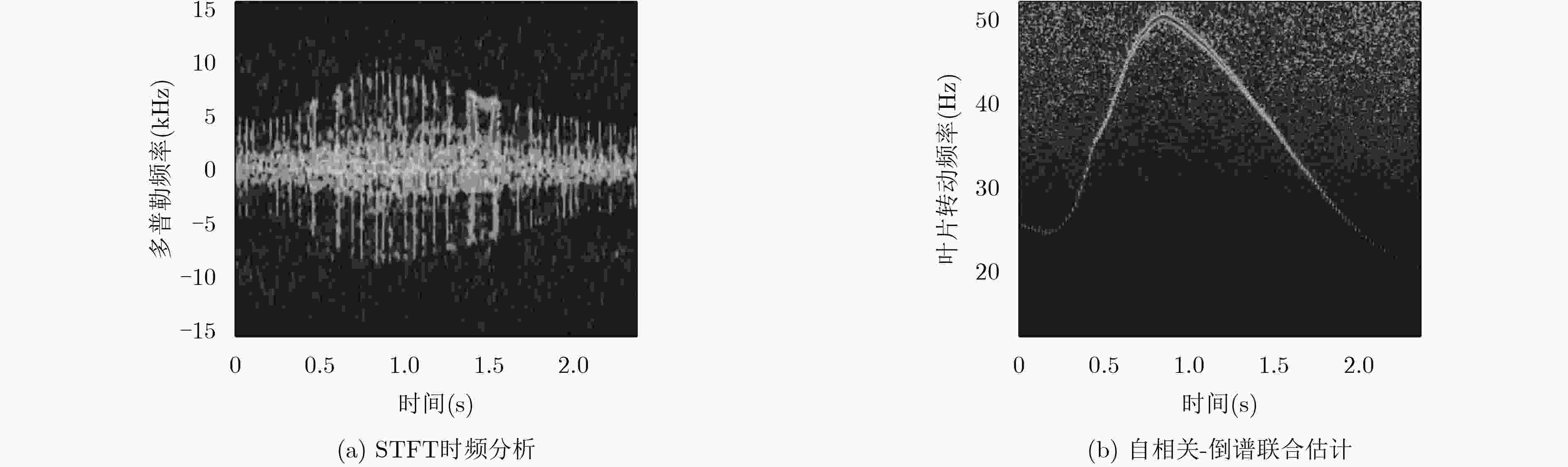

图 7 旋翼变速转动处理结果

下载: 全尺寸图片幻灯片

表 1 雷达系统参数

参数数值

中心频率f₀ 34.6 GHz
带宽 1.2 GHz
PRF 31.25 kHz
无人机与雷达距离 200 m
原始回波SNR 0 dB
观测时间 1 s

下载: 导出CSV

参考文献(23)

HOFFMANN F, RITCHIE M, FIORANELLI, et al. Micro-Doppler based detection and tracking of UAVs with multistatic radar[C]. Radar Conference, Philadelphia, USA, 2016: 1–6. doi: 10.1109/RADAR.2016.7485236.

CHEN Xinlin, XIAO Guangzong, XIONG Wei, et al. Rotation of an optically trapped vaterite microsphere measured using rotational Doppler effect[J]. Optical Engineering, 2018, 57(3): 036103. doi: 10.1117/1.OE.57.3.036103

ZHANG Wenyu and LI Gang. Detection of multiple micro-drones via cadence velocity diagram analysis[J]. Electronics Letters, 2018, 54(7): 441–443. doi: 10.1049/el.2017.4317

黄小红, 贺夏, 辛玉林, 等. 基于时频特征的低分辨雷达微动多目标分辨方法[J]. 电子与信息学报, 2010, 32(10): 2342–2347. doi: 10.3724/SP.J.1146.2009.0314

HUANG Xiaohong, HE Xia, XIN Yulin, et al. Resolving multiple targets with micro-motions based on time-frequency feature with low-resolution radar[J]. Jounal of Electronics &Information Technology, 2010, 32(10): 2342–2347. doi: 10.3724/SP.J.1146.2009.0314

CHEN V C, LI F, HO S S, et al. Micro-Doppler effect in radar: Phenomenon, model, and simulation study[J]. IEEE Transactions on Aerospace & Electronic Systems, 2006, 42(1): 2–21. doi: 10.1109/TAES.2006.1603402

ANDERSON M G and ROGERS R L. Micro-Doppler analysis of multiple frequency continuous wave radar signatures[C]. Defense and Security Symposium, Orlando, USA, 2007. 6547: 65470A-65470A-10. doi: 10.1117/12.719800.

王璐, 刘宏伟. 基于时频图的微动目标运动参数提取和特征识别的方法[J]. 电子与信息学报, 2010, 32(8): 1812–1817. doi: 10.3724/SP.J.1146.2009.01127

WANG Lu and LIU Hongwei. Method for micro-motion target recognition and motion parameter extraction based on time-frequency analysis[J]. Jounal of Electronics &Information Technology, 2010, 32(8): 1812–1817. doi: 10.3724/SP.J.1146.2009.01127

SPARR T and KRANE B. Micro-Doppler analysis of vibrating targets in SAR[J]. IEE Proceedings: Radar, Sonar and Navigation, 2003, 150(4): 277–283. doi: 10.1049/ip-rsn:20030697

SETLUR P, AMIN M, and THAYAPARAN T. Micro-doppler signal estimation for vibrating and rotating targets[C]. IEEE Eighth International Symposium on Signal Processing and ITS Applications, Sydney, Australia, 2005: 639–642. doi: 10.1109/ISSPA.2005.1581019.

YANG Yang, PENG Zhike, DONG Xiaojin, et al. General parameterized time-frequency transform[J]. IEEE Transactions on Signal Processing, 2014, 62(11): 2751–2764. doi: 10.1109/TSP.2014.2314061

ANGRISANI L, D'ARCO M, MORIELLO R S L, et al. Warblet transform based method for instantaneous frequency measurement on multicomponent signals[C]. Proceedings of the 2004 IEEE International Frequency Control Symposium and Exposition. Montreal, Canada. 2004: 500–508. doi: 10.1109/FREQ.2004.1418509.

VISHWAKARMA S and RAM S S. Detection of multiple movers based on single channel source separation of their micro-Dopplers[J]. IEEE Transactions on Aerospace & Electronic Systems, 2018, 54(1): 159–169. doi: 10.1109/TAES.2017.2739958

KANG Wenwu, ZHANG Yunhua, and DONG Xiao. Micro-Doppler effect removal for ISAR imaging based on bivariate variational mode decomposition[J]. IET Radar Sonar & Navigation, 2018, 12(1): 74–81. doi: 10.1049/iet-rsn.2017.0104

LIU Yixing, LI Xiang, and ZHUANG Zuwen. Estimation of micro-motion parameters based on micro-Doppler[J]. IET Signal Processing, 2010, 4(3): 213–217. doi: 10.1049/iet-spr.2009.0042

STANKOVIC L, DJUROVIC I, and THAYAPARAN T. Separation of target rigid body and micro-Doppler effects in ISAR imaging[J]. IEEE Transactions on Aerospace & Electronic Systems, 2006, 42(4): 1496–1506. doi: 10.1109/TAES.2006.314590

THAYAPARAN T, STANKOVIĆ L, and DJUROVIĆ I. Micro-Doppler-based target detection and feature extraction in indoor and outdoor environments[J]. Journal of the Franklin Institute, 2008, 345(6): 700–722. doi: 10.1016/j.jfranklin.2008.01.003

CAI Chengjie, LIU Weixian, FU Junshan, et al. Empirical mode decomposition of micro-Doppler signature[C]. IEEE International Radar Conference, Arlington, Virginia, USA, 2005: 895–899. doi: 10.1109/RADAR.2005.1435954.

LAI Caiping, RUAN Quan, and NARAYANAN R M. Hilbert-Huang Transform (HHT) processing of through-wall noise radar data for human activity characterization[C]. IEEE Workshop on Signal Processing Applications for Public Security and Forensics, Washington, DC, USA, 2007: 1–6.

THAYAPARAN T, ABROL S, and QIAN S. Micro-Doppler analysis of rotating target in SAR[R]. Defence Research and Development Canada Ottawa (ONTARIO), 2005.

WALTER M, SHUTIN D, and DAMMANN A. Time-variant Doppler PDFs and characteristic functions for the vehicle-to-vehicle channel[J]. IEEE Transactions on Vehicular Technology, 2017, 66(12): 10748–10763. doi: 10.1109/TVT.2017.2722229

FUHRMANN L, BIALLAWONS O, KLARE J, et al. Micro-Doppler analysis and classification of UAVs at Ka band[C]. 2017 18th IEEE International Radar Symposium (IRS), Prague, Czech Republic, 2017: 1–9. doi: 10.23919/IRS.2017.8008142.

LUCA P, PAOLO C, and FABRIZIO B. Radar micro-Doppler mini-UAV classification using spectrograms and cepstrograms[J]. International Journal of Microwave & Wireless Technologies, 2015, 7(3/4): 469–477. doi: 10.1017/S1759078715001002

芦俊, 张颜岭, 张凤园. 一种被动声呐线谱背景均衡算法[J]. 声学与电子工程, 2016(3): 20–22.

LU Jun, ZHANG Yanling, and Zhang Fengyuan. A passive sonar line spectrum background equalization algorithm[J]. Acoustics and Electronic Engineering, 2016(3): 20–22.
