四表集抄通信网络虚拟化方案及组网算法研究

胡致远; 宋晓凤; 黄天聪; 李晓娣; 周瑞芳; 徐鑫; 蒙占宇; 彭强

doi:10.11999/JEIT180396

四表集抄通信网络虚拟化方案及组网算法研究

doi: 10.11999/JEIT180396

1.
重庆大学通信工程学院重庆 400044
2.
国网重庆市电力公司电力科学研究院重庆 401123
3.
国网电科院深国电公司深圳 518000
4.
中国移动通信集团重庆有限公司重庆 401121

基金项目: 2018年重庆市技术创新与应用示范重大主题专项项目(cstc2018jszxcytzx0042)，核高基重大专项(2017ZX01030001)

详细信息

作者简介:
胡致远：男，1965年出生，博士后，教授，主要研究方向为智能电网、无线接入网

宋晓凤：女，1995年出生，硕士生，研究方向为智能电网、工业互联网

黄天聪：1971年出生，博士，副教授，主要研究方向为智能电网通信网络

通讯作者:
胡致远　hzy@cqu.edu.cn

中图分类号: TN915
计量
- 文章访问数: 1951
- HTML全文浏览量: 727
- PDF下载量: 45
- 被引次数: 0
出版历程
- 收稿日期: 2018-04-27
- 修回日期: 2018-09-17
- 网络出版日期: 2018-10-08
- 刊出日期: 2019-03-01

Research on Network Virtualization Scheme and Networking Algorithm of Advanced Metering Infrastructure for Water, Electricity, Gas, and Heat Meters

1.
College of Communication Engineering, Chongqing University, Chongqing 400044, China
2.
State Grid Chongqing Electric Power Co., Electric Power Research Institute, Chongqing 401123, China
3.
China Gridcom Co., Ltd, State Grid Electric Power Research Institute, Shenzhen 518000, China
4.
China Mobile Communications Group Chongqing Co. LTD., Chongqing 400044, China

Funds: 2018 Chongqing Technology Innovation and Application Demonstration Major Theme Special Project (cstc2018jszxcytzx0042), The Core Electronic Devices, High-end Generic Chips and Basic Software Major Project (2017ZX01030001)

摘要

摘要:
为了实现四表(水，电，气，热)集抄行业之间的业务数据隔离，提升本地网络的稳定性和覆盖能力，该文提出四表集抄通信网络虚拟化方案。该方案采用虚拟接入点名称(APN)技术以及软件定义网络(SDN)切片技术构成端到端隔离的业务数据采集通道；采用微功率无线和低压电力线载波构成实时可靠的本地双模虚拟网络，进一步提出基于全局链路状态和分层迭代的组网算法。仿真及现场验证结果表明，该方案降低了采集数据的丢包率和传输时延，提高业务支撑能力，保障行业之间的业务数据隔离，提升通信网络基础设施复用能力。
- 网络虚拟化 /
- 高级量测体系 /
- 双模系统 /
- 资源复用
Abstract:
In order to achieve service data isolation in advanced metering Infrastructure for water, electricity, gas, and heat Meters and improve the stability and coverage of local data collection network, a network virtualization scheme of Advanced Metering Infrastructure (AMI) is proposed. In this scheme, the end-to-end isolated service data collection channels are constructed utilizing virtual Access Point Name (APN) and Software Defined Network (SDN) slice technology. The micro-power wireless and low-voltage power line carriers are used to constructed a real-time and reliable local dual mode virtual network. Furthermore, the networking algorithm based on global link-state and hierarchical iterative algorithm are proposed. The simulation and experiments show the packet loss rate and transmission delay of collected data are decreased utilizing the proposed scheme, and business support capability is improved. Moreover, the service data isolation is implemented in AMI for water, electricity, gas, and heat Meters and multiplexing ability of communication network infrastructure is improved.
- Network virtualization /
- Advanced Metering Infrastructure (AMI) /
- Dual-mode systems /
- Resource multiplexing

HTML全文

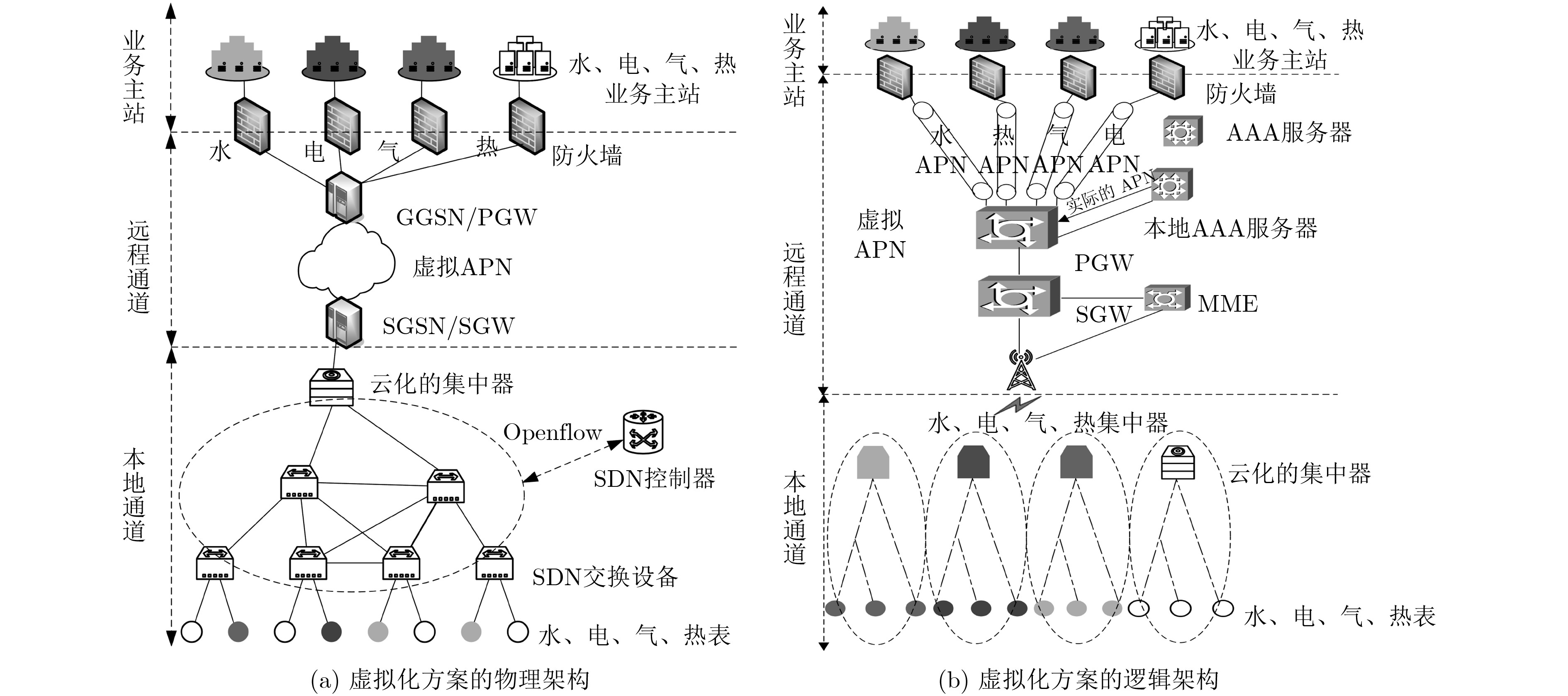

图 1 四表集抄虚拟化方案架构

下载: 全尺寸图片幻灯片

图 2 混合网络拓扑的物理拓扑

下载: 全尺寸图片幻灯片

图 3 混合网络的分级迭代结构

下载: 全尺寸图片幻灯片

图 4 平均丢包率性能比较

下载: 全尺寸图片幻灯片

图 5 平均传输时延性能比较图

下载: 全尺寸图片幻灯片

图 6 混合组网算法的组网耗时对比

下载: 全尺寸图片幻灯片

表 1 虚拟APN的配置表
