一种自适应的太赫兹无线个域网高效定向MAC协议

任智; 吕昱辉; 徐兆坤; 邹明芮; 田洁丽

doi:10.11999/JEIT180306

一种自适应的太赫兹无线个域网高效定向MAC协议

doi: 10.11999/JEIT180306

1.
重庆邮电大学移动通信技术重庆市重点实验室重庆　400065
2.
中国工程物理研究院激光聚变研究中心成都　610000

基金项目: 国家自然科学基金(61379159)，重庆市基础与前沿研究计划项目(cstc2015jcyjBX0085)

详细信息

作者简介:
任智：男，1971年生，教授，博士生导师，研究方向为太赫兹无线个域网和机会网络

吕昱辉：男，1993年生，硕士生，研究方向为太赫兹无线个域网定向MAC协议

徐兆坤：男，1993年生，硕士生，研究方向为太赫兹无线个域网定向并行MAC协议

邹明芮：女，1986年生，助理研究员，博士，研究方向为太赫兹无线网络MAC层协议

田洁丽：女，1992年生，硕士生，研究方向为太赫兹无线个域网跨PAN数据传输

通讯作者:
吕昱辉　lvyuhui_cqupt@126.com

中图分类号: TP393.04
计量
- 文章访问数: 1507
- HTML全文浏览量: 638
- PDF下载量: 75
- 被引次数: 0
出版历程
- 收稿日期: 2018-04-02
- 修回日期: 2018-08-16
- 网络出版日期: 2018-09-12
- 刊出日期: 2019-01-01

An Adaptive Directional MAC Protocol for Terahertz Wireless Personal Networks

1.
Chongqing Key Laboratory of Mobile Communication Technology, Chongqing University of Post & Telecommunications, Chongqing 400065, China
2.
Research Center of Laser Fusion, Chinese Academy of Engineering Physics, Chengdu 610000, China

Funds: The National Natural Science Foundation of China (61379159), The Chongqing Basic and Frontier Research Project (cstc2015jcyjBX0085)

摘要

摘要:
针对现有太赫兹无线个域网定向MAC协议存在的波束训练开销和入网时延偏大以及Beacon, S-CAP时段时隙利用不足问题，该文提出一种自适应的定向MAC协议——AD-MAC，自适应地在静态场景下采用全网协同波束训练，在动态场景下节点基于历史信息快速回复波束训练帧，同时使用反向监听策略减小同扇区节点的帧碰撞概率，并且通过时隙复用在Beacon和S-CAP时段并行发送控制帧和数据帧。理论分析表明了AD-MAC协议的有效性，仿真结果显示：相较于ENLBT-MAC等典型协议，AD-MAC在静态场景下的波束训练开销和节点平均入网时延分别降低了约21.84%和22.70%，在动态场景下上述二指标则分别减小了约18.7%和13.07%。
- 无线个域网 /
- 太赫兹 /
- MAC协议 /
- 定向
Abstract:
To reduce the beamforming training cost and network delay, make the best of Beacon and S-CAP sub-period in the existing Terahertz Wireless Personal Access Network (TWPAN) directional MAC protocols, an Adaptive Directional MAC (AD-MAC) protocol for TWPAN is proposed. AD-MAC adaptively uses the entire network cooperative beam training in a static scenario, and makes network nodes quickly respond to beam training frames based on historical information in a dynamic scenario. The reverse listening strategy is used to reduce the collision probability of same sector nodes. The control frame and data frame are transmitted simultaneously in the Beacon and S-CAP slot using time-slot reuse. Theoretical analysis verifies the effectiveness of AD-MAC. Also, simulation results show that, comparing with ENLBT-MAC, AD-MAC reduces about 21.84% of beamforming training cost and 22.70% of the average network delay in static scene, and reduces about 18.7% of beamforming training cost and 13.07% of the average network delay in dynamic scene.
- Wireless personal access networks /
- Terahertz /
- MAC protocols /
- Orientation

HTML全文

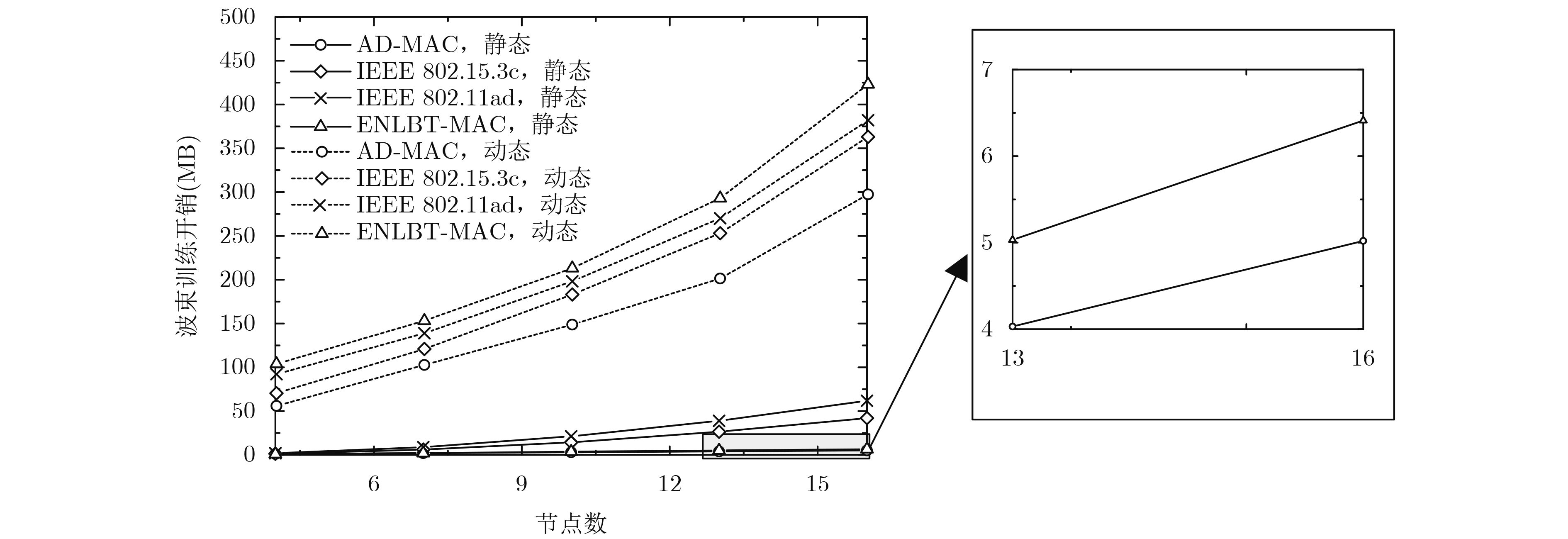

图 1 波束训练开销比较

下载: 全尺寸图片幻灯片

图 2 平均入网时延比较

下载: 全尺寸图片幻灯片

图 3 MAC层吞吐量比较

下载: 全尺寸图片幻灯片

图 4 平均数据帧延迟比较

下载: 全尺寸图片幻灯片

表 1 公共仿真参数

参数(单位)	数值
节点数目(个)	4,7,10,13,16
波束宽度(°)	5
传输速率(Gbps)	10
收发端距离(m)	10
仿真时间(s)	10
超帧周期(ms)	10
节点缓存(Mb)	10
发包间隔(ms)	0.08
数据帧长(bit)	64000

下载: 导出CSV

参考文献(15)

GE Xiaohu, TU Song, MAO Guoqiang, et al. 5G ultra-dense cellular networks[J]. IEEE Wireless Communications, 2016, 23(1): 72–79. doi: 10.1109/MWC.2016.7422408

张健, 邓贤进, 王成, 等. 太赫兹高速无线通信: 体制, 技术与验证系统[J]. 太赫兹科学与电子信息学报, 2014, 12(1): 1–13. doi: 10.11805/TKYDA201401.0013

ZHANG Jian, DENG Xianjin, WANG Cheng, et al. Terahertz high speed wireless communications: Systems, techniques and demonstrations[J]. Journal of Terahertz Science and Electronic Information Technology, 2014, 12(1): 1–13. doi: 10.11805/TKYDA201401.0013

WANG Pu, JORNET J M, MALIK M G A, et al. Energy and spectrum-aware MAC protocol for perpetual wireless nanosensor networks in the terahertz band[J]. Ad Hoc Networks, 2013, 11(8): 2541–2555. doi: 10.1016/j.adhoc.2013.07.002

MUMTAZ S, JORNET J M, AULIN J, et al. Terahertz communication for vehicular networks[J]. IEEE Transactions on Vehicular Technology, 2017, 66(7): 5617–5625. doi: 10.1109/TVT.2017.2712878

YAO Xinwei and JORNET J M. TAB-MAC: Assisted beamforming MAC protocol for terahertz communication networks[J]. Nano Communication Networks, 2016, 9: 36–42. doi: 10.1016/j.nancom.2016.07.003

任智, 游磊, 吕昱辉, 等. 高时隙利用率太赫兹无线个域网公平接入协议[J]. 系统工程与电子技术, 2017, 39(10): 2339–2345. doi: 10.3969/j.issn.1001-506X.2017.10.27

REN Zhi, YOU Lei, LÜ Yuhui, et al. High-slot-utilization and fair access protocol for terahertz wireless personal area networks[J]. Systems Engineering and Electronics, 2017, 39(10): 2339–2345. doi: 10.3969/j.issn.1001-506X.2017.10.27

CAO Jianling, WANG Min, CHEN Cong, et al. High-throughput low-delay MAC protocol for terahertz ultra-high data-rate wireless networks[J]. The Journal of China Universities of Posts and Telecommunications, 2016, 23(4): 17–24. doi: 10.1016/S1005-8885(16)60041-9

SHAHRAM M, MICHELE C W, and SAJAL K D. DRIH-MAC: A distributed receiver-initiated harvesting-aware MAC for nanonetworks[J]. IEEE Transactions on Molecular, Biological, and Multi-Scale Communications, 2015, 1(1): 97–110. doi: 10.1109/TMBMC.2015.2465519

KEN H, TORU T, MAKOTO Y, et al. Modifications to the draft TG3d ARD after the July 2014 meeting[OL]. https:mentor.ieee.org/802.15/dcn/14/15-14-0528-00-003d-modification-of-tg3d-ard-after-july-meeting.docx. 2014.

BILE P, SEBASTIAN P, and THOMAS K. Fast beam searching concept for indoor terahertz communications[C]. The 8th European Conference on Antennas and Propagation, Hague, Netherlands, 2014: 639–643. doi: 10.1109/EuCAP.2014.6901840.

WANG Junyi, ZHOU Lan, PYO C W, et al. Beam codebook based beamforming protocol for multi-Gbps millimeter-wave WPAN systems[J]. IEEE Journal on Selected Areas in Communications, 2009, 27(8): 1390–1399. doi: 10.1109/JSAC.2009.091009

IEEE Standard802.15.3c-2009. Part 15.3: Wireless Medium Access Control (MAC) and Physical Layer (PHY) specifications for high rate Wireless Personal Area Networks (WPANs) amendment 2: Millimeter-wave-based alternative physical layer extension[S]. IEEE Computer Society, 2009.

IEEE 802.11ad-2012. Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) specifications amendment 3: enhancements for very high throughput in the 60 GHz band[S]. IEEE Computer Society, 2012.

AKHTAR A and ERGEN S C. Efficient network level beamforming training for IEEE 802.11 ad WLANs[C]. International Symposium Performance Evaluation of Computer and Telecommunication Systems, Chicago, USA, 2015: 1–6, doi: 10.1109/SPECTS.2015.7285289.

CHONG Han, TONG Wenqian, and WU Xinyi. A memory-assisted MAC protocol with angular-division-multiplexing in terahertz networks[C]. IEEE International Conference on Computer Communications and Networks, Paris, France, 2017: 1–6.
