Improved Long-code Direct Acquisition Algorithm Based on Time-frequency Fusion
-
摘要:

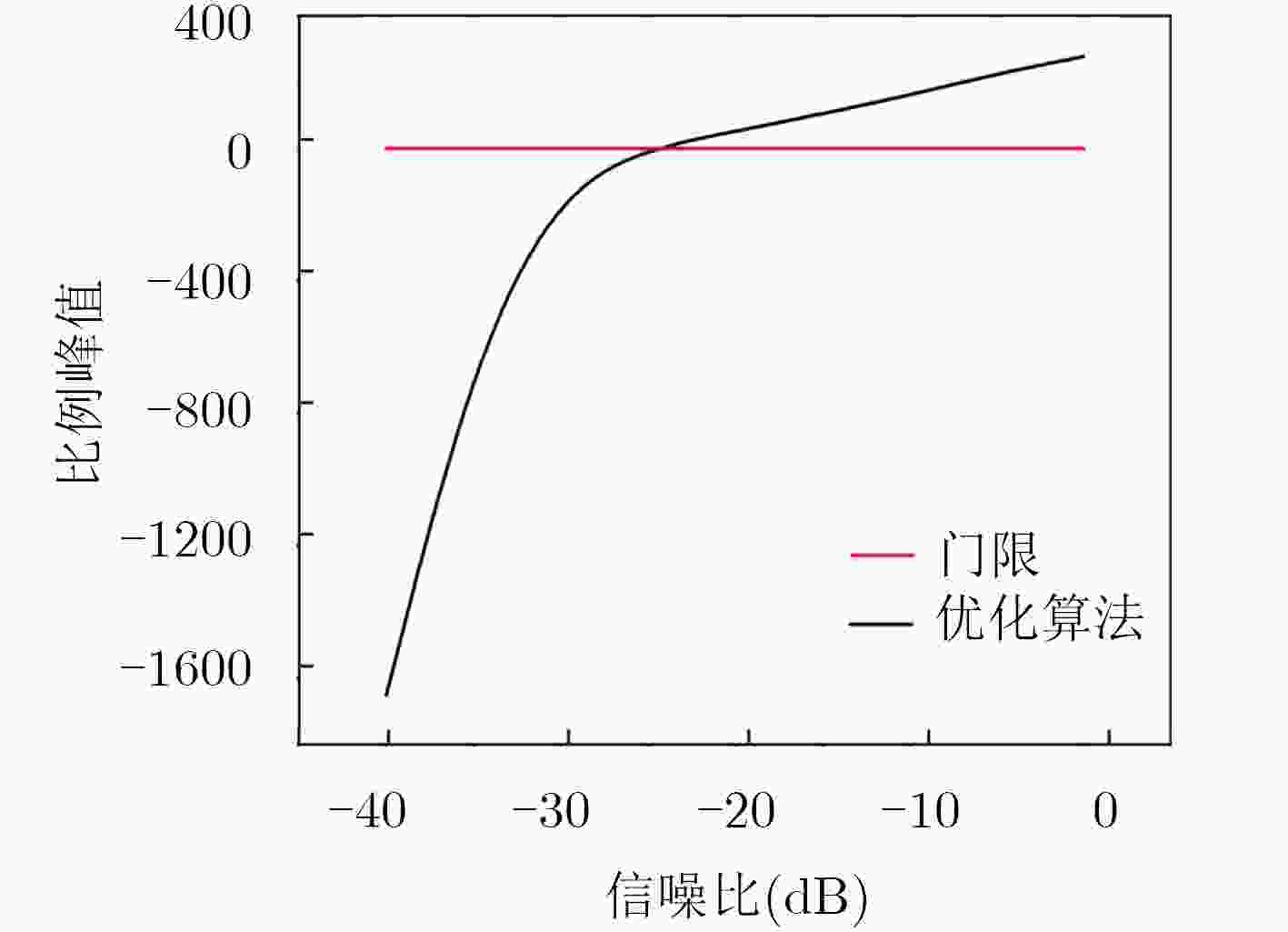

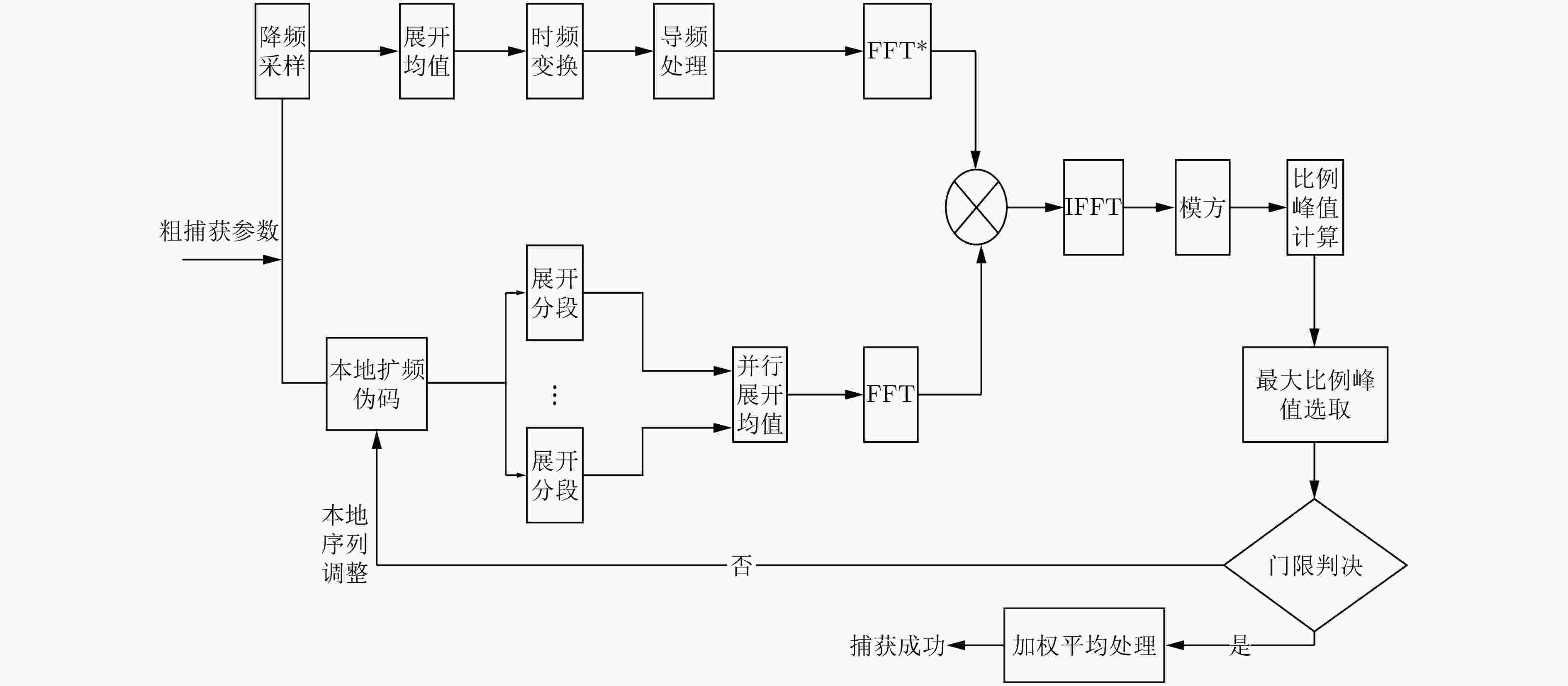

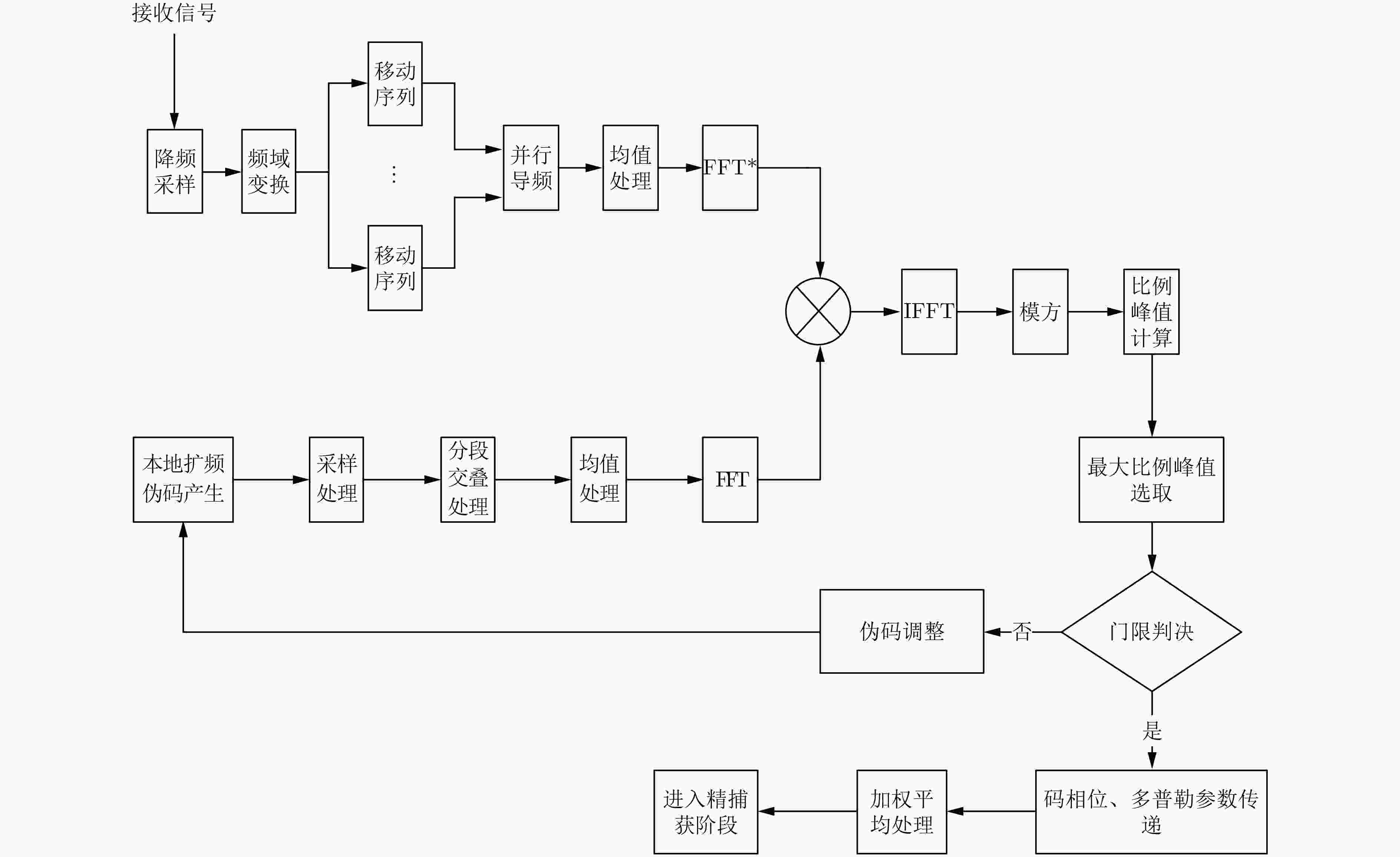

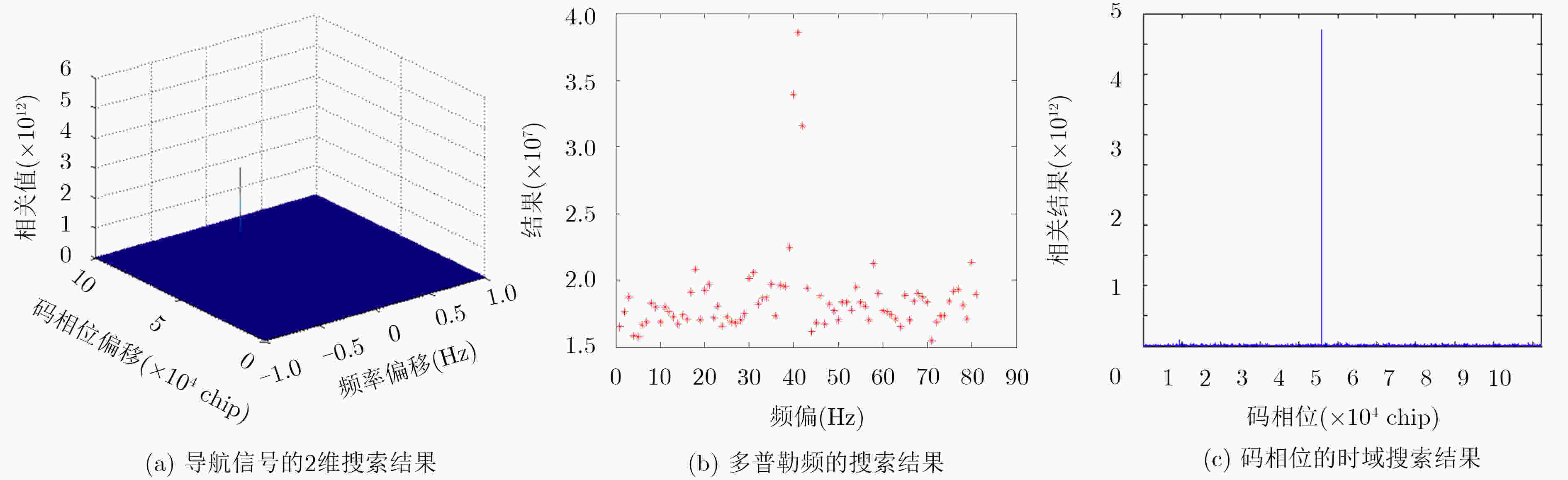

长码因其码率高、周期长的特点，是现有导航系统广泛采用的军用信号体制。该文针对长码间接捕获方法的不足，以及扩展复制重叠捕获算法和均值捕获算法的局限性，提出一种以优化复杂度和搜索速度为目标的，基于扩展复制重叠捕获(XFAST)和均值算法相融合的时频捕获改进方法，给出了该算法的基本原理和捕获结果。对该算法的信噪比条件和复杂度进行了分析仿真，进一步论证了该算法应用于长码直接捕获的可行性和优良性。
Abstract:At present, long-code with the characteristic of high bit rate and long period is widely used in satellite navigation system as military signal. To overcome the shortcomings of the indirect acquisition method for long-code, the limitations of the extended replication overlay acquisition algorithm and the mean acquisition algorithm, an improved time-frequency capture method based on the Extended replica Folding Acquisition Search Technique (XFAST) and the mean algorithm is proposed. The feasibility of the algorithm is simulated and the performance of the algorithm is analyzed. The simulation experiment shows the superiority of the proposed algorithm.
-
Key words:
- Long-code /
- Navigation signal /
- Direct acquisition /
- Time-frequency fusion /
- Performance analysis
-
表 1 各算法在同等参数下的捕获结果对比
算法 参数 G1 T1(s) Doppler误差(Hz) G2 T2(s) XFAST M=4 150.65 33.025 26 55.56 508.35 均值法 i=8 151.01 8.885 26 107.25 234.65 改进算法 M=4 165.33 27.102 10 i=8 53.656 87.56
下载: 导出CSV
表 2 各算法在各自最优参数下的比较结果
算法 参数 G1 T1(s) Doppler误差(Hz) G2 T2(s) XFAST M=6 165.24 45.405 26 45.68 360.075 均值法 i=12 152.14 8.186 26 92.651 178.68 改进算法 M=4 165.33 27.102 10 i=8 53.656 87.56
下载: 导出CSV
-
KAPLAN D E and CHRISTOPHER J H. Understanding GPS: Principles and Applications[M]. London: Artech House Inc, 2006: 181–188. GUO Xinpeng, SUN Hua, ZHAO Hongbo, et al. A modified LFF method for direct P-code acquisition in satellite navigation[C]. International Conference on Communicatins and Networking in China, Beijing, China, 2016: 499–508. BINHEE Kim and SEUNGHYUN Kong. Design of FFT-Based TDCC for GNSS acquisition[J]. IEEE Transactions on Wireless Communications, 2014, 13(5): 2798–2808. doi: 10.1109/TWC.2014.040714.131884 CHAE K and YOON S. An improved direct acquisition scheme for rapid P code acquisition[C]. International Conference on Applied System Innovation, Osaka, Japan, 2017: 376–379. 刘基余. 北斗卫星导航系统的现况与发展[J]. 遥测遥控, 2013, 34(8): 1–8. doi: 10.3969/j.issn.2095-1000.2013.03.001LIU Jiyu. Status and development of the Beidou navigation satellite system[J]. Journal of Telemetry,Tracking and Command, 2013, 34(8): 1–8. doi: 10.3969/j.issn.2095-1000.2013.03.001 徐浩. GPS P码直接捕获技术研究[D]. [硕士论文], 国防科技大学, 2017.XU Hao. Research on GPS P-code direct acquisition technology[D]. [Master dissertation], National University of Defense Technology, 2017. 聂杨. 在GPS干扰试验中运用DOP算法评估干扰效能[J]. 电子信息对抗技术, 2017, 5(5): 58–62. doi: 10.3969/j.issn.1674-2230.2017.05.011NIE Yang. Using DOP algorithm to evaluate jamming efficiency in GPS jamming tests[J]. Electronic Information Warfare Technology, 2017, 5(5): 58–62. doi: 10.3969/j.issn.1674-2230.2017.05.011 HECKROTH K, SCHERRER K, and NIELSON J. Fast direct-Y GPS acquisitions with inaccurate time[C]. Proceedings of the 17th International Technical Meeting of the Satellite Division of The Institute of Navigation, Long Beach, USA, 2004: 573–578. ALTAF M M and AHMAD E H. An ultra-high-speed FPGA based digital correlation processor[J]. IEICE Electron Express, 2015, 12(8): 1–7. doi: 10.1587/elex.12.20150214 YANG Chun. FFT Acquisition of periodic, aperiodic, puncture, and overlaid code sequences in GPS[C]. Proceeding of GPS institute of navigation, Salt Lake City, USA, 2011: 137–148. 赵盼盼, 姚彦鑫. 卫星导航中XFAST捕获的降计算量去模糊处理算法[J]. 电讯技术, 2017, 57(10): 1205–1212. doi: 10.3969/j.issn.1001-893x.2017.10.017ZHAO Panpan and YAO Yanxin. An ambiguity resolving algorithm for XFAST acquisition with less computational amount in satellite navigation[J]. Telecommunication Engineering, 2017, 57(10): 1205–1212. doi: 10.3969/j.issn.1001-893x.2017.10.017 唐小妹, 雍少为, 王飞雪. 存在伪码多普勒条件下的XFAST性能分析[J]. 通信学报, 2010, 31(18): 54–59. doi: 10.3969/j.issn.1000-436X.2010.08.008TANG Xiaomei, YONG Shaowei, and WANG Feixue. Performance of XFAST in the presence of code Doppler[J]. Journal on Communications, 2010, 31(18): 54–59. doi: 10.3969/j.issn.1000-436X.2010.08.008 KRASNR R and NORMAN F. GPS receiver and method for processing GPS signals[P]. United States Patent, 6725159, 2004. MATHEWS M B and MACDORAN P F. GNSS long-code acquisition, ambiguity resolution, and signal validation[P]. United States Patent, 9658341, 2017. 唐小妹, 庞晶, 黄仰博, 等. XFAST长码直捕算法参数优化设计[J]. 中南大学学报(自然科学版), 2014, 45(4): 1113–1118.TANG Xiaomei, PANG Jing, HUANG Yangbo, et al. Optimization of XFAST design[J]. Journal of Central South University (Science and Technology) , 2014, 45(4): 1113–1118. MUSUMECI L, DOVIS F, SILVA P F, et al. Design of a very high sensitivity acquisition system for a space GNSS receiver[C]. IEEE/ION Position, Location and Navigation Symposium, California, USA, 2014: 556–568. 沈锋, 李伟东, 李强. 基于I/Q支路相干积分观测滤波的GPS接收机信号跟踪方法[J]. 电子与信息学报, 2015, 31(1): 37–42. doi: 10.11999/JEIT140314SHEN Feng, LI Weidong, and LI Qiang. GPS receiver signal tracking method based on I/Q branch coherent integration measurements filter[J]. Journal of Electronics &Information Technology, 2015, 31(1): 37–42. doi: 10.11999/JEIT140314 PASQUAL P M, ELOSEGUI P, LIND F, et al. An exploration of software-based GNSS signal processing at multiple frequencies[C]. American Astronomical Society Meeting, Washington., USA, 2017: 229–238. LECLERE J, BOTTERON C, and FARINE P A. Feature article: High sensitivity acquisition of GNSS signals with secondary code on FPGAs[J]. IEEE Aerospace and Electronic Systems Magazine, 2017, 32(8): 46–63. doi: 10.1109/MAES.2017.160176 陈松, 黄开枝, 吉江. 一种基于频域采样的序列快速捕获算法[J]. 电子与信息学报, 2012, 34(8): 1807–1813. doi: 10.3724/SP.J.1146.2011.01383CHEN Song, HUANG Kaizhi, and JI Jiang. A fast sequential acquisition method based on frequency sampling[J]. Journal of Electronics &Information Technology, 2012, 34(8): 1807–1813. doi: 10.3724/SP.J.1146.2011.01383 XIONG Zhulin, AN Jianping, and WANG Aihua. Improved double block zero padding algorithm for P code direct acquisition[J]. Transactions of Beijing Institute of Technology, 2017, 37(5): 515–520. doi: 10.15918/j.tbit1001-0645.2017.05.015 WANG Ningyuan, FENG Wenquan, ZHAO Hongbo, et al. A self-adaptive fast direct acquisition approach for long PN code in the high dynamic circumstance[C]. Proceedings of the 29th International Technical Meeting of The Satellite Division of the Institute of Navigation, Portland, USA, 2016: 509–520. 期刊类型引用(2)
