Multipath Clutter Rejection Approach Based on Carrier Domain Adaptive Iterative Filter in Passive Bistatic Radar
-
摘要: 在无源雷达系统中，监测通道信号中存在零频和非零频多径杂波，影响目标的检测。时域自适应迭代滤波器(如LMS, NLMS, RLS等)常被用于无源雷达杂波抑制，但这些方法只适用于零频多径杂波。该文针对零频和非零频多径杂波的问题，结合数字广播电视信号的正交频分复用波形特征，提出一种基于载波域自适应迭代滤波器的杂波抑制算法。该算法利用同一载频下含有相同多普勒频移的多径杂波的相关性原理，进行杂波抑制。仿真和实测数据处理结果证明了算法的有效性。Abstract: In passive bistatic radar systems, there exists the zero and non-zero Doppler shift multipath clutter in the surveillance channel. The multipath clutter affects the target detection. Temporal adaptive iterative filter such as Least Mean Square (LMS), Normalized Least Mean Square (NLMS) and Recursive Least Square (RLS) are often used to reject multipath clutter in passive bistatic radar, but these methods are only applicable to reject zero Doppler shift multipath clutter. To solve the problem of zero and non-zero Doppler shift multipath clutter, combined with the orthogonal frequency division multiplexing waveform features of digital broadcasting television signals, a clutter rejection algorithm is proposed based on carrier domain adaptive iterative filter. The algorithm utilizes the correlation of multipath clutter with the same Doppler shift at the same carrier frequency in subcarrier domain to reject the zero and non-zero Doppler shift multipath clutter. Simulation and experiment data processing results show the superiority of the proposed algorithm.
-

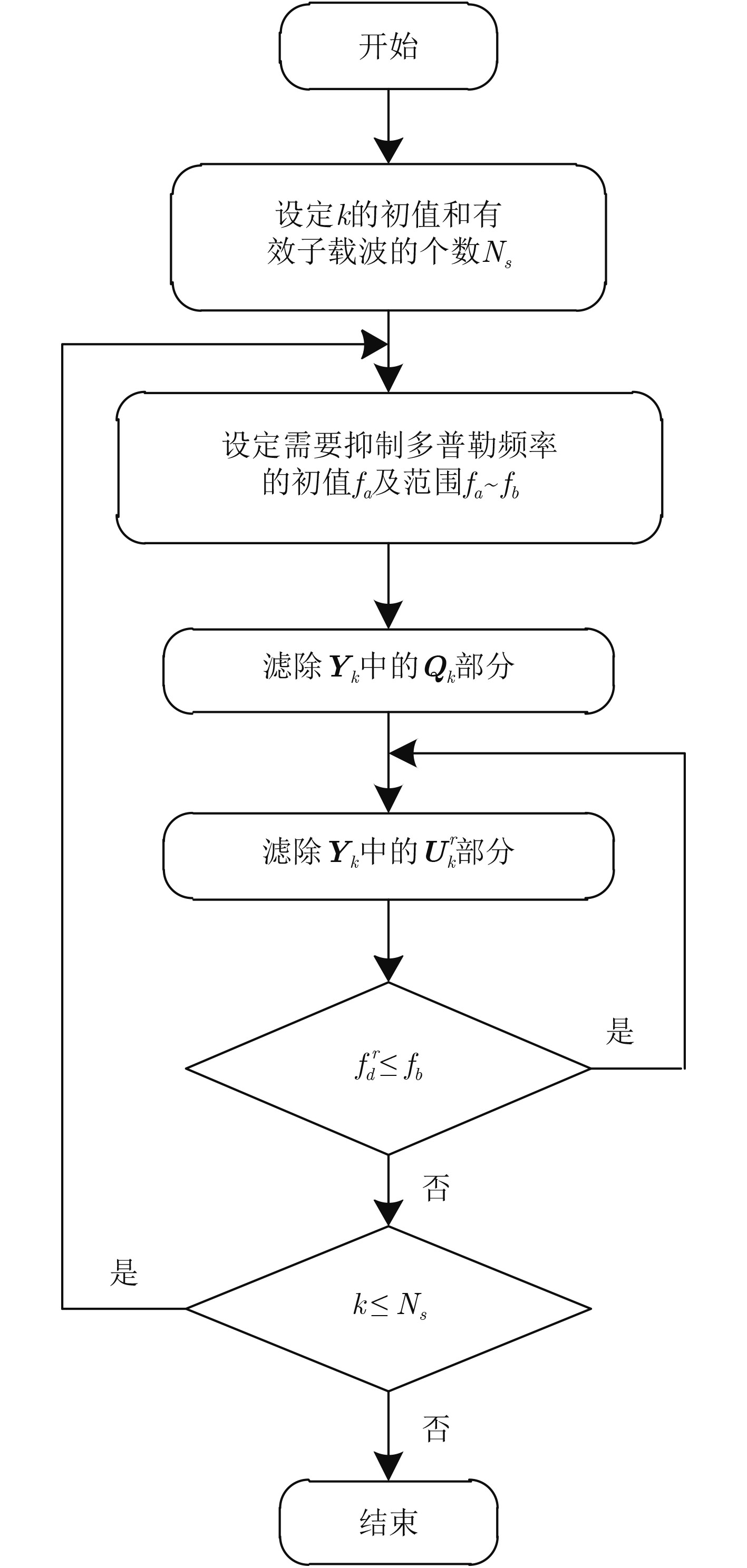

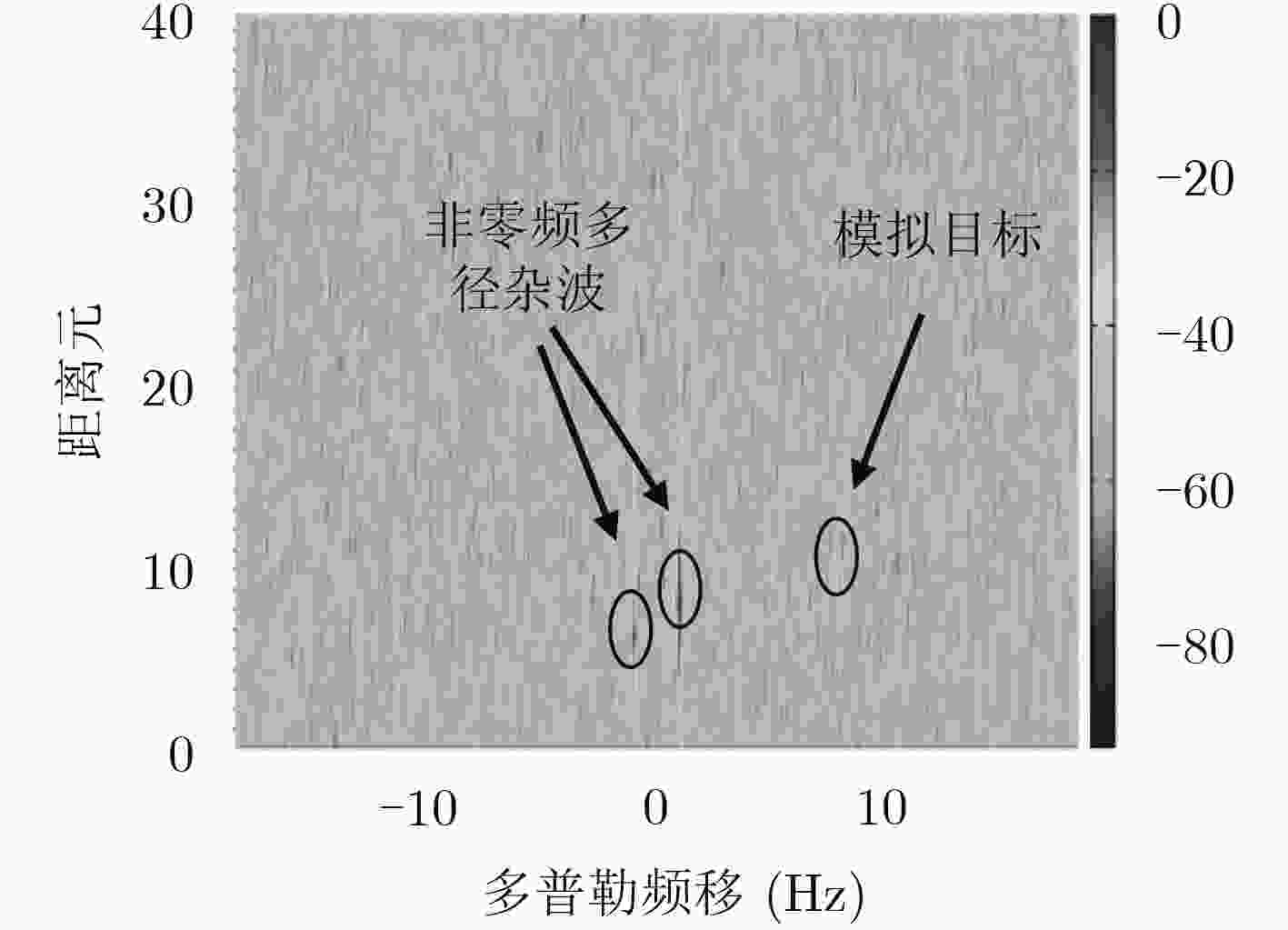

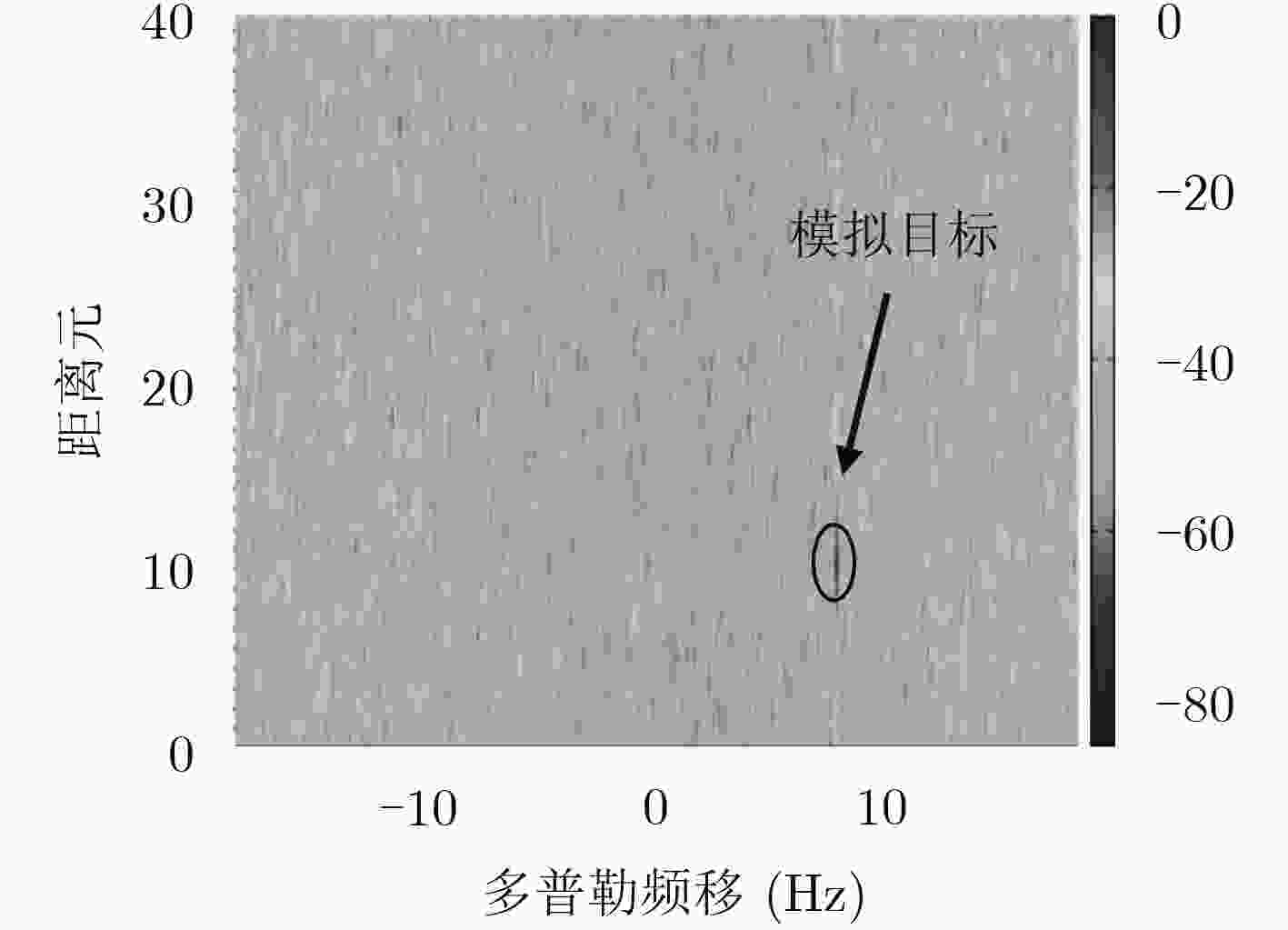

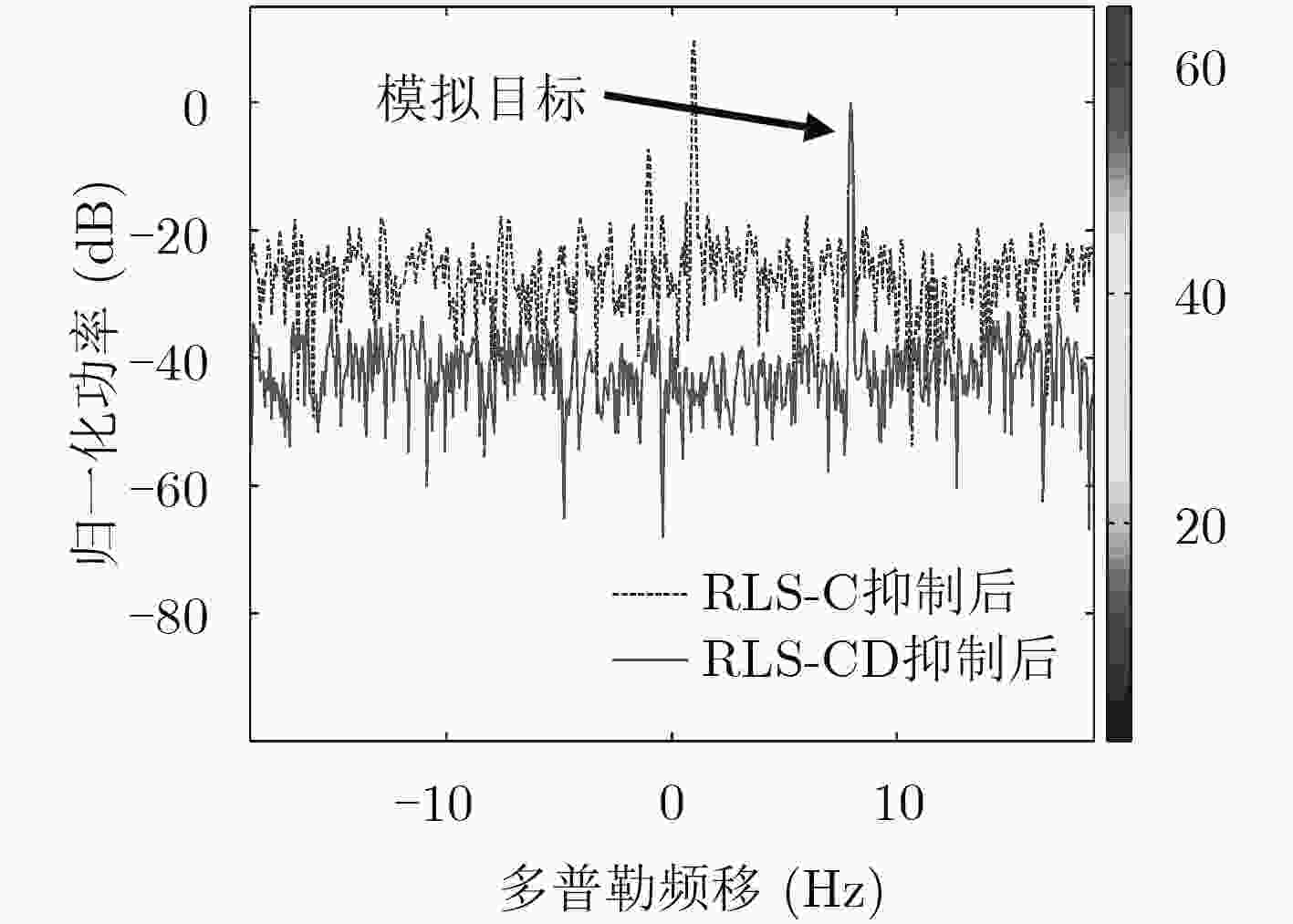

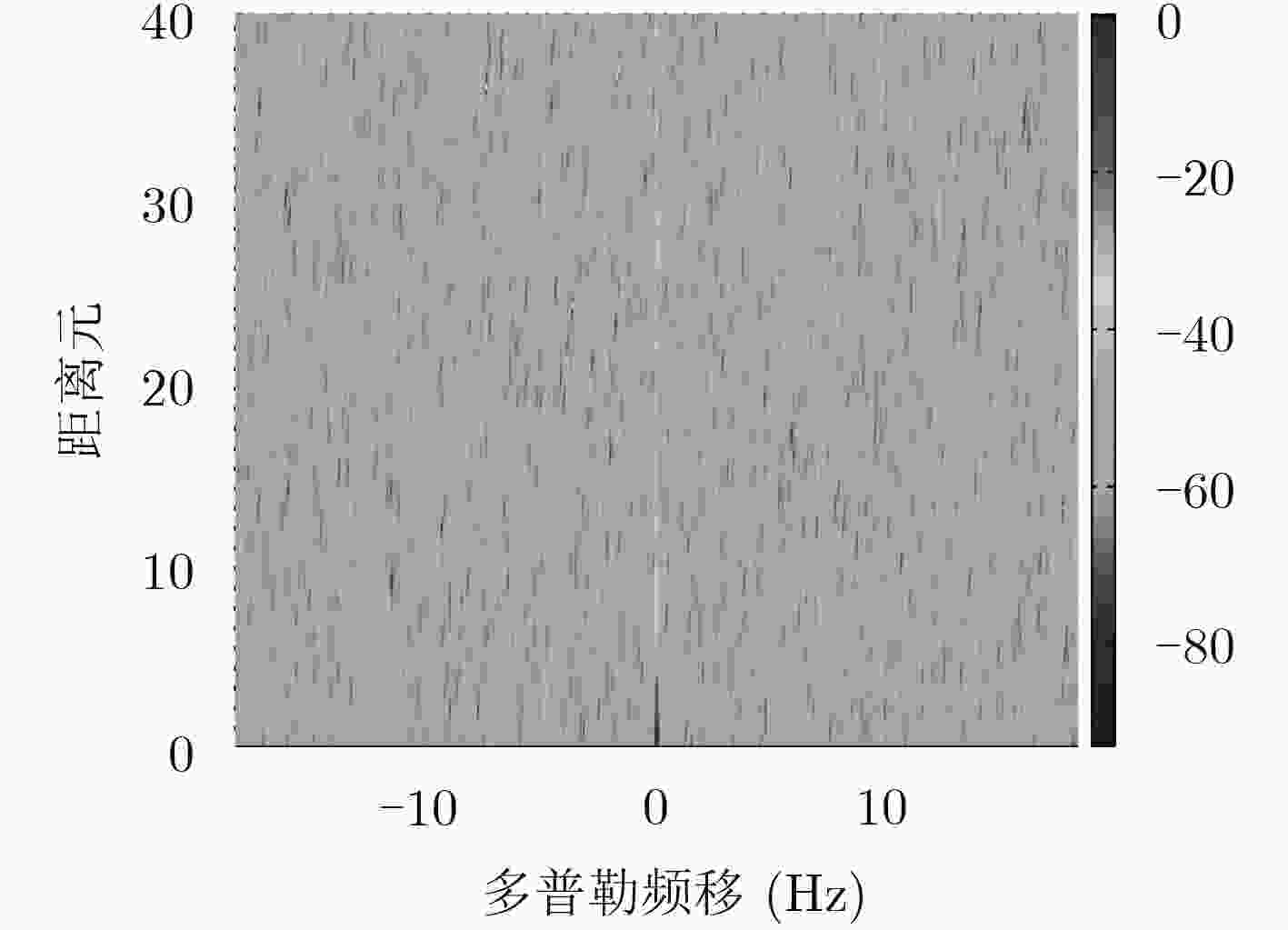

表 1 模拟多径及目标的相关参数
参数 采样点延迟 多普勒频移(Hz) 信噪比(dB) 零频多径 0, 1,···, 12 0 60, 55,···, 0 非零频多径 6, 8 –1, 1 10, 20 目标回波 10 8 –5
下载: 导出CSV
-
DEAKHTIAN M, BOLVARDI H, and SHEIKHI A. Dynamic clutter suppression and multi-target detection in DVB-T based passive radar[J]. IEEE Transactions on Aerospace&Electronic Systems, 2017, 53(4): 1812–1825 doi: 10.1109/TAES.2017.2674138 SCHUPBACH C, PATRY C, MAASTORP F, et al. Micro-UAV detection using DAB-based passive radar[C]. 2017 IEEE Radar Conference, Seattle, USA, 2017: 1037–1040. GASSIER G, CHABRIEL G, BARRERE J, et al. A unifying approach for disturbance cancellation and target detection in passive radar using OFDM[J]. IEEE Transactions on Signal Processing, 2016, 64(22): 5959–5971 doi: 10.1109/TSP.2016.2600511 CHABRIEL G and BARRERE J. Adaptive target detection techniques for OFDM-based passive radar exploiting spatial diversity[J]. IEEE Transactions on Signal Processing, 2017, 65(22): 5873–5884 doi: 10.1109/TSP.2017.2742980 万显荣, 程熠瑶, 易建新, 等. DTMB外辐射源雷达参考信号重构信道估计新方法[J]. 电子与信息学报, 2017, 39(5): 1044–1050 doi: 10.11999/JEIT160796WAN Xianrong, CHENG Yiyao, YI Jianxin, et al. Novel channel estimation of reference signal reconstruction for DTMB-based passive radar[J]. Journal of Electronics&Information Technology, 2017, 39(5): 1044–1050 doi: 10.11999/JEIT160796 ZHAO Zhixin, ZHOU Xinhua, ZHU Sihang, et al. Reduced complexity multipath clutter rejection approach for DRM-based HF passive bistatic radar[J]. IEEE Access, 2017, 5(1): 20228–20234 doi: 10.1109/ACCESS.2017.2756075 唐波, 程水英, 张浩. 外辐射源雷达模糊函数副峰抑制算法研究[J]. 电子学报, 2015, 43(6): 1058–1064 doi: 10.3969/j.issn.0372-2112.2015.06.003TANG Bo, CHENG Shuiying, and ZHANG Hao. Ambiguity function side peaks suppression for passive radar[J]. Acta Electronica Sinica, 2015, 43(6): 1058–1064 doi: 10.3969/j.issn.0372-2112.2015.06.003 THOMAS J M, GRIFFITHS H D, and BAKER C J. Ambiguity function analysis of digital radio mondiale signals for HF passive bistatic radar[J]. Electronics Letters, 2006, 42(25): 1482–1483 doi: 10.1049/el:20062896 THOMAS J M, BAKER C J, and GRIFFITHS H D. DRM signals for HF passive bistatic radar[C]. 2007 IET International Conference on Radar Systems, Edinburgh, UK, 2007: 1–5. TANG Hui, WAN Xianrong, YI Jianxin, et al. Performance of the least squares filter for passive radar interference cancellation applications[J]. IET Radar Sonar&Navigation, 2017, 11(8): 1208–1215 doi: 10.1049/iet-rsn.2016.0410 GARRY J L, BAKER C J, and SMITH G E. Evaluation of direct signal suppression for passive radar[J]. IEEE Transactions on Geoscience&Remote Sensing, 2017, 55(7): 3786–3799 doi: 10.1109/TGRS.2017.2680321 SHAN Tao, MA Yahui, TAO Ran, et al. Multi-channel NLMS-based sea clutter cancellation in passive bistatic radar[J]. IEICE Electronics Express, 2014, 11(20): 1–12 doi: 10.1587/elex.11.20140872 刘建成, 赵宏志, 全厚德, 等. 迭代变步长LMS算法及性能分析[J]. 电子与信息学报, 2015, 37(7): 1674–1680 doi: 10.11999/JEIT141501LIU Jiancheng, ZHAO Hongzhi, QUAN Houde, et al. Iteration-based variable step-size LMS algorithm and its performance analysis[J]. Journal of Electronics&Information Technology, 2015, 37(7): 1674–1680 doi: 10.11999/JEIT141501 COLONE F, O’HAGAN D W, LOMBARDO P, et al. A multistage processing algorithm for disturbance removal and target detection in passive bistatic radar[J]. IEEE Transactions on Aerospace&Electronic Systems, 2009, 45(2): 698–722 doi: 10.1109/TAES.2009.5089551 ETSI ES 201980 V3.1.1 Digital Radio Mondiale (DRM): System specification[S]. European Telecommunication Standards Institute (ETSI), Sophia Antipolis, France, 2009: 138–140. KIM S J, PARK K W, LEE K T, et al. Detection method for digital radio mondiale plus in hybrid broadcasting mode[J]. IEEE Transactions on Consumer Electronics, 2013, 59(1): 9–15 doi: 10.1109/TCE.2013.6490235 张贤达. 现代信号处理[M]. 第2版, 北京: 清华大学出版社, 2002: 206–208.ZHANG Xianda. Modern Signal Processing[M]. Second Ed., Beijing: Tsinghua University Press, 2002: 206–208. -

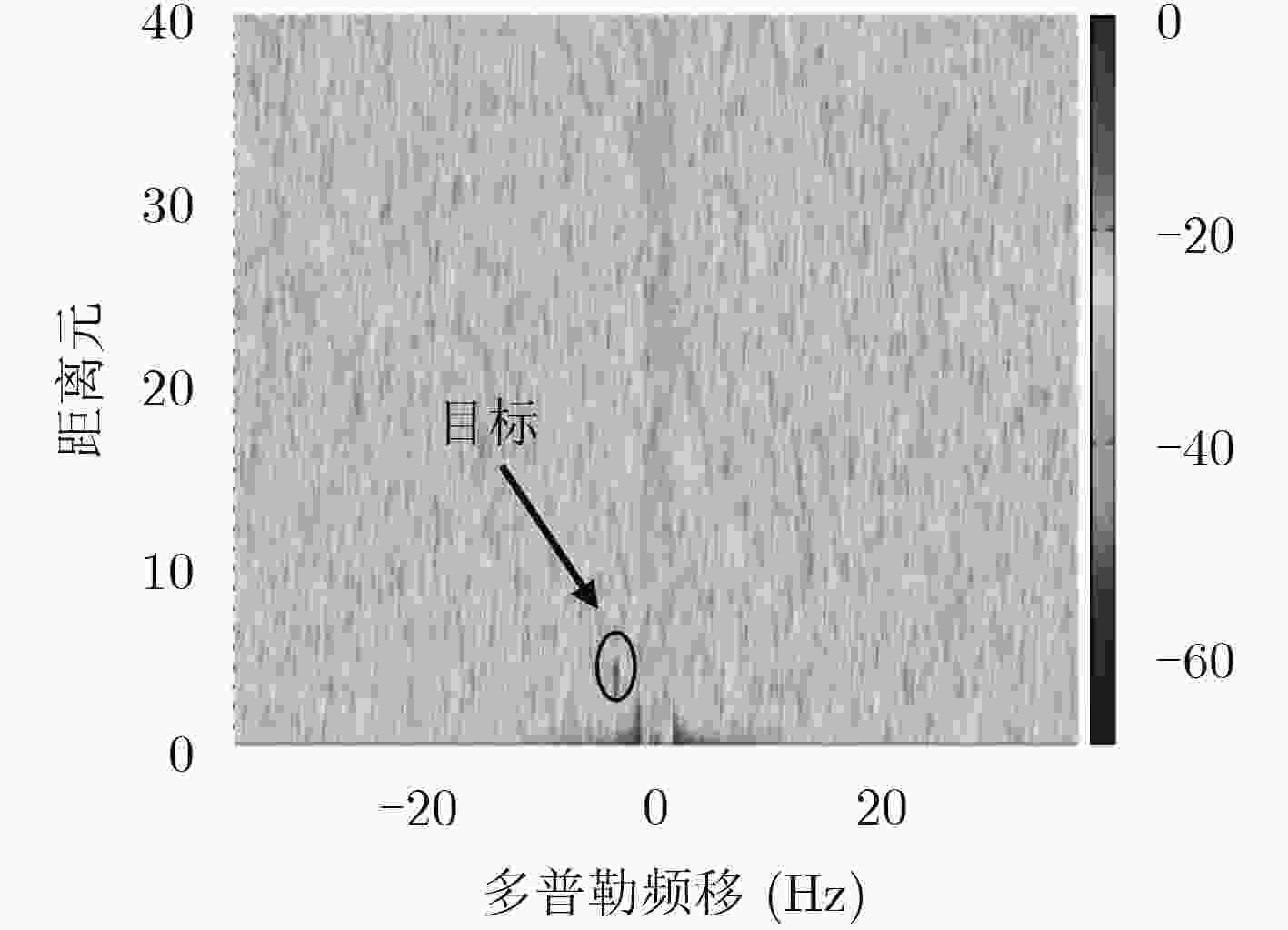

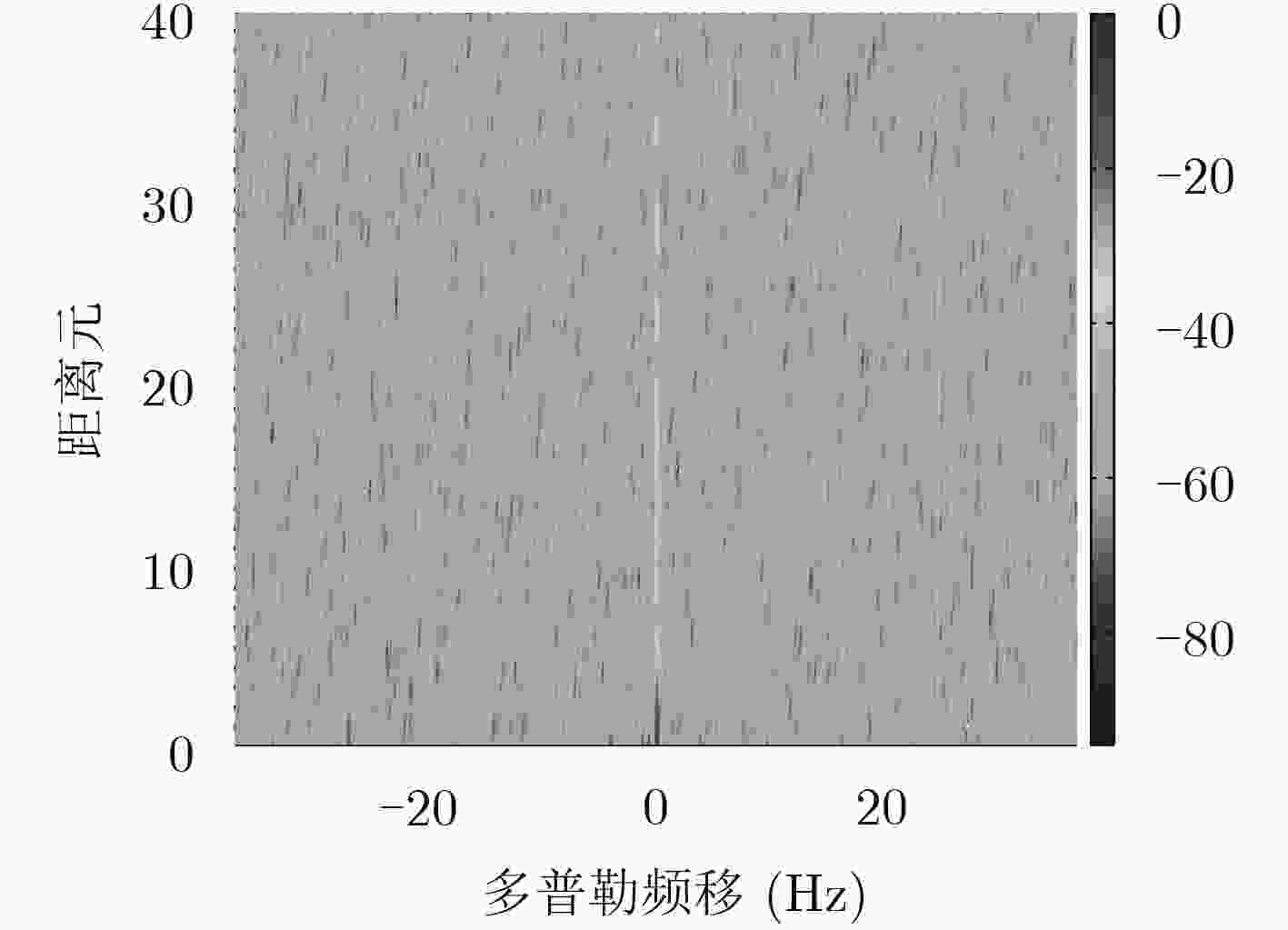

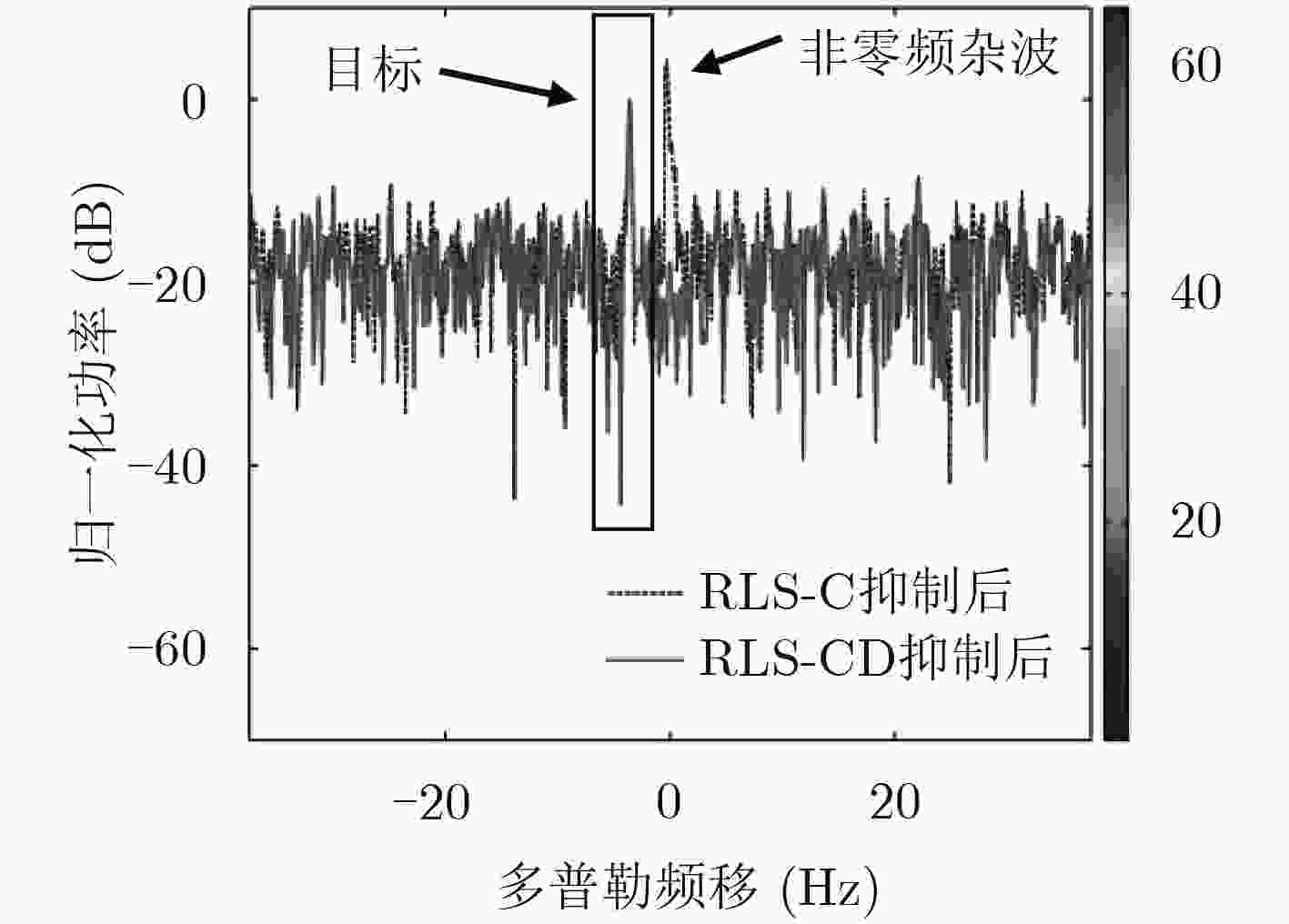

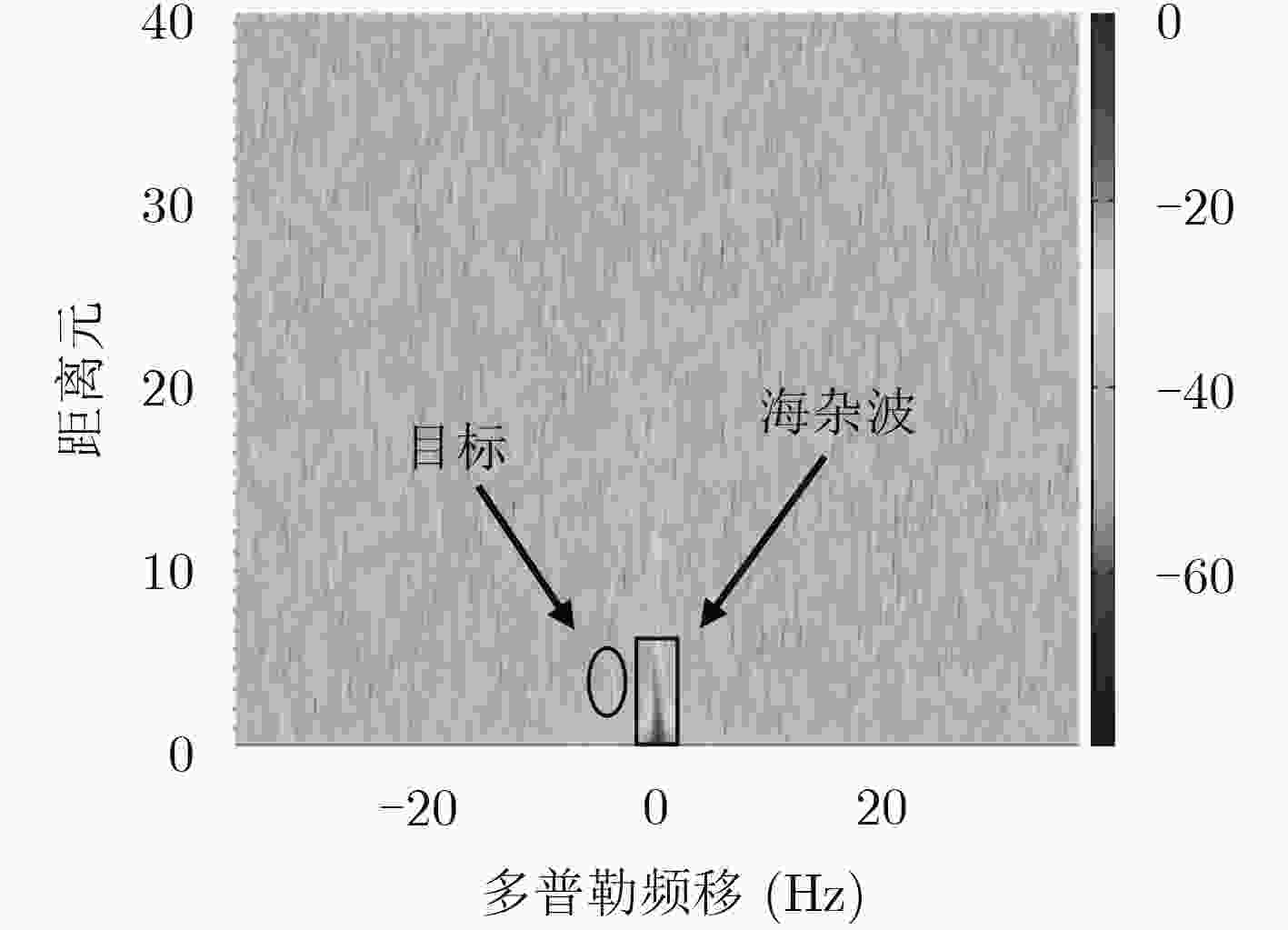

图(9) / 表(1)
