基于双站幅度调制的虚假运动场景对SAR-GMTI的欺骗方法

畅鑫; 董春曦; 唐峥钊; 董阳阳; 刘明明

doi:10.11999/JEIT171202

基于双站幅度调制的虚假运动场景对SAR-GMTI的欺骗方法

doi: 10.11999/JEIT171202

西安电子科技大学电子工程学院西安 710071

基金项目: 国家973项目(61**81**)

详细信息

作者简介:
畅鑫：男，1990年生，博士生，研究方向为电子对抗技术和电子战系统仿真

董春曦：男，1970年生，副教授，博士生导师，主要研究方向为电子对抗技术和电子战系统仿真

唐峥钊：男，1991年生，博士生，研究方向为逆合成孔径雷达对抗技术

董阳阳：男，1991年生，博士生，研究方向为阵列信号处理和电子侦察信号处理

刘明明：女，1989年生，博士生，研究方向为阵列信号处理和图像去噪

通讯作者:
董春曦　 chxdong@mail.xidian.edu.cn

中图分类号: TN974
计量
- 文章访问数: 1914
- HTML全文浏览量: 573
- PDF下载量: 52
- 被引次数: 0
出版历程
- 收稿日期: 2017-12-21
- 修回日期: 2018-06-04
- 网络出版日期: 2018-07-12
- 刊出日期: 2018-09-01

False Moving Scene Jamming Method Based on Double Jammers and Magnitude Modulation Against SAR-GMTI

School of Electronic Engineering, Xidian University, Xi’an 710071, China

Funds: The National 973 Program of China (61**81**)

摘要

摘要: 为了产生方位向初始位置和幅度可控的虚假运动场景，该文提出针对合成孔径雷达动目标显示(SAR-GMTI)的双干扰机幅度调制的虚假场景欺骗算法。双干扰机分别通过移频和延迟在指定位置产生相同的虚假运动场景。设置幅度比控制两幅虚假场景叠加后产生的各点的相位，达到初始方位向位置可控的目的。理论分析表明算法能够在指定位置产生初始方位向位置和幅度可控的虚假运动场景。然后分析了干扰效果和影响因素，建立了干扰算法的应用模型，给出了虚假运动场景的成像位置、方位向初始位置和幅度补偿系数的设置方法，并讨论了双站沿方位向间距对算法的影响。最后，仿真实验验证了算法的有效性。
- SAR地面动目标显示 /
- 双干扰机 /
- 场景欺骗 /
- 虚假运动目标
Abstract: To control the initial azimuth position and the magnitude of the false moving scene, a false moving scene jamming method against Synthetic Aperture Radar-Ground Moving Target Indication (SAR-GMTI) is proposed based on double jammers and magnitude modulation. The identical false scenes can be generated in the desired position by the two jammers using delay and shift-frequency modulation. To control the initial azimuth position of the false moving scene, the magnitude ratio of the double scenes are set by controlling the phase of each false target which is generated after two false scenes are superimposed. Theoretical analysis shows that the false moving scene can be generated with the initial azimuth position and magnitude controllable. Next, the jamming effects and influencing factors are analyzed, and the application model of interference algorithm is established. Subsequently, the setting methods of the imaging position, the initial azimuth position and the magnitude compensation coefficient are presented. The jamming effect of the distance between the two jammers in azimuth is also analyzed. Finally, the validity of the proposed method is verified by simulation experiences.
- Synthetic Aperture Radar-Ground Moving Target Indication (SAR-GMTI) /
- Double jammers /
- False scene jamming /
- False moving target

HTML全文

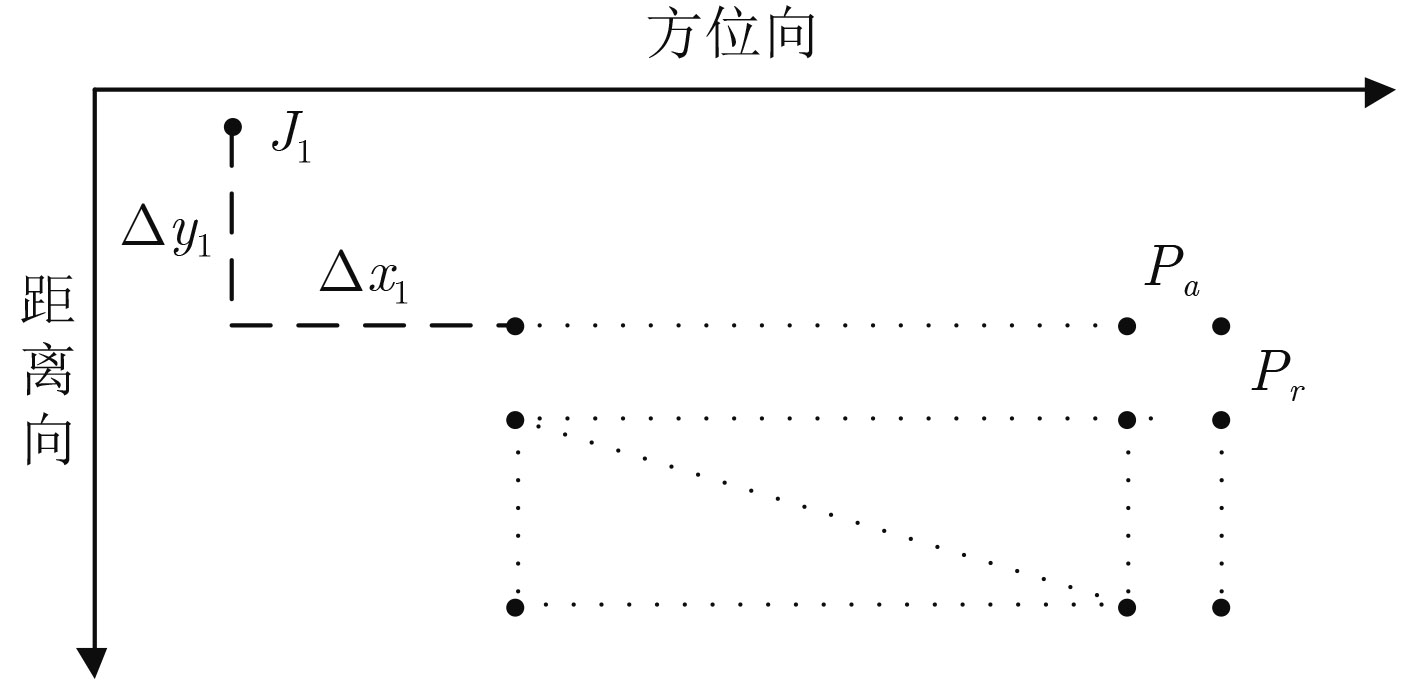

图 1 单干扰机场景欺骗调制模板

下载: 全尺寸图片幻灯片

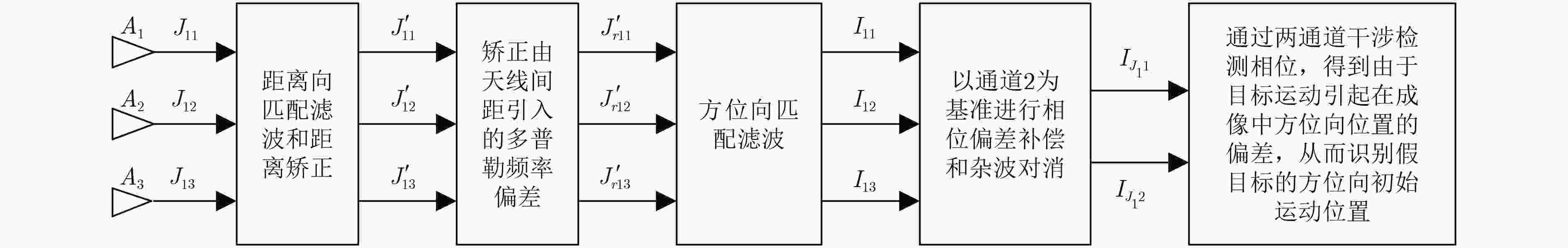

图 2 三孔径干涉算法流程

下载: 全尺寸图片幻灯片

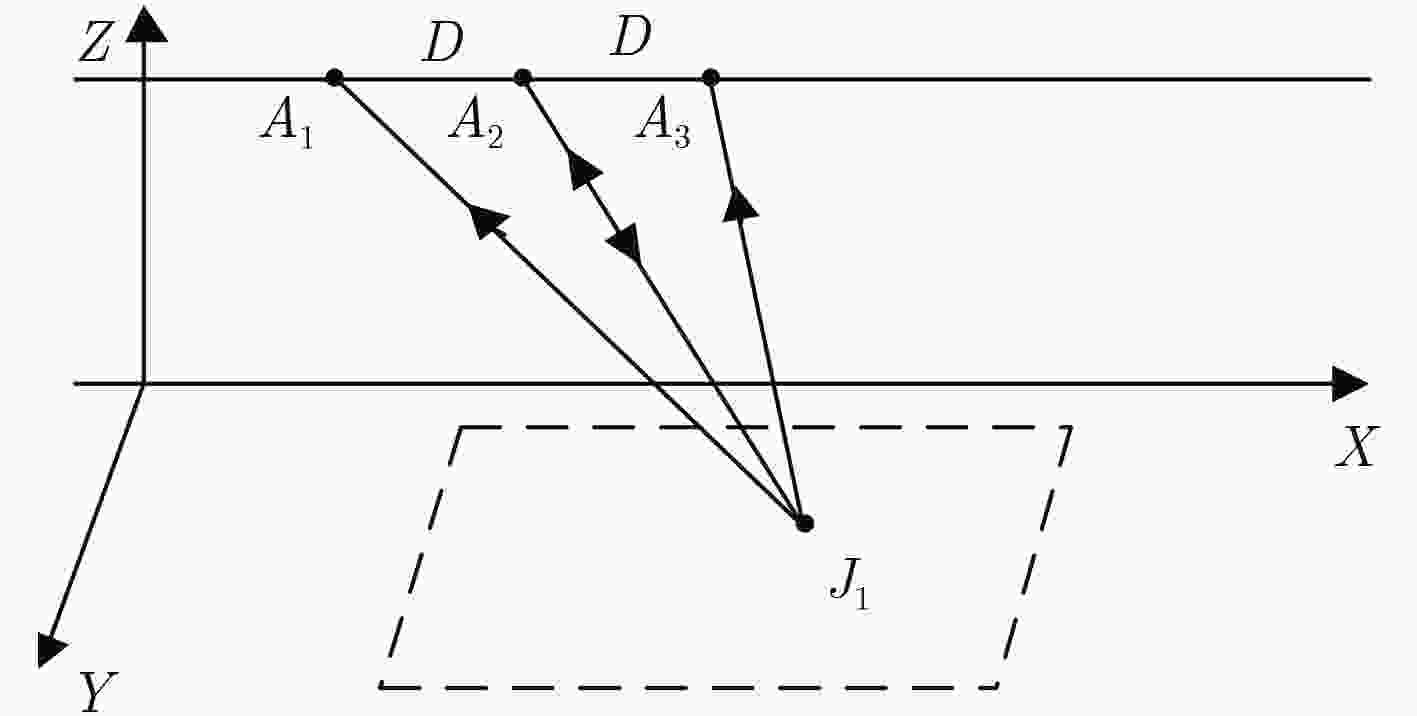

图 3 单干扰机欺骗场景

下载: 全尺寸图片幻灯片

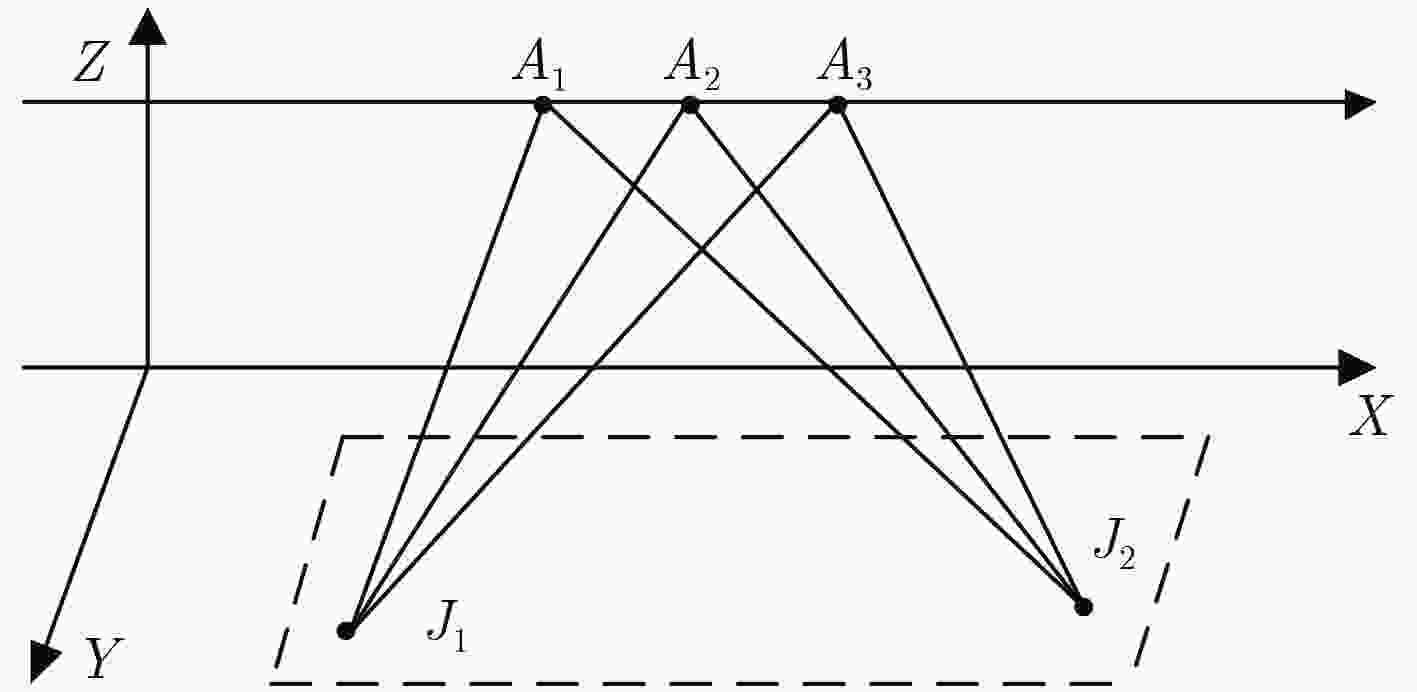

图 4 双干扰机场景欺骗场景

下载: 全尺寸图片幻灯片

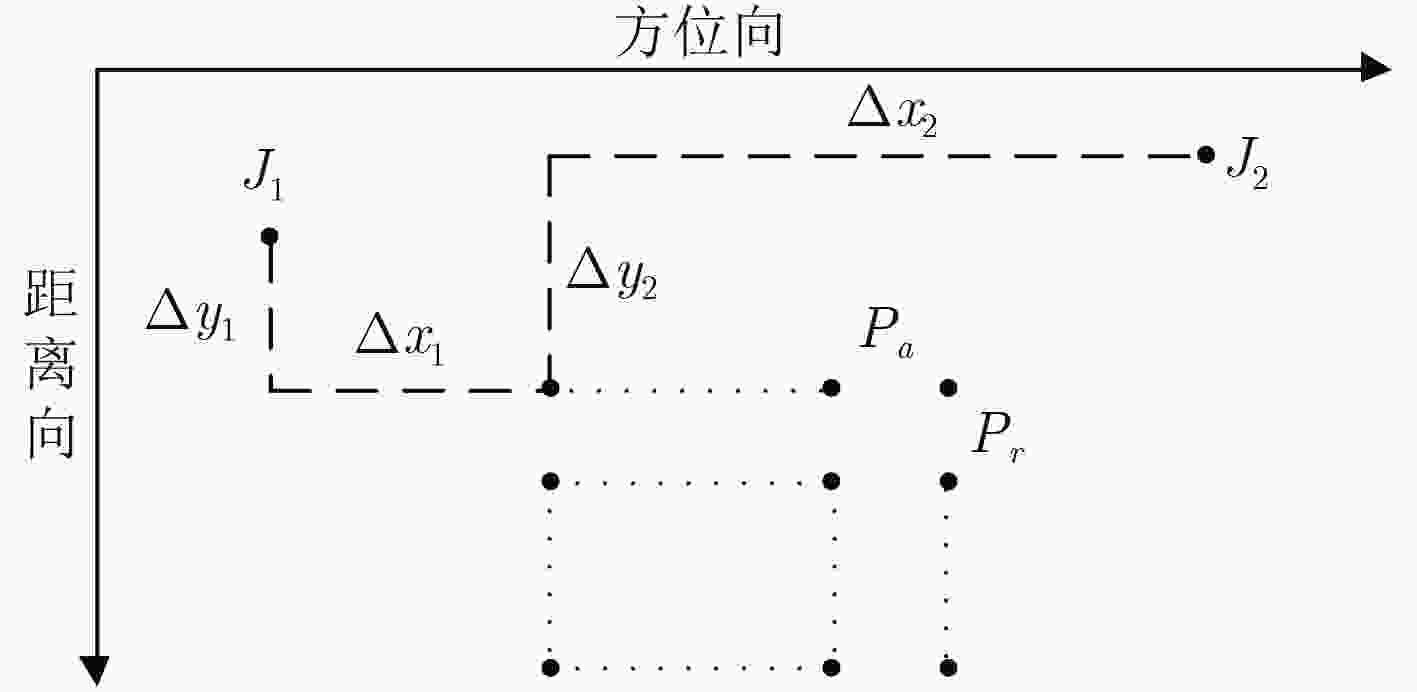

图 5 双干扰机虚假场景模板欺骗示意图

下载: 全尺寸图片幻灯片

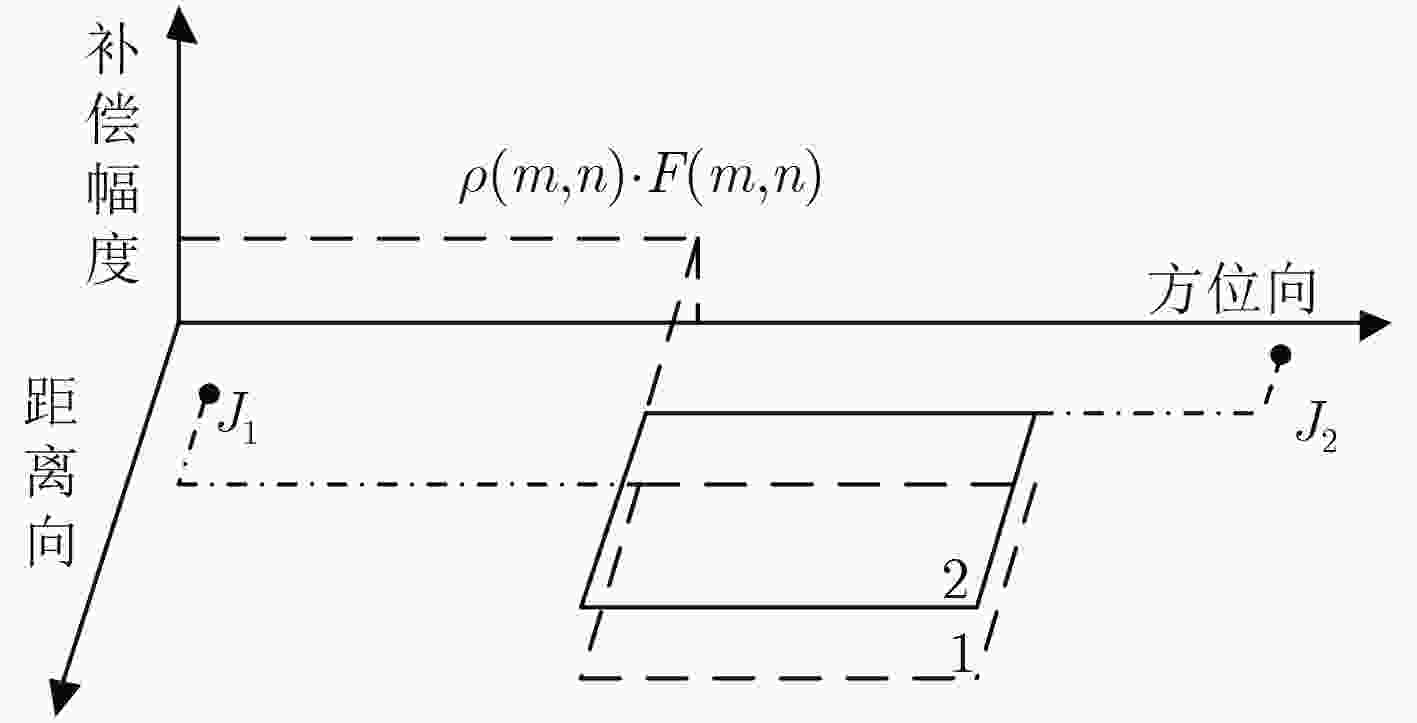

图 6 算法应用模型

下载: 全尺寸图片幻灯片

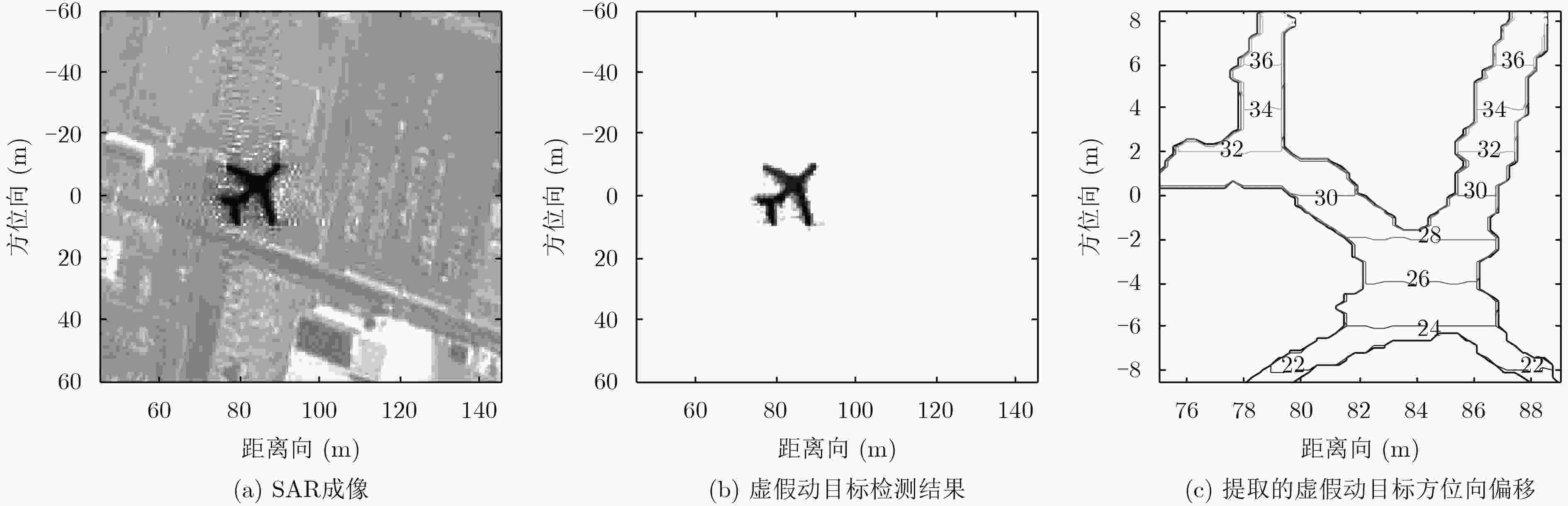

图 7 单站虚假运动目标干扰效果

下载: 全尺寸图片幻灯片

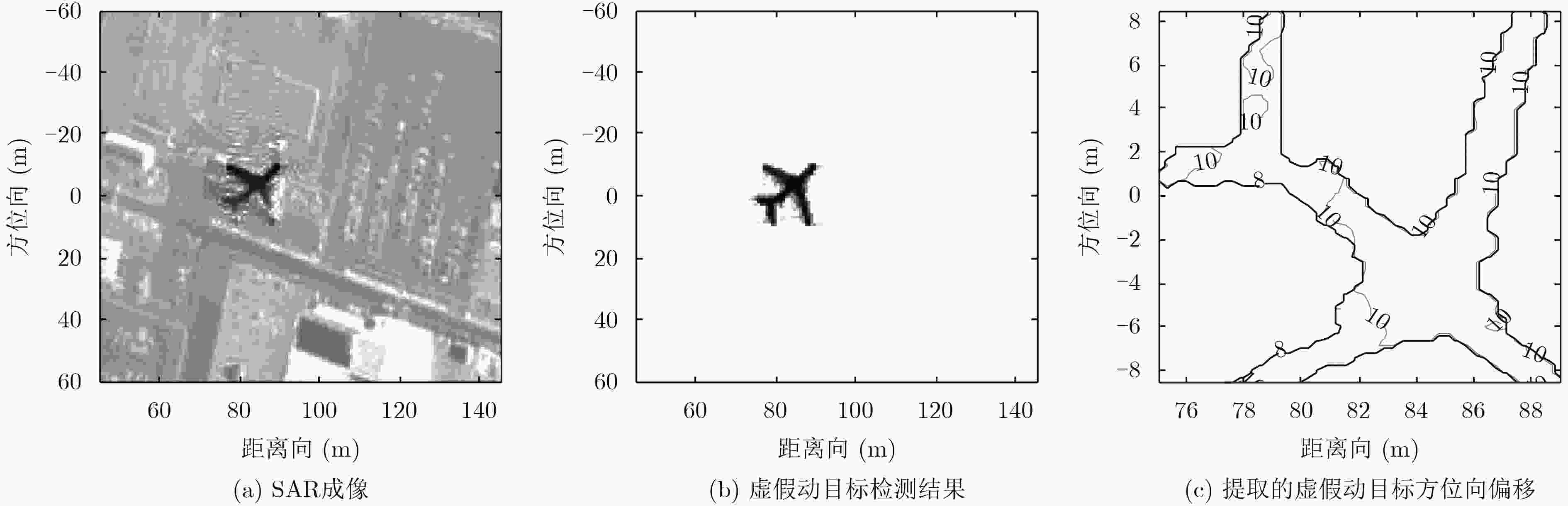

图 8 双站虚假运动目标干扰效果

下载: 全尺寸图片幻灯片

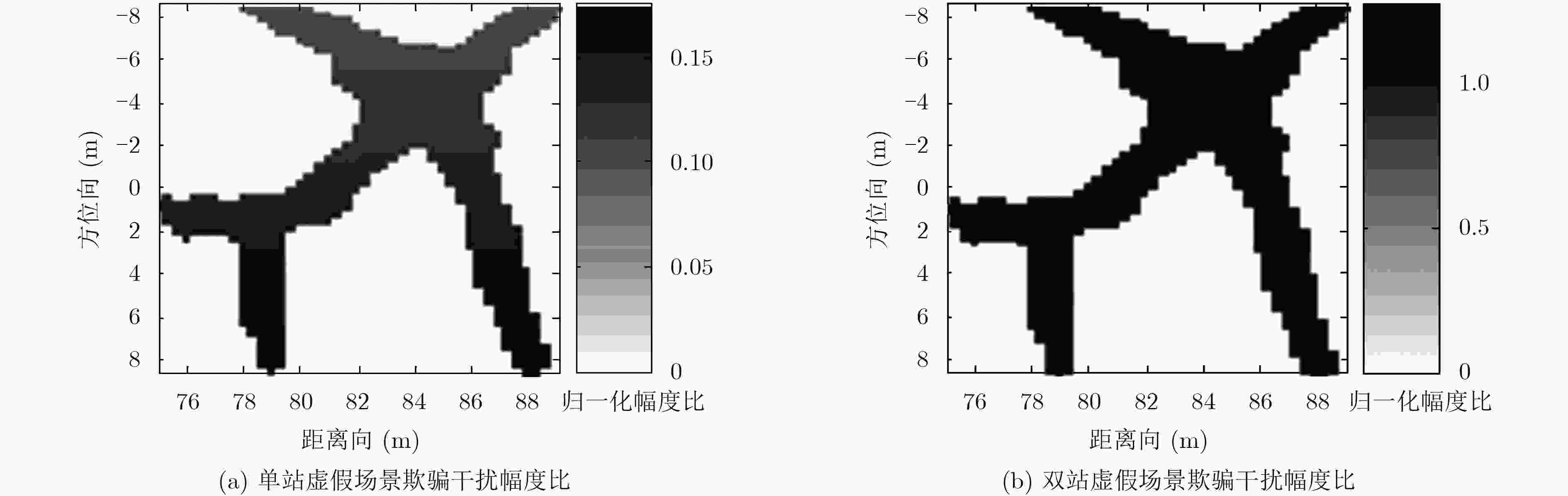

图 9 干扰效果对比

下载: 全尺寸图片幻灯片

表 1 三通道干涉仿真参数

参数	数值
信号载频(GHz)	10
信号脉宽(μs)	20
信号带宽(MHz)	200
脉冲重复频率(Hz)	1365
载机航速(m/s)	200
航迹高度(m)	5000
合成孔径时间(s)	0.88
天线间距(m)	0.25

下载: 导出CSV

参考文献(17)

HUANG Long, DONG Chunxi, SHEN Zhibo, et al. The influence of rebound jamming on SAR/GMTI[J]. IEEE Geoscience and Remote Sensing Letters, 2015, 12(2): 339–403 doi: 10.1109/LGRS.2014.2345091

张绪锦, 张长耀, 朱兆达, 等. 基于三孔径干涉技术处理的三通道机载SAR地面动目标检测[J]. 电子学报, 2008, 36(4): 789–793 doi: 10.3321/j.issn:0372-2112.2008.04.033

ZHANG Xujin, ZHANG Changyao, ZHU Zhaoda, et al. Three aperture airborne SAR-GMTD based on CSI processing[J]. Acta Electronica Sinica, 2008, 36(4): 789–793 doi: 10.3321/j.issn:0372-2112.2008.04.033

ZHANG Jingke, DAI Dahai, XING Shiqi, et al. A novel barrage repeater jamming against SAR-GMTI[C]. European Conference on Antennas & Propagation (EuCAP), Davos, Switzerland, 2016: 1–5.

吴晓芳, 梁景修, 王雪松, 等. SAR-GMTI高逼真匀速运动假目标调制干扰方法[J]. 宇航学报, 2012, 33(10): 1472–1479 doi: 10.3873/j.issn.1000-1328.2012.06.011

WU Xiaofang, LIANG Jingxiu, WANG Xuesong, et al. Modulation jamming method of active false uniformly-accelerating target against SAR-GMTI[J]. Journal of Astronautics, 2012, 33(10): 1472–1479 doi: 10.3873/j.issn.1000-1328.2012.06.011

房明星, 毕大平, 沈爱国. 基于旋转天线的SAR-GMTI二维余弦调相转发干扰[J]. 电子与信息学报, 2016, 38(7): 1765–1772 doi: 10.11999/JEIT151155

FANG Mingxing, BI Daping, and SHEN Aiguo. 2-D cosinusoidal phase-modulated repeater jamming based on rotating antenna for SAR-GMTI[J]. Journal of Electronics&Information Technology, 2016, 38(7): 1765–1772 doi: 10.11999/JEIT151155

周阳, 毕大平, 沈爱国, 等. 基于运动调制的SAR-GMTI间歇采样遮蔽干扰方法[J]. 雷达学报, 2017, 6(4): 359–367 doi: 10.12000/JR16075

ZHOU Yang, BI Daping, SHEN Aiguo, et al. Intermittent sampling repeater shading jamming method based on motion modulation for SAR-GMTI[J]. Journal of Radars, 2017, 6(4): 359–367 doi: 10.12000/JR16075

朱守保, 罗强, 童创明. SAR虚假图像干扰信号快速生成方法研究[J]. 重庆邮电大学学报(自然科学版), 2012, 24(3): 314–318 doi: 10.3979/j.issn.1673-825X.2012.03.009

ZHU Shoubao, LUO Qiang, and TONG Chuangming. Study of a method on creating fake image jamming signal fleetly to SAR[J]. Journal of Chongqing University of Posts and Telecommunications(Natural Science Edition), 2012, 24(3): 314–318 doi: 10.3979/j.issn.1673-825X.2012.03.009

林晓烘, 薛国义, 刘培国. SAR-GMTI匀速运动虚假场景干扰信号快速生成方法[J]. 国防科技大学学报, 2013, 35(6): 82–87 doi: 10.3969/j.issn.1001-2486.2013.06.015

LIN Xiaohong, XUE Guoyi, and LIU Peiguo. A fast jamming method for false uniformly-moving scene against SAR-GMTI[J]. Journal of National University of Defense Technology, 2013, 35(6): 82–87 doi: 10.3969/j.issn.1001-2486.2013.06.015

赵博, 杨军, 孙光才, 等. 一种虚假大场景SAR快速转发式欺骗干扰方法研究[J]. 电子与信息学报, 2012, 34(4): 963–968 doi: 10.3724/SP.J.1146.2011.00501

ZHAO Bo, YANG Jun, SUN Guangcai, et al. A method of SAR fast repeater deception jamming for large false scene[J]. Jounal of Electronics&Information Technology, 2012, 34(4): 963–968 doi: 10.3724/SP.J.1146.2011.00501

ZHAO Bo, ZHOU Feng, SHI Xiaoran, et al. Multiple targets deception jamming against ISAR using electromagnetic properties[J]. IEEE Sensors Journal, 2015, 15(4): 2031–2038 doi: 10.1109/JSEN.2014.2368985

黄龙, 董春曦, 赵国庆. 利用多干扰机对抗SAR双通道干扰对消技术的研究[J]. 电子与信息学报, 2014, 36(4): 904–907 doi: 10.3724/SP.J.1146.2013.00887

HUANG Long, DONG Chunxi, and ZHAO Guoqing. Investigation on countermeasure against SAR dual-channel cancellation technique with multi-jammers[J]. Journal of Electronics&Information Technology, 2014, 36(4): 904–907 doi: 10.3724/SP.J.1146.2013.00887

黄龙, 董春曦, 沈志博, 等. 多天线干扰机对抗InSAR双通道干扰对消的研究[J]. 电子与信息学报, 2015, 37(4): 913–918 doi: 10.11999/JEIT140769

HUANG Long, DONG Chunxi, SHEN Zhibo, et al. Investigation on countermeasure against InSAR dual-channel cancellation technique with multi-antenna jammer[J]. Journal of Electronics&Information Technology, 2015, 37(4): 913–918 doi: 10.11999/JEIT140769

张静克. 对多通道SAR分布式协同干扰技术研究[D]. [博士论文], 国防科技技术大学, 2016.

ZHANG Jingke. Study on distributed cooperative jamming techniques against multichannel SAR [D]. [Ph.D. dissertation], National University of Defense Technology, 2016.

张养瑞, 李云杰, 李曼玲, 等. 间歇采样非均匀重复转发实现多假目标压制干扰[J]. 电子学报, 2016, 44(1): 46–53 doi: 10.3969/j.issn.0372-2112.2016.01.008

ZHANG Yangrui, LI Yunjie, LI Manling, et al. Suppress jamming technique of multiple false targets on interrupted-sampling and non-uniform periodic repeater[J]. Acta Electronica Sinica, 2016, 44(1): 46–53 doi: 10.3969/j.issn.0372-2112.2016.01.008

房明星, 毕大平, 沈爱国. SAR多普勒移频间歇采样转发干扰方法[J]. 系统工程与电子技术, 2016, 38(10): 2287–2295 doi: 10.3969/j.issn.1001-506X.2016.10.10

FANG Mingxing, BI Daping, and SHEN Aiguo. Doppler shift-frequency intermittent sampling repeater jamming to SAR[J]. Systems Engineering and Electronics, 2016, 38(10): 2287–2295 doi: 10.3969/j.issn.1001-506X.2016.10.10

房明星, 毕大平, 沈爱国, 等. 对SAR图像恒虚警检测的多假目标干扰研究[J]. 电子与信息学报, 2017, 39(4): 973–980 doi: 10.11999/JEIT160633

FANG Mingxing, BI Daping, SHEN Aiguo, et al. Jamming technique of multiple false targets against CFAR detection in SAR images[J]. Journal of Electronics&Information Technology, 2017, 39(4): 973–980 doi: 10.11999/JEIT160633

BATON D K. 雷达系统分析与建模[M]. 北京: 电子工业出版社, 2012: 281–305.

BATON D K. Radar System Analysis and Modeling[M]. Beijing, Publishing House of Electronic Industry, 2008: 281–305.
