Integrated Enhancement Algorithm for Hazy Image Using Transmittance as Weighting Factor
-

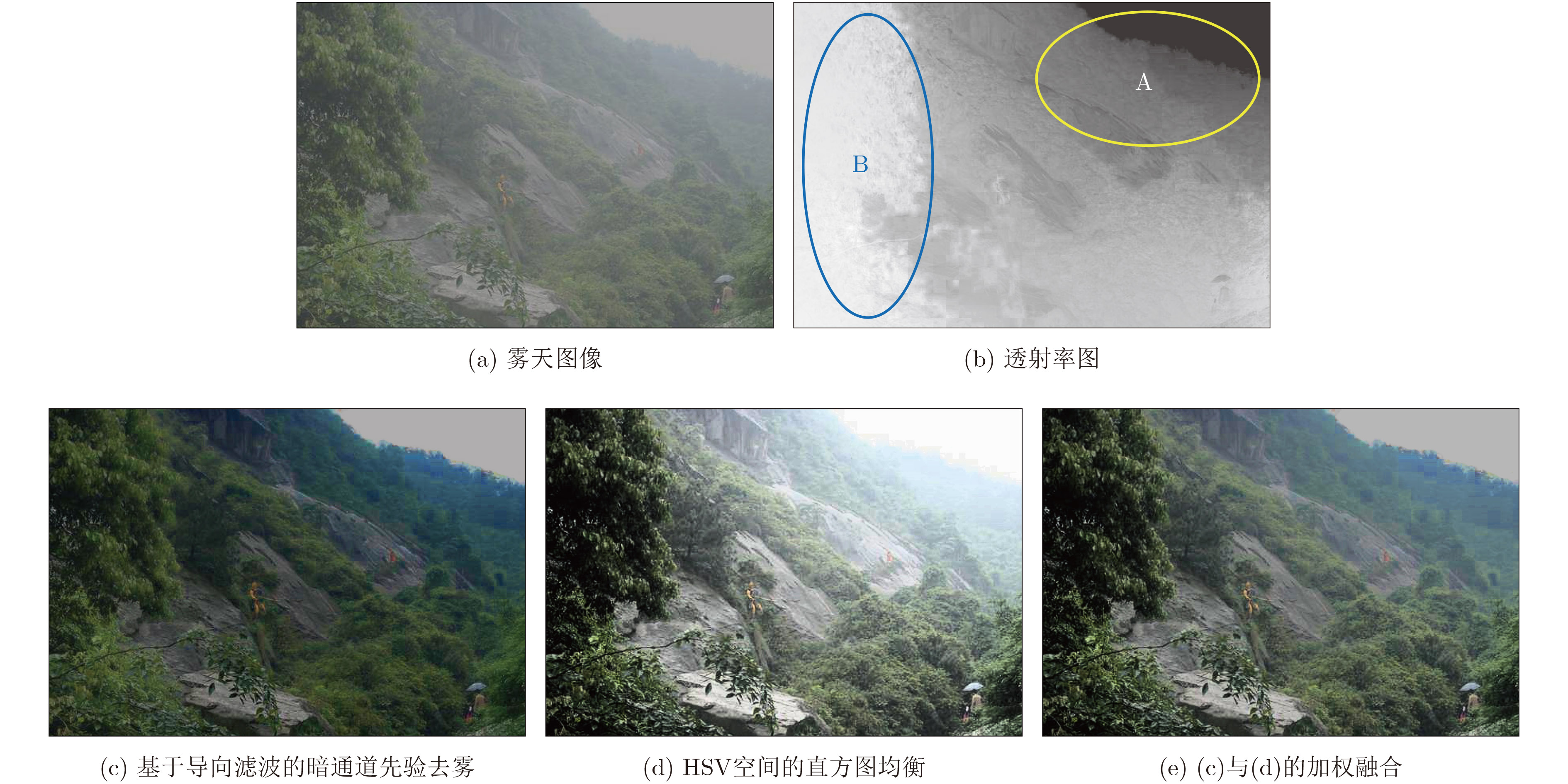

摘要: 雾天图像增强具有重要现实意义。由于现有的图像去雾算法在提升图像全局对比度的能力上存在不足，为此将暗通道先验去雾算法与直方图均衡化算法的各自优势进行整合，该文提出一种雾天图像增强新算法。首先，分别采用基于导向滤波的暗通道先验去雾算法和基于HSV色彩空间的直方图均衡化算法处理雾天图像；然后，基于修正的透射率图构造权值因子，将上述两种处理结果加权融合，得到输出图像。仿真实验结果表明，该算法比现有去雾算法具有更高的标准差、平均梯度与信息熵，具有更好的全局与局部对比度增强效果。算法运行时间主要依赖于图像去雾环节，处理一般尺寸图像能够满足实时要求。Abstract: Hazy image enhancement has important practical significance. Since the existing haze removal algorithms have disadvantages in improving the global contrast of images, a novel hazy image enhancement algorithm is presented by integrating advantages of haze removal and histogram equalization. Firstly, the hazy image is processed respectively using guided filtering-based dark channel prior algorithm and HSV space-based histogram equalization algorithm. Then, the output image is obtained by fusing the above two results using weighting factor which is constructed by the revised transmittance map. Simulation results show that the algorithm has higher standard deviation, average gradient and information entropy than the present hazy removal algorithm, and shows better result of global and local contrast. The running time of the algorithm mainly depends on the process of haze removal, which can meet the real-time requirements for normal size image.
-
Key words:
- Image fusion /
- Hazy image /
- Transmittance /
- Dark channel prior /
- Histogram equalization
-
表 1 不同增强算法的客观评价
图像 增强算法 标准差 平均梯度 信息熵 亮度 图像1 输入图像 19.568 1.505 6.015 88.556 文献[15]算法 23.001 3.039 6.343 42.771 HSV空间HE 75.139 5.937 7.515 127.243 本文算法 111.206 9.375 7.314 82.391 图像2 输入图像 53.585 7.464 7.627 108.122 文献[15]算法 44.020 7.164 7.085 71.431 HSV空间HE 73.494 12.531 7.759 127.331 本文算法 110.384 12.990 7.538 95.696 图像3 输入图像 58.324 6.359 7.749 103.088 文献[15]算法 44.392 6.788 7.149 65.680 HSV空间HE 74.148 8.584 7.877 127.448 本文算法 111.854 11.428 7.620 93.043 图像4 输入图像 75.896 9.661 7.449 119.459 文献[15]算法 63.888 10.246 7.488 59.750 HSV空间HE 76.886 9.767 7.460 127.167 本文算法 129.088 12.360 7.582 80.07 平均 输入图像 51.843 6.247 7.21 104.806 文献[15]算法 43.825 6.809 7.0162 59.908 HSV空间HE 74.916 9.204 7.652 127.297 本文算法 115.633 11.538 7.513 87.8
下载: 导出CSV
-
吴迪, 朱青松. 图像去雾的最新研究进展[J]. 自动化学报, 2015, 41(2): 221–227 doi: 10.16383/j.aas.2015.c131137WU Di and ZHU Qingsong. The latest research progress of image dehazing[J]. Acta Automatica Sinica, 2015, 41(2): 221–227 doi: 10.16383/j.aas.2015.c131137 艾明晶, 戴隆忠, 曹庆华. 雾天环境下自适应图像增强去雾方法研究[J]. 计算机仿真, 2009, 26(7): 244–247 doi: 10.3969/j.issn.1006-9348.2009.07.062AI Mingjing, DAI Longzhong, and CAO Qinghua. A self-adaptation image enhancement method for fog elimination in foggy environment[J]. Computer Simulation, 2009, 26(7): 244–247 doi: 10.3969/j.issn.1006-9348.2009.07.062 TAN R T. Visibility in bad weather from a single image[C]. Proceedings of the Conference on Computer Vision and Pattern Recognition, Anchorage, USA, 2008: 1–8. doi: 10.1109/CVPR.2008.4587643. HE Kaiming, SUN Jian, and TANG Xiaoou. Single image haze removal using dark channel prior[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2011, 33(12): 2341–2353 doi: 10.1109/TPAMI.2010.168 汤群芳, 杨杰, 刘海波, 等. 基于暗通道先验的单幅图像快速去雾方法[J]. 光子学报, 2017, 46(9): 0910001 doi: 10.3788/gzxb20174609.0910001TANG Qunfang, YANG Jie, LIU Haibo, et al. Fast single-image dehazing method based on dark channel prior[J]. Acta Photonica Sinica, 2017, 46(9): 0910001 doi: 10.3788/gzxb20174609.0910001 肖进胜, 高威, 邹白昱, 等. 基于天空约束暗通道先验的图像去雾[J]. 电子学报, 2017, 45(2): 346–352 doi: 10.3969/j.issn.0372-2112.2017.02.012XIAO Jinsheng, GAO Wei, ZOU Baiyu, et al. Image dehazing based on sky-constrained dark channel prior[J]. Acta Electronica Sinica, 2017, 45(2): 346–352 doi: 10.3969/j.issn.0372-2112.2017.02.012 陈丹丹, 陈莉, 张永新, 等. 修正大气耗散函数的单幅图像去 雾[J]. 中国图象图形学报, 2017, 22(6): 787–796 doi: 10.11834/jig.160616CHEN Dandan, CHEN Li, ZHANG Yongxin, et al. Single-image dehazing algorithm to correct atmosphere veil[J]. Journal of Image and Graphics, 2017, 22(6): 787–796 doi: 10.11834/jig.160616 王伟鹏, 戴声奎. 结合图像融合与分割的快速去雾[J]. 中国图象图形学, 2014, 19(8): 1155–1161 doi: 10.11834/jig.20140806WANG Weipeng and DAI Shengkui. Fast haze removal method based on image fusion and segmentation[J]. Journal of Image and Graphics, 2014, 19(8): 1155–1161 doi: 10.11834/jig.20140806 邢晓敏, 刘威. 雾天交通场景中单幅图像去雾[J]. 中国图象图形学报, 2016, 21(11): 1440–1447 doi: 10.11834/jig.20161103XING Xiaomin and LIU Wei. Removal for single traffic image[J]. Journal of Image and Graphics, 2016, 21(11): 1440–1447 doi: 10.11834/jig.20161103 赵锦威, 沈逸云, 刘春晓, 等. 暗通道先验图像去雾的大气光校验和光晕消除[J]. 中国图象图形学报, 2016, 21(9): 1221–1228 doi: 10.11834/jig.20160911ZHAO Jinwei, SHEN Yiyun, LIU Chunxiao, et al. Dark channel prior-based image dehazing with atmospheric light validation and halo elimination[J]. Journal of Image and Graphics, 2016, 21(9): 1221–1228 doi: 10.11834/jig.20160911 代书博, 徐伟, 朴永杰, 等. 基于暗原色先验的遥感图像去雾方法[J]. 光学学报, 2017, 37(3): 348–354 doi: 10.3788/aos01737.038002DAI Shubo, XU Wei, PIAO Yongjie, et al. Remote sensing image defogging based on dark channel prior[J]. Acta Optica Sinica, 2017, 37(3): 348–354 doi: 10.3788/aos01737.038002 HUANG S C, CHEN B H, and WANG W J. Visibility restoration of single hazy images captured in real-world weather conditions[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2014, 24(10): 1814–1824 doi: 10.1109/TCSVT.2014.2317854 杨爱萍, 王南, 庞彦伟, 等. 人工光源条件下夜间雾天图像建模及去雾[J]. 电子与信息学报, 2018, 40(6): 1330–1337 doi: 10.11999/JEIT170704YANG Aiping, WANG Nan, PANG Yanwei, et al. Nighttime haze removal based on new imaging model with artificial light sources[J]. Journal of Electronics&Information Technology, 2018, 40(6): 1330–1337 doi: 10.11999/JEIT170704 FATTAL R. Signal image dehazing[J]. ACM Transactions on Graphics, 2008, 27(3): 721–728 doi: 10.1145/1360612.1360671 HE Kaiming, SUN Jian, and TANG Xiaoou. Guided image filtering[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2013, 35(6): 1397–1409 doi: 10.1109/TPAMI.2012.213 庞春莹, 嵇晓强, 孙丽娜, 等. 一种改进的图像快速去雾新方 法[J]. 光子学报, 2013, 42(7): 872–877 doi: 10.3788/gzxb20134207.0872PANG Chunying, JI Xiaoqiang, SUN Lina, et al. An improved method of image fast defogging[J]. Acta Photonica Sinica, 2013, 42(7): 872–877 doi: 10.3788/gzxb20134207.0872 张登银, 鞠铭烨, 王雪梅. 一种基于暗通道先验的快速图像去雾算法[J]. 电子学报, 2015, 43(7): 1437–1443 doi: 10.3969/j.issn.0372-2112.2015.07.029ZHANG Dengyin, JU Mingye, and WANG Xuemei. A fast image haze removal algorithm using dark channel prior[J]. Acta Electronica Sinica, 2015, 43(7): 1437–1443 doi: 10.3969/j.issn.0372-2112.2015.07.029 -
