Research on Snow Depth Measurement Technology Based on Dual-Band Microwave Open Resonant Cavity

LI Mengyao; ZHANG Pengfei; FENG Hao; MA Zhongfa

doi:10.11999/JEIT250724

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2026 >

LI Mengyao, ZHANG Pengfei, FENG Hao, MA Zhongfa. Research on Snow Depth Measurement Technology Based on Dual-Band Microwave Open Resonant Cavity[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250724

Citation:

LI Mengyao, ZHANG Pengfei, FENG Hao, MA Zhongfa. Research on Snow Depth Measurement Technology Based on Dual-Band Microwave Open Resonant Cavity[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250724

Citation:

PDF( 5503 KB)

Research on Snow Depth Measurement Technology Based on Dual-Band Microwave Open Resonant Cavity

doi: 10.11999/JEIT250724 cstr: 32379.14.JEIT250724

1.
School of Electronic Engineering, Xidian University, Xi’an 710071, China
2.
Hangzhou Institute of Technology, Xidian University, Hangzhou 311231, China
3.
Faculty of Integrated Circuit, Xidian University, Xi’an 710071, China

Received Date: 2025-08-07
Accepted Date: 2025-12-12
Rev Recd Date: 2025-12-12

Available Online: 2025-12-31

Abstract

Abstract

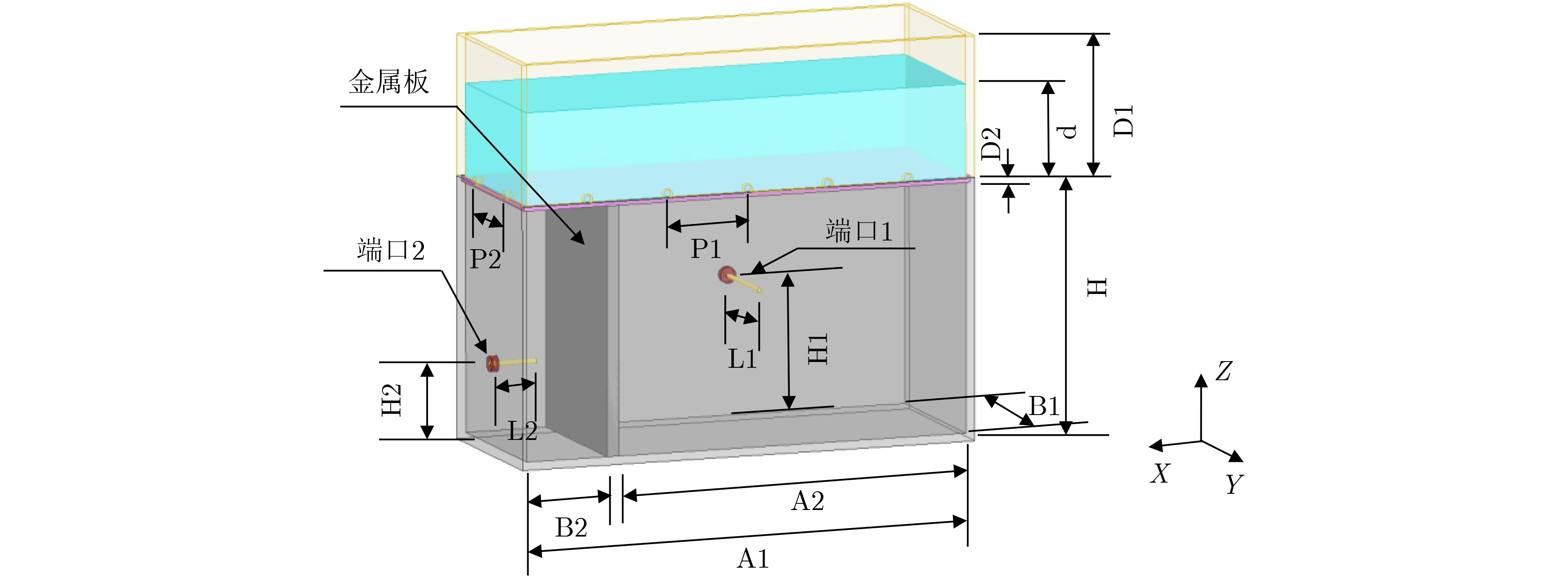

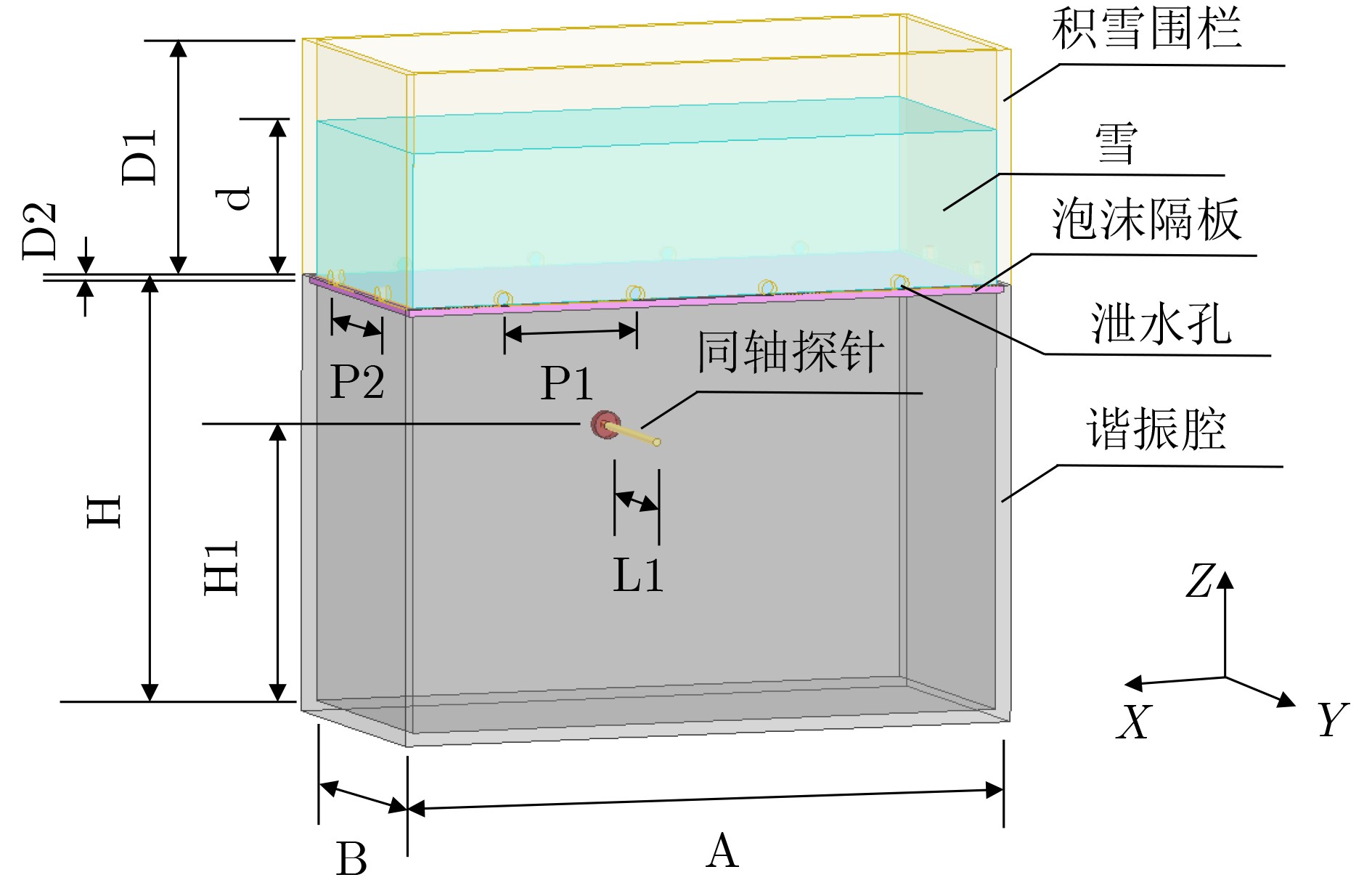

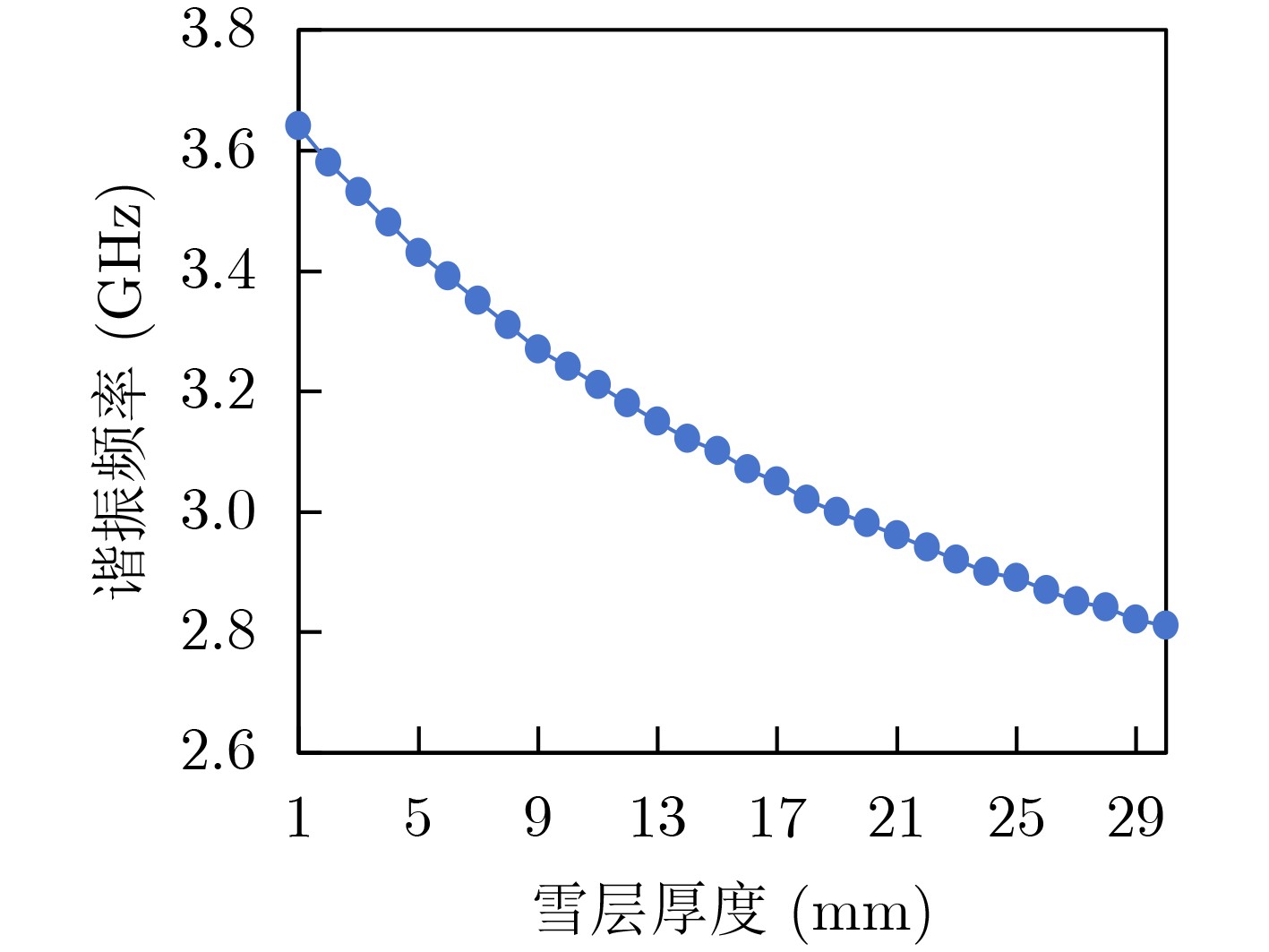

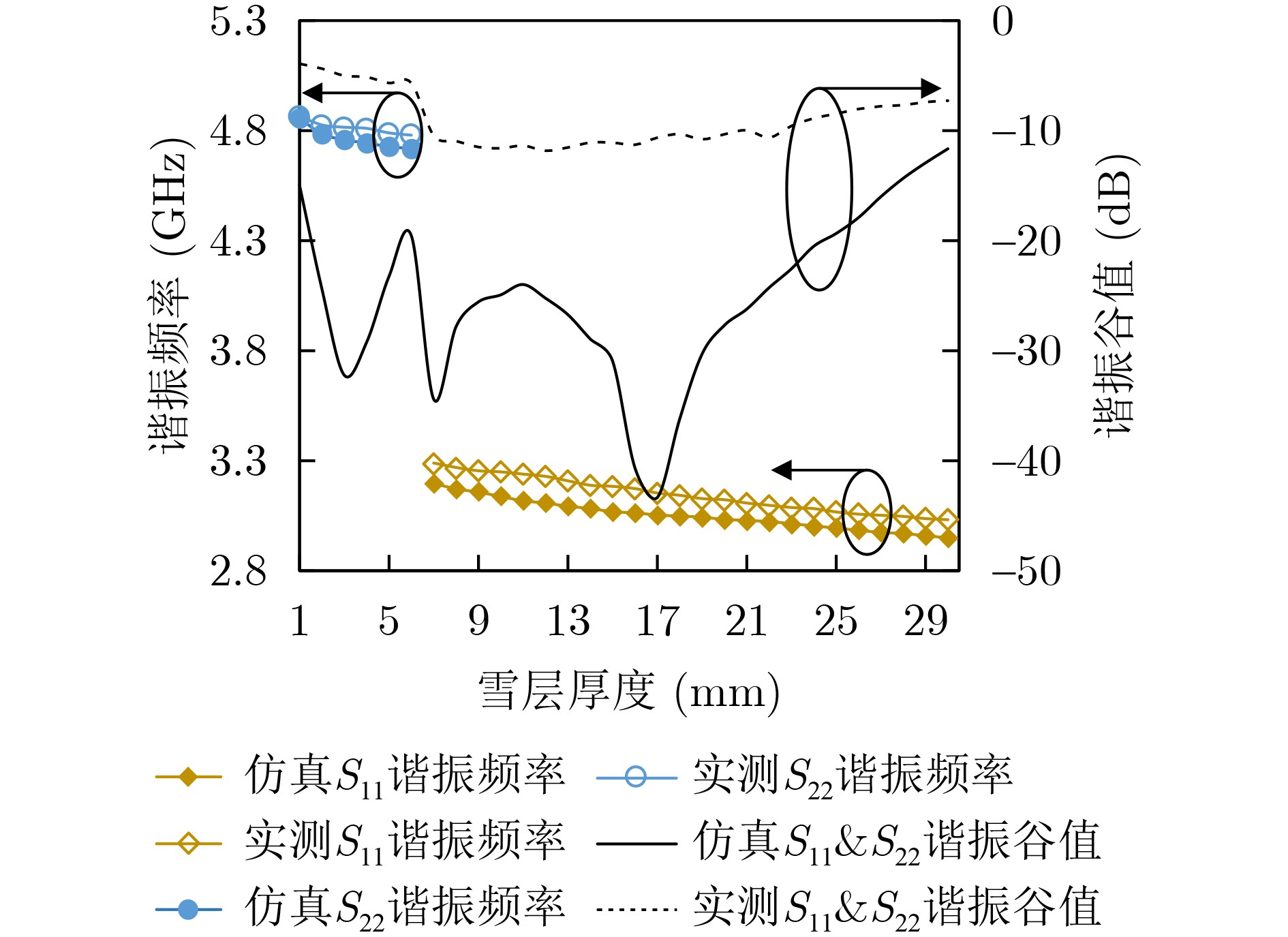

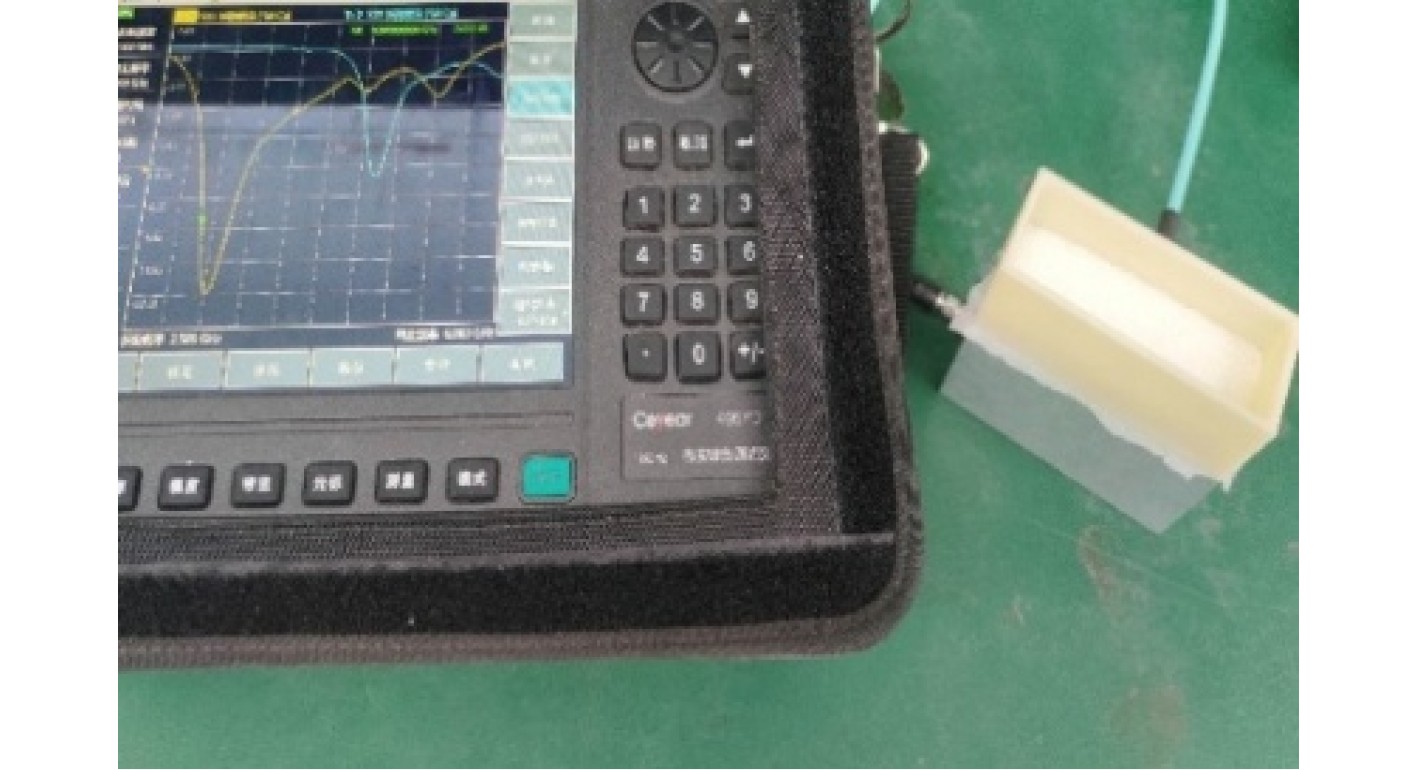

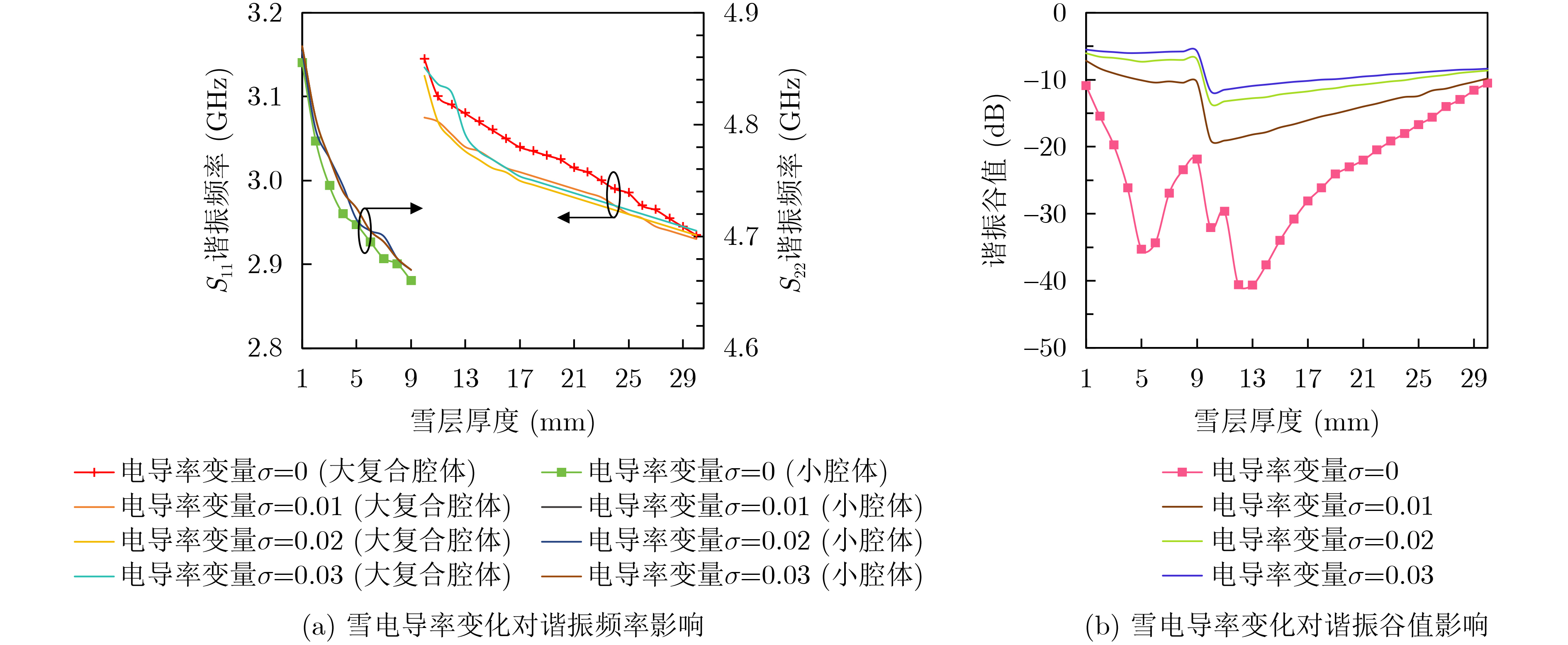

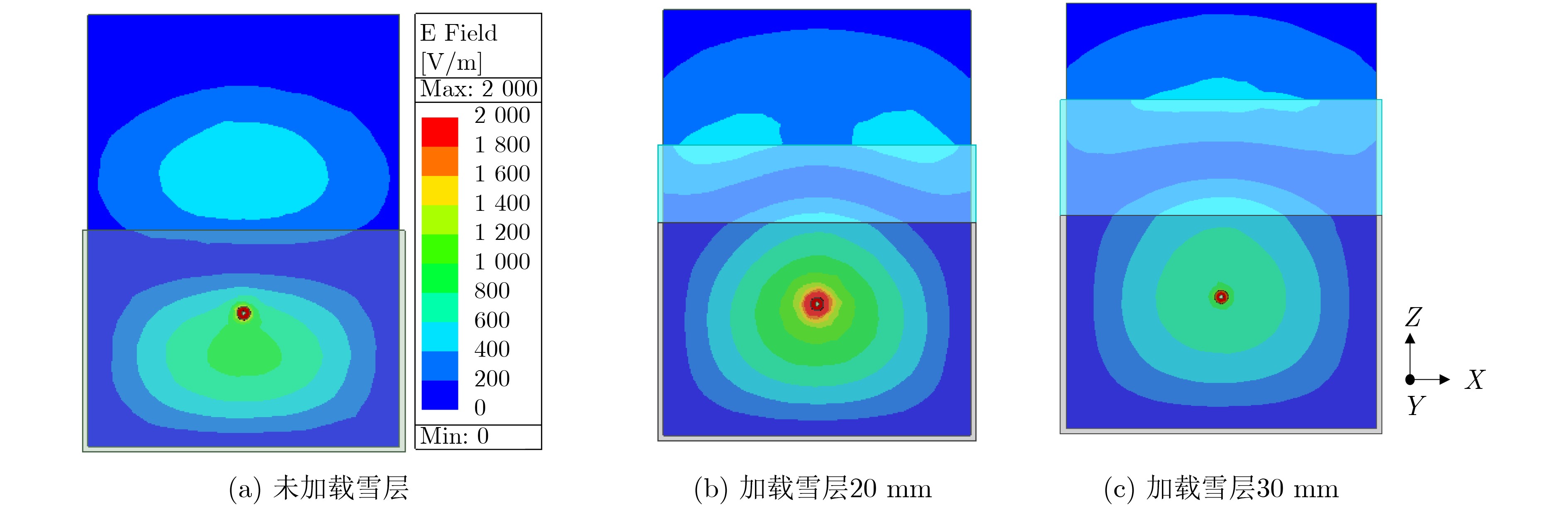

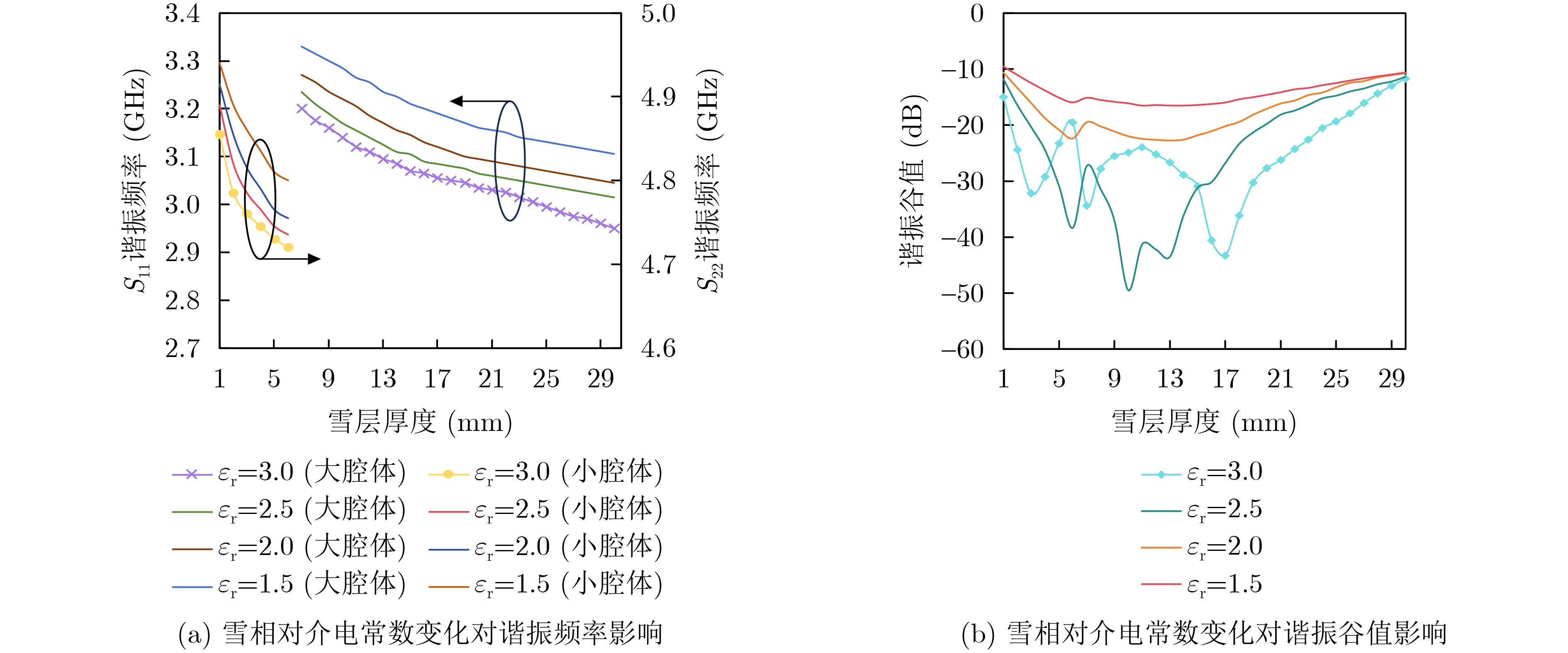

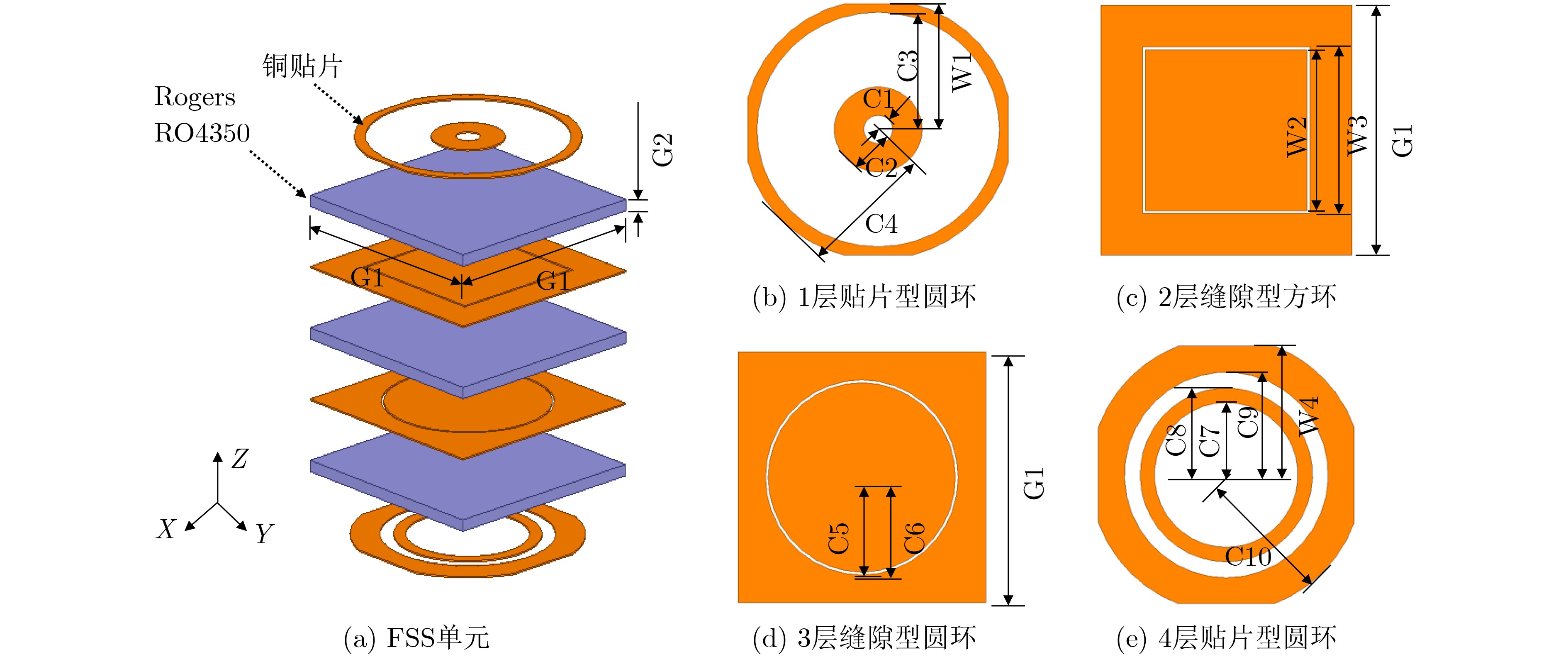

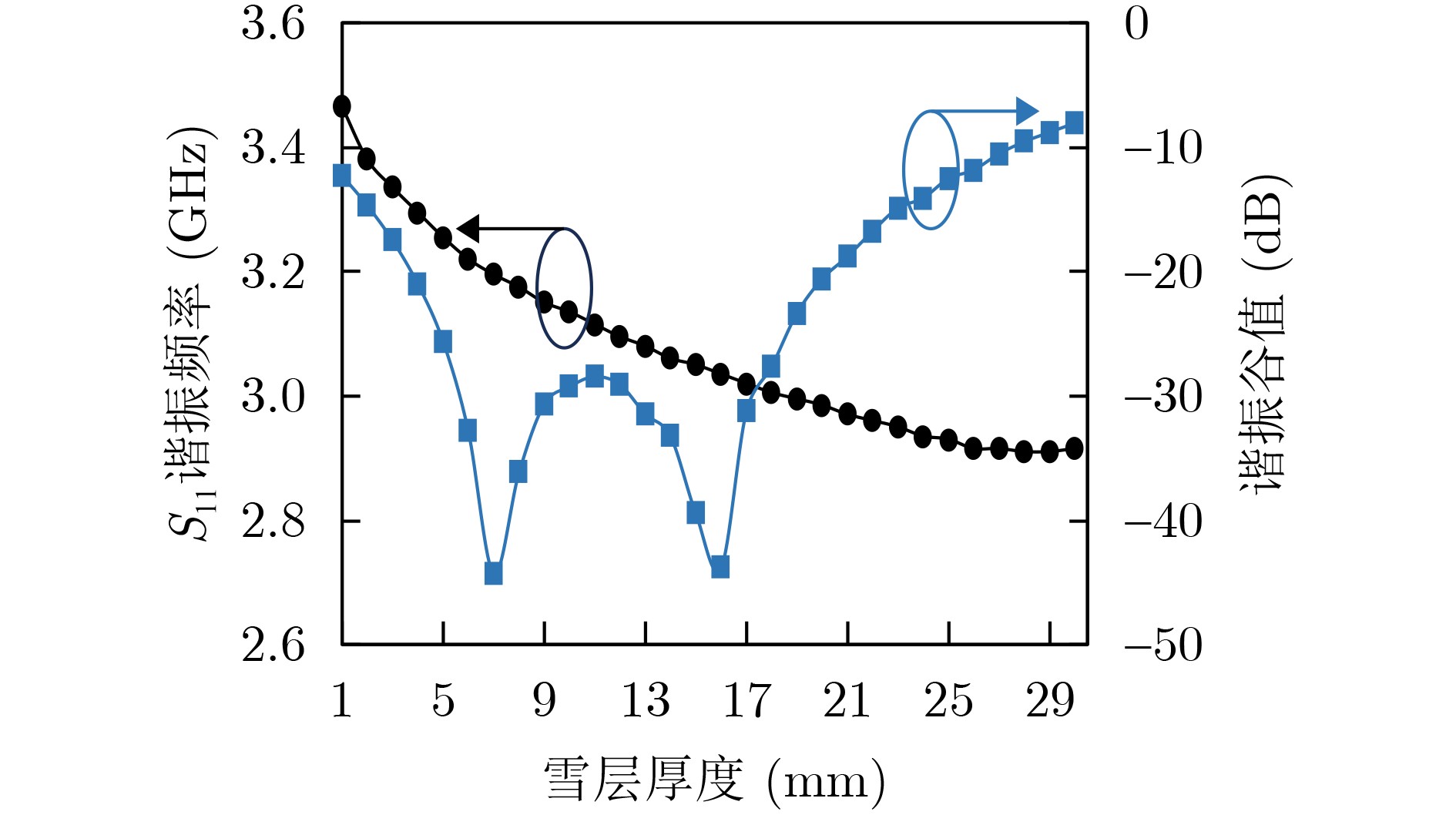

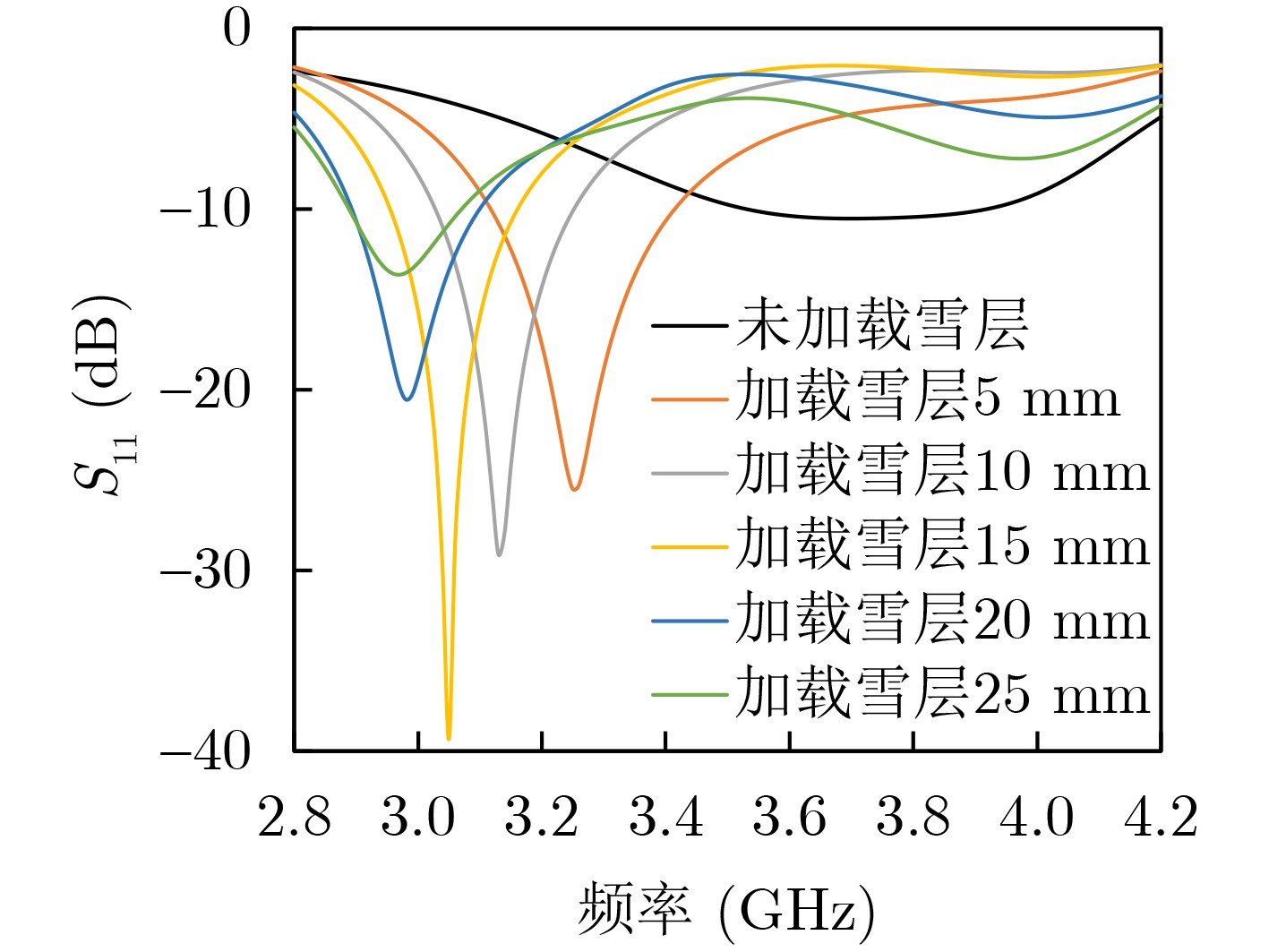

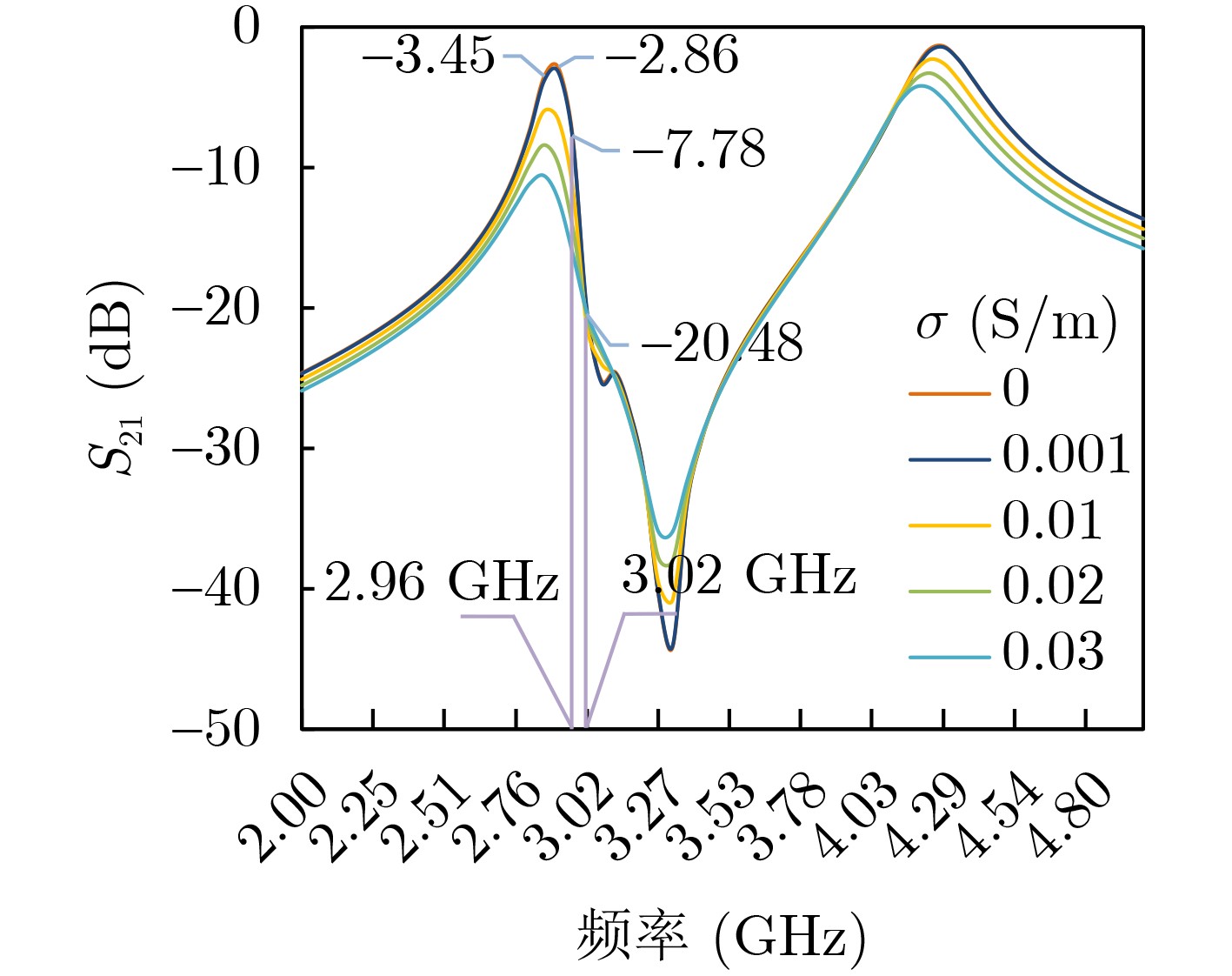

Objective Large-scale winter snowfall poses a significant threat to the safety of outdoor infrastructure, including power transmission and communication systems. Real-time monitoring of snow depth within the range of 1～30 mm is required for accurate early warning and effective snow removal scheduling. Satellite- and radar-based techniques are mainly applied to snow depths exceeding 10 cm, but their large size and limited spatial resolution restrict their applicability to near-surface measurements. Although recently developed planar resonant sensors based on the resonance principle improve measurement accuracy, their effective measurement range remains limited. To resolve the trade-off between measurement range and accuracy, a rectangular microwave open resonant cavity featuring a dual-cavity, dual-feed, and dual-frequency-band configuration is proposed in combination with a data inversion algorithm. This scheme achieves a wide dynamic range of 1～30 mm while maintaining a measurement accuracy of 1 mm. The proposed device meets the monitoring requirements for snow depth corresponding to six snowfall intensity grades, ranging from light snow to heavy snowstorms. Methods The research methodology consists of four main stages. First, the phase-matching condition of the resonator formed by the open-ended waveguide and the snow layer is used to derive an analytical relationship between resonant frequency and snow depth, thereby verifying the feasibility of the measurement principle. Subsequently, a single-cavity model with coaxial feed is designed and simulated to evaluate its sensitivity to snow depths from 1 to 25 mm and to determine the corresponding operating frequency band. To further extend the measurement range, a dual-cavity, dual-feed model is constructed using either a metal plate or a Frequency Selective Surface (FSS) as a separator. A segmented measurement strategy is adopted, in which the large cavity and small cavity are responsible for different snow thickness intervals, enabling stable measurements with a precision of 1 mm over the full 1～30 mm range under different snow conditions. Finally, an optimal data inversion scheme is selected and implemented to further improve measurement accuracy. Results and Discussions A snow depth measurement technique based on a dual-band open-ended microwave resonant cavity is demonstrated. The dynamic measurement range is extended from 1～25 mm (Fig. 4) for the single-cavity configuration to 1～30 mm (Fig. 9) for the dual-cavity configuration. Simulation results show that the dual-cavity model maintains stable performance under variations in snow physical properties (Fig. 10～13). As snow depth increases, the resonant frequency exhibits a regular shift toward lower frequencies (Fig. 9(a)), whereas the attenuation remains below –10 dB (Fig. 9(b)), achieving a measurement precision of 1 mm. Experimental results show trends consistent with the simulations (Fig. 15). When combined with the data inversion scheme, the inversion error is less than 0.16 mm (Table 5), satisfying the requirements for both wide dynamic range and high measurement accuracy. Conclusions A dual-cavity, dual-feed, and dual-frequency snow depth measurement method employing either a metal plate or an FSS plate as a cavity separator is proposed. The limited dynamic range of conventional single-cavity designs is addressed through the constructed dual-cavity architecture. Measurement resolution is improved by assigning different snow thickness ranges to the two frequency bands and applying a data inversion algorithm. Experimental results demonstrate that the proposed method enables segmented measurement of snow depths from 1～30 mm, with an inversion accuracy of 0.16 mm and a measured precision better than 1 mm. The effects of variations in snow density and snow moisture content on resonant frequency and attenuation are analyzed. For future research, machine learning methods are suggested to associate measurement parameters with meteorological parameters, thereby improving measurement accuracy and extending the early-warning capability of the system.
- Snow depth measurement,
- Microwave open resonant cavity,
- Data inversion

FullText(HTML)

References(27)

References

[1]	KOETSE M J and RIETVELD P. The impact of climate change and weather on transport: An overview of empirical findings[J]. Transportation Research Part D: Transport and Environment, 2009, 14(3): 205–221. doi: 10.1016/j.trd.2008.12.004.
[2]	LU Huapu, CHEN Mingyu, and KUANG Wenbo. The impacts of abnormal weather and natural disasters on transport and strategies for enhancing ability for disaster prevention and mitigation[J]. Transport Policy, 2020, 98: 2–9. doi: 10.1016/j.tranpol.2019.10.006.
[3]	李海, 冯开泓, 杨文恒, 等. 机载双极化气象雷达多种降水粒子回波仿真方法研究[J]. 电子与信息学报, 2023, 45(8): 2945–2954. doi: 10.11999/JEIT220830. LI Hai, FENG Kaihong, YANG Wenheng, et al. Study on simulation method of precipitation particle echo of airborne dual-polarization weather radar[J]. Journal of Electronics & Information Technology, 2023, 45(8): 2945–2954. doi: 10.11999/JEIT220830.
[4]	GORZELANCZYK P. Impact of weather conditions and road type on traffic safety[J]. European Transport Studies, 2025, 2: 100042. doi: 10.1016/j.ets.2025.100042.
[5]	SHI H, SOHN B J, DYBKJÆR G, et al. Simultaneous estimation of wintertime sea ice thickness and snow depth from space-borne freeboard measurements[J]. The Cryosphere, 2020, 14(11): 3761–3783. doi: 10.5194/tc-14-3761-2020.
[6]	王奉帅, 王华青, 贾贝. 基于北斗系统的雪层厚度测量方法[J]. 信息记录材料, 2023, 24(4): 204–206. doi: 10.16009/j.cnki.cn13-1295/tq.2023.04.061. WANG Fengshuai, WANG Huaqing, and JIA Bei. Snow layer thickness measurement method based on the Beidou system[J]. Information Recording Materials, 2023, 24(4): 204–206. doi: 10.16009/j.cnki.cn13-1295/tq.2023.04.061.
[7]	JANS J F, BEERNAERT E, DE BREUCK M, et al. Sensitivity of sentinel-1 C-band SAR backscatter, polarimetry and interferometry to snow accumulation in the Alps[J]. Remote Sensing of Environment, 2025, 316: 114477. doi: 10.1016/j.rse.2024.114477.
[8]	孙占义, 张江齐, 张鹏. 雷达技术在珠穆朗玛峰冰雪层厚度测定中的应用[J]. 物探与化探, 2006, 30(2): 179–182. doi: 10.3969/j.issn.1000-8918.2006.02.021. SUN Zhanyi, ZHANG Jiangqi, and ZHANG Peng. The application of radar technique to determining niveal bed thickness of Mount Qomolangma[J]. Geophysical and Geochemical Exploration, 2006, 30(2): 179–182. doi: 10.3969/j.issn.1000-8918.2006.02.021.
[9]	KANAGARATNAM P, MARKUS T, LYTLE V, et al. Ultrawideband radar measurements of thickness of snow over sea ice[J]. IEEE Transactions on Geoscience and Remote Sensing, 2007, 45(9): 2715–2724. doi: 10.1109/TGRS.2007.900673.
[10]	LIU Hai, TAKAHASHI K, and SATO M. Measurement of dielectric permittivity and thickness of snow and ice on a brackish lagoon using GPR[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2014, 7(3): 820–827. doi: 10.1109/JSTARS.2013.2266792.
[11]	RYAN W A, DOESKEN N J, and FASSNACHT S R. Evaluation of ultrasonic snow depth sensors for U. S. snow measurements[J]. Journal of Atmospheric and Oceanic Technology, 2008, 25(5): 667–684. doi: 10.1175/2007JTECHA947.1.
[12]	王瑞, 秦建敏, 程琦, 等. 基于空气-雪层透光性差异的雪层厚度定点连续检测传感器[C]. 第十四届全国敏感元件与传感器学术会议论文集, 成都, 中国, 2016: 667–670. WANG Rui, QIN Jianmin, CHENG Qi, et al. The snow-thickness detection sensor based on the difference of light transmission properties between air and snow[C]. 14th Sensors and Transducers Conference of China, Chengdu, China, 2016: 667–670.
[13]	HERMAN K, GUDRA T, OPIELIŃSKI K, et al. A study of a parametric method for the snow reflection coefficient estimation using air-coupled ultrasonic waves[J]. Sensors, 2020, 20(15): 4267. doi: 10.3390/s20154267.
[14]	GARCÍA-MAROTO D, DURÁN L, and DE PABLO HERNÁNDEZ M Á. New approaches and error assessment to snow cover thickness and density using air temperature data at different heights[J]. Science of the Total Environment, 2024, 926: 171744. doi: 10.1016/j.scitotenv.2024.171744.
[15]	KINAR N J and POMEROY J W. Measurement of the physical properties of the snowpack[J]. Reviews of Geophysics, 2015, 53(2): 481–544. doi: 10.1002/2015RG000481.
[16]	PROKOP A, SCHIRMER M, RUB M, et al. A comparison of measurement methods: Terrestrial laser scanning, tachymetry and snow probing for the determination of the spatial snow-depth distribution on slopes[J]. Annals of Glaciology, 2008, 49: 210–216. doi: 10.3189/172756408787814726.
[17]	RODRIGUEZ-ALVAREZ N, AGUASCA A, VALENCIA E, et al. Snow thickness monitoring using GNSS measurements[J]. IEEE Geoscience and Remote Sensing Letters, 2012, 9(6): 1109–1113. doi: 10.1109/LGRS.2012.2190379.
[18]	MATZLER C. Microwave permittivity of dry snow[J]. IEEE Transactions on Geoscience and Remote Sensing, 1996, 34(2): 573–581. doi: 10.1109/36.485133.
[19]	SHAH A, NIKSAN O, and ZARIFI M H. Planar microwave sensor for localized ice and snow sensing[R]. SAE Technical Paper 2023-01-1432, 2023. doi: 10.4271/2023-01-1432.
[20]	XIE Jianbing, LI Zihan, LU Boshang, et al. A flexible CSRR-based array icing sensor with defective microstrip structure[J]. IEEE Sensors Journal, 2024, 24(12): 19934–19943. doi: 10.1109/JSEN.2024.3395435.
[21]	PRIYANKA G and RAO N. Simplified formulation for calculation of thickness of a single layered dielectric material using an open-ended rectangular waveguide[C]. 2021 12th International Conference on Computing Communication and Networking Technologies (ICCCNT), Kharagpur, India, 2021: 1–7. doi: 10.1109/ICCCNT51525.2021.9579802.
[22]	SIMON D S. Introduction to Quantum Science and Technology[M]. Cham: Springer, 2025: 697–713. doi: 10.1007/978-3-031-81315-3.
[23]	方正新. 矩形压窄波导天线设计[D]. [硕士论文], 电子科技大学, 2009. FANG Zhengxin. Design of rectangular narrow-waveguide antenna[D]. [Master dissertation], University of Electronic Science and Technology of China, 2009.
[24]	胡金花, 李勇, 谭建国, 等. 玻璃纤维增强复合材料局部减薄损伤的微波无损定量检测[J]. 传感器与微系统, 2020, 39(3): 113–116. doi: 10.13873/J.1000-9787(2020)03-0113-04. HU Jinhua, LI Yong, TAN Jianguo, et al. Nondestructive quantitative detection of localized thickness loss in GFRP composites via microwave NDT[J]. Transducer and Microsystem Technologies, 2020, 39(3): 113–116. doi: 10.13873/J.1000-9787(2020)03-0113-04.
[25]	鲁戈舞, 张剑, 杨洁颖, 等. 频率选择表面天线罩研究现状与发展趋势[J]. 物理学报, 2013, 62(19): 198401. doi: 10.7498/aps.62.198401. LU Gewu, ZHANG Jian, YANG Jieying, et al. Status and development of frequency selective surface radome[J]. Acta Physica Sinica, 2013, 62(19): 198401. doi: 10.7498/aps.62.198401.
[26]	NI Junzhe, ZHAO Wenbo, PANG Xiaoyu, et al. A fifth-order X-band frequency-selective surface with high selectivity and angular stability based on 3-D coupling slot[J]. IEEE Transactions on Antennas and Propagation, 2024, 72(7): 5743–5753. doi: 10.1109/TAP.2024.3414601.
[27]	HALLIKAINEN M, ULABY F, and ABDELRAZIK M. Dielectric properties of snow in the 3 to 37 GHz range[J]. IEEE Transactions on Antennas and Propagation, 1986, 34(11): 1329–1340. doi: 10.1109/TAP.1986.1143757.
