Study on Time Slot Allocation and Monitoring Performance of UAT2 Data Link Status Bitmap

TANG Xinmin; TANG Shengjia; WEN Jingyu; GU Junwei

doi:10.11999/JEIT250251

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

TANG Xinmin, TANG Shengjia, WEN Jingyu, GU Junwei. Study on Time Slot Allocation and Monitoring Performance of UAT2 Data Link Status Bitmap[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250251

Citation:

TANG Xinmin, TANG Shengjia, WEN Jingyu, GU Junwei. Study on Time Slot Allocation and Monitoring Performance of UAT2 Data Link Status Bitmap[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250251

Citation:

PDF( 3683 KB)

Study on Time Slot Allocation and Monitoring Performance of UAT2 Data Link Status Bitmap

doi: 10.11999/JEIT250251 cstr: 32379.14.JEIT250251

1.
College of Civil Aviation, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
2.
Key Laboratory of Urban Air Traffic System Technology and Equipment, Civil Aviation University of China, Tianjin 300300, China

Funds: The National Natural Science Foundation of China (5207217), The High-level Foreign Expert Introduction Program(G2023202003L), Tianjin Science and Technology Plan Project (24JCZDJC00090)

Received Date: 2025-04-09
Rev Recd Date: 2025-07-30

Available Online: 2025-08-27

Abstract

Abstract

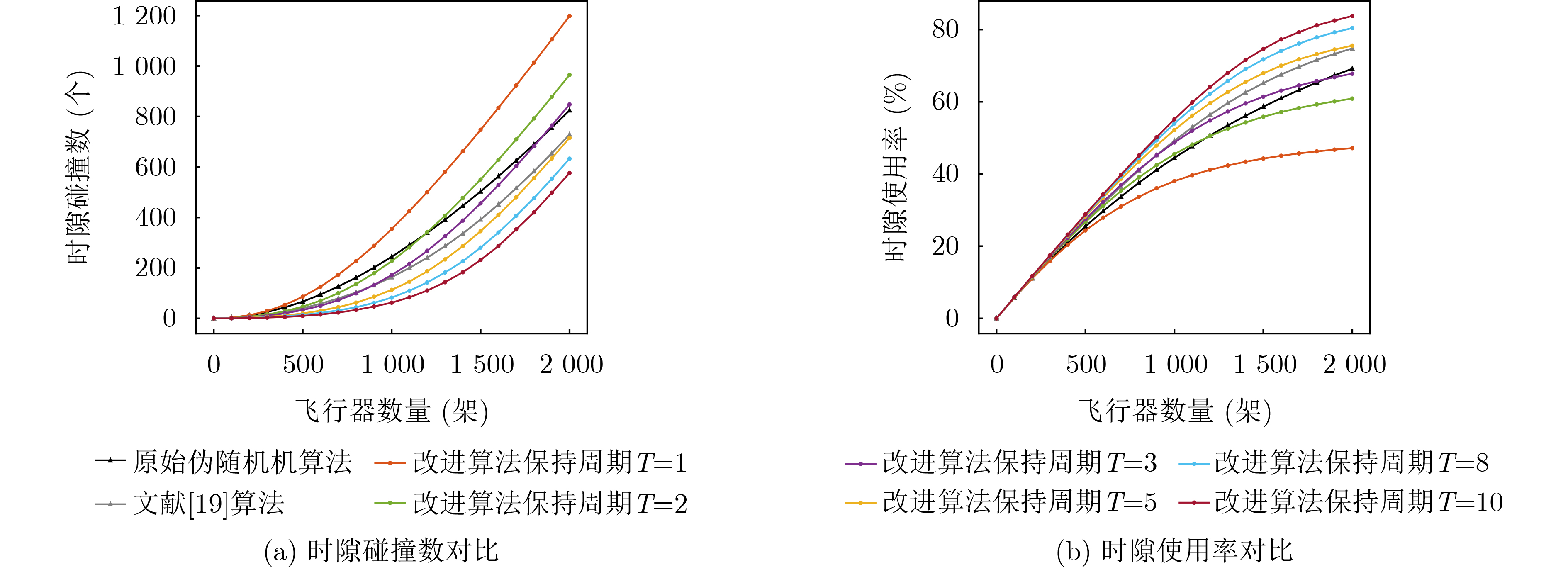

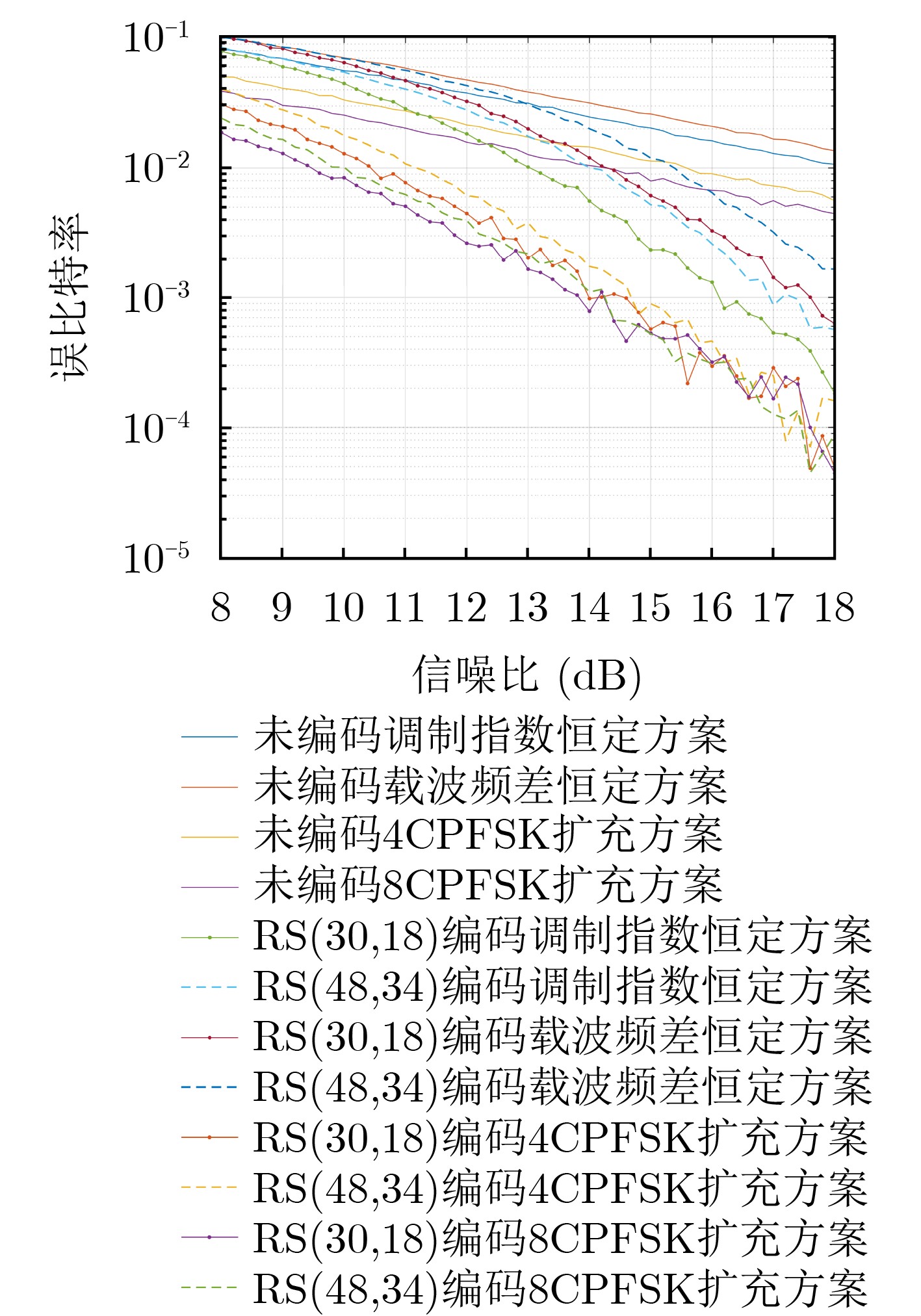

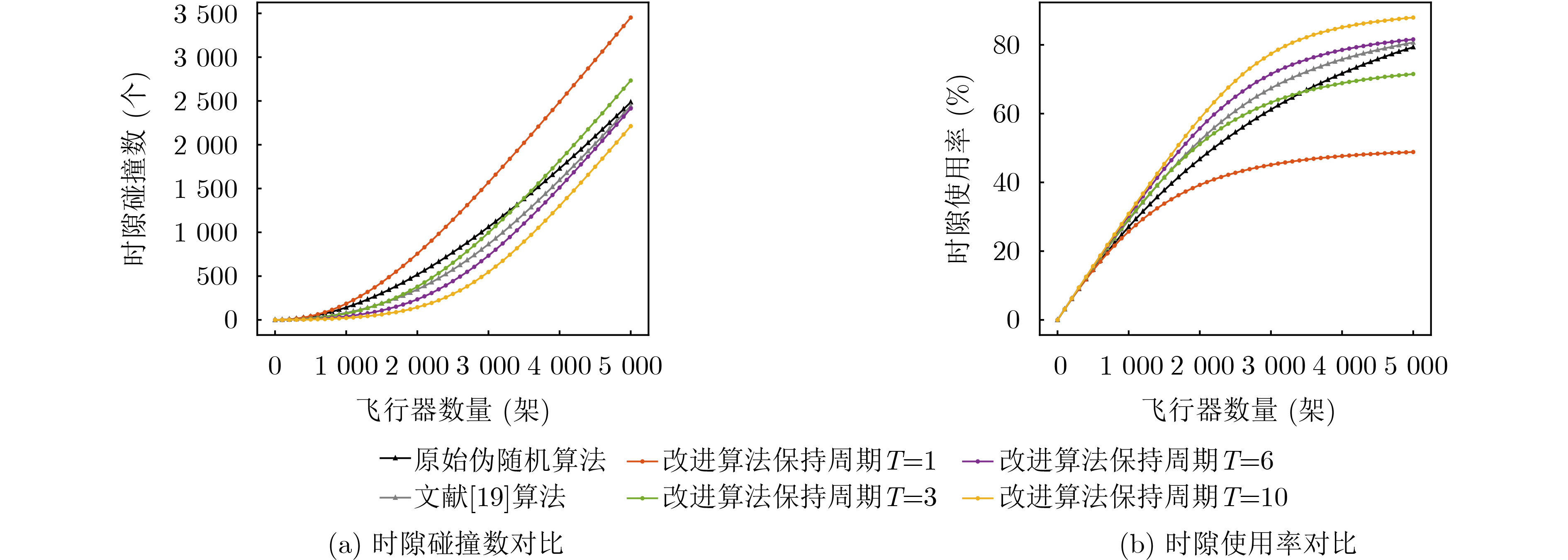

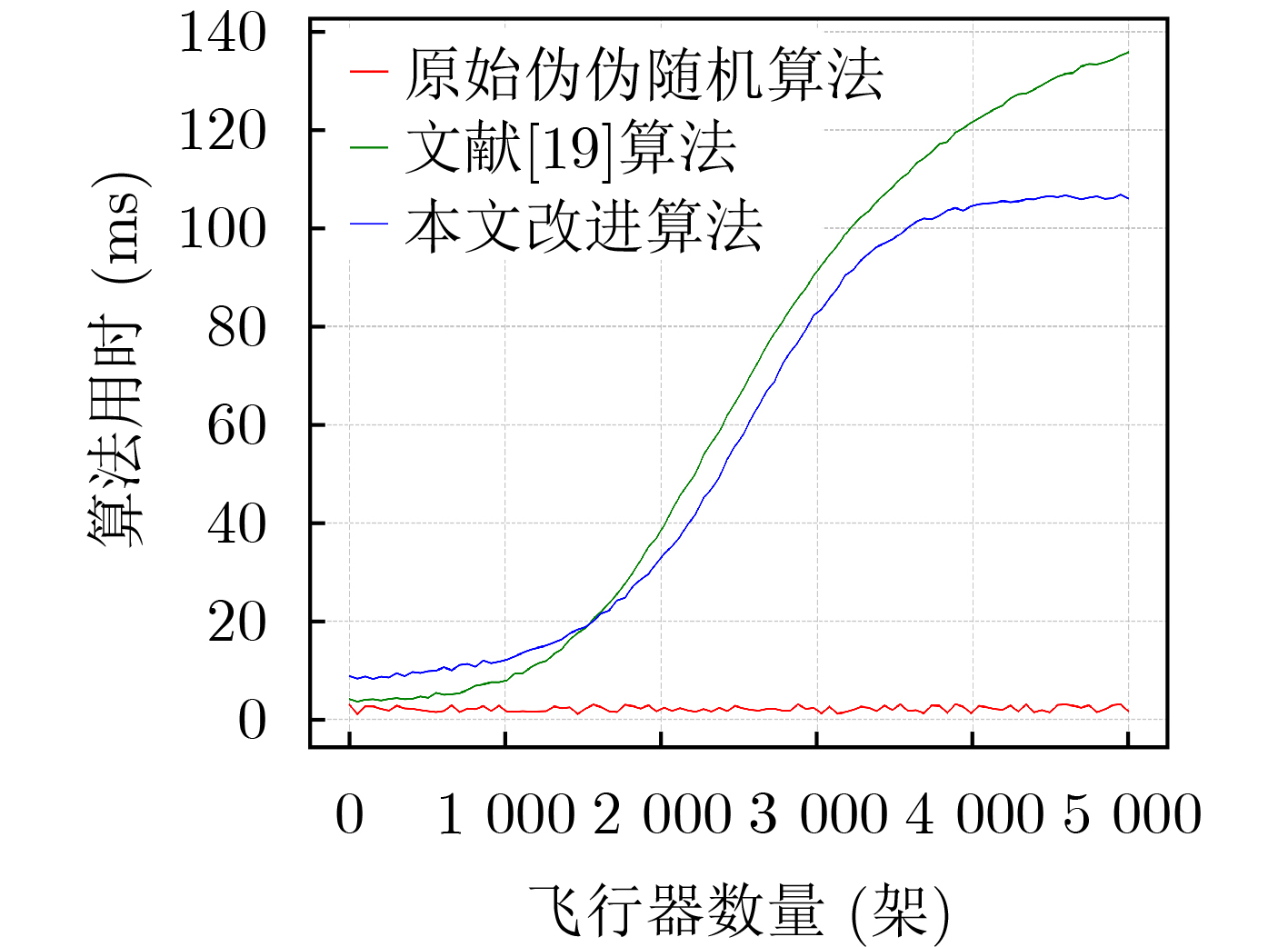

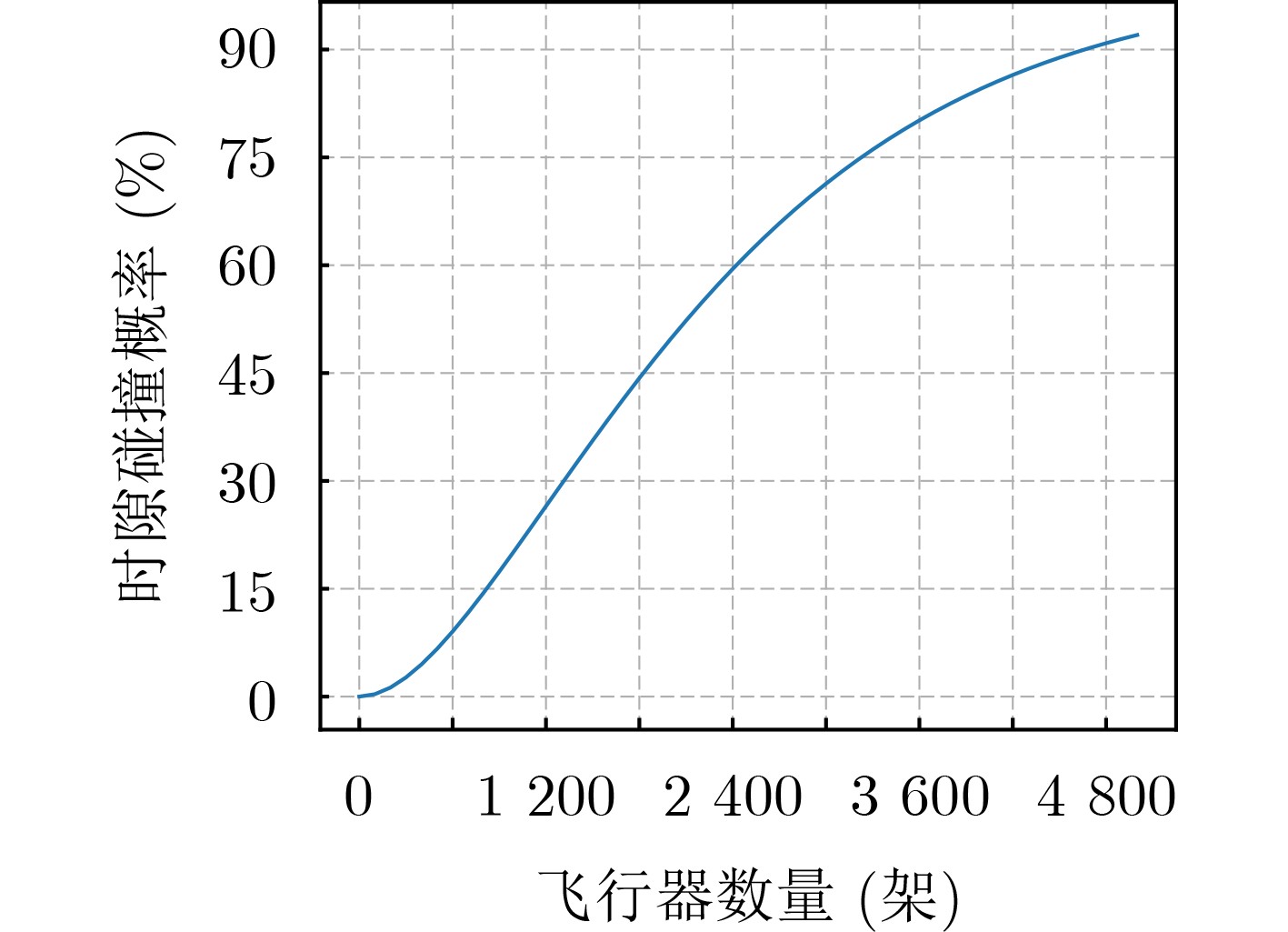

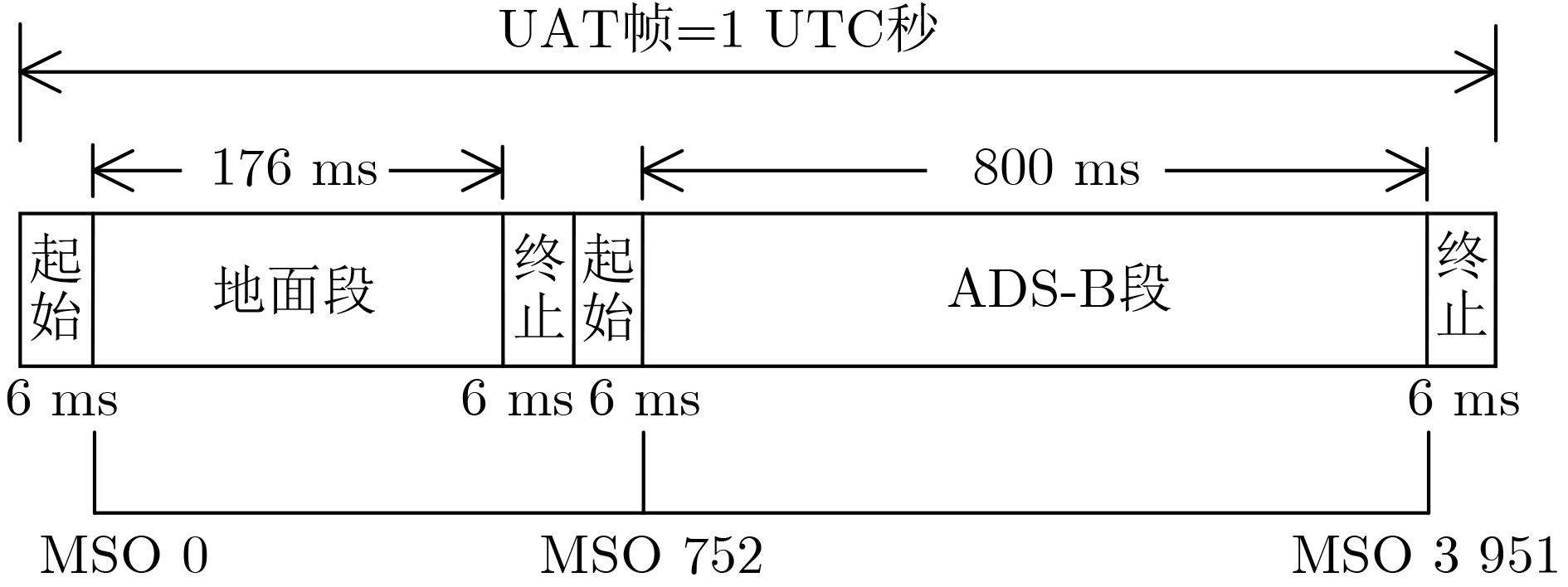

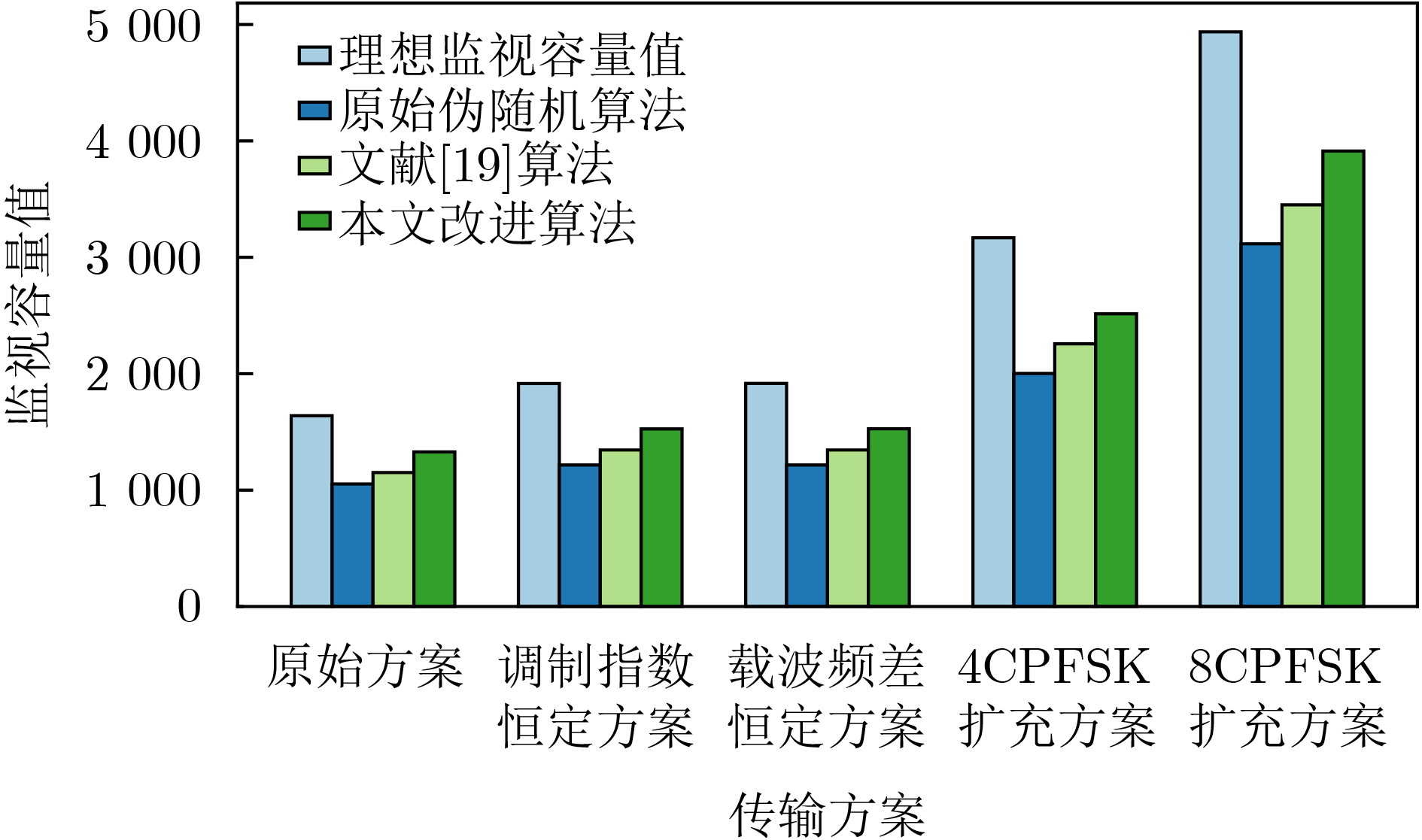

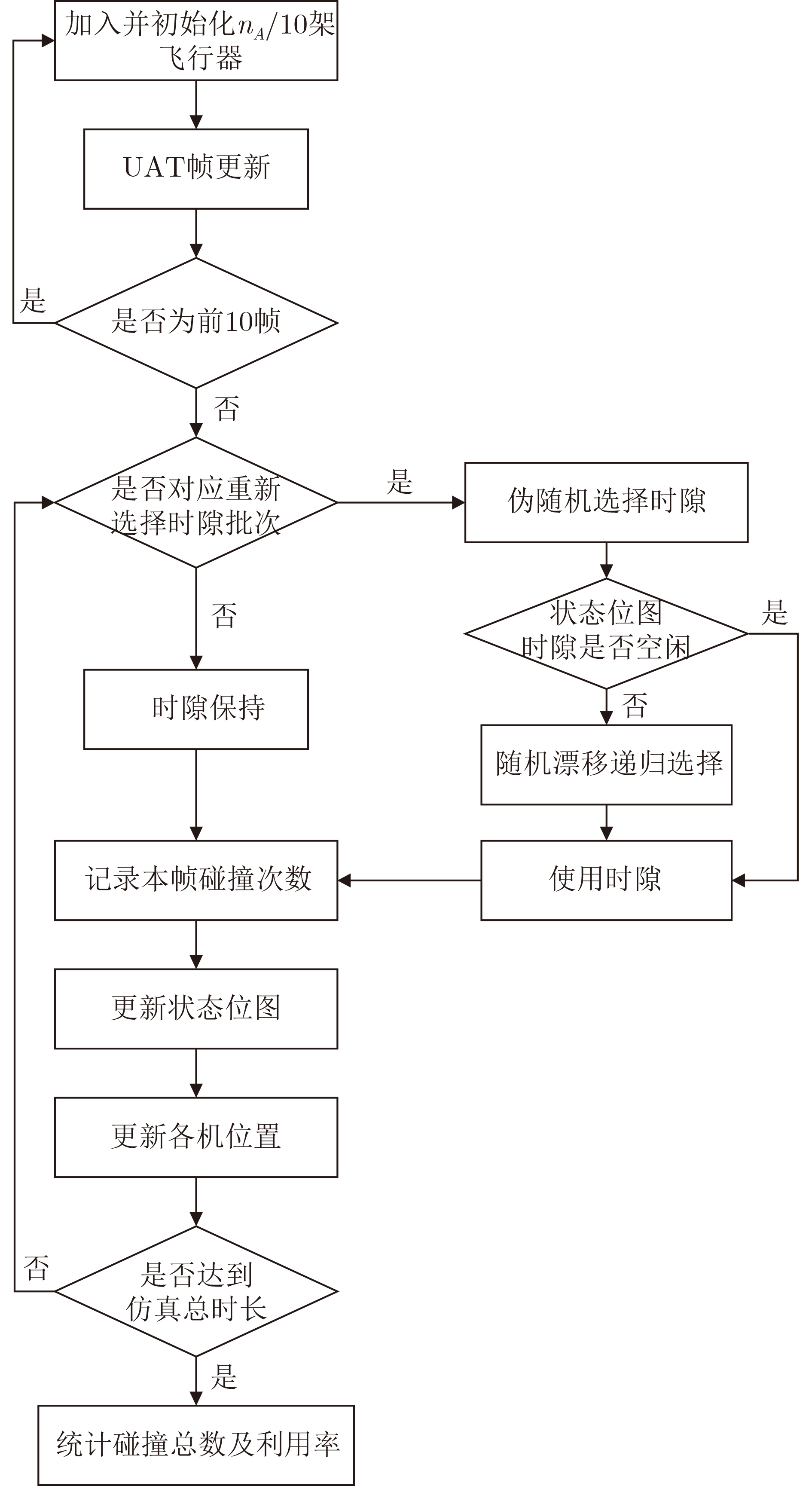

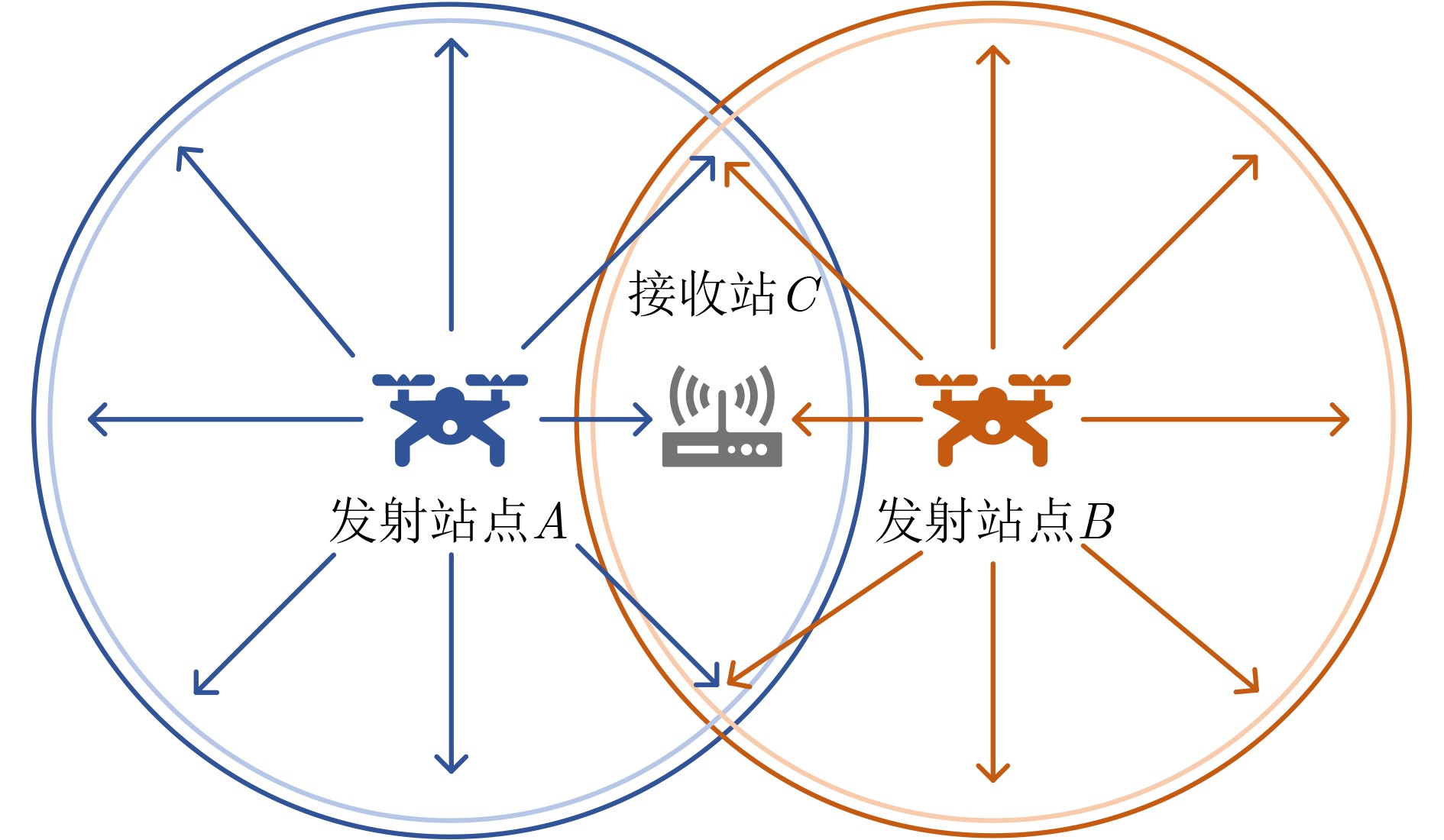

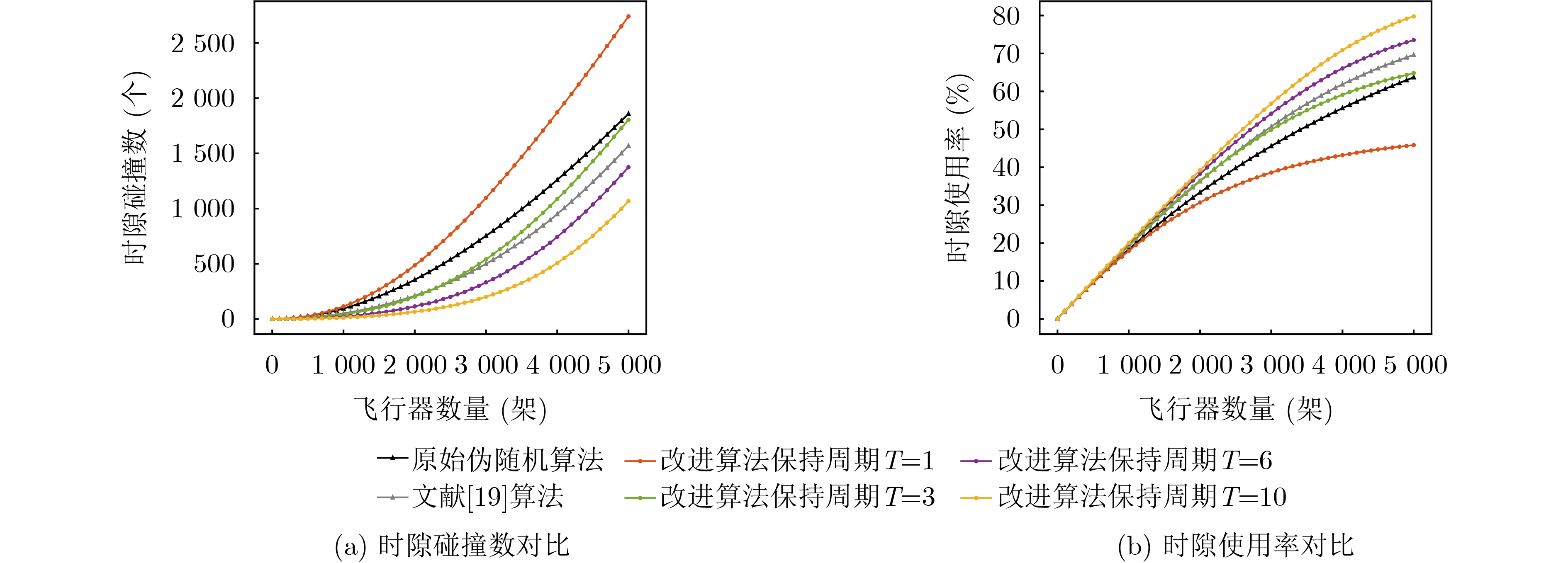

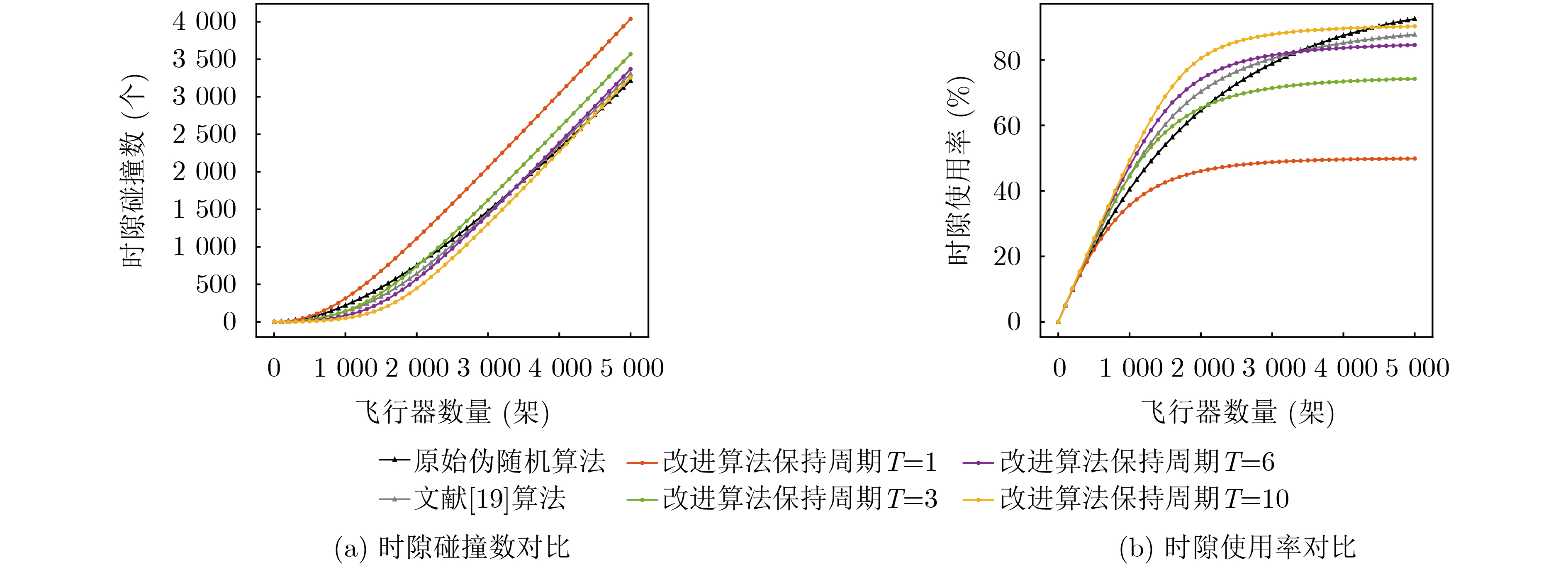

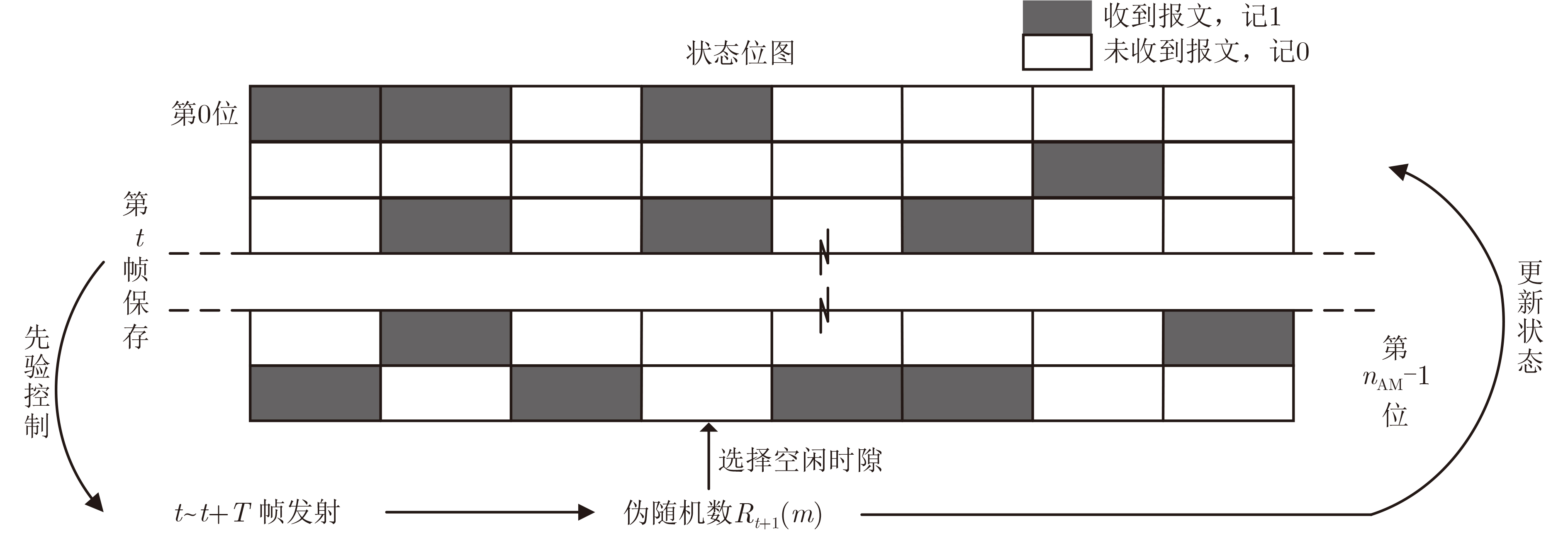

Objective With the advancement of Urban Air Mobility (UAM), the rapid growth in aircraft numbers under such scenarios requires improved time slot allocation algorithms for the Universal Access Transceiver 2 (UAT2) data link to enhance surveillance capacity. This study analyzes the original time slot allocation algorithm for UAT2, identifying limitations related to downlink message time slot management. An improved allocation algorithm based on a state bitmap with a random drift mechanism is proposed considering message characteristics. Additionally, three transmission schemes to expand the number of time slots are proposed, and a surveillance capacity calculation model is established. The performance of each transmission scheme under different slot allocation strategies is simulated and evaluated. The research addresses the challenge of insufficient surveillance capacity in UAT2 data link under high-density UAM scenarios and provides an optimized approach for time slot allocation and surveillance performance improvement. Methods The study begins with an analysis of the original UAT2 time slot allocation algorithm, which is limited in high-density aircraft environments due to its pseudo-random mechanism based on geographic coordinates. The proposed algorithm introduces a state bitmap, implemented as a bit vector table where each bit indicates whether the corresponding time slot is occupied. When an aircraft selects a time slot, it first generates a pseudo-random number using the algorithm specified in DO-282C MOPS. The state bitmap is then checked: if the corresponding bit is 0, the time slot is selected; if 1, a piecewise random drift mechanism adjusts the slot selection, as shown in Formula (17). The drift mechanism segments the time slots to distribute selections more evenly and reduce collision probability. The algorithm also applies a slot retention period T, allowing an aircraft to occupy the same time slot for T consecutive UAT frames before reselecting, as defined by Formulas (19)–(21). To further expand time slot availability, three transmission schemes are proposed: Multi-ary Continuous Phase Frequency Shift Keying (MCPFSK) with modulation orders M = 4 and 8, constant modulation index with increased symbol rate, and constant carrier frequency difference with reduced modulation index. The available number of time slots for each scheme is calculated using Formula (26). A surveillance capacity model incorporating bit error rate and collision probability is established, as expressed by Formulas (27)–(30). Results and Discussions Simulation results demonstrate that the improved algorithm substantially outperforms both the original algorithm and the fixed time-window dynamic slot allocation algorithm. Under the original transmission scheme, the improved algorithm reduces slot collision probability by 16.78% and increases slot utilization by 16.12% compared to the original algorithm (Fig. 6, Fig. 7). Relative to the algorithm described in [Ref. 19], the collision probability decreases by 10.80%, and slot utilization increases by 10.48%. For the expanded time slot schemes, when maximum surveillance capacity is reached, the improved algorithm reduces collision probability by 16.14% and increases slot utilization by 16.13% relative to the original algorithm (Table 3). Among these schemes, the 8CPFSK expansion achieves the highest surveillance capacity of 3913, with a slot utilization rate of 79.37% (Fig. 13). Real-time performance testing indicates that even in high-density scenarios, the improved algorithm maintains scheduling times within 120 ms, meeting the real-time operational requirements of UAT2 (Fig. 11). Bit Error Rate (BER) simulations reveal that the MCPFSK scheme provides superior anti-interference performance, whereas the constant carrier frequency difference scheme exhibits the highest BER (Fig. 12). Conclusions A slot allocation algorithm for the UAT2 data link based on state bitmaps and a random drift mechanism is proposed in this study. Compared to the original algorithm, the proposed method reduces slot collision probability by 16.78% and improves slot utilization by 16.12% under the original transmission scheme. When compared to the fixed time-window dynamic slot allocation algorithm described in [Ref. 19], collision probability decreases by 10.80%, and slot utilization increases by 10.48%. Three transmission schemes designed to expand slot availability are also proposed. Simulation results show that as the number of available slots increases, the performance advantage of the improved algorithm becomes more pronounced. Across all transmission schemes, when maximum surveillance capacity is reached, the improved algorithm reduces slot collision probability by approximately 16% and increases slot utilization by approximately 17%. In addition, a surveillance capacity calculation model for the UAT2 data link is established. Quantitative simulation results based on slot collision probability and BER performance confirm that the effective surveillance capacity of the improved algorithm is significantly higher than that of both the original algorithm and the fixed time-window dynamic slot allocation algorithm. It is also demonstrated that the proposed algorithm achieves optimal surveillance performance when all aircraft are equipped with both transmission and reception capabilities. Future research will focus on optimizing slot allocation algorithms for scenarios where aircraft possess only transmission capability.
- UAT2 data link,
- Slot allocation,
- Surveillance capacity,
- Stochastic system modeling
