SINR Adaptive Symbol Level Precoding and Position Joint Optimization Strategy for Multiple Unmanned Aerial Vehicles Anti-Jamming Communication

WEI Haoran; YAO Rugui; FAN Ye; MA Weixin; ZUO Xiaoya

doi:10.11999/JEIT250221

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

WEI Haoran, YAO Rugui, FAN Ye, MA Weixin, ZUO Xiaoya. SINR Adaptive Symbol Level Precoding and Position Joint Optimization Strategy for Multiple Unmanned Aerial Vehicles Anti-Jamming Communication[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250221

Citation:

WEI Haoran, YAO Rugui, FAN Ye, MA Weixin, ZUO Xiaoya. SINR Adaptive Symbol Level Precoding and Position Joint Optimization Strategy for Multiple Unmanned Aerial Vehicles Anti-Jamming Communication[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250221

Citation:

WEI Haoran, YAO Rugui, FAN Ye, MA Weixin, ZUO Xiaoya. SINR Adaptive Symbol Level Precoding and Position Joint Optimization Strategy for Multiple Unmanned Aerial Vehicles Anti-Jamming Communication[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250221

PDF( 2846 KB)

SINR Adaptive Symbol Level Precoding and Position Joint Optimization Strategy for Multiple Unmanned Aerial Vehicles Anti-Jamming Communication

doi: 10.11999/JEIT250221 cstr: 32379.14.JEIT250221

WEI Haoran¹,
YAO Rugui¹,
FAN Ye^{1, 2
,
,},
MA Weixin¹,
ZUO Xiaoya¹

1.
College of Electronic Information, Northwestern Polytechnical University, Xi’an 710129, China
2.
Northwestern Polytechnical University Shenzhen Research Institute, Shenzhen 518087, China

Funds: The National Natural Science Foundation of China (62401473). The National Key Laboratory Fund Project for Space Microwave Communication (HTKJ2024KL504010). Shenzhen Science and Technology Program (JCYJ20240813150735045). The Key R&D Project in Shaanxi Province (2025CY-YBXM-055). The National Key Laboratory of Unmanned Aerial Vehicle Technology in NPU(WR202404), The Fundamental Research Funds for the Central Universities (G2024WD0159, D5000240239)

Received Date: 2025-04-01
Rev Recd Date: 2025-07-02

Available Online: 2025-07-07

Abstract

Abstract

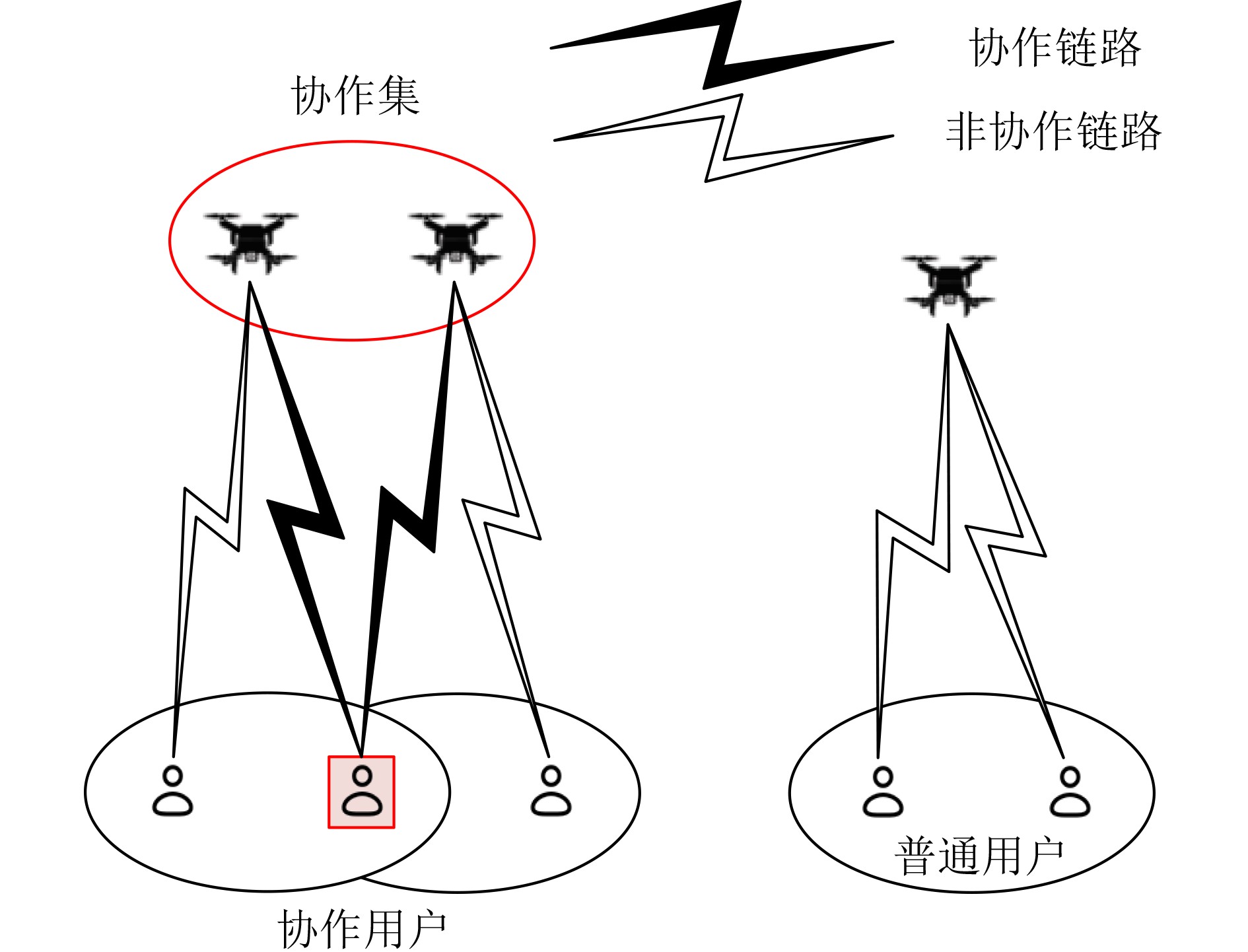

Objective Unmanned Aerial Vehicles (UAVs) are widely applied in areas such as traffic monitoring, wireless coverage, and precision agriculture due to their high mobility and deployment flexibility. In air–ground communication scenarios requiring flexible deployment, UAV mobility can be leveraged to counteract external malicious jamming. Further, the collaborative operation of multiple UAVs enables improved system performance. However, the broadcast nature of wireless communication renders multiple UAV communication systems vulnerable to jamming attacks that disrupt legitimate communication services. Addressing this challenge, this study proposes a Signal-to-Interference-plus-Noise Ratio (SINR) adaptive Symbol-Level Precoding (SLP) and position joint optimization strategy for anti-jamming communication in multi-UAV systems. The approach fully exploits UAV mobility to enhance communication robustness under different user requirements. By integrating Coordinated Multi-Point (CoMP) transmission with SLP in a Multi-User Multiple-Input Single-Output (MU-MISO) system, the strategy improves interference utilization, enhances system energy efficiency, and reduces computational complexity. Methods An SINR adaptive SLP and position joint anti-jamming optimization strategy for multiple UAVs is proposed by integrating CoMP and SLP technologies. To address the challenges of three-dimensional operational space and the overlap of nodes assigned to multiple sets, a ground-to-air multi-node matching mechanism based on three-dimensional K-means++ collaborative set partitioning is designed. To reduce the computational complexity of the joint optimization process, an iterative optimization algorithm based on particle reconstruction is developed. This algorithm simultaneously solves for both the UAV precoding matrix and spatial positions with low computational overhead. Additionally, an SINR adaptive SLP approach is introduced to enable optimized power allocation for multiple UAVs, considering the varying power characteristics of jamming and noise experienced by users. Simulation results demonstrate that the integration of CoMP and SLP technologies effectively enhances the communication performance of jammed users, while stable communication performance is maintained for ordinary users. Results and Discussions In the proposed UAV anti-jamming communication strategy, the SINR of jammed users is improved without compromising the normal communication performance of ordinary users. In the simulation results, UAV positions are marked with five-pointed stars (Figs. 6 and 7), UAV coverage areas are represented by circles, and users are indicated by “*”. A comparison of SINR variations under four schemes (Fig. 8) shows that the received SINR of jammed users increases by approximately 12～13 dB, while the SINR of ordinary users remains above the required threshold. When different SINR thresholds are applied, the received SINR of each user type varies accordingly (Fig. 9). By setting appropriate thresholds based on actual scenario requirements, different energy allocation effects can be achieved. Following optimization, the Bit Error Rate (BER) of jammed users is significantly reduced (Fig. 10). The constellation diagrams comparing the received signals under two precoding schemes (Fig. 11) indicate that the proposed SINR adaptive SLP strategy for multiple UAVs effectively improves the SINR of jammed users, while maintaining the communication quality of ordinary users. Moreover, the fitness evolution curve of the iterative optimization algorithm based on particle reconstruction (Fig. 12) shows that the algorithm approaches the global optimal solution at an early stage of iteration. Conclusions To address the challenge of anti-jamming communication for multi-user services supported by multiple UAVs, this study integrates CoMP transmission with SLP technology and proposes an SINR adaptive SLP and position joint optimization strategy for multi-UAV anti-jamming communication. The strategy is implemented in two stages. First, to solve the clustering problem in three-dimensional space and allow nodes to belong to multiple groups, a ground-to-air multi-node matching mechanism based on three-dimensional K-means++ collaborative set partitioning is designed. Second, an SINR adaptive SLP method is proposed to optimize UAV power allocation based on the SINR requirements of different user types. To reduce the computational complexity of jointly optimizing the precoding matrix and UAV positions, an iterative optimization algorithm based on particle reconstruction is developed. Simulation results demonstrate that the proposed strategy, by combining CoMP and SLP, effectively improves the communication performance of jammed users while maintaining reliable communication for ordinary users.

FullText(HTML)

References(18)

References

[1]	何江, 喻莞芯, 黄浩, 等. 多无人机分布式感知任务分配-通信基站关联与飞行策略联合优化设计[J]. 电子与信息学报, 2025, 47(5): 1402–1417. doi: 10.11999/JEIT240738. HE Jiang, YU Wanxin, HUANG Hao, et al. Joint task allocation, communication base station association and flight strategy optimization design for distributed sensing unmanned aerial vehicles[J]. Journal of Electronics & Information Technology, 2025, 47(5): 1402–1417. doi: 10.11999/JEIT240738.
[2]	孙伟皓, 王海, 秦蓁, 等. 机会无人机辅助数据收集的组网和资源分配方法[J]. 电子与信息学报, 2025, 47(5): 1381–1391. doi: 10.11999/JEIT241053. SUN Weihao, WANG Hai, QIN Zhen, et al. Networking and resource allocation methods for opportunistic UAV-assisted data collection[J]. Journal of Electronics & Information Technology, 2025, 47(5): 1381–1391. doi: 10.11999/JEIT241053.
[3]	CHENG Sixi, LING Xiang, and ZHU Lidong. Deep reinforcement learning-based anti-jamming approach for fast frequency hopping systems[J]. IEEE Open Journal of the Communications Society, 2025, 6: 961–971. doi: 10.1109/OJCOMS.
[4]	LI Wengang, ZU Jiahao, HUANG Jun, et al. Hybrid beamforming for distributed communication systems in internet of things[C]. 2024 IEEE International Conference on Communications Workshops (ICC Workshops), Denver, USA, 2024: 1469–1474. doi: 10.1109/ICCWorkshops59551.2024.10615566.
[5]	BERRA S, ALBREEM M A M, and ABED M S. A low complexity linear precoding method for massive MIMO[C]. 2020 International Conference on UK-China Emerging Technologies (UCET), Glasgow, UK, 2020: 1–4. doi: 10.1109/UCET51115.2020.9205420.
[6]	YANG Hong and MARZETTA T L. Performance of conjugate and zero-forcing beamforming in large-scale antenna systems[J]. IEEE Journal on Selected Areas in Communications, 2013, 31(2): 172–179. doi: 10.1109/JSACC.2013.130206.
[7]	FAN Kuangang, YANG Chunrong, and TAN Peiao. A new transmission scheme: Semi-blind channel estimation combined with precoding[C]. The 13th International Conference on Communications, Circuits and Systems (ICCCAS), Xiamen, China, 2024: 391–396. doi: 10.1109/ICCCAS62034.2024.10652733.
[8]	WIESEL A, ELDAR Y C, and SHAMAI S. Zero-forcing precoding and generalized inverses[J]. IEEE Transactions on Signal Processing, 2008, 56(9): 4409–4418. doi: 10.1109/TSP.2008.924638.
[9]	SADEK M, TARIGHAT A, and SAYED A H. A leakage-based precoding scheme for downlink multi-user MIMO channels[J]. IEEE transactions on Wireless Communications, 2007, 6(5): 1711–1721. doi: 10.1109/TWC.2007.360373.
[10]	LI Ang, SPANO D, KRIVOCHIZA J, et al. A tutorial on interference exploitation via symbol-level precoding: Overview, state-of-the-art and future directions[J]. IEEE Communications Surveys & Tutorials, 2020, 22(2): 796–839. doi: 10.1109/COMST.2020.2980570.
[11]	WANG Yu, SUN Chen, and GAO Xiqi. Symbol error probability minimization for symbol-level precoding in massive MIMO communications[C]. 2024 IEEE Wireless Communications and Networking Conference (WCNC), Dubai, United Arab Emirates, 2024: 1–6. doi: 10.1109/WCNC57260.2024.10571339.
[12]	WANG Yafei, HOU Hongwei, WANG Wenjin, et al. Symbol-level precoding for average SER minimization in multiuser MISO systems[J]. IEEE Wireless Communications Letters, 2024, 13(4): 1103–1107. doi: 10.1109/LWC.2024.3361487.
[13]	LAI C C, TSAI A H, TING C W, et al. Interference-aware deployment for maximizing user satisfaction in multi-UAV wireless networks[J]. IEEE Wireless Communications Letters, 2023, 12(7): 1189–1193. doi: 10.1109/LWC.2023.3266011.
[14]	DEMIR U, TOKER C, and EKICI Ö. Multi-UAV base station deployment maximizing coverage density and network endurance[C]. 2020 28th Signal Processing and Communications Applications Conference (SIU), Gaziantep, Turkey, 2020: 1–4. doi: 10.1109/SIU49456.2020.9302046.
[15]	NUANYAI K, TARBUT P, and CHANTARASKUL S. Clustering interval effects on dynamic CoMP clustering in ultra-dense networks[C]. 2024 Research, Invention, and Innovation Congress: Innovative Electricals and Electronics (RI2C), Bangkok, Thailand, 2024: 17–23. doi: 10.1109/RI2C64012.2024.10784428.
[16]	TIAN Wen, DING Xufei, LIU Guangjie, et al. A UAV-assisted secure communication system by jointly optimizing transmit power and trajectory in the Internet of Things[J]. IEEE Transactions on Green Communications and Networking, 2023, 7(4): 2025–2037. doi: 10.1109/TGCN.2023.3235887.
[17]	TANG Na, TANG Hongying, LI Baoqing, et al. Joint maneuver and beamwidth optimization for UAV-enabled multicasting[J]. IEEE Access, 2019, 7: 149503–149514. doi: 10.1109/ACCESS.2019.2947031.
[18]	LIU Tao. Research on naive Bayes integration method based on Kmeans++ digital teaching clustering[C]. The 8th International Conference on Information Systems Engineering (ICISE), Dalian, China, 2023: 302–305. doi: 10.1109/ICISE60366.2023.00069.
