A Fast Classification Method of Rolling Bearing State Under Different Loads Based on Improved Broad Model Transfer Learning

KANG Shouqiang; YANG Jiaxuan; WANG Yujing; WANG Qingyan; LIANG Xintao

doi:10.11999/JEIT220401

Volume 45 Issue 5

May 2023

Turn off MathJax

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2023 > 45(5): 1824-1832

KANG Shouqiang, YANG Jiaxuan, WANG Yujing, WANG Qingyan, LIANG Xintao, . A Fast Classification Method of Rolling Bearing State Under Different Loads Based on Improved Broad Model Transfer Learning[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1824-1832. doi: 10.11999/JEIT220401

Citation:

KANG Shouqiang, YANG Jiaxuan, WANG Yujing, WANG Qingyan, LIANG Xintao, . A Fast Classification Method of Rolling Bearing State Under Different Loads Based on Improved Broad Model Transfer Learning[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1824-1832. doi: 10.11999/JEIT220401

Citation:

KANG Shouqiang, YANG Jiaxuan, WANG Yujing, WANG Qingyan, LIANG Xintao, . A Fast Classification Method of Rolling Bearing State Under Different Loads Based on Improved Broad Model Transfer Learning[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1824-1832. doi: 10.11999/JEIT220401

PDF( 6376 KB)

A Fast Classification Method of Rolling Bearing State Under Different Loads Based on Improved Broad Model Transfer Learning

doi: 10.11999/JEIT220401

1.
School of Measurement-Control and Communication Engineering, Harbin University of Science and Technology, Harbin 150080, China
2.
Belarusian State University, Minsk 220030, Belarus

Funds: The National Natural Science Foundation of China (51805120), The Natural Science Foundation of Heilongjiang Province (LH2019E058)

Received Date: 2022-04-06
Accepted Date: 2022-09-06
Rev Recd Date: 2022-09-06

Available Online: 2022-09-09

Publish Date: 2023-05-10

Abstract

Abstract

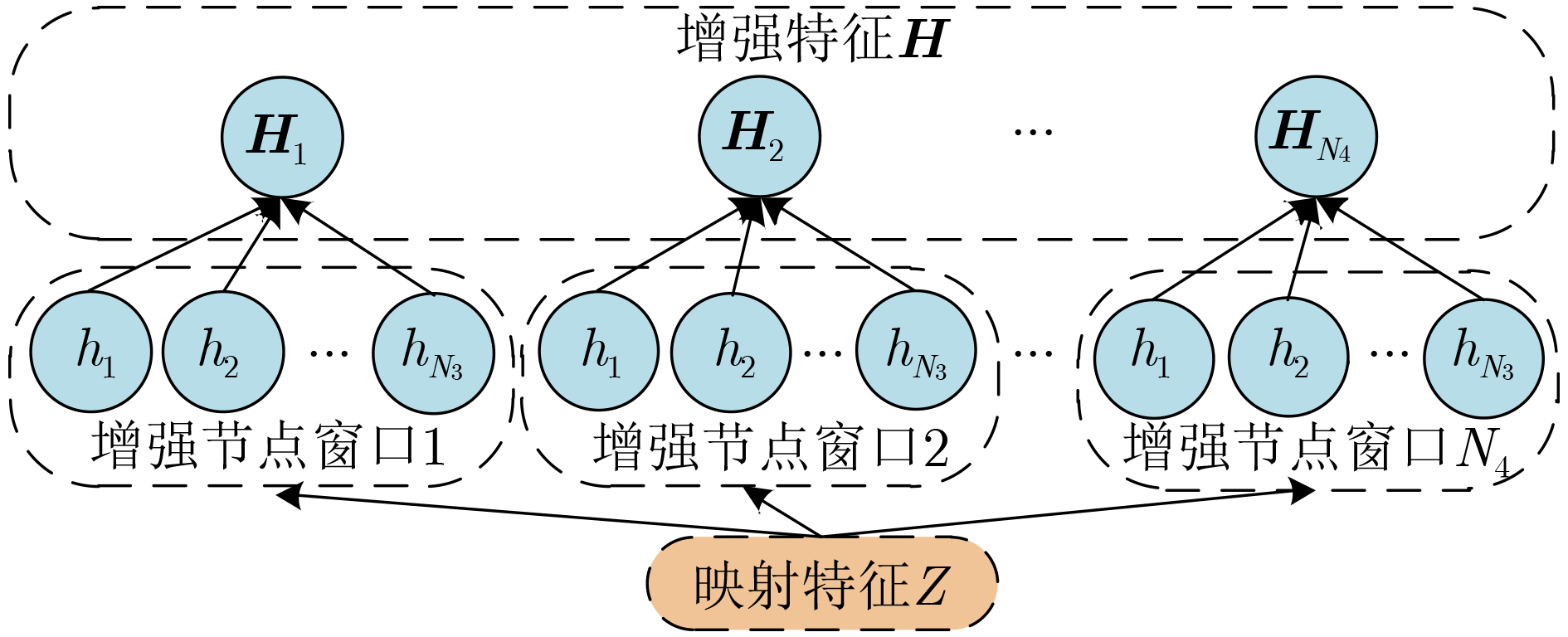

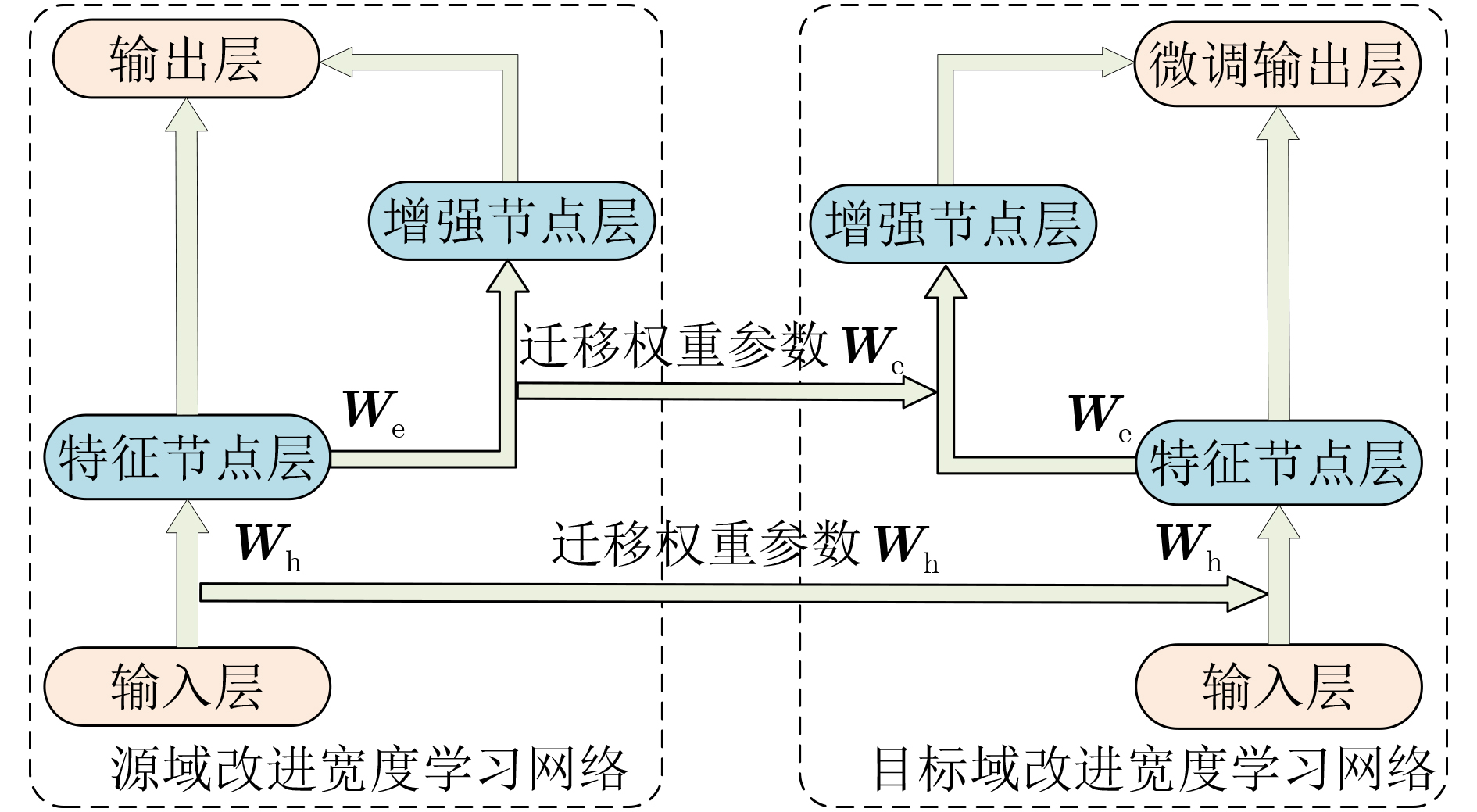

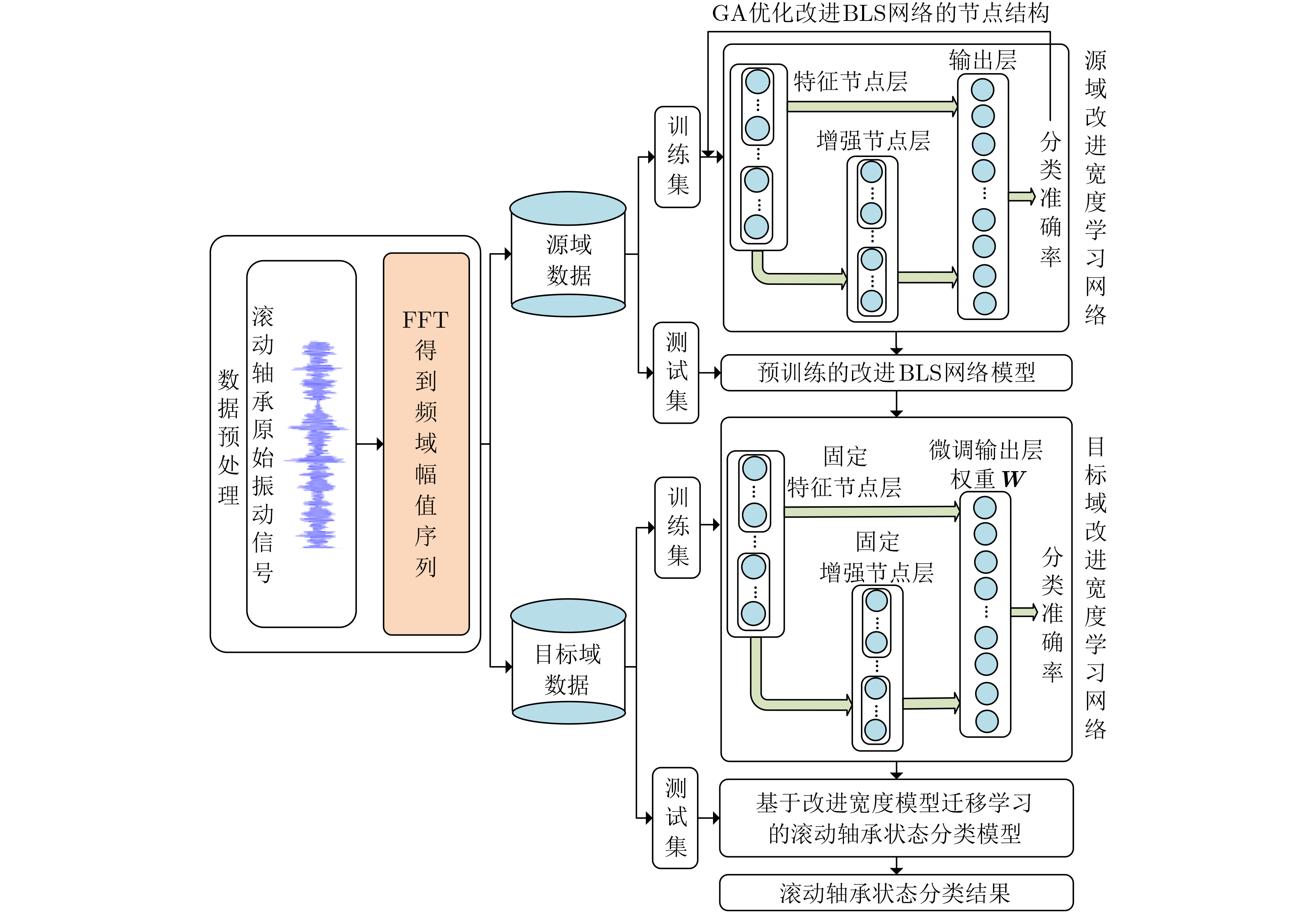

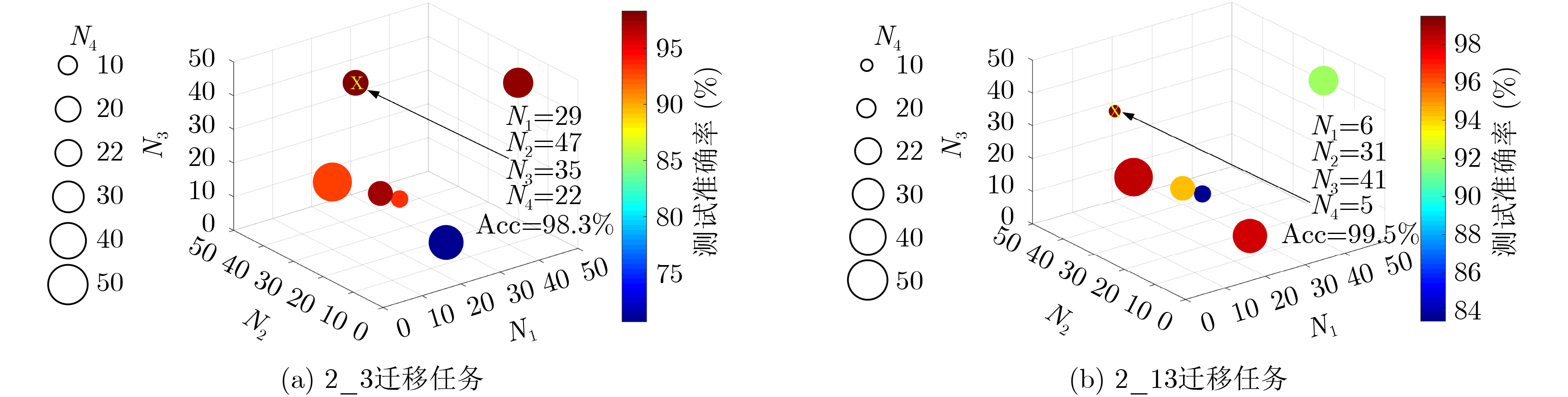

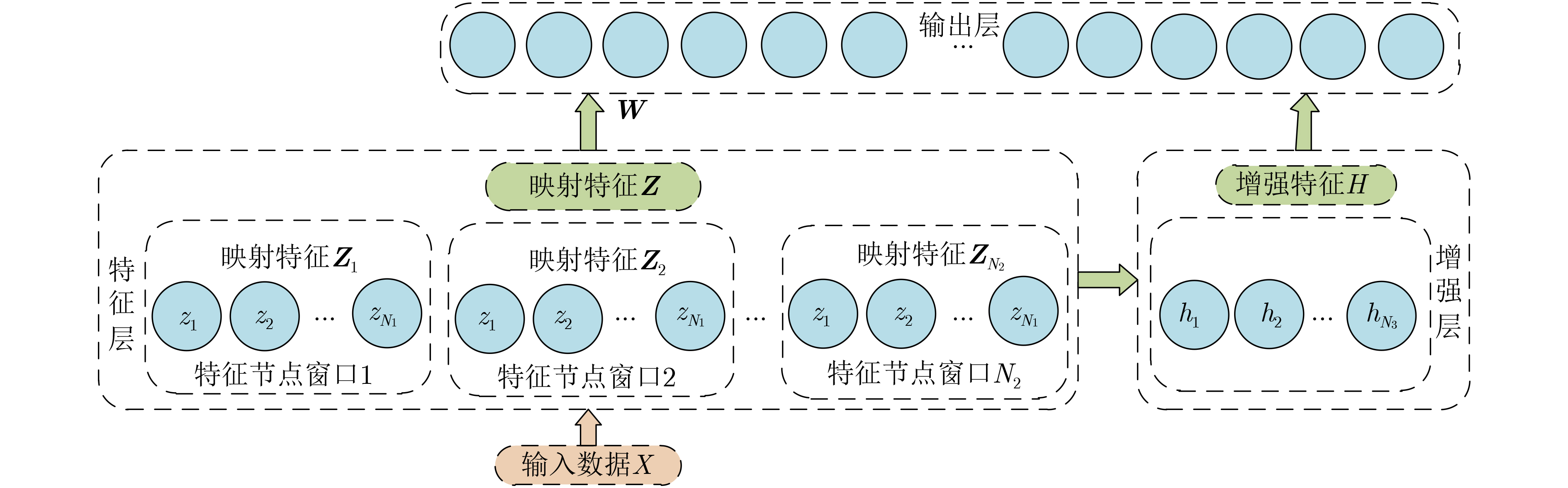

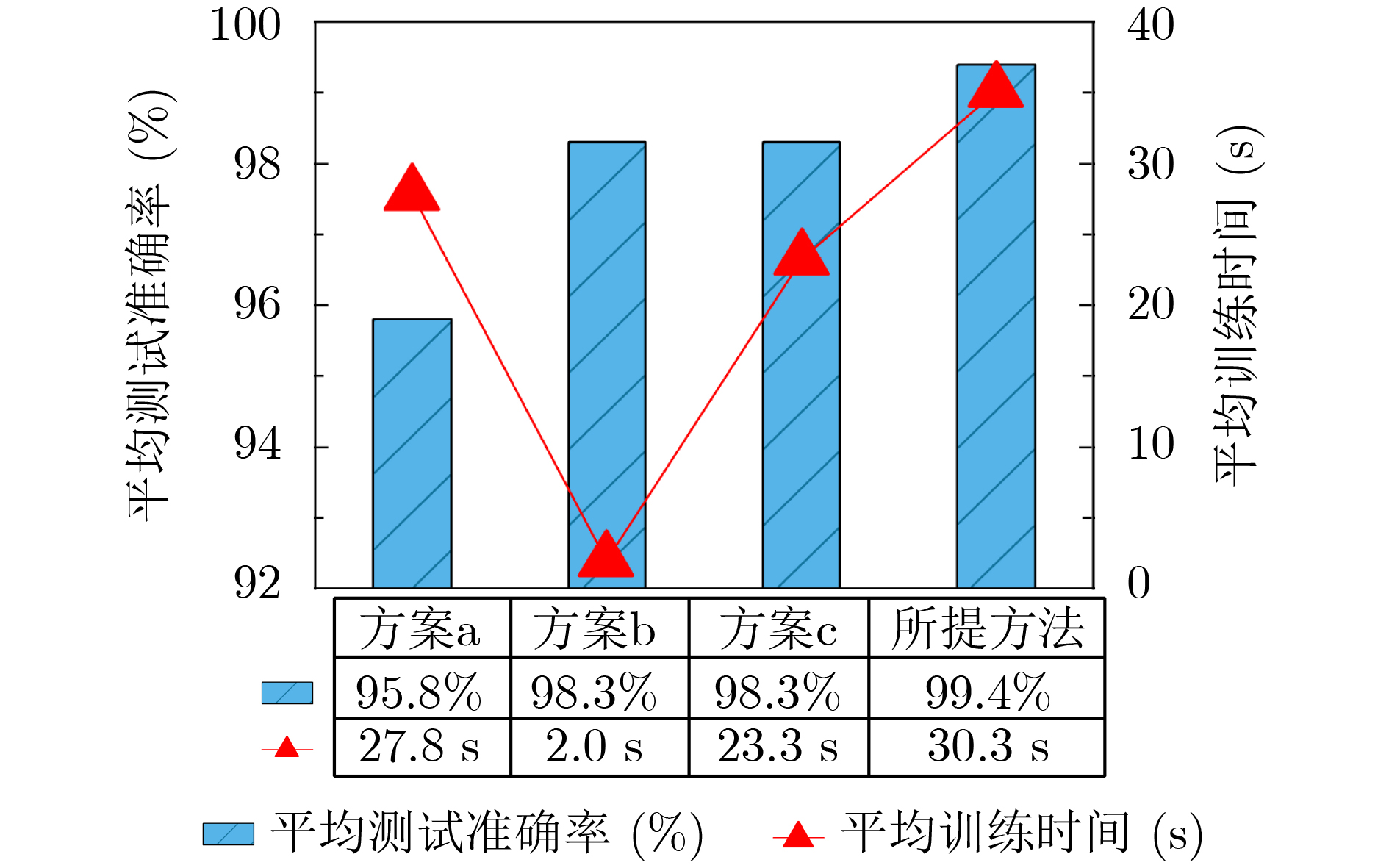

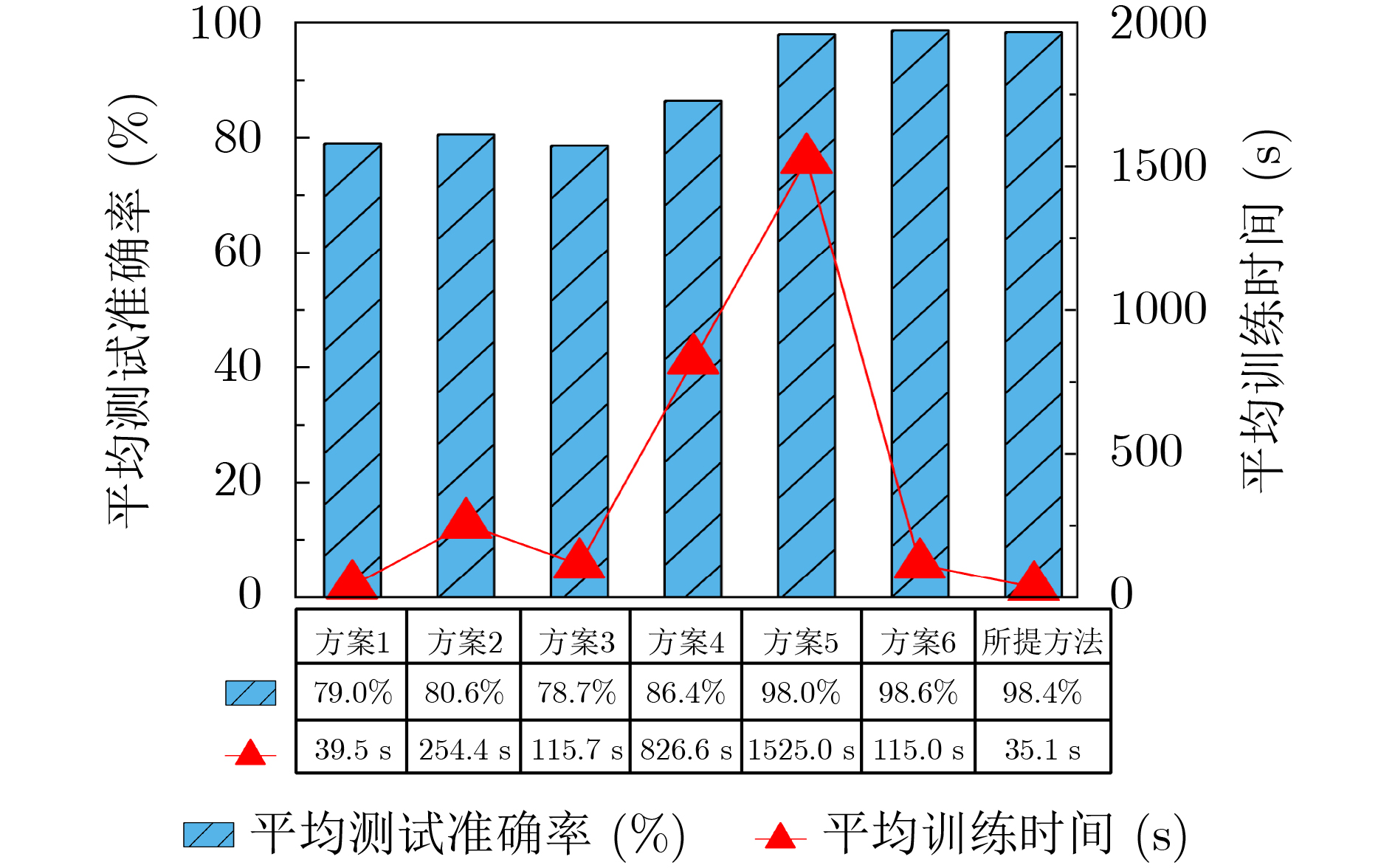

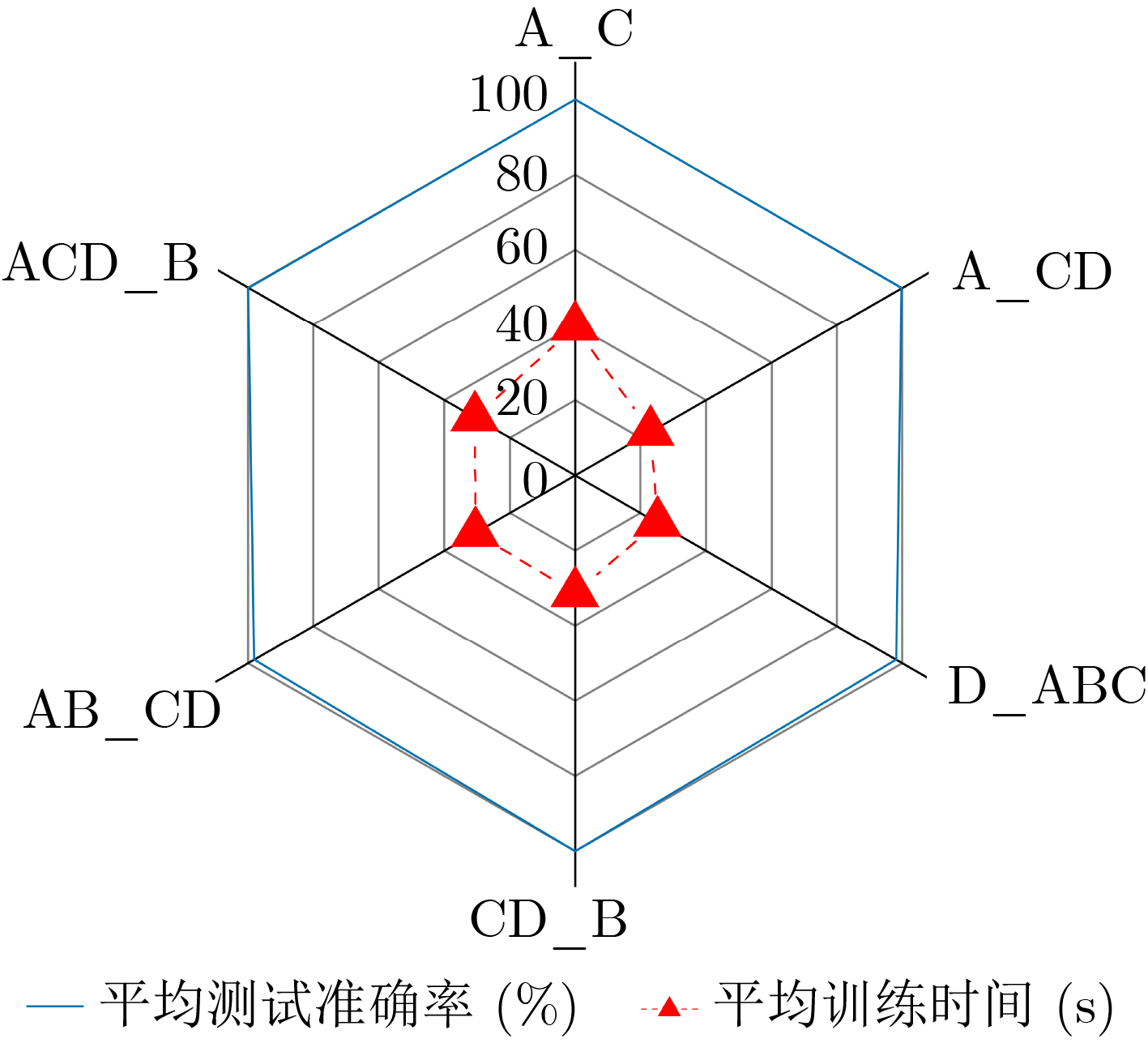

For the training time of deep learning network is long, as well as larger distribution difference between source domain and target domain data of rolling bearings under different loads, a fast classification method of rolling bearing state based on improved broad model transfer learning is proposed. Fast Fourier transform is used to process the vibration signal of rolling bearing under different loads to construct frequency domain amplitude sequence data sets, from which a certain or some load data set is selected as the source domain, and other load data set is selected as the target domain. Secondly, an improved Broad Learning System (BLS) network is constructed by improving the way of building enhanced nodes windows of BLS in a cyclic extended way and introducing the Maxout activation function into the enhancement layer. At the same time, genetic algorithm is introduced to optimize the node structure of the improved BLS network. Then a pre-trained model based on source domain data is built. Finally, the network parameters, the weight parameters in feature layer and enhancement layer of the pre-trained model are transfered to target domain network, and a small amount target domain samples are used to fine-tune the network to build the state classification model. The experimental results show that the average training time of the proposed method is 32.6 s, and the average test accuracy is 98.9%. Compared with other methods, it could build a classification model in a shorter time and obtain good classification accuracy.
- Rolling bearing,
- Fast classification,
- Broad Learning System (BLS),
- Model transfer

FullText(HTML)

References(20)

References

[1]	SOHAIB M and KIM J M. Fault diagnosis of rotary machine bearings under inconsistent working conditions[J]. IEEE Transactions on Instrumentation and Measurement, 2020, 69(6): 3334–3347. doi: 10.1109/TIM.2019.2933342
[2]	孙瑾铃, 张伟涛, 楼顺天. 基于等变化自适应源分离算法的滚动轴承故障信号自适应盲提取[J]. 电子与信息学报, 2020, 42(10): 2471–2477. doi: 10.11999/JEJT190722 SUN Jinling, ZHANG Weitao, and LOU Shuntian. Adaptive blind extraction of rolling bearing fault signal based on equivariant adaptive separation via independence[J]. Journal of Electronics &Information Technology, 2020, 42(10): 2471–2477. doi: 10.11999/JEJT190722
[3]	王玉静, 康守强, 张云, 等. 基于集合经验模态分解敏感固有模态函数选择算法的滚动轴承状态识别方法[J]. 电子与信息学报, 2014, 36(3): 595–600. doi: 10.3724/SP.J.1146.2013.00434 WANG Yujing, KANG Shouqiang, ZHANG Yun, et al. Condition recognition method of rolling bearing based on ensemble empirical mode decomposition sensitive intrinsic mode function selection algorithm[J]. Journal of Electronics &Information Technology, 2014, 36(3): 595–600. doi: 10.3724/SP.J.1146.2013.00434
[4]	WANG Jianyu, MO Zhenling, ZHANG Heng, et al. A deep learning method for bearing fault diagnosis based on time-frequency image[J]. IEEE Access, 2019, 7: 42373–42383. doi: 10.1109/ACCESS.2019.2907131
[5]	文成林, 吕菲亚. 基于深度学习的故障诊断方法综述[J]. 电子与信息学报, 2020, 42(1): 234–248. doi: 10.11999/JEIT190715 WEN Chenglin and LÜ Feiya. Review on deep learning based fault diagnosis[J]. Journal of Electronics &Information Technology, 2020, 42(1): 234–248. doi: 10.11999/JEIT190715
[6]	GAO Shuzhi, XU Lintao, ZHANG Yimin, et al. Rolling bearing fault diagnosis based on intelligent optimized self-adaptive deep belief network[J]. Measurement Science and Technology, 2020, 31(5): 055009. doi: 10.1088/1361-6501/ab50f0
[7]	WANG Huan, LIU Zhiliang, PENG Dandan, et al. Understanding and learning discriminant features based on multiattention 1DCNN for wheelset bearing fault diagnosis[J]. IEEE Transactions on Industrial Informatics, 2020, 16(9): 5735–5745. doi: 10.1109/TII.2019.2955540
[8]	ZHANG Ran, TAO Hongyang, WU Lifeng, et al. Transfer learning with neural networks for bearing fault diagnosis in changing working conditions[J]. IEEE Access, 2017, 5: 14347–14357. doi: 10.1109/ACCESS.2017.2720965
[9]	康守强, 邢颖怡, 王玉静, 等. 基于无监督深度模型迁移的滚动轴承寿命预测方法[J]. 自动化学报, 待发表. KANG Shouqiang, XING Yingyi, WANG Yujing, et al. Rolling bearing life prediction based on unsupervised deep model transfer[J]. Acta Automatica Sinica, To be published.
[10]	于洋, 何明, 刘博, 等. 基于TL-LSTM的轴承故障声发射信号识别研究[J]. 仪器仪表学报, 2019, 40(5): 51–59. doi: 10.19650/j.cnki.cjsi.J1904766 YU Yang, HE Ming, LIU Bo, et al. Research on acoustic emission signal recognition of bearing fault based on TL-LSTM[J]. Chinese Journal of Scientific Instrument, 2019, 40(5): 51–59. doi: 10.19650/j.cnki.cjsi.J1904766
[11]	CHEN C L Philip and LIU Zhulin. Broad learning system: An effective and efficient incremental learning system without the need for deep architecture[J]. IEEE Transactions on Neural Networks and Learning Systems, 2018, 29(1): 10–24. doi: 10.1109/TNNLS.2017.2716952
[12]	FENG Jian, YAO Yu, LU Senxiang, et al. Domain knowledge-based deep-broad learning framework for fault diagnosis[J]. IEEE Transactions on Industrial Electronics, 2021, 68(4): 3454–3464. doi: 10.1109/TIE.2020.2982085
[13]	FU Yang, CAO Hongrui, and CHEN Xuefeng. Adaptive broad learning system for high-efficiency fault diagnosis of rotating machinery[J]. IEEE Transactions on Instrumentation and Measurement, 2021, 70: 1–11. doi: 10.1109/TIM.2021.3085940
[14]	YAN Ruqiang, SHEN Fei, SUN Chuang, et al. Knowledge transfer for rotary machine fault diagnosis[J]. IEEE Sensors Journal, 2020, 20(15): 8374–8393. doi: 10.1109/JSEN.2019.2949057
[15]	YOSINSKI J, CLUNE J, BENGIO Y, et al. How transferable are features in deep neural networks?[C]. The 27th International Conference on Neural Information Processing Systems, Montreal, Canada, 2014: 3320–3328.

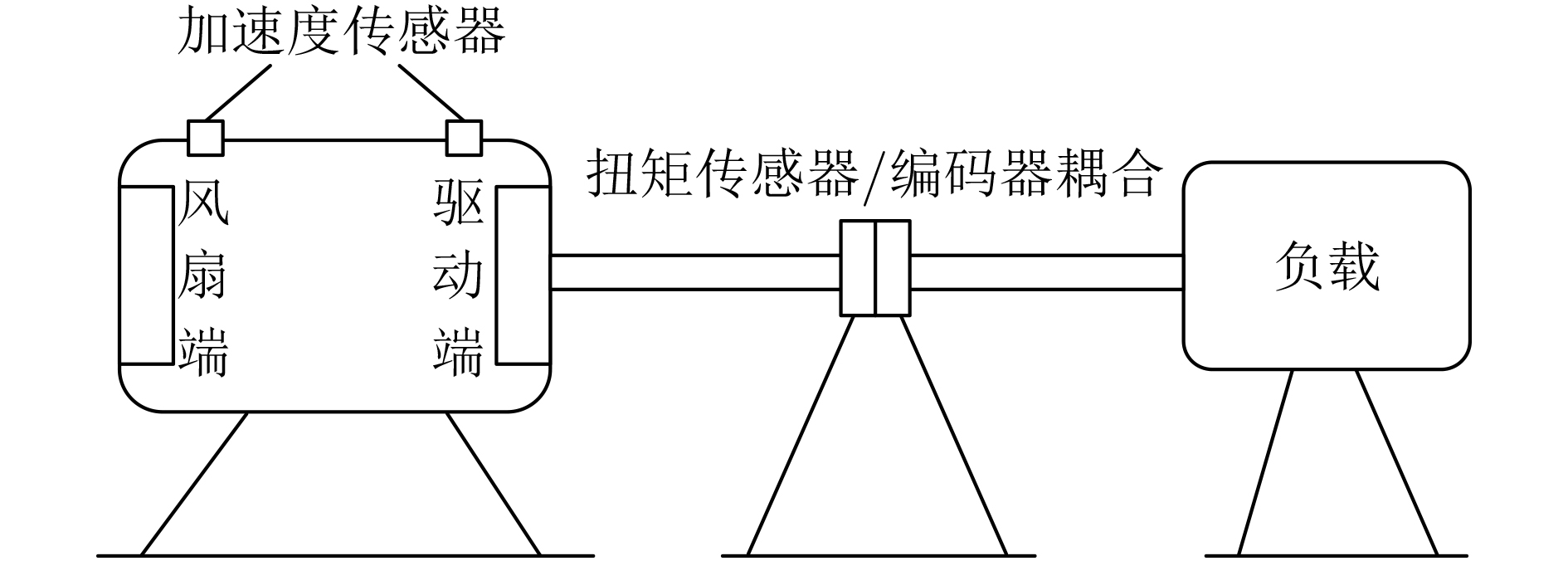

[16]	LOPARO K A. Bearing data center[EB/OL]. https://engineering.case.edu/bearingdatacenter, 2019.
[17]	王玉静, 那晓栋, 康守强, 等. 基于EEMD-Hilbert包络谱和DBN的变负载下滚动轴承状态识别方法[J]. 中国电机工程学报, 2017, 37(23): 6943–6950. doi: 10.13334/j.0258-8013.pcsee.162418 WANG Yujing, NA Xiaodong, KANG Shouqiang, et al. State recognition method of a rolling bearing based on EEMD-Hilbert envelope spectrum and DBN under variable load[J]. Proceedings of the CSEE, 2017, 37(23): 6943–6950. doi: 10.13334/j.0258-8013.pcsee.162418
[18]	KANG Shouqiang, CHEN Weiwei, WANG Yujing, et al. Method of state identification of rolling bearings based on deep domain adaptation under varying loads[J]. IET Science, Measurement & Technology, 2020, 14(3): 303–313. doi: 10.1049/iet-smt.2019.0043
[19]	WANG Yujing, WANG Chao, KANG Shouqiang, et al. Network-combined broad learning and transfer learning: A new intelligent fault diagnosis method for rolling bearings[J]. Measurement Science and Technology, 2020, 31(11): 115013. doi: 10.1088/1361-6501/ab8fee
[20]	BECHHOEFER E. Bearing fault dataset[EB/OL]. https://mfpt.org/fault-data-sets/, 2019.
