基于滤波器组多载波的组网低截获探通一体化信号设计

陈军; 王昊; 贺晓波; 王杰; 周建江

doi:10.11999/JEIT240342

基于滤波器组多载波的组网低截获探通一体化信号设计

doi: 10.11999/JEIT240342

陈军^1, ,,
王昊¹,
贺晓波¹,
王杰¹,
周建江²

1.
南京信息工程大学电子与信息工程学院南京 210044
2.
南京航空航天大学雷达成像与微波光子技术教育部重点实验室南京 210016

基金项目: 国家自然科学基金(62171229)，江苏省自然科学基金(BK20190772)，航空科学基金(20200020052005)，雷达成像与微波光子技术教育部重点实验室基金(南京航空航天大学)(NJ20230002)

详细信息

作者简介:
陈军：男，博士，讲师，研究方向为雷达通信一体化、低截获概率雷达、雷达目标检测等

王昊：男，硕士生，研究方向为低截获雷达通信一体化组网系统设计

贺晓波：男，硕士生，研究方向为低截获雷达通信一体化

王杰：男，博士，副研究员，研究方向为MIMO雷达信号设计、合成孔径雷达处理、雷达通信一体化

周建江：男，博士，教授，研究方向为研究方向为飞行器射频隐身技术、雷达目标特性分析、航空电子信息系统设计等

通讯作者:
陈军　junchen@nuist.edu.cn

中图分类号: TN958
计量
- 文章访问数: 150
- HTML全文浏览量: 35
- PDF下载量: 49
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-29
- 修回日期: 2024-08-21
- 网络出版日期: 2024-08-30
- 刊出日期: 2024-11-10

Design of Low Probability of Intercept and Communication Signal Based on Filter Bank Multi-Carrier for Multi-node Network Systems

1.
School of Electronic and Information Engineering, Nanjing University of Information Science and Technology, Nanjing 210044, China
2.
Key Laboratory of Radar Imaging and Microwave Photonics, Ministry of Education, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

Funds: The National Natural Science Foundation of China (62171229), The Natural Science Foundation of Jiangsu Province (BK20190772), The Aeronautical Science Foundation (20200020052005), The Foundation of Key Laboratory of Radar Imaging and Microwave Photon Technology of Ministry of Education (Nanjing University of Aeronautics and Astronautics) (NJ20230002)

摘要

摘要: 在现代电子对抗中，将多部探通一体化系统进行组网，可以提高单站探通一体化系统探测效率和协同探测能力。由于探通一体化信号自身峰均比较高，信号易被截获，系统的生存能力受到严重威胁。为了提升探通一体化信号的低截获性能(LPI)，首先该文在滤波器组多载波的框架下，提出一种通信子载波分组功率优化和雷达子载波异置等功率优化的组网低截获探通一体化信号时频结构。然后，该文从信息论的角度出发，统一了系统的性能评估指标；将最小化截获信息距离作为优化目标函数，建立了组网探通一体化信号低截获优化模型。该文将此优化模型转换为凸优化问题，并利用Karush-Kuhn-Tucker条件对其进行求解。仿真结果表明，该文所设计的组网低截获探通一体化信号在探测动目标时，节点间雷达干扰低至近–60 dB，通信误码率满足10^–6数量级，同时能有效降低截获信号的信噪比。
- 低截获概率 /
- 探通一体化 /
- 组网系统 /
- 滤波器组多载波 /
- 信息论
Abstract: In modern electronic countermeasures, grouping of multiple joint radar and communication systems can improve the detection efficiency and collaborative detection capability of the single joint radar and communication system. Due to the high peak to average power ratio of the joint radar and communication signal itself, the signal is easy to be intercepted, and the system’s survivability is seriously threatened. In order to improve the Low Probability of Intercept (LPI) performance of the joint radar and communication signal, a time-frequency structure of grouping LPI joint radar and communication signal with communication subcarrier grouping power optimization and radar subcarrier interleaving equal power optimization under the framework of filter bank multicarrier is proposed in this paper. Then, from the perspective of the information theory, the paper unifies the performance assessment metrics of the system; On this basis, minimizing the intercepted information divergence of the interceptor is taken as the optimization objective, and an LPI optimization model of the group network joint radar and communication signal is established. The paper converts this optimization model into a convex optimization problem and solves it using the Karush-Kuhn-Tucker condition. The simulation results show that the radar interference of the network LPI joint radar and communication signal designed in this paper has inter-node radar interference as low as nearly –60 dB when detecting moving targets, and the communication bit error rate satisfies 10^–6 order of magnitude, while the signal-to-noise ratio of the intercepted signal is effectively reduced.
- Low Probability of Intercept(LPI) /
- Joint radar and communication /
- Network system /
- Filter Bank Multi-Carrier(FBMC) /
- Information theory

HTML全文

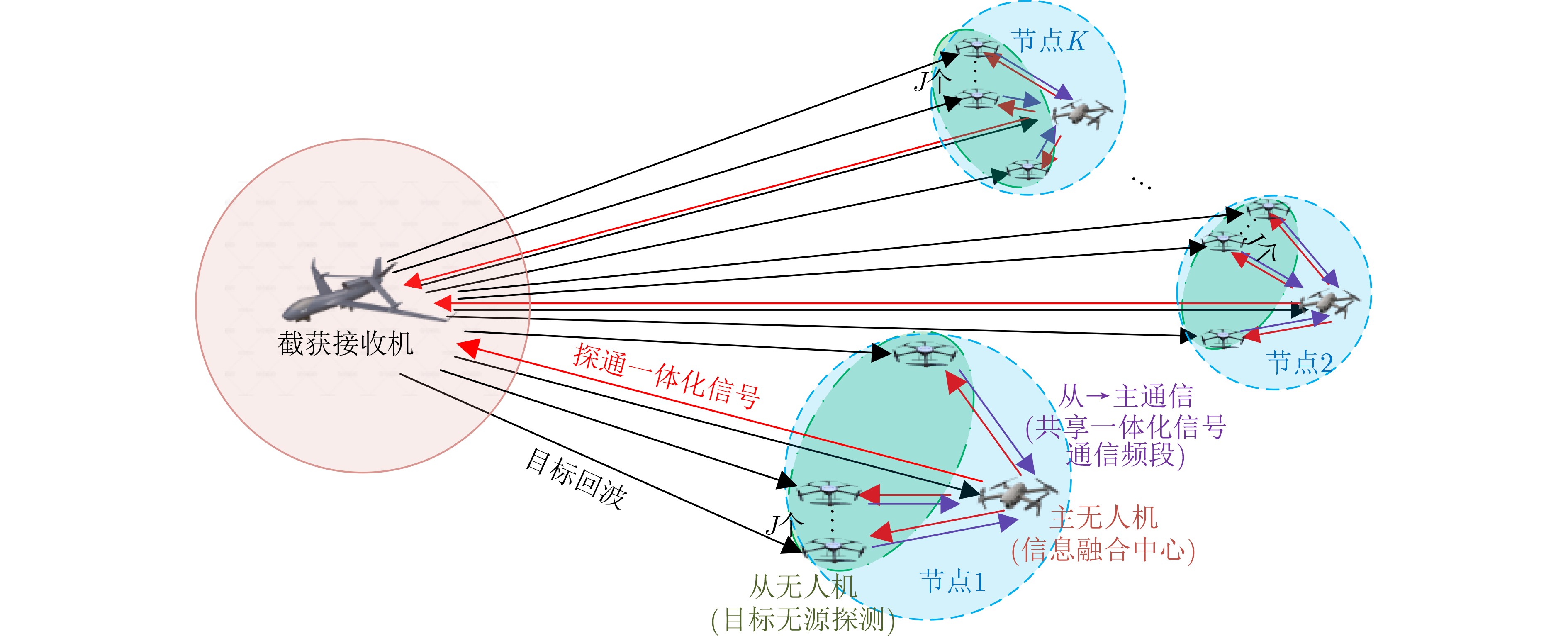

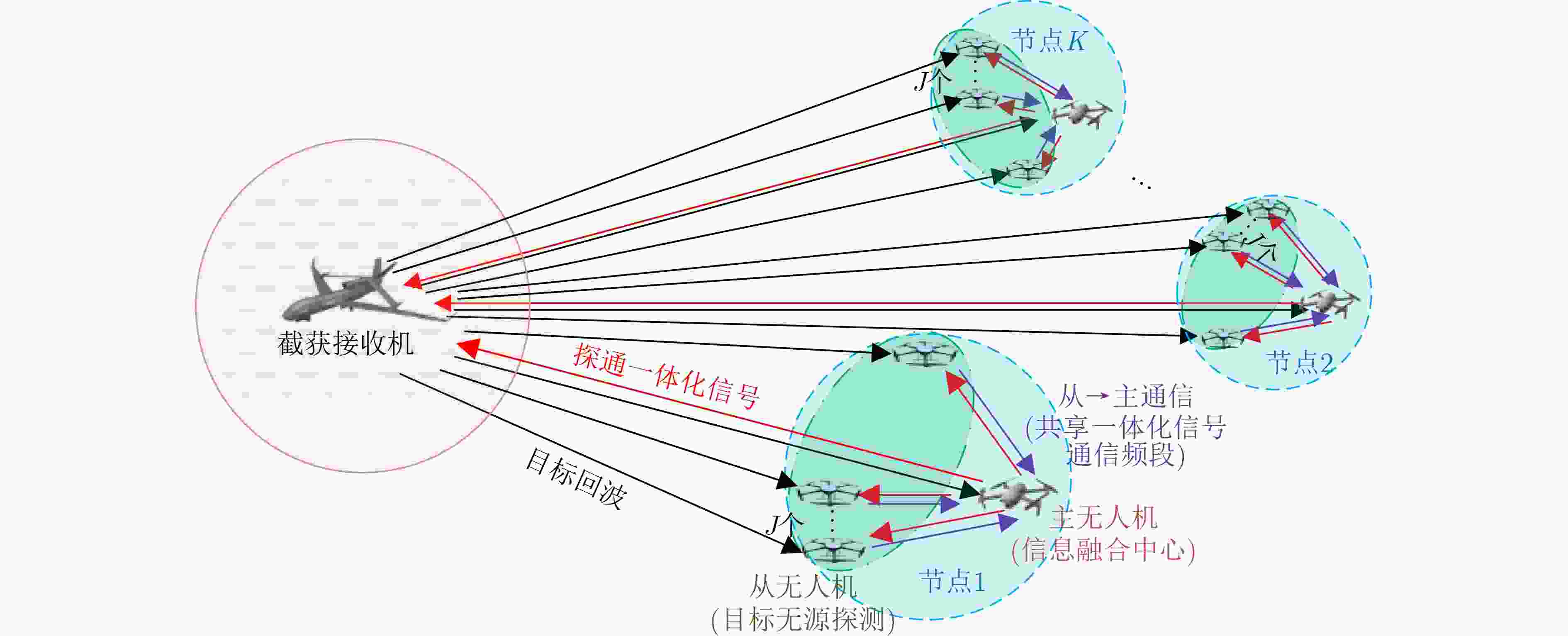

图 1 组网系统协同低截获探测机制图

下载: 全尺寸图片幻灯片

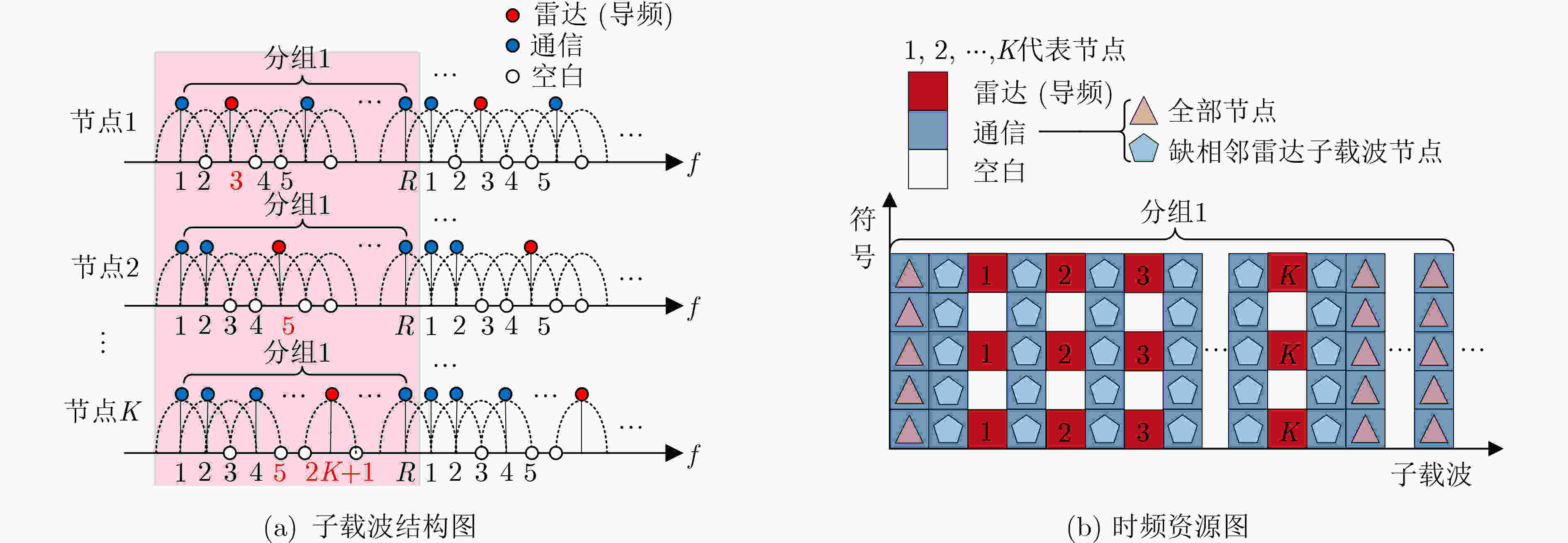

图 2 组网探通一体化系统各节点信号资源结构图

下载: 全尺寸图片幻灯片

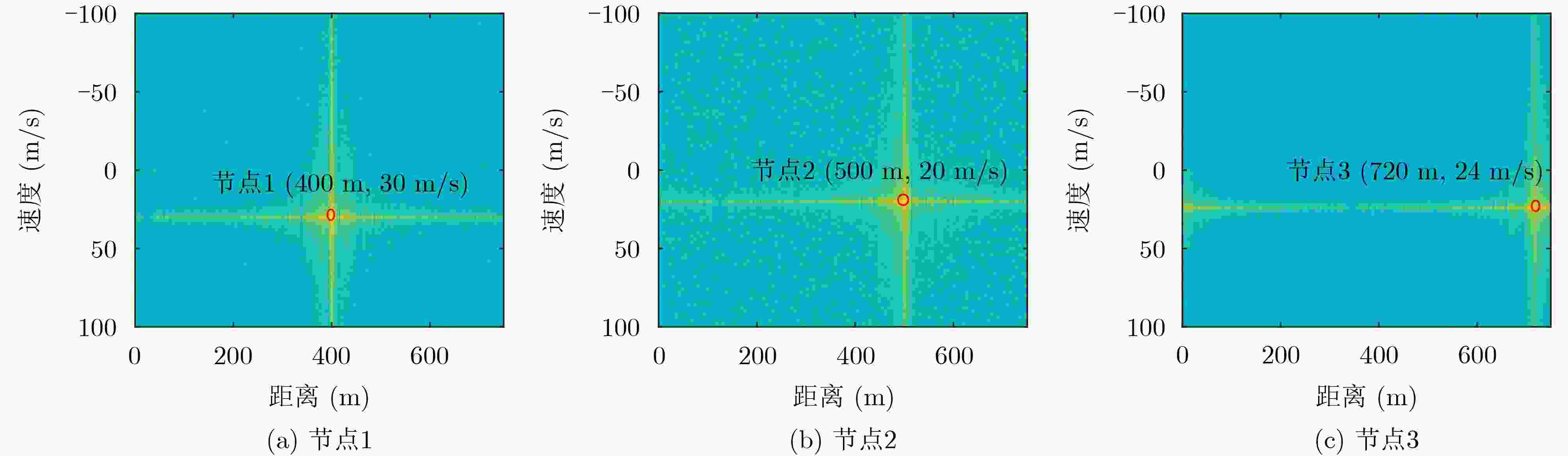

图 3 3个节点雷达探测结果

下载: 全尺寸图片幻灯片

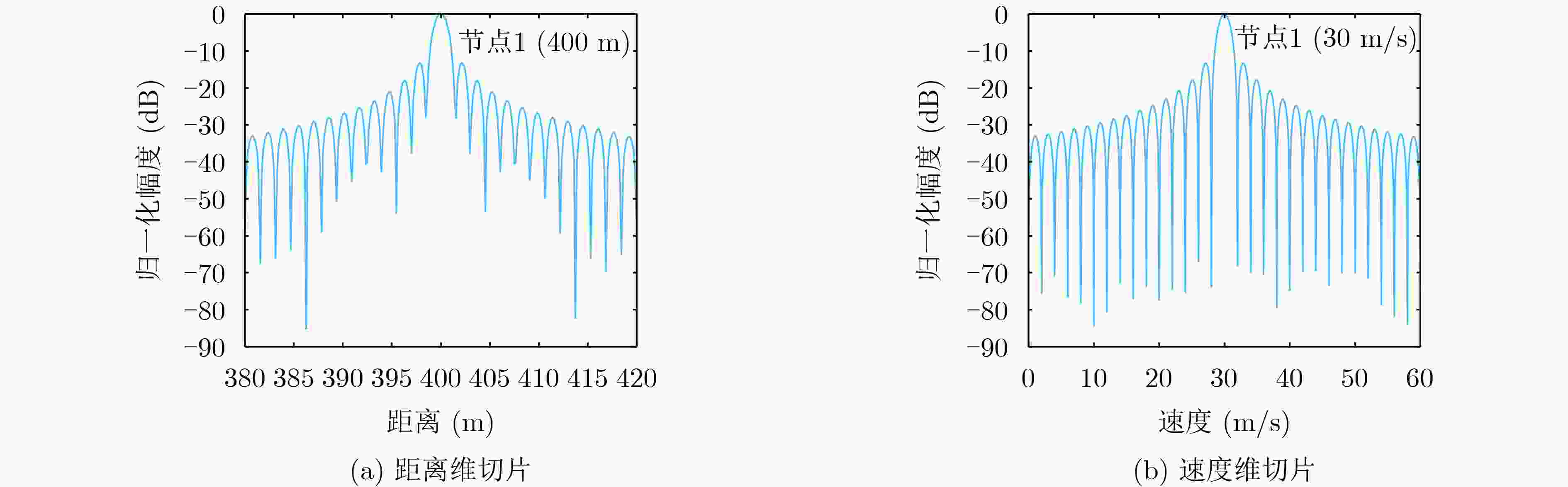

图 4 节点1雷达探测目标距离维和速度维切片

下载: 全尺寸图片幻灯片

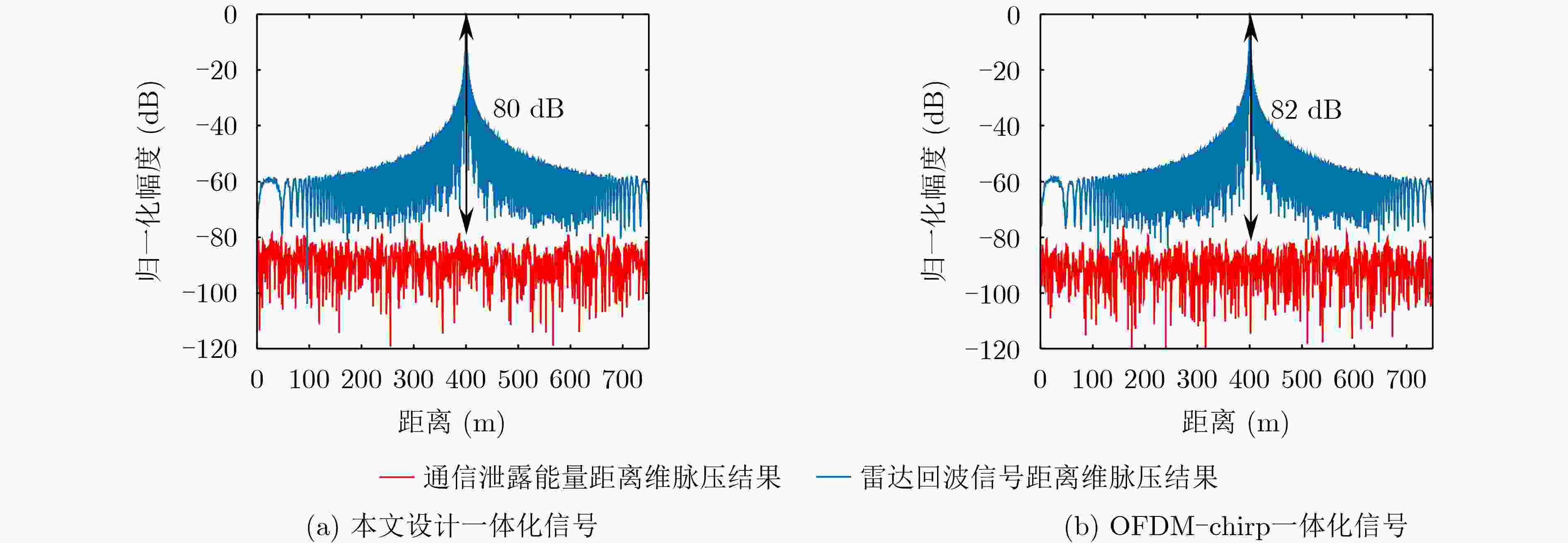

图 5 节点1上回波信号中通信数据对雷达的干扰

下载: 全尺寸图片幻灯片

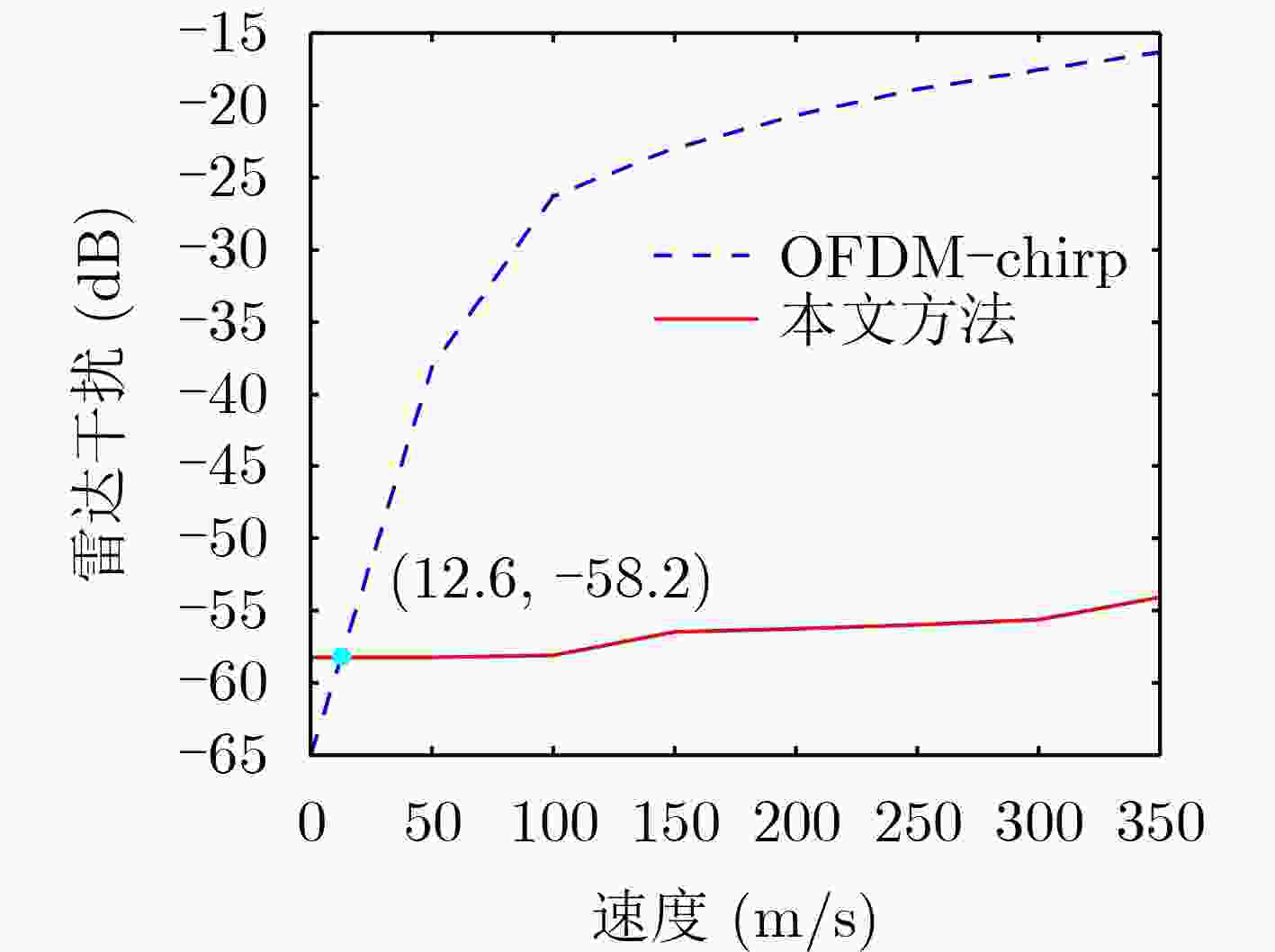

图 6 不同速度下节点2对节点1的雷达干扰

下载: 全尺寸图片幻灯片

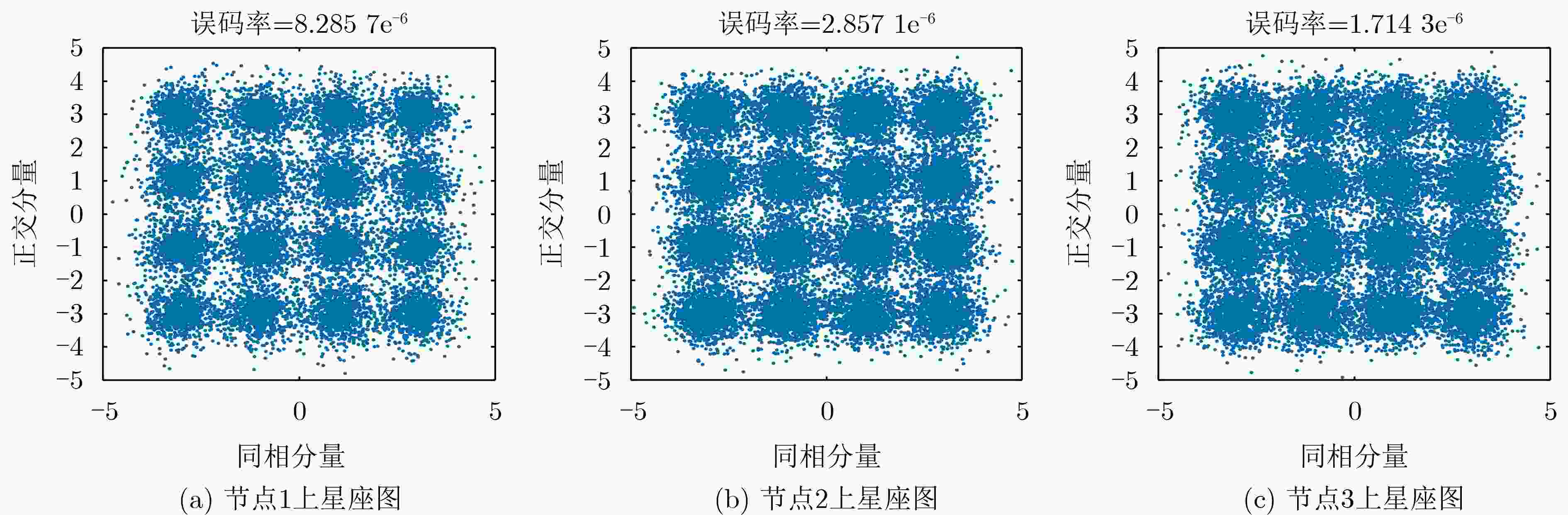

图 7 各节点通信接收端的星座图

下载: 全尺寸图片幻灯片

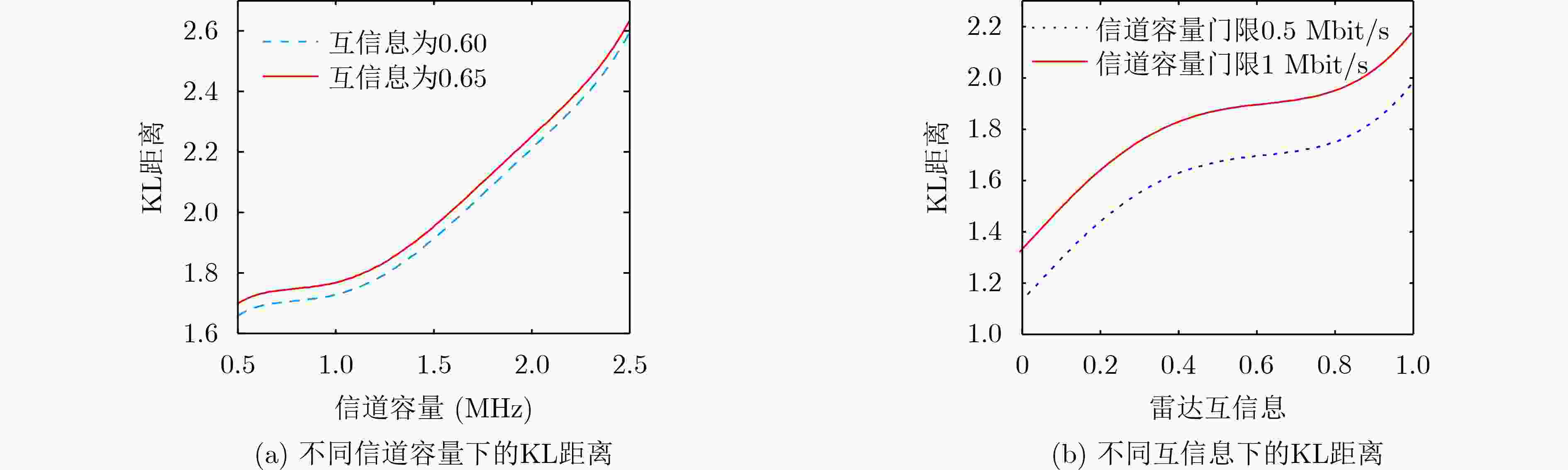

图 8 不同性能指标下的KL距离

下载: 全尺寸图片幻灯片

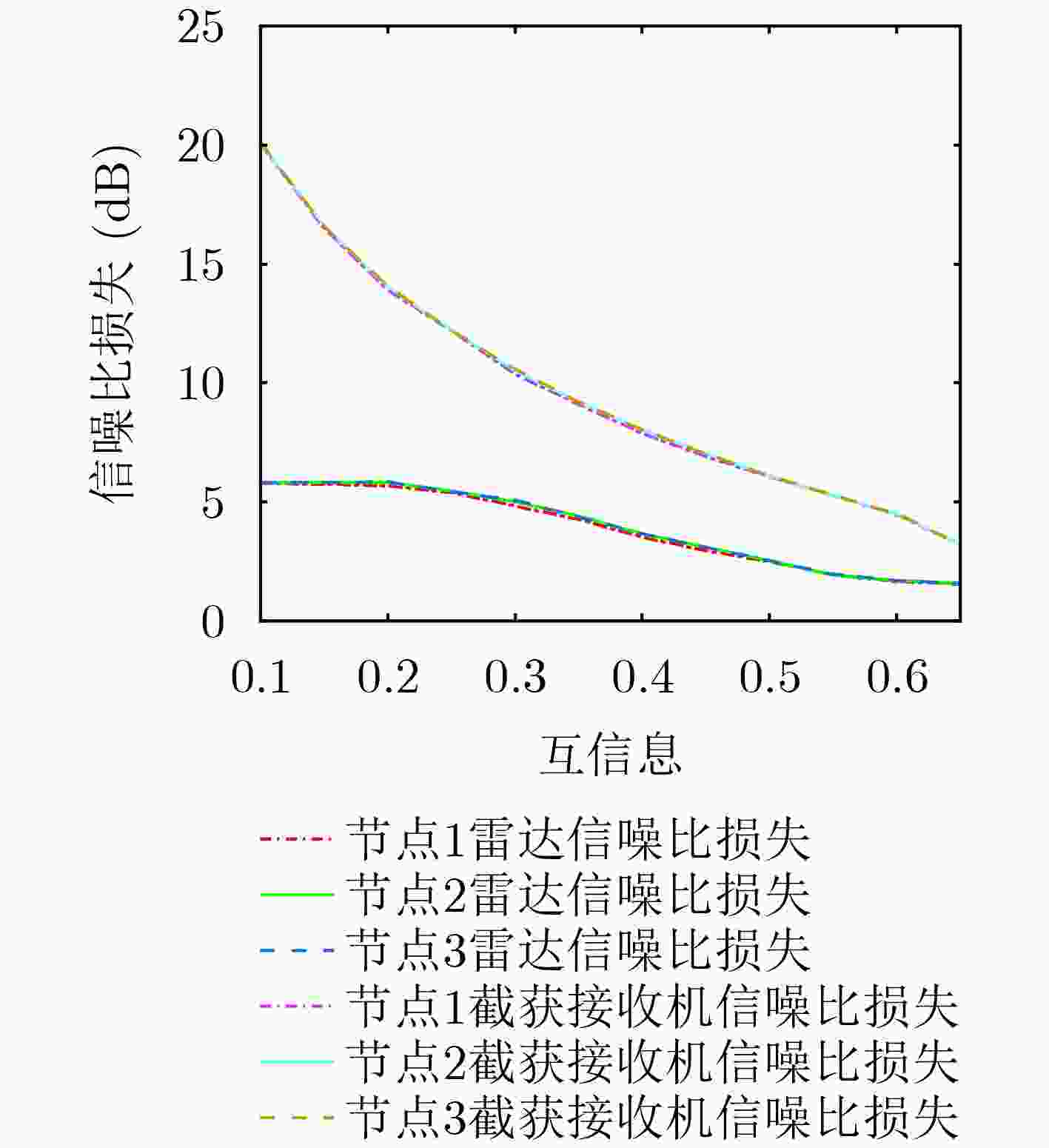

图 9 各节点雷达和截获接收机的信噪比损失

下载: 全尺寸图片幻灯片

参考文献(17)

[1]	ZHANG Haowei, LIU Weijian, LIU Yuan, et al. Joint target and user assignment as well as dwell time and spectrum allocation in a distributed radar–communication coexistence network[J]. IEEE Transactions on Aerospace and Electronic Systems, 2024, 60(1): 1159–1175. doi: 10.1109/TAES.2023.3335179.
[2]	马丁友, 刘祥, 黄天耀, 等. 雷达通信一体化: 共用波形设计和性能边界[J]. 雷达学报, 2022, 11(2): 198–212. doi: 10.12000/JR21146. MA Dingyou, LIU Xiang, HUANG Tianyao, et al. Joint radar and communications: Shared waveform designs and performance bounds[J]. Journal of Radars, 2022, 11(2): 198–212. doi: 10.12000/JR21146.
[3]	肖博, 霍凯, 刘永祥. 雷达通信一体化研究现状与发展趋势[J]. 电子与信息学报, 2019, 41(3): 739–750. doi: 10.11999/JEIT180515. XIAO Bo, HUO Kai, and LIU Yongxiang. Development and prospect of radar and communication integration[J]. Journal of Electronics & Information Technology, 2019, 41(3): 739–750. doi: 10.11999/JEIT180515.
[4]	QIAN Junhui, HE Zishu, HUANG Nuo, et al. Transmit designs for spectral coexistence of MIMO radar and MIMO communication systems[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2018, 65(12): 2072–2076. doi: 10.1109/TCSII.2018.2822845.
[5]	SHI Chenguang, WANG Fei, SALOUS S, et al. Low probability of intercept-based optimal OFDM waveform design strategy for an integrated radar and communications system[J]. IEEE Access, 2018, 6: 57689–57699. doi: 10.1109/ACCESS.2018.2874007.
[6]	孟紫薇, 梅进杰, 朱晟坤, 等. 基于OFDM共享信号的低截获雷达通信一体化波形设计[J]. 空军预警学院学报, 2021, 35(1): 9–12. doi: 10.3969/j.issn.2095-5839.2021.01.003. MENG Ziwei, MEI Jinjie, ZHU Shengkun, et al. Integrated waveform design of low-intercept radar communication based on OFDM shared signal[J]. Journal of Air & Space Early Warning Research, 2021, 35(1): 9–12. doi: 10.3969/j.issn.2095-5839.2021.01.003.
[7]	李琬璐, 相征, 任鹏. 基于FBMC信号的低截获雷达通信一体化波形设计[J]. 雷达学报, 2023, 12(2): 287–296. doi: 10.12000/JR22064. LI Wanlu, XIANG Zheng, and REN Peng. Filter bank multi-carrier waveform design for low probability of intercepting joint radar and communication system[J]. Journal of Radars, 2023, 12(2): 287–296. doi: 10.12000/JR22064.
[8]	王杰, 裴泽琳, 陈军, 等. 基于滤波器组多载波梳状谱的雷达通信一体化信号技术[J]. 信号处理, 2022, 38(11): 2308–2319. doi: 10.16798/j.issn.1003-0530.2022.11.008. WANG Jie, PEI Zelin, CHEN Jun, et al. Radar communication integrated signal technology based on FBMC comb spectrum[J]. Journal of Signal Processing, 2022, 38(11): 2308–2319. doi: 10.16798/j.issn.1003-0530.2022.11.008.
[9]	单成兆. 面向雷达通信一体化的时间调制阵列波束赋形技术研究[D]. [博士论文], 哈尔滨工业大学, 2022. doi: 10.27061/d.cnki.ghgdu.2020.005048. SHAN Chenzhao. Research on time-modulated array beamforming technology for radar-communications integration[D]. [Ph. D. dissertation], Harbin Institute of Technology, 2022. doi: 10.27061/d.cnki.ghgdu.2020.005048.
[10]	LUO Meng, XING Wenge, LI Gui, et al. Research on an improved networked radar algorithm for integrated detection and communication[C]. 2023 5th International Conference on Intelligent Control, Measurement and Signal Processing, Chengdu, China, 2023: 1214–1218. doi: 10.1109/ICMSP58539.2023.10170964.
[11]	切尔尼亚克, 周万幸, 吴鸣亚, 胡明春, 等译. 双(多)基地雷达系统[M]. 北京: 电子工业出版社, 2011. CHERNYAK V S, ZHOU Wanxin, WU Mingya, HU Mingchun, et al. translation. Fundamentals of Multisite Radar Systems Multistatic Radars and Multiradar Systems[M]. Beijing: Publishing House of Electronics Industry, 2011.
[12]	胡飞. 雷达通信一体化组网目标定位算法研究[D]. [硕士论文], 电子科技大学, 2015. HU Fei. Research about target localization in integrated radar and communication system[D]. [Master dissertation], University of Electronic Science and Technology of China, 2015.
[13]	SHI Chenguang, ZHOU Jianjiang, and WANG Fei. Low probability of intercept optimization for radar network based on mutual information[C]. 2014 IEEE China Summit & International Conference on Signal and Information Processing, Xi’an, China, 2014: 683–687. doi: 10.1109/ChinaSIP.2014.6889331.
[14]	孙希平, 吴熙芃, 张磊, 等. 基于正交信号的组网雷达目标融合检测与定位方法[J]. 现代雷达, 2023, 45(5): 42–49. doi: 10.16592/j.cnki.1004-7859.2023.05.004. SUN Xiping, WU Xipeng, ZHANG Lei, et al. Networked radar target fusion detection and localization method based on orthogonal signals[J]. Modern Radar, 2023, 45(5): 42–49. doi: 10.16592/j.cnki.1004-7859.2023.05.004.
[15]	张磊, 罗迎, 张群. 雷达组网系统对抗有源干扰方法综述[J]. 信息对抗技术, 2023, 2(6): 1–16. doi: 10.12399/j.issn.2097-163x.2023.06.001. ZHANG Lei, LUO Ying, and ZHANG Qun. Review of countermeasures against active jamming for radar network[J]. Information Countermeasure Technology, 2023, 2(6): 1–16. doi: 10.12399/j.issn.2097-163x.2023.06.001.
[16]	SHI Chenguang, WANG Yijie, WANG Fei, et al. LPI performance optimization scheme for a joint radar-communications system[C]. 2020 IEEE 11th Sensor Array and Multichannel Signal Processing Workshop, Hangzhou, China, 2020: 1–5. doi: 10.1109/SAM48682.2020.9104362.
[17]	WANG Jie, LIANG Xingdong, CHEN Longyong, et al. Waveform designs for joint wireless communication and radar sensing: Pitfalls and opportunities[J]. IEEE Internet of Things Journal, 2023, 10(17): 15252–15265. doi: 10.1109/JIOT.2023.3265367.
