A Nested Multi-scroll Memristive Hopfield Neural Network and Its Hardware Implementation

WANG Zhe; WAN Qiuzhen; ZHOU Pan; RAO Huhui

doi:10.11999/JEIT260516

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

WANG Zhe, WAN Qiuzhen, ZHOU Pan, RAO Huhui. A Nested Multi-scroll Memristive Hopfield Neural Network and Its Hardware Implementation[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT260516

Citation:

WANG Zhe, WAN Qiuzhen, ZHOU Pan, RAO Huhui. A Nested Multi-scroll Memristive Hopfield Neural Network and Its Hardware Implementation[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT260516

Citation:

PDF( 8593 KB)

A Nested Multi-scroll Memristive Hopfield Neural Network and Its Hardware Implementation

doi: 10.11999/JEIT260516 cstr: 32379.14.JEIT260516

College of Information Science and Engineering, Hunan Normal University, Changsha 410081, China

Funds: The National Natural Science Foundation of China (61901169), The Natural Science Foundation of Hunan Province (2024JJ5267)

Received Date: 2026-04-27
Accepted Date: 2026-06-29
Rev Recd Date: 2026-06-28

Available Online: 2026-07-14

Abstract

Abstract

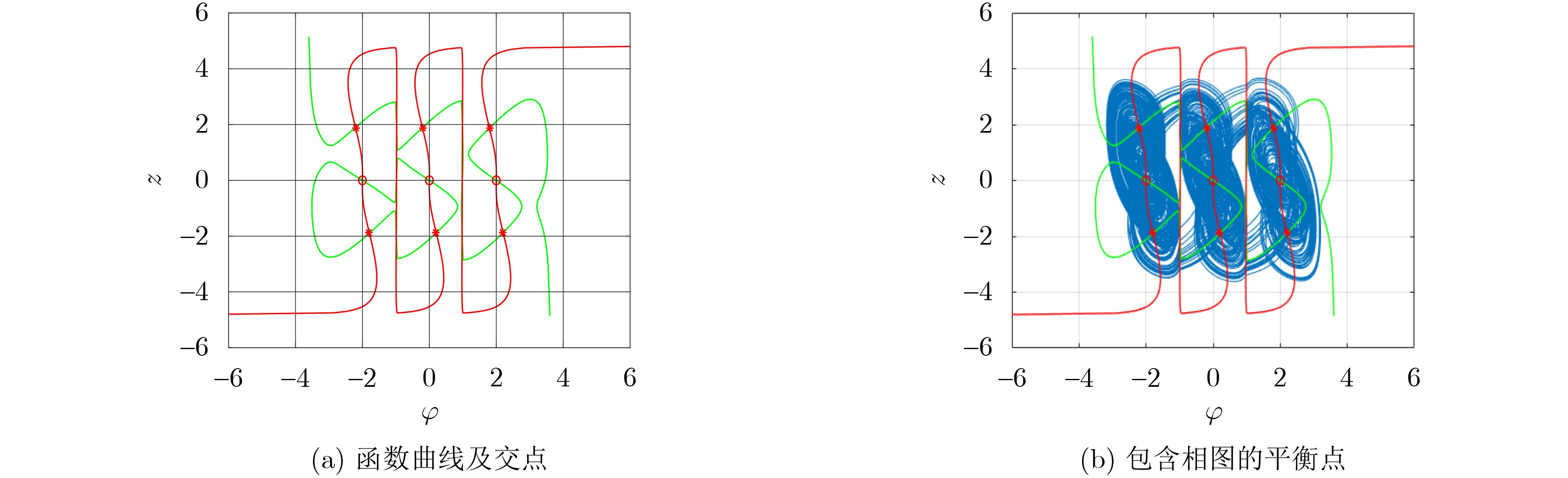

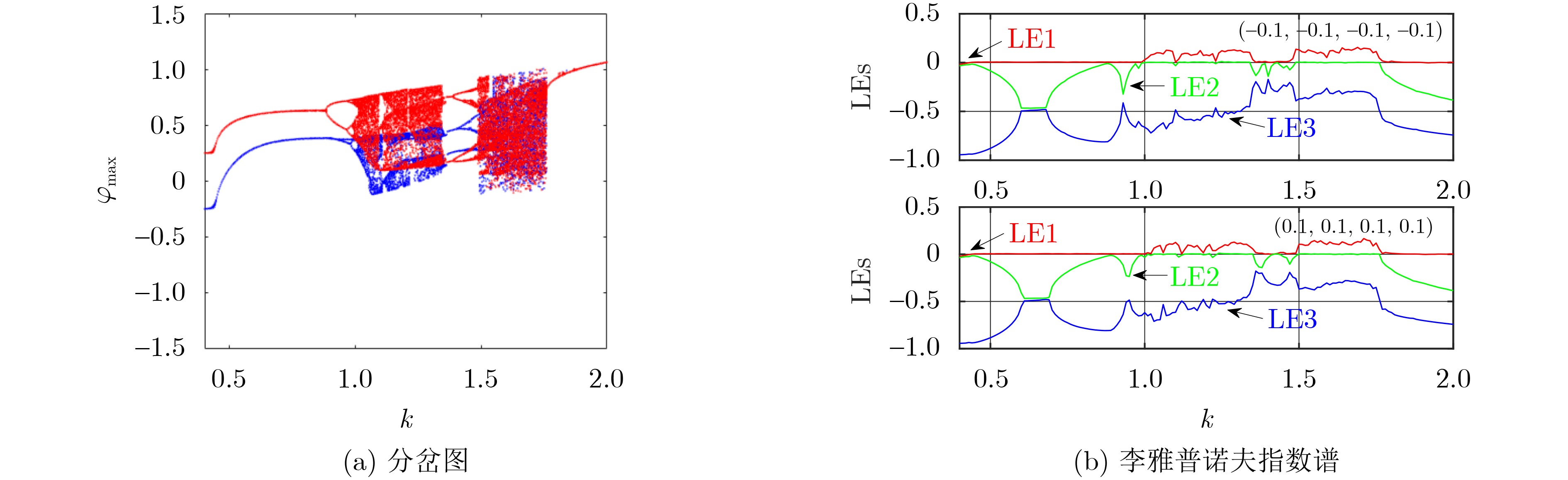

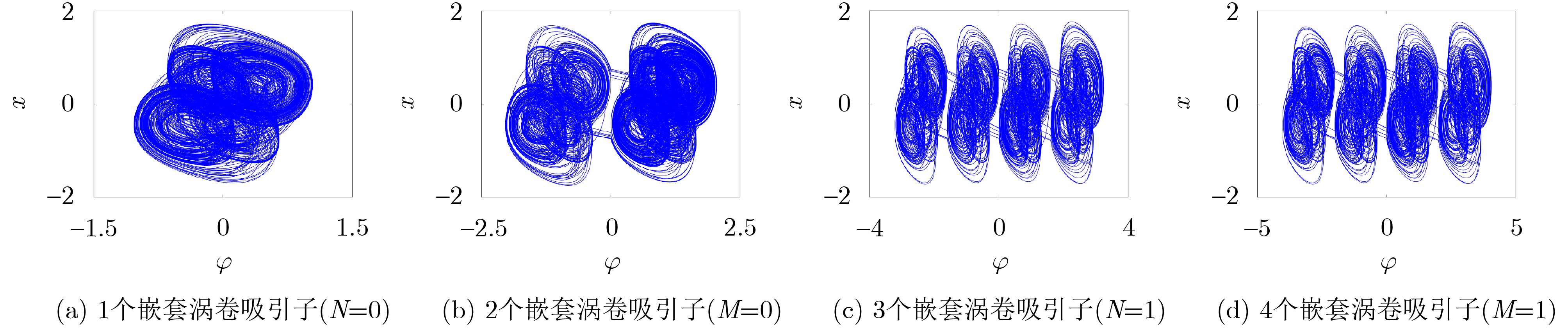

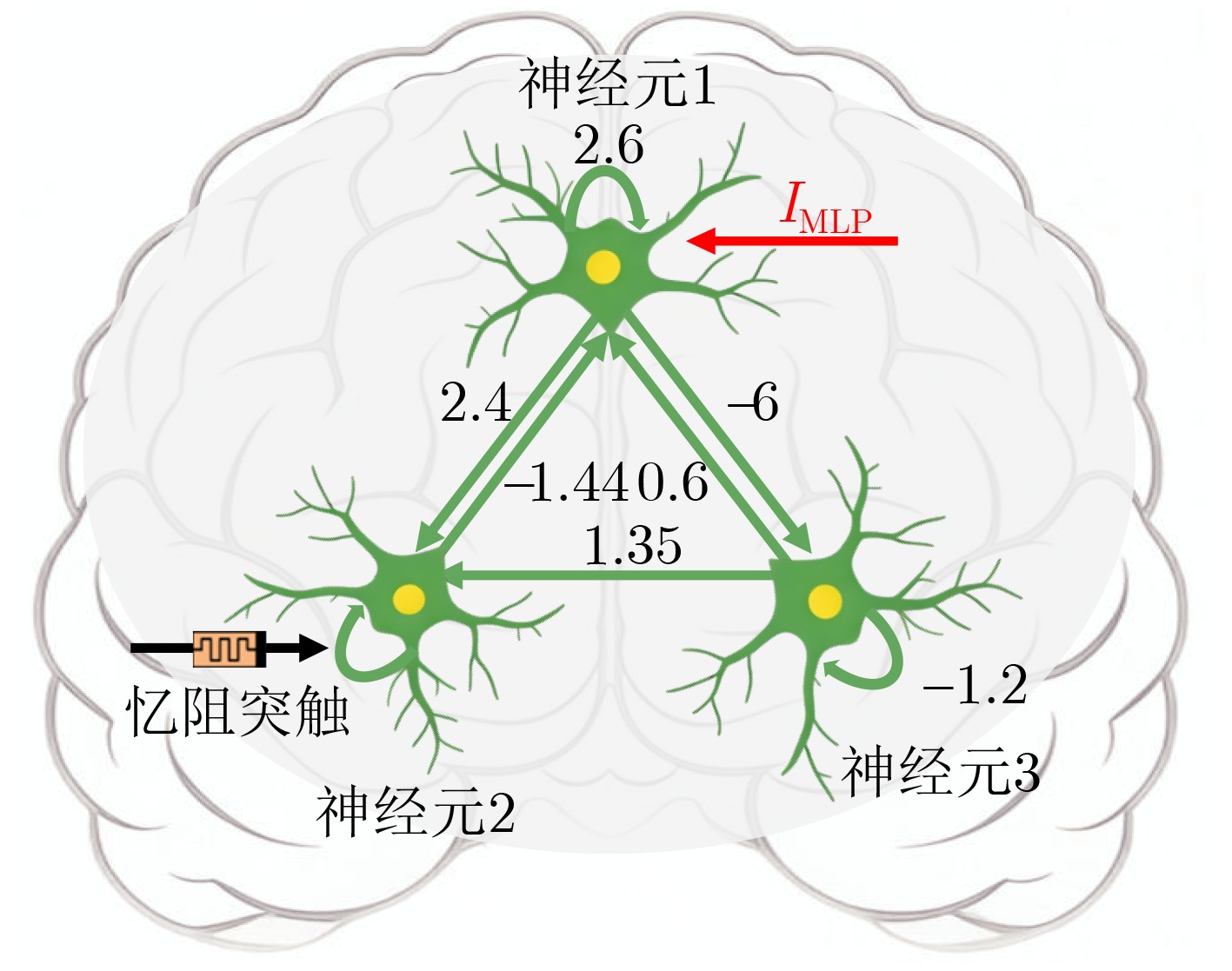

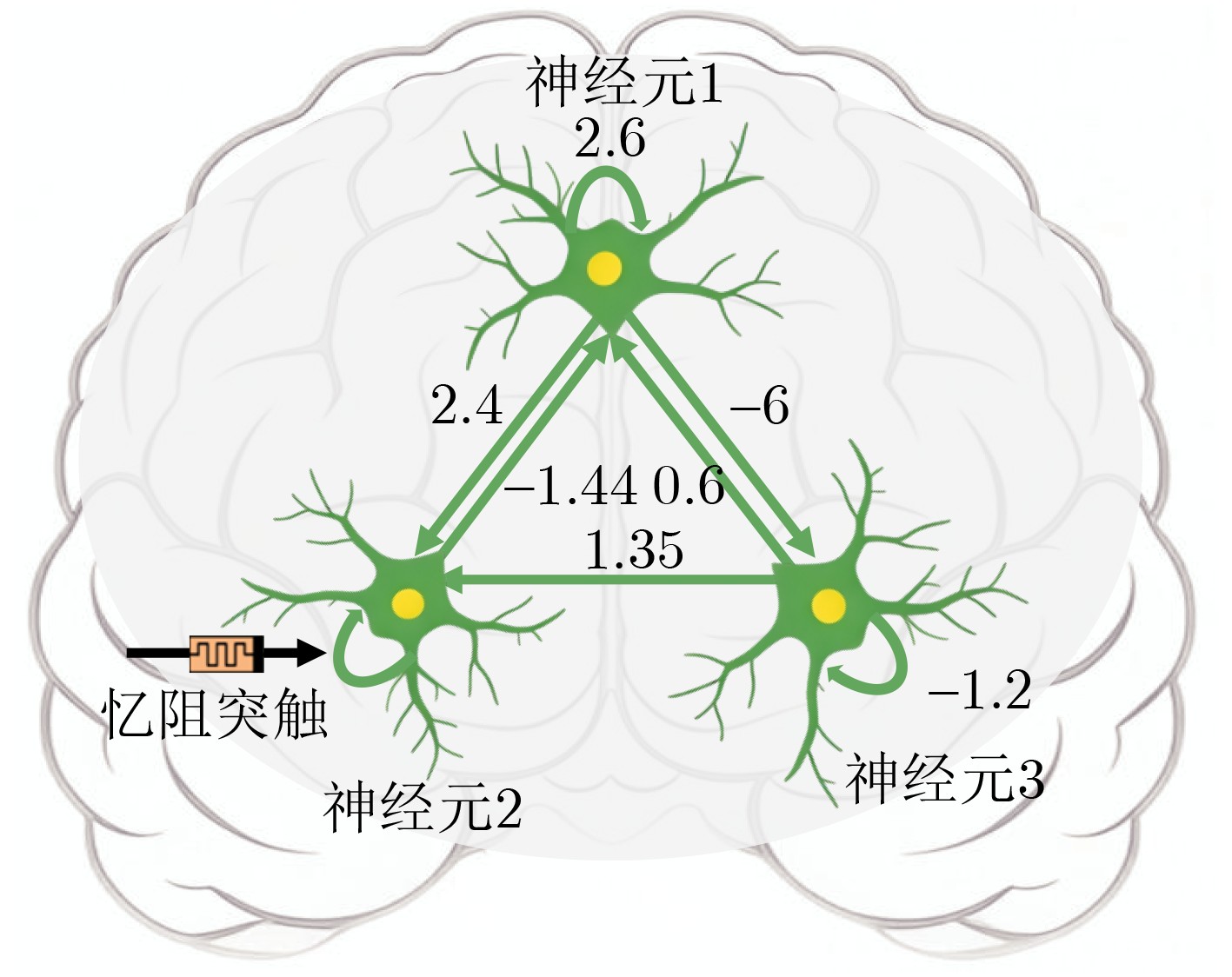

Objective In recent years, memristors have been employed to emulate neuronal synapses with dynamically adjustable synaptic weights, enabling the construction of Memristive Hopfield Neural Networks (HNNs). Compared with conventional HNNs, Memristive HNNs more accurately reproduce the nonlinear dynamical behavior of biological neural systems. Multi-scroll attractors have attracted considerable attention in secure communication because of their complex topological structures and strong state-space ergodicity. However, previous studies have primarily focused on conventional multi-scroll attractors with single structural patterns, whereas multi-scroll attractors with special structures remain largely unexplored. Therefore, this paper proposes a nested multi-scroll Memristive HNN system that generates nested multi-scroll attractors, thereby overcoming the limitations of conventional single-structure multi-scroll attractors. Methods A Four-Dimensional (4D) Memristive HNN system is constructed from a three-neuron HNN by incorporating a multi-segment nonlinear magnetically controlled memristor into the Memristive self-connected synapse of neuron 2. Equilibrium-point and stability analyses are performed to investigate the regulatory effects of the Memristive self-connected synapse coupling strength and system initial conditions on the system dynamics. The number of multi-scroll attractors is regulated by adjusting the memristor control parameters. Building on this framework, a Multi-level Logic Pulse current (I_MLP) is introduced to construct a nested multi-scroll Memristive HNN system. The proposed system generates nested multi-scroll attractors with enhanced dynamical complexity. Finally, the MATLAB numerical simulation results are validated through Multisim circuit simulations and Field-Programmable Gate Array (FPGA)-based hardware experiments. Results and Discussions The results demonstrate that regulating the Memristive self-connected synapse coupling strength enables the proposed 4D Memristive HNN system to exhibit period-doubling bifurcations and chaotic behavior, as illustrated by the bifurcation diagrams and Lyapunov exponent spectra (Fig. 3). Various types of coexisting attractors are generated under different coupling strengths (Fig. 4). By adjusting the memristor control parameters, multi-scroll attractors with different numbers of scrolls are generated through one-directional extension (Figs. 5～8). After the introduction of the I_MLP, the proposed nested multi-scroll Memristive HNN system generates nested multi-scroll attractors while preserving the controllable scroll-number extension property (Figs. 8～10). Spectral Entropy (SE) analysis demonstrates that the I_MLP increases the dynamical complexity of the proposed system compared with the original 4D Memristive HNN system (Figs. 9 and 10). The strong agreement among MATLAB numerical simulations, Multisim circuit simulations, and FPGA-based hardware experiments confirms the physical realizability of the proposed nested multi-scroll Memristive HNN system (Figs. 12～14). Conclusions A 4D Memristive HNN system is constructed by incorporating a multi-segment nonlinear magnetically controlled memristor into the Memristive self-connected synapse of a three-neuron HNN. Equilibrium-point and stability analyses reveal the regulatory effects of the Memristive self-connected synapse coupling strength and the evolution of coexisting attractors associated with different initial conditions. The results show that the system enters chaos through the period-doubling route to chaos and generates single-scroll and double-scroll chaotic attractors. The number of multi-scroll attractors is continuously increased by adjusting the memristor control parameters. Furthermore, introducing the I_MLP produces a nested multi-scroll Memristive HNN system capable of generating nested multi-scroll attractors with increased dynamical complexity. The strong agreement among MATLAB numerical simulations, Multisim circuit simulations, and FPGA-based hardware experiments validates the physical realizability of the proposed nested multi-scroll Memristive HNN system.

FullText(HTML)

References(16)

References

[1]	MIN Fuhong, JI Junhong, CAO Yi, et al. Bifurcation dynamics, amplitude–frequency characteristics of Hopfield neural network and its application[J]. IEEE Internet of Things Journal, 2025, 12(14): 27033–27043. doi: 10.1109/JIOT.2025.3561933.
[2]	MA Jun. Biological neurons to neural circuit, review from physical perspective[J]. Nonlinear Dynamics, 2025, 113(19): 25365–25387. doi: 10.1007/s11071-025-11487-4.
[3]	武花干, 边逸轩, 陈墨, 等. 忆阻耦合异构忆阻细胞神经网络的多稳态与相位同步研究[J]. 电子与信息学报, 2024, 46(9): 3818–3826. doi: 10.11999/JEIT240010. WU Huagan, BIAN Yixuan, CHEN Mo, et al. Multistable state and phase synchronization of memristor-coupled heterogeneous memristive cellular neural network[J]. Journal of Electronics & Information Technology, 2024, 46(9): 3818–3826. doi: 10.11999/JEIT240010.
[4]	LIANG Yan, GENG Qingdian, CAI Qidan, et al. Dynamics of double locally active memristors-based neuron and its circuit implementation[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2026, 45(2): 770–783. doi: 10.1109/TCAD.2025.3591412.
[5]	BAO Han, CHEN Zhuguan, MA Jun, et al. Planar homogeneous coexisting hyperchaos in bi-memristor cyclic hopfield neural network[J]. IEEE Transactions on Industrial Electronics, 2024, 71(12): 16398–16408. doi: 10.1109/TIE.2024.3387058.
[6]	赖强, 秦铭宏. 极简环形忆阻混沌神经网络的动力学分析与同步控制[J]. 电子与信息学报, 2025, 47(9): 3262–3273. doi: 10.11999/JEIT250212. LAI Qiang and QIN Minghong. Dynamic analysis and synchronization control of extremely simple cyclic memristive chaotic neural network[J]. Journal of Electronics & Information Technology, 2025, 47(9): 3262–3273. doi: 10.11999/JEIT250212.
[7]	WAN Qiuzhen, YAN Zidie, LI Fei, et al. Multistable dynamics in a Hopfield neural network under electromagnetic radiation and dual bias currents[J]. Nonlinear Dynamics, 2022, 109(3): 2085–2101. doi: 10.1007/s11071-022-07544-x.
[8]	PENG Cheng, LI Zhijun, WANG Mengjiao, et al. Dynamics in a memristor-coupled heterogeneous neuron network under electromagnetic radiation[J]. Nonlinear Dynamics, 2023, 111(17): 16527–16543. doi: 10.1007/s11071-023-08671-9.
[9]	WANG Yanfeng, SU Pengke, WANG Zicheng, et al. FN-HNN coupled with tunable multistable memristors and encryption by Arnold mapping and diagonal diffusion algorithm[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2025, 72(9): 4830–4842. doi: 10.1109/TCSI.2024.3516722.
[10]	XU Quan, WANG Yiteng, WU Huagan, et al. Periodic and chaotic spiking behaviors in a simplified memristive Hodgkin-Huxley circuit[J]. Chaos, Solitons & Fractals, 2024, 179: 114458. doi: 10.1016/j.chaos.2024.114458.
[11]	MOU Jun, CAO Hongli, ZHOU Nanrun, et al. An FHN-HR neuron network coupled with a novel locally active memristor and its DSP implementation[J]. IEEE Transactions on Cybernetics, 2024, 54(12): 7333–7342. doi: 10.1109/TCYB.2024.3471644.
[12]	ZHANG Xin, LI Chunbiao, LEI Tengfei, et al. Coexisting hyperchaos in a memristive neuromorphic oscillator[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2025, 44(8): 3179–3188. doi: 10.1109/TCAD.2025.3538692.
[13]	WAN Qiuzhen, YANG Qiao, LIU Tieqiao, et al. Single direction, grid and spatial multi-scroll attractors in Hopfield neural network with the variable number memristive self-connected synapses[J]. Chaos, Solitons & Fractals, 2024, 189: 115584. doi: 10.1016/j.chaos.2024.115584.
[14]	LI Fangyuan, BAI Lianfa, CHEN Zhuguan, et al. Scroll-growth and scroll-control attractors in memristive bi-neuron Hopfield neural network[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2024, 71(4): 2354–2358. doi: 10.1109/TCSII.2023.3331058.
[15]	刘嵩, 李子涵, 邱达, 等. 可控多双涡卷忆阻Hopfield神经网络建模及其动力学分析[J]. 电子与信息学报, 2026, 48(1): 417–428. doi: 10.11999/JEIT250972. LIU Song, LI Zihan, QIU Da, et al. Modeling and dynamic analysis of controllable multi-double scroll memristor hopfield neural network[J]. Journal of Electronics & Information Technology, 2026, 48(1): 417–428. doi: 10.11999/JEIT250972.
[16]	ZHANG Sen, PENG Xuenan, WANG Xiaoping, et al. A novel memristive multiscroll multistable neural network with application to secure medical image communication[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2025, 35(2): 1774–1786. doi: 10.1109/TCSVT.2024.3483569.
