A Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology

LUO Binling; WANG Ying; CAI Shuting

doi:10.11999/JEIT251382

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2026 >

LUO Binling, WANG Ying, CAI Shuting. A Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251382

Citation:

LUO Binling, WANG Ying, CAI Shuting. A Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251382

LUO Binling, WANG Ying, CAI Shuting. A Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251382

Citation:

PDF( 3139 KB)

A Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology

doi: 10.11999/JEIT251382 cstr: 32379.14.JEIT251382

LUO Binling^{1, 2},
WANG Ying¹,
CAI Shuting^{1
,
,}

1.
School of Integrated Circuits, Guangdong University of Technology, Guangzhou 510006, China
2.
Guangxi Vocational College of Water Resources and Electric Power, NanNing 530013, China

Funds: Guangdong S&T Programme (2022B0701180001)

Received Date: 2025-12-30
Accepted Date: 2026-05-14
Rev Recd Date: 2026-05-14

Available Online: 2026-06-03

Abstract

Abstract

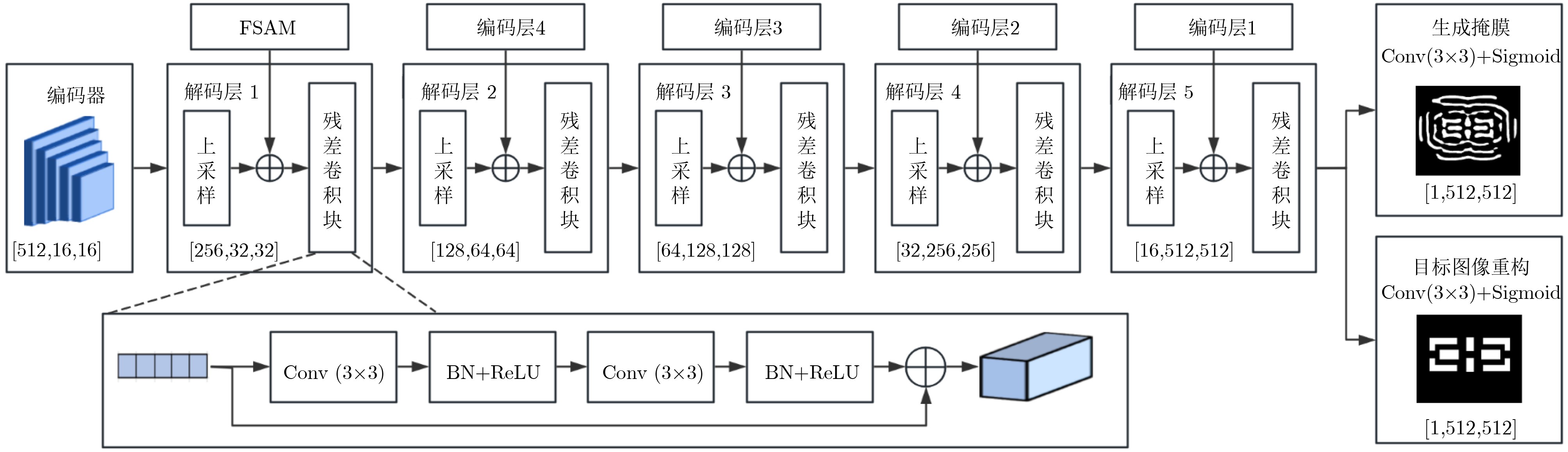

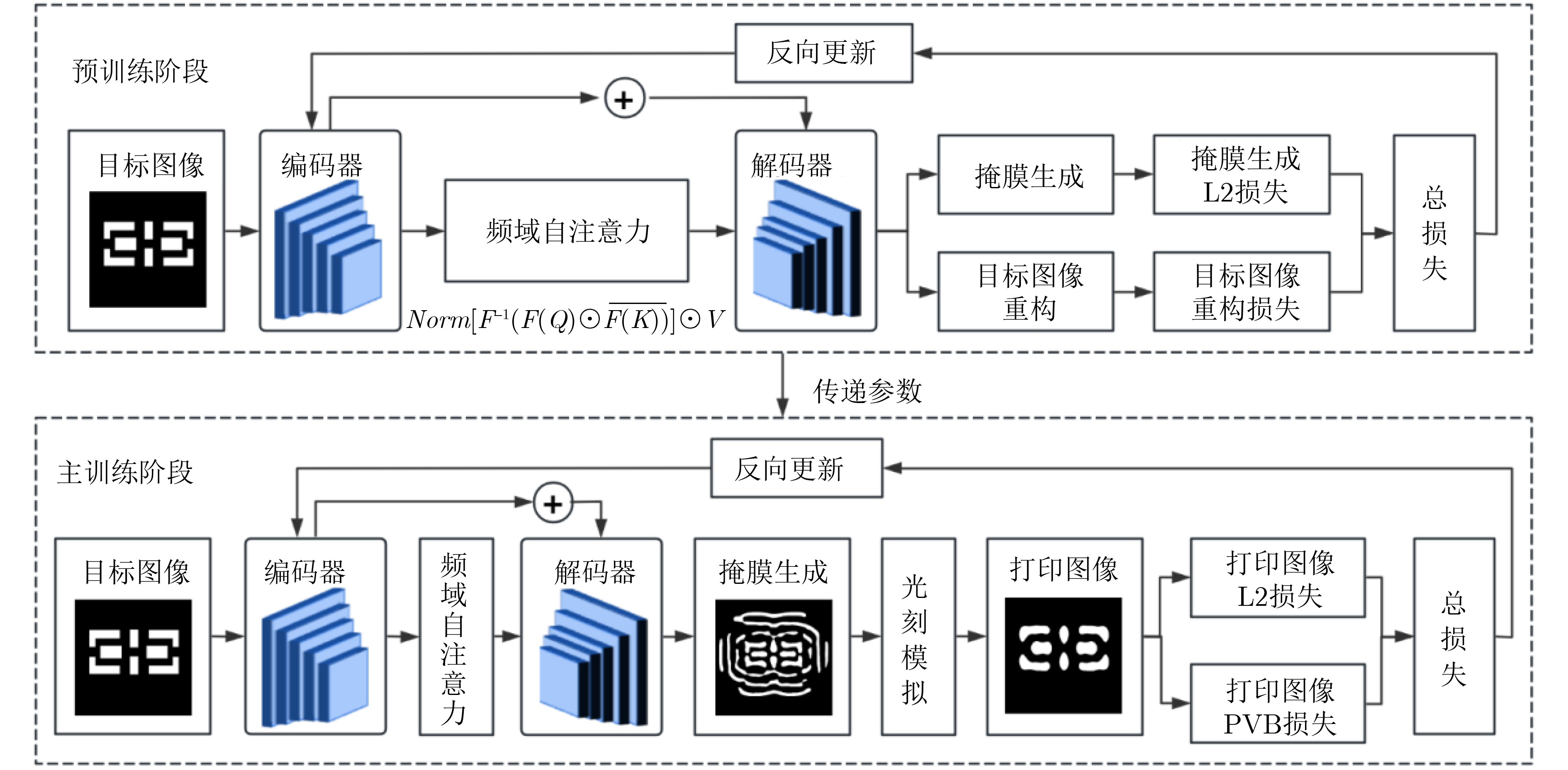

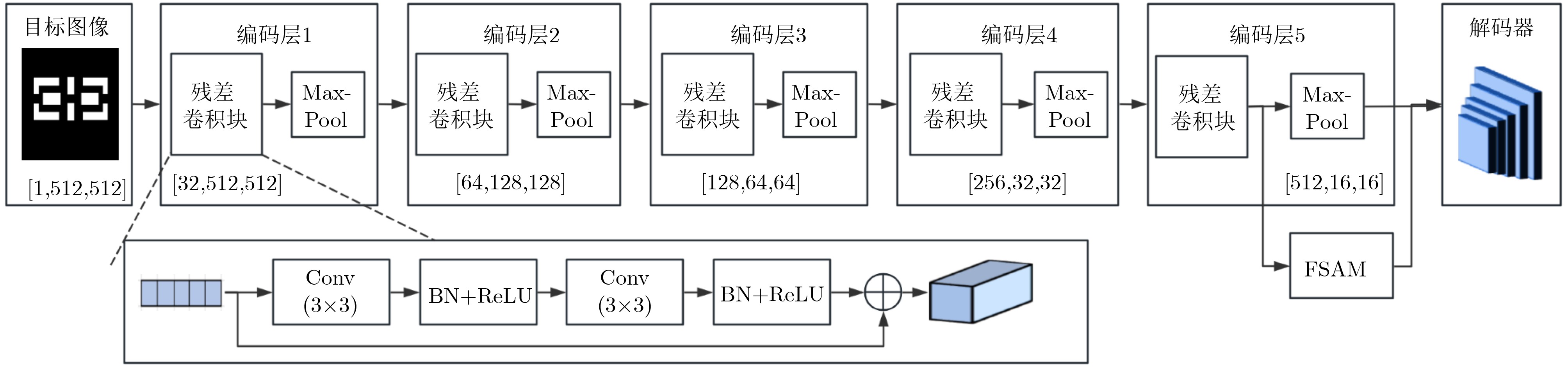

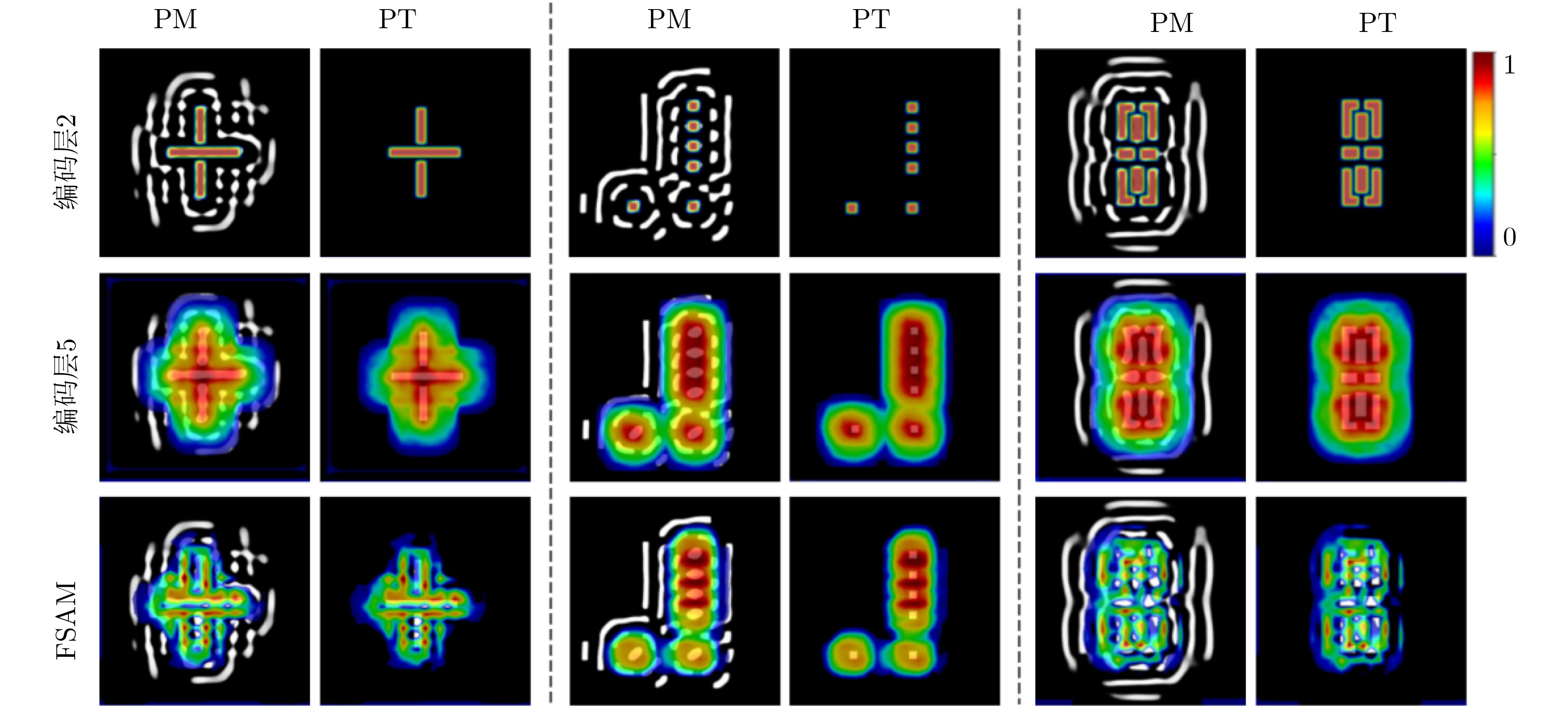

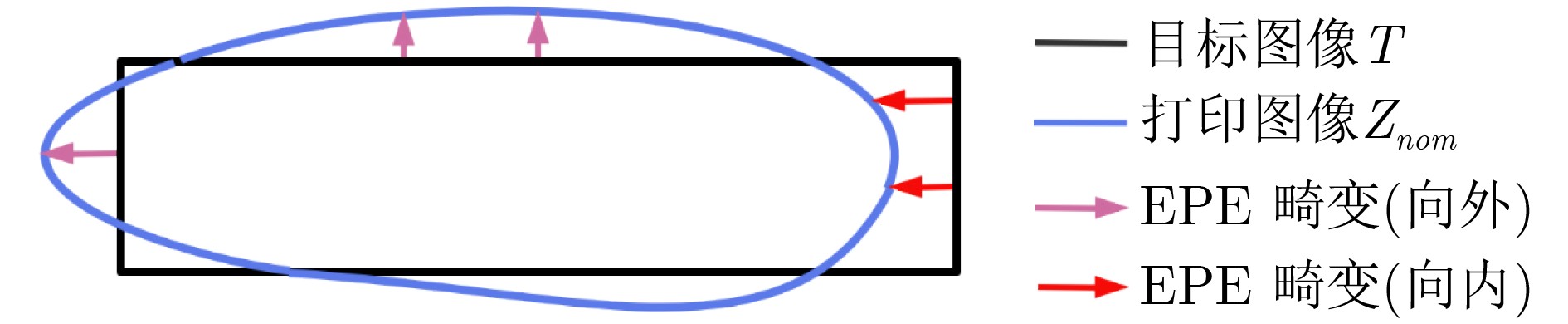

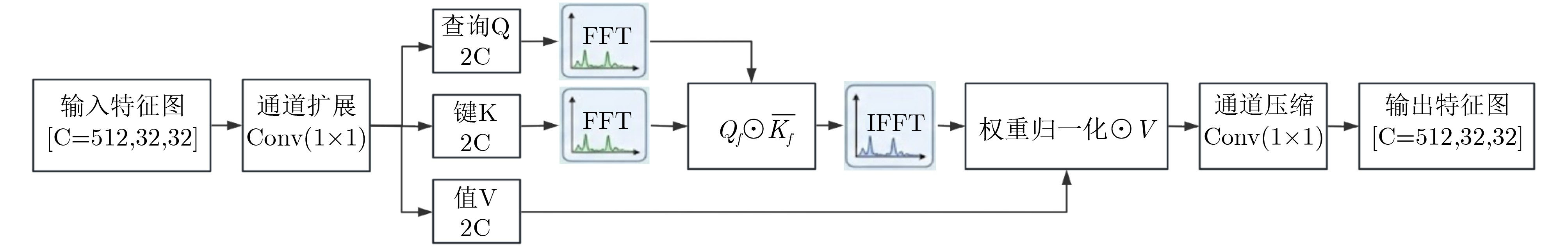

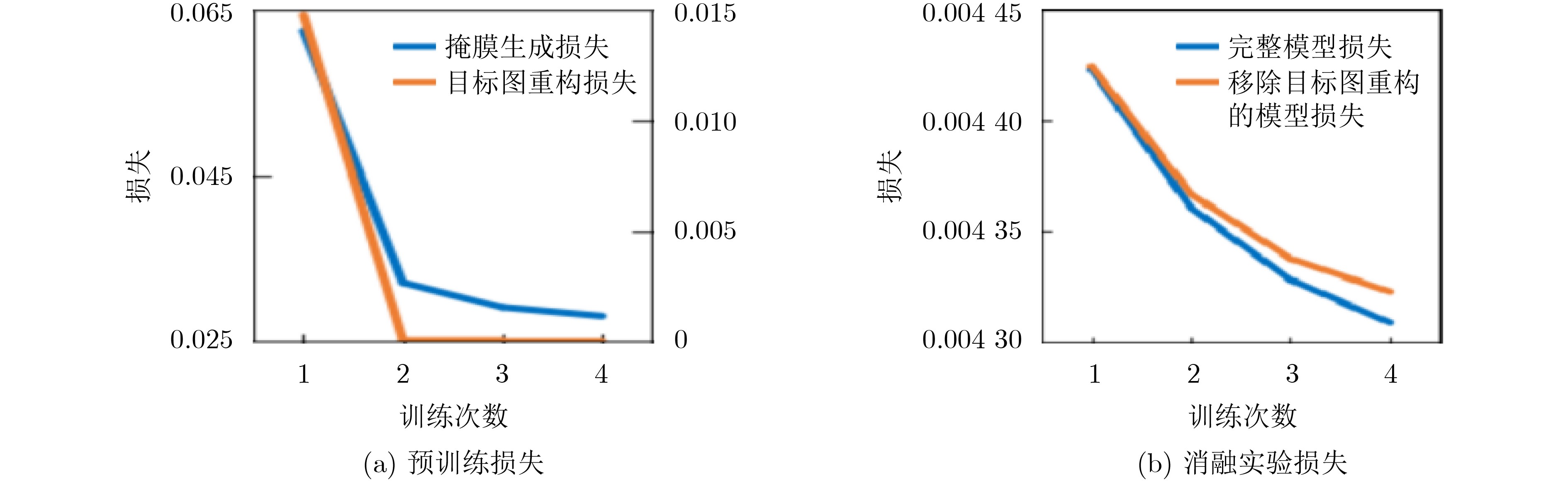

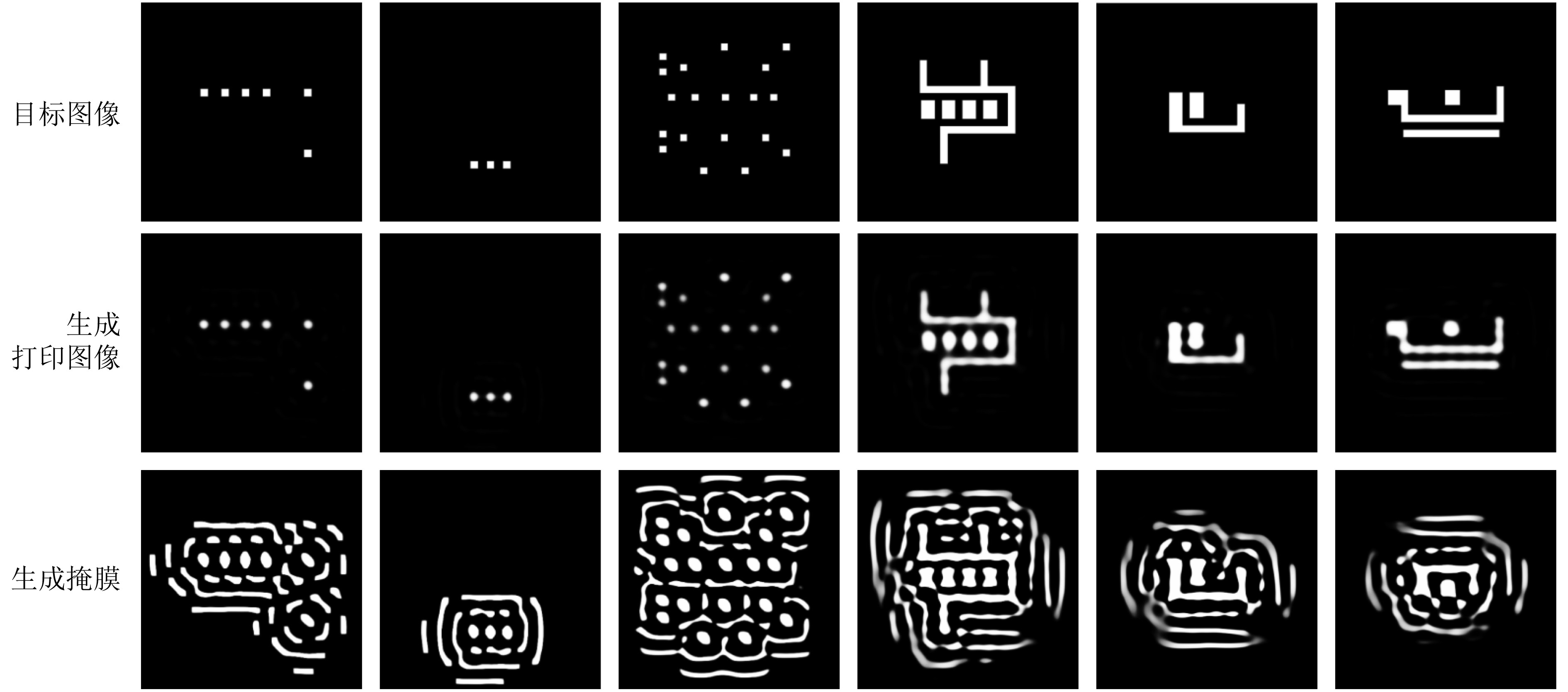

Objective Optical Proximity Effects (OPE) in lithographic processes cause printed patterns on wafers to deviate from target layouts, necessitating Optical Proximity Correction (OPC) through mask optimization prior to exposure. Traditional rule-based OPC methods suffer from significant accuracy degradation when handling complex layouts, while model-based OPC approaches incur high computational cost. In recent years, deep learning--based methods have been introduced to accelerate mask generation; however, their limited receptive fields hinder effective modeling of long-range optical interference effects, thereby constraining optimization accuracy. To address these challenges, this work proposes a Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology (FMS-ILT), which jointly models local geometric details and global optical interactions, leading to improved printed image fidelity, edge placement accuracy, and process robustness. Methods FMS-ILT adopts a residual convolution--based multi-scale encoder--decoder architecture, where shallow layers extract fine-grained geometric features such as edges and corners, while deeper layers capture large-scale layout context. Residual blocks and multi-level skip connections are employed to preserve high-frequency information and stabilize training. To overcome the limited receptive field of spatial convolutions, a Frequency Domain Self-Attention Mechanism (FSAM) is introduced at the encoder output. Global feature interactions are enabled via the Fourier transform, and the resulting attention responses are mapped back to the spatial domain through the inverse Fourier transform to adaptively reweight feature representations. A two-stage training strategy is adopted. During pretraining, a dual-branch structure is used to jointly learn mask geometry and imaging consistency, providing physically meaningful initialization. During main training, lithography simulation is applied under nominal, maximum, and minimum process conditions to further refine mask optimization under physical constraints. Results and Discussions The comparison results with baseline models are summarized in Tables 2 and 3. Our method is set as the reference (Ratio = 1), and all experiments are conducted on the LithoBench dataset. In terms of overall imaging $ \mathcal{L}2 $ error, our method achieves the lowest value of 19,998, outperforming baseline models by 2%–107%. For the process robustness metric Process Variation Band (PVB), GAN-OPC obtains the best result of 19,156, which is 31% lower than ours; however, its $ \mathcal{L}2 $ error and EPE are 107% and 1115% higher, respectively, indicating an imbalance between imaging fidelity and edge accuracy. The remaining baseline models exhibit PVB performance comparable to ours. Regarding Edge Placement Error (EPE), our method also demonstrates a significant advantage, achieving an average EPE of 1.95, which is 47%–1115% lower than the baselines. These improvements can be attributed to three key factors: (1) a multi-scale encoder–decoder fusion mechanism that effectively integrates local and global features, (2) the combination of attention mechanisms and frequency-domain operations to guide the model toward critical regions, and (3) a dual-branch pretraining strategy that injects physical priors into the network. With these modules jointly contributing, FMS-ILT achieves more balanced and superior performance in imaging fidelity, process stability, and edge accuracy. Conclusions This work proposes a Frequency Domain Self-Attention Guided Multi-Scale Inverse Lithography Technology (FMS-ILT). The model adopts a residual convolution--based multi-scale encoder--decoder architecture to extract rich spatial features and incorporates a frequency-domain self-attention mechanism to jointly model local geometric details and global optical interference characteristics. A two-stage training strategy is employed. In the pretraining stage, a dual-branch task of mask generation and target image reconstruction is used to enhance the physical consistency between the mask and the printed image. In the main training stage, lithography simulation is introduced to further improve imaging accuracy and process robustness. Experimental results on the public LithoBench dataset demonstrate that FMS-ILT achieves superior performance in terms of $ \mathcal{L}2 $, PVB, and EPE metrics, effectively improving printed image quality and providing a feasible and efficient solution for computational lithography.
- Mask optimization,
- Inverse lithography,
- Frequency Domain Self-Attention,
- Multi-Scale

FullText(HTML)

References(25)

References

[1]	MACK C A. Corner rounding and line-end shortening in optical lithography[C]. Proceedings of SPIE 4226, Microlithographic Techniques in Integrated Circuit Fabrication II, Singapore, Singapore, 2000: 83–92. doi: 10.1117/12.404843.
[2]	CHOU D and MCALLISTER K. Line end optimization through optical proximity correction (OPC): A case study[C]. Proceedings of SPIE 6154, Optical Microlithography XIX, San Jose, USA, 2006: 61543A. doi: 10.1117/12.651455.
[3]	STEWART M D, SCHMID G M, POSTNIKOV S V, et al. Mechanistic understanding of line-end shortening[C]. Proceedings of SPIE 4345, Advances in Resist Technology and Processing XVIII, Santa Clara, USA, 2001: 10–18. doi: 10.1117/12.436844.
[4]	YU Ziyang, ZHENG Su, ZHAO Wenqian, et al. RuleLearner: OPC rule extraction from inverse lithography technique engine[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2025, 44(5): 1915–1927. doi: 10.1109/TCAD.2024.3499909.
[5]	SUZUKI M, KIMURA T, INOUE J, et al. A novel pre-processing approach for OPC using LSMR[C]. Proceedings of SPIE 13425, DTCO and Computational Patterning IV, San Jose, USA, 2025: 1342510. doi: 10.1117/12.3050121.
[6]	CHEN Guojin, YANG Haoyu, REN H M, et al. Differentiable edge-based OPC[C]. Proceedings of the 43rd IEEE/ACM International Conference on Computer-Aided Design (ICCAD), Newark, USA, 2024: 47. doi: 10.1145/3676536.3676764.
[7]	HOPKINS H H. On the diffraction theory of optical images[J]. Proceedings of the Royal Society of London. Series A. Mathematical and Physical Sciences, 1953, 217(1130): 408–432. doi: 10.1098/rspa.1953.0071.
[8]	GOODMAN J W. Introduction to Fourier Optics[M]. 3rd ed. Englewood: Roberts & Company Publishers, 2005: 124–146.
[9]	ZHENG Su, XIAO Gang, YAN Ge, et al. Model-based OPC extension in OpenILT[C]. 2024 2nd International Symposium of Electronics Design Automation (ISEDA), Xi'an, China, 2024: 568–573. doi: 10.1109/ISEDA62518.2024.10617951.
[10]	ZHANG Shengen, MA Xu, HUANG Chaojun, et al. Model-driven optical proximity correction via hypergraph convolutional neural networks and its experimental demonstration[J]. Optics & Laser Technology, 2025, 183: 112199. doi: 10.1016/j.optlastec.2024.112199.
[11]	GIBOU F, FEDKIW R, and OSHER S. A review of level-set methods and some recent applications[J]. Journal of Computational Physics, 2018, 353: 82–109. doi: 10.1016/j.jcp.2017.10.006.
[12]	ZHENG Su, LIANG Xiaoxiao, YU Ziyang, et al. Curvilinear optical proximity correction via cardinal spline[C]. 2025 62nd ACM/IEEE Design Automation Conference (DAC), San Francisco, USA, 2025: 1–7. doi: 10.1109/DAC63849.2025.11133367.
[13]	SHEN Yijiang and ZHANG Zhenrong. Variational level-set formulation for lithographic source and mask optimization[J]. Journal of Microelectronic Manufacturing, 2018, 1(2): 18010203. doi: 10.33079/jomm.18010203.
[14]	HUANG Kai, ZHANG Xiaomeng, ZHENG Dandan, et al. A scalable and adaptable ILP-based approach for task mapping on MPSoC considering load balance and communication optimization[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2019, 38(9): 1744–1757. doi: 10.1109/tcad.2018.2859400.
[15]	ZHENG Su, YANG Haoyu, ZHU Binwu, et al. LithoBench: Benchmarking AI computational lithography for semiconductor manufacturing[C]. Proceedings of the 37th International Conference on Neural Information Processing Systems, New Orleans, USA, 2023: 1315. doi: 10.52202/075280-1315.
[16]	YANG Haoyu, LI Shuhe, DENG Zihao, et al. GAN-OPC: Mask optimization with lithography-guided generative adversarial nets[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2020, 39(10): 2822–2834. doi: 10.1109/TCAD.2019.2939329.
[17]	JIANG Bentian, LIU Lixin, MA Yuzhe, et al. Neural-ILT: Migrating ILT to neural networks for mask printability and complexity co-optimization[C]. 39th IEEE/ACM International Conference on Computer-Aided Design, San Diego, USA, 2020: 20. doi: 10.1145/3400302.3415704.
[18]	CHEN Guojin, CHEN Wanli, MA Yuzhe, et al. DAMO: Deep agile mask optimization for full chip scale[C]. 39th IEEE/ACM International Conference on Computer-Aided Design, San Diego, USA, 2020: 19. doi: 10.1145/3400302.3415705.
[19]	YANG Haoyu and REN Haoxing. Enabling scalable AI computational lithography with physics-inspired models[C]. Proceedings of the 28th Asia and South Pacific Design Automation Conference, Tokyo, Japan, 2023: 715–720. doi: 10.1145/3566097.3568361.
[20]	SUN Shuyuan, YANG Fan, YU Bei, et al. Efficient ILT via multi-level lithography simulation[C]. 2023 60th ACM/IEEE Design Automation Conference (DAC), San Francisco, USA, 2023: 1–6. doi: 10.1109/DAC56929.2023.10247704.
[21]	阮东升, 施哲彬, 王嘉辉, 等. 结合跨模态特征激励与双分支交叉注意力融合的左心房疤痕分割方法[J]. 电子与信息学报, 2025, 47(5): 1596–1608. doi: 10.11999/JEIT240775. RUAN Dongsheng, SHI Zhebin, WANG Jiahui, et al. Left atrial scar segmentation method combining cross-modal feature excitation and dual branch cross attention fusion[J]. Journal of Electronics & Information Technology, 2025, 47(5): 1596–1608. doi: 10.11999/JEIT240775.
[22]	RONNEBERGER O, FISCHER P, and BROX T. U-Net: Convolutional networks for biomedical image segmentation[C]. 18th International Conference on Medical Image Computing and Computer-Assisted Intervention (MICCAI), Munich, Germany, 2015: 234–241. doi: 10.1007/978-3-319-24574-4_28.
[23]	ZHU Binwu, ZHENG Su, MA Yuzhe, et al. Bridging hotspot detection and mask optimization via domain-crossing masked layout modeling[J]. ACM Transactions on Design Automation of Electronic Systems, 2025, 30(4): 54. doi: 10.1145/3728468.
[24]	古天龙, 张清智, 李晶晶. 基于时-频注意力机制网络的水声目标线谱增强[J]. 电子与信息学报, 2024, 46(1): 92–100. doi: 10.11999/JEIT230217. GU Tianlong, ZHANG Qingzhi, and LI Jingjing. Line spectrum enhancement of underwater acoustic targets based on a time-frequency attention network[J]. Journal of Electronics & Information Technology, 2024, 46(1): 92–100. doi: 10.11999/JEIT230217.
[25]	王开正, 曾瑶, 张占喜, 等. FCSNet: 频域感知的跨特征融合烟雾分割网络[J]. 电子与信息学报, 2025, 47(7): 2320–2333. doi: 10.11999/JEIT241021. WANG Kaizheng, ZENG Yao, ZHANG Zhanxi, et al. FCSNet: A frequency-domain aware cross-feature fusion network for smoke segmentation[J]. Journal of Electronics & Information Technology, 2025, 47(7): 2320–2333. doi: 10.11999/JEIT241021.
