Battery Pack Multi-Fault Diagnosis Algorithm Based on Dual-Perspective Spectral Attention Fusion

doi: 10.11999/JEIT251156 cstr: 32379.14.JEIT251156

LIU Mingjun^{1, 2},
GU Shenyu^{1, 2},
YIN Jingde^{1, 2},
ZHANG Yifan^{1, 2},
DONG Zhekang^{1, 2
,
,},
JI Xiaoyue³

1.
School of Electronic Information, Hangzhou Dianzi University, Hangzhou 310018, China
2.
Zhejiang Province Key Laboratory of Intelligent Vehicle Electronics, Hangzhou 310018, China
3.
Department of Precision Instrument, Tsinghua University, Beijing 100084, China

Funds: China Postdoctoral Science Foundation under Grants 2024T170463 and 2024M751676, National Natural Science Foundation of China under Grant 62206062, Zhejiang Provincial Natural Science Foundation of China under Grant No. LZYQ25F020005, and Ministry of Science and Technology-Yangtze River Delta Science and Technology Innovation Program under Grant 2023CSJGG1300

Accepted Date: 2025-12-22
Rev Recd Date: 2025-12-22

Available Online: 2026-01-03

Abstract

Abstract

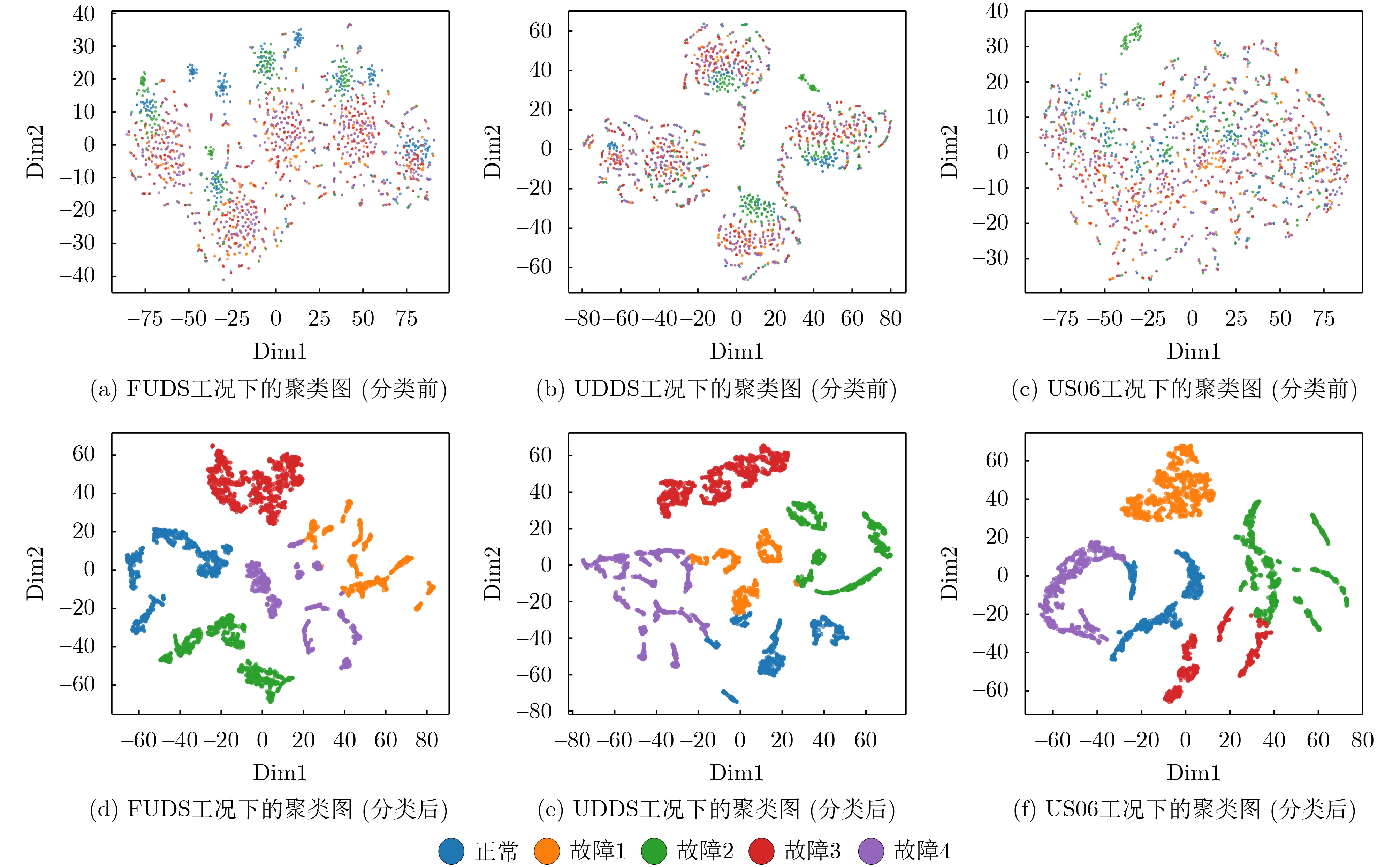

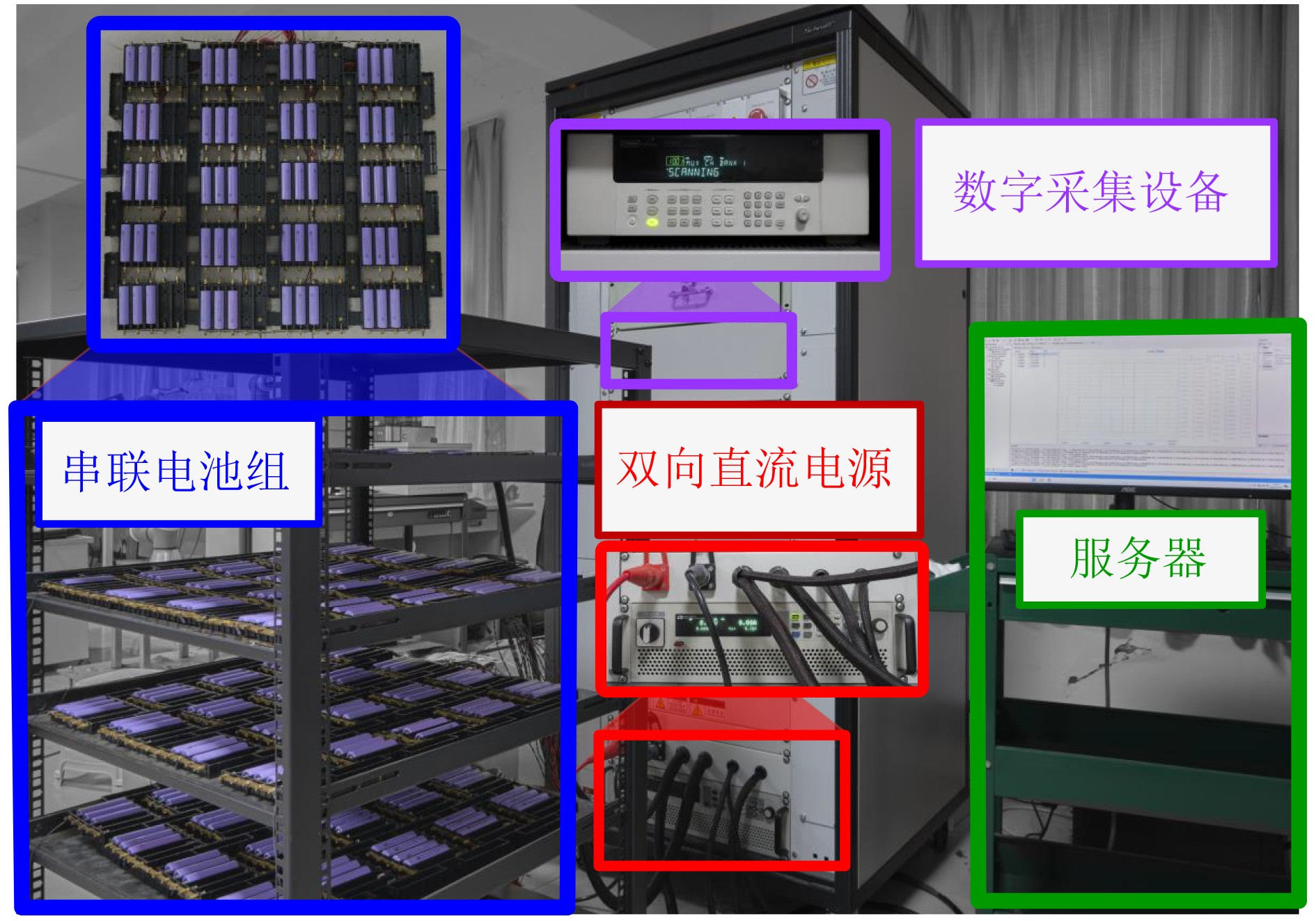

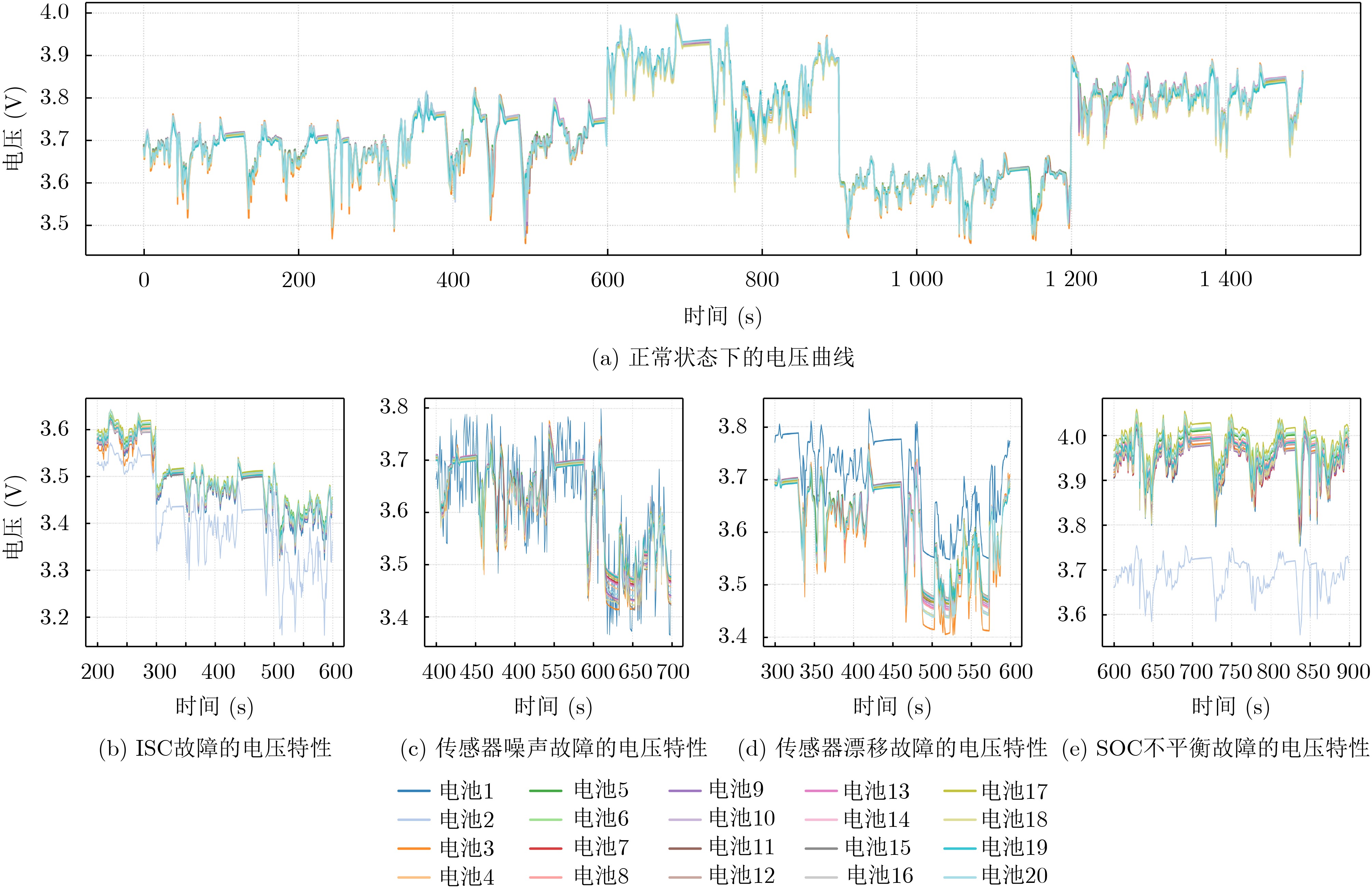

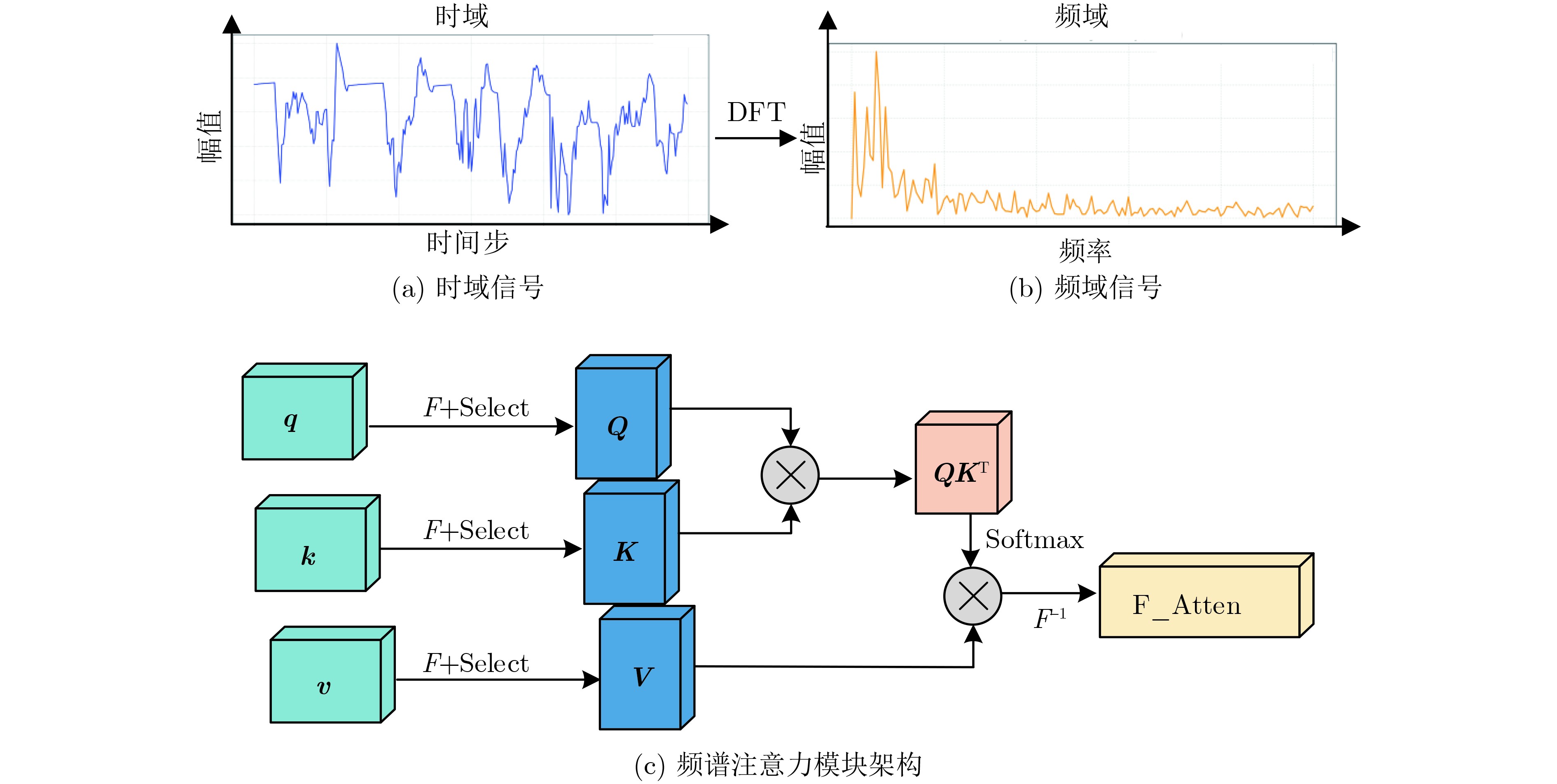

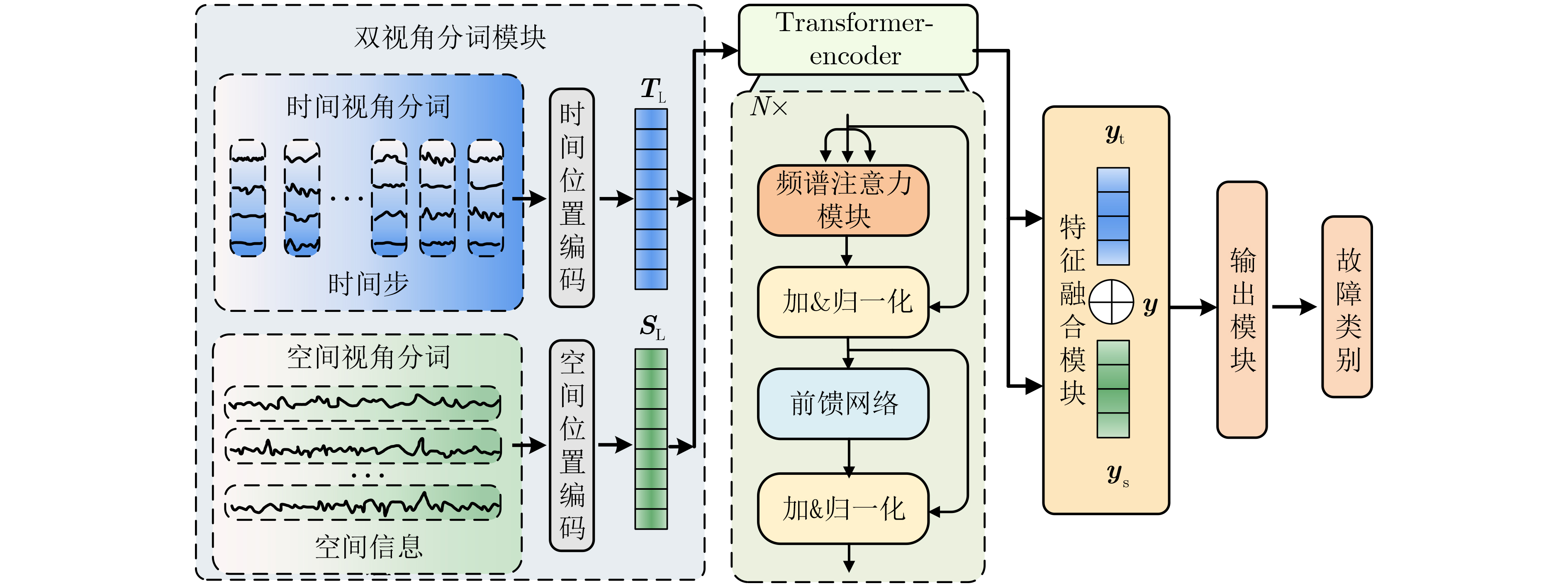

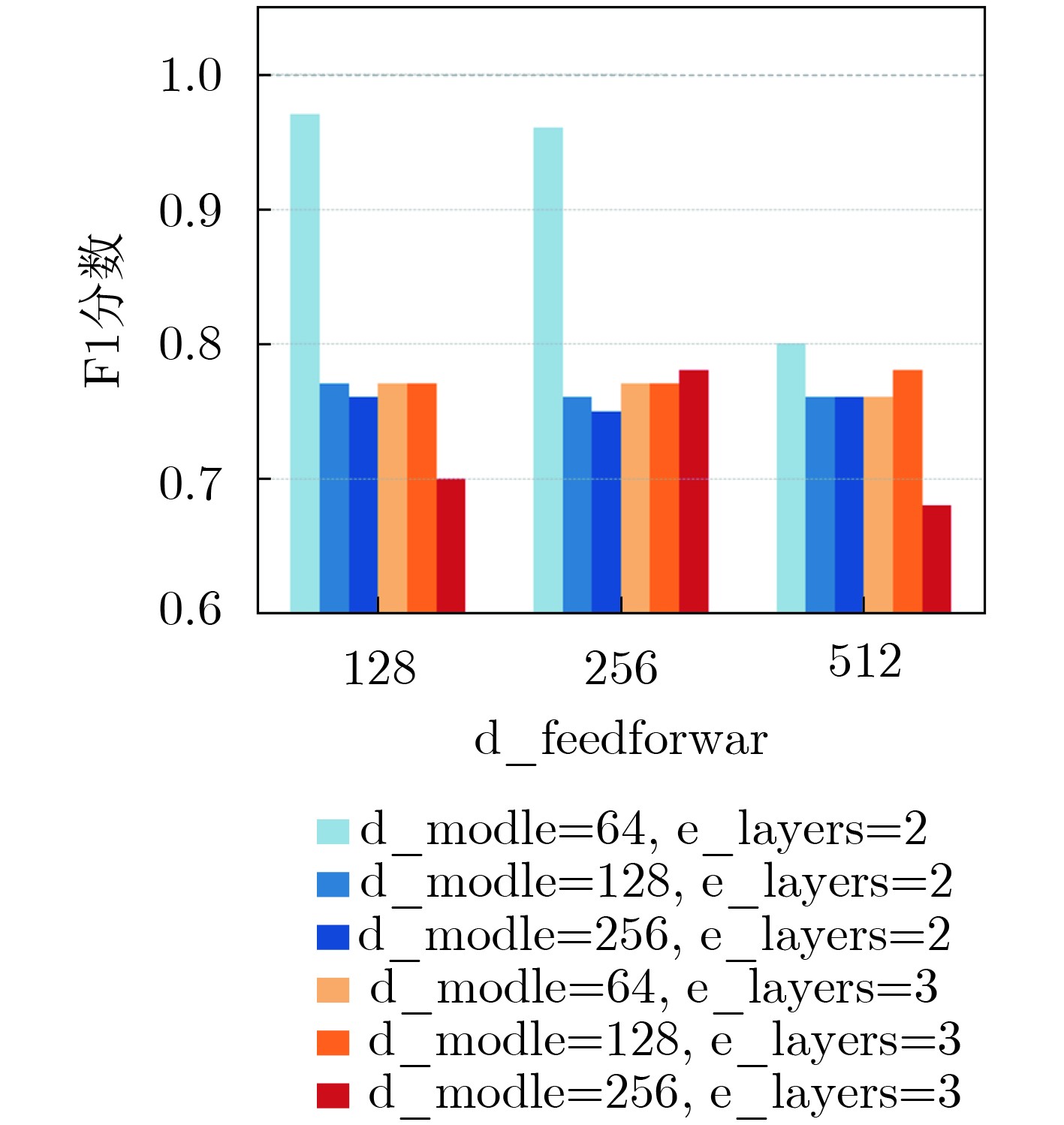

Objective With the rapid growth of electric vehicles and their widespread deployment, battery pack fault have become more frequent, highlighting the urgent need for efficient fault diagnosis methods. Although deep-learning-based approaches have made notable progress, existing studies remain limited in addressing multiple fault types—such as internal short circuit (ISC), sensor noise, sensor drift, and state-of-charge (SOC) inconsistency—and in modeling the coupling relationships among them. To overcome these limitations, this paper proposes a multi-fault diagnosis algorithm for battery packs based on dual-perspective spectral attention. A dual-perspective tokenization module is designed to comprehensively extract spatiotemporal features from battery data, while a spectral attention mechanism effectively addresses non-stationary time-series characteristics and captures long-term dependencies, thereby enhancing diagnostic performance. Experimental results under the Federal Urban Driving Schedule (FUDS), Urban Dynamometer Driving Schedule (UDDS), and Supplemental Federal Test Procedure (US06) demonstrate that the proposed method achieves average improvements of 10.98% in precision, 12.64% in recall, 13.84% in F1-score, and 13.45% in accuracy compared with existing multi-fault diagnosis methods. Furthermore, systematic ablation studies and robustness analyses are designed and implemented to compare the contribution mechanisms of core modules to the overall model performance, while fully validating the anti-interference capability and robustness of the proposed method in complex noisy environments. Overall, the dual-perspective spectral attention framework not only improves multi-fault diagnosis performance but also offers a new perspective for modeling complex spatiotemporal features, providing a promising solution for enhancing vehicle safety. Methods To enhance spatiotemporal feature extraction and fault diagnosis performance, this paper proposes a dual-view spectral attention fusion algorithm for battery pack multi-fault diagnosis. The overall architecture consists of four core modules (Fig. 3): a dual-view tokenization module, a spectral attention module, a feature fusion module and an output module. The dual-view tokenization module employs positional encoding to jointly model temporal and spatial dimensions, enabling comprehensive spatiotemporal feature extraction. When combined with the spectral attention mechanism, the model’s ability to handle non-stationary characteristics is significantly improved, leading to enhanced diagnostic performance. In addition, to address the lack of comprehensive publicly available datasets for battery pack fault diagnosis, a new dataset is constructed, including internal short circuit, sensor noise, sensor drift, and state-of-charge imbalance faults. The dataset covers three operating conditions—FUDS, UDDS, and US06—effectively alleviating data scarcity in this research field. Results and Discussions Experimental results indicate that the proposed method improves the average precision, recall, F1 score and accuracy by 10.98%, 12.64%, 13.84% and 13.45%, respectively, compared to the existing optimal fault diagnosis methods. The comparison experiments under different operating conditions (Table 7), validate this conclusion. While traditional CNN algorithms perform well in local feature extraction, their fixed-size convolutional kernels struggle to adapt to time features of varying frequencies, leading to insufficient long-term temporal dependency and global feature capture. RNN-based methods exhibit lower computational efficiency when processing large-scale datasets. Transformer-based models face limitations in spatial feature extraction and capturing temporal variations. In contrast, the proposed algorithm overcomes these shortcomings through an integrated architectural design. Ablation experiments demonstrate the contribution of each module to the model's performance (Table 8), the complete framework improves the average F1 score and accuracy by 9.30% and 9.26%, respectively, compared to its ablation variants. Robustness analysis under simulated noise environments (Table 9), reveals that the proposed method achieves an accuracy improvement of 49.95% to 124.34% over baseline methods at noise levels ranging from -2 dB to -8 dB, demonstrating superior noise resistance. Conclusions This paper presents a multi-fault diagnosis algorithm for battery packs that fuses dual-view tokenization with spectral attention to integrate spatiotemporal and spectral information. The dual-view tokenization module performs tokenization and positional encoding along both temporal and spatial axes, substantially improving the model’s spatiotemporal representation. The spectral attention mechanism enhances modeling of non-stationary signals and long-term dependencies. Experiments under FUDS, UDDS, and US06 driving cycles show that the proposed method outperforms existing multi-fault diagnosis techniques, with average gains of 13.84% in F1 score and 13.45% in accuracy. Ablation studies confirm that both modules make substantial contributions and that their combination enables superior handling of complex time-series features. Under high-noise conditions (–2 dB, –4 dB, –6 dB, –8 dB), the method also demonstrates enhanced robustness, with accuracy improvements over baselines of 49.95%, 90.39%, 112.01%, and 124.34%, respectively. Despite these promising results, this study has three limitations. First, the data are primarily derived from laboratory simulations; thus, the model’s generalization to real-world operating conditions requires further verification. Second, the current work has not fully considered the impact of fault severity on BMS hierarchical decision-making, and future work will focus on constructing a fault-severity grading mechanism. Third, the model’s physical interpretability requires improvement; subsequent research will attempt to incorporate equivalent circuit models or electrochemical mechanism models to balance high accuracy with greater interpretability.
- Multi-fault diagnosis,
- Lithium-ion battery pack,
- Spectral Attention
