Low-Complexity Joint Estimation Algorithm for Carrier Frequency Offset and Sampling Frequency Offset in 5G-NTN Low Earth Orbit Satellite Communications

GONG Xianfeng; LI Ying; LIU Mingyang; ZHAI Shenghua

doi:10.11999/JEIT251086

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

GONG Xianfeng, LI Ying, LIU Mingyang, ZHAI Shenghua. Low-Complexity Joint Estimation Algorithm for Carrier Frequency Offset and Sampling Frequency Offset in 5G-NTN Low Earth Orbit Satellite Communications[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251086

Citation:

GONG Xianfeng, LI Ying, LIU Mingyang, ZHAI Shenghua. Low-Complexity Joint Estimation Algorithm for Carrier Frequency Offset and Sampling Frequency Offset in 5G-NTN Low Earth Orbit Satellite Communications[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251086

Citation:

GONG Xianfeng, LI Ying, LIU Mingyang, ZHAI Shenghua. Low-Complexity Joint Estimation Algorithm for Carrier Frequency Offset and Sampling Frequency Offset in 5G-NTN Low Earth Orbit Satellite Communications[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251086

PDF( 3053 KB)

Low-Complexity Joint Estimation Algorithm for Carrier Frequency Offset and Sampling Frequency Offset in 5G-NTN Low Earth Orbit Satellite Communications

doi: 10.11999/JEIT251086 cstr: 32379.14.JEIT251086

GONG Xianfeng^{1, 2},
LI Ying^{1
,
,},
LIU Mingyang^{1, 2},
ZHAI Shenghua²

1.
School of Telecommunications Engineering, Xidian University, Xi’an 710071, China
2.
China Academy of Space Technology (CAST)-Xi’an Institute of Space Radio Technology, Xi’an 710010, China

Funds: The National Natural Science Foundation of China(62131016, 62471363)

Accepted Date: 2025-12-02
Rev Recd Date: 2025-12-02

Available Online: 2025-12-05

Abstract

Abstract

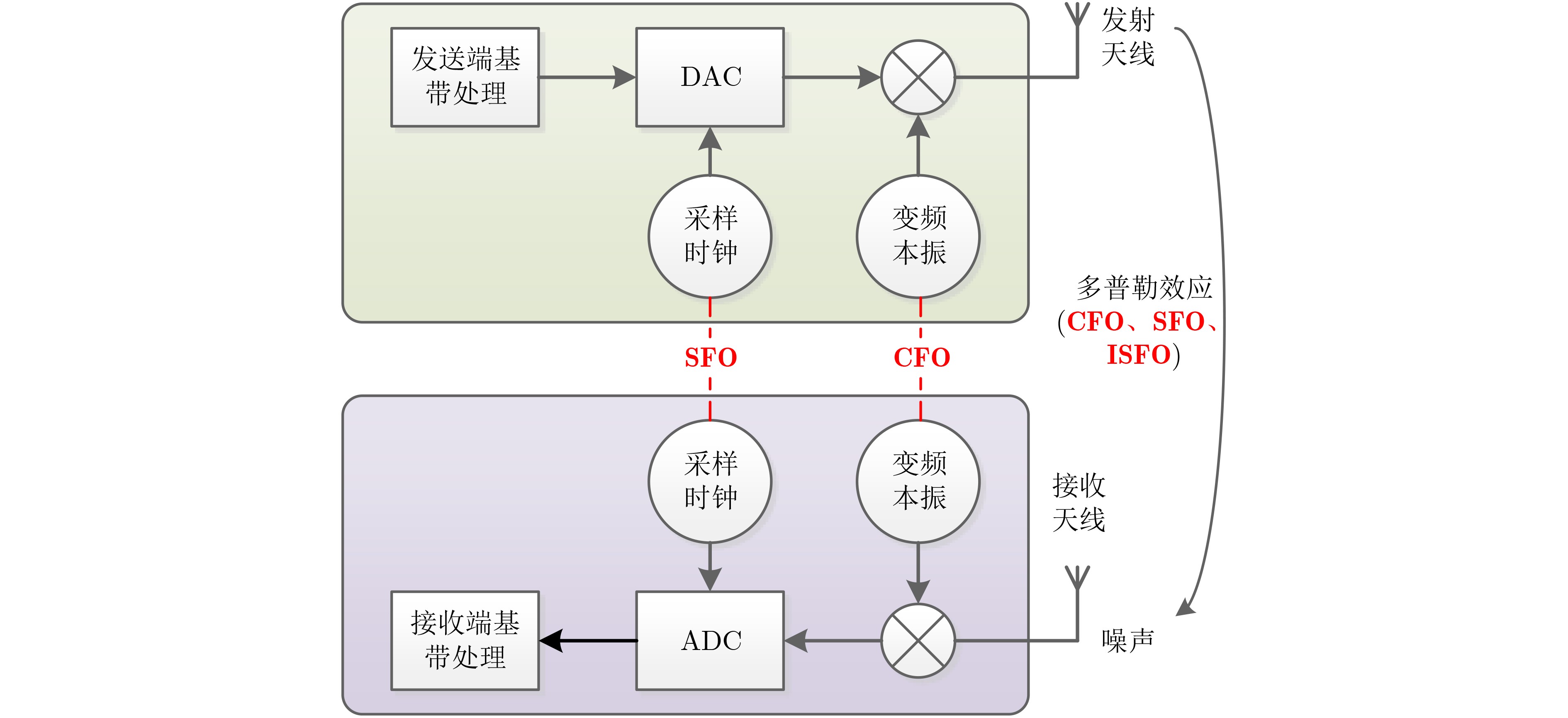

Objective The Doppler effect presents a major impairment in Low Earth Orbit (LEO) satellite communications within 5G Non-Terrestrial Networks (5G-NTN), introducing Carrier Frequency Offset (CFO), Sampling Frequency Offset (SFO), and Inter-Subcarrier Frequency Offset (ISFO) across subcarriers. Although existing estimation algorithms focus mainly on CFO and SFO, the effect of ISFO remains inadequately addressed. ISFO becomes particularly detrimental to receiver performance when OFDM systems utilize a large number of subcarriers and high-order modulation. Moreover, under joint CFO and SFO conditions, conventional maximum likelihood estimation (MLE) methods often involve one- or two-dimensional grid searches, incurring high computational complexity. To mitigate these issues, this paper proposes two novel joint estimation algorithms for CFO and SFO. Methods This paper analyzes the influence of non-ideal factors at the transmitter, receiver, and channel, such as local oscillator offset, sampling frequency offset in Digital-to-Analog and Analog-to-Digital converters, and Doppler effect. A mathematical model for the received OFDM signal is developed, and the mechanism through which SFO and ISFO distort the phase of frequency-domain subcarriers is derived. Leveraging the pilot structure of 5G-NTN, two joint CFO and SFO estimation algorithms are introduced: (1) Algorithm 1 exploits the sequence correlation between the received frequency-domain DMRS signal vectors, denoted as and . After phase pre-compensation is applied to , the normalized cross-correlation vector is computed. An objective function is constructed based on this vector, and its unimodal property within the main lobe is utilized to efficiently estimate the parameters via a bisection search. (2) Algorithm 2 treats the estimation parameters as analogous to carrier frequency offsets in single-carrier systems and adopts an L&R-based autocorrelation approach to derive approximate closed-form expressions. Results and Discussions A computational complexity analysis is performed comparing the proposed algorithms with conventional one-dimensional (1D-ML) and two-dimensional (2D-ML) grid-search MLE methods. Numerical results demonstrate that Algorithm 1 achieves substantial complexity reduction. Specifically, the number of complex multiplications—the dominant computational cost—is only 4% of that of the 2D-ML method, 8% of that of Algorithm 2, and 44% of that of the 1D-ML method. Although Algorithm 2 is computationally heavier, it provides a closed-form estimation expression. The performance of each algorithm is evaluated in terms of the mean square error (MSE) of the estimated parameters. Simulations show that for a subcarrier number of 3072, the 1D-ML algorithm slightly outperforms others at SNRs below 5 dB. However, since robust modulation schemes (e.g., BPSK, QPSK) typically used at low SNRs can tolerate larger offsets, the medium-to-high SNR regime is of greater practical interest, where all four algorithms exhibit comparable estimation performance. Conclusions This paper addresses the impact of Doppler effect in 5G-NTN LEO satellite communications by analyzing the mechanism and influence of ISFO and proposing two joint estimation algorithms for CFO and SFO. First, a mathematical model of the received signal is established considering non-ideal factors such as CFO, SFO, and ISFO. It is derived that the combined effect of SFO and ISFO on OFDM signals is equivalent to their linear superposition, effectively expanding the range of the equivalent SFO. Second, the objective function is defined using the cross-correlation vector of two DMRS sequences. Leveraging its unimodal characteristic within the main lobe, a binary search algorithm is employed to achieve rapid convergence. Subsequently, the parameter to be estimated—determined by SFO and ISFO—is analogized to the carrier frequency offset in single-carrier systems. An approximate closed-form solution for parameter estimation is derived using the L&R algorithm. Finally, complexity analysis and performance simulations are conducted. The results demonstrate that the proposed algorithms not only significantly reduce computational complexity but also exhibit excellent estimation performance. The outcomes of this research can be applied to the development of 5G-NTN LEO satellite payloads and terminal products, demonstrating promising potential for widespread application.

FullText(HTML)

References(17)

References

[1]	孙耀华, 彭木根, 赵亚飞, 等. 低轨卫星互联网: 从星地融合迈向通导遥一体化[J]. 北京邮电大学学报, 2024, 47(6): 69–98. doi: 10.13190/j.jbupt.2024-100. SUN Yaohua, PENG Mugen, ZHAO Yafei, et al. Low earth orbit satellite network: From satellite-terrestrial convergence to the integration of communication, navigation and sensing[J]. Journal of Beijing University of Posts and Telecommunications, 2024, 47(6): 69–98. doi: 10.13190/j.jbupt.2024-100.
[2]	周颖, 施倩, 李瑞瑜, 等. 天地一体化网络发展及关键技术概述[J]. 空间电子技术, 2025, 22(1): 28–39. doi: 10.3969/j.issn.1674-7135.2025.01.003. ZHOU Ying, SHI Qian, LI Ruiyu, et al. The overview of development and key technologies of the space-ground integrated network[J]. Space Electronic Technology, 2025, 22(1): 28–39. doi: 10.3969/j.issn.1674-7135.2025.01.003.
[3]	宋艳军, 孙晨华, 谢文轩, 等. 面向低轨卫星的NTN随机接入技术[J]. 天地一体化信息网络, 2024, 5(4): 17–24. doi: 10.11959/j.issn.2096-8930.2024035. SONG Yanjun, SUN Chenhua, XIE Wenxuan, et al. Random access technology of NTN network for low orbit satellite[J]. Space-Integrated-Ground Information Networks, 2024, 5(4): 17–24. doi: 10.11959/j.issn.2096-8930.2024035.
[4]	苏昭阳, 刘留, 艾渤, 等. 面向低轨卫星的星地信道模型综述[J]. 电子与信息学报, 2024, 46(5): 1684–1702. doi: 10.11999/JEIT230941. SU Zhaoyang, LIU Liu, AI Bo, et al. Survey of satellite-ground channel models for low earth orbit satellites[J]. Journal of Electronics & Information Technology, 2024, 46(5): 1684–1702. doi: 10.11999/JEIT230941.
[5]	SPETH M, FECHTEL S A, FOCK G, et al. Optimum receiver design for wireless broad-band systems using OFDM. I[J]. IEEE Transactions on Communications, 1999, 47(11): 1668–1677. doi: 10.1109/26.803501.
[6]	李炯卉, 熊蔚明, 姚辰. 卫星数传OFDM信号的多普勒效应影响分析[J]. 系统工程与电子技术, 2016, 38(12): 2849–2854. doi: 10.3969/j.issn.1001-506X.2016.12.25. LI Jionghui, XIONG Weiming, and YAO Chen. Analysis of Doppler effects on satellite data transmission of OFDM signals[J]. Systems Engineering and Electronics, 2016, 38(12): 2849–2854. doi: 10.3969/j.issn.1001-506X.2016.12.25.
[7]	李喆, 林威洪, 邓伟, 等. Starlink下行信号的多普勒效应影响分析[J]. 通信学报, 2024, 45(3): 131–141. doi: 10.11959/j.issn.1000-436x.2024029. LI Zhe, LIN Weihong, DENG Wei, et al. Analysis of the influence of Doppler effect on Starlink downlink signals[J]. Journal on Communications, 2024, 45(3): 131–141. doi: 10.11959/j.issn.1000-436x.2024029.
[8]	顾博文, 李林, 代传金, 等. 基于低轨卫星OFDM信号侦测的隐蔽定位算法研究[J]. 系统工程与电子技术, 2024, 46(12): 3957–3964. doi: 10.12305/j.issn.1001-506X.2024.12.03. GU Bowen, LI Lin, DAI Chuanjin, et al. Research on concealed positioning algorithm based on LEO satellites OFDM signal investigation and detection[J]. Systems Engineering and Electronics, 2024, 46(12): 3957–3964. doi: 10.12305/j.issn.1001-506X.2024.12.03.
[9]	NGUYEN-LE H, LE-NGOC T, and KO C C. RLS-based joint estimation and tracking of channel response, sampling, and carrier frequency offsets for OFDM[J]. IEEE Transactions on Broadcasting, 2009, 55(1): 84–94. doi: 10.1109/TBC.2008.2012361.
[10]	NGUYEN-LE H, LE-NGOC T, and KO C C. Joint channel estimation and synchronization for MIMO-OFDM in the presence of carrier and sampling frequency offsets[J]. IEEE Transactions on Vehicular Technology, 2009, 58(6): 3075–3081. doi: 10.1109/TVT.2008.2006178.
[11]	KIM Y H and LEE J H. Joint maximum likelihood estimation of carrier and sampling frequency offsets for OFDM systems[J]. IEEE Transactions on Broadcasting, 2011, 57(2): 277–283. doi: 10.1109/TBC.2011.2122890.
[12]	YUAN Jin and TORLAK M. Joint CFO and SFO estimator for OFDM receiver using common reference frequency[J]. IEEE Transactions on Broadcasting, 2016, 62(1): 141–149. doi: 10.1109/TBC.2015.2492470.
[13]	WANG Xu and HU Bo. A low-complexity ML estimator for carrier and sampling frequency offsets in OFDM systems[J]. IEEE Communications Letters, 2014, 18(3): 503–506. doi: 10.1109/LCOMM.2013.123113.132444.
[14]	PÄRLIN K, RIIHONEN T, LE NIR V, et al. Estimating and tracking wireless channels under carrier and sampling frequency offsets[J]. IEEE Transactions on Signal Processing, 2023, 71: 1053–1066. doi: 10.1109/TSP.2023.3259140.
[15]	3GPP. TR 38.811 Study on new radio (NR) to support non-terrestrial networks[S]. 3GPP, 2020. (查阅网上资料, 未找到本条文献出版地信息, 请确认).
[16]	ZHAI Shenghua, HUI Tengfei, GONG Xianfeng, et al. High performance receiving and processing technology in satellite beam hopping communication[J]. Journal of Systems Engineering and Electronics, 2024, 35(4): 815–828. doi: 10.23919/JSEE.2024.000076.
[17]	宁晓燕, 罗海玲, 孙志国, 等. 低信噪比场景下Link-16系统的联合频偏估计算法[J]. 电子与信息学报, 2023, 45(10): 3587–3593. doi: 10.11999/JEIT220967. NING Xiaoyan, LUO Hailing, SUN Zhiguo, et al. Joint frequency offset estimation for Link-16 system in low signal-noise ratio scene[J]. Journal of Electronics & Information Technology, 2023, 45(10): 3587–3593. doi: 10.11999/JEIT220967.
