Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors

JIN Bin; ZHANG Jialin; DU Chengzhu; CHU Jun

doi:10.11999/JEIT251050

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

JIN Bin, ZHANG Jialin, DU Chengzhu, CHU Jun. Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251050

Citation:

JIN Bin, ZHANG Jialin, DU Chengzhu, CHU Jun. Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251050

JIN Bin, ZHANG Jialin, DU Chengzhu, CHU Jun. Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251050

Citation:

JIN Bin, ZHANG Jialin, DU Chengzhu, CHU Jun. Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251050

PDF( 0 KB)

Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors

doi: 10.11999/JEIT251050 cstr: 32379.14.JEIT251050

School of Electronic and Information Engineering, Shanghai University of Electric Power, Shanghai 201306, China

Funds: Research on Key Issues of Hydrogel Optical Fiber Oxygen Sensing and Its Applications in Biomedical Engineering. This work was supported by the National Natural Science Foundation of China (No. 62205195)

Accepted Date: 2025-12-17
Rev Recd Date: 2025-12-17

Available Online: 2025-12-25

Abstract

Abstract

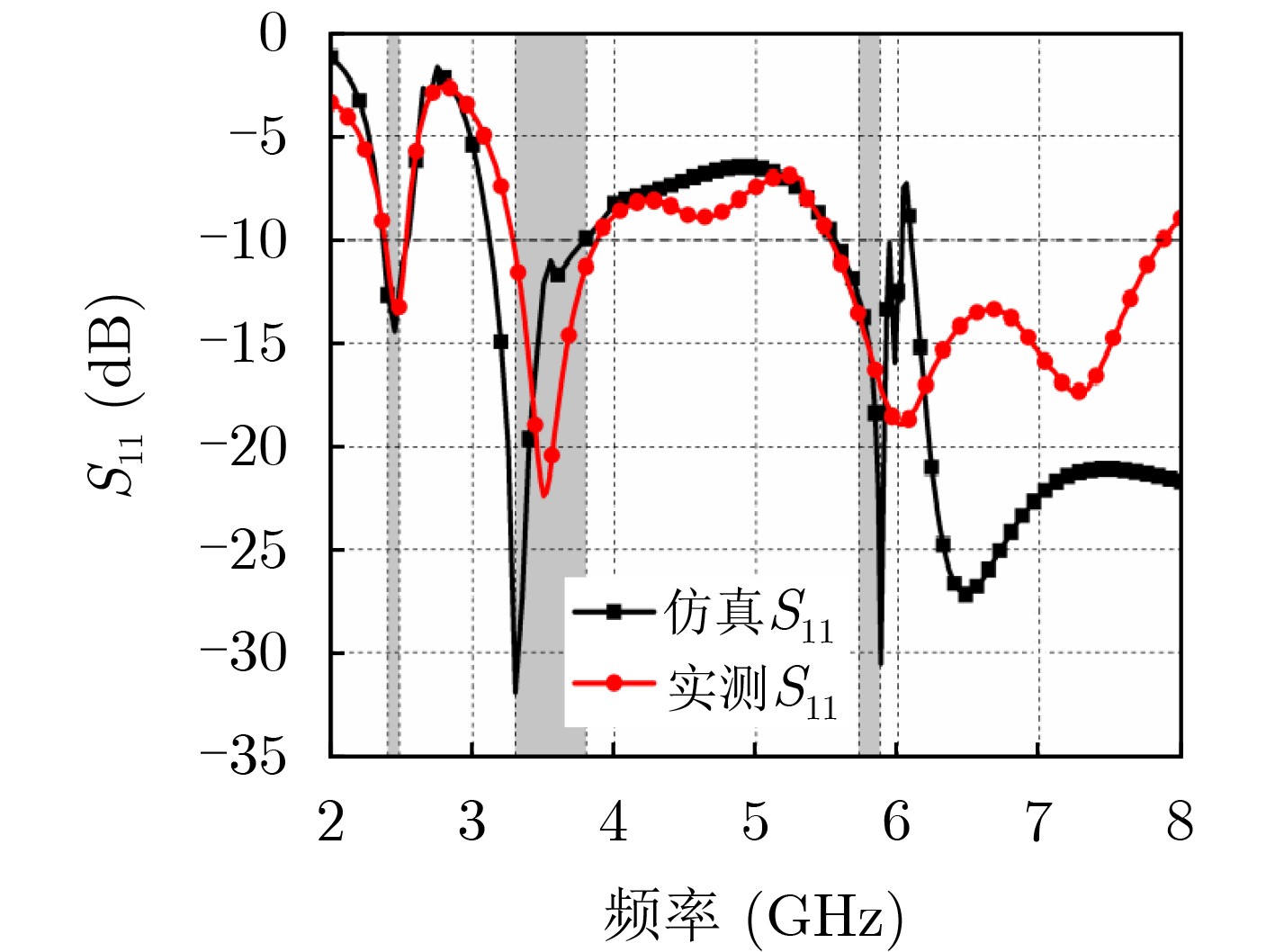

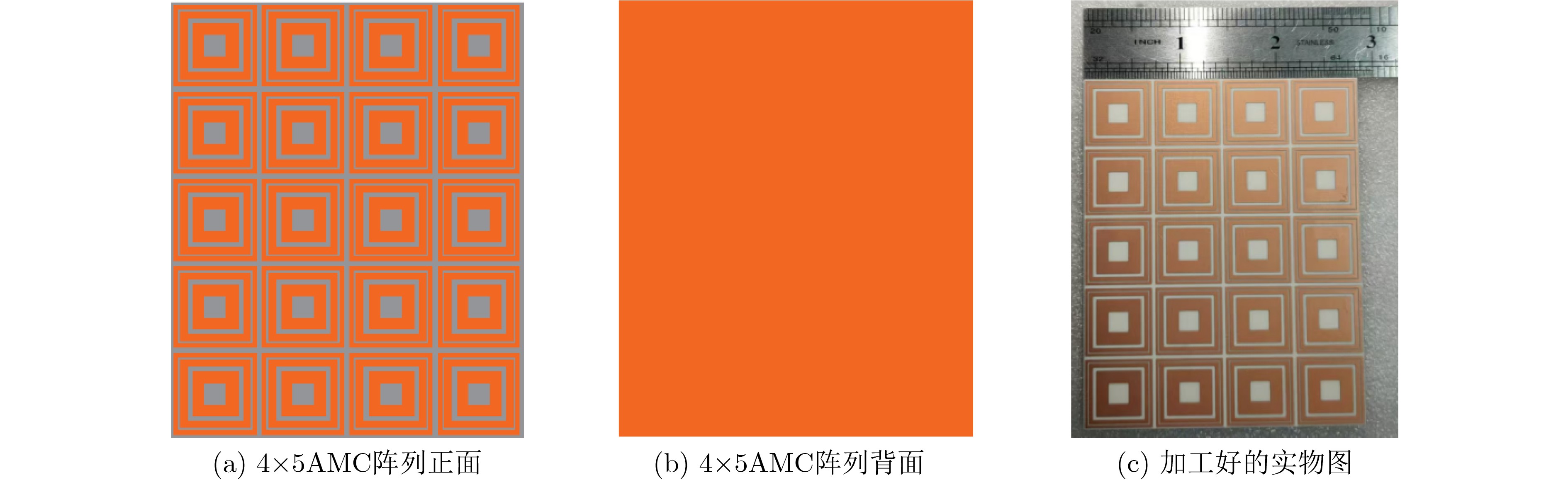

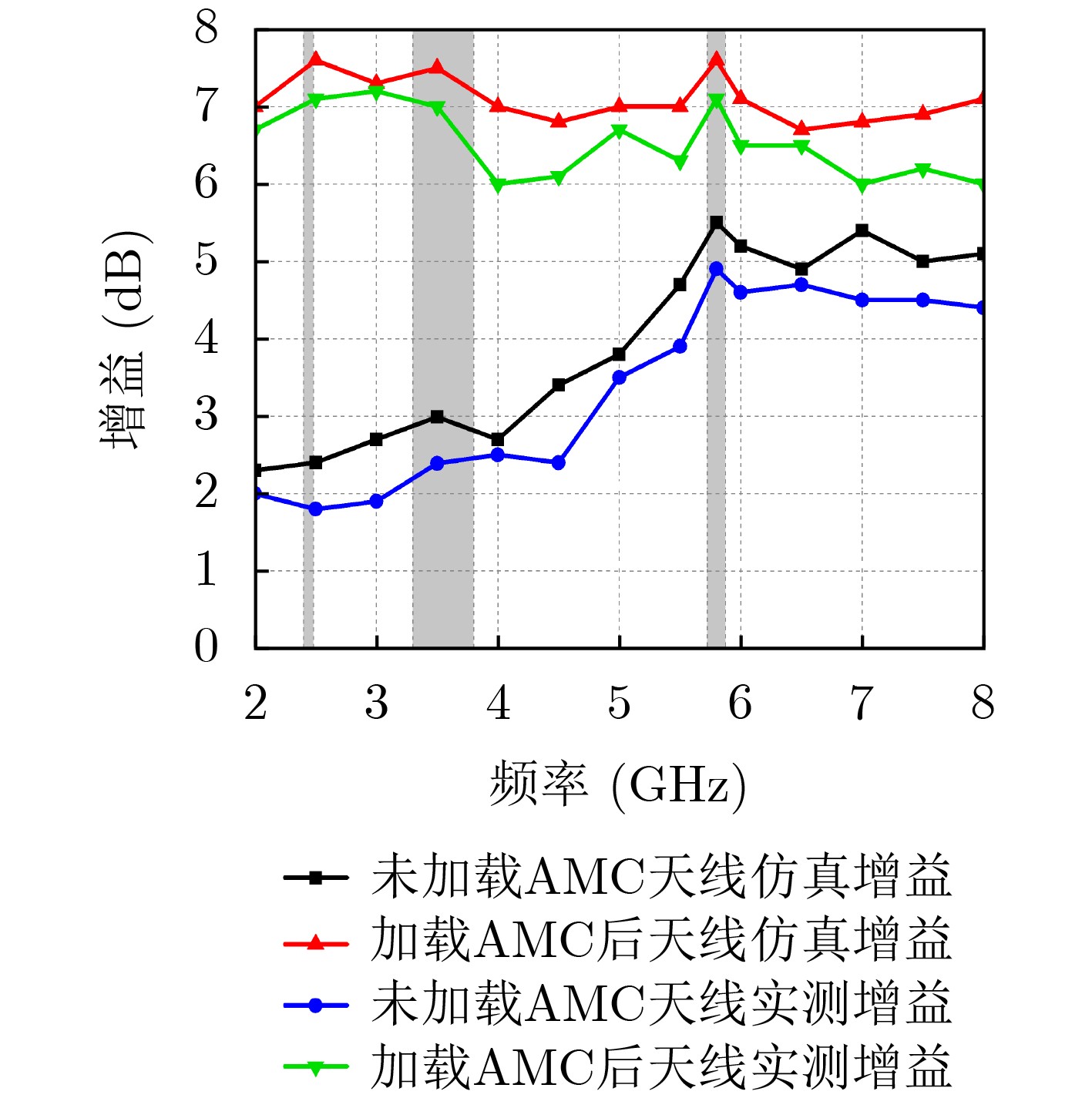

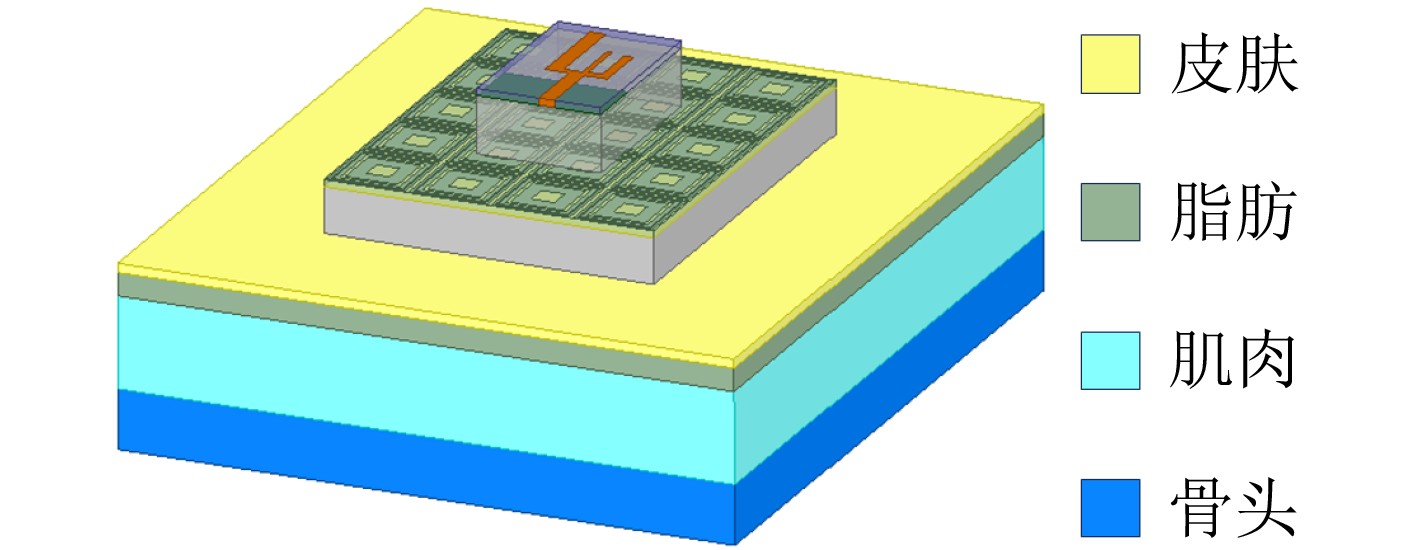

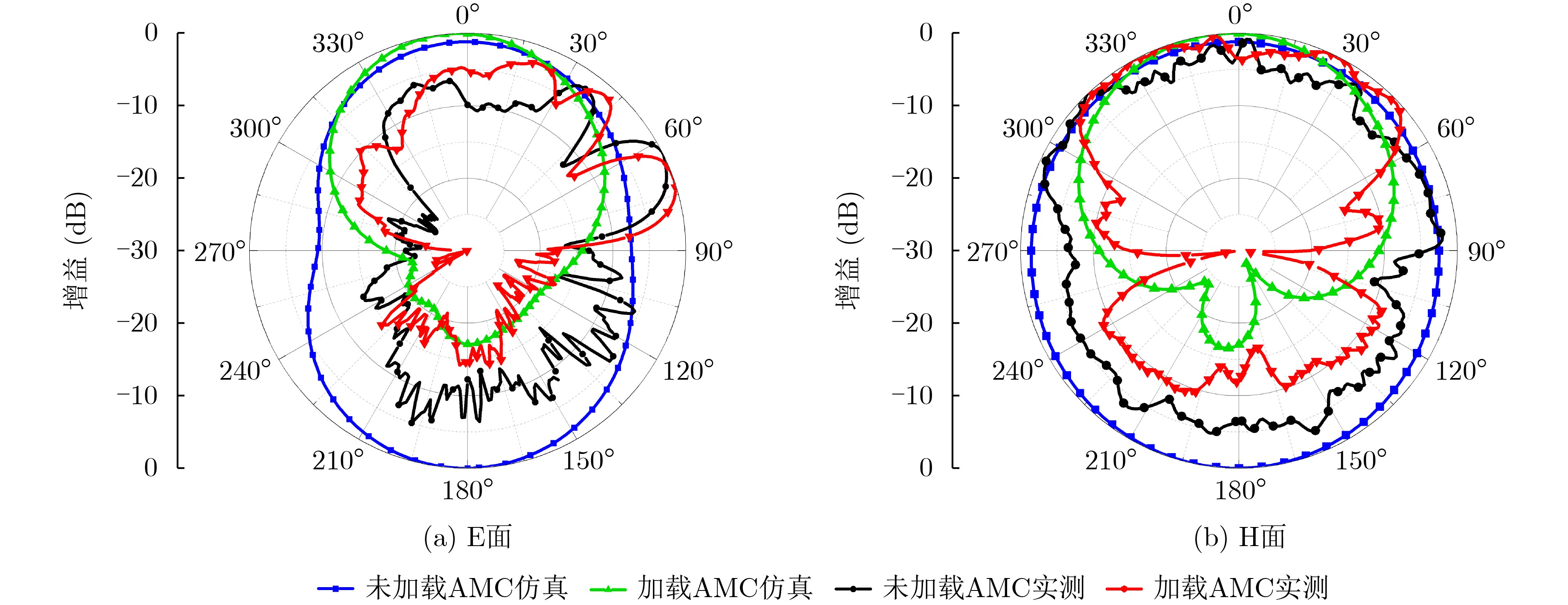

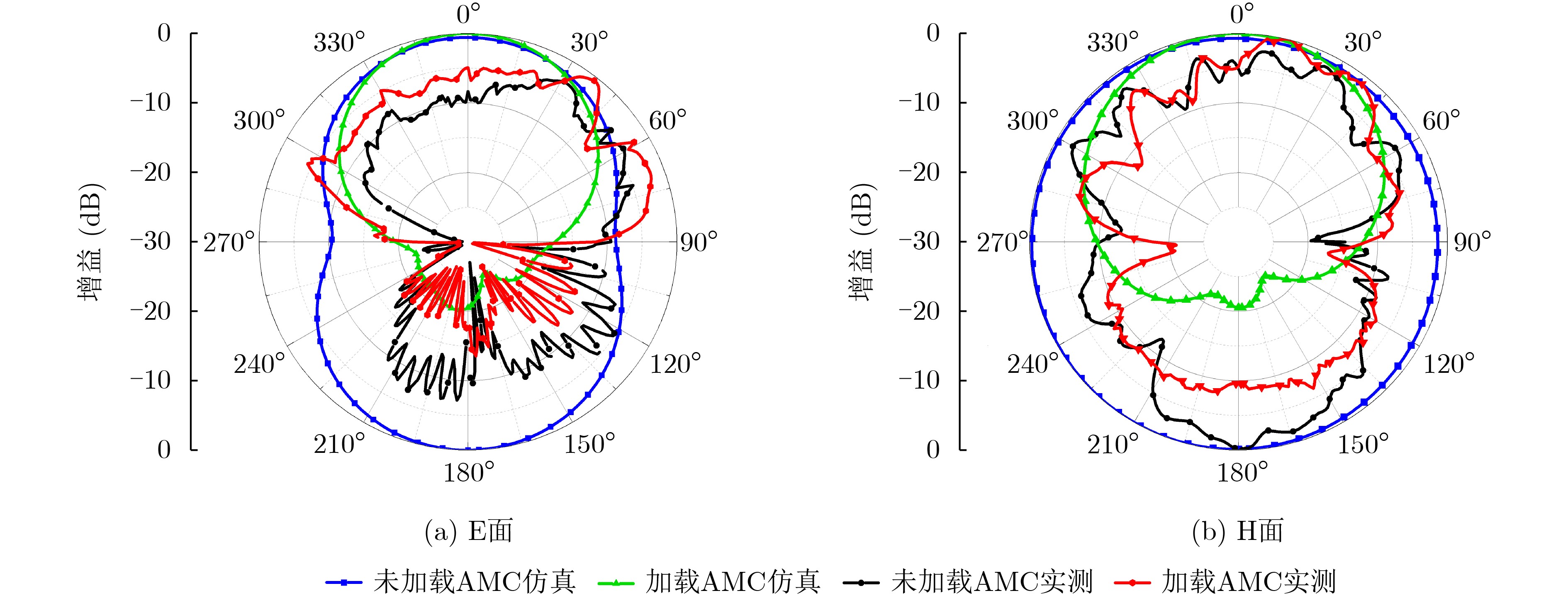

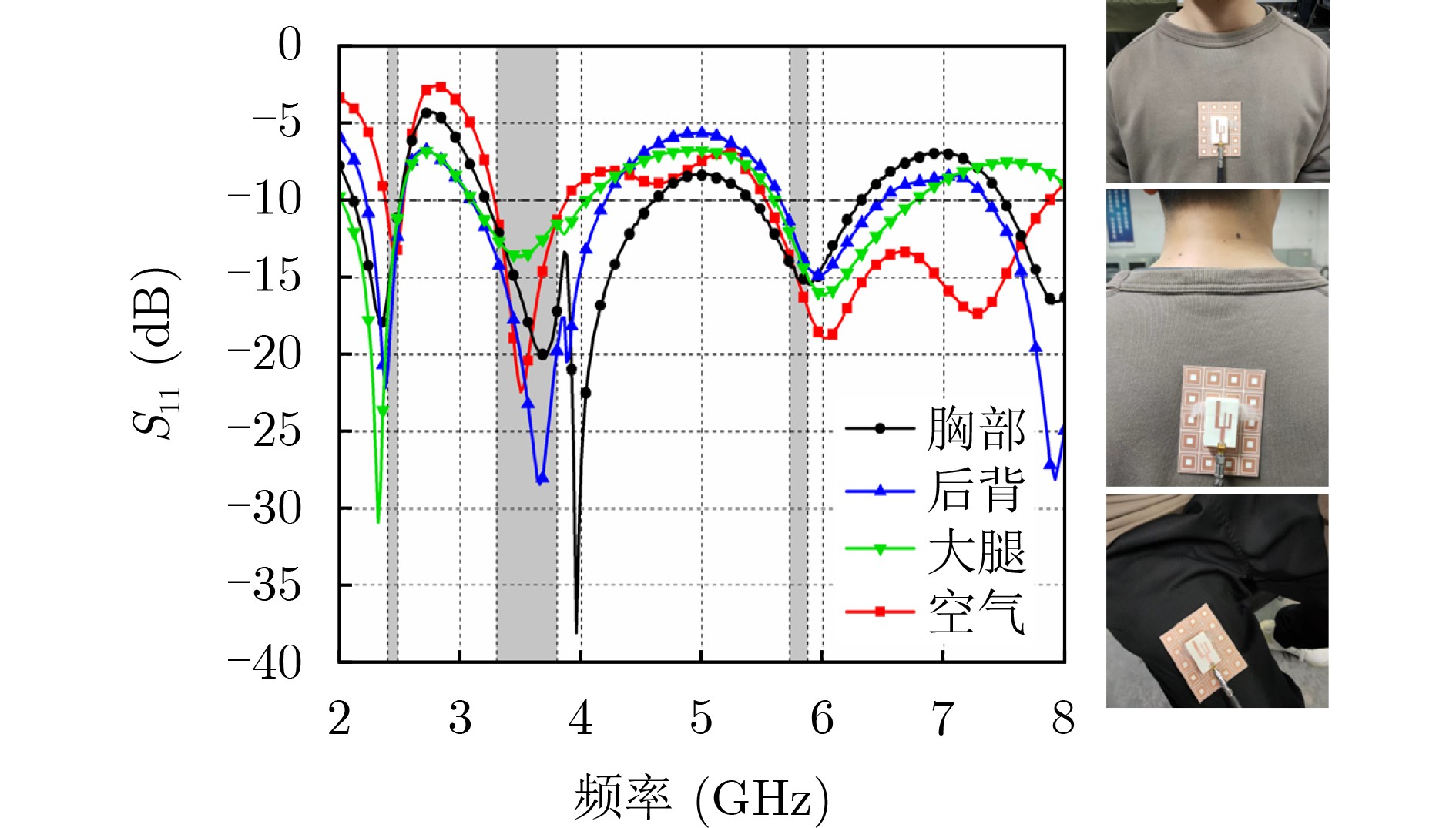

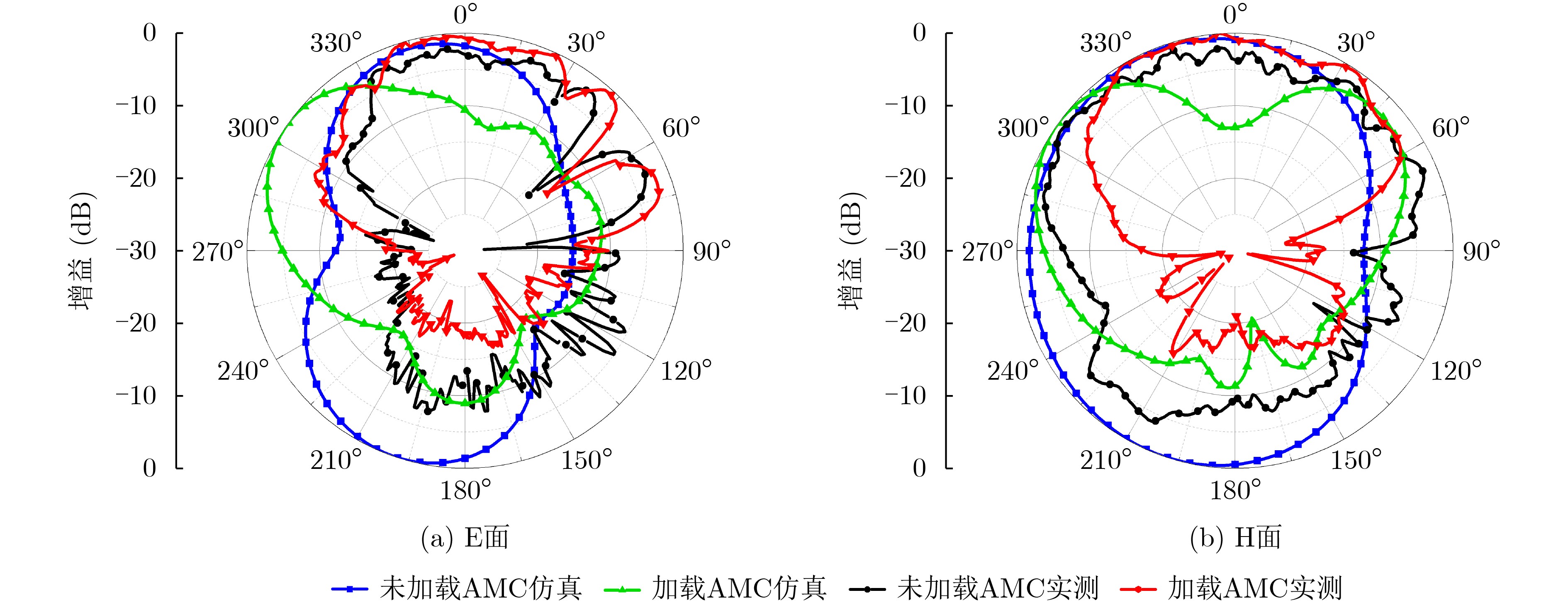

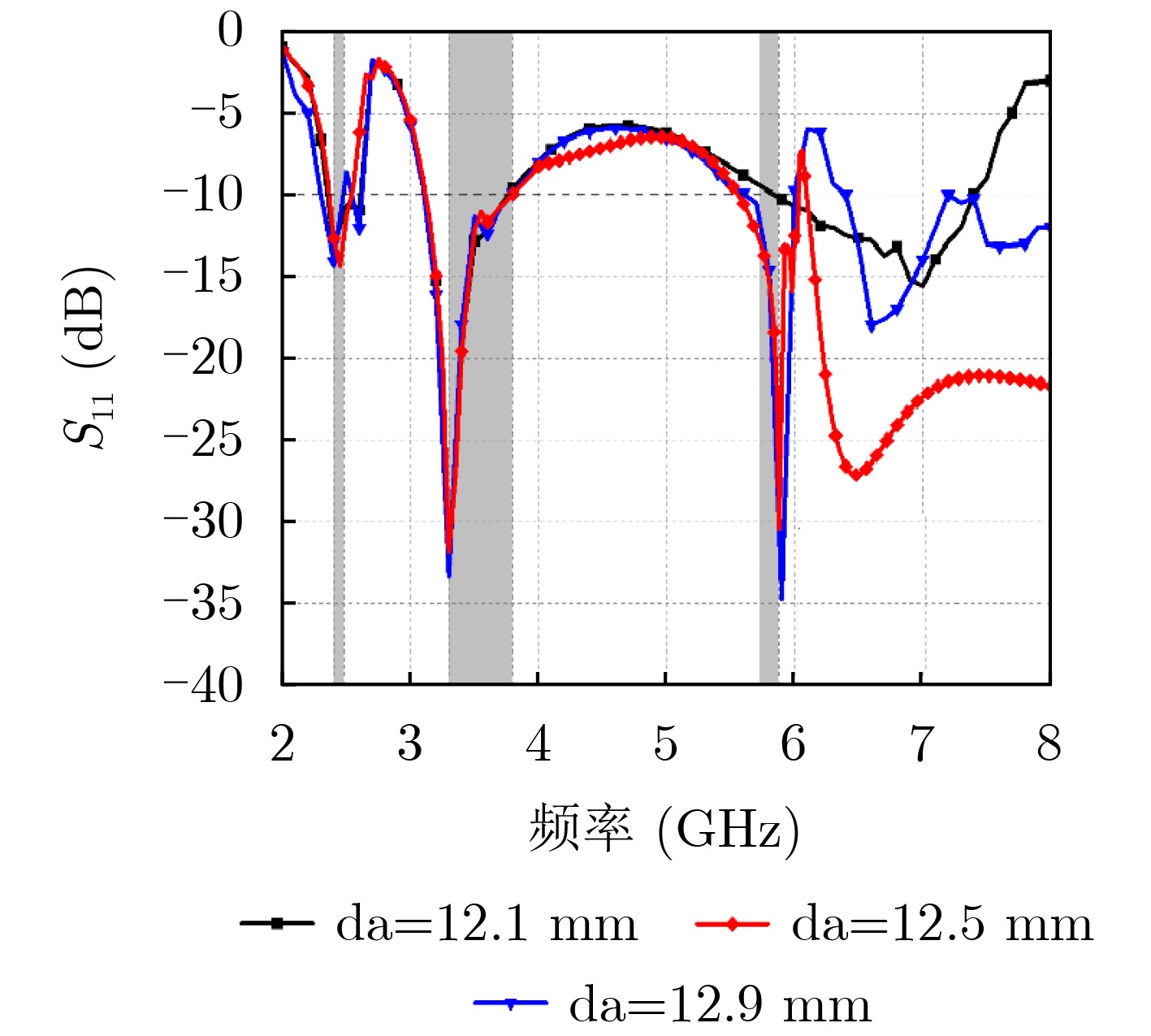

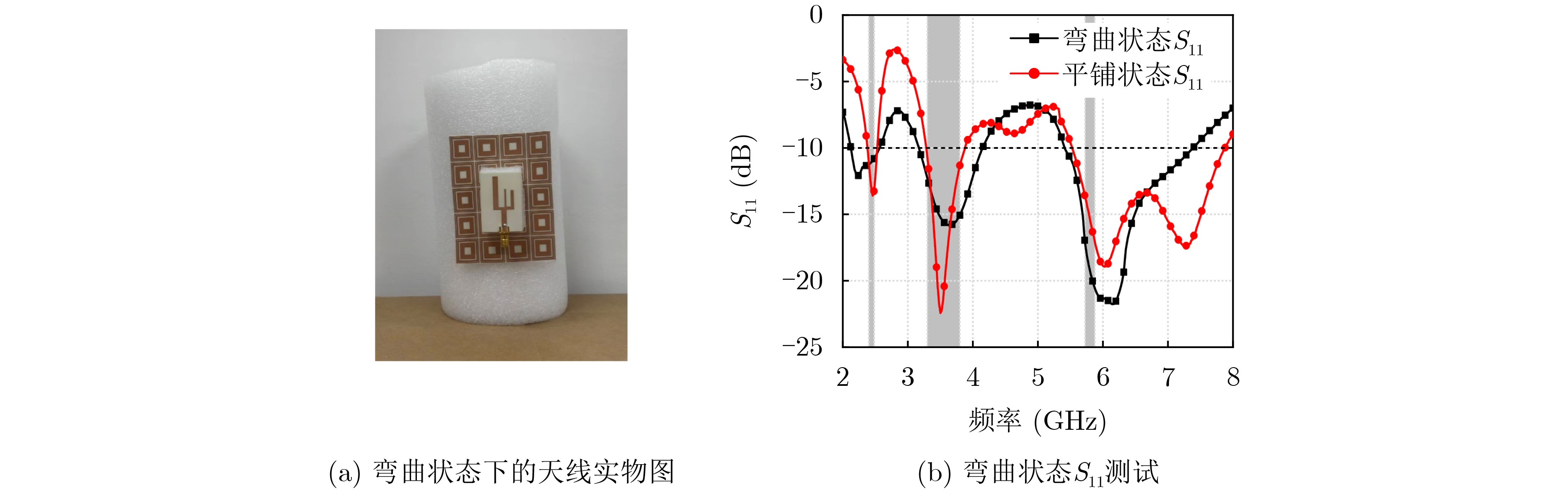

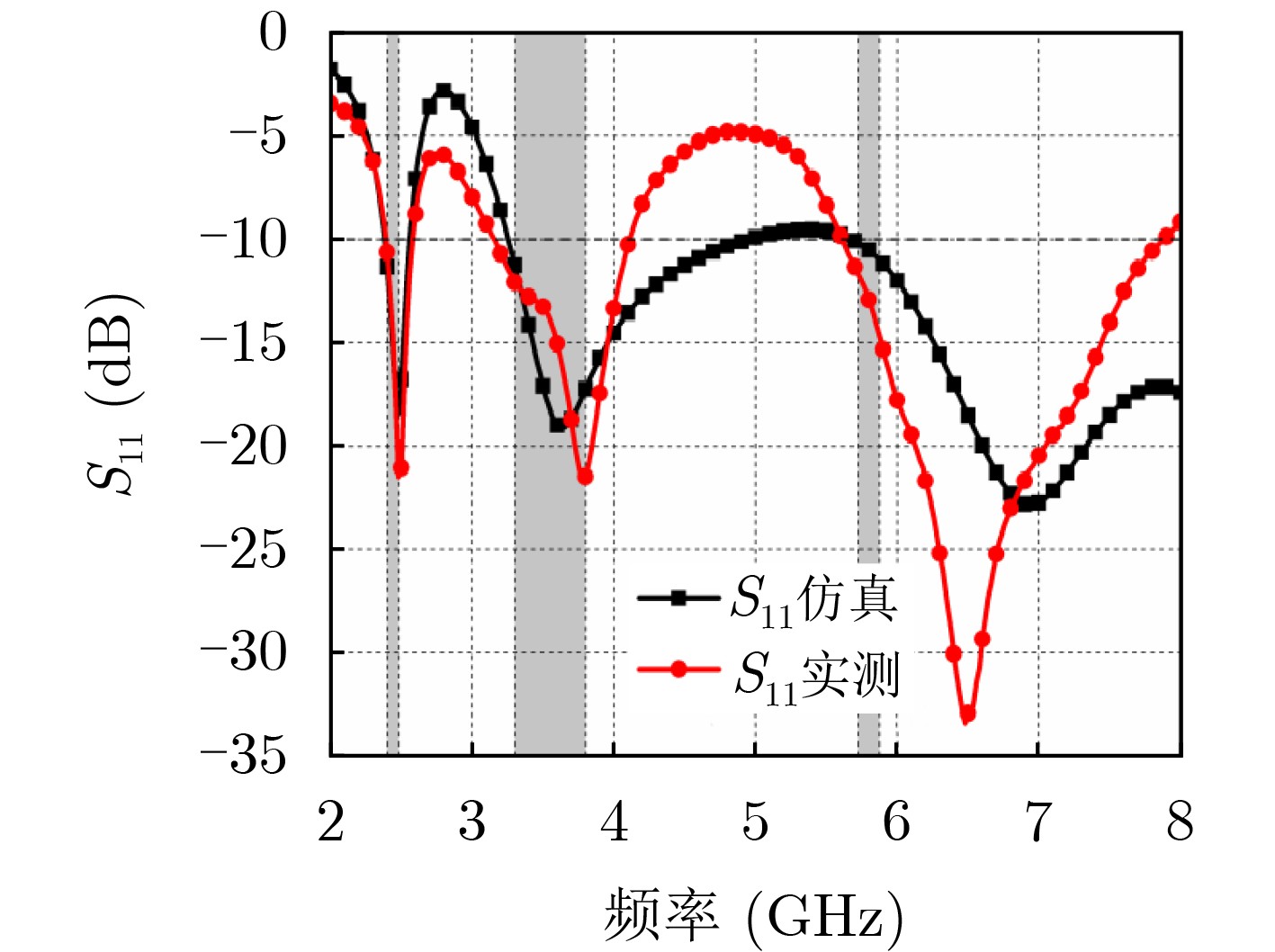

This paper designs a tri-band wearable antenna based on an Artificial Magnetic Conductor (AMC). A tri-frequency monopole antenna with a trident structure and a tri-frequency AMC unit with a three-layer square ring configuration were designed respectively. Both the antenna and the AMC are fabricated on a semi-flexible Rogers 4003 substrate. By loading a 4×5 AMC array on the back of the antenna, the integrated antenna achieves a measured operating bandwidth covering three frequency bands: 2.38-2.52 GHz, 3.3-3.86 GHz, and 5.54-7.86 GHz. These bands cover the ISM scientific band (2.4-2.4835 GHz), the 5G-n78 band (3.3-3.8 GHz), and the 5G-WiFi 5.8 GHz band (5.725-5.875 GHz). The measured gains at 2.4GHz, 3.5GHz, and 5.8GHz were 7.1dB, 7dB, and 7.1dB respectively, representing improvements of 5.3dB, 4.6dB, and 2.2dB compared to the unloaded state. The front-to-back ratio (FBR) was 20.8 dB, 18.0 dB, and 18.8 dB, respectively, representing improvements of 19.8 dB, 16.7 dB, and 12.4 dB compared to the unloaded AMC. Additionally, the AMC reflector effectively reduces the specific absorption rate (SAR), ensuring that the integrated antenna's SAR remains below 0.025 W/kg, which is far lower than the standards set by the U.S. Federal Communications Commission (FCC) and the European Telecommunications Standards Institute (ETSI).Additionally, the performance of the antenna was measured when it was attached to the human chest, back, and thigh. The test results demonstrate that the designed antenna can be applied to the human body safely and flexibly.
- Artificial Magnetic Conductor (AMC),
- Tri-band antenna,
- Wearable antenna

FullText(HTML)

References(18)

References

[1]	ABDELGHANY M A, IBRAHIM A A, MOHAMED H A, et al. Compact sub-6 GHz four-element flexible antenna for 5G applications[J]. Electronics, 2024, 13(3): 537. doi: 10.3390/electronics13030537.
[2]	ABOEL-HASSAN M, FARAHAT A E, and HUSSEIN K F A. Gain enhancement wideband CPW antenna based on artificial magnetic conductor[J]. Scientific Reports, 2025, 15(1): 7108. doi: 10.1038/s41598-025-89622-9.
[3]	DE MELLO R G L, LEPAGE A C, and BEGAUD X. A low-profile, triple-band, and wideband antenna using dual-band AMC[J]. Sensors, 2023, 23(4): 1920. doi: 10.3390/s23041920.
[4]	ZHANG Xiaojie, JIANG Zhenzhen, LEACH M, et al. Dual-band flexible antenna with AMC backing for wearable applications[C]. 2024 IEEE MTT-S International Wireless Symposium (IWS), Beijing, China, 2024: 1–3. doi: 10.1109/IWS61525.2024.10713691.
[5]	HUO Yu, LI Yao, ZHAI Huiqing, et al. A low-profile dual-band and dual-polarized antenna with AMC reflector[C]. 2020 International Conference on Microwave and Millimeter Wave Technology (ICMMT), Shanghai, China, 2020: 1–3.
[6]	ALI U, BASIR A, ZADA M, et al. Performance improvement of a dual-band textile antenna for on-body through artificial magnetic conductor[J]. IEEE Access, 2023, 11: 72316–72331. doi: 10.1109/ACCESS.2023.3294412.
[7]	NIKAM A A and PATIL R B. Design and development of multiband PIFA antenna for vehicular LTE/5G and V2X communication[J]. EURASIP Journal on Wireless Communications and Networking, 2023, 2023(1): 104. doi: 10.1186/s13638-023-02306-8.
[8]	LI Jun, HUANG Junjie, HE Hongli, et al. An ultra-thin multi-band logo antenna for internet of vehicles applications[J]. Electronics, 2024, 13(14): 2792. doi: 10.3390/electronics13142792.
[9]	ZHOU Yonghong, JIANG Ting, LI Hanxin, et al. A 5G MIMO multiband low-profile antenna design for automotive shark-fin systems[J]. IEEE Antennas and Wireless Propagation Letters, 2024, 23(5): 1588–1592. doi: 10.1109/LAWP.2024.3363221.
[10]	XU Yanhong, BAI Tingting, ZHANG Zhiwen, et al. A compact multi-band monopole antenna for 5G NR coal mine applications[J]. Progress in Electromagnetics Research Letters, 2024, 115: 57–62. doi: 10.2528/PIERL23102302.
[11]	XU Yanhong, DONG Peipei, and WANG Anyi. Design of a high isolation tri-band MIMO antenna for coal mine applications[J]. Journal of Electromagnetic Waves and Applications, 2023, 37(13): 1106–1121. doi: 10.1080/09205071.2023.2226332.
[12]	周涛, 张豪, 边成, 等. 多频双圆极化北斗天线设计[J]. 电子技术应用, 2022, 48(10): 9–12. doi: 10.16157/j.issn.0258-7998.223312. ZHOU Tao, ZHANG Hao, BIAN Cheng, et al. Multi-band dual circularly polarized antenna for Beidou navigation system[J]. Application of Electronic Technique, 2022, 48(10): 9–12. doi: 10.16157/j.issn.0258-7998.223312.
[13]	YADAV M, ALI M, and YADAV R P. Gain enhanced dual band antenna backed by dual band AMC surface for wireless body area network applications[C]. 2021 IEEE Indian Conference on Antennas and Propagation (InCAP), Jaipur, Rajasthan, India, 2021: 494–497. doi: 10.1109/InCAP52216.2021.9726271.
[14]	ZHANG Ling, DU Chengzhu, SHU Haifeng, et al. A low SAR high isolation fully flexible MIMO antenna integrated with AMC array[J]. Progress in Electromagnetics Research M, 2024, 124: 79–88. doi: 10.2528/PIERM23122003.
[15]	周勇, 庄佳杰, 周嘉豪. 基于AMC结构的双频可穿戴天线设计[J/OL]. https://link.cnki.net/urlid/32.1493.TN.20241011.1613.018, 2024. ZHOU Yong, ZHUANG Jiajie, and ZHUANG Jiahao. Design of a dual-band wearable antenna based on AMC structure[J/OL]. https://link.cnki.net/urlid/32.1493.TN.20241011.1613.018, 2024.
[16]	王丽黎, 李君君, 张诗雨, 等. 加载人工磁导体的双频柔性可穿戴天线[J]. 电子与信息学报, 2024, 46(9): 3637–3645. doi: 10.11999/JEIT231428. WANG Lili, LI Junjun, ZHANG Shiyu, et al. A dual-band flexible wearable antenna loaded with an artificial magnetic conductor[J]. Journal of Electronics & Information Technology, 2024, 46(9): 3637–3645. doi: 10.11999/JEIT231428.
[17]	YU Chenyin, YANG Shuhai, CHEN Yinchao, et al. Radiation enhancement for a triband microstrip antenna using an AMC reflector characterized with three zero-phases in reflection coefficient[J]. Journal of Electromagnetic Waves and Applications, 2019, 33(14): 1846–1859. doi: 10.1080/09205071.2019.1645743.
[18]	JOSHI R, HUSSIN E F N M, SOH P J, et al. Dual-band, dual-sense textile antenna with AMC backing for localization using GPS and WBAN/WLAN[J]. IEEE Access, 2020, 8: 89468–89478. doi: 10.1109/ACCESS.2020.2993371.
