Radio Map Enabled Path Planning for Multiple Cellular-Connected Unmanned Aerial Vehicles

ZHOU Decheng; WANG Wei; SHAO Xiang; CHEN Mei; XIAO Jianghao

doi:10.11999/JEIT250821

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

ZHOU Decheng, WANG Wei, SHAO Xiang, CHEN Mei, XIAO Jianghao. Radio Map Enabled Path Planning for Multiple Cellular-Connected Unmanned Aerial Vehicles[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250821

Citation:

ZHOU Decheng, WANG Wei, SHAO Xiang, CHEN Mei, XIAO Jianghao. Radio Map Enabled Path Planning for Multiple Cellular-Connected Unmanned Aerial Vehicles[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250821

Citation:

PDF( 2063 KB)

Radio Map Enabled Path Planning for Multiple Cellular-Connected Unmanned Aerial Vehicles

doi: 10.11999/JEIT250821 cstr: 32379.14.JEIT250821

1.
College of Electronic and Information Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
2.
School of Information and Communications Engineering, Xi’an Jiaotong University, Xi’an 710049, China
3.
China Telecom Corporation Limited Jiangsu Branch, Nanjing 210037, China

Funds: The National Natural Science Foundation of China (62371231), The Natural Science Foundation on Frontier Leading Technology Basic Research Project of Jiangsu (BK20222001), The Jiangsu Provincial Key Research and Development Program (BE2023027)

Received Date: 2025-08-29
Accepted Date: 2025-12-22
Rev Recd Date: 2025-12-22

Available Online: 2026-01-03

Abstract

Abstract

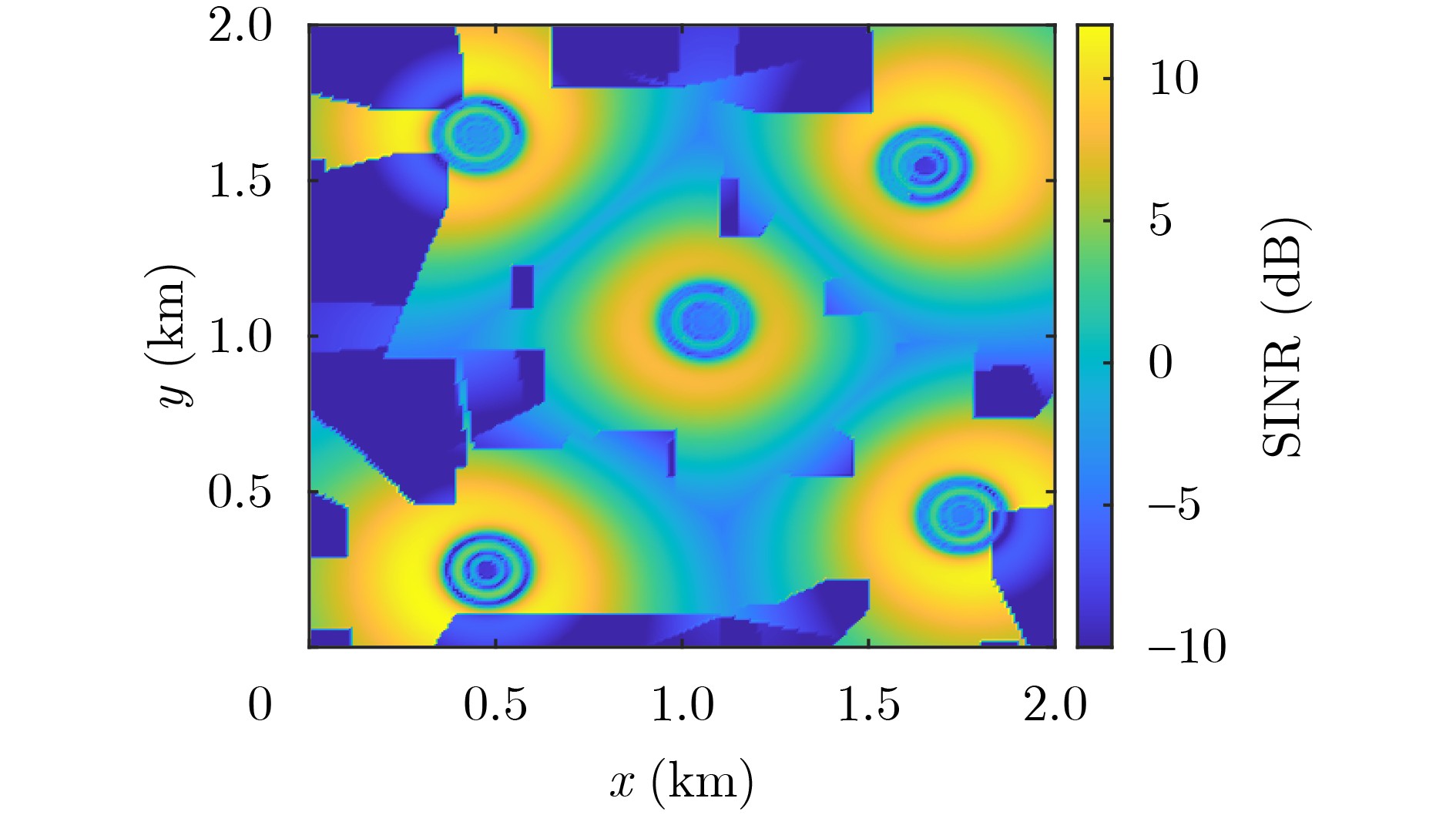

Objective In collaborative operation scenarios of cellular-connected Unmanned Aerial Vehicles (UAVs), conflict avoidance strategies often result in unbalanced service quality. Traditional schemes typically focus on minimizing the total task completion time, failing to ensure service fairness. To address this, a radio map-assisted cooperative path planning scheme is proposed. The primary objective is to minimize the maximum weighted sum of task completion time and communication disconnection time across all UAVs, thereby ensuring balanced service quality in multi-UAV scenarios. Methods A Signal-to-Interference-Plus-Noise Ratio (SINR) map is constructed to evaluate communication quality. The 2D airspace is discretized into grids, and link gain maps are generated via ray-tracing and Axis-Aligned Bounding Box detection to determine Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) link conditions. The SINR map is then derived by selecting the base station with the maximum expected SINR for each grid. To solve the optimization problem, an Improved Conflict-Based Search (ICBS) algorithm with a hierarchical structure is developed. At the high-level stage, proximity conflicts are managed to maintain safety distances, and the cost function is reconstructed to prioritize fairness by minimizing the maximum weighted time. The low-level stage employs a bidirectional A* algorithm for single UAV path planning, utilizing parallel search mechanisms to accelerate the process while adhering to the constraints from the high-level stage. Results and Discussions The effectiveness of the proposed scheme is verified through simulations across various scenarios. The building height and position distribution are illustrated, where base station locations are marked by red stars and building heights are represented by color gradients from light to dark indicating increasing height (Fig.2). The complex wireless propagation environment between UAVs and ground base stations is revealed by the constructed SINR map at an altitude of 60 m (Fig.3), showing significant SINR degradation in specific areas caused by building blockage and co-channel interference, which leads to the formation of communication blind zones. Trajectory planning results for four UAVs at an altitude of 60 m with a SINR threshold of 2 dB demonstrate that all UAVs effectively avoid signal blind zones and complete tasks without collision risks under the proposed scheme (Fig.4). A trade-off between task completion time and communication disconnection time is demonstrated by the weight coefficient (Fig.5). A monotonically increasing trend is observed in the maximum weighted time as the weight coefficient increases, whereas the maximum disconnection time decreases significantly. Superior computational efficiency is exhibited by the bidirectional A* algorithm compared to Dijkstra’s and traditional A* algorithms, while optimal solution quality is maintained (Table 1). Identical weighted times are achieved by all three algorithms, confirming the optimality of the bidirectional A* approach, yet the runtime is significantly reduced due to the bidirectional parallel search mechanism. The proposed scheme is compared with three different benchmark schemes, achieving the lowest maximum weighted time across various SINR thresholds (Fig.6). Performance analysis across different UAV altitudes indicates that a stable maximum weighted time is maintained by the proposed scheme below 75 m, while sharp increases are observed above this height due to intensified interference from non-serving base stations (Fig.7). Furthermore, the scalability analysis demonstrates significant improvements of the proposed scheme over benchmark schemes, particularly when conflicts become more frequent (Fig.8). Conclusions To address the fairness issue in cellular-connected multi-UAV systems, a radio map-assisted path planning scheme is proposed to minimize the maximum weighted time. Based on a constructed discretized SINR map, an Improved Conflict-Based Search (ICBS) algorithm is developed. At the high-level stage, proximity conflicts and a reconstructed cost function are introduced to ensure safety and fairness, while a bidirectional A* algorithm is employed at the low-level stage to accelerate search efficiency. Simulation results indicate that the proposed scheme effectively reduces the maximum weighted time compared to benchmark schemes, significantly enhancing the fairness and overall performance of multi-UAV collaboration.
- Cellular-connected UAV,
- Radio map,
- Path planning,
- Conflict-based search algorithm
