Real-Time Sub-bottom Horizon Picking Based on Maximum Correlated Kurtosis Deconvolution Combined with Continuity Constraint

doi: 10.11999/JEIT250727 cstr: 32379.14.JEIT250727

MENG Xinbao^{1, 2, 3},
ZHOU Tian^{1, 2, 3, 4},
ZHU Jianjun^{1, 2, 3, 4
,
,},
LI Tie^{1, 2, 3, 4},
WANG Peihong⁴,
ZHAO Guoqing⁴

1.
National Key Laboratory of Underwater Acoustic Technology, Harbin Engineering University, Harbin 150001, China
2.
Key Laboratory of Marine Information Acquisition and Security(Harbin Engineering University), Ministry of Industry and Information Technology, Harbin 150001, China
3.
College of Underwater Acoustic Engineering, Harbin Engineering University, Harbin 150001, China
4.
Sanya Nanhai Innovation and Development Base, Harbin Engineering University, Sanya 572000, China

Funds: The National Natural Science Foundation of China “Ye Qisun” Science Foundation (U2541204), The General Program of National Natural Science Foundation of China (42176188), Project under the Stable Support Plan of the National Key Laboratory of Underwater Acoustic Technology (JCKYS2024604SSJS004), Natural Science Foundation of Hainan Province (421CXTD442)

Received Date: 2025-08-01
Accepted Date: 2026-03-27
Rev Recd Date: 2026-03-26

Available Online: 2026-04-21

Abstract

Abstract

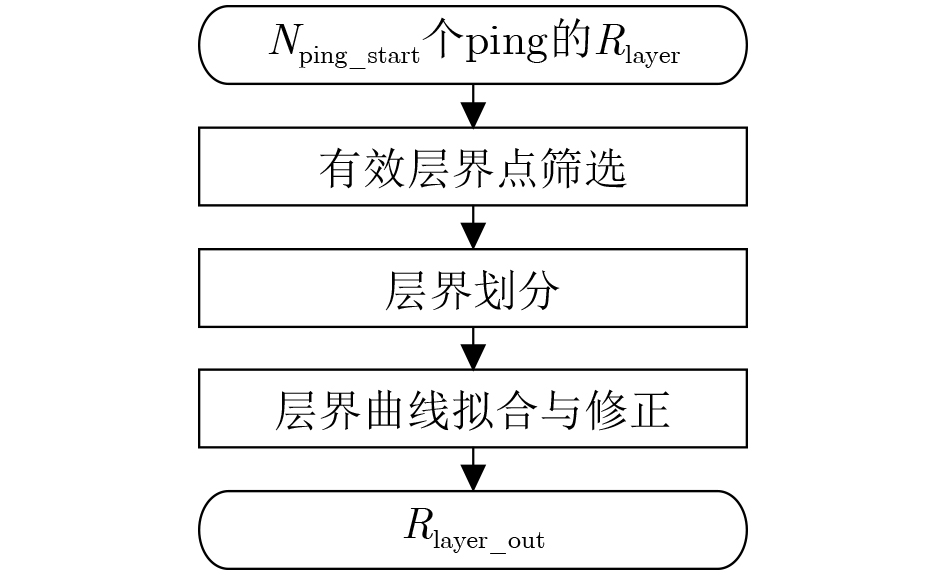

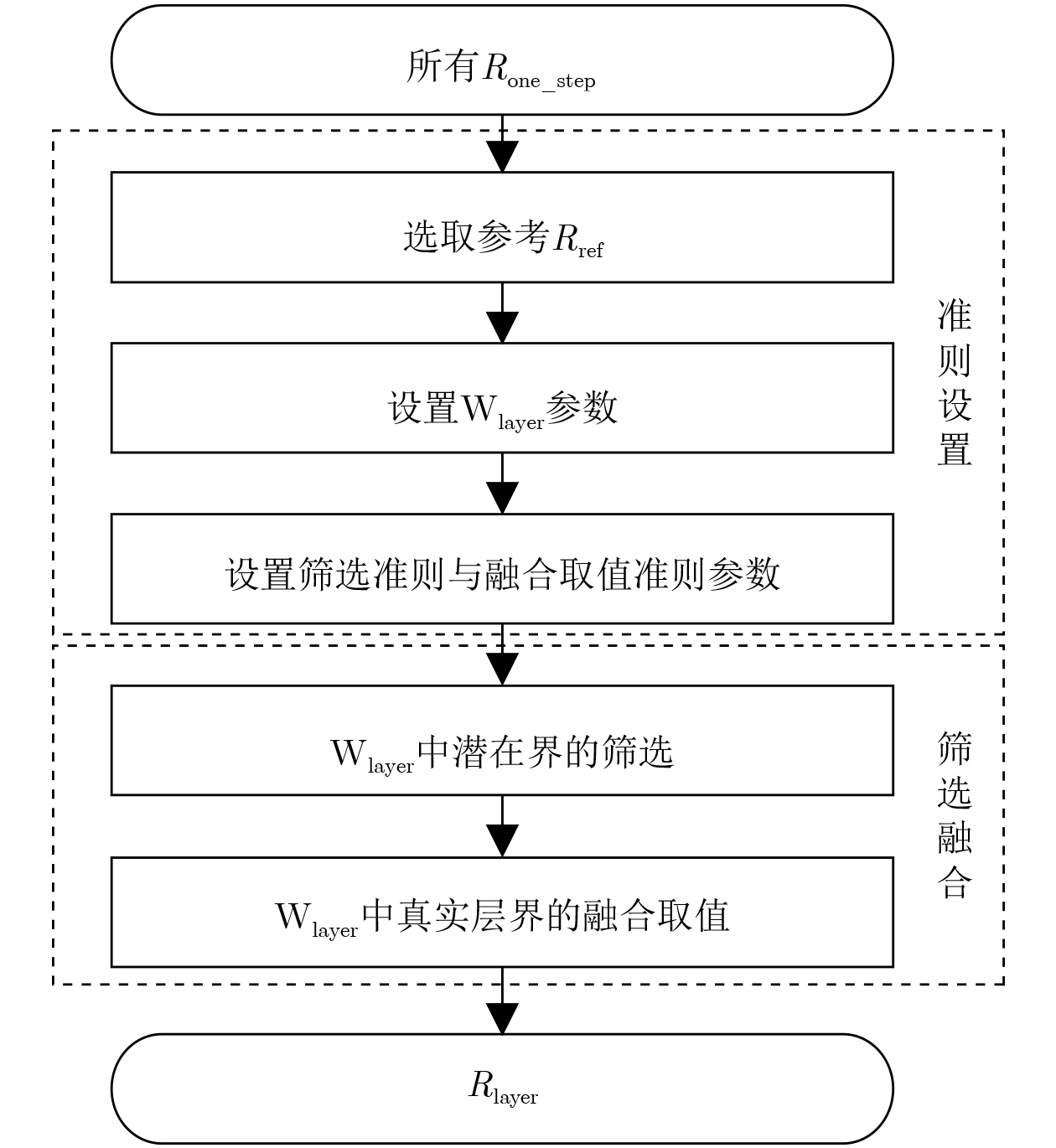

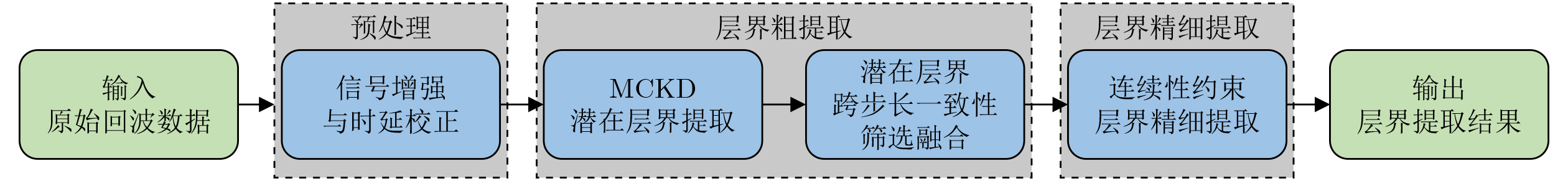

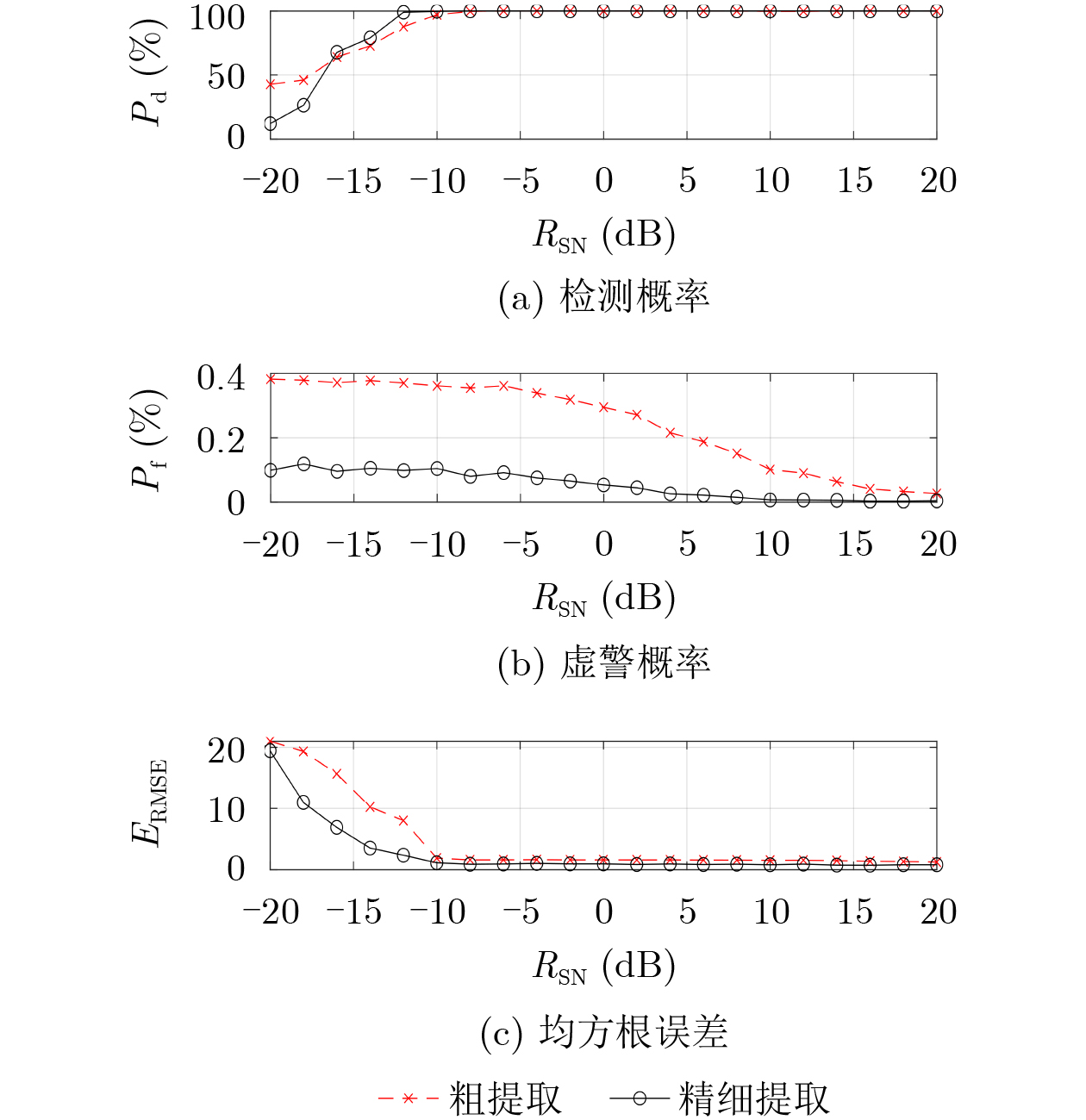

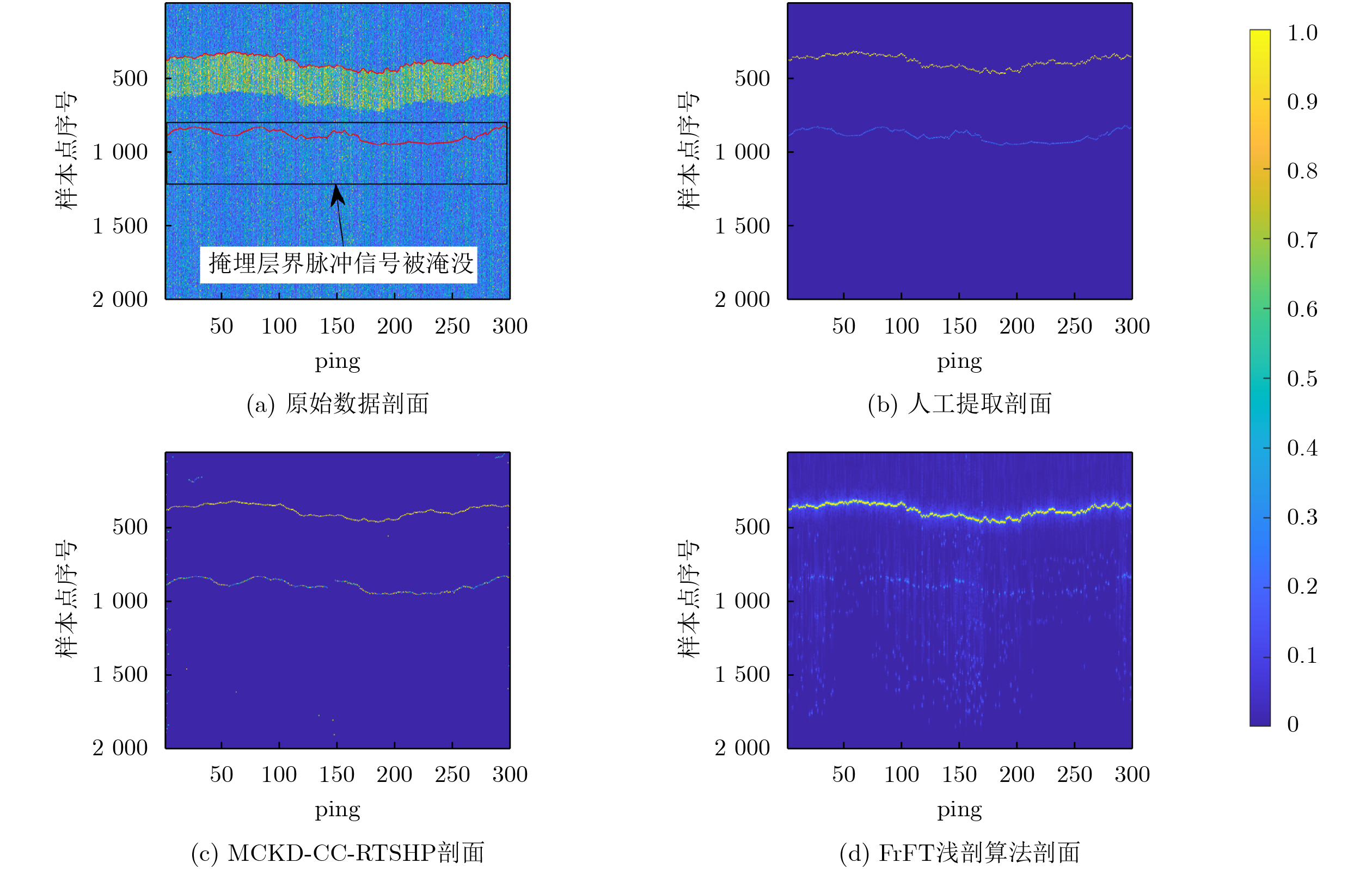

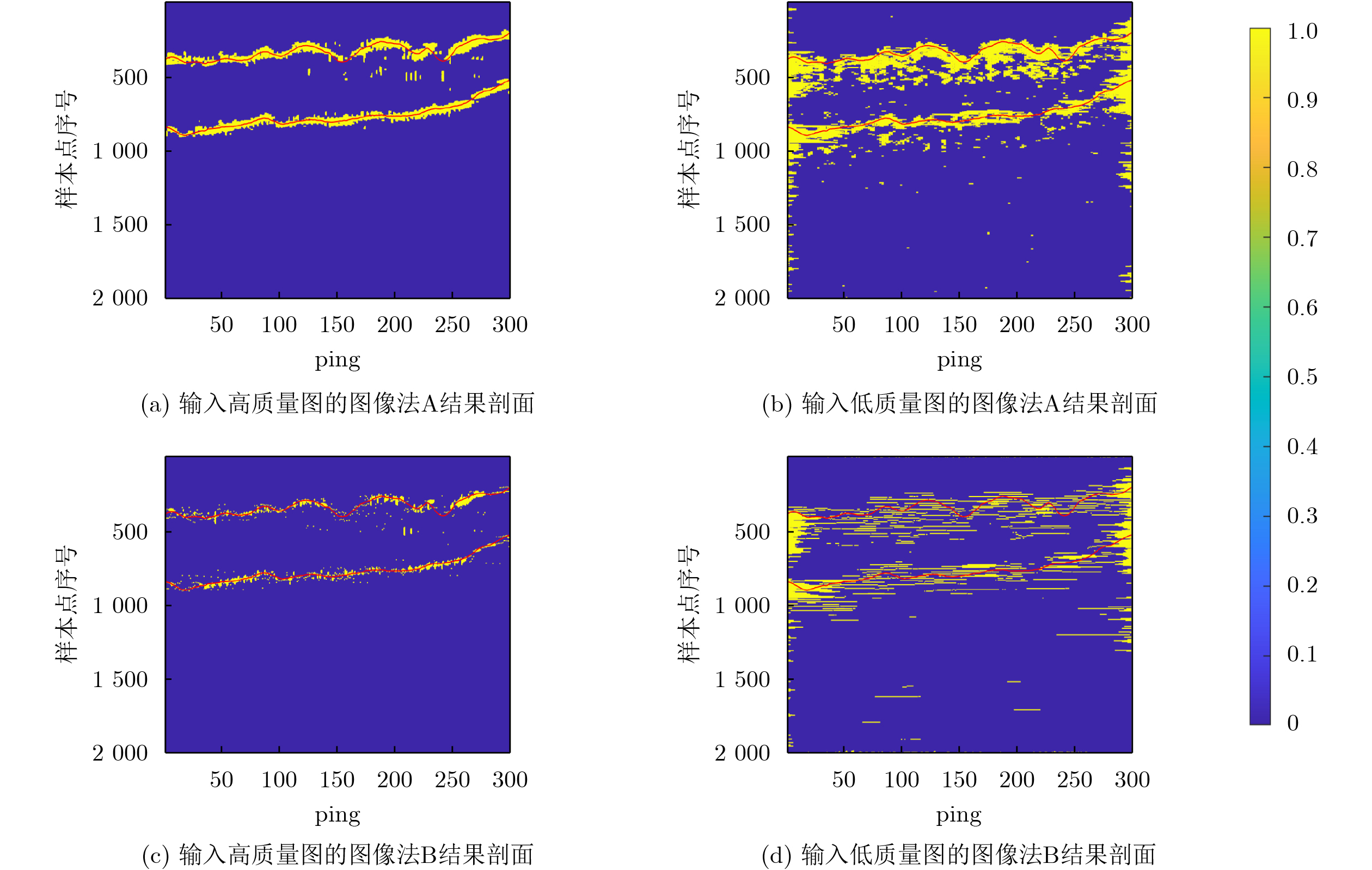

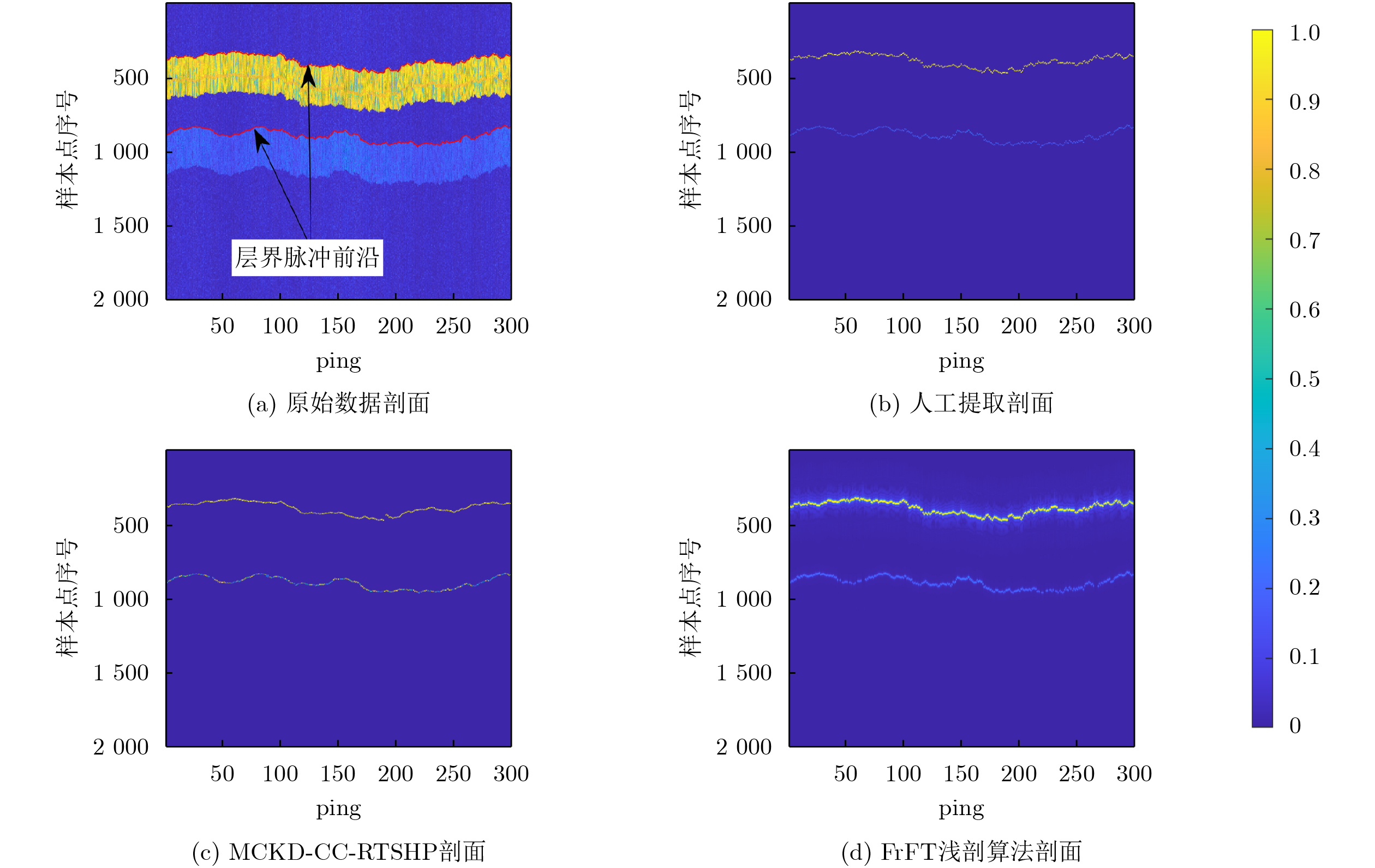

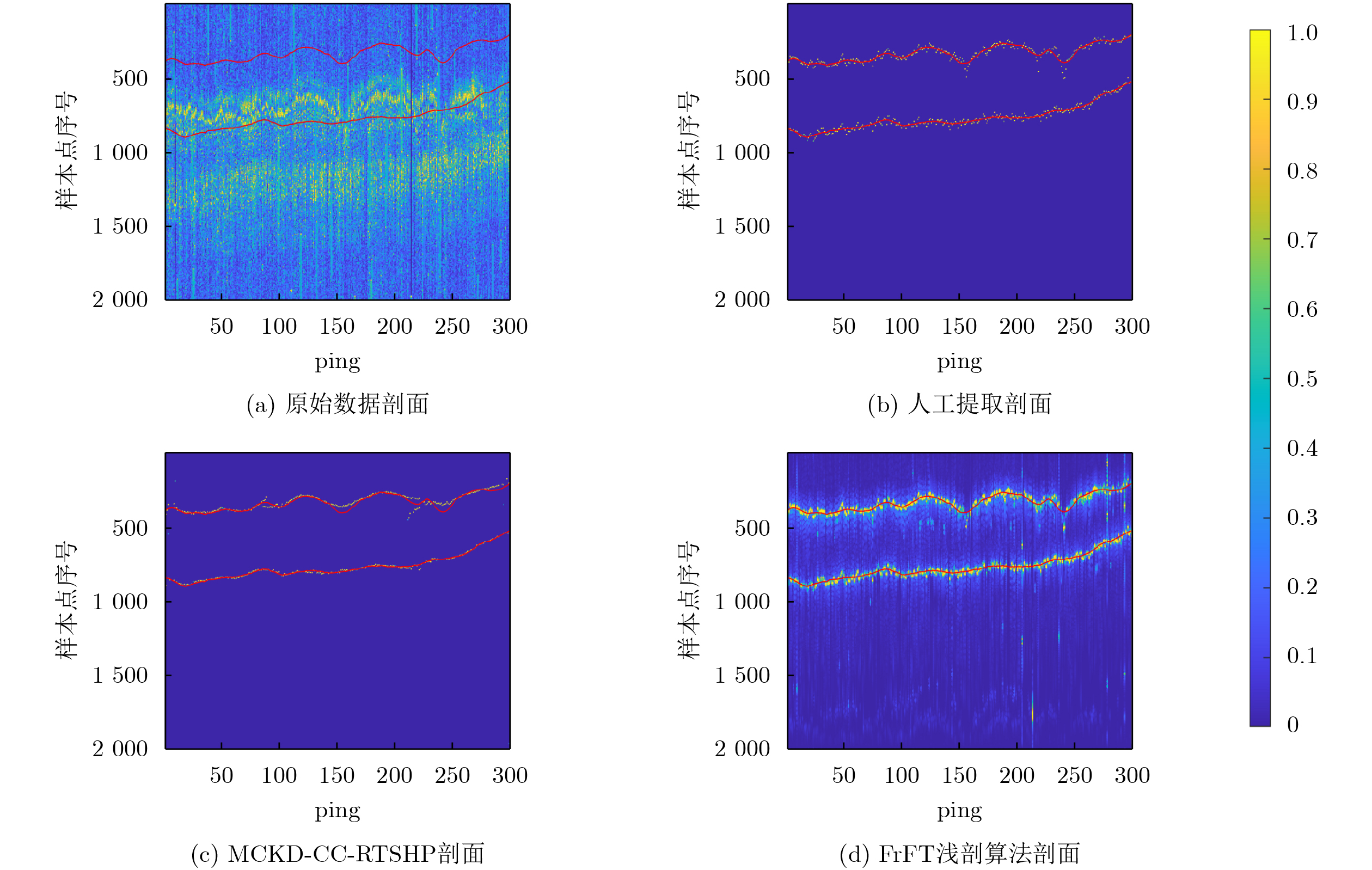

Objective Sub-bottom profiling is widely employed in seabed geological and resource exploration, pipeline route inspection, and port and channel safety assurance, and is regarded as a frontier in underwater acoustic detection research. Accurate extraction of sub-bottom horizons plays a critical role in the interpretation of sedimentary structures, analysis of seabed substrate characteristics, and identification of buried objects. However, existing horizon picking techniques often face difficulty in balancing picking quality, false-alarm control, and online real-time performance. To address this issue, a real-time sub-bottom horizon picking method integrating maximum correlated kurtosis deconvolution and continuity constraint is proposed. Methods The proposed method consists of three stages: preprocessing, coarse horizon extraction, and fine horizon extraction. In preprocessing, the raw echoes are enhanced via cascaded band-pass filtering and matched filtering, followed by a fixed delay correction to align picked positions with the pulse leading-edge arrivals. In coarse extraction, synthesized periodic signals are constructed under multiple slicing step lengths, and maximum correlated kurtosis deconvolution is applied to enhance impulsive horizon responses, yielding potential horizon sequences. These candidates are then screened and fused using a cross-step-length consistency criterion to suppress false alarms. In fine extraction, a continuity constraint is introduced within an online sliding window to filter isolated points, segment horizons, and perform curve fitting and correction, further reducing residual false alarms and improving continuity. Results and Discussions Simulation and field-data experiments were conducted to evaluate detection probability, false alarm probability, horizon positioning error, processing time, and extracted horizon profiles. Monte Carlo results show that the fine extraction stage further reduces false alarms and positioning errors while maintaining detection performance close to that of the coarse extraction stage (Fig.5, Fig.6). When the echo signal-to-noise ratio is higher than –15 decibels, the detection probability exceeds 70.000% and the false alarm probability remains below 0.200%; when it is higher than –10 decibels, the detection probability exceeds 99.000%, the false alarm probability falls below 0.100%, and the positioning error approaches one sample interval (Fig.6). In sub-bottom survey simulation, the proposed method successfully extracts both the seabed surface and the buried sedimentary horizon under different noise conditions, with results more refined than those of the comparative algorithm based on fractional Fourier transform and overall comparable to manual interpretation (Fig.7, Fig.8). Field-data results further confirm its effectiveness: for the signal-based comparative algorithms, the proposed method achieves an average detection probability of 91.833%, an average false alarm probability of 0.004%, and an average positioning error of 10.15 samples, while the comparative algorithm based on fractional Fourier transform shows a much higher false alarm probability of 3.987% (Table 1). For the image-based comparative algorithms, although detection probabilities are above 95%, their false alarm probabilities and processing times remain markedly higher than those of the proposed method (Table 2). Qualitative results also show that the extracted horizons agree well with manual interpretation trends, with lower background noise, no obvious large-scale false layers, and good preservation of local fluctuations and interruptions (Fig.9–12). Overall, the proposed method achieves a more favorable balance for online horizon extraction by combining acceptable detection probability and positioning accuracy with extremely low false alarm probability and real-time processing capability (Table 1, Table 2). Conclusions This study presents a real-time sub-bottom horizon picking method based on maximum correlated kurtosis deconvolution combined with continuity constraint, structured into three stages: preprocessing, coarse extraction, and fine extraction. The method effectively extracts the seabed surface and sedimentary horizons while meeting real-time processing requirements. Simulation results show that when the signal-to-noise ratio exceeds –10 dB, the method achieves a detection probability greater than 99.000%, a false alarm probability below 0.100%, and a positioning error near one sample. Field data processing results indicate an average detection probability of 91.833%, an average false alarm probability of 0.004%, and an average positioning error is 10.15 samples. These findings validate the effectiveness and practical value of the proposed approach for real-time extraction of shallow sub-bottom horizons. The method demonstrates the ability to maintain high detection accuracy while minimizing false alarms and ensuring millisecond-level processing times, making it highly suitable for online sub-bottom horizon extraction tasks in practical applications.
- Sub-bottom,
- Horizon picking,
- Correlated kurtosis,
- Deconvolution,
- Continuity constraint

FullText(HTML)

References(24)

References

[1]	SHIN J, HA J, CHUN J H, et al. Field application of 3D chirp for geological surveys of shallow coastal regions[J]. Marine Geophysical Research, 2022, 43(2): 13. doi: 10.1007/s11001-022-09477-x.
[2]	ZHOU Qingjie, LI Xianfeng, ZHENG Jianglong, et al. Inversion of sub-bottom profile based on the sediment acoustic empirical relationship in the northern South China Sea[J]. Remote Sensing, 2024, 16(4): 631. doi: 10.3390/rs16040631.
[3]	LI Shaobo, ZHAO Jianhu, ZHANG Hongmei, et al. Sub-bottom sediment classification using reliable instantaneous frequency calculation and relaxation time estimation[J]. Remote Sensing, 2021, 13(23): 4809. doi: 10.3390/rs13234809.
[4]	LI Shaobo, ZHAO Jianhu, ZHANG Hongmei, et al. Automatic detection of pipelines from sub-bottom profiler sonar images[J]. IEEE Journal of Oceanic Engineering, 2022, 47(2): 417–432. doi: 10.1109/JOE.2021.3107609.
[5]	QU Ke, ZOU Binbin, CHEN Jingjing, et al. Experimental study of a broadband parametric acoustic array for sub-bottom profiling in shallow water[J]. Shock and Vibration, 2018, 2018: 3619257. doi: 10.1155/2018/3619257.
[6]	WANG Fangqi, FENG Yikai, LIU Senbo, et al. Artificial fish reef site evaluation based on multi-source high-resolution acoustic images[J]. Journal of Marine Science and Engineering, 2025, 13(2): 309. doi: 10.3390/jmse13020309.
[7]	LUO Jinhua, ZHU Peimin, ZHANG Zijian, et al. Seabed characterization based on the statistical classification using the seabed reflection amplitudes of sub-bottom profiler data[J]. Continental Shelf Research, 2024, 279: 105293. doi: 10.1016/J.CSR.2024.105293.
[8]	刘秀娟, 高抒, 赵铁虎. 浅地层剖面原始数据中海底反射信号的识别及海底地形的自动提取[J]. 物探与化探, 2009, 33(5): 576–579. LIU Xiujuan, GAO Shu, and ZHAO Tiehu. The recognition of the seabed reflection signal and the automatic pickup of seabed topography from the original data of sub-bottom profile[J]. Geophysical and Geochemical Exploration, 2009, 33(5): 576–579.
[9]	罗进华, 丁维凤, 潘国富. 改进的滚动时窗法实现海底浅地层剖面反射层位自动拾取的研究[J]. 物探化探计算技术, 2008, 30(5): 363–367. doi: 10.3969/j.issn.1001-1749.2008.05.004. LUO Jinhua, DING Weifeng, and PAN Guofu. Research on automatic picking of the reflection horizons of subbottom profile based on the improved moving time-window method[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2008, 30(5): 363–367. doi: 10.3969/j.issn.1001-1749.2008.05.004.
[10]	丁维凤, 潘国富, 苟铮慷, 等. 基于能量比与互相关法的地震剖面反射同相轴交互自动拾取研究[J]. 海洋学报, 2012, 34(3): 87–91. DING Weifeng, PAN Guofu, GOU Zhengkang, et al. The research of interactive auto pickup of seismic enents based on energy ratio and cross-correlation[J]. Acta Oceanologica Sinica, 2012, 34(3): 87–91.
[11]	HE Linbang, ZHAO Jianhu, LU Jianhua, et al. High-accuracy acoustic sediment classification using sub-bottom profile data[J]. Estuarine, Coastal and Shelf Science, 2022, 265: 107701. doi: 10.1016/j.ecss.2021.107701.
[12]	王文博, 任群言, 胡涛, 等. 利用混合图像处理方法提取浅层海底沉积层等效分层结构[J]. 哈尔滨工程大学学报, 2019, 40(7): 1251–1257. doi: 10.11990/jheu.201811036. WANG Wenbo, REN Qunyan, HU Tao, et al. Hybrid image processing method for extracting equivalent stratified structure of sediment in shallow sea water[J]. Journal of Harbin Engineering University, 2019, 40(7): 1251–1257. doi: 10.11990/jheu.201811036.
[13]	CHEN Pengcheng, LU Shaoping, and CAI Chen. Automated detection of hyperbola-shaped signature in subbottom profiler sonar image with morphological processing[J]. IEEE Transactions on Geoscience and Remote Sensing, 2024, 62: 5924414. doi: 10.1109/TGRS.2024.3443412.
[14]	LI Shaobo, ZHAO Jianhu, ZHANG Hongmei, et al. An integrated horizon picking method for obtaining the main and detailed reflectors on sub-bottom profiler sonar image[J]. Remote Sensing, 2021, 13(15): 2959. doi: 10.3390/rs13152959.
[15]	LI Shaobo, ZHAO Jianhu, ZHANG Hongmei, et al. A novel horizon picking method on sub-bottom profiler sonar images[J]. Remote Sensing, 2020, 12(20): 3322. doi: 10.3390/rs12203322.
[16]	LI Shaobo, ZHANG Yi, ZHAO Jianhu, et al. A comprehensive buried shipwreck detection method based on 3-D SBP data[J]. IEEE Journal of Oceanic Engineering, 2024, 49(2): 458–473. doi: 10.1109/JOE.2023.3318793.
[17]	马鑫程, 宗在翔, 贾旭. 基于深度学习的浅地层剖面层界自动提取[J]. 海洋测绘, 2022, 42(5): 27–31. doi: 10.3969/j.issn.1671-3044.2022.05.006. MA Xincheng, ZONG Zaixiang, and JIA Xu. Automatic boundary extraction of SBP based on depth learning[J]. Hydrographic Surveying and Charting, 2022, 42(5): 27–31. doi: 10.3969/j.issn.1671-3044.2022.05.006.
[18]	FENG Jie, ZHAO Jianhu, ZHENG Gen, et al. Horizon picking from SBP images using physicals-combined deep learning[J]. Remote Sensing, 2021, 13(18): 3565. doi: 10.3390/rs13183565.
[19]	ZHU Jianjun, ZHOU Tian, LI Tie, et al. High-resolution sub-bottom profiling technology using parametric array and vector hydrophone[J]. Applied Acoustics, 2024, 223: 110077. doi: 10.1016/j.apacoust.2024.110077.
[20]	DENG Wu, LI Zhongxian, LI Xinyan, et al. Compound fault diagnosis using optimized MCKD and sparse representation for rolling bearings[J]. IEEE Transactions on Instrumentation and Measurement, 2022, 71: 3508509. doi: 10.1109/TIM.2022.3159005.
[21]	MCDONALD G L, ZHAO Qing, and ZUO M J. Maximum correlated Kurtosis deconvolution and application on gear tooth chip fault detection[J]. Mechanical Systems and Signal Processing, 2012, 33: 237–255. doi: 10.1016/j.ymssp.2012.06.010.
[22]	MEINSHAUSEN N and BÜHLMANN P. Stability selection[J]. Journal of the Royal Statistical Society Series B: Statistical Methodology, 2010, 72(4): 417–473. doi: 10.1111/j.1467-9868.2010.00740.x.
[23]	JIN Yuchen, WAN Qiyu, WU Xuqing, et al. FPGA-accelerated deep neural network for real-time inversion of geosteering data[J]. Geoenergy Science and Engineering, 2023, 224: 211610. doi: 10.1016/j.geoen.2023.211610.
[24]	朱建军, 魏玉阔, 杜伟东, 等. 基于分数阶傅里叶变换的Chirp浅剖精细探测方法[J]. 电子与信息学报, 2015, 37(1): 103–109. doi: 10.11999/JEIT140140. ZHU Jianjun, WEI Yukuo, DU Weidong, et al. Chirp sub-bottom profiling detailed detection method based on fractional fourier transform[J]. Journal of Electronics & Information Technology, 2015, 37(1): 103–109. doi: 10.11999/JEIT140140.
