High Area-efficiency Radix-4 NTT Hardware Architecture with Conflict-free Memory Access Optimization for Lattice-based Cryptography

ZHENG Jiwen; ZHAO Shilei; ZHANG Ziyue; LIU Zhiwei; YU Bin; HUANG Hai

doi:10.11999/JEIT250687

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

ZHENG Jiwen, ZHAO Shilei, ZHANG Ziyue, LIU Zhiwei, YU Bin, HUANG Hai. High Area-efficiency Radix-4 NTT Hardware Architecture with Conflict-free Memory Access Optimization for Lattice-based Cryptography[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250687

Citation:

ZHENG Jiwen, ZHAO Shilei, ZHANG Ziyue, LIU Zhiwei, YU Bin, HUANG Hai. High Area-efficiency Radix-4 NTT Hardware Architecture with Conflict-free Memory Access Optimization for Lattice-based Cryptography[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250687

Citation:

ZHENG Jiwen, ZHAO Shilei, ZHANG Ziyue, LIU Zhiwei, YU Bin, HUANG Hai. High Area-efficiency Radix-4 NTT Hardware Architecture with Conflict-free Memory Access Optimization for Lattice-based Cryptography[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250687

PDF( 4144 KB)

High Area-efficiency Radix-4 NTT Hardware Architecture with Conflict-free Memory Access Optimization for Lattice-based Cryptography

doi: 10.11999/JEIT250687 cstr: 32379.14.JEIT250687

School of Computer Science and Technology, Harbin University of Science and Technology, Harbin 150080, China

Funds: National Key R&D Program of China (2023YFB4403500)

Accepted Date: 2025-11-05
Rev Recd Date: 2025-11-05

Available Online: 2025-11-15

Abstract

Abstract

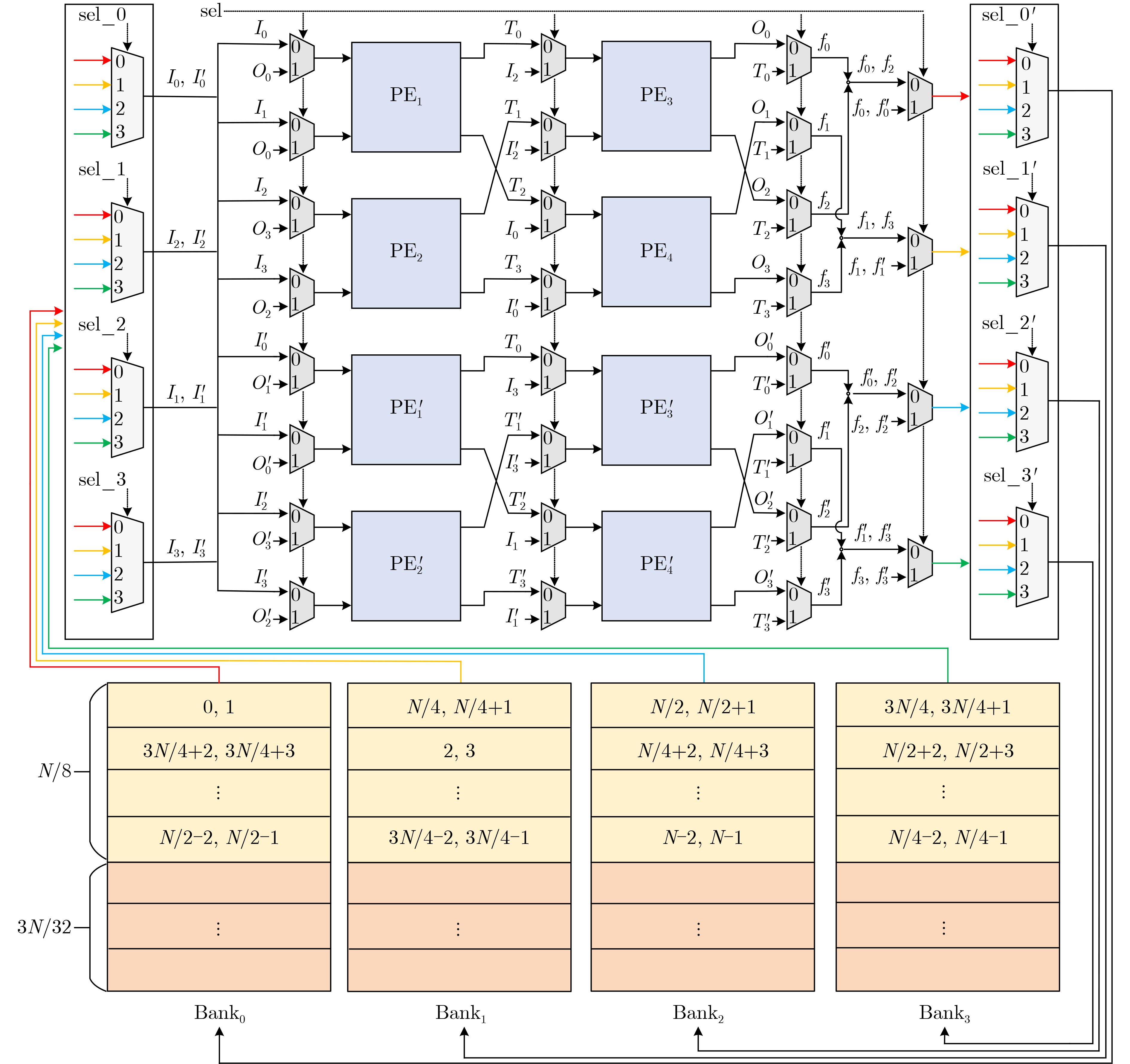

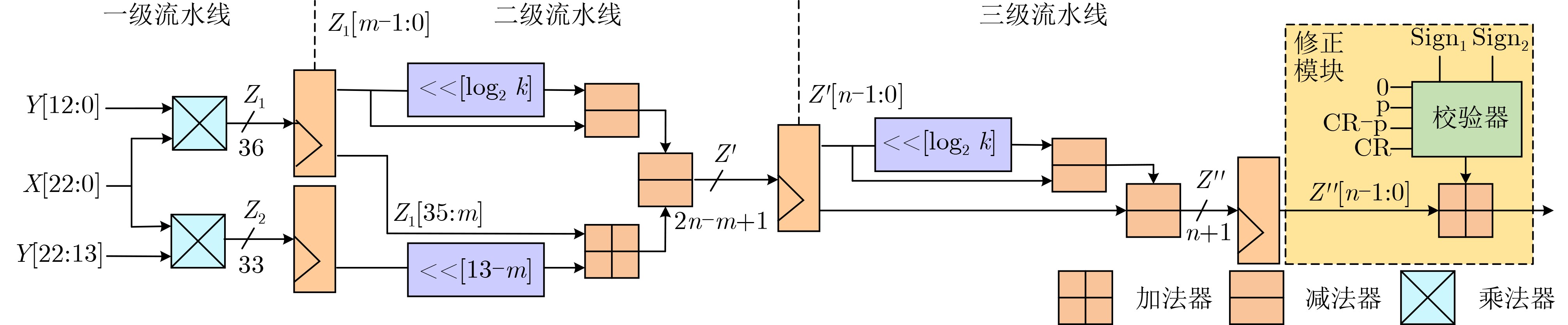

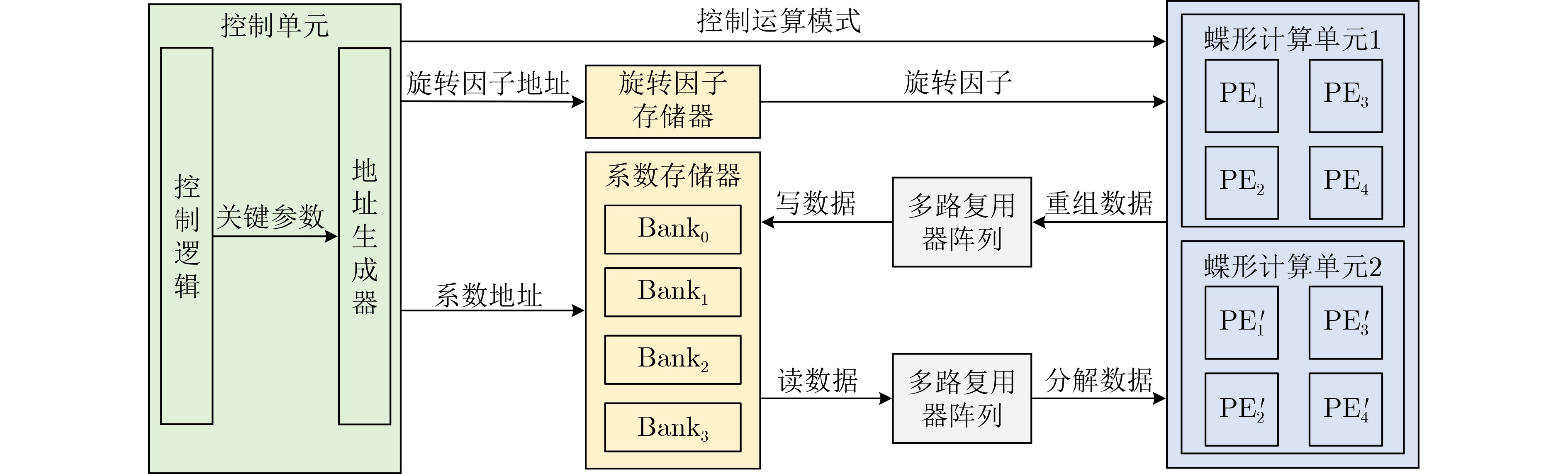

Objective With the advancement of Post-Quantum Cryptography (PQC) standardization, the efficient implementation of Number Theoretic Transform (NTT) modules has become crucial for enhancing the performance of PQC algorithms. While existing research on high-radix NTT primarily focuses on optimizing in-place computation structures and achieving configurability, it often overlooks performance bottlenecks caused by complex memory access patterns and lacks dedicated optimizations for the specific parameters of PQC algorithms. To address these challenges, this paper proposes a high area-efficiency radix-4 NTT design with a Constant-Geometry (CG) structure. The solution implements targeted optimizations for the modular multiplication unit by analyzing the common characteristics of moduli and integrating multi-level operations, while optimizing memory allocation and address generation strategies to effectively reduce memory capacity and improve data access efficiency. This paper provides an efficient solution for implementing radix-4 CG NTT in out-of-place storage, achieving conflict-free memory access. Methods At the algorithmic level, the proposed radix-4 CG NTT/INTT employs a low-complexity design and eliminates the bit-reversal operation to reduce multiplication count and computation cycles, with a correspondingly redesigned twiddle factor access mechanism. Regarding the most time-consuming modular multiplication in the radix-4 butterfly unit, the critical path is effectively shortened by integrating the multiplication with the first-stage ${\text{K}} - {\text{RED}}$ reduction and simplifying the correction logic. Furthermore, to support three parameter configurations, a scalable modular multiplication scheme is proposed by analyzing common characteristics of different moduli. At the architectural level, a strategy is employed where two coefficients are concatenated and stored at the same memory address. By designing a data decomposition and reorganization scheme, the interaction between the memory and the dual-butterfly units is efficiently managed. To efficiently achieve conflict-free memory access, a cyclic memory space reuse strategy is employed, and read and write address generation schemes based on sequential and stepped access patterns are designed, significantly reducing the required memory capacity and the complexity of control logic. Results and Discussions Experimental results on Field Programmable Gate Arrays (FPGAs) demonstrate that the proposed NTT architecture achieves high operating frequencies and low resource consumption under three parameter configurations, while also significantly improving the Area-Time Product (ATP) compared to existing designs (Table 5). For the configuration with 256 terms and a modulus of 7681, it consumes 2397 slices, 4 BRAMs, and 16 DSPs, achieving an operating frequency of 363 MHz, resulting in at least a 56.4% improvement in ATP. For the configuration with 256 terms and a modulus of 8380417, it consumes 3760 slices, 6 BRAMs, and 16 DSPs, achieving an operating frequency of 338 MHz, resulting in at least a 69.8% improvement in ATP. For the configuration with 1024 terms and a modulus of 12289, it consumes 2379 slices, 4 BRAMs, and 16 DSPs, achieving an operating frequency of 357 MHz, resulting in at least a 50.3% improvement in ATP. Conclusions This paper proposes a high area-efficiency radix-4 NTT hardware architecture for lattice-based PQC algorithms. By employing a low-complexity radix-4 CG NTT/INTT and eliminating the bit-reversal operation, the latency is reduced. By analyzing the common characteristics of three specific moduli and merging partial computations, a scalable modular multiplication architecture based on ${\text{K}}{}^2 - {\text{RED}}$ reduction is designed. This paper tackles the challenges of storage space doubling and address generation complexity by efficiently reusing memory and designing address generation schemes based on sequential and stepped access patterns. Experimental results demonstrate that the proposed scheme significantly improves operating frequency and reduces resource consumption, resulting in lower ATP under three parameter configurations. However, this study only considers a dual-butterfly unit architecture. Future research should further explore architectural designs with higher degrees of parallelism to meet performance requirements for various application scenarios.
