Ultra-wideband Bonding Wire RF Characteristics Compensation IC and Circuit Design for Microwave Components

KONG Weidong; YAN Pengyi; LU Shaopeng; WANG Qiaonan; DENG Shixiong; LIN Peng; WANG Cong; YANG Guohui; ZHANG Kuang

doi:10.11999/JEIT250502

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

KONG Weidong, YAN Pengyi, LU Shaopeng, WANG Qiaonan, DENG Shixiong, LIN Peng, WANG Cong, YANG Guohui, ZHANG Kuang. Ultra-wideband Bonding Wire RF Characteristics Compensation IC and Circuit Design for Microwave Components[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250502

Citation:

KONG Weidong, YAN Pengyi, LU Shaopeng, WANG Qiaonan, DENG Shixiong, LIN Peng, WANG Cong, YANG Guohui, ZHANG Kuang. Ultra-wideband Bonding Wire RF Characteristics Compensation IC and Circuit Design for Microwave Components[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250502

Citation:

KONG Weidong, YAN Pengyi, LU Shaopeng, WANG Qiaonan, DENG Shixiong, LIN Peng, WANG Cong, YANG Guohui, ZHANG Kuang. Ultra-wideband Bonding Wire RF Characteristics Compensation IC and Circuit Design for Microwave Components[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250502

PDF( 3710 KB)

Ultra-wideband Bonding Wire RF Characteristics Compensation IC and Circuit Design for Microwave Components

doi: 10.11999/JEIT250502 cstr: 32379.14.JEIT250502

1.
School of Electronics and Information Engineering, Harbin Institute of Technology, Harbin 150001, China
2.
China Electronics Technology Group Corporation 13th Research Institute , Shijiangzhuang 050051, China

Funds: The National Natural Science Foundation of China (U23B2014)

Received Date: 2025-06-03
Rev Recd Date: 2025-09-12

Available Online: 2025-09-17

Abstract

Abstract

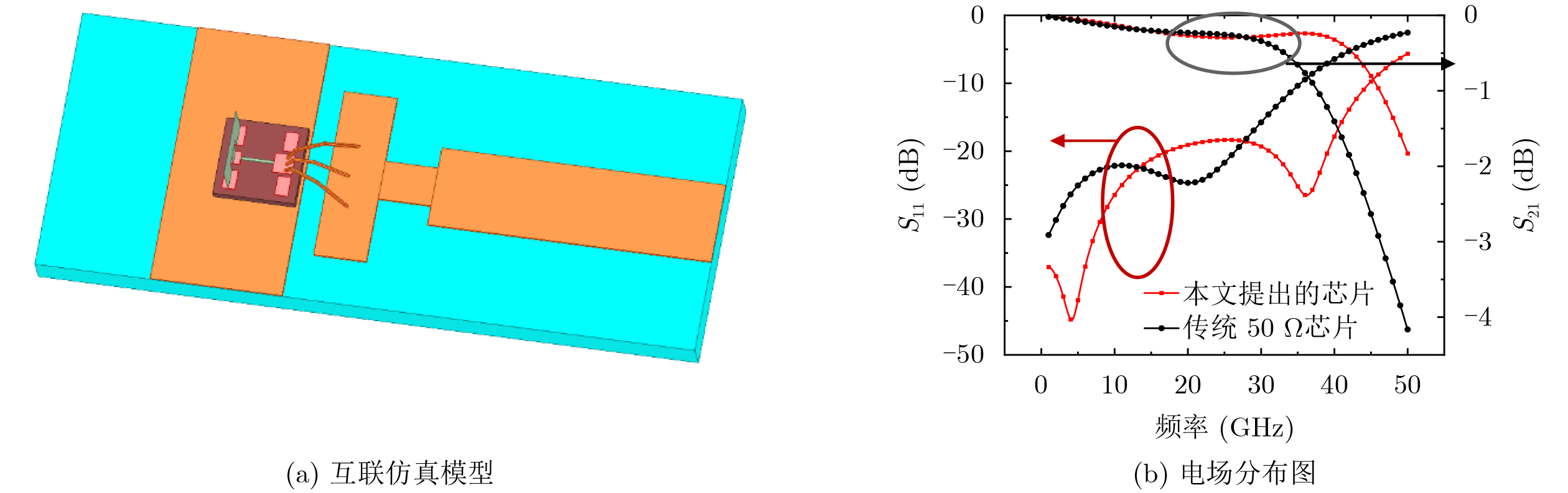

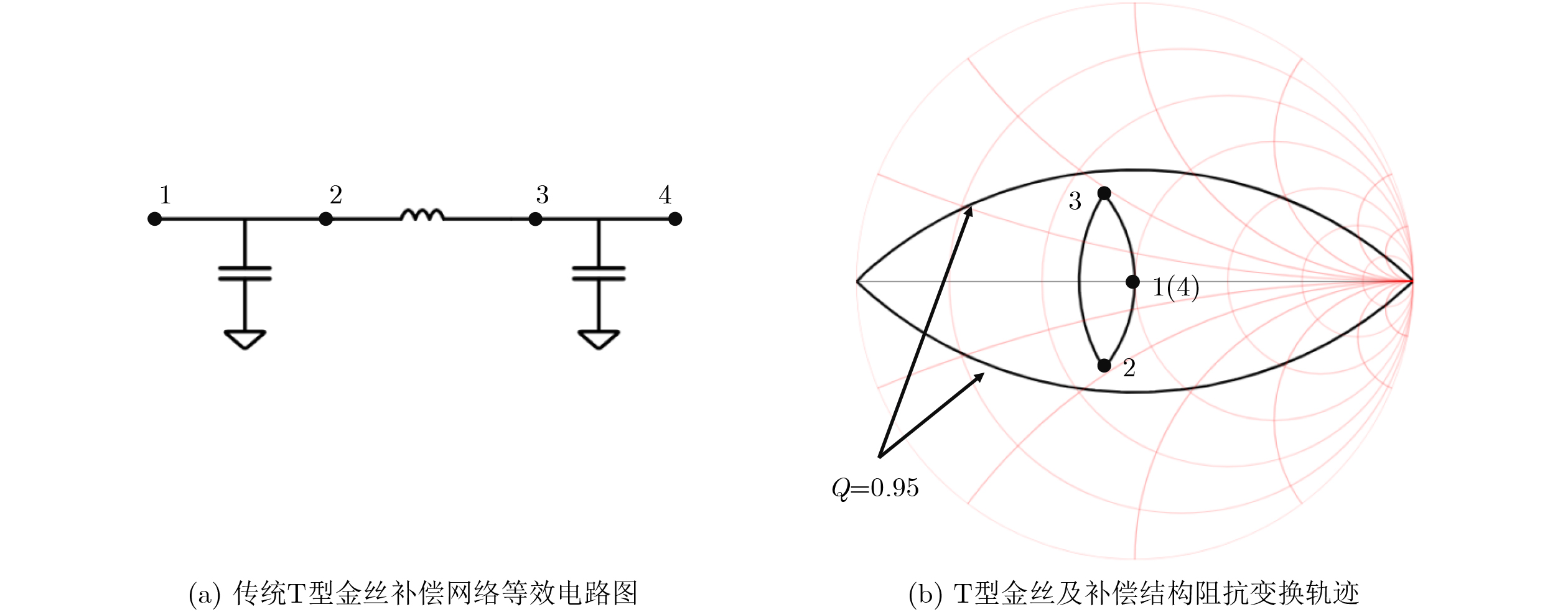

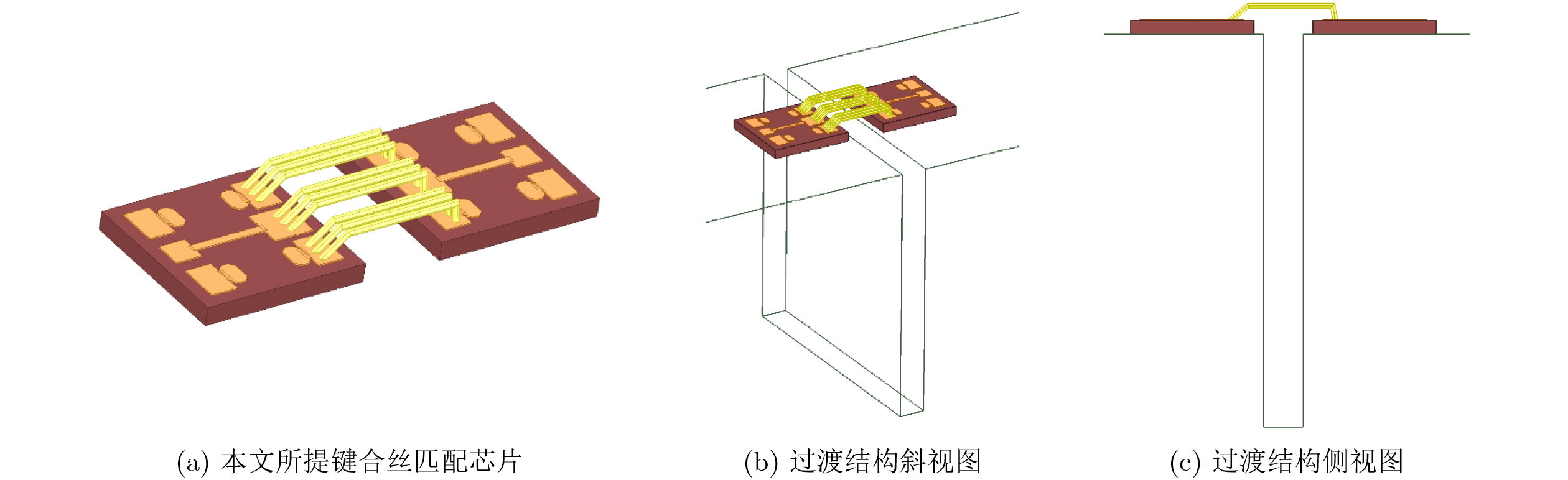

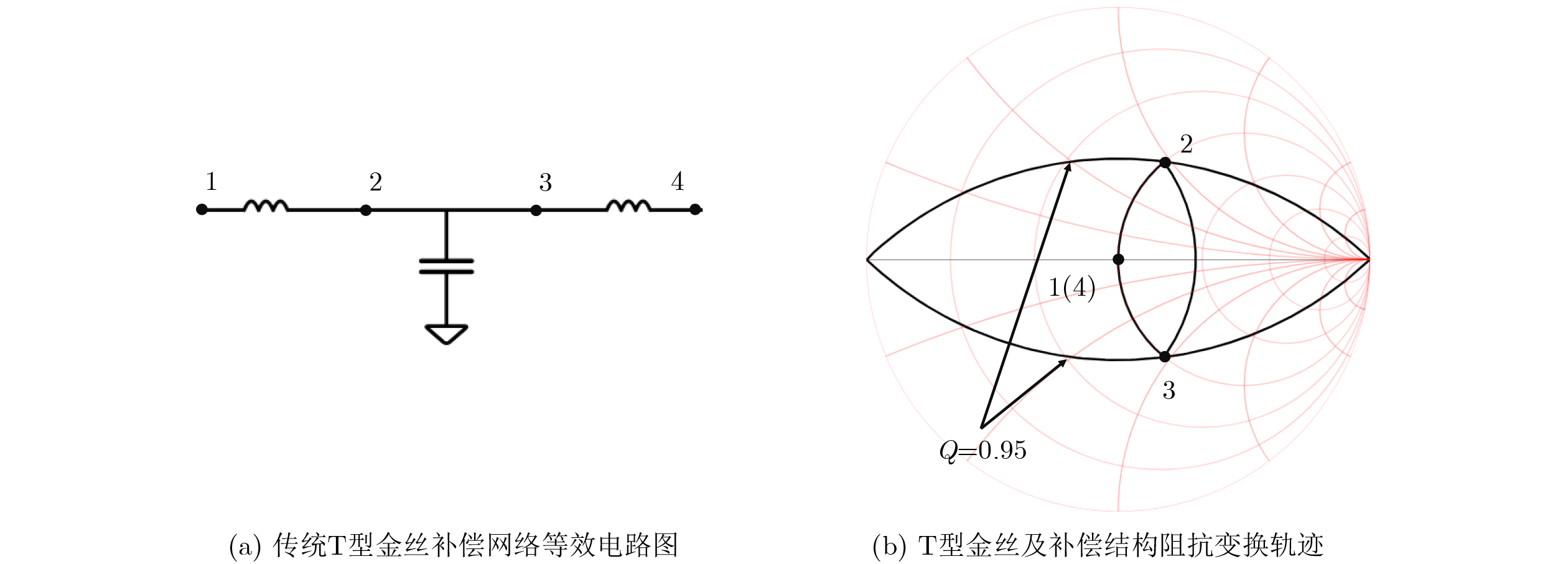

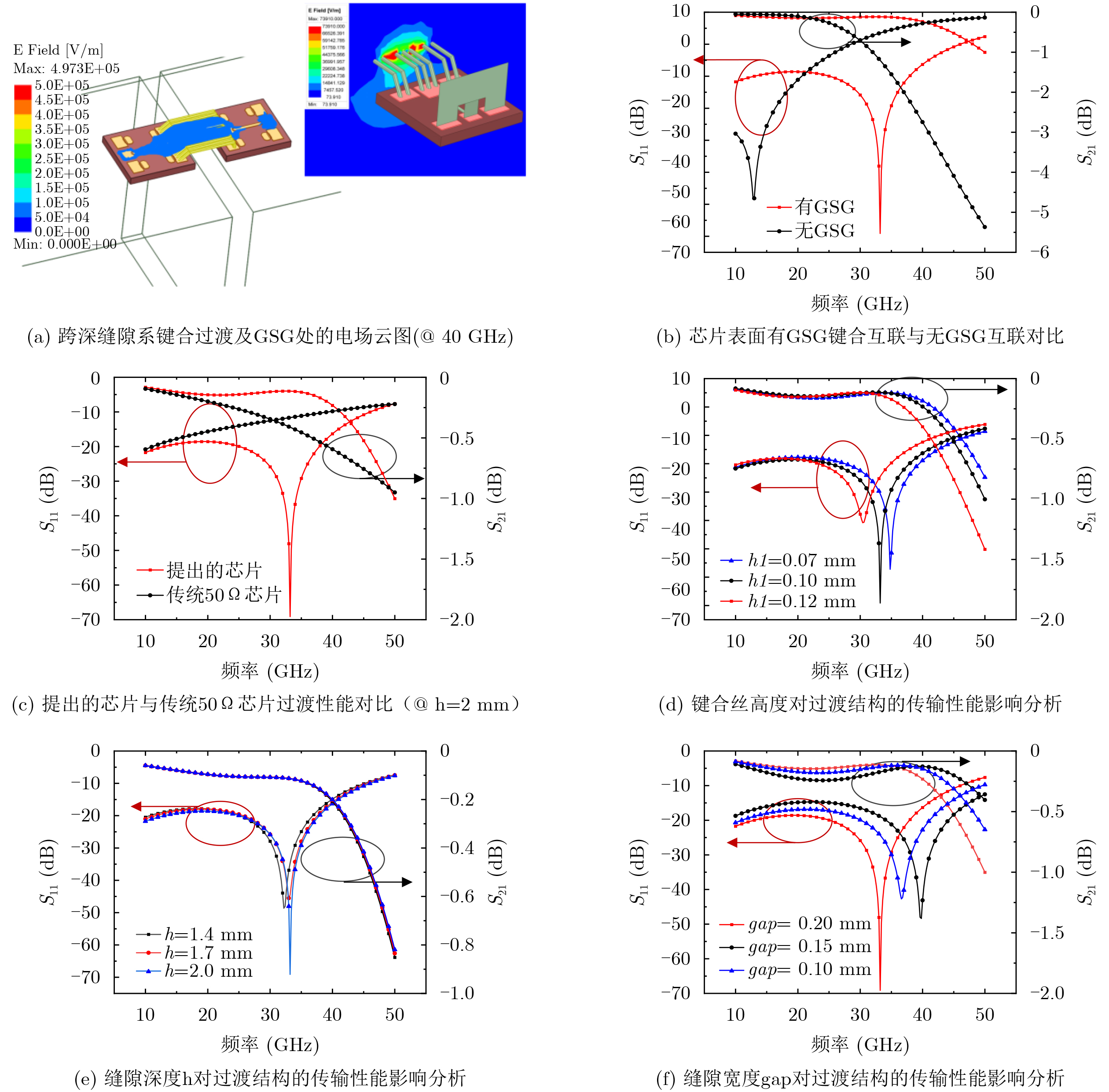

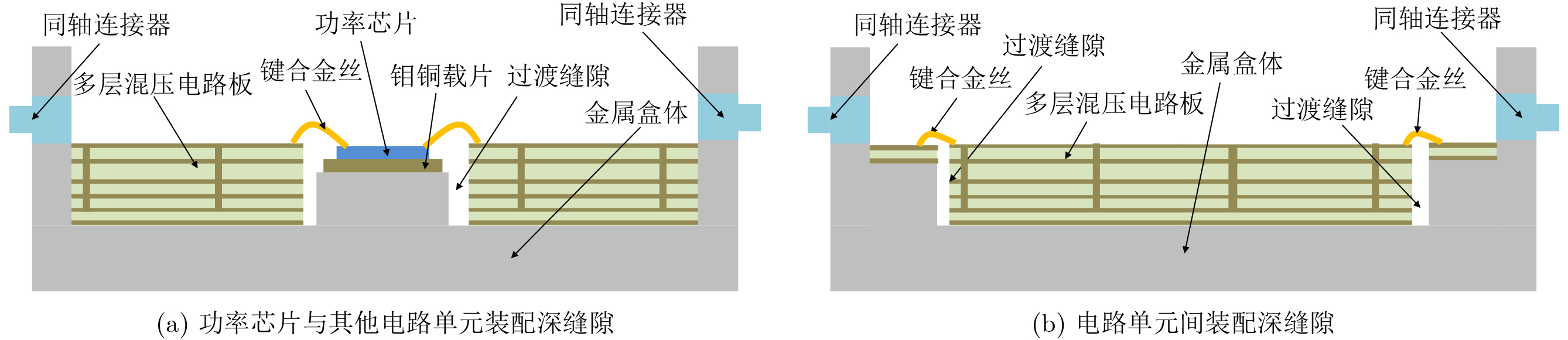

Objective In microwave modules, assembly gaps often occur between power amplifier chips and multilayer hybrid circuit boards or among different circuit units. These gaps form deep transition trenches that significantly degrade RF signal transmission quality, particularly at millimeter-wave frequencies. Bonding wires remain a critical solution for establishing electrical interconnections between RF chips and other structures. However, the inherent parasitic inductance of gold bonding wires adversely affects system performance. As RF modules increasingly operate in the Ka-band and W-band, the degradation caused by this parasitic inductance has become more pronounced. The problem is especially severe when the ground–signal return path is excessively long or when the bonding wires themselves are too long. Methods The impedance transformation paths of T-type and π-type matching networks are compared on the Smith chart. The analysis indicates that for a given parasitic inductance of bonding wires, the Q-circle of the π-type matching network is smaller, thereby enabling a broader matching bandwidth. A π-type matching network for chip-to-chip interconnection is realized by optimizing the bonding pad dimensions on the GaAs chip to provide capacitive loading. As the bonding pad size increases, more gold wires can be bonded to the chip, which simultaneously reduces the parasitic inductance of the wires. Additionally, a symmetric “Ground–Signal–Ground (GSG)” bonding pad structure is designed on the GaAs chip, which shortens the ground return path and further reduces the parasitic inductance of the bonding wires. By integrating these three design strategies, the proposed chip and transition structure are shown to substantially improve the performance of cross-deep-gap transitions between different circuit units in microwave modules. Results and Discussions The proposed chip and transition structure substantially improve the performance of cross-trench transitions between different circuit units in microwave modules (Fig. 7). Simulation results show that the interconnection architecture effectively mitigates the adverse effects of trench depth on RF characteristics (Fig. 9). Experimental validation further confirms that the π-type matching network implemented with the designed chip achieves an ultra-wideband, high-performance cross-trench transition, with a return loss of ≥ 17 dB and an insertion loss of ≤ 0.7 dB over the DC–40 GHz frequency range (Fig. 10). Conclusions Comparative analysis of impedance transformation paths between T-type and π-type matching networks demonstrates that in gold-wire bonding interconnections, the π-type configuration is more effective in mitigating the effect of bonding wire parasitic inductance on matching bandwidth, making it suitable for ultra-wideband bonded interconnection circuits. To implement the π-type matching network using GaAs technology, the bonding pad area on the chip is enlarged to provide capacitive loading and to allow additional bonding wires, thereby further reducing parasitic inductance. A GSG structure is also designed on the GaAs chip surface to modify the reference ground return path of the bonded interconnections, leading to additional reduction in parasitic inductance. By integrating these features, an ultra-wideband compensation chip is developed and applied to cross-trench transition structures in microwave modules. Experimental results indicate that for a transition structure with a trench depth of 2 mm and a width of 0.2 mm, the proposed design achieves high-performance characteristics from DC to 40 GHz, with return loss ≥ 17 dB and insertion loss ≤ 0.7 dB. When applied to interconnections between RF chips and circuit boards in microwave modules, the chip also significantly enhances the RF matching performance of bonded interconnections.
- Module,
- Ultra-wideband transition,
- Wire bonding,
- Matching structure,
- Monolithic Microwave Integrated Circuit(MMIC) chips,
- XXX

FullText(HTML)

References(19)

References

[1]	徐锐敏, 王欢鹏, 徐跃杭. 射频微系统关键技术进展及展望[J]. 微波学报, 2023, 39(5): 70–78. doi: 10.14183/j.cnki.1005-6122.2013.z1.011. XU Ruimin, WANG Huanpeng, and XU Yuehang. Progress and prospects of key technologies in RF microsystems[J]. Journal of Microwaves, 2023, 39(5): 70–78. doi: 10.14183/j.cnki.1005-6122.2013.z1.011.
[2]	WANG Haoyu, MA Jianshe, YANG Yide, et al. A review of system-in-package technologies: Application and reliability of advanced packaging[J]. Micromachines, 2023, 14(6): 1149. doi: 10.3390/mi14061149.
[3]	CHYAN J Y and YEH J A. Return loss reduction of molded bonding wires by comb capacitors[J]. IEEE Transactions on Advanced Packaging, 2006, 29(1): 98–101. doi: 10.1109/TADVP.2005.848395.
[4]	孔静, 李岩, 高鸿, 等. 微波电路互联用金丝键合界面空间高低温特性演化研究[J]. 宇航材料工艺, 2023, 53(2): 67–73. doi: 10.12044/j.issn.1007-2330.2023.02.011. KONG Jing, LI Yan, GAO Hong, et al. Research on the evolution of gold wire bonding interface used for microwave circuit interconnection in high and low space temperature[J]. Aerospace Materials & Technology, 2023, 53(2): 67–73. doi: 10.12044/j.issn.1007-2330.2023.02.011.
[5]	陈春梅, 伍艺龙, 李慧. LTCC基板装配间隙对微波特性的影响分析[J]. 电子工艺技术, 2017, 38(6): 323–325. doi: 10.14176/j.issn.1001-3474.2017.06.004. CHEN Chunmei, WU Yilong, and LI Hui. Impact of LTCC substrate assembly gap on microwave characteristics[J]. Electronics Process Technology, 2017, 38(6): 323–325. doi: 10.14176/j.issn.1001-3474.2017.06.004.
[6]	洪伟, 陈喆, 周培根, 等. 毫米波太赫兹集成电路与工艺[J]. 微波学报, 2023, 39(5): 1–18. doi: 10.14183/j.cnki.1005-6122.202305001. HONG Wei, CHEN Zhe, ZHOU Peigen, et al. Millimeter wave and terahertz integrated circuits and processes[J]. Journal of Microwaves, 2023, 39(5): 1–18. doi: 10.14183/j.cnki.1005-6122.202305001.
[7]	林昊, 姚常飞. 一种Ka波段多通道收发组件设计[J]. 微波学报, 2023, 39(4): 62–65. doi: 10.14183/j.cnki.1005-6122.202304014. LIN Hao and YAO Changfei. Design of a Ka-band multi-channel T/R module[J]. Journal of Microwaves, 2023, 39(4): 62–65. doi: 10.14183/j.cnki.1005-6122.202304014.
[8]	ZHANG Yifei, SHI Shouyuan, MARTIN R D, et al. Packaging of high-gain multichip module in multilayer LCP substrates at W-band[J]. IEEE Transactions on Components, Packaging and Manufacturing Technology, 2017, 7(10): 1655–1662. doi: 10.1109/TCPMT.2017.2737550.
[9]	ZHU Haoran, SUN Yufa, and WU Xianliang. Investigation of the capacitance compensation structure for wire-bonding interconnection in multi-chips module[C]. Proceedings of 2017 IEEE Electrical Design of Advanced Packaging and Systems Symposium, Haining, China, 2017: 1–3. doi: 10.1109/EDAPS.2017.8277018.
[10]	张红影, 徐金平, 陈墨. 毫米波微带键合金丝宽带匹配互连分析设计[C]. 2009年全国微波毫米波会议论文集(上册). 北京: 电子工业出版社, 2009: 255–257. ZHANG Hongying, XU Jinping, and CHEN Mo. The design and analysis of millimeter-wave microstrip bonding wires for wide-bandwidth matching interconnection[C]. Proceedings of the 2009 National Conference on Microwave and Millimeter Wave (Volume I). Beijing: Publishing House of Electronics Industry, 2009: 255–257. (查阅网上资料, 未找到本条标黄信息, 请确认).
[11]	UMAR M, LAABS M, NEUMANN N, et al. Bondwire model and compensation network for 60 GHz chip-to-PCB interconnects[J]. IEEE Antennas and Wireless Propagation Letters, 2021, 20(11): 2196–2200. doi: 10.1109/LAWP.2021.3108499.
[12]	罗建. 一种可改善键合丝截止频率的T形匹配电路[J]. 现代信息科技, 2022, 6(2): 78–80. doi: 10.19850/j.cnki.2096-4706.2022.02.020. LUO Jian. A T-shaped matching circuit which can improve the cut-off frequency of bonding wire[J]. Modern Information Technology, 2022, 6(2): 78–80. doi: 10.19850/j.cnki.2096-4706.2022.02.020.
[13]	阮文州, 刘杨, 陈立翔. 一种针对超宽带应用的小尺寸微波阻抗匹配方法[J]. 微波学报, 2016, 32(S2): 508–510. RUAN Wenzhou, LIU Yang, and CHEN Lixiang. A small-scale microwave impedance matching method for ultra-wideband application[J]. Journal of Microwaves, 2016, 32(S2): 508–510.
[14]	王禾, 周健, 戴岚, 等. 基于陶瓷基板微系统T/R组件的焊接技术研究[J]. 电子与封装, 2023, 23(11): 110202. doi: 10.16257/j.cnki.1681-1070.2023.0144. WANG He, ZHOU Jian, DAI Lan, et al. Research on welding technology for micro-system T/R components based on ceramic substrates[J]. Electronics & Packaging, 2023, 23(11): 110202. doi: 10.16257/j.cnki.1681-1070.2023.0144.
[15]	ZHANG Yifei, SHI Shouyuan, MARTIN R D, et al. Packaging of high-gain multichip module in multilayer LCP substrates at W-band[J]. IEEE Transactions on Components, Packaging and Manufacturing Technology, 2017, 7(10): 1655–1662. doi: 10.1109/TCPMT.2017.2737550. (查阅网上资料, 本条文献和第8条文献重复,请核对).
[16]	ISAPOUR A and KOUKI A. Vertical LTCC integrated rectangular waveguide and transitions for millimeter-wave applications[J]. IEEE Transactions on Microwave Theory and Techniques, 2019, 67(3): 868–882. doi: 10.1109/TMTT.2019.2892743.
[17]	YANG Shilin, YU Zhiqiang, and ZHOU Jianyi. A low-loss broadband planar transition from ground coplanar waveguide to substrate-integrated coaxial line[J]. IEEE Microwave and Wireless Components Letters, 2021, 31(11): 1191–1194. doi: 10.1109/LMWC.2021.3079439.
[18]	MOON S and CHAPPELL W J. Novel three-dimensional packaging approaches using magnetically aligned anisotropic conductive adhesive for microwave applications[J]. IEEE Transactions on Microwave Theory and Techniques, 2010, 58(12): 3815–3823. doi: 10.1109/TMTT.2010.2086630.
[19]	BALLESTEROS J A, FERNANDEZ M D, BELENGUER A, et al. Versatile transition for multilayer compact devices in empty substrate integrated waveguide[J]. IEEE Microwave and Wireless Components Letters, 2018, 28(6): 482–484. doi: 10.1109/LMWC.2018.2825653.
