Design of Low-Power On-Chip Cache for Visual Perception Systems on the Edge

CHEN Mo; ZHANG Jing; WANG Yanrong; NAZHAMAITI Maimaiti; QIAO Fei

doi:10.11999/JEIT250466

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

CHEN Mo, ZHANG Jing, WANG Yanrong, NAZHAMAITI Maimaiti, QIAO Fei. Design of Low-Power On-Chip Cache for Visual Perception Systems on the Edge[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250466

Citation:

CHEN Mo, ZHANG Jing, WANG Yanrong, NAZHAMAITI Maimaiti, QIAO Fei. Design of Low-Power On-Chip Cache for Visual Perception Systems on the Edge[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250466

Citation:

PDF( 4008 KB)

Design of Low-Power On-Chip Cache for Visual Perception Systems on the Edge

doi: 10.11999/JEIT250466 cstr: 32379.14.JEIT250466

1.
School of Integrated Circuits, North China University of Technology, Beijing 100144, China
2.
Department of Electronic Engineering, Tsinghua University, Beijing 100084, China

Funds: The Beijing Natural Science Foundation (L253009), The Key Research and Development Program of Xinjiang Uygur Autonomous Region (2022B01008-3), The National Natural Science Foundation of China (92164203, 62334006)

Received Date: 2025-05-27
Rev Recd Date: 2025-08-28

Available Online: 2025-09-02

Abstract

Abstract

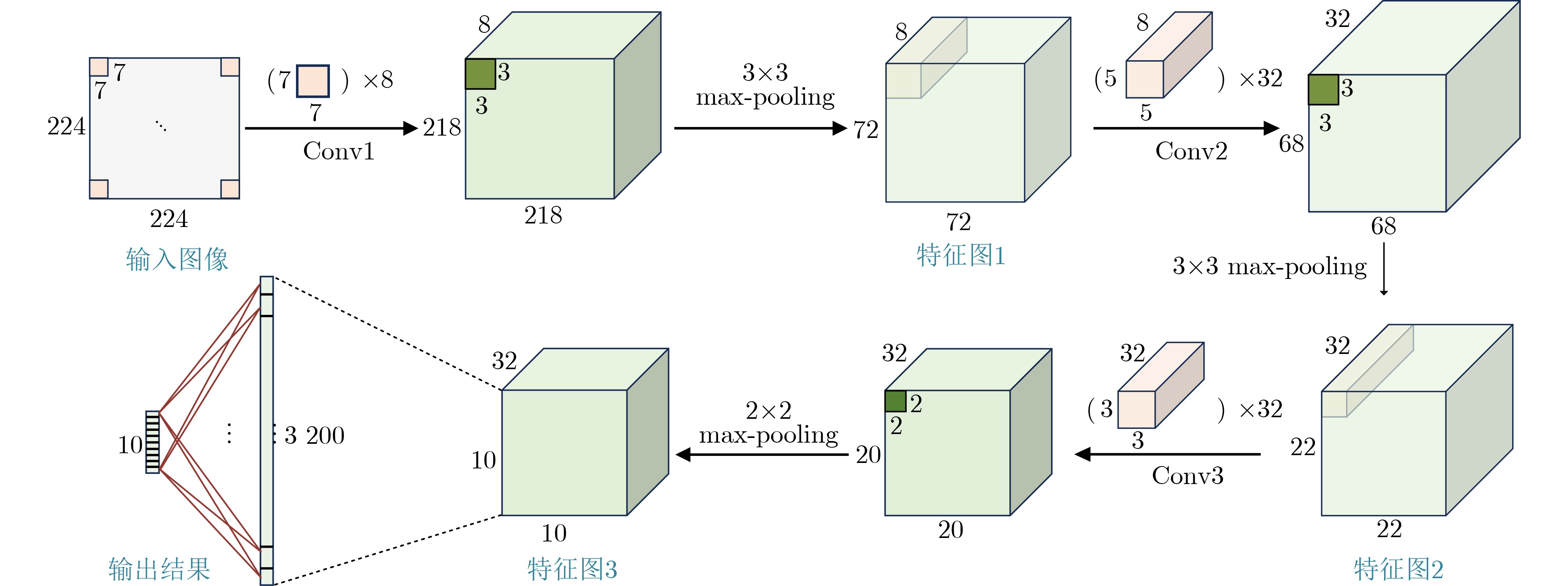

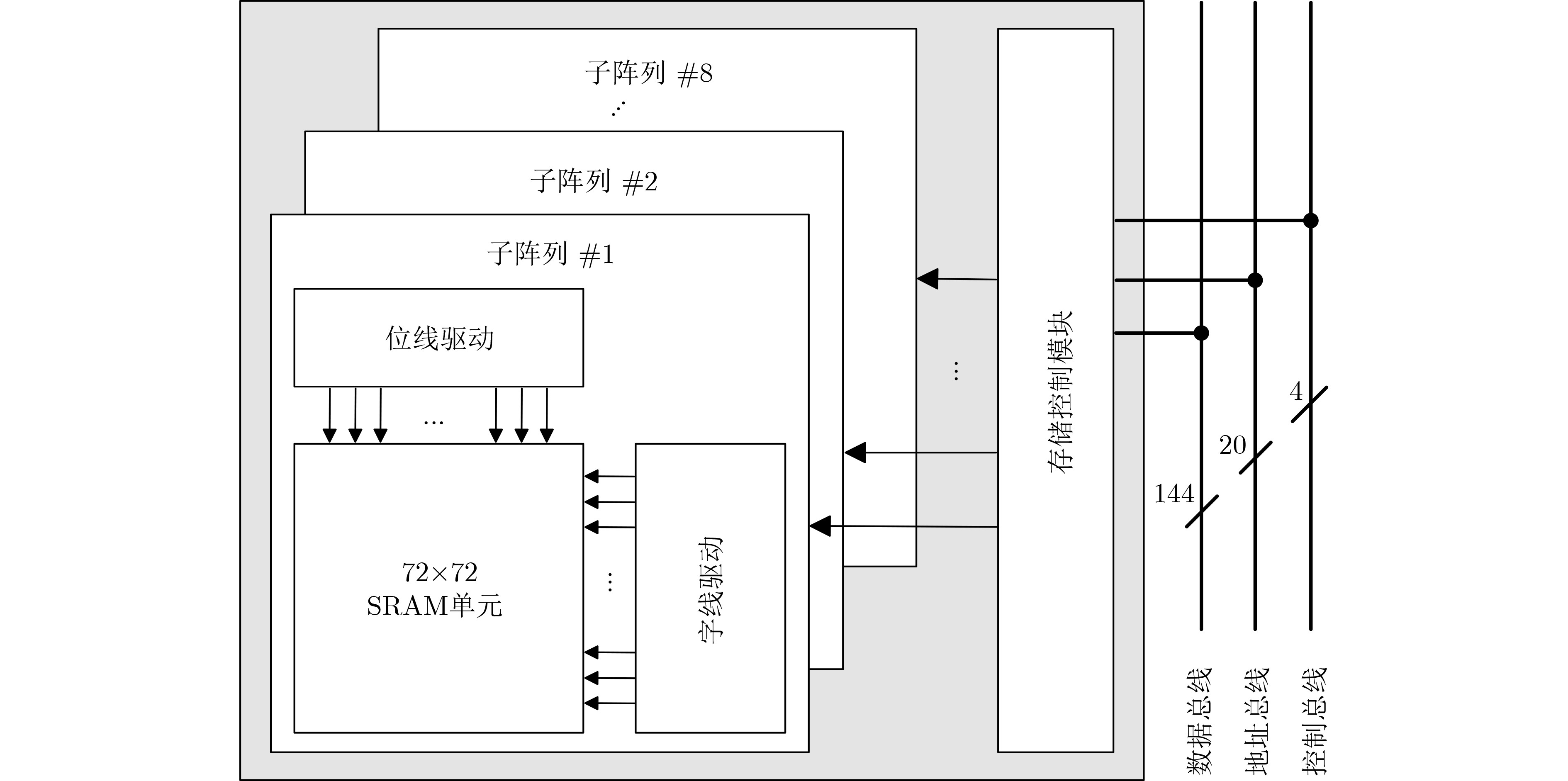

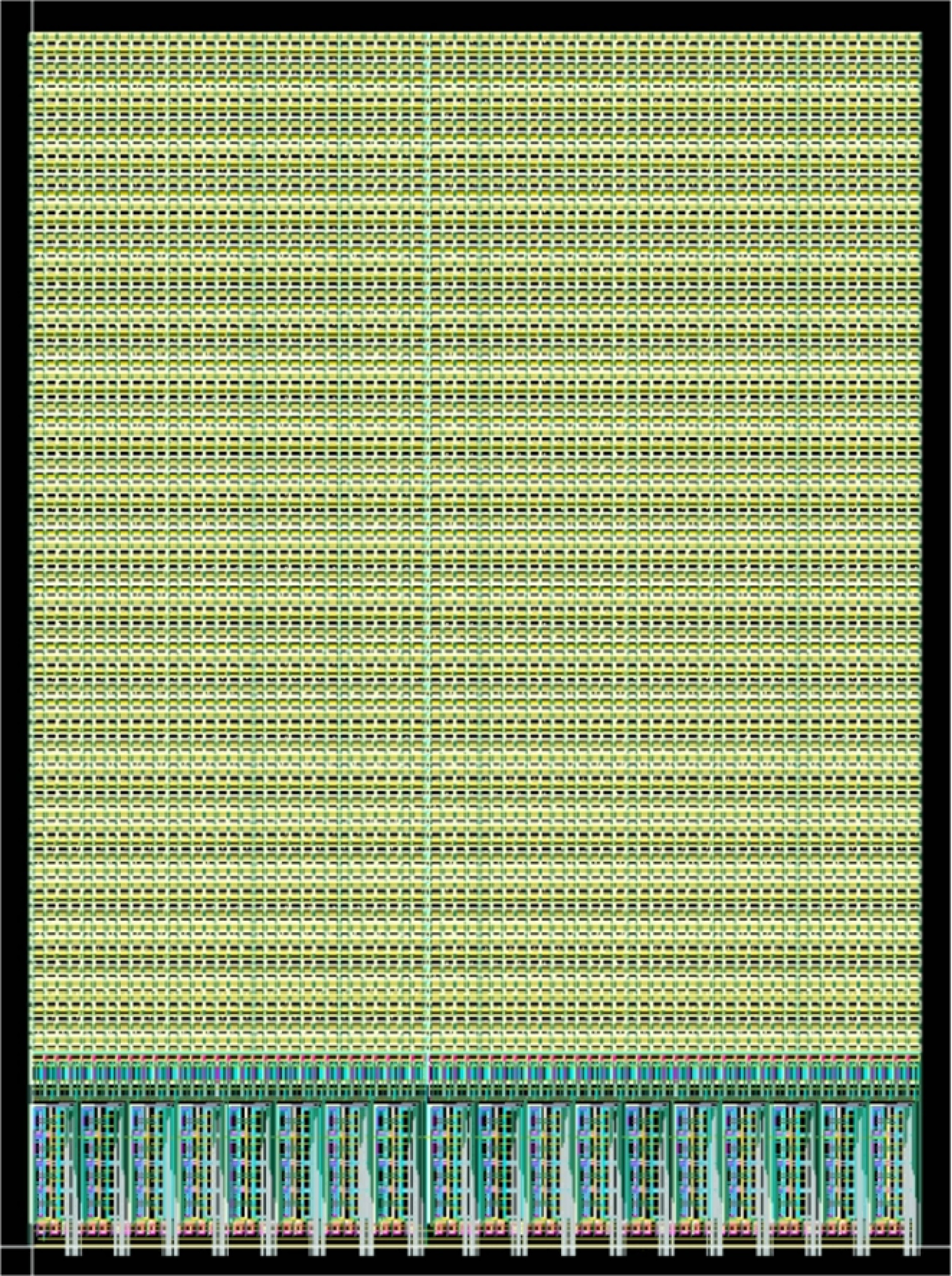

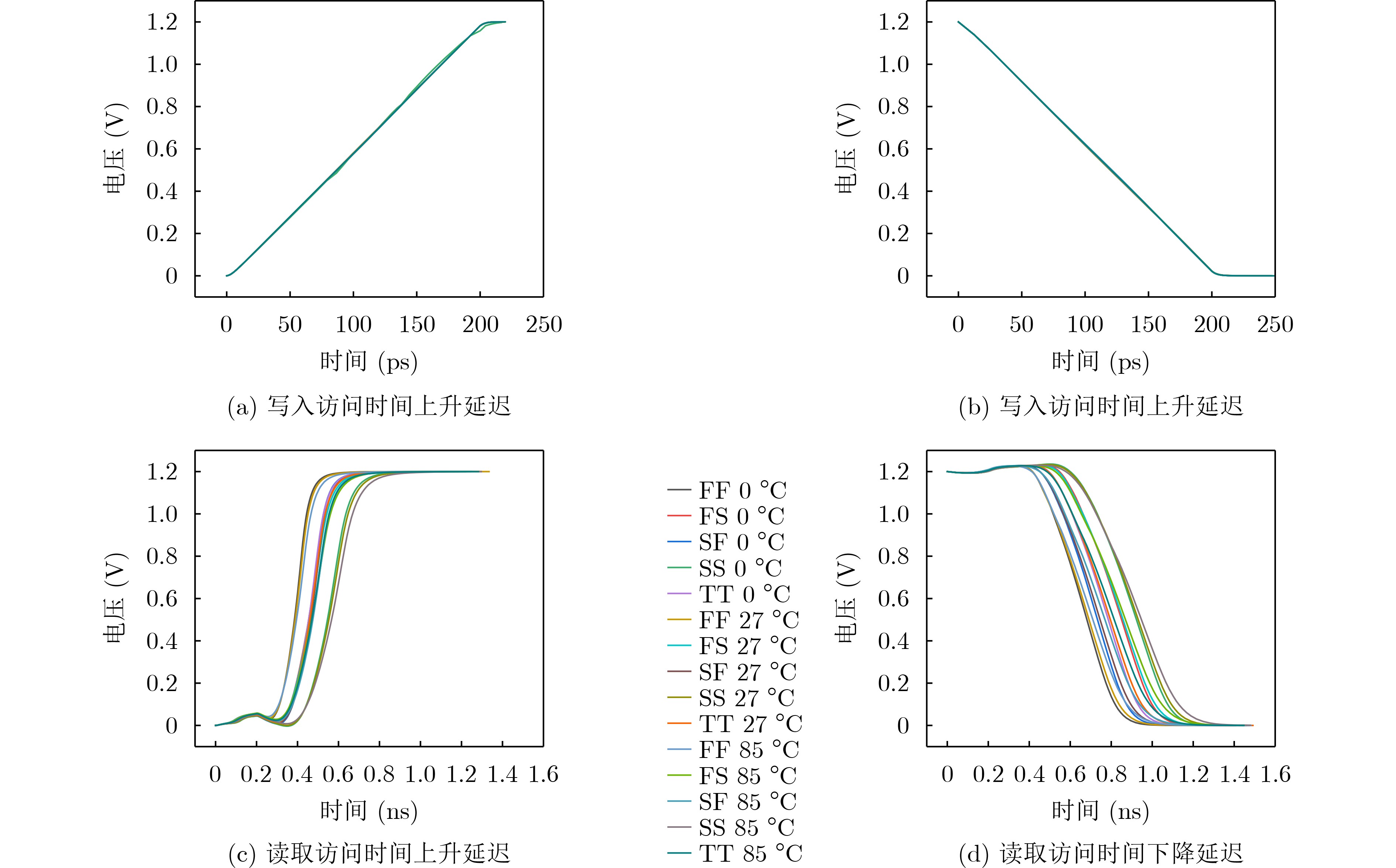

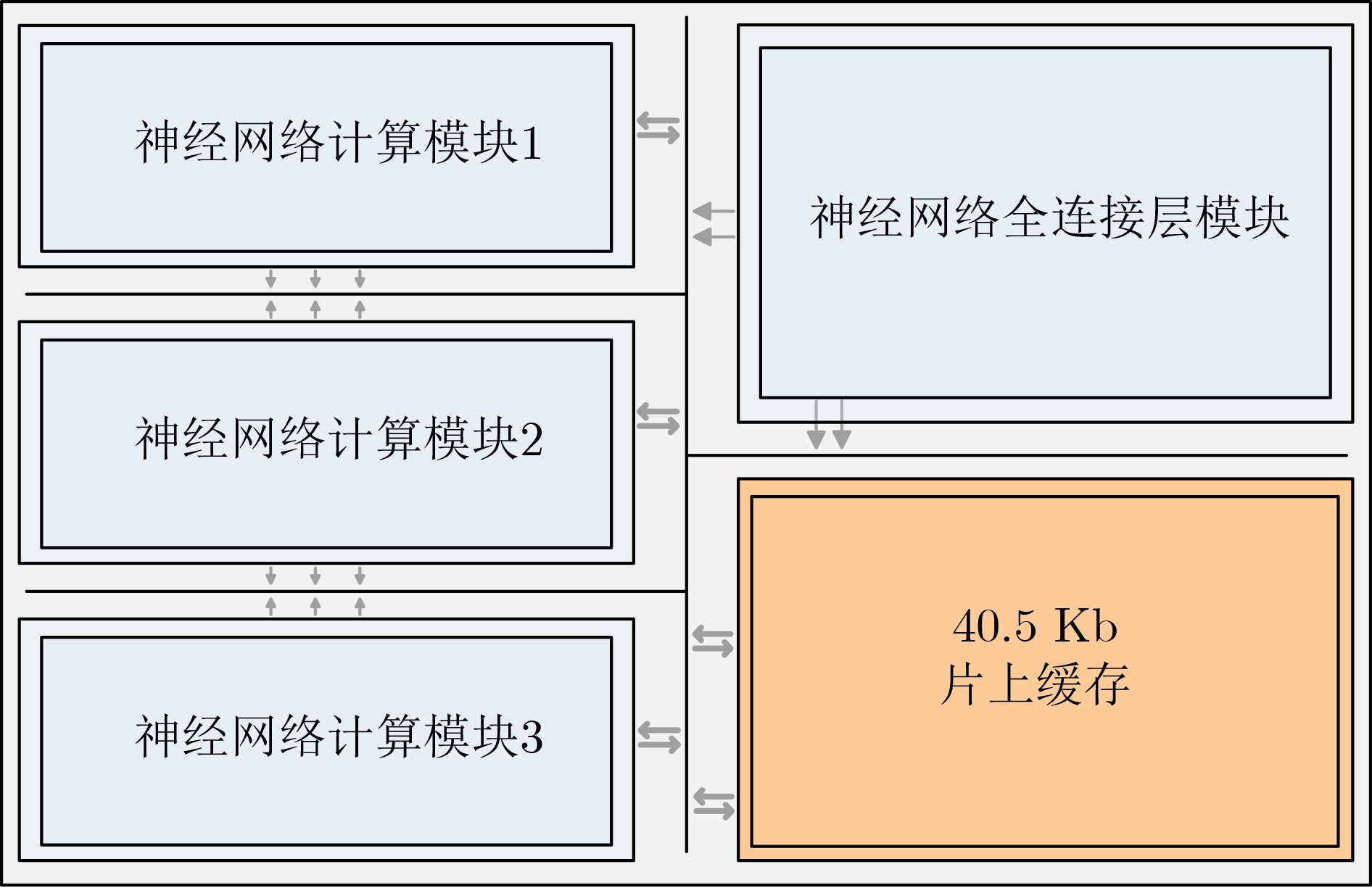

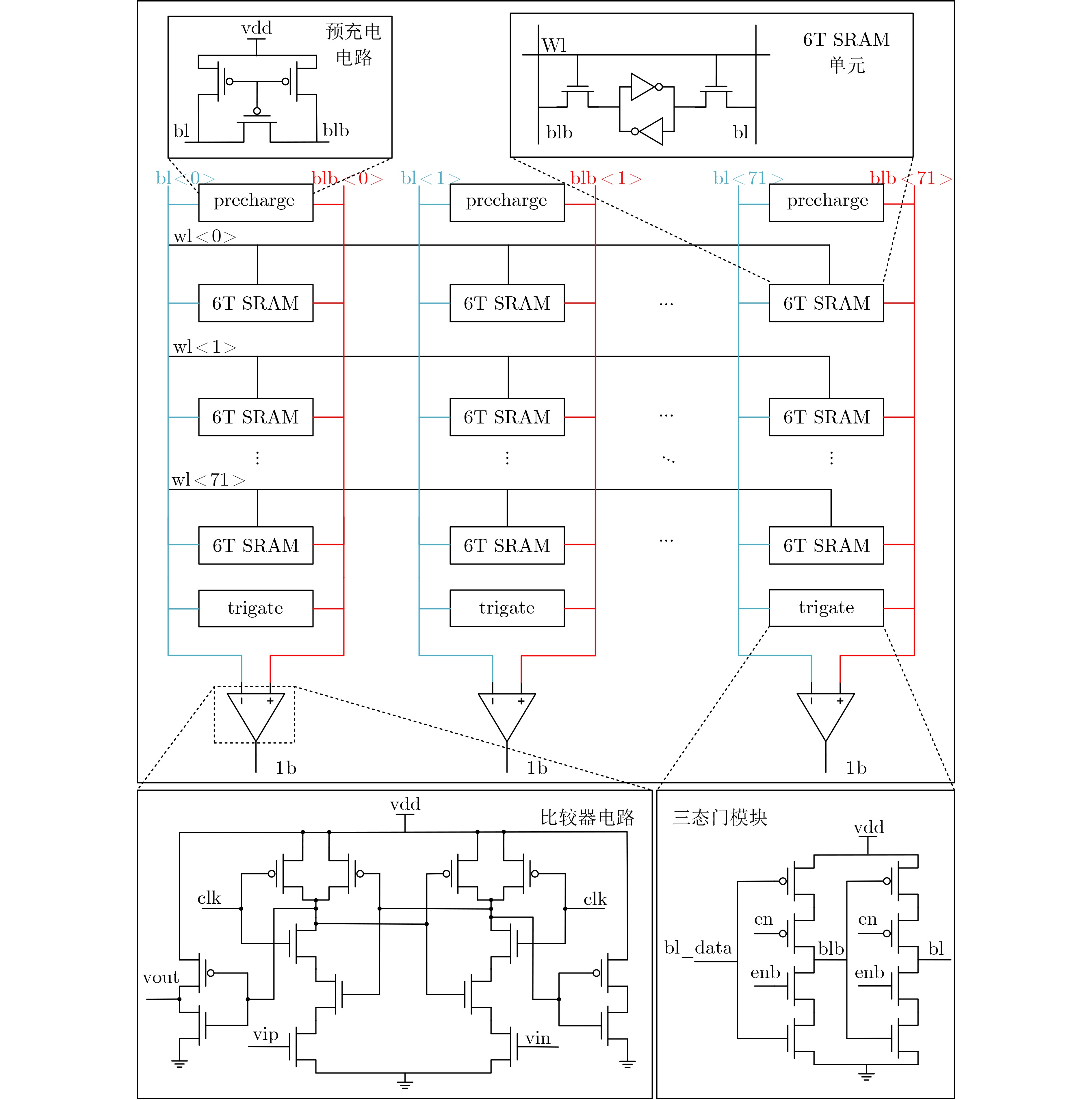

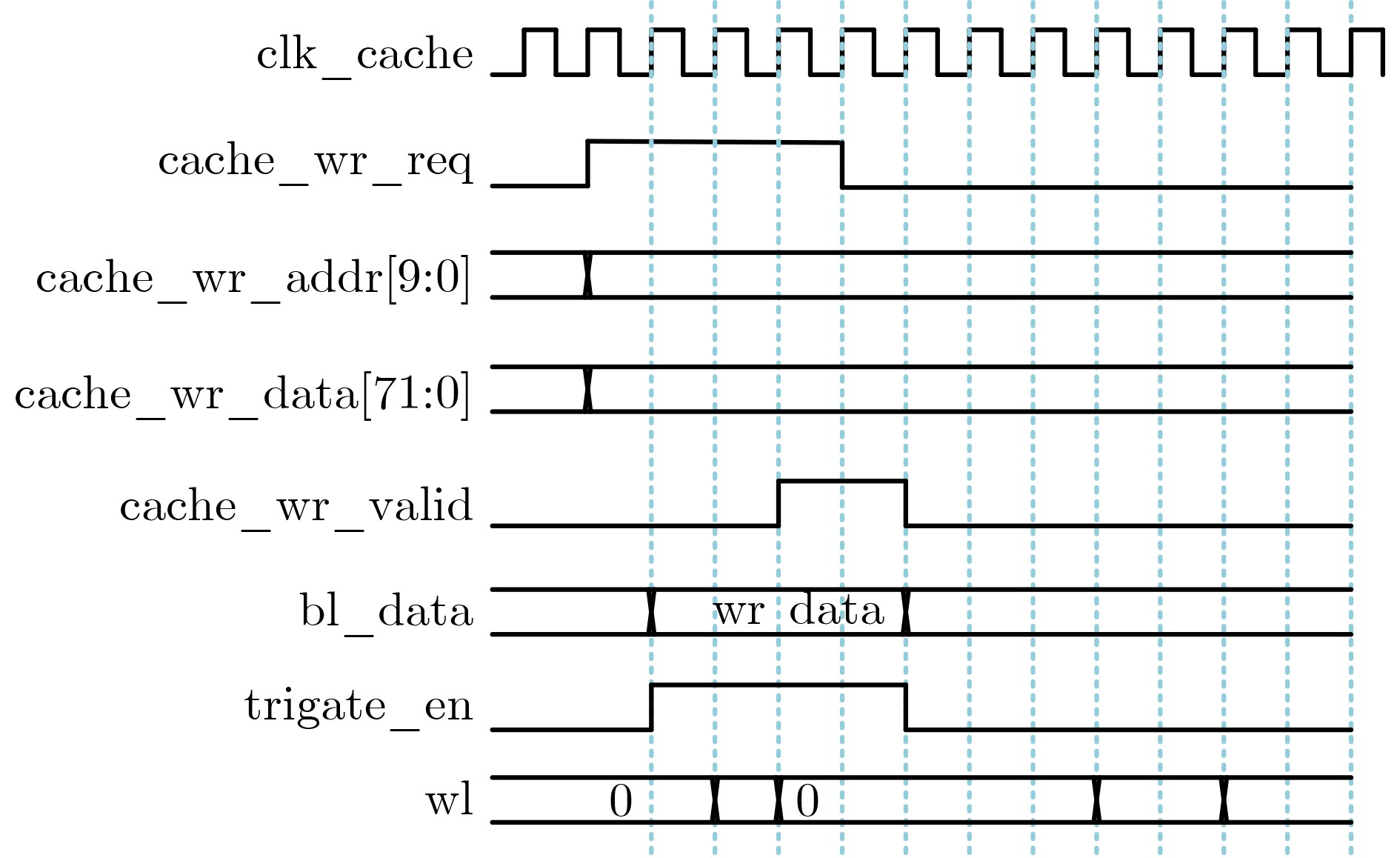

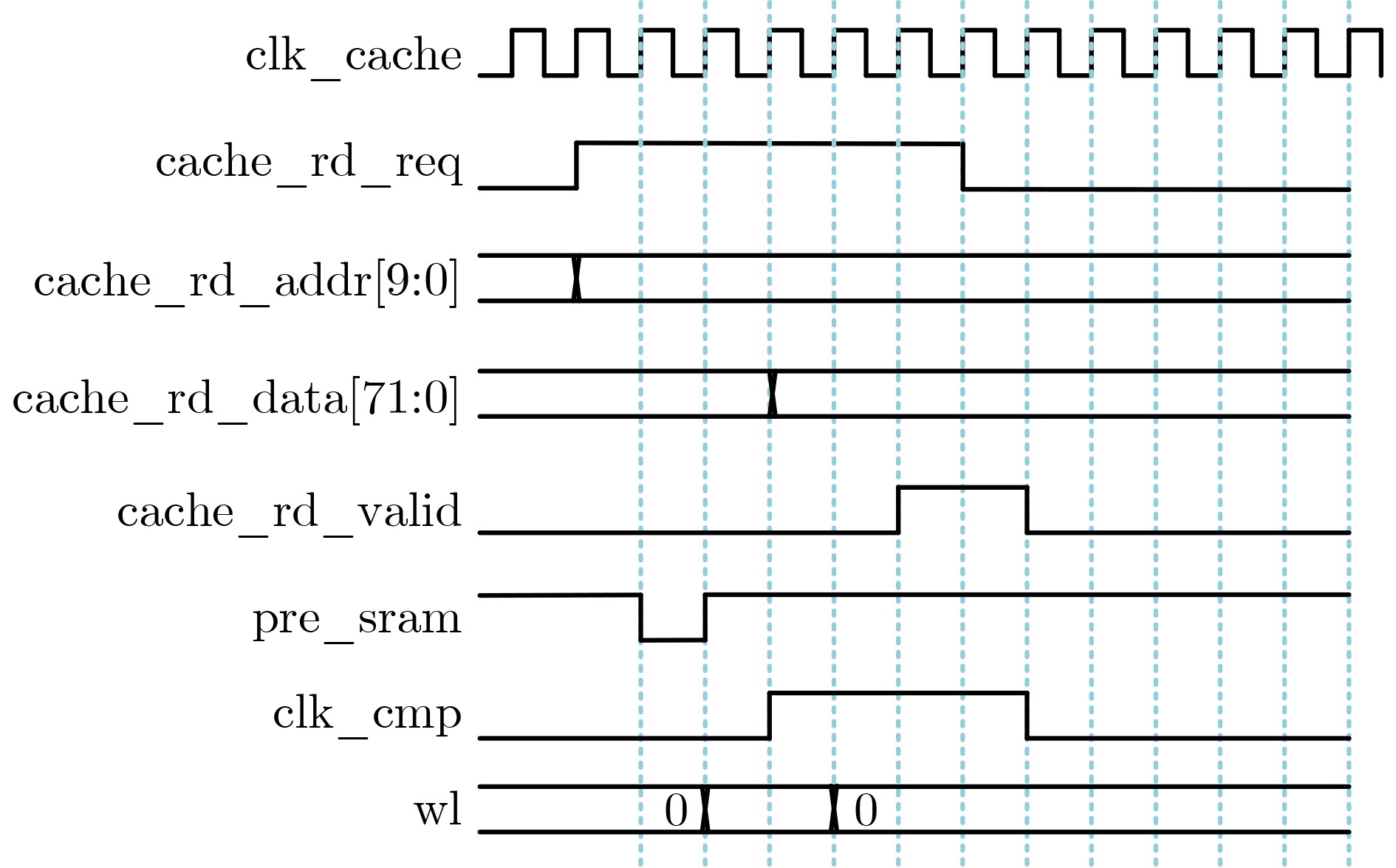

Objective The proliferation of Internet of Things (IoT) devices and the growing demand for edge computing have driven increased reliance on edge systems. However, deploying compute-intensive tasks on resource-constrained edge devices significantly raises computational demands and power consumption, thereby placing additional strain on energy-limited terminals. On-chip cache, which temporarily stores frequently accessed data and instructions, plays a crucial role in reducing latency and improving system performance. To address the stringent requirements of edge environments, it is essential to design on-chip caches that offer low power consumption, low manufacturing cost, and stable performance. Methods The proposed on-chip cache employs SRAM-based storage cells and a block-based architecture to store intermediate data between neural network layers. The memory capacity is configured as 40.5 Kb, based on the output feature map of the first neural network layer, which generates the largest data volume. This feature map has spatial dimensions of 72×72 with 8 channels. To enable efficient data scheduling during neural network computation, data from each channel is stored in an independent sub-array. Therefore, the buffer consists of 8 sub-arrays, each implemented as a 72×72 SRAM array with dedicated bit-line and word-line drivers. A memory control module is implemented to exploit the progressive reduction in data volume across convolutional layers. During access to the second convolutional layer, only the required sub-arrays are activated. Unused memory blocks are dynamically powered down by the control module to achieve deep power optimization. Performance evaluation is carried out through simulations using TSMC 180 nm CMOS technology. The evaluation includes measurements of access latency under different process corners and temperatures; read/write dynamic power consumption under varying supply voltages, temperatures, and clock frequencies; and a comparative analysis of dynamic power consumption between monolithic and block-based storage architectures. Results and Discussions The proposed on-chip cache demonstrates strong performance across key evaluation metrics. First, a comprehensive design summary is provided, detailing supply voltage, memory capacity, and layout area under different process variations (Table 1). Second, dynamic read/write power measurements under varying operating temperatures, supply voltages, and clock frequencies (Tables 2–4) confirm excellent energy efficiency, satisfying the stringent power-performance requirements of edge visual sensing applications across diverse conditions. Access latency analysis further confirms stable memory read/write behavior under process corner variations and thermal fluctuations (Fig. 8). A comparative evaluation of power consumption between monolithic and partitioned storage architectures (Table 5), together with benchmarking against state-of-the-art designs (Table 6), demonstrates that the proposed cache achieves significantly lower read/write energy consumption at the same process node, while maintaining stable access characteristics at reduced operating voltages. This design adopts a system-level optimization strategy that emphasizes architectural innovation over costly process scaling. When implemented in more advanced technology nodes, the architecture is expected to achieve substantial gains in energy-per-access, minimum operating voltage, and area efficiency. Conclusions This paper presents the architecture and circuit-level design of an on-chip cache tailored for edge visual perception systems. By optimizing the cache structure for neural network workloads, the proposed design reduces dynamic power consumption through block-based storage and dynamic memory control, thereby enhancing energy efficiency and extending operational endurance. The approach offers broad applicability for edge-based visual perception devices.
- On-Chip Cache,
- Low Power Design,
- SRAM

FullText(HTML)

References(21)

References

[1]	YANG Zhen, ZHANG Jie, JIANG Yunliang, et al. A self-organizing IoT service perception algorithm based on human visual direction-sensitive system[J]. IEEE Internet of Things Journal, 2023, 10(7): 6193–6204. doi: 10.1109/JIOT.2022.3223039.
[2]	RASTOGI A, KUMAR S, AGGARWAL A, et al. IoT-based smart traffic monitoring and control system for urban areas[C]. 2025 Fourth International Conference on Smart Technologies, Communication and Robotics, Sathyamangalam, India, 2025: 1–6. doi: 10.1109/STCR62650.2025.11018946.
[3]	CHEN Jiao, HE Jiayi, CHEN Fangfang, et al. Empowering IoT-based autonomous driving via federated instruction tuning with feature diversity[J]. IEEE Internet of Things Journal, 2025, 12(6): 6095–6108. doi: 10.1109/JIOT.2024.3518615.
[4]	RIZZO L, ZICARI P, CICIRELLI F, et al. A study on consumer-grade EEG headsets in BCI applications[C]. 2024 IEEE Conference on Pervasive and Intelligent Computing, Boracay Island, Philippines, 2024: 67–74. doi: 10.1109/PICom64201.2024.00016.
[5]	YEOLE P, LABADE Y, WABALE N, et al. IoT-enabled smart wearables for improved visual impairment navigation[C]. 2024 International Conference on Decision Aid Sciences and Applications, Manama, Bahrain, 2024: 1–5. doi: 10.1109/DASA63652.2024.10836578.(查阅网上资料,请确认标黄单词是否正确).
[6]	ABBAS N, ZHANG Yan, TAHERKORDI A, et al. Mobile edge computing: A survey[J]. IEEE Internet of Things Journal, 2018, 5(1): 450–465. doi: 10.1109/JIOT.2017.2750180.
[7]	WANG Sai, LI Xiaoyang, and GONG Yi. Energy-efficient task offloading and resource allocation for delay-constrained edge-cloud computing networks[J]. IEEE Transactions on Green Communications and Networking, 2024, 8(1): 514–524. doi: 10.1109/TGCN.2023.3306002.
[8]	LI Ziwei, XU Han, LIU Zheyu, et al. A 2.17μW@120fps ultra-low-power dual-mode CMOS image sensor with senputing architecture[C]. 2022 27th Asia and South Pacific Design Automation Conference, Taipei, China, 2022: 92–93. doi: 10.1109/ASP-DAC52403.2022.9712591.
[9]	PUVIRAJAN T, PAULRAJ R L, KULKARNI S, et al. 6T SRAM: A technical overview[C]. 2023 International Conference on Advances in Electronics, Communication, Computing and Intelligent Information Systems, Bangalore, India, 2023: 698–702. doi: 10.1109/ICAECIS58353.2023.10170407. (查阅网上资料,请确认标黄作者是否正确).
[10]	SINGH T, PRAKASH V, ANWER S S, et al. Analyzing the performance of 6T SRAM cell and 64×64 memory array at lower technology nodes for low power design[C]. 2023 1st International Conference on Circuits, Power and Intelligent Systems, Bhubaneswar, India, 2023: 1–6. doi: 10.1109/CCPIS59145.2023.10291492.
[11]	YU Shimeng, JIANG Hongwu, HUANG Shanshi, et al. Compute-in-memory chips for deep learning: Recent trends and prospects[J]. IEEE Circuits and Systems Magazine, 2021, 21(3): 31–56. doi: 10.1109/MCAS.2021.3092533.
[12]	MITTAL S and VETTER J S. A survey of software techniques for using non-volatile memories for storage and main memory systems[J]. IEEE Transactions on Parallel and Distributed Systems, 2016, 27(5): 1537–1550. doi: 10.1109/TPDS.2015.2442980.
[13]	INCI A, ISGENC M M, and MARCULESCU D. DeepNVM++: Cross-layer modeling and optimization framework of nonvolatile memories for deep learning[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2022, 41(10): 3426–3437. doi: 10.1109/TCAD.2021.3127148.
[14]	RATHI N, KUMAR A, GUPTA N, et al. A review of low-power static random access memory (SRAM) designs[C]. 2023 IEEE Devices for Integrated Circuit, Kalyani, India, 2023: 455–459. doi: 10.1109/DevIC57758.2023.10134887.
[15]	SIMON W A, LEVISSE A, ZAPATER M, et al. A hybrid cache HW/SW stack for optimizing neural network runtime, power and endurance[C]. 2020 IFIP/IEEE 28th International Conference on Very Large Scale Integration, Salt Lake City, USA, 2020: 94–99. doi: 10.1109/VLSI-SOC46417.2020.9344087.
[16]	NAZEMIAN M and SAYEDI S M. Low power SRAM using an optimal number of split bit lines and single-ended sensing[C]. 2023 31st International Conference on Electrical Engineering, Tehran, Islamic Republic of Iran, 2023: 947–950. doi: 10.1109/ICEE59167.2023.10334788.
[17]	NGUYEN D T, BHATTACHARJEE A, MOITRA A, et al. MCAIMem: A mixed SRAM and eDRAM cell for area and energy-efficient on-chip AI memory[J]. IEEE Transactions on Very Large Scale Integration (VLSI) Systems, 2024, 32(11): 2023–2036. doi: 10.1109/TVLSI.2024.3439231.
[18]	NAZHAMAITI M, JIANG Weihuang, SU Haijin, et al. Selfputing: A 0.57 μW @ 15 fps vision chip with self-powered in-pixel computing and in-memory computing for visual perception on the edge[C]. 2024 IEEE European Solid-State Electronics Research Conference, Bruges, Belgium, 2024: 585–588. doi: 10.1109/ESSERC62670.2024.10719556.
[19]	COSEMANS S, DEHAENE W, and CATTHOOR F. A low-power embedded SRAM for wireless applications[J]. IEEE Journal of Solid-State Circuits, 2007, 42(7): 1607–1617. doi: 10.1109/JSSC.2007.896693.
[20]	COSEMANS S, DEHAENE W, and CATTHOOR F. A 3.6pJ/access 480MHz, 128Kbit on-Chip SRAM with 850MHz boost mode in 90nm CMOS with tunable sense amplifiers to cope with variability[C]. 34th European Solid-State Circuits Conference, Edinburgh, UK, 2008: 278–281. doi: 10.1109/ESSCIRC.2008.4681846.
[21]	CHEN Yuzong, MU Junjie, KIM H, et al. BP-SCIM: A reconfigurable 8T SRAM macro for bit-parallel searching and computing in-memory[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2023, 70(5): 2016–2027. doi: 10.1109/TCSI.2023.3240303.
