Collaborative Optimization Strategies for Matrix Multiplication-Accumulation Operators on Commercial Processing-In-Memory Architectures

HE Yukai; XIE Tongxin; ZHU Zhenhua; GAO Lan; LI Bing

doi:10.11999/JEIT250364

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

HE Yukai, XIE Tongxin, ZHU Zhenhua, GAO Lan, LI Bing. Collaborative Optimization Strategies for Matrix Multiplication-Accumulation Operators on Commercial Processing-In-Memory Architectures[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250364

Citation:

HE Yukai, XIE Tongxin, ZHU Zhenhua, GAO Lan, LI Bing. Collaborative Optimization Strategies for Matrix Multiplication-Accumulation Operators on Commercial Processing-In-Memory Architectures[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250364

Citation:

HE Yukai, XIE Tongxin, ZHU Zhenhua, GAO Lan, LI Bing. Collaborative Optimization Strategies for Matrix Multiplication-Accumulation Operators on Commercial Processing-In-Memory Architectures[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250364

PDF( 1963 KB)

Collaborative Optimization Strategies for Matrix Multiplication-Accumulation Operators on Commercial Processing-In-Memory Architectures

doi: 10.11999/JEIT250364 cstr: 32379.14.JEIT250364

1.
Information Engineering College, Capital Normal University, Beijing 100048, China
2.
Department of Electronic Engineering, Tsinghua University, Beijing 100084, China
3.
Institute of Microelectronics of the Chinese Academy of Sciences, Beijing 100029, China

Funds: The National Natural Science Foundation of China (62204164)

Received Date: 2025-05-06
Available Online: 2025-09-18

Abstract

Abstract

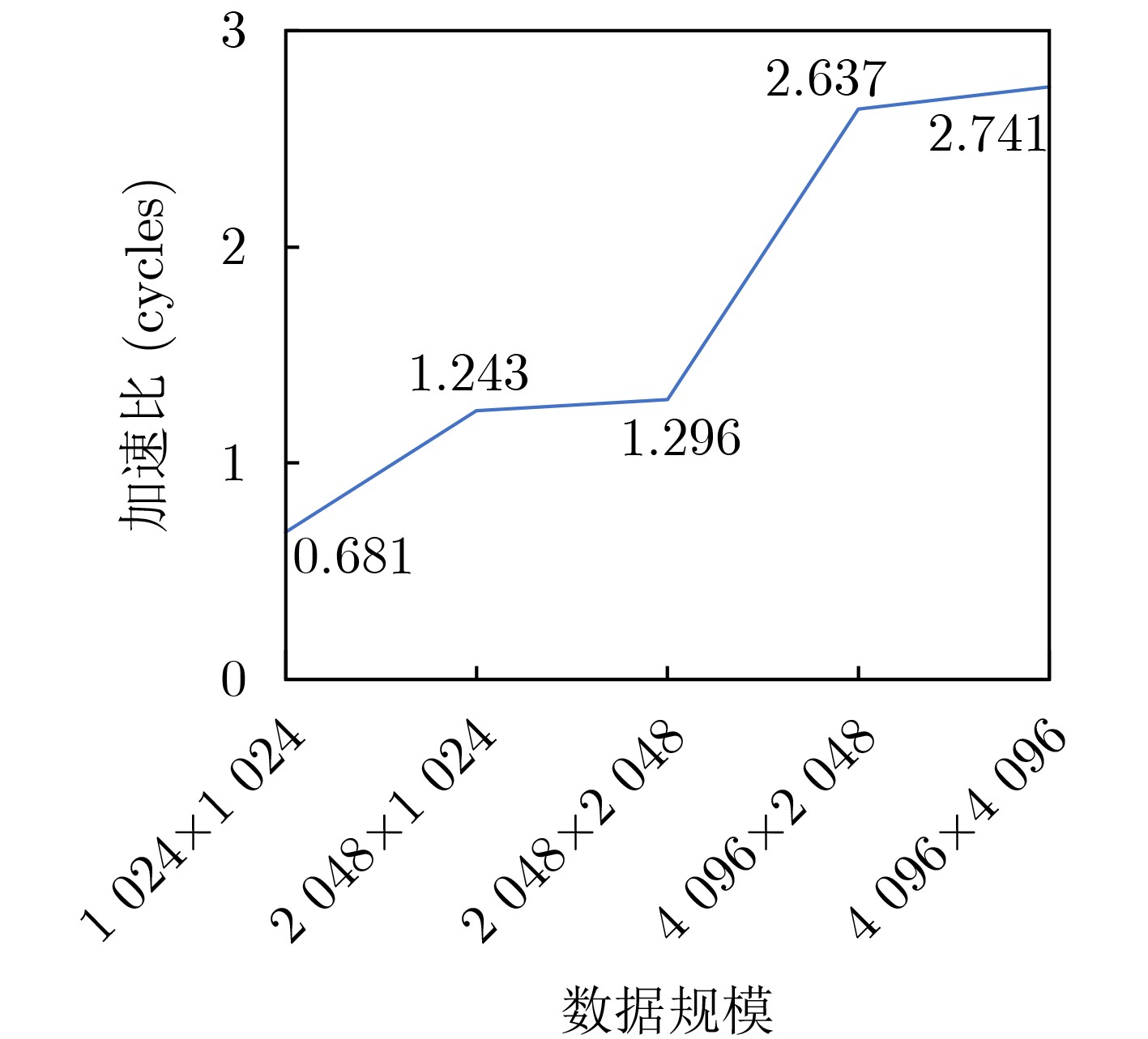

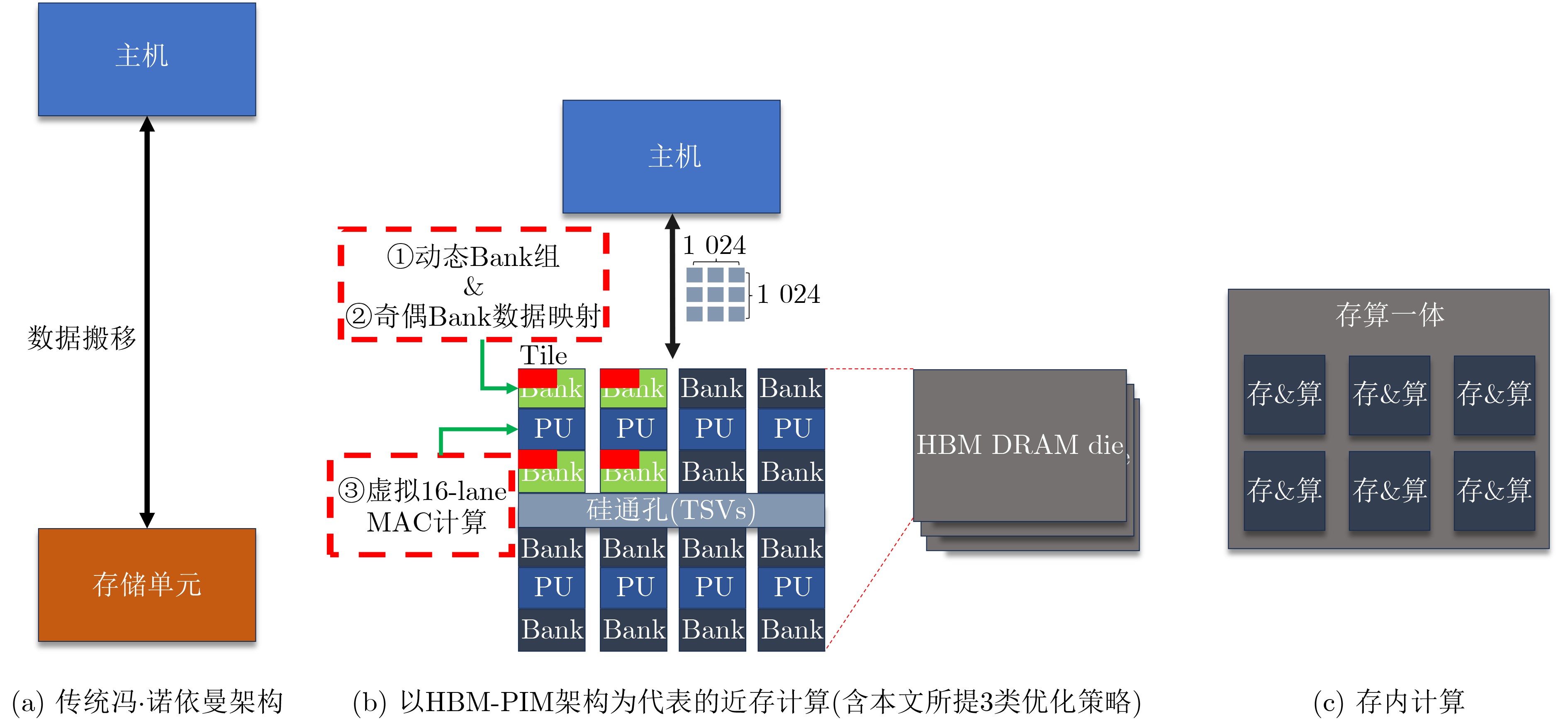

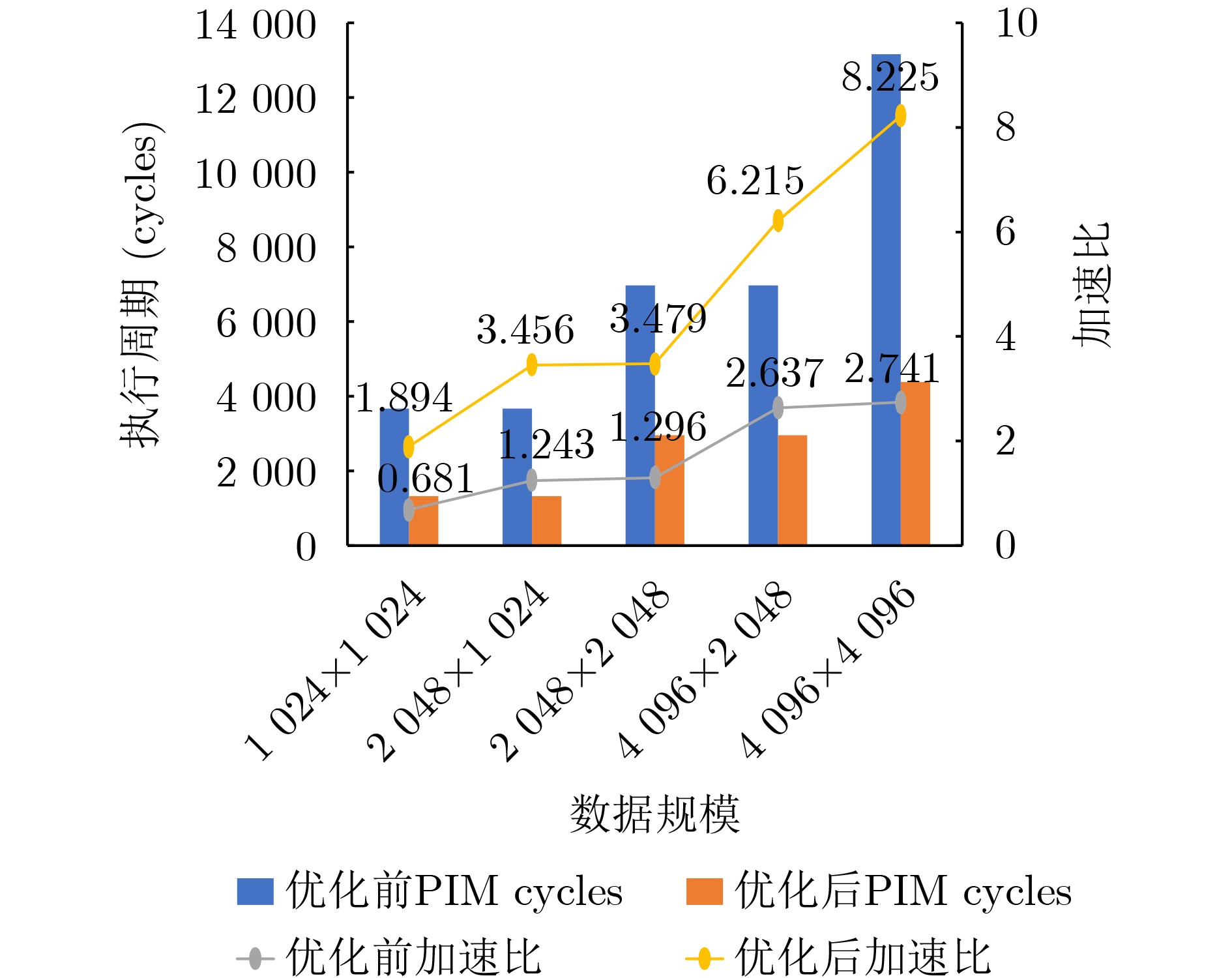

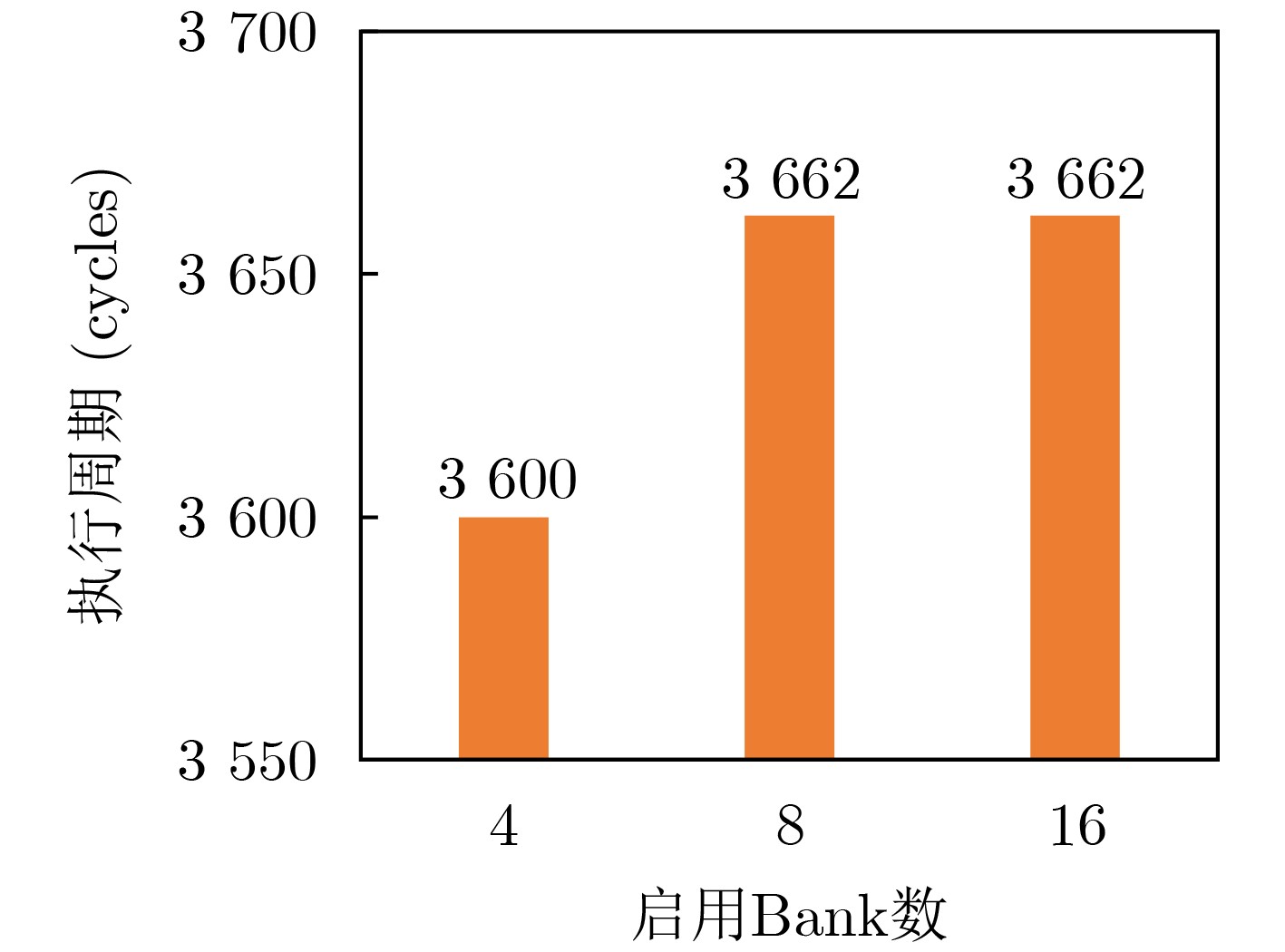

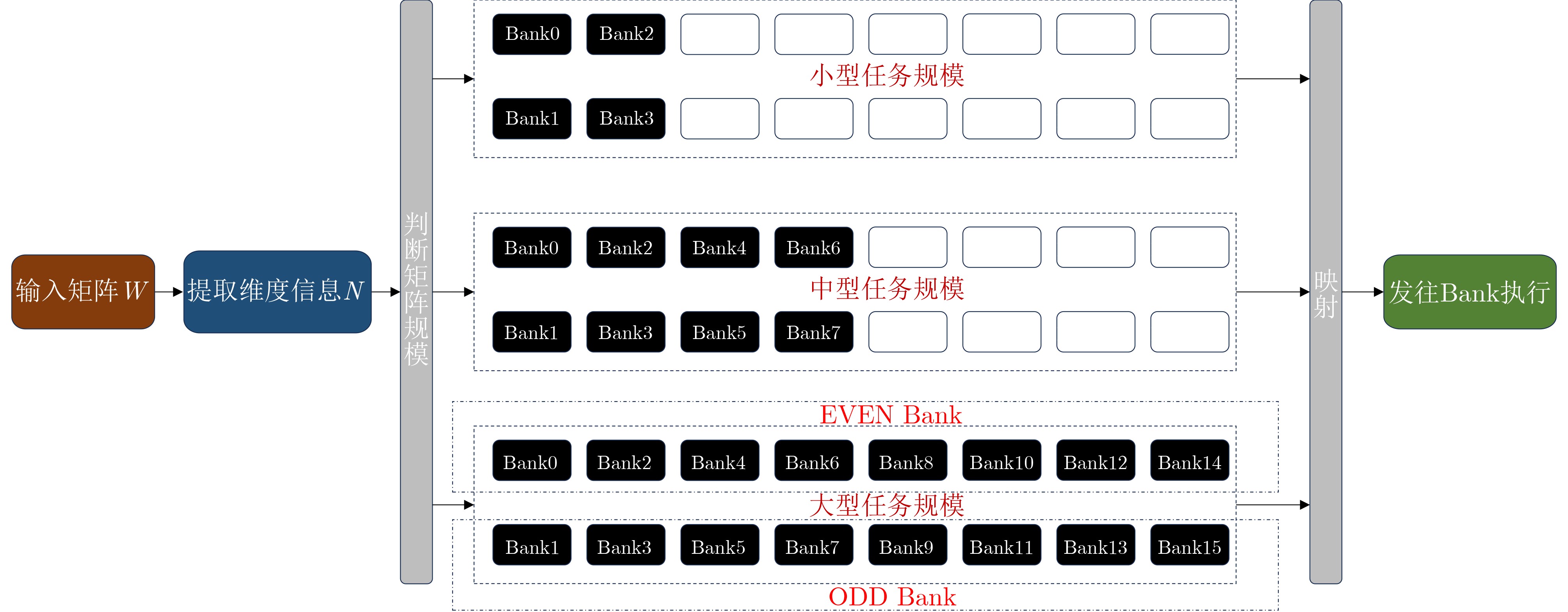

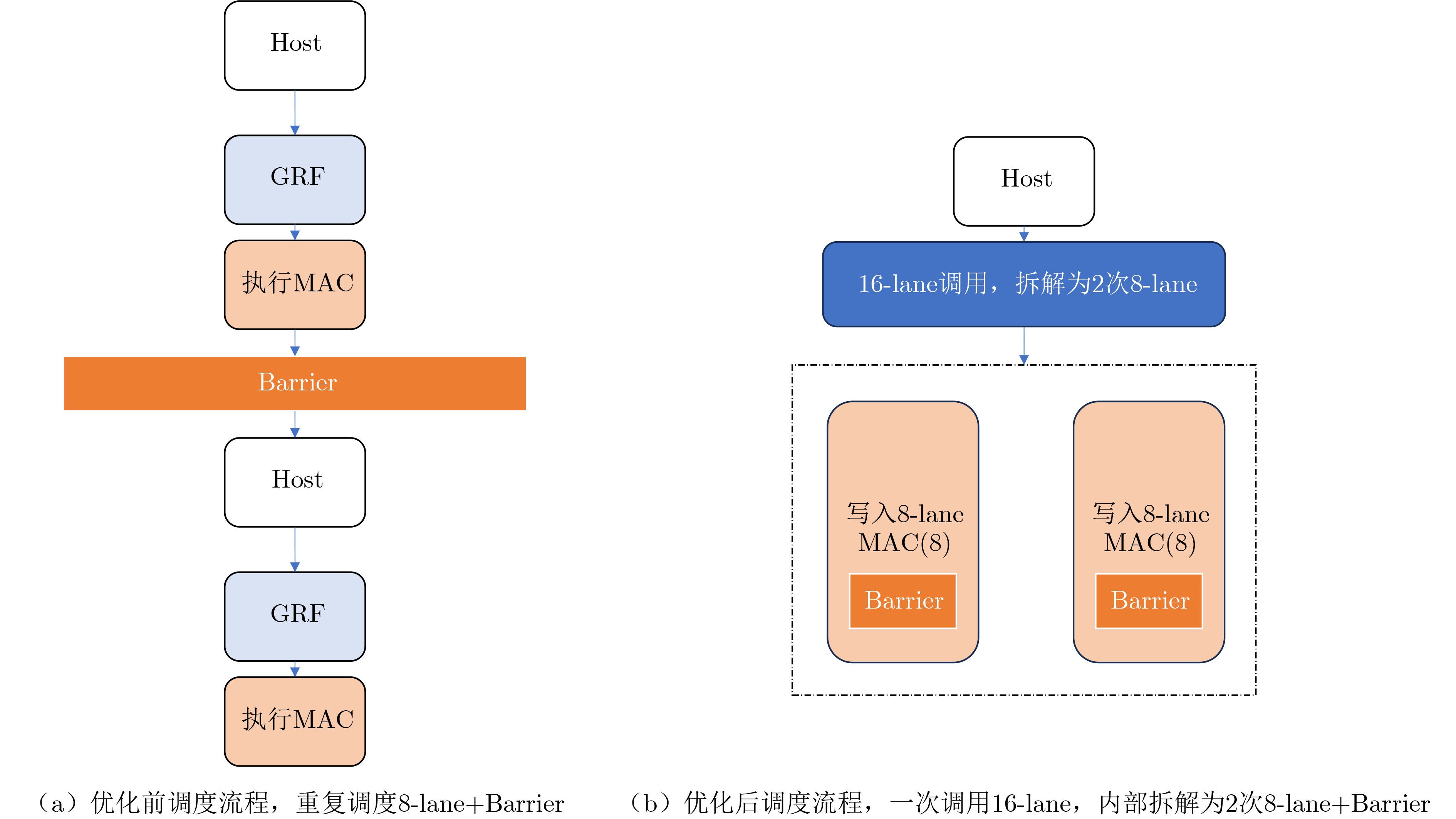

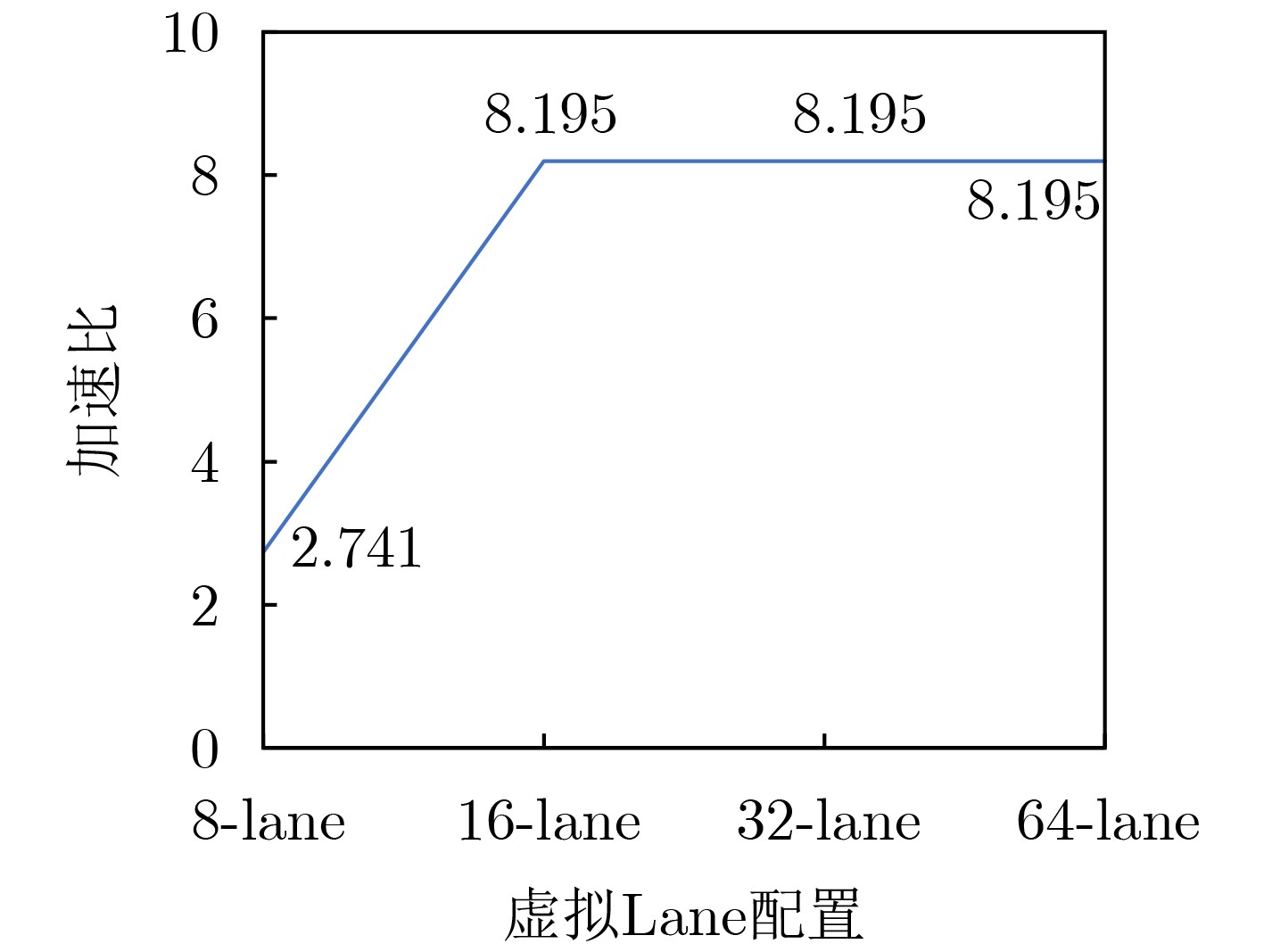

Objective Processing-In-Memory (PIM) architectures have emerged as a promising solution to the memory wall problem in modern computing systems by bringing computation closer to data storage. By minimizing data movement between processor and memory, PIM reduces data transfer latency and energy consumption, making it well suited for data-intensive applications such as deep neural network inference and training. Among various PIM implementations, Samsung’s High Bandwidth Memory Processing-In-Memory (HBM-PIM) platform integrates simple computing units within HBM devices, leveraging high internal bandwidth and massive parallelism. This architecture shows strong potential to accelerate compute- and memory-bound AI operators. However, our observations reveal that the acceleration ratio of HBM-PIM fluctuates considerably with matrix size, resulting in limited scalability for large model deployment and inefficient utilization for small- and medium-scale workloads. Addressing these fluctuations is essential to fully exploit the potential of HBM-PIM for scalable AI operator acceleration. This work systematically investigates the causes of performance divergence across matrix scales and proposes an integrated optimization framework that improves both scalability and adaptability in heterogeneous workload environments. Methods Comprehensive performance profiling is conducted on matrix–vector multiplication (General Matrix Vector Multiplication, GEMV) operators executed on an HBM-PIM simulation platform (Fig. 2, Fig. 3), covering matrix sizes from 1 024 × 1 024 to 4 096 × 4 096. Profiling results (Table 1, Table 2) indicate that at smaller matrix scales, hardware resources such as DRAM banks are underutilized, leading to reduced bank-level parallelism and inefficient execution cycles. To address these bottlenecks, a collaborative optimization framework is proposed, consisting of three complementary strategies. First, a Dynamic Bank Allocation Strategy is employed to configure the number of active banks according to input matrix dimensions, ensuring alignment of computational resources with task granularity and preventing unnecessary activation of idle banks. Second, an Odd–Even Bank Interleaved Address Mapping mechanism is applied to distribute data blocks evenly across active banks, thereby reducing access hotspots and enhancing memory-level parallelism (Algorithm 1). Third, a Virtual Tile Execution Framework is implemented to logically aggregate multiple fine-grained operations into coarser-grained execution units, effectively reducing the frequency of barrier synchronization and host-side instruction dispatches (Fig. 5). Each strategy is implemented and evaluated under controlled conditions using a cycle-accurate HBM-PIM simulator (Table 3). Integration is performed while maintaining compatibility with existing hardware configuration constraints, including the 8-lane register file limits per DRAM bank. Results and Discussions Experimental results (Fig. 6, Fig. 7) show that the optimization framework delivers consistent and substantial performance improvements across different matrix scales. For instance, with a 2 048 × 2 048 matrix input, the acceleration ratio increased from 1.296 (baseline) to 3.479 after optimization. With a 4 096 × 4 096 matrix, it improved from 2.741 (baseline) to 8.225. Across all tested sizes, the optimized implementation achieved an average performance gain of approximately 2.7× relative to the baseline HBM-PIM configuration. Beyond raw acceleration, the framework improved execution stability by preventing the performance degradation observed in baseline implementations under smaller matrices. These results demonstrate that the combination of dynamic resource allocation, balanced address mapping, and logical operation aggregation effectively mitigates resource underutilization and scheduling inefficiencies inherent to HBM-PIM architectures. Further analysis confirms that the framework enhances scalability and adaptability without requiring substantial hardware modifications. By aligning resource activation granularity with workload size and reducing host–device communication overhead, the framework achieves better utilization of available parallelism at both memory and computation levels. This leads to more predictable performance scaling under heterogeneous workloads and strengthens the feasibility of deploying AI operators on commercial PIM systems. Conclusions This study presents a collaborative optimization framework to address performance instability of GEMV operators on commercial HBM-PIM architectures under varying matrix scales. By combining dynamic bank allocation, odd–even interleaved address mapping, and virtual tile execution strategies, the framework achieves consistent and scalable acceleration across small to large matrices while enhancing execution stability and resource utilization. These findings provide practical guidance for software–hardware co-optimization in PIM-based AI acceleration platforms and serve as a reference for the design of future AI accelerators targeting data-intensive tasks. Future work will focus on extending the framework to additional AI operators, validating its effectiveness on real hardware prototypes, and investigating integration with compiler toolchains for automated operator mapping and scheduling.
- Processing-in-Memory (PIM),
- Operator performance optimization,
- General Matrix Vector Multiplication (GEMV),
- Data parallelism,
- Address mapping strategy

FullText(HTML)

References(18)

References

[1]	GHOLAMI A, YAO Zhewei, KIM S, et al. AI and memory wall[J]. IEEE Micro, 2024, 44(3): 33–39. doi: 10.1109/MM.2024.3373763.
[2]	CHI Ping, LI Shuangchen, XU Cong, et al. PRIME: A novel processing-in-memory architecture for neural network computation in ReRAM-based main memory[J]. ACM SIGARCH Computer Architecture News, 2016, 44(3): 27–39. doi: 10.1145/3007787.3001140.
[3]	DAKKAK A, LI Cheng, XIONG Jinjun, et al. Accelerating reduction and scan using tensor core units[C]. Proceedings of the ACM International Conference on Supercomputing, Phoenix, USA, 2019: 46–57. doi: 10.1145/3330345.3331057.
[4]	ALIAN M, MIN S W, ASGHARIMOGHADDAM H, et al. Application-transparent near-memory processing architecture with memory channel network[C]. Proceedings of the 51st Annual IEEE/ACM International Symposium on Microarchitecture, Fukuoka, Japan, 2018: 802–814. doi: 10.1109/MICRO.2018.00070.
[5]	GÓMEZ-LUNA J, EL HAJJ I, FERNANDEZ I, et al. Benchmarking a new paradigm: An experimental analysis of a real processing-in-memory architecture[J]. arXiv: 2105.03814, 2021: 1–25. doi: 10.48550/arXiv.2105.03814. (查阅网上资料,请核对文献类型及格式).
[6]	KIM J and KIM Y. HBM: Memory solution for bandwidth-hungry processors[C]. Proceedings of 2014 IEEE Hot Chips 26 Symposium, Cupertino, USA, 2014: 1–24. doi: 10.1109/HOTCHIPS.2014.7478812.
[7]	LEE S, KANG S H, LEE J, et al. Hardware architecture and software stack for PIM based on commercial DRAM technology: Industrial product[C]. Proceedings of 2021 ACM/IEEE 48th Annual International Symposium on Computer Architecture, Valencia, Spain, 2021: 43–56. doi: 10.1109/ISCA52012.2021.00013.
[8]	KIM D, KUNG J, CHAI S, et al. Neurocube: A programmable digital neuromorphic architecture with high-density 3D memory[J]. ACM SIGARCH Computer Architecture News, 2016, 44(3): 380–392. doi: 10.1145/3007787.3001178.
[9]	ASGARI B, HADIDI R, CAO Jiashen, et al. FAFNIR: Accelerating sparse gathering by using efficient near-memory intelligent reduction[C]. Proceedings of 2021 IEEE International Symposium on High-Performance Computer Architecture, Seoul, Korea (South), 2021: 908–920. doi: 10.1109/HPCA51647.2021.00080.
[10]	WANG Haoyang, ZHANG Shengbing, FAN Xiaoya, et al. NDPGNN: A near-data processing architecture for GNN training and inference acceleration[J]. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 2024, 43(11): 3997–4008. doi: 10.1109/TCAD.2024.3446871.
[11]	LEE S, KIM K, OH S, et al. A 1ynm 1.25V 8Gb, 16Gb/s/pin GDDR6-based accelerator-in-memory supporting 1TFLOPS MAC operation and various activation functions for deep-learning applications[C]. Proceedings of 2022 IEEE International Solid-State Circuits Conference, San Francisco, USA, 2022: 1–3. doi: 10.1109/ISSCC42614.2022.9731711.
[12]	DAI Guohao, ZHU Zhenhua, FU Tianyu, et al. DIMMining: Pruning-efficient and parallel graph mining on near-memory-computing[C]. Proceedings of the 49th Annual International Symposium on Computer Architecture, New York, USA, 2022: 130–145. doi: 10.1145/3470496.3527388.
[13]	KE Liu, GUPTA U, CHO B Y, et al. RecNMP: Accelerating personalized recommendation with near-memory processing[C]. Proceedings of 2020 ACM/IEEE 47th Annual International Symposium on Computer Architecture, Valencia, Spain, 2020: 790–803. doi: 10.1109/ISCA45697.2020.00070.
[14]	WILKINSON F, COCKREAN A, LIN Weichen, et al. Assessing the GPU offload threshold of GEMM and GEMV kernels on modern heterogeneous HPC systems[C]. Proceedings of the SC24-W: Workshops of the International Conference for High Performance Computing, Networking, Storage and Analysis, Atlanta, USA, 2024: 1481–1495. doi: 10.1109/SCW63240.2024.00188.
[15]	HONG Ke, DAI Guohao, XU Jiaming, et al. FlashDecoding++: Faster large language model inference on GPUs[C]. Proceedings of the 41st International Conference on Machine Learning (ICML), Vienna, Austria, 2024: 1–15. (查阅网上资料, 未找到本条文献信息, 请确认).
[16]	IBRAHIM M A, ISLAM M, and AGA S. PIMnast: Balanced data placement for GEMV acceleration with processing-in-memory[C]. Proceedings of the SC24-W: Workshops of the International Conference for High Performance Computing, Networking, Storage and Analysis, Atlanta, USA, 2024: 970–981. doi: 10.1109/SCW63240.2024.00137.
[17]	XIE Tongxin, ZHU Zhenhua, LI Bing, et al. UniNDP: A unified compilation and simulation tool for near DRAM processing architectures[C]. Proceedings of 2025 IEEE International Symposium on High Performance Computer Architecture, Las Vegas, USA, 2025: 624–640. doi: 10.1109/HPCA61900.2025.00054.
[18]	Samsung Advanced Institute of Technology. PIMSimulator[EB/OL]. https://github.com/SAITPublic/PIMSimulator. (查阅网上资料,未找到对应的作者和年份信息,请确认).
