ZHANG Bo, WEN Xiaolong, WAN Yadong, ZHANG Chao, LI Jianhua. Microfabrication Method for Amorphous Wires GMI Magnetic Sensors[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250338
Citation: ZHANG Bo, WEN Xiaolong, WAN Yadong, ZHANG Chao, LI Jianhua. Microfabrication Method for Amorphous Wires GMI Magnetic Sensors[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250338

Microfabrication Method for Amorphous Wires GMI Magnetic Sensors

doi: 10.11999/JEIT250338 cstr: 32379.14.JEIT250338
Funds:  The Fundamental Research Funds for the Central Universities (FRF-BD-25-033)
  • Received Date: 2025-04-29
  • Rev Recd Date: 2025-09-29
  • Available Online: 2025-10-11

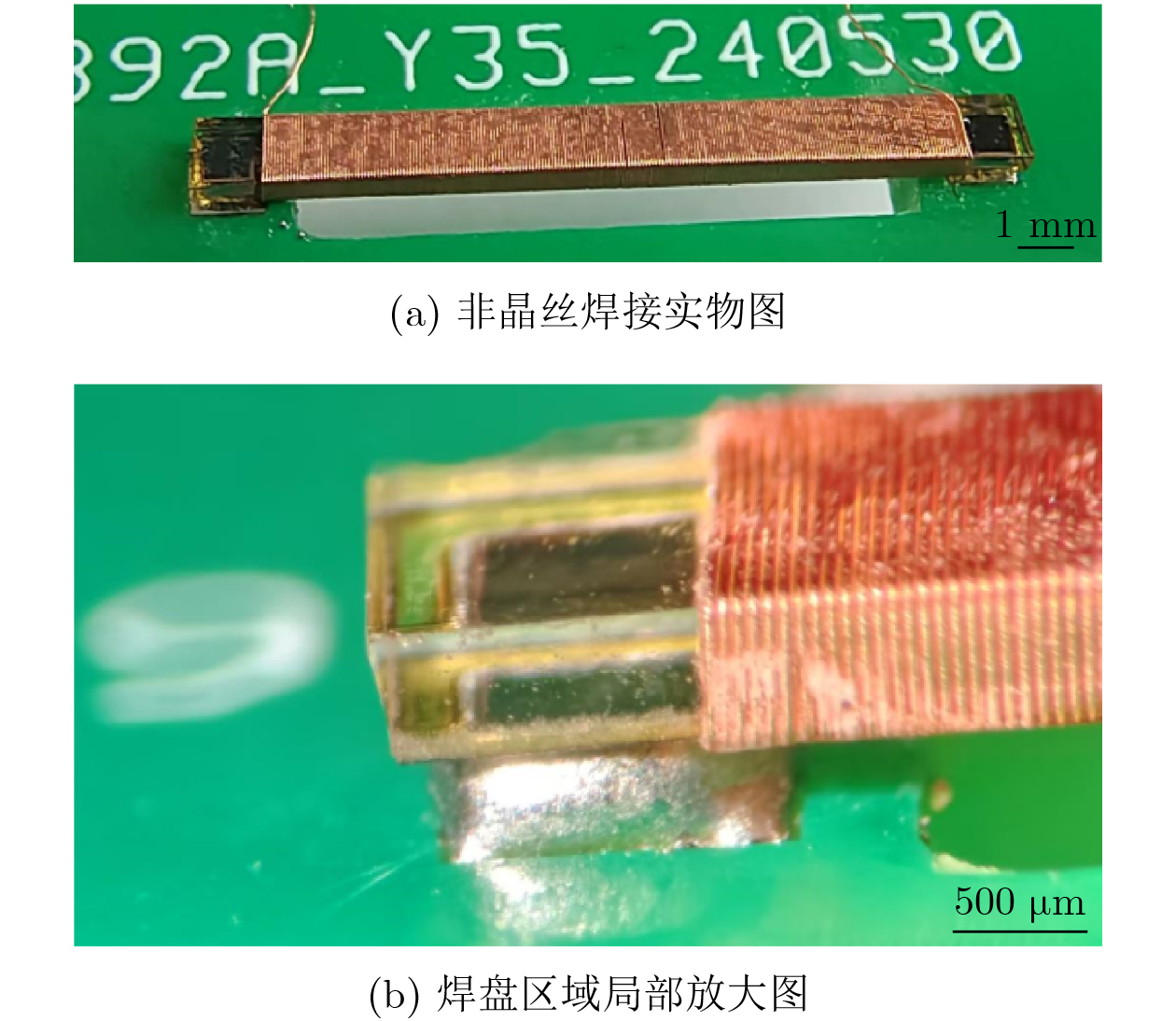

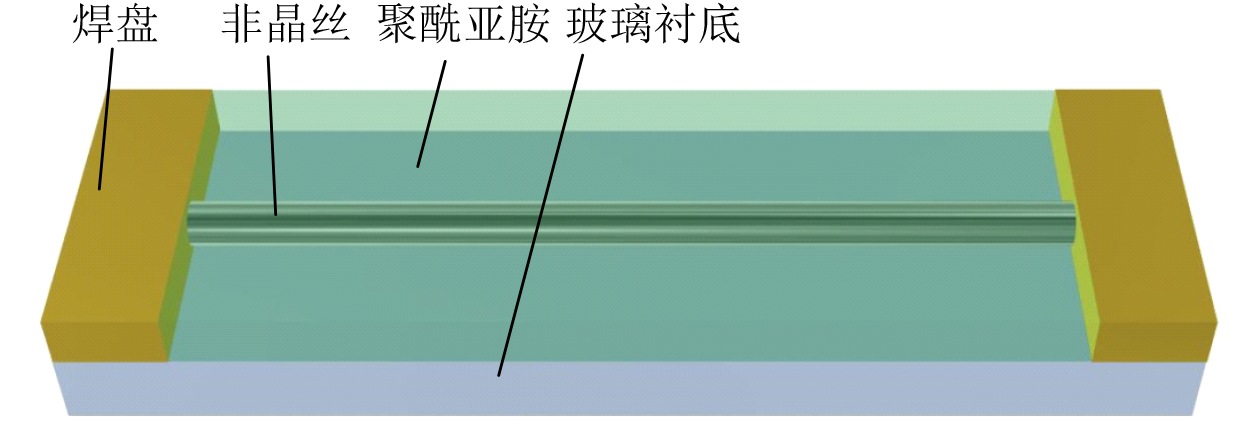

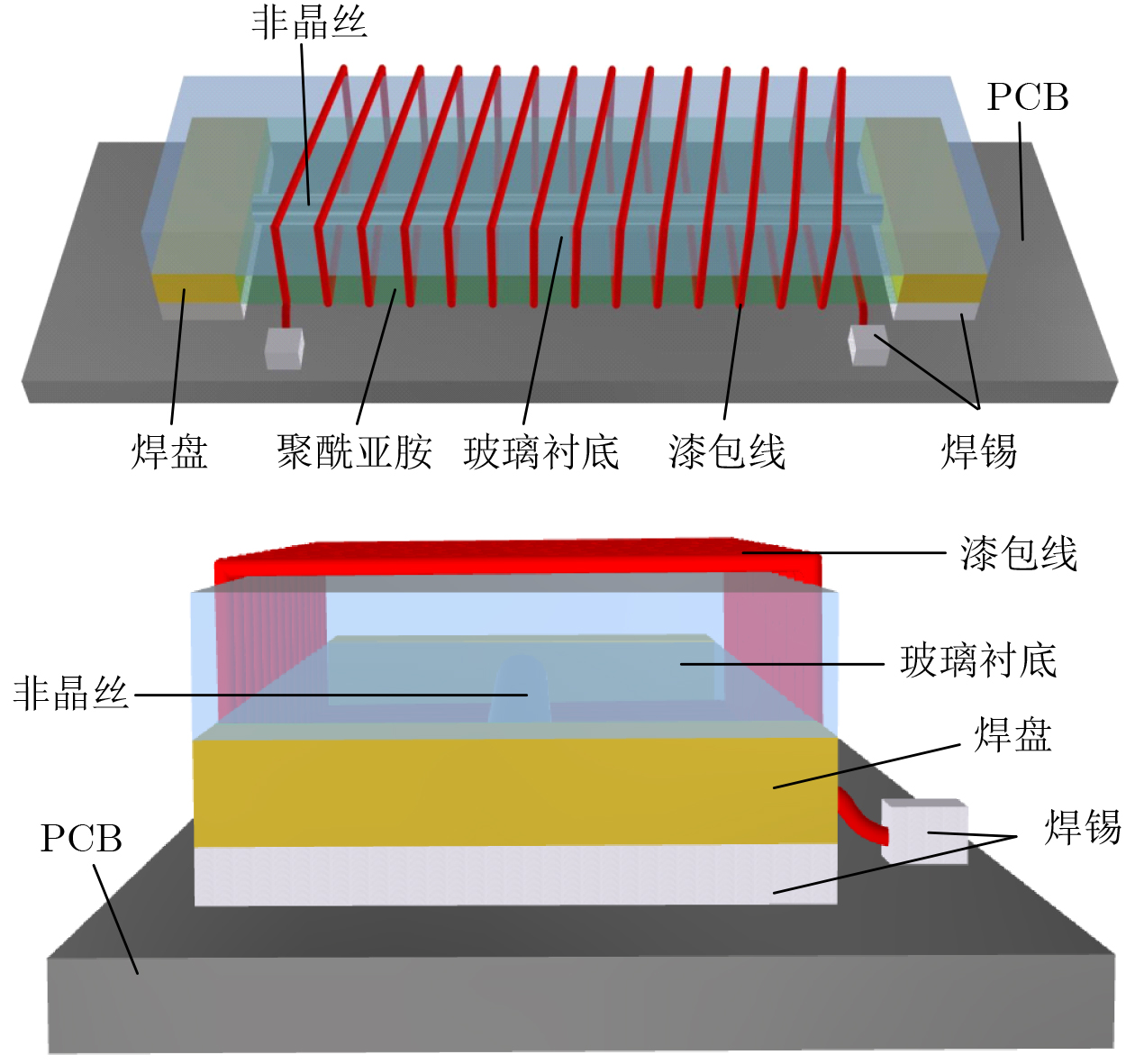

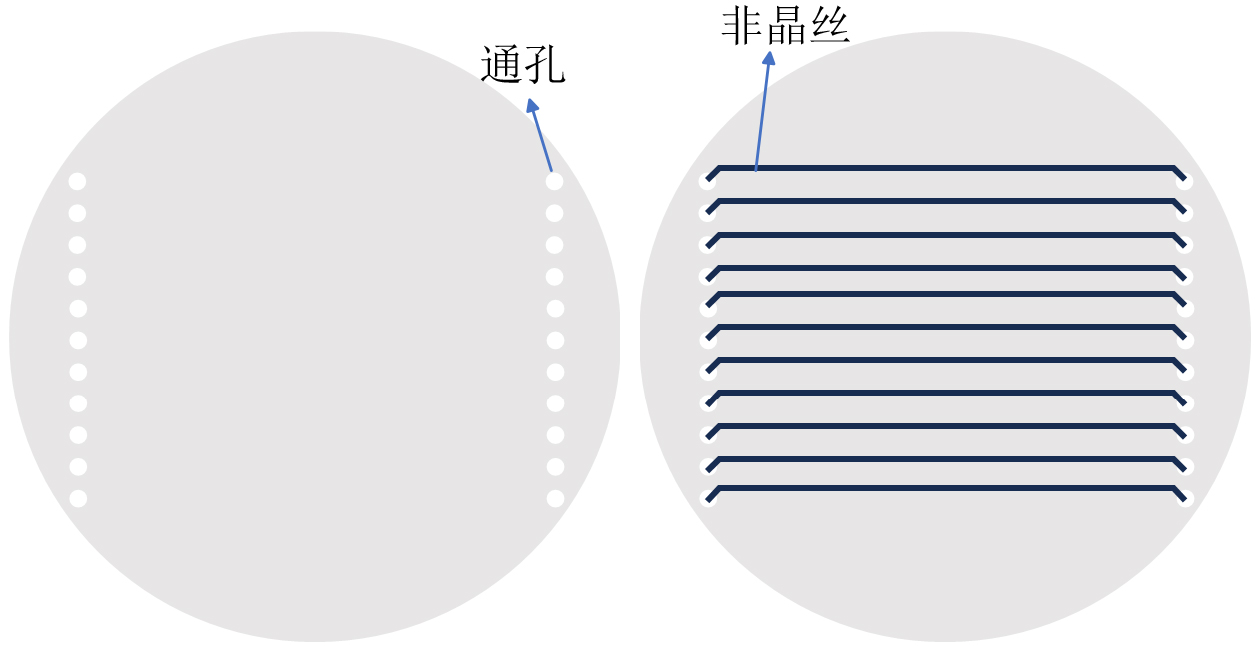

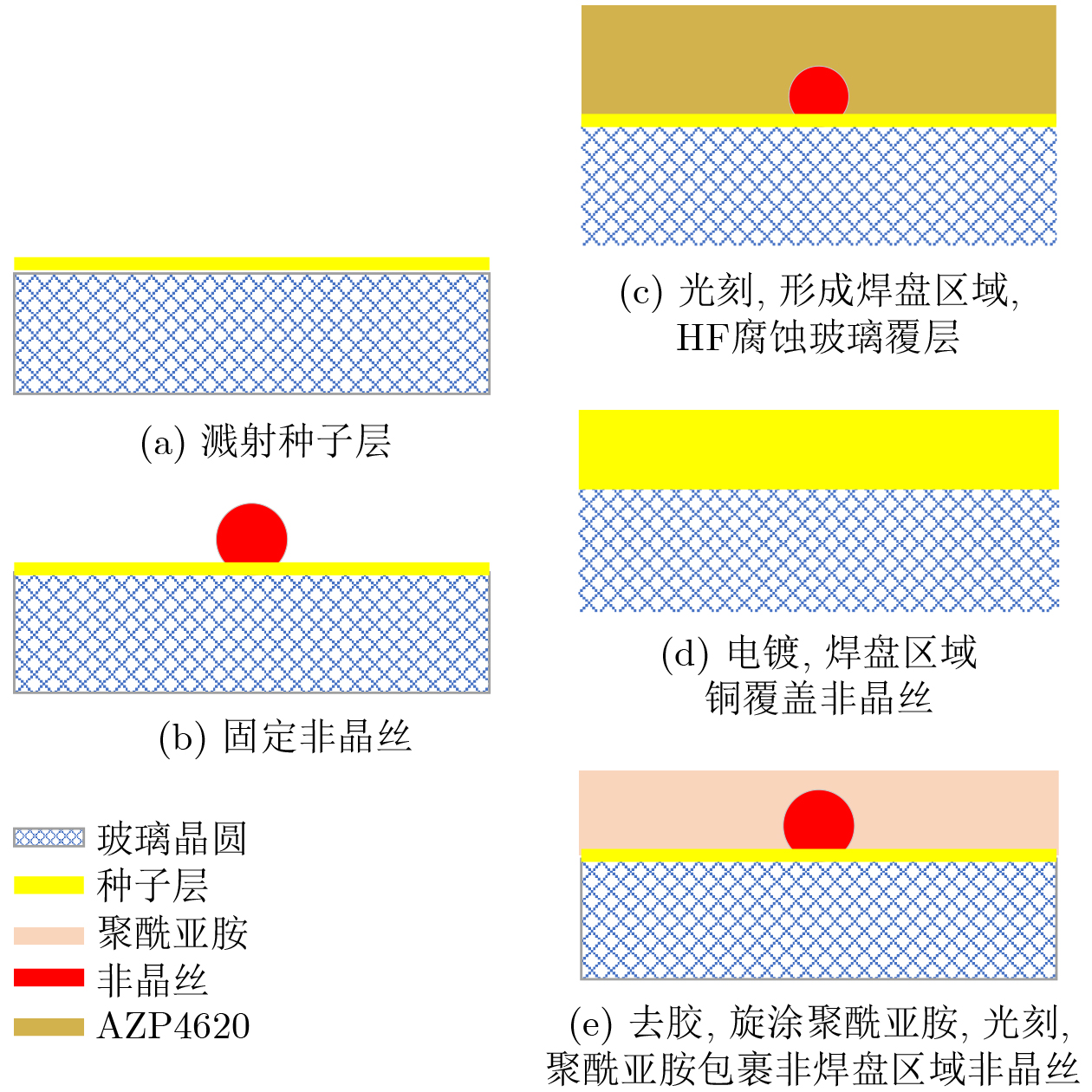

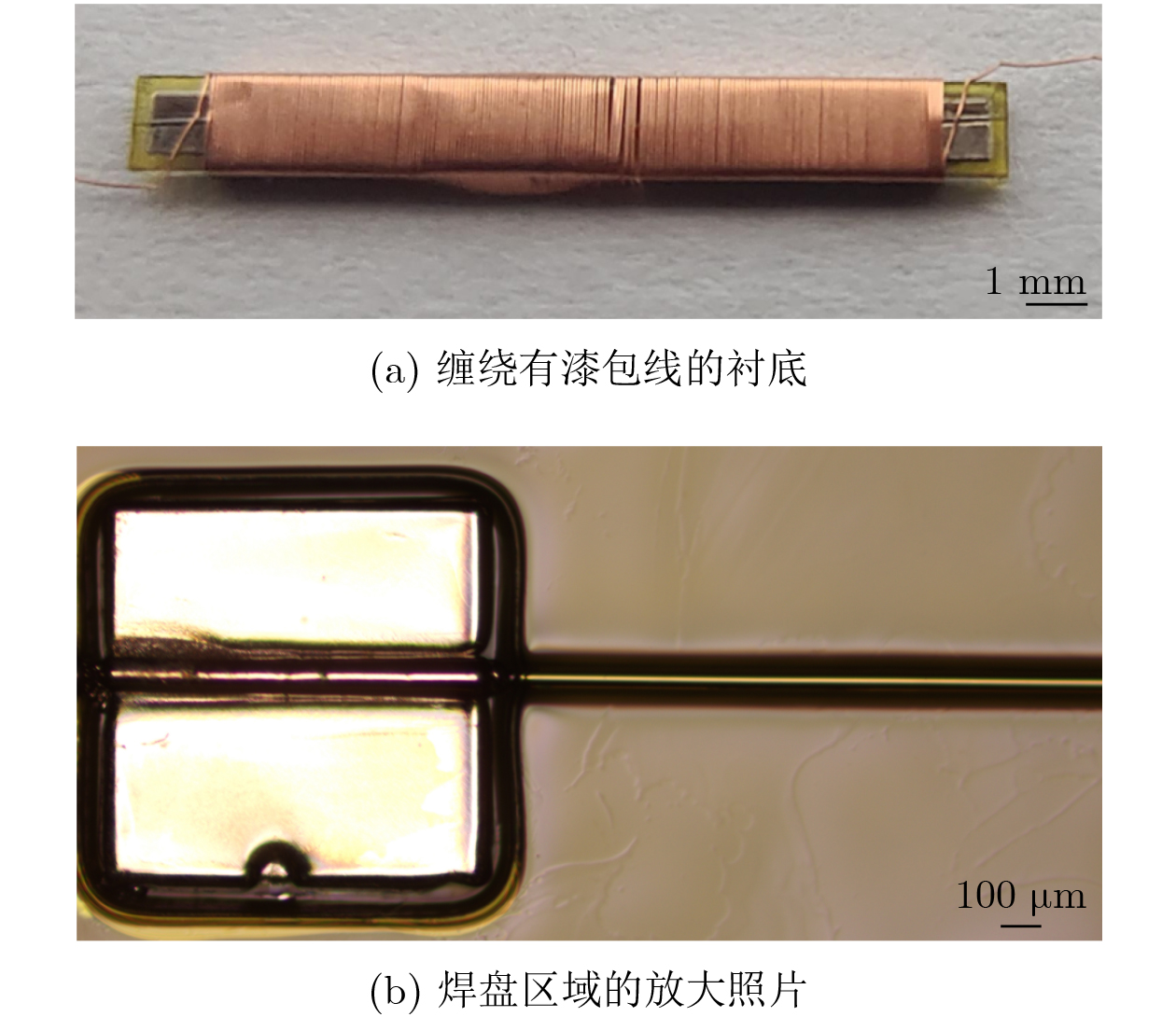

  •   Objective  Compared with amorphous ribbons and thin films, amorphous wires exhibit superior Giant MagnetoImpedance (GMI) performance, making them promising materials for GMI magnetic sensors. Their flexible and heterogeneous morphology, however, complicates precise positioning during device fabrication. Additionally, the poor wettability of amorphous wires hinders control of contact resistance during soldering, often resulting in inconsistent device performance. This study proposes a microfabrication method for GMI magnetic sensors based on amorphous wires. Through-glass vias are employed as alignment markers, and auxiliary fixtures are used to accurately position and secure the wires on a glass wafer. Using photolithography and electroplating, bonding pads are fabricated to establish reliable electrical interconnections between the wires and the pads, enabling device-level processing and integration. A winding machine is then applied to wind the signal pickup coil on the device surface, completing fabrication of the GMI magnetic sensor. This approach avoids deformation and stress accumulation caused by direct coil winding on the amorphous wires, thereby improving manufacturability and ensuring stable performance of amorphous wire-based GMI magnetic sensors.  Methods  A glass wafer is employed as the substrate, owing to its high surface flatness and mechanical rigidity, which provide stable support for the flexible amorphous wire structure. To mitigate deformation caused by wire flexibility during winding, a microelectronics process integration scheme based on the glass wafer is implemented. A metal seed layer is first deposited by magnetron sputtering. Ultraviolet lithography and electroplating are then applied to form a high-precision array of electrical interconnection pads on the wafer surface. The ends of the amorphous wire are threaded through through-glass vias fabricated along the wafer edge by laser ablation and subsequently secured, ensuring accurate positioning over the bonding pad area while maintaining the natural straight form of the wire (Figure 4). The amorphous wire is interconnected with the pads using electroplating. Standardized devices with an amorphous wire–glass substrate–interconnection structure are obtained by wafer dicing. After the microstructure of the amorphous wire and substrate is established, a winding machine is used to wind enameled wire onto the structure to form the signal pickup coil. The number of turns and spacing are precisely controlled according to the design. The sensor structure with the wound pickup coil is mounted on a Printed Circuit Board (PCB) with bonding pads. Finally, flip-chip bonding is performed to achieve secondary interconnection between the sensor structure and the PCB, completing fabrication of the sensor device.  Results and Discussions  The fabricated sensor device based on microelectronics processes is shown in Figure 6(a). A 40 μm diameter enameled wire is uniformly wound on the substrate surface to form the signal pickup coil, with the number of turns and spacing precisely controlled by programmed parameters of the winding machine. As shown in the magnified view in Figure 6(b), the bonding pad areas at both ends of the amorphous wire are completely covered by a copper layer. The copper plating defines the electrical connection area of the amorphous wire, while polyimide provides reliable fixation and surface protection on the substrate. The performance of five fabricated amorphous wire GMI magnetic sensors is presented in Figure 14 and Table 1. The standard deviation of sensor output ranges from 0.0272 to 0.0163, and the sensors exhibit similar sensitivity, indicating good consistency. The output characteristic curves are shown in Figure 15. Fitting analysis shows that both the Pearson correlation coefficient and the coefficient of determination are close to 1, demonstrating excellent linearity. When a 1 MHz excitation signal is applied to the amorphous wire, the output voltage exhibits a linear relationship with the external magnetic field within the range of –1 Oe to +1 Oe, with a sensitivity of 5.7 V/Oe. The magnetic noise spectrum, measured inside a magnetic shielding barrel, is shown in Figure 16. The results indicate that the magnetic noise level of the sensor is approximately 55 pT/√Hz.  Conclusions  A fabrication method for amorphous wire-based GMI magnetic sensors is proposed using a glass substrate integration process. The sensor is constructed through microfabrication of a glass substrate–amorphous wire microstructure. The method is characterized by three features: (i) highly reliable interconnections between the amorphous wire and bonding pads are established by electroplating, yielding a 10 mm × 0.6 mm × 0.5 mm microstructure with fixed amorphous wires; (ii) a signal pickup coil is precisely wound on the microstructure surface with a winding machine, ensuring accurate control of coil turns and spacing; and (iii) electrical connection and circuit integration with a PCB are completed by flip-chip bonding. Compared with conventional amorphous wire GMI sensors, this approach provides two technical advantages. The microfabrication interconnection process reduces contact resistance fluctuations, addressing sensor performance dispersion. In addition, the combination of conventional winding and microelectronics techniques ensures device consistency while avoiding the high cost of full-process microfabrication. This method improves process compatibility and manufacturing repeatability, offering a practical route for engineering applications of GMI magnetic sensors.
  • loading
  • [1]
    LI Wenqi, ZHOU Zongtan, TANG Jingsheng, et al. A review of giant magneto-impedance-based MEG detection technique[J]. Brain-Apparatus Communication: A Journal of Bacomics, 2024, 3(1): 2322930. doi: 10.1080/27706710.2024.2322930.
    [2]
    ESLAMLOU A D, GHADERIARAM A, SCHLANGEN E, et al. A review on non-destructive evaluation of construction materials and structures using magnetic sensors[J]. Construction and Building Materials, 2023, 397: 132460. doi: 10.1016/J.CONBUILDMAT.2023.132460.
    [3]
    CHEN Yun, HEREDIA L C C, SMIT J J, et al. Partial discharge detection on power equipment using a magneto-resistive sensor[J]. International Journal of Electrical Power & Energy Systems, 2023, 152: 109270. doi: 10.1016/j.ijepes.2023.109270.
    [4]
    BRYAKIN I V, BOCHKAREV I V, KHRAMSHIN V R, et al. Fluxgate sensor with bifactor excitation mode[J]. Sensors, 2023, 23(4): 1775. doi: 10.3390/s23041775.
    [5]
    ZHU Ying, ZHANG Qing, LI Xin, et al. Detection of AFP with an ultra-sensitive giant magnetoimpedance biosensor[J]. Sensors and Actuators B: Chemical, 2019, 293: 53–58. doi: 10.1016/j.snb.2019.05.004.
    [6]
    张波, 吕广炎, 陈小丽, 等. 用于实验室环境磁场检测的高灵敏度GMI磁传感器研制[J]. 实验技术与管理, 2022, 39(11): 111–116. doi: 10.16791/j.cnki.sjg.2022.11.019.

    ZHANG Bo, LYU Guangyan, CHEN Xiaoli, et al. Development of high-sensitivity GMI magnetic sensor for laboratory environmental magnetic field detection[J]. Experimental Technology and Management, 2022, 39(11): 111–116. doi: 10.16791/j.cnki.sjg.2022.11.019.
    [7]
    TRAORÉ P S, ASFOUR A, YONNET J P, et al. Digital electronic conditioning approach for the high-sensitivity off-diagonal GMI sensors[J]. Sensors and Actuators A: Physical, 2018, 271: 290–302. doi: 10.1016/j.sna.2018.01.029.
    [8]
    辛诚, 陈永当, 王海飞, 等. 铁磁非晶丝对复合材料受力状态的响应行为研究[J]. 合成纤维, 2024, 53(4): 75–80. doi: 10.16090/j.cnki.hcxw.2024.04.020.

    XIN Cheng, CHEN Yongdang, WANG Haifei, et al. Research on the response behavior of ferromagnetic amorphous fiber to the stress state of composites[J]. Synthetic Fiber in China, 2024, 53(4): 75–80. doi: 10.16090/j.cnki.hcxw.2024.04.020.
    [9]
    高瑞新. 钴基非晶丝间磁偶极相互作用的微磁学研究[J]. 磁性材料及器件, 2021, 52(6): 16–20. doi: 10.19594/j.cnki.09.19701.2021.06.004.

    GAO Ruixin. Micromagnetic study of magnetic dipolar interaction in Co-based amorphous wires[J]. Journal of Magnetic Materials and Devices, 2021, 52(6): 16–20. doi: 10.19594/j.cnki.09.19701.2021.06.004.
    [10]
    NABIAS J, ASFOUR A, and YONNET J P. Use of magnetic circuits for toroidal GMI current sensors[J]. IEEE Sensors Journal, 2019, 19(13): 4866–4873. doi: 10.1109/JSEN.2019.2904184.
    [11]
    杨志成, 车振. 数字补偿式巨磁阻抗传感器设计[J]. 传感器与微系统, 2016, 35(2): 100–102. doi: 10.13873/J.1000-9787(2016)02-0100-03.

    YANG Zhicheng and CHE Zhen. Design of digital compensation type giant magneto impedance sensor[J]. Transducer and Microsystem Technologies, 2016, 35(2): 100–102. doi: 10.13873/J.1000-9787(2016)02-0100-03.
    [12]
    PEI Chaoqun, ZHANG Bo, XIE Jiuyuan, et al. Superlattice-shelled nanocrystalline core structural design for highly sensitive GMI sensors[J]. Acta Materialia, 2023, 255: 119088. doi: 10.1016/j.actamat.2023.119088.
    [13]
    NABIAS J, ASFOUR A, and YONNET J P. Temperature effect on GMI sensor: Comparison between diagonal and off-diagonal response[J]. Sensors and Actuators A: Physical, 2019, 289: 50–56. doi: 10.1016/j.sna.2019.02.004.
    [14]
    MALÁTEK M and KRAUS L. Off-diagonal GMI sensor with stress-annealed amorphous ribbon[J]. Sensors and Actuators A: Physical, 2010, 164(1/2): 41–45. doi: 10.1016/j.sna.2010.09.011.
    [15]
    WEI Shuangcheng, DENG Jiahao, HAN Chao, et al. Magnetic detector based on GMI effect of amorphous wire[J]. Advanced Materials Research, 2012, 591/593: 1160–1163. doi: 10.4028/www.scientific.net/AMR.591-593.1160.
    [16]
    MALATEK M, DUFAY B, SAEZ S, et al. Improvement of the off-diagonal magnetoimpedance sensor white noise[J]. Sensors and Actuators A: Physical, 2013, 204: 20–24. doi: 10.1016/j.sna.2013.10.001.
