Multi-Channel Network Construction Algorithm Based on Hierarchical Virtual Clustering

ZHANG Jiao; CAO Kuo; WANG Haijun; ZHAO Haitao; XIONG Jun

doi:10.11999/JEIT230802

Volume 45 Issue 11

Nov. 2023

Turn off MathJax

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2023 > 45(11): 4041-4049

ZHANG Jiao, CAO Kuo, WANG Haijun, ZHAO Haitao, XIONG Jun. Multi-Channel Network Construction Algorithm Based on Hierarchical Virtual Clustering[J]. Journal of Electronics & Information Technology, 2023, 45(11): 4041-4049. doi: 10.11999/JEIT230802

Citation:

ZHANG Jiao, CAO Kuo, WANG Haijun, ZHAO Haitao, XIONG Jun. Multi-Channel Network Construction Algorithm Based on Hierarchical Virtual Clustering[J]. Journal of Electronics & Information Technology, 2023, 45(11): 4041-4049. doi: 10.11999/JEIT230802

Citation:

PDF( 4024 KB)

Multi-Channel Network Construction Algorithm Based on Hierarchical Virtual Clustering

doi: 10.11999/JEIT230802

College of Electronic Science and Technology, National University of Defense Technology, Changsha 410073, China

Funds: The National Natural Science Foundation of China (62001483, 62201584, 61931020)

Received Date: 2023-08-01
Rev Recd Date: 2023-10-15

Available Online: 2023-10-20

Publish Date: 2023-11-28

Abstract

Abstract

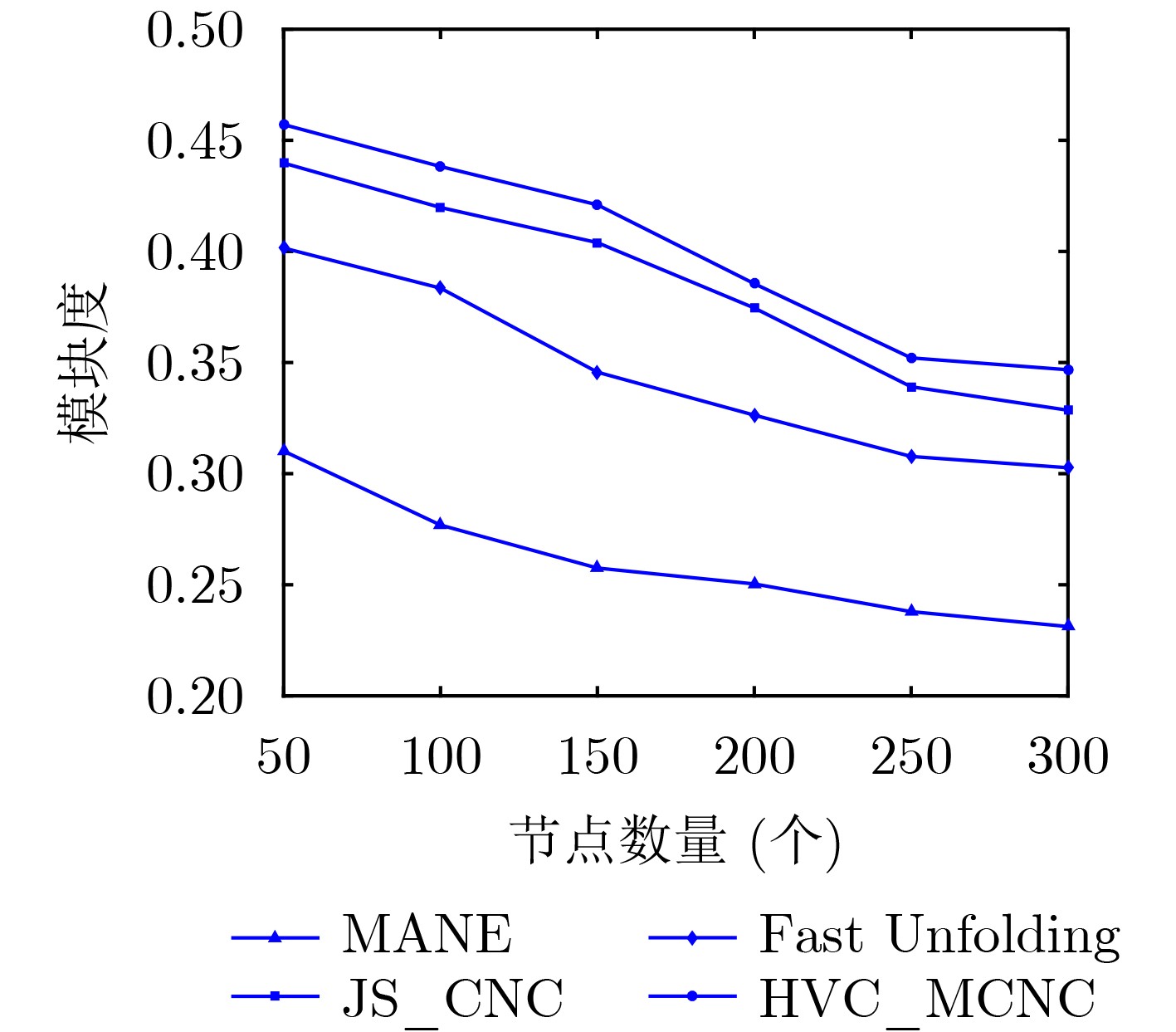

Considering the differential channels sensed by nodes and difficult network construction due to strong electromagnetic interference in wireless ad hoc networks, a multi-channel network construction algorithm based on hierarchical virtual clustering is proposed to realize network reliability improvement and interference control. Firstly, the similarity index is defined by the ratio of neighbors with common channels sensed by the adjacent nodes, which is utilized further to formulate the network modularity function. A clustering network is constructed with the largest modularity. Then, the cluster head nodes and gateway nodes are selected by the way of control before connection. The virtual backbone network controlled by R-hop Connected Dominating Set (CDS) is established by using the spanning tree method to provide routing and forwarding services for inter-cluster nodes. Finally, a restricted graph coloring method is proposed to implement inter-cluster and intra-cluster channel allocation to reduce the co-channel interference. Simulation results show that the proposed algorithm can obtain higher network modularity than the baseline schemes, while shows performance advantages in average cluster size and interference control.
- Muli-channel network construction,
- Clustering networks,
- Virtual backbone networks,
- Channel allocation

FullText(HTML)

References(17)

References

[1]	郭明. 关于智能化战争的基本认知[J]. 人民论坛·学术前沿, 2021(10): 14–21. doi: 10.16619/j.cnki.rmltxsqy.2021.10.002 GUO Ming. Basic understandings of the intelligent wars[J]. Frontiers, 2021(10): 14–21. doi: 10.16619/j.cnki.rmltxsqy.2021.10.002
[2]	ELMASRY G F. A comparative review of commercial vs. tactical wireless networks[J]. IEEE Communications Magazine, 2010, 48(10): 54–59. doi: 10.1109/MCOM.2010.5594677
[3]	AGRAWAL R, FAUJDAR N, ROMERO C A T, et al. Classification and comparison of ad hoc networks: A review[J]. Egyptian Informatics Journal, 2023, 24(1): 1–25. doi: 10.1016/j.eij.2022.10.004
[4]	黄晓舸, 何勇, 陈前斌, 等. 无人机群辅助的数据采集能耗优化方法[J]. 电子与信息学报, 2023, 45(6): 2054–2062. doi: 10.11999/JEIT220554 HUANG Xiaoge, HE Yong, CHEN Qianbin, et al. Optimization method for energy consumption in data acquisition assisted by UAV swarms[J]. Journal of Electronics & Information Technology, 2023, 45(6): 2054–2062. doi: 10.11999/JEIT220554
[5]	GUO Jingjing, GAO Huamin, LIU Zhiquan, et al. ICRA: An intelligent clustering routing approach for UAV ad hoc networks[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24(2): 2447–2460. doi: 10.1109/TITS.2022.3145857
[6]	KELAGADI H M and PRIYATAMKUMAR G. Energy efficient clustering and topology management scheme for wireless sensor networks[J]. International Journal of Communication Networks and Distributed Systems, 2022, 28(2): 103–125. doi: 10.1504/IJCNDS.2022.121195
[7]	BOSE T, SURESH A, PANDEY O J, et al. Improving quality-of-service in cluster-based UAV-assisted edge networks[J]. IEEE Transactions on Network and Service Management, 2022, 19(2): 1903–1919. doi: 10.1109/TNSM.2021.3139892
[8]	SHARMA M, KUMAR P, and TOMAR R S. Weight-based clustering algorithm for military vehicles communication in VANET[J]. SAIEE Africa Research Journal, 2023, 114(1): 25–34. doi: 10.23919/SAIEE.2023.9962790
[9]	FROST P, MCCLUNG C, and WALLS C. Tactical considerations for a commander to fight and win in the electromagnetic spectrum[J]. The Cyber Defense Review, 2018, 3(1): 15–26.
[10]	LI Jiaxun, ZHAO Haitao, WEI Jibo, et al. Sender-jump receiver-wait: A simple blind rendezvous algorithm for distributed cognitive radio networks[J]. IEEE Transactions on Mobile Computing, 2018, 17(1): 183–196. doi: 10.1109/TMC.2017.2703166
[11]	LI Jiaxun, ZHAO Haitao, HAFID A S, et al. A bio-inspired solution to cluster-based distributed spectrum allocation in high-density cognitive Internet of Things[J]. IEEE Internet of Things Journal, 2019, 6(6): 9294–9307. doi: 10.1109/JIOT.2019.2911542
[12]	STEPHAN T, AL-TURJMAN F, JOSEPH K S, et al. Artificial intelligence inspired energy and spectrum aware cluster based routing protocol for cognitive radio sensor networks[J]. Journal of Parallel and Distributed Computing, 2020, 142: 90–105. doi: 10.1016/j.jpdc.2020.04.007
[13]	刘琰, 赵海涛, 李卫, 等. 一种基于邻域信息的多信道自适应建网算法[J]. 信号处理, 2022, 38(11): 2372–2384. doi: 10.16798/j.issn.1003-0530.2022.11.014 LIU Yan, ZHAO Haitao, LI Wei, et al. Multi-channel adaptive network establishment based on neighborhood information[J]. Journal of Signal Processing, 2022, 38(11): 2372–2384. doi: 10.16798/j.issn.1003-0530.2022.11.014
[14]	SAMAD A, QADIR M, and NAWAZ I. SAM: A similarity measure for link prediction in social network[C]. 2019 13th International Conference on Mathematics, Actuarial Science, Computer Science and Statistics (MACS), Karachi, Pakistan, 2019: 1–9. doi: 10.1109/MACS48846.2019.9024762.
[15]	NEWMAN M E J and GIRVAN M. Finding and evaluating community structure in networks[J]. Physical Review E, 2004, 69(2): 026113. doi: 10.1103/PhysRevE.69.026113
[16]	BLONDEL V D, GUILLAUME J L, LAMBIOTTE R, et al. Fast unfolding of communities in large networks[J]. Journal of Statistical Mechanics:Theory and Experiment, 2008, 2008: P10008. doi: 10.1088/1742-5468/2008/10/P10008
[17]	LIANG Xinyu, LIANG Jiarong, and ZHANG Weiguang. Constructing d-robust connected dominating sets in wireless sensor networks with unstable transmission ranges[J]. IEEE Transactions on Communications, 2021, 69(1): 398–415. doi: 10.1109/TCOMM.2020.3030930
