High Resolution Digital Pulse Width Modulation Design for Digital DC-DC Converter

Zhang ZHANG; Minghui CUI; Bin LI; Xin CHENG; Guangjun XIE

doi:10.11999/JEIT190482

Volume 42 Issue 11

Nov. 2020

Turn off MathJax

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2020 > 42(11): 2819-2826

Zhang ZHANG, Minghui CUI, Bin LI, Xin CHENG, Guangjun XIE. High Resolution Digital Pulse Width Modulation Design for Digital DC-DC Converter[J]. Journal of Electronics & Information Technology, 2020, 42(11): 2819-2826. doi: 10.11999/JEIT190482

Citation:

Zhang ZHANG, Minghui CUI, Bin LI, Xin CHENG, Guangjun XIE. High Resolution Digital Pulse Width Modulation Design for Digital DC-DC Converter[J]. Journal of Electronics & Information Technology, 2020, 42(11): 2819-2826. doi: 10.11999/JEIT190482

Citation:

PDF( 2770 KB)

High Resolution Digital Pulse Width Modulation Design for Digital DC-DC Converter

doi: 10.11999/JEIT190482

Institute of Electronic Science & Applied Physics, HeFei University of Technology, Hefei 230601, China

Funds: The National Natural Science Foundation of China (61674049), The Fundamental Research Funds for Central Universities (PA2018GDQT0017, JZ2019HGTB0092), The Key Laboratory of Nanodevices and Applications, Suzhou Institute of Nano-Tech and Nano-Bionics, CAS (18ZS03)

Received Date: 2019-06-28
Rev Recd Date: 2020-03-29

Available Online: 2020-08-27

Publish Date: 2020-11-16

Abstract

Abstract

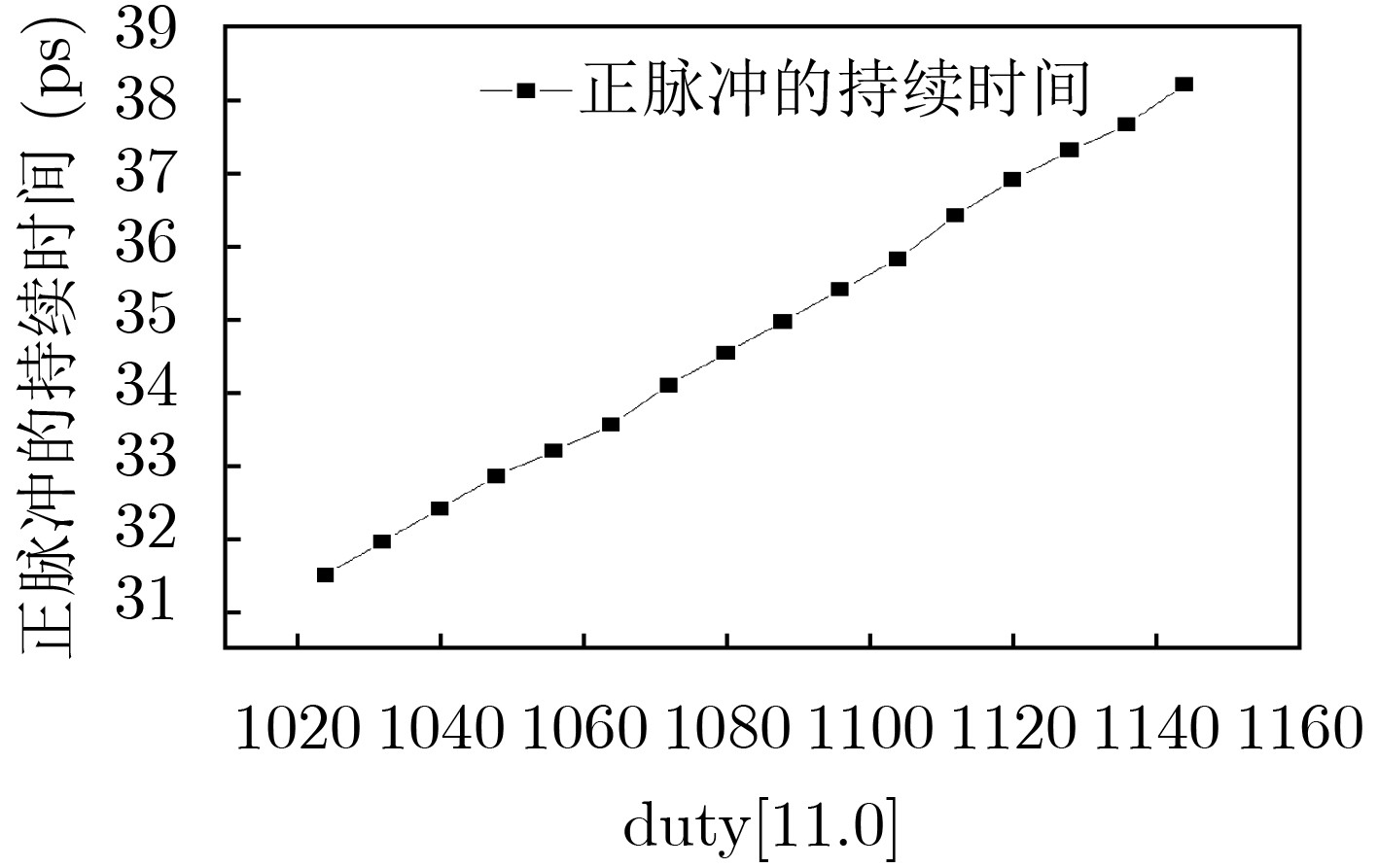

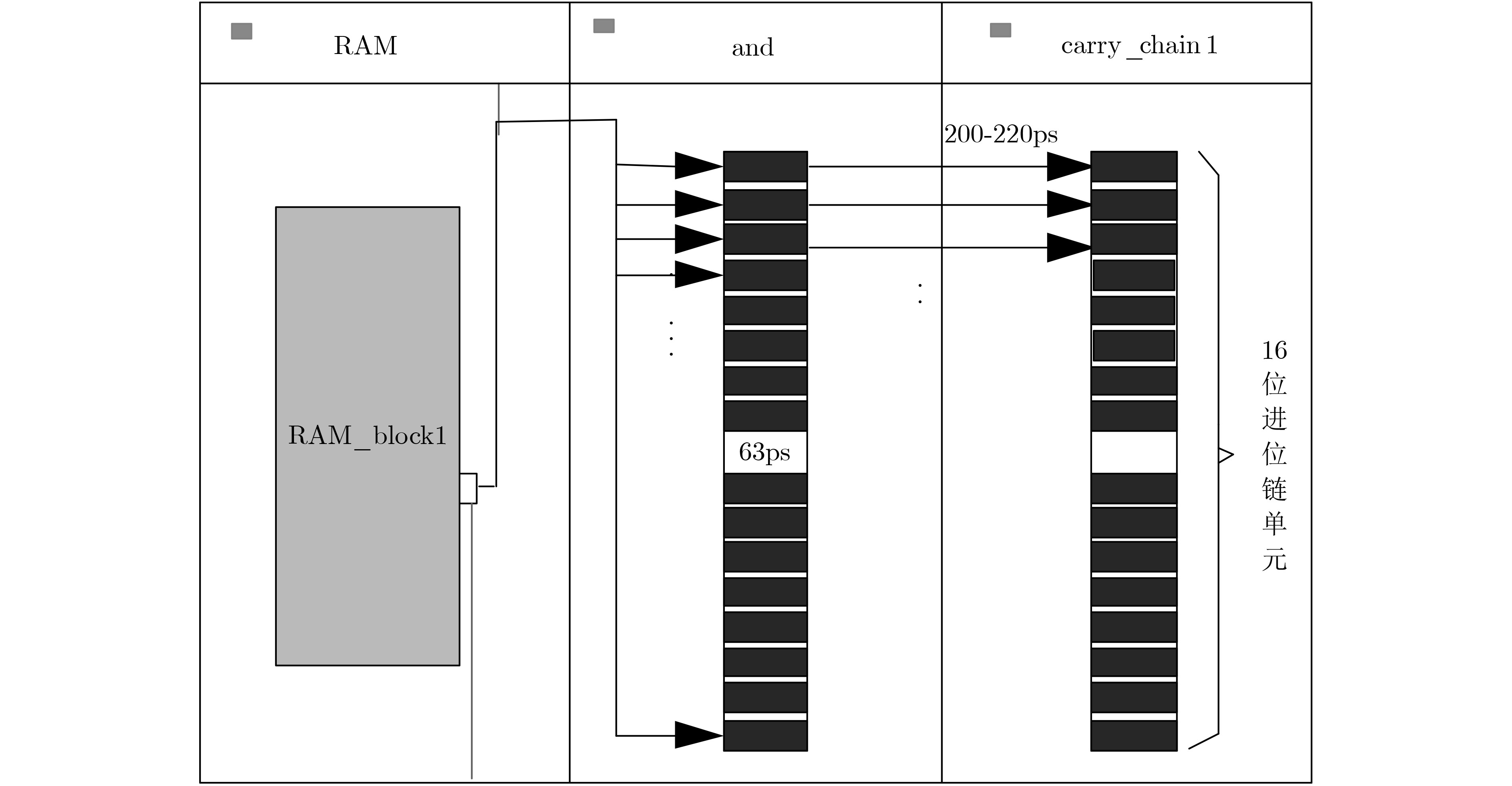

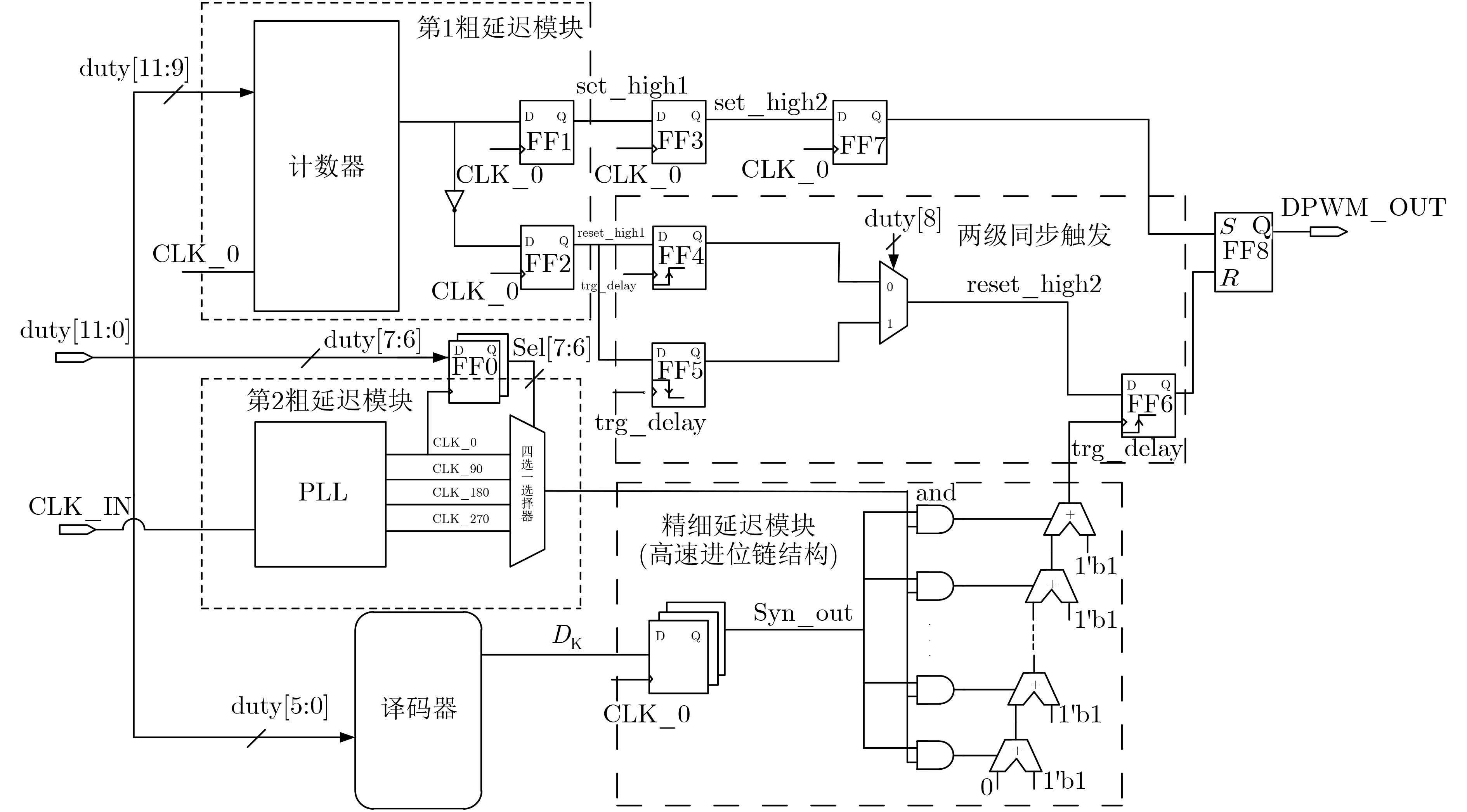

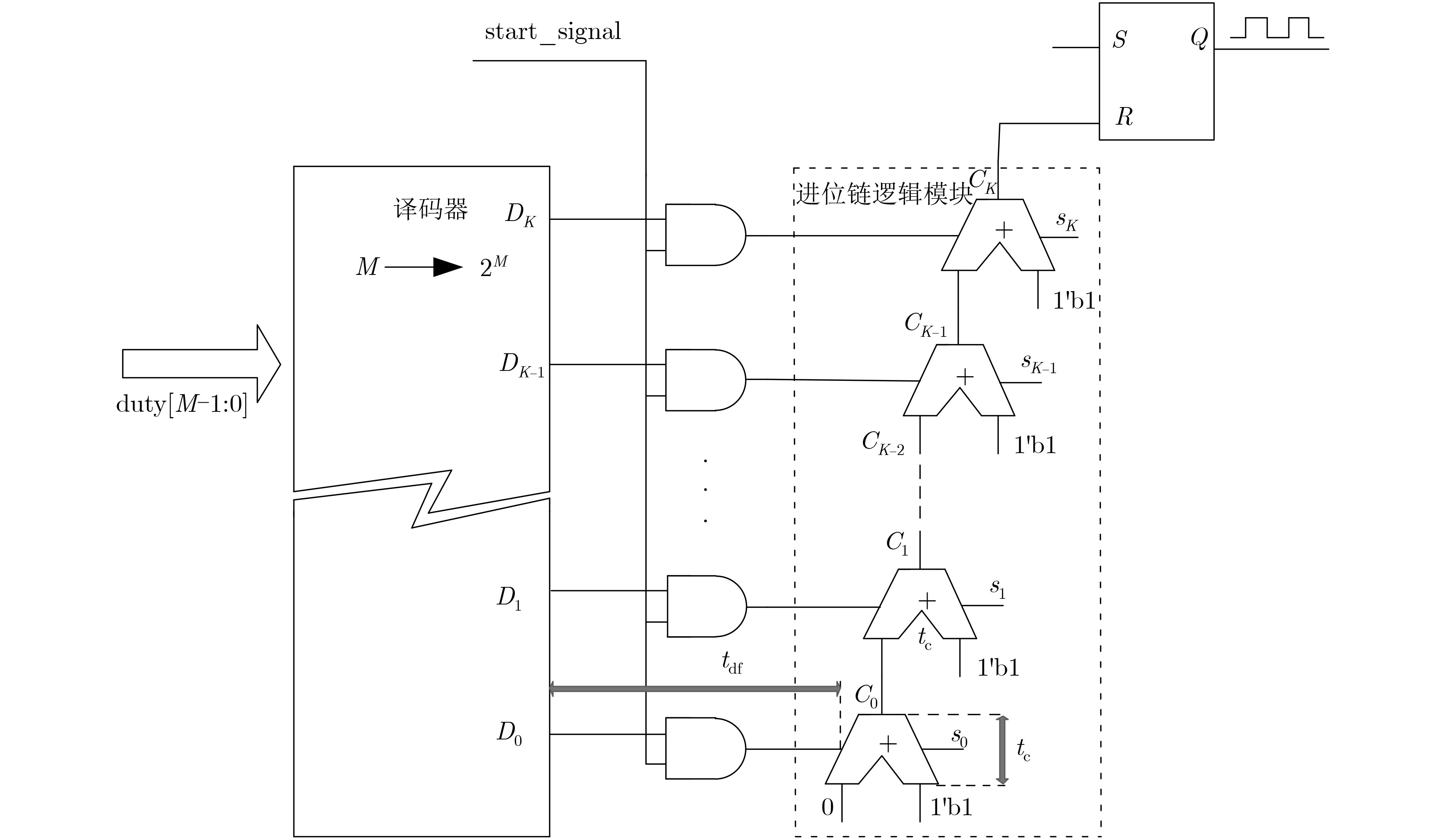

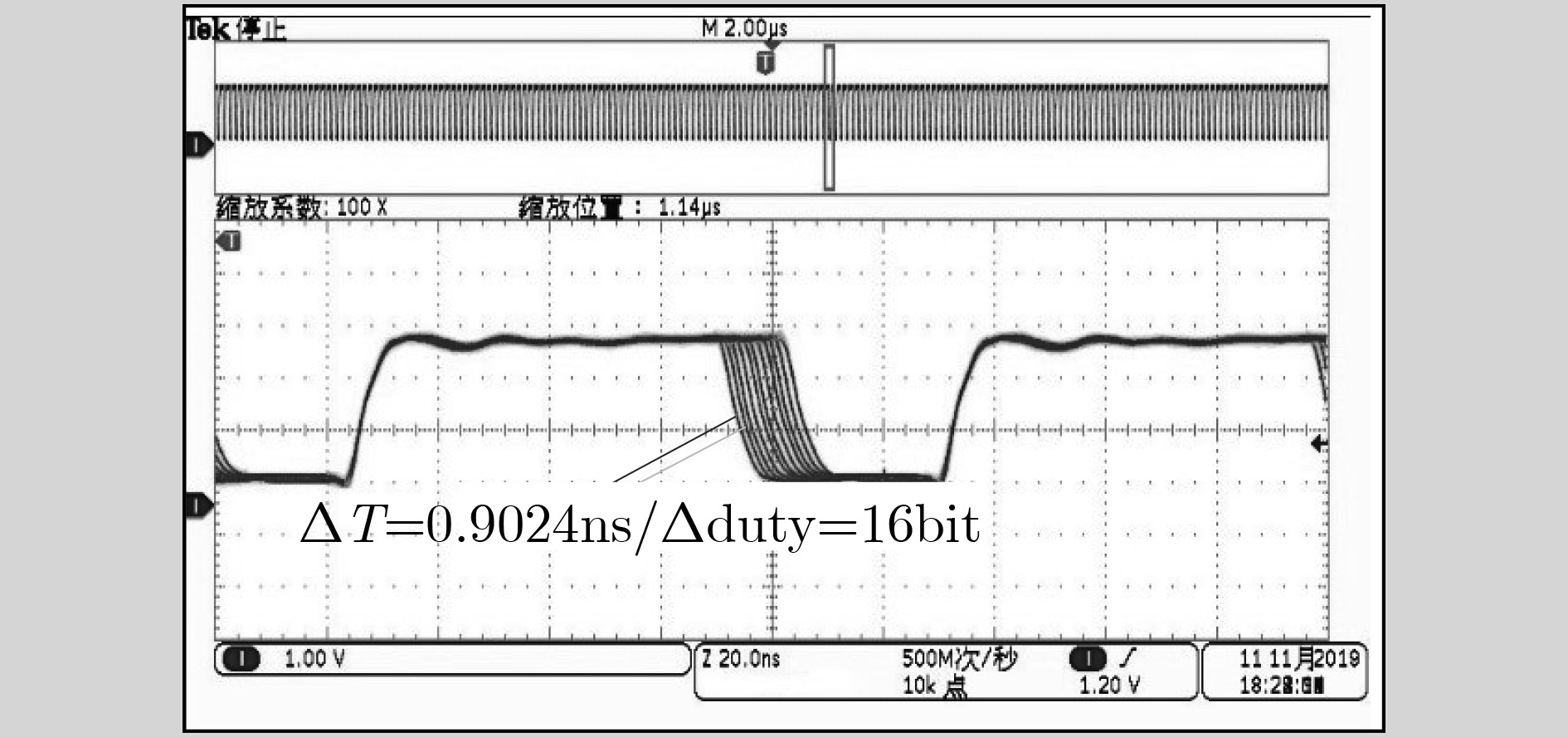

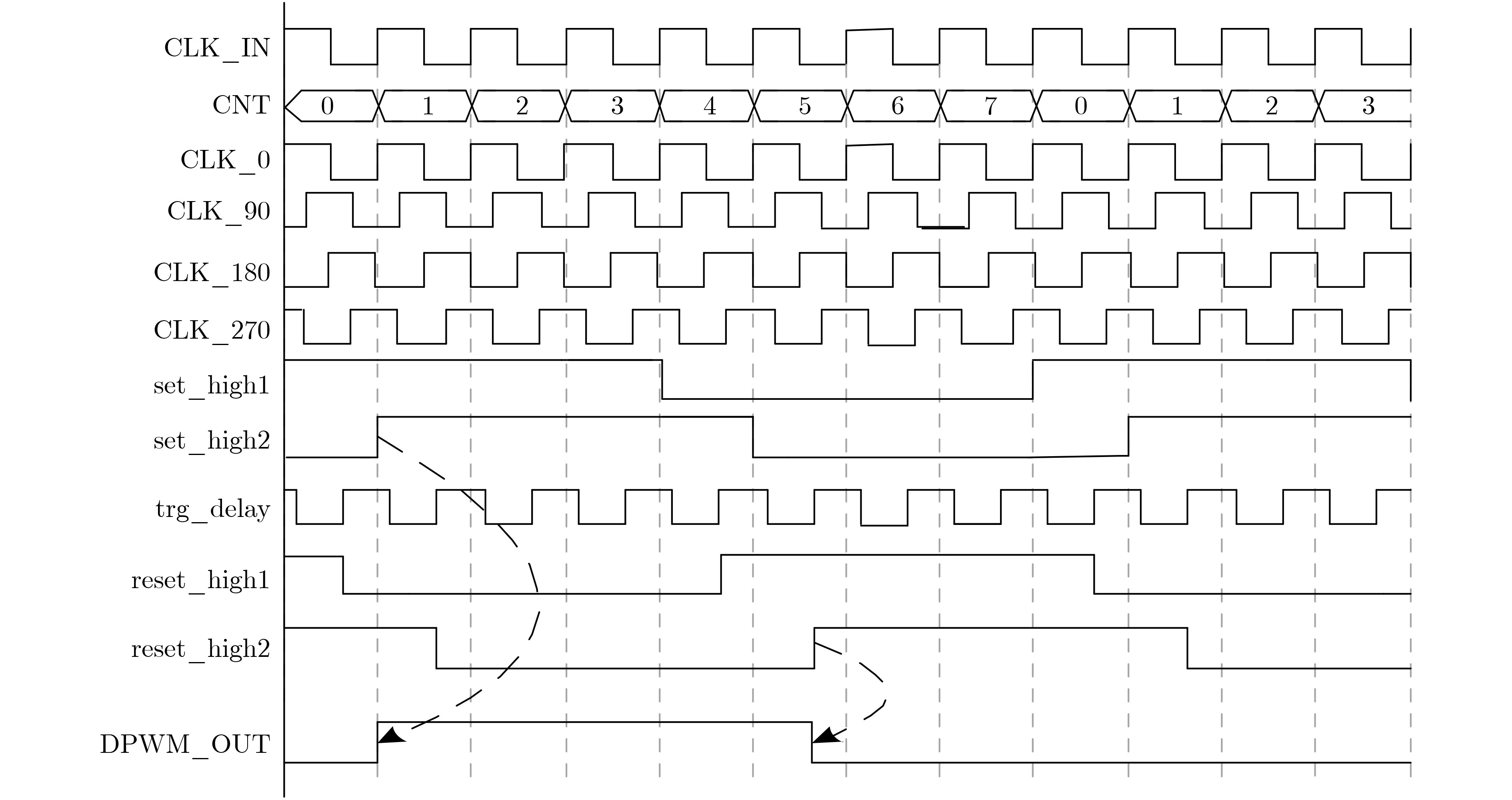

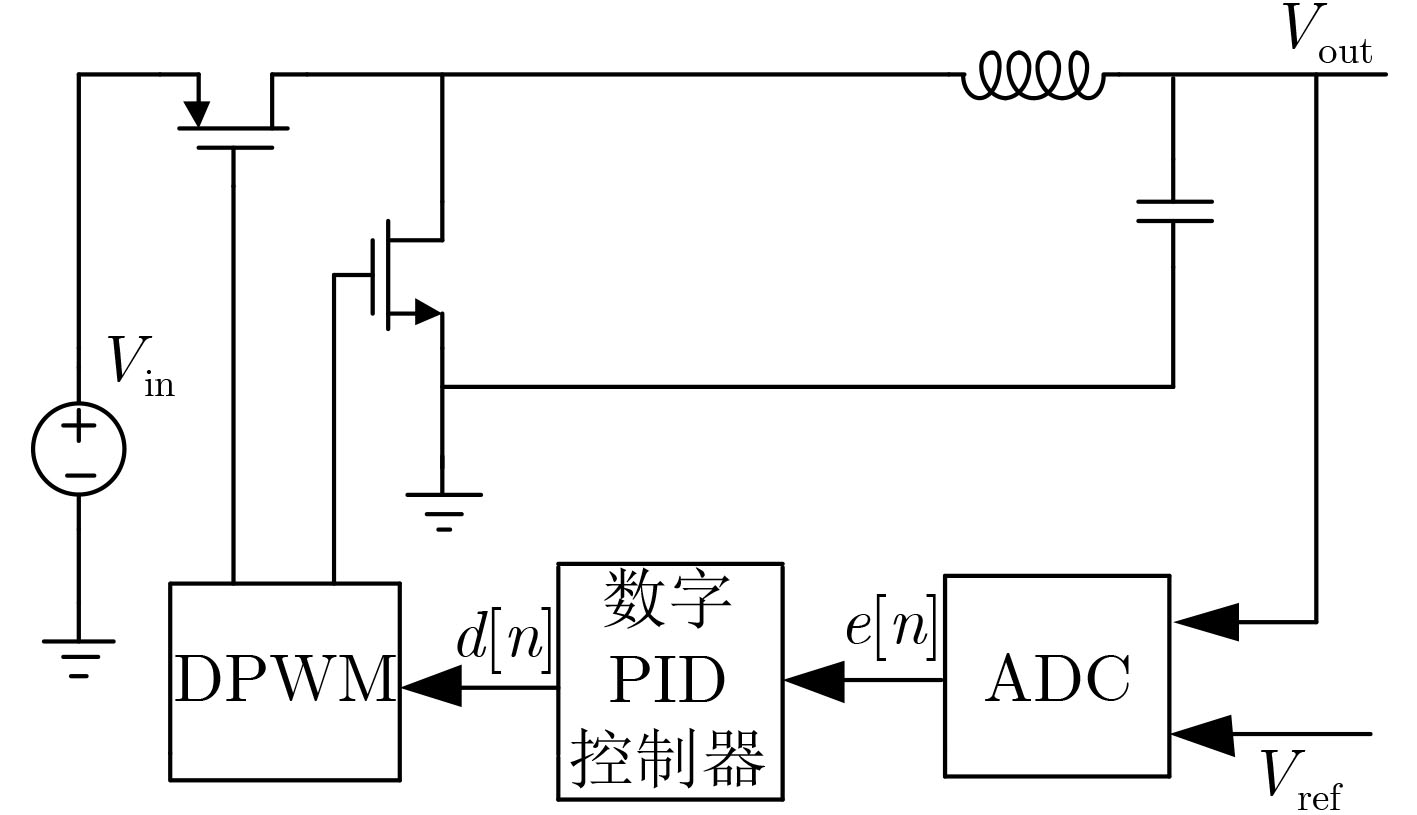

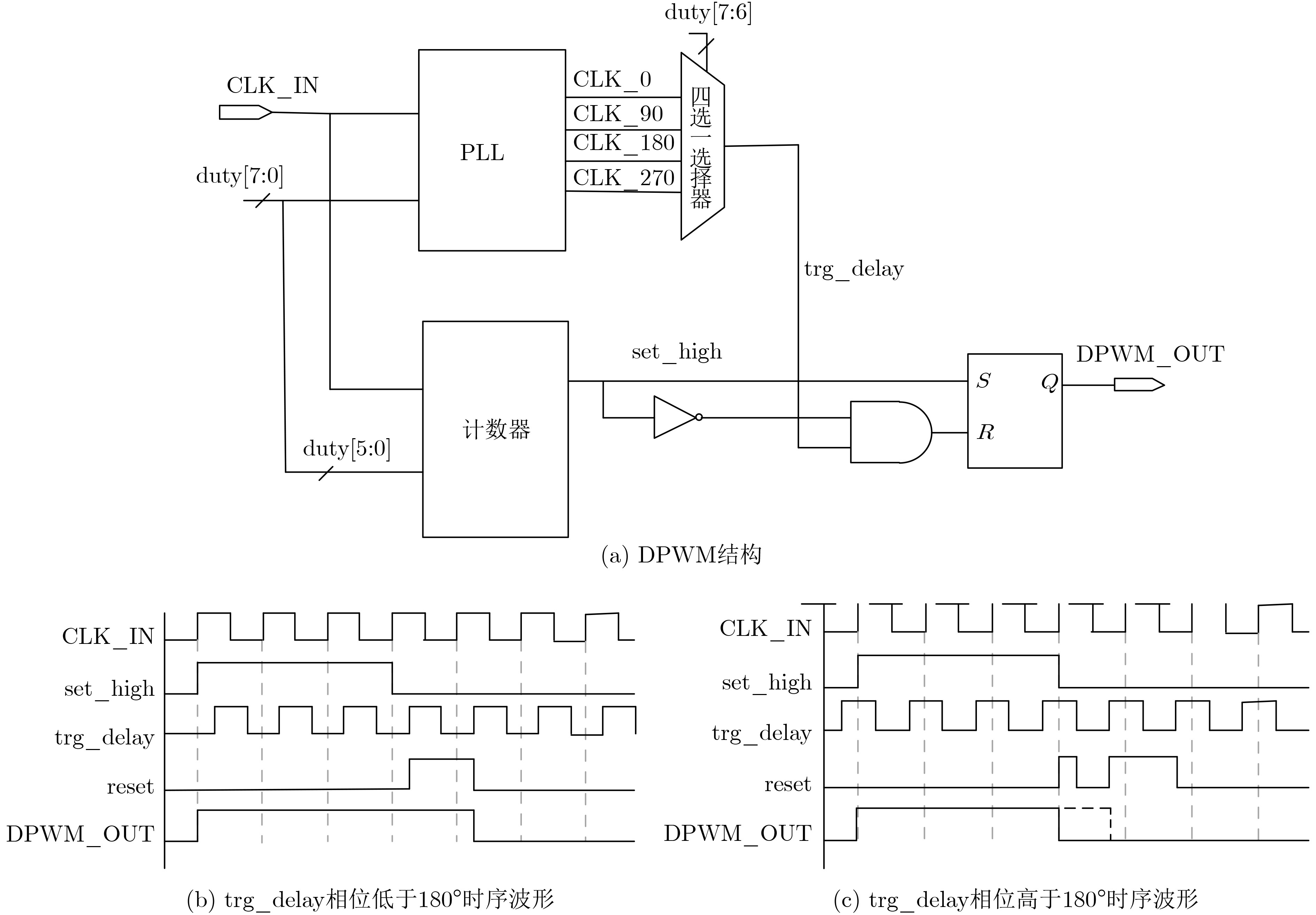

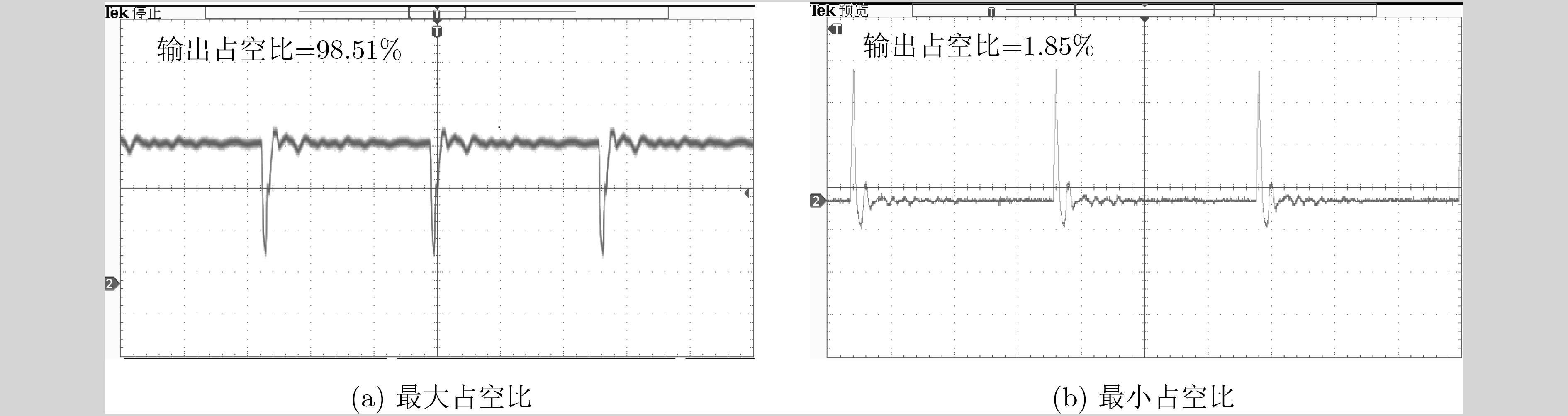

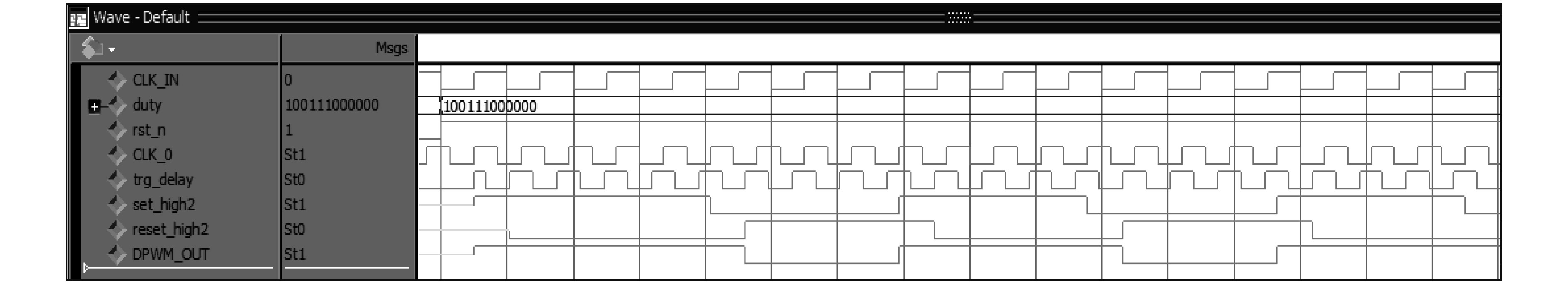

The advantages of digital control in the field of power electronics lead to an increasing use of Digital Pulse Width Modulation (DPWM). However, the insufficient resolution of DPWM is one of the main factors that constrain the development of digital control technology in the field of switch mode power supplies. For the application requirements of high-resolution DPWM, this paper proposes a high-resolution DPWM circuit based on high-speed carry chain structure. The circuit comprises of counters, comparators, fixed phase shift PLL units and high-speed carry chains, which can effectively increase resolution. The circuit is also implemented on Altera’s Cyclone IV low-cost Field-Programmable Gate Array (FPGA) devices. The experimental results show that the resolution of the structure can reach 56 ps with 70 MHz input reference clock. In addition, the circuit also has wide switching frequency adjustment range and good linearity.
- Digital Pulse Width Modulation(DPWM),
- High resolution,
- Digital control,
- Field-Programmable Gate Array(FPGA)

FullText(HTML)

References(18)

References

LIU Fangcheng, XIN Kai, and LIU Yunfeng. An adaptive Discontinuous Pulse Width Modulation (DPWM) method for three phase inverter[C]. 2017 IEEE Applied Power Electronics Conference and Exposition, Tampa, USA, 2017: 1467–1472. doi: 10.1109/APEC.2017.7930892.

KIM S Y, PARK Y J, ALI I, et al. Design of a high efficiency DC–DC buck converter with two-step digital PWM and low power self-tracking zero current detector for IoT applications[J]. IEEE Transactions on Power Electronics, 2018, 33(2): 1428–1439. doi: 10.1109/TPEL.2017.2688387

FURUKAWA Y, NAKAMURA H, ETO H, et al. Fine resolution DPWM circuit for high frequency digital control DC-DC converter[C]. 2018 International Symposium on Power Electronics, Electrical Drives, Automation and Motion, Amalfi, Italy, 2018: 491–496. doi: 10.1109/SPEEDAM.2018.8445336.

RADHIKA V and BASKARAN K. FPGA based DPWM/DPFM architecture for digitally controlled dc-dc converters[C]. 2016 IEEE Uttar Pradesh Section International Conference on Electrical, Computer and Electronics Engineering, Varanasi, India, 2016: 78–82. doi: 10.1109/UPCON.2016.7894628.

CROVETTI P S. All-digital high resolution D/A Conversion by dyadic digital pulse modulation[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2017, 64(3): 573–584. doi: 10.1109/TCSI.2016.2614231

KAPAT S. Sampling-induced border collision bifurcation in a voltage-mode DPWM synchronous buck converter[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2019, 66(6): 1048–1052. doi: 10.1109/TCSII.2018.2866520

LUCÍA O, BURDÍO J M, BARRAGÁN L A, et al. Series-resonant multiinverter for multiple induction heaters[J]. IEEE Transactions on Power Electronics, 2010, 25(11): 2860–2868. doi: 10.1109/TPEL.2010.2051041

SONG Hu, JIANG Naiti, HU Shanshan, et al. FPGA-based high resolution DPWM control circuit[J]. Journal of Systems Engineering and Electronics, 2018, 29(6): 1136–1141. doi: 10.21629/JSEE.2018.06.03

NAVARRO D, LUCÍA O, BARRAGÁN L A, et al. Synchronous FPGA-based high-resolution implementations of digital pulse-width modulators[J]. IEEE Transactions on Power Electronics, 2012, 27(5): 2515–2525. doi: 10.1109/TPEL.2011.2173702

FURUKAWA Y, NAKAMURA H, ETO H, et al. A novel high resolution DPWM circuit for high frequency digitally controlled DC-DC converter[C]. 2018 IEEE Energy Conversion Congress and Exposition, Portland, USA, 2018: 1396–1400. doi: 10.1109/ECCE.2018.8557826.

LAN P H, TSENG C Y, YEH F C, et al. A multi-mode digital controller with windowed ADC and self-calibrated DPWM for slew-enhanced switching converter[C]. 2010 IEEE Asian Solid-State Circuits Conference, Beijing, China, 2010: 1–4. doi: 10.1109/ASSCC.2010.5716556.

SCHARRER M, HALTON M, SCANLAN T, et al. FPGA-based multi-phase digital pulse width modulator with dual-edge modulation[C]. The 25th Annual IEEE Applied Power Electronics Conference and Exposition, Palm Springs, USA, 2010: 1075–1080. doi: 10.1109/APEC.2010.5433371.

PENG Hao, PRODIC A, ALARCON E, et al. Modeling of quantization effects in digitally controlled DC-DC converters[J]. IEEE Transactions on Power Electronics, 2007, 22(1): 208–215. doi: 10.1109/TPEL.2006.886602

NAVARRO D, BARRAGÁN L A, ARTIGAS J I, et al. FPGA-based high resolution synchronous digital pulse width modulator[C]. 2010 IEEE International Symposium on Industrial Electronics, Bari, Italy, 2010: 2771–2776. doi: 10.1109/ISIE.2010.5636571.

SALOMON L, MORENO R, and PIMENTA T. Implementation of a 17 bits pulse width modulation circuit using FPGA[C]. 2015 International Conference on Microelectronics, Casablanca, Morocco, 2015: 206–209. doi: 10.1109/ICM.2015.7438024.

GE Lusheng, CHEN Zongxiang, CHEN Zhijie, et al. Design and implementation of a high resolution DPWM based on a low-cost FPGA[C]. 2010 IEEE Energy Conversion Congress and Exposition, Atlanta, USA, 2010: 2306–2311. doi: 10.1109/ECCE.2010.5617866.

COSTINETT D, RODRIGUEZ M, and MAKSIMOVIC D. Simple digital pulse width modulator under 100 ps resolution using general-purpose FPGAs[J]. IEEE Transactions on Power Electronics, 2013, 28(10): 4466–4472. doi: 10.1109/TPEL.2012.2233218

CHENG Xin, SONG Ruifeng, XIE Guangjun, et al. A new FPGA-based segmented delay-line DPWM with compensation for critical path delays[J]. IEEE Transactions on Power Electronics, 2018, 33(12): 10794–10802. doi: 10.1109/TPEL.2017.2763750
