| Citation: | Rong LAN, Xin HU, Feng ZOU, Gang WANG, Jirun LUO. Research of Low Sampling Frequency Broadband Digital Predistortion with Cyclostationary Characteristics[J]. Journal of Electronics & Information Technology, 2020, 42(5): 1274-1280. doi: 10.11999/JEIT190105
|

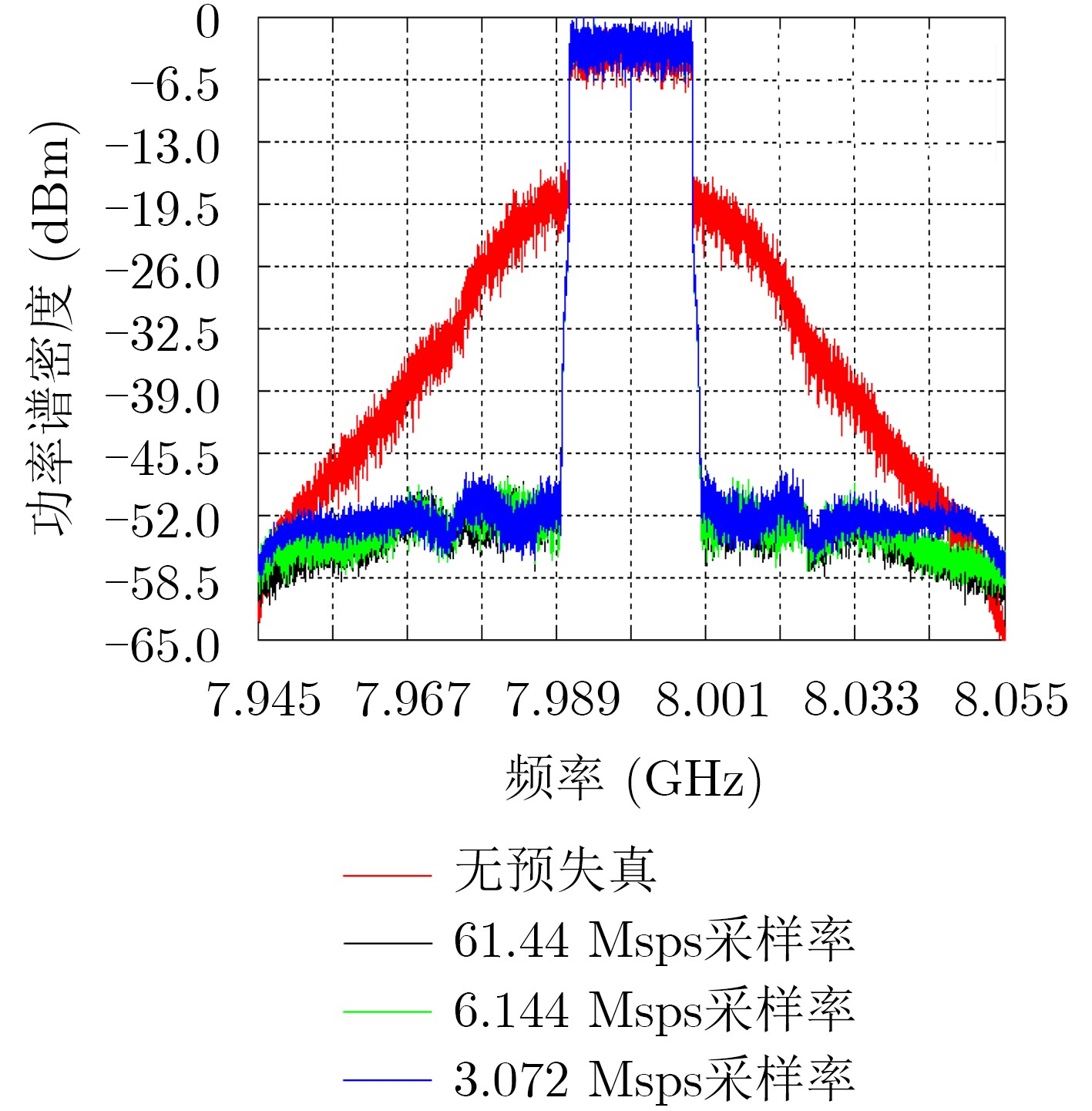

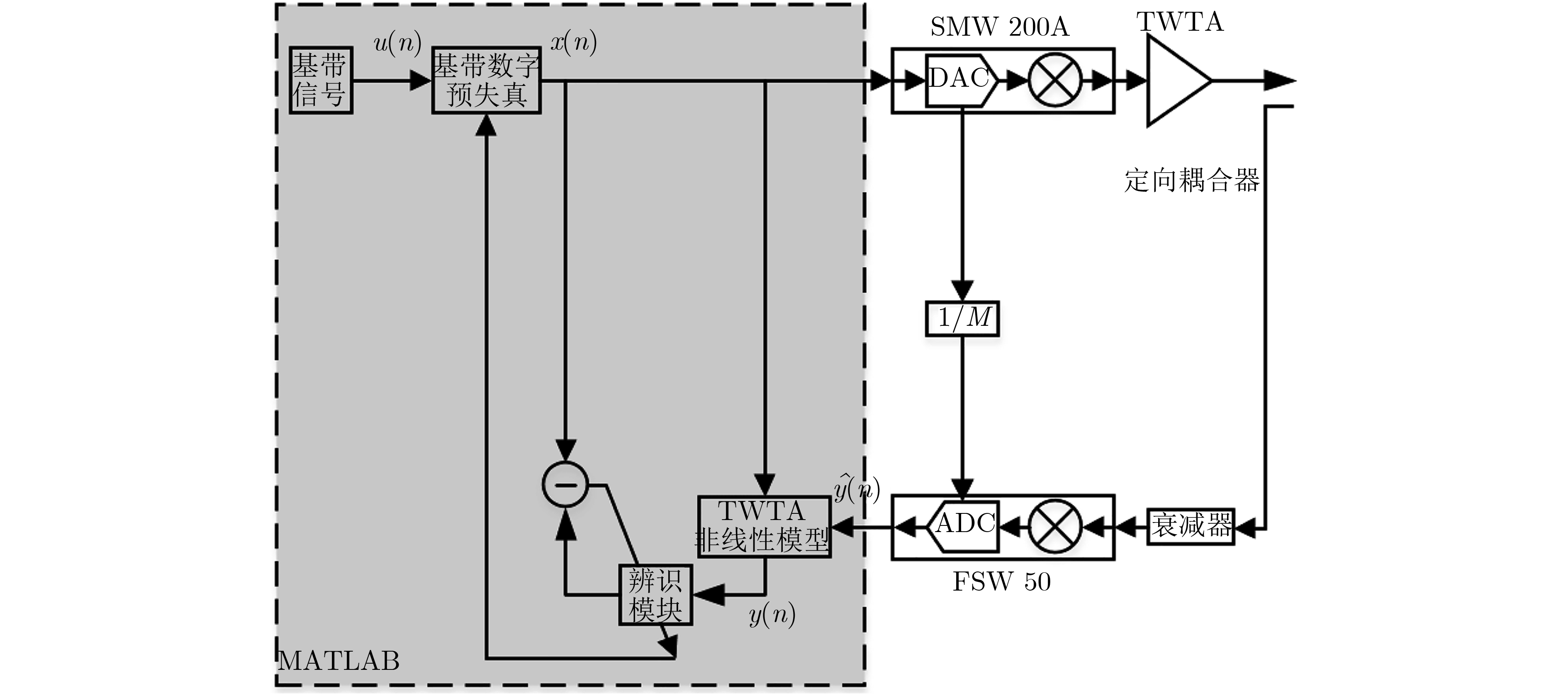

In order to reduce the sampling rate of the Traveling Wave Tube (TWT) of the Analog to Digital Converter (ADC) in the feedback loop of Digital PreDistortion (DPD), the nonlinear parameters of the power amplifier model are proved to be estimated with the undersampled output signal based on the cyclostationary of digital modulation signal. The output signal similar to high sampling rate can be obtained by combining the nonlinear parameters of the power amplifier model with the input signal. The DPD of the power amplifier is implemented through indirect learning architecture. To validate the method, a 55 W X-band Traveling Wave Tube Amplifier (TWTA) is driven by a 20 MHz LTE signal. The sampling rate of ADC in the DPD feedback loop is reduced from 61.44 Msps to 6.144 Msps and 3.072 Msps, but the linearization effect has little change, which shows the validation of the undersampling method.
|
