Robust Visual Tracking Algorithm Based on Siamese Network with Dual Templates

Zhiqiang HOU; Lilin CHEN; Wangsheng YU; Sugang MA; Jiulun FAN

doi:10.11999/JEIT181018

Volume 41 Issue 9

Sep. 2019

Turn off MathJax

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2019 > 41(9): 2247-2255

Zhiqiang HOU, Lilin CHEN, Wangsheng YU, Sugang MA, Jiulun FAN. Robust Visual Tracking Algorithm Based on Siamese Network with Dual Templates[J]. Journal of Electronics & Information Technology, 2019, 41(9): 2247-2255. doi: 10.11999/JEIT181018

Citation:

Zhiqiang HOU, Lilin CHEN, Wangsheng YU, Sugang MA, Jiulun FAN. Robust Visual Tracking Algorithm Based on Siamese Network with Dual Templates[J]. Journal of Electronics & Information Technology, 2019, 41(9): 2247-2255. doi: 10.11999/JEIT181018

Citation:

PDF( 2486 KB)

Robust Visual Tracking Algorithm Based on Siamese Network with Dual Templates

doi: 10.11999/JEIT181018

Zhiqiang HOU^{1, 3},
Lilin CHEN^{1, 3
,
,},
Wangsheng YU²,
Sugang MA^{1, 3},
Jiulun FAN¹

1.
Institute of Computer, Xi’an University of Posts and Telecommunications, Xi’an 710121, China
2.
Information and Navigation Institute, Air Force Engineering University, Xi’an 710077, China
3.
Shaanxi Key Laboratory of Network Data Analysis and Intelligent Processing, Xi’an University of Posts and Telecommunications, Xi’an 710121, China

Funds: The National Natural Science Foundation of China (61473309, 61703423)

Received Date: 2018-11-06
Rev Recd Date: 2019-05-29

Available Online: 2019-06-12

Publish Date: 2019-09-10

Abstract

Abstract

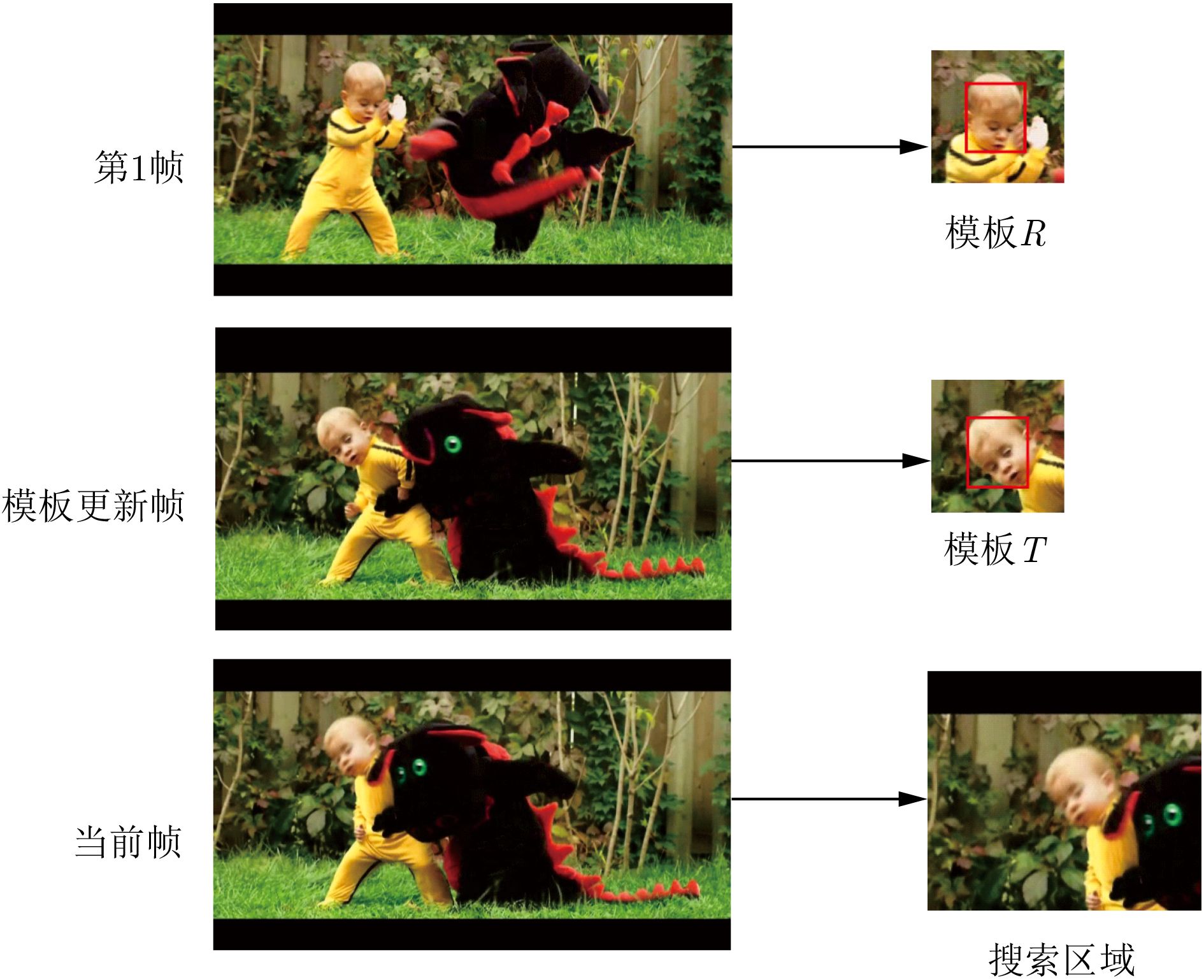

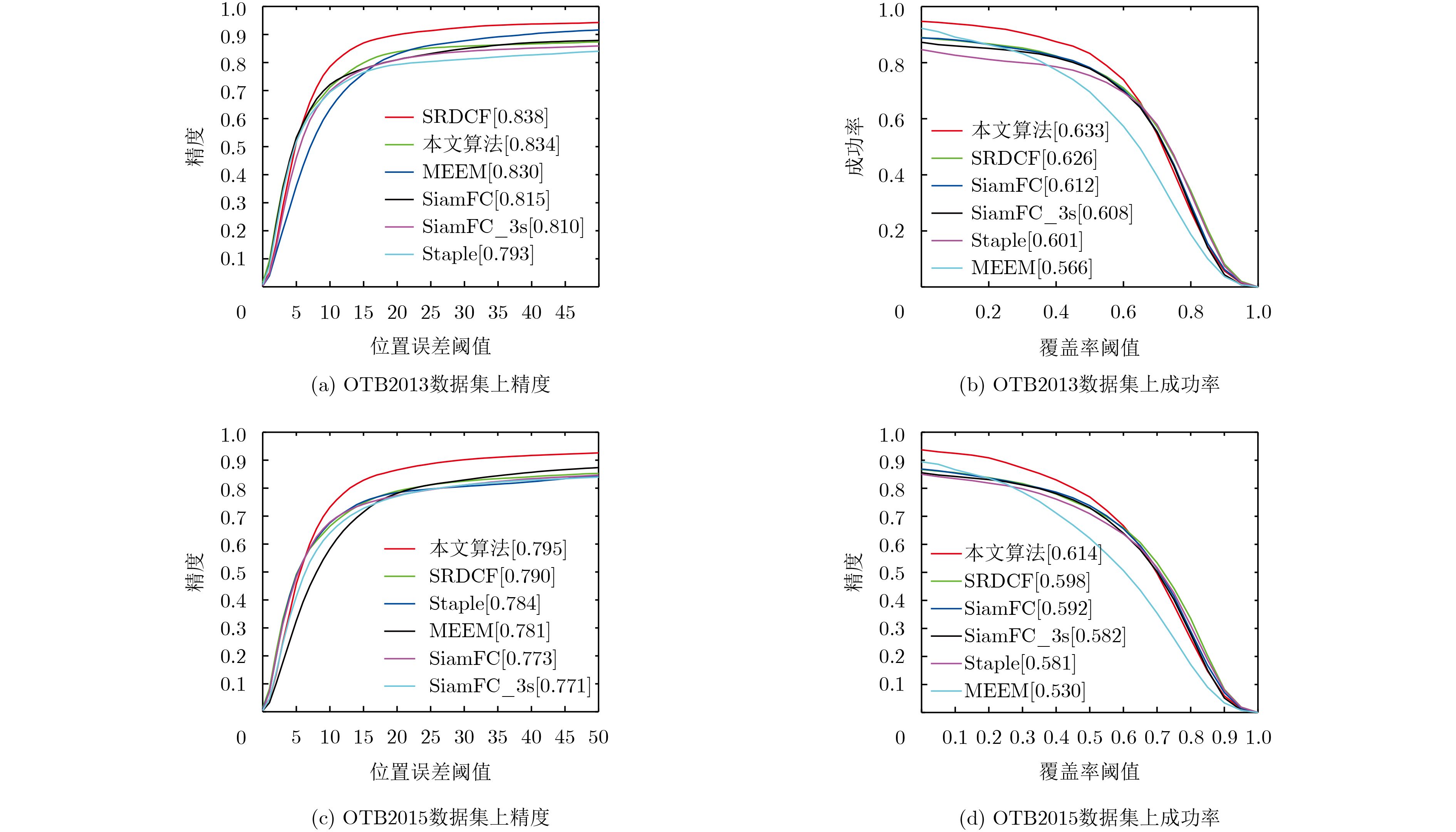

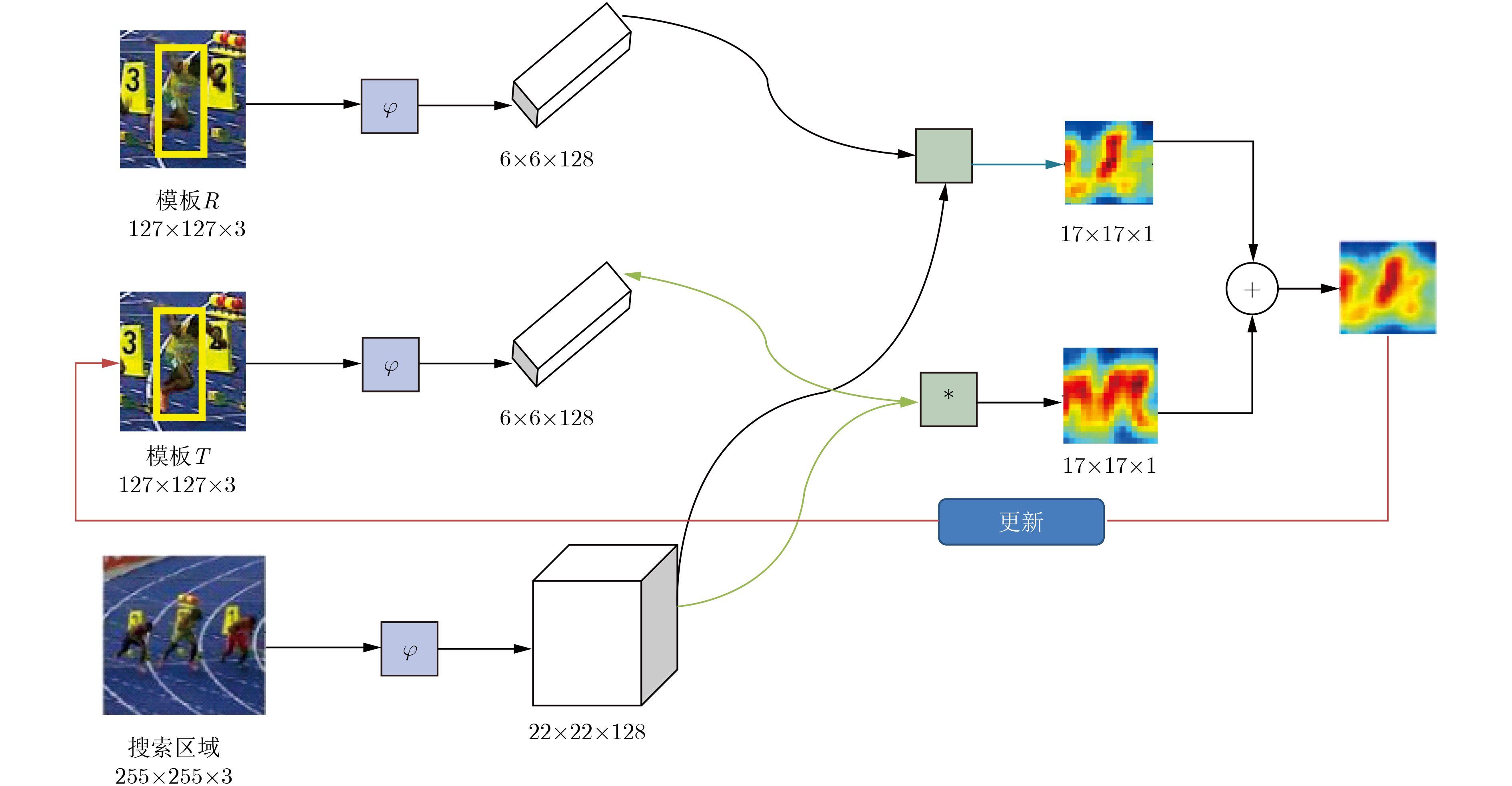

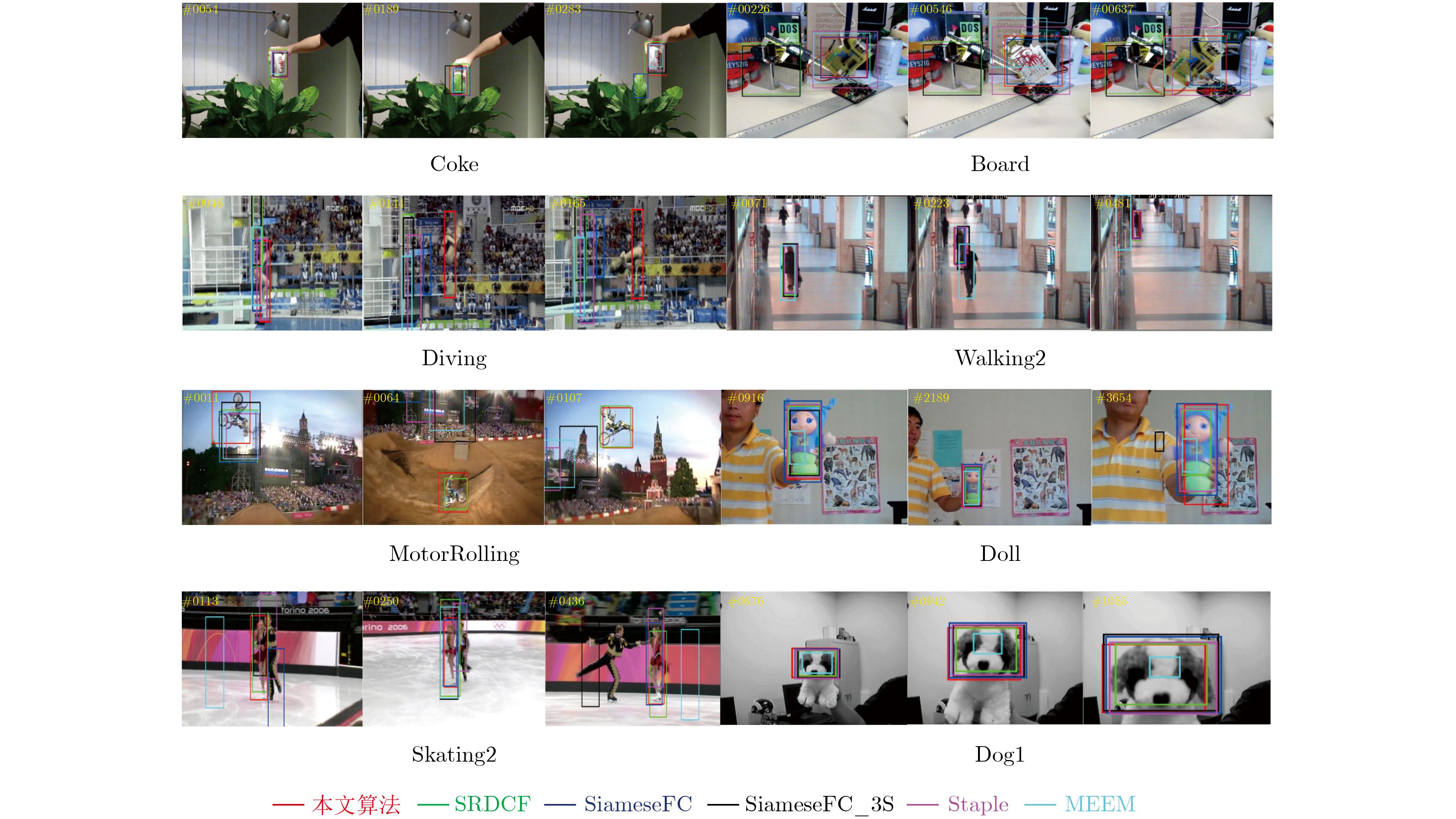

In recent years, the Siamese networks has drawn great attention in visual tracking community due to its balanced accuracy and speed. However, most Siamese networks model are not updated, which causes tracking errors. In view of this deficiency, an algorithm based on the Siamese network with double templates is proposed. First, the base template R which is the initial frame target with stable response map score and the dynamic template T which is using the improved APCEs model update strategy to determine are kept. Then, the candidate targets region and the two template matching results are analyzed, meanwhile the result response maps are fused, which could ensure more accurate tracking results. The experimental results on the OTB2013 and OTB2015 datasets show that comparing with the 5 current mainstream tracking algorithms, the tracking accuracy and success rate of the proposed algorithm are superior. The proposed algorithm not only displays better tracking effects under the conditions of scale variation, in-plane rotation, out-of-plane rotation, occlusion, and illumination variation, but also achieves real-time tracking by a speed of 46 frames per second.
- Siamese network,
- Object tracking,
- Dual templates,
- Template update

FullText(HTML)

References(24)

References

侯志强, 韩崇昭. 视觉跟踪技术综述[J]. 自动化学报, 2006, 32(4): 603–617.

HOU Zhiqiang and HAN Chongzhao. A survey of visual tracking[J]. Acta Automatica Sinica, 2006, 32(4): 603–617.

WU Yi, LIM J, and YANG M H. Object tracking benchmark[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2015, 37(9): 1834–1848. doi: 10.1109/TPAMI.2014.2388226

HE Anfeng, LUO Chong, TIAN Xinmei, et al. A twofold Siamese network for real-time object tracking[C]. 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, USA, 2018: 4834–4843.

TAO Ran, GAVVES E, and SMEULDERS A W M. Siamese instance search for tracking[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 1420–1429.

BERTINETTO L, VALMADRE J, HENRIQUES J F, et al. Fully-convolutional Siamese networks for object tracking[C]. 2016 European Conference on Computer Vision, Amsterdam, Netherlands, 2016: 850–865.

WANG Qiang, TENG Zhu, XING Junliang, et al. Learning attentions: Residual attentional Siamese network for high performance online visual tracking[C]. 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, USA, 2018: 4854–4863.

ZHU Zheng, WU Wei, ZOU Wei, et al. End-to-end flow correlation tracking with spatial-temporal attention[C]. 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City, USA, 2018: 548–557.

VALMADRE J, BERTINETTO L, HENRIQUES J, et al. End-to-end representation learning for correlation filter based tracking[C]. 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, USA, 2017: 5000–5008.

GUO Qing, FENG Wei, ZHOU Ce, et al. Learning dynamic Siamese network for visual object tracking[C]. 2017 IEEE International Conference on Computer Vision, Venice, Italy, 2017: 1781–1789.

WANG Qiang, ZHANG Mengdan, XING Junliang, et al. Do not lose the details: Reinforced representation learning for high performance visual tracking[C]. 2018 International Joint Conferences on Artificial Intelligence, Stockholm, Swedish, 2018.

LI Bo, YAN Junjie, WU Wei, et al. High performance visual tracking with Siamese region proposal network[C]. 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, USA, 2018: 8971–8980.

ZHU Zheng, WANG Qiang, LI Bo, et al. Distractor-aware Siamese networks for visual object tracking[C]. The 15th European Conference on Computer Vision, Munich, Germany, 2018: 103–119.

RUSSAKOVSKY O, DENG Jia, SU Hao, et al. ImageNet large scale visual recognition challenge[J]. International Journal of Computer Vision, 2015, 115(3): 211–252. doi: 10.1007/s11263-015-0816-y

REAL E, SHLENS J, MAZZOCCHI S, et al. YouTube-boundingboxes: A large high-precision human-annotated data set for object detection in video[C]. 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, USA, 2017: 7464–7473.

HERMANS A, BEYER L, and LEIBE B. In defense of the triplet loss for person re-identification[EB/OL]. https://arxiv.org/abs/1703.07737, 2017.

WU Yi, LIM J, and YANG M H. Online object tracking: A benchmark[C]. 2013 IEEE Conference on Computer Vision and Pattern Recognition, Portland, USA, 2013: 2411–2418.

KRISTAN M, MATAS J, LEONARDIS A, et al. The visual object tracking VOT2015 challenge results[J]. 2015 IEEE International Conference on Computer Vision Workshop, Santiago, Chile, 2015: 564–586.

SMEULDERS A W M, CHU D M, CUCCHIARA R, et al. Visual tracking: An experimental survey[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2014, 36(7): 1442–1468. doi: 10.1109/TPAMI.2013.230

WANG Mengmeng, LIU Yong, and HUANG Zeyi. Large margin object tracking with circulant feature maps[C]. 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, USA, 2017: 4800–4808.

ZHANG Jianming, MA Shugao, and SCLAROFF S. MEEM: Robust tracking via multiple experts using entropy minimization[C]. The 13th European Conference on Computer Vision, Zurich, Switzerland, 2014: 188–203.

BERTINETTO L, VALMADRE J, GOLODETZ S, et al. Staple: Complementary learners for real-time tracking[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 1401–1409.

DANELLJAN M, HÄGER G, KHAN F S, et al. Learning spatially regularized correlation filters for visual tracking[C]. 2015 IEEE International Conference on Computer Vision, Santiago, Chile, 2015: 4310–4318. doi: 10.1109/ICCV.2015.490.

KRIZHEVSKY A, SUTSKEVER I, and HINTON G E. ImageNet classification with deep convolutional neural networks[J]. Communications of the ACM, 2017, 60(6): 84–90. doi: 10.1145/3065386

LI Bo, WU Wei, WANG Qiang, et al. SiamRPN++: Evolution of Siamese visual tracking with very deep networks[EB/OL]. https://arxiv.org/pdf/1812.11703.pdf, 2018.
