MEMS-based Three-dimensional Electric Field Sensor with Low Cross-axis Coupling Interference

doi: 10.11999/JEIT171188

Biyun LING^{1, 2},
Chunrong PENG¹,
Ren REN¹,
Zhaozhi CHU^{1, 2},
Zhouwei ZHANG^{1, 2},
Hucheng LEI^{1, 2},
Shanhong XIA^{1
,
,}

1.
State Key Laboratory of Transducer Technology, Institute of Electronics, Chinese Academy of Sciences, Beijing 100190, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China

Funds: The National Natural Science Foundation of China (61327810), The National 863 Program of China (2015AA042602), Chinese Academy of Sciences Project (CXJJ-17-M151)

Received Date: 2017-12-18
Rev Recd Date: 2018-05-07

Available Online: 2018-06-12

Publish Date: 2018-08-01

Abstract

Abstract

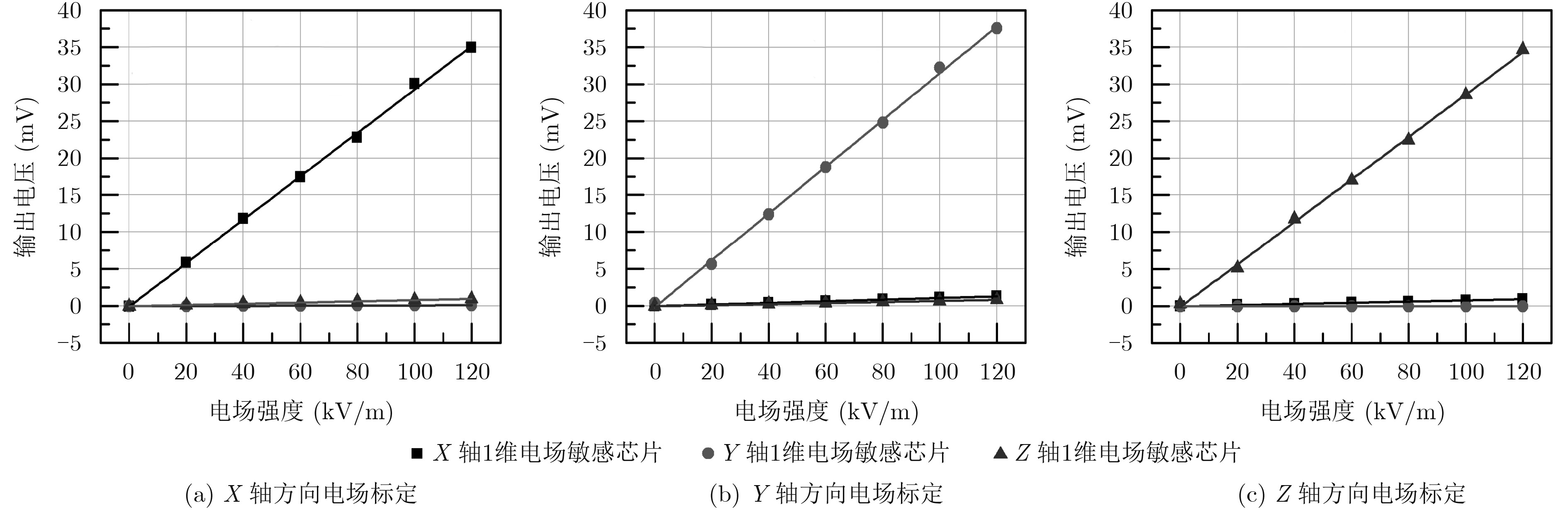

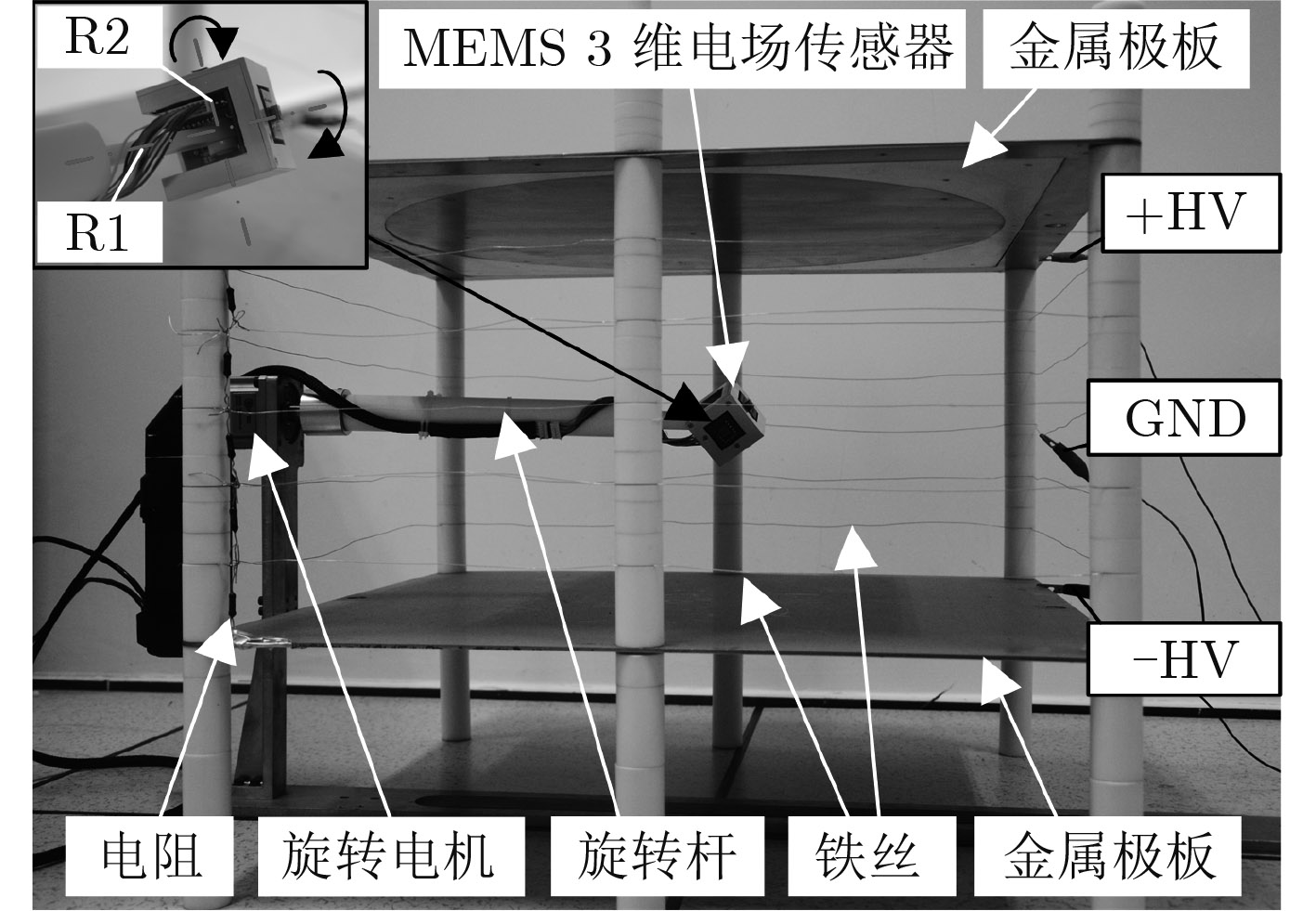

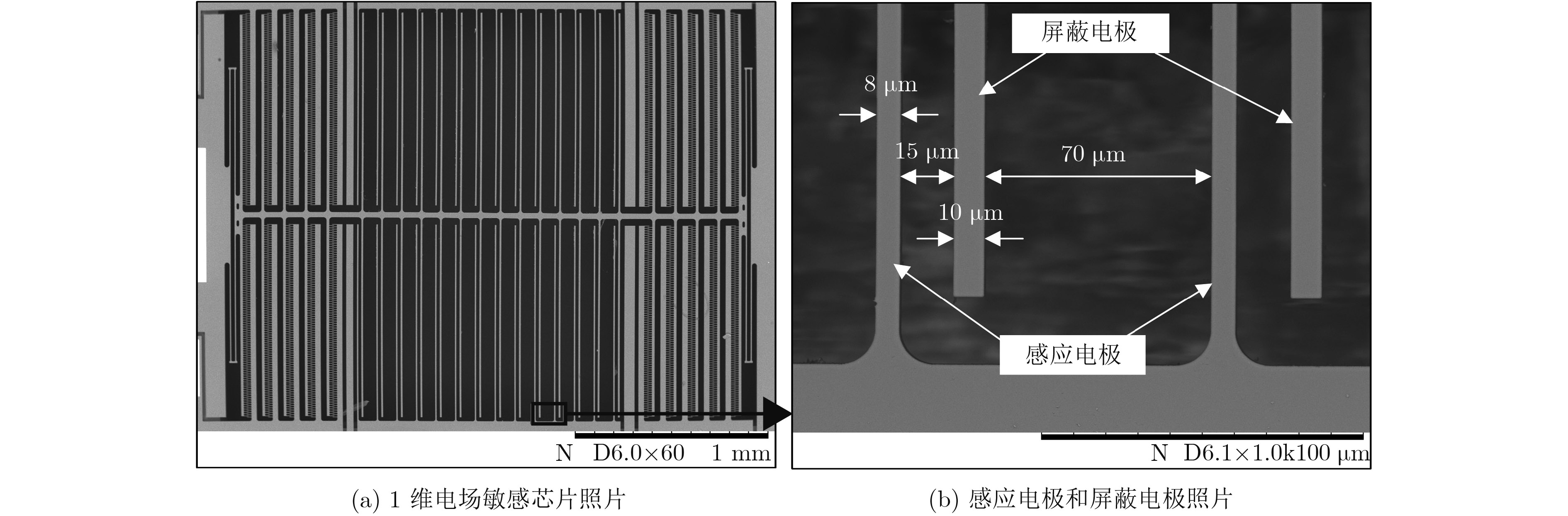

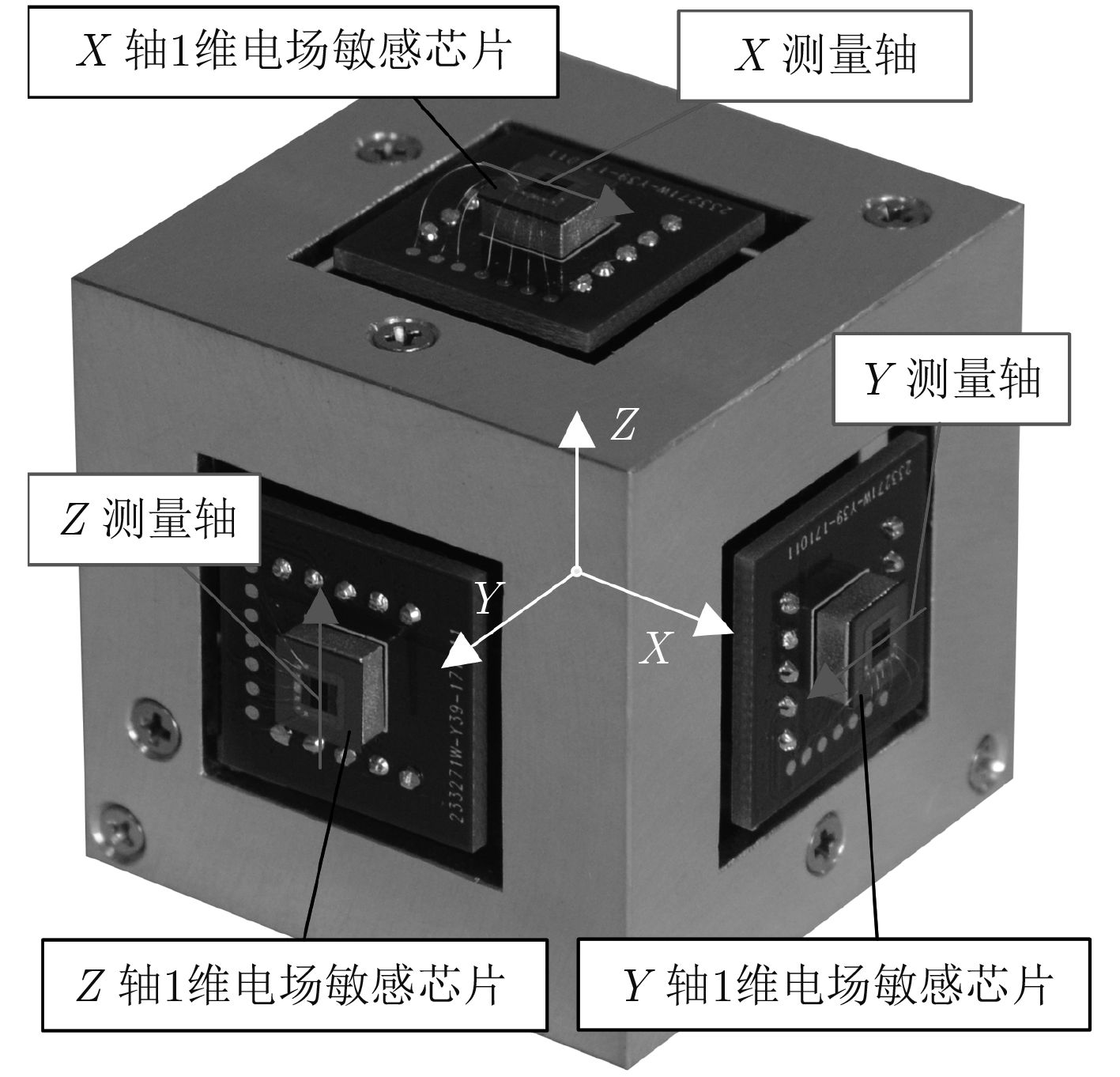

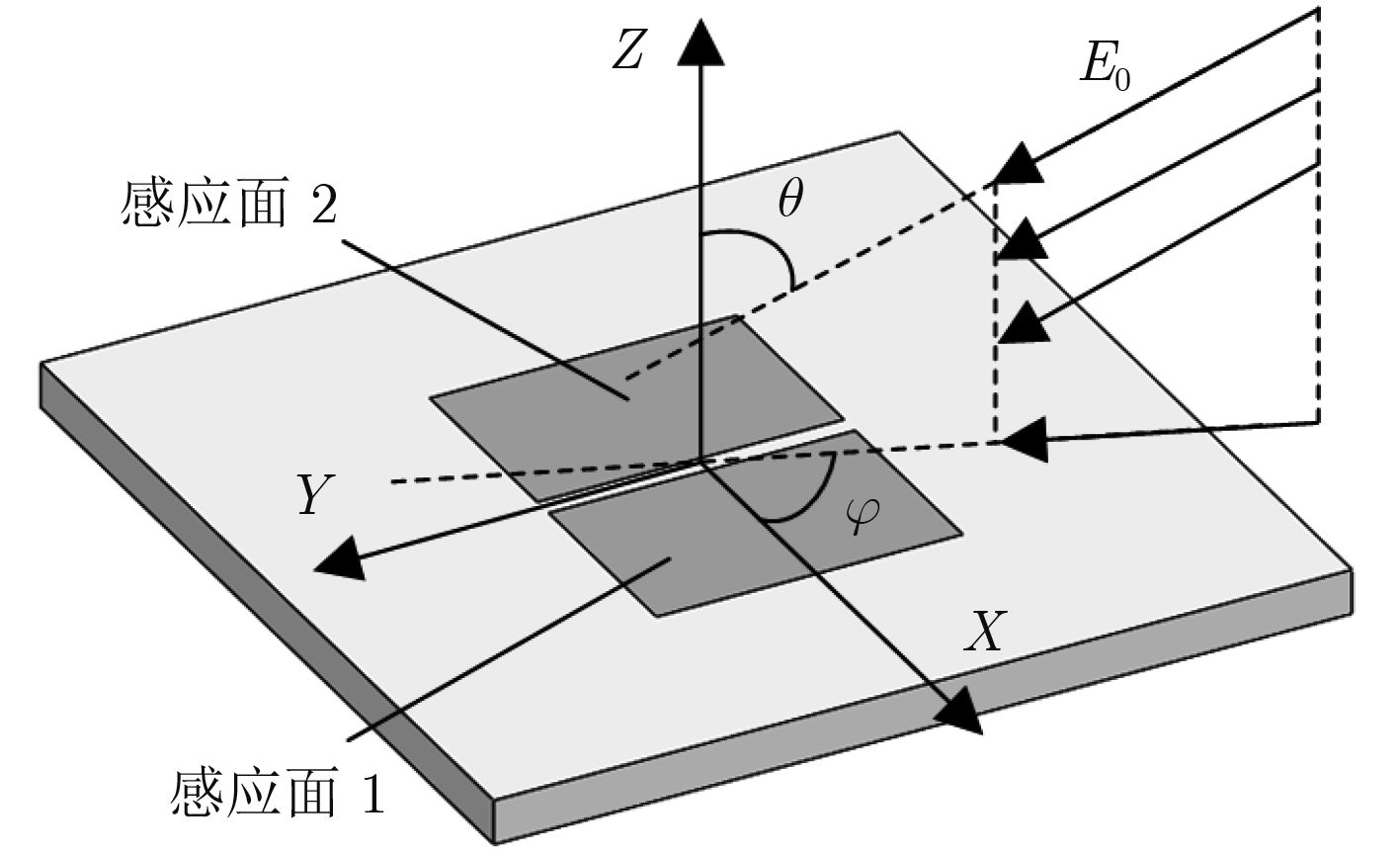

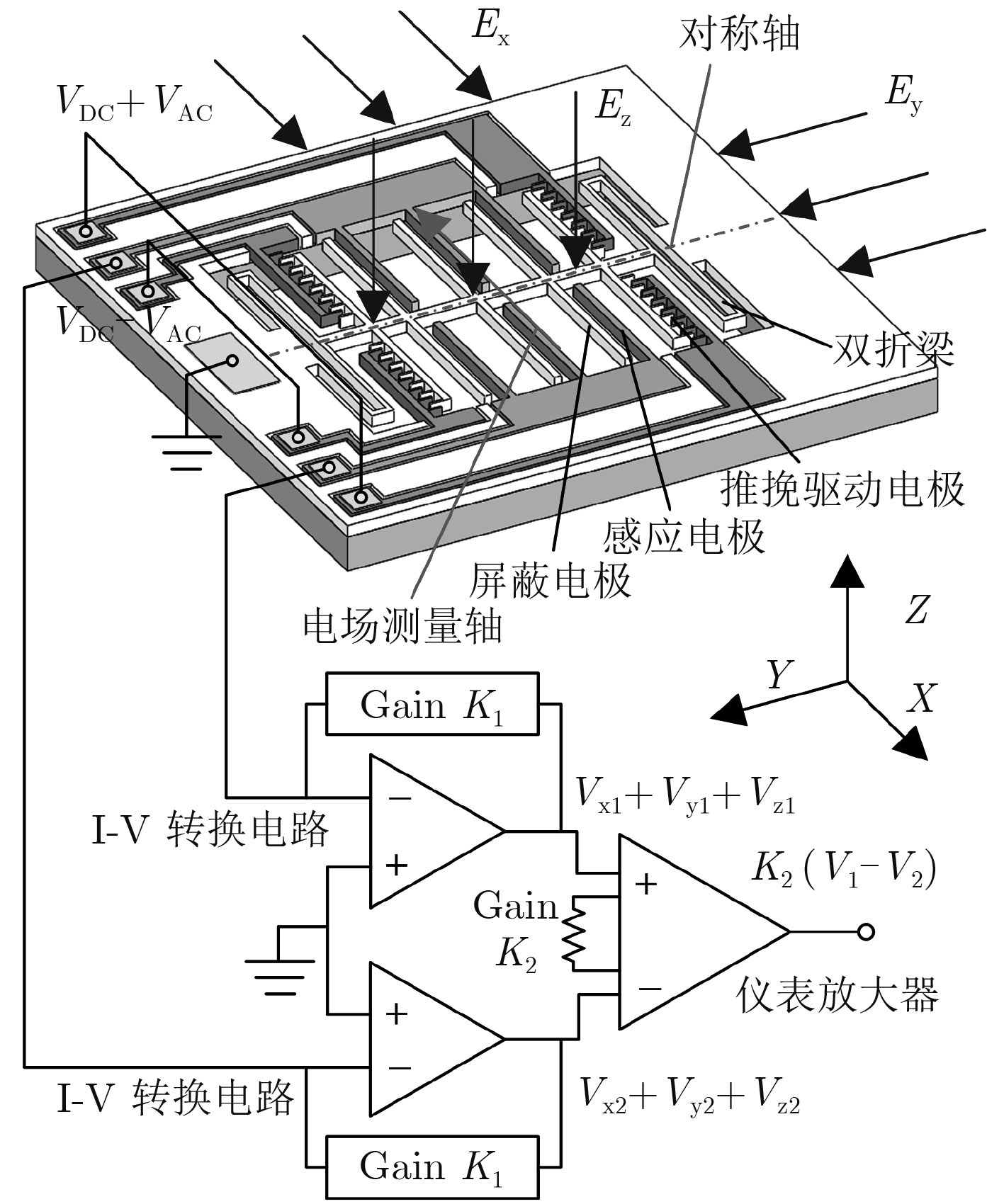

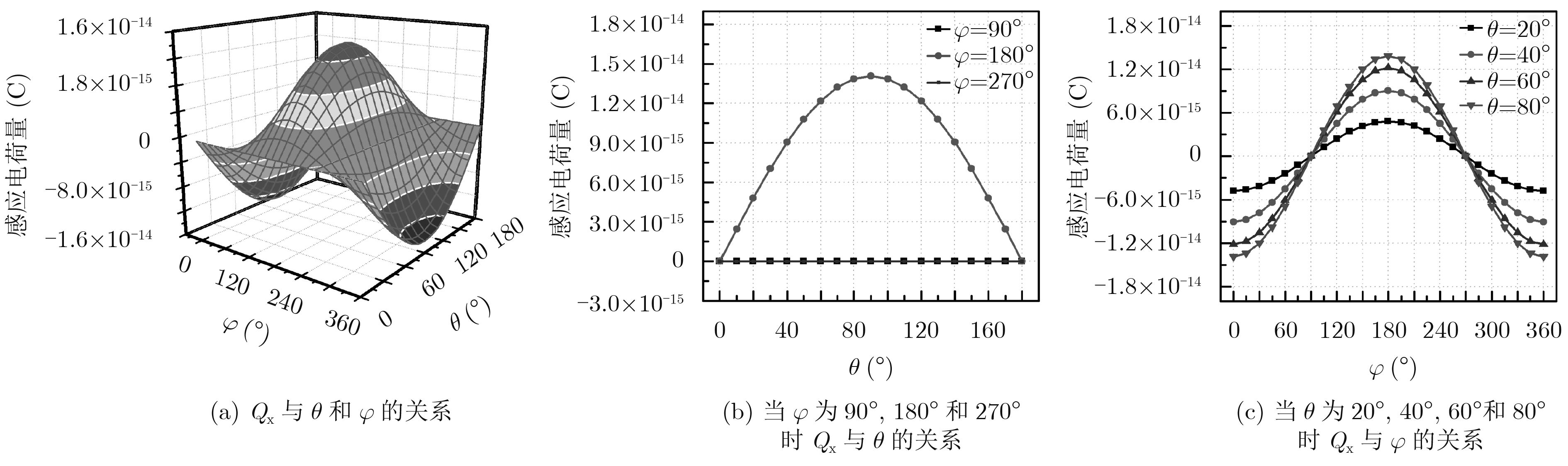

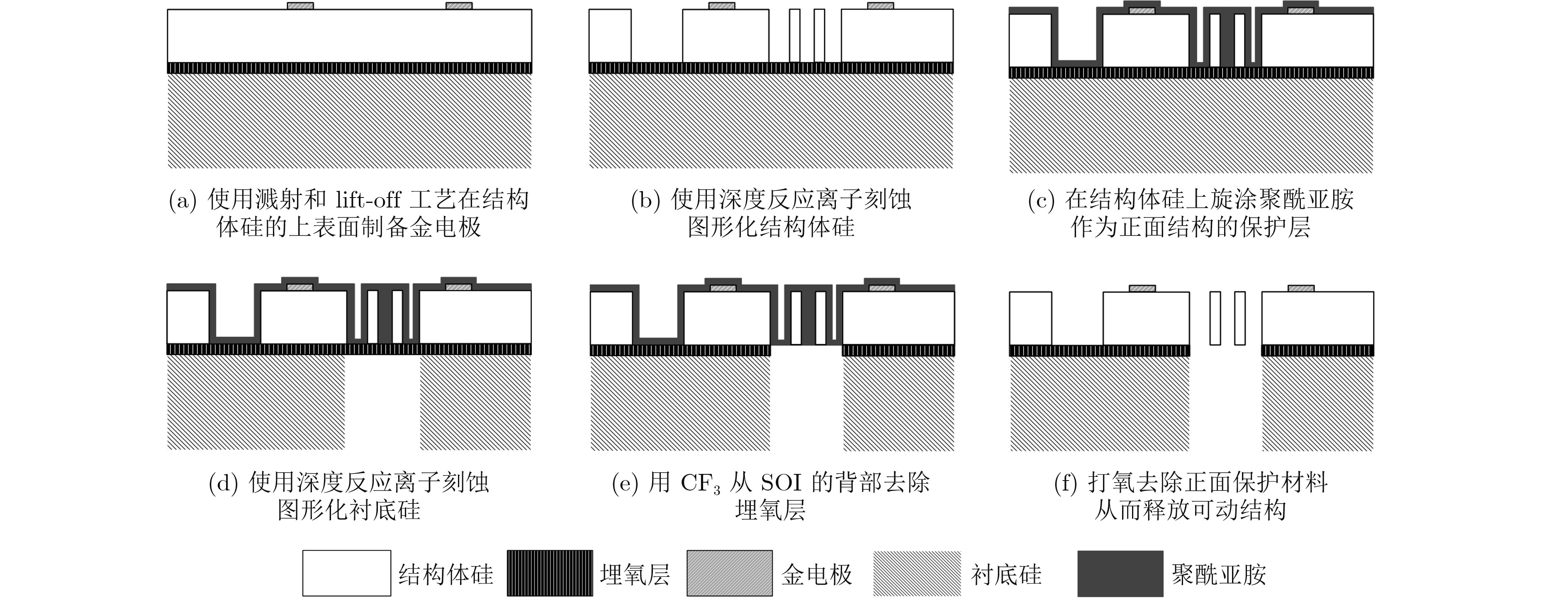

Cross-axis coupling interference influences greatly the measurement accuracy of Three-Dimensional (3D) Electric Field Sensor (EFS). A MEMS-based One-Dimensional (1D) Electric Field Microsensor (EFM) chip with low coupling interference is presented, and a MEMS-based 3D EFS with low cross-axis coupling interference is developed by arranging three 1D EFM chips orthogonally. Different from previously reported 1D EFM chips sensitive to perpendicular electric field component, the proposed 1D EFM chip is designed to be symmetrical and connected to difference circuit, so that it is capable of sensing parallel electric field component perpendicular to axis of symmetry and eliminating coupling interference. The proposed 3D EFS has the advantages of small size and high integration. Experimental results reveal that in the range of 0～120 kV/m, the cross-axis sensitivities are within 3.48%, and the total measurement errors of this 3D EFS are within 7.13%.
- Micro-Electro-Mechanical System (MEMS),
- Three-dimensional,
- Electric field sensor,
- Cross-axis coupling interference

FullText(HTML)

References(17)

References

罗福山. 雷击飞行器事件与美国航天活动的发射规范[J]. 中国航天, 1993, 1:27－29.

LUO Fushan. The events of lightning strikes spacecraft and the criteria of the spacecraft launches of aerospace maneuver of USA[J]. Aerospace China, 1993, 1: 27－29.

ZENG Qingfeng, WANG Zhenhui, GUO Fengxia, et al. The application of lightning forecasting based on surface electrostatic field observations and radar data[J]. Journal of Electrostatics, 2013, 71(1):6－13. DOI: 10.1016/j.elstat.2012.10.007.

MARUVADA P S, DALLARIE R D, and PEDNEAULT R. Development of field-mill instruments for ground-level and above-ground electric field measurement under HVDC transmission lines[J]. IEEE Transactions on Power Apparatus and Systems, 1983, 102(3): 738－744. DOI: 10.1109/TPAS.1983.318035.

VAILLANCOURT G H, CARIGNAN S, and JEAN C. Experience with the detection of faulty composite insulators on high-voltage power lines by the electric field measurement method[J]. IEEE Transactions on Power Delivery, 1998, 13(2): 661－666. DOI: 10.1109/61.660958.

RIEHL P S, SCOTT K L, MULLER R S, et al. Electrostatic charge and field sensors based on micromechanical resonators[J]. Journal of Microelectromechanical Systems, 2003, 12(5): 577－589. DOI: 10.1109/JMEMS.2003.818066.

PENG Chunrong, CHEN Xianxiang, YE Cao, et al. Design and testing of a micromechanical resonant electrostatic field sensor[J]. Journal of Micromechanics and Microengineering, 2006, 16(5): 914－919. DOI: 10.1088/0960-1317/16/5/006.

CHEN Xianxiang, PENG Chunrong, TAO Hu, et al. Thermally driven micro-electrostatic fieldmeter[J]. Sensors and Actuators A: Physical, 2006, 132(2): 677－682. DOI: 10.1016/j.sna.2006.02.044.

KOBAYASHI T, OYAMA S, MAKIMOTO N, et al. An electrostatic field sensor operated by self-excited vibration of MEMS-based self-sensitive piezoelectric microcantilevers[J]. Sensors and Actuators A: Physical, 2013, 198: 87－90. DOI: 10.1016/j.sna.2013.04.016.

YANG Pengfei, PENG Chunrong, FANG Dongming, et al. Design, fabrication and application of an SOI-based resonant electric field microsensor with coplanar comb-shaped electrodes[J]. Journal of Micromechanics and Microengineering, 2013, 23(5): 1－8. DOI: 10.1088/0960-1317/23/5/055002.

RONCIN A, SHAFAI C, and SWATEK D R. Electric field sensor using electrostatic force deflection of a micro-spring supported membrane[J]. Sensors and Actuators A: Physical, 2005, 123: 179－184. DOI: 10.1016/j.sna.2005.02.018.

CHEN T, SHAFAI C, RAJAPAKSE A, et al. Micromachined ac/dc electric field sensor with modulated sensitivity[J]. Sensors and Actuators A: Physical, 2016, 245: 76－184. DOI: 10.1016/j.sna.2016.04.054.

WILLIAMS K, BRUYKER D, LIMB S, et al. Vacuum steered-electron electric-field sensor[J]. Journal of Microelectromechanical Systems, 2014, 23(1): 157－167. DOI: 10.1109/JMEMS.2013.2262924.

MOHAMMED Z, GILL W A, and RASRAS M. Double-comb-finger design to eliminate cross-axis sensitivity in a dual-axis accelerometer[J]. IEEE Sensors Letters, 2017, 1(5): 1－4. DOI: 10.1109/LSENS.2017.2756108.

方奕庚, 彭春荣, 方东明, 等. 微型折叠式三维电场传感器[J]. 传感器与微系统, 2016, 35(5): 67－69. DOI: 10.13873/J.1000-9787(2016)05-0067-03.

FANG Yigeng, PENG Chunrong, FANG Dongming, et al. Micro 3-dimensional folding electric field sensor[J]. Transducer and Microsystem Technologies, 2016, 35(5): 67－69. DOI: 10.13873/J.1000-9787(2016)05-0067-03.

闻小龙, 彭春荣, 方东明, 等. 基于共面去耦结构的空间三维电场测量方法[J]. 电子与信息学报, 2014, 36(10): 2504－2508. DOI: 10.3724/SP.J.1146.2013.01921.

WEN Xiaolong, PENG Chunrong, FANG Dongming, et al. Measuring method of three dimensional atmospheric electric field based on coplanar decoupling structure[J]. Journal of Electronics & Information Technology, 2014, 36(10): 2504－2508. DOI: 10.3724/SP.J.1146.2013.01921.

李冰, 彭春荣, 凌必赟, 等. 基于遗传算法的三维电场传感器解耦标定方法研究[J]. 电子与信息学报, 2017, 39(9): 2252－2258. DOI: 10.11999/JEIT161277.

LI Bing, PENG Chunrong, LING Biyun, et al. The decoupling calibration method based on genetic algorithm of three dimensional electric field sensor[J]. Journal of Electronics & Information Technology, 2017, 39(9): 2252－2258. DOI: 10.11999/JEIT161277.

LING Biyun, WANG Yu, PENG Chunrong, et al. Single-chip 3D electric field microsensor[J]. Frontiers of Mechanical Engineering, 2017, 12(4): 581－590. DOI: 10.1007/s11465-017-0454-x.
