Research of Physiological Monitoring System Based on Optical Fiber Sensor

Rongjian ZHAO; Minfang TANG; Xianxiang CHEN; Lidong DU; Hualin ZENG; Zhan ZHAO; Zhen FANG

doi:10.11999/JEIT170894

Volume 40 Issue 9

Aug. 2018

Turn off MathJax

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2018 > 40(9): 2182-2189

Rongjian ZHAO, Minfang TANG, Xianxiang CHEN, Lidong DU, Hualin ZENG, Zhan ZHAO, Zhen FANG. Research of Physiological Monitoring System Based on Optical Fiber Sensor[J]. Journal of Electronics & Information Technology, 2018, 40(9): 2182-2189. doi: 10.11999/JEIT170894

Citation:

Rongjian ZHAO, Minfang TANG, Xianxiang CHEN, Lidong DU, Hualin ZENG, Zhan ZHAO, Zhen FANG. Research of Physiological Monitoring System Based on Optical Fiber Sensor[J]. Journal of Electronics & Information Technology, 2018, 40(9): 2182-2189. doi: 10.11999/JEIT170894

Citation:

PDF( 2538 KB)

Research of Physiological Monitoring System Based on Optical Fiber Sensor

doi: 10.11999/JEIT170894

Rongjian ZHAO^{1, 2},
Minfang TANG^{1, 2},
Xianxiang CHEN¹,
Lidong DU¹,
Hualin ZENG³,
Zhan ZHAO^{1, 2},
Zhen FANG^{1, 2
,
,}

1.
State Key Laboratory of Transducer Technology, Institute of Electronics, Chinese Academy of Sciences, Beijing 100080, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China
3.
Institute of Information Engineering, Chinese Academy of Sciences, Beijing 100093, China

Funds: The Key Project of Beijing Municipal Natural Science Foundation (Z16003), The National Key Research and Development Project of China (2016YFC1304302)

Received Date: 2017-09-21
Rev Recd Date: 2018-06-15

Available Online: 2018-07-12

Publish Date: 2018-09-01

Abstract

Abstract

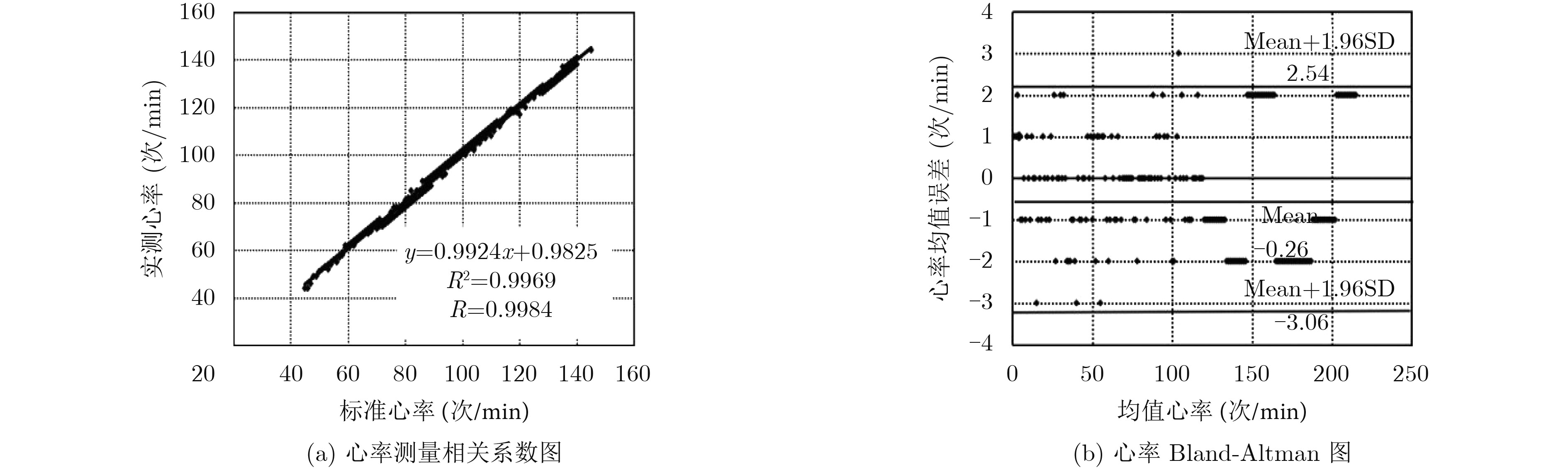

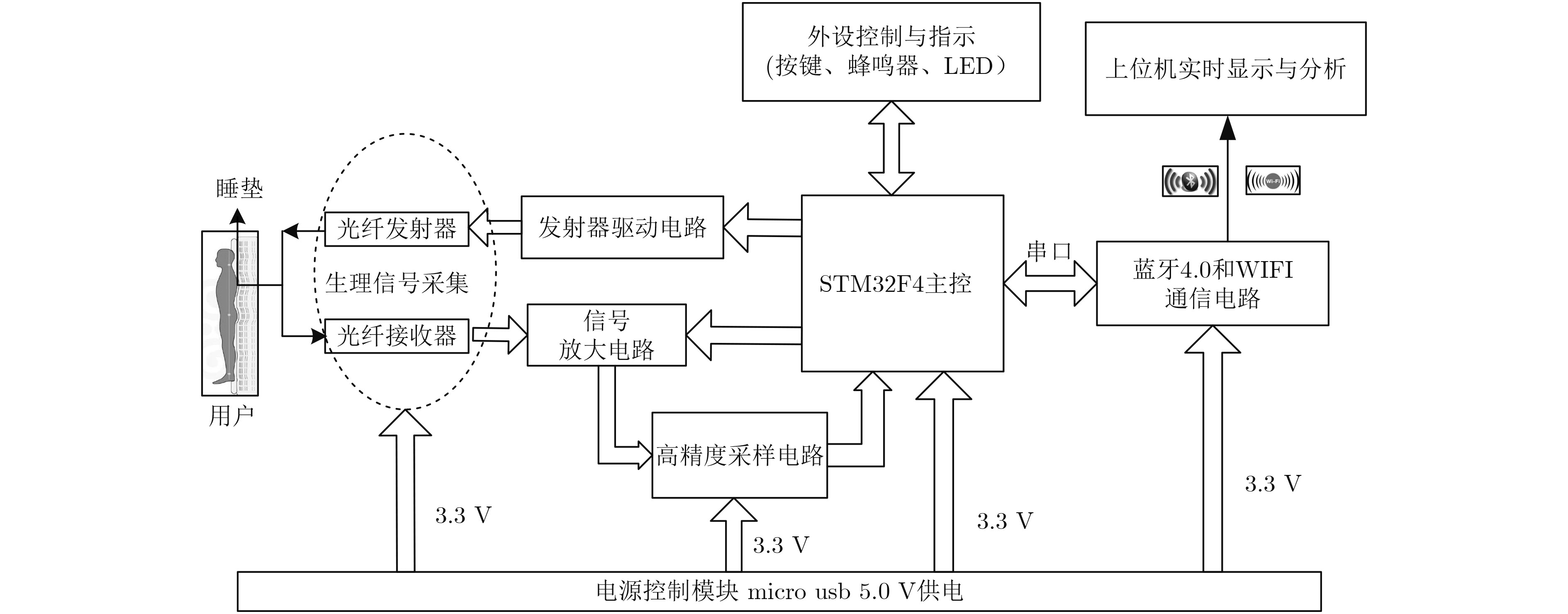

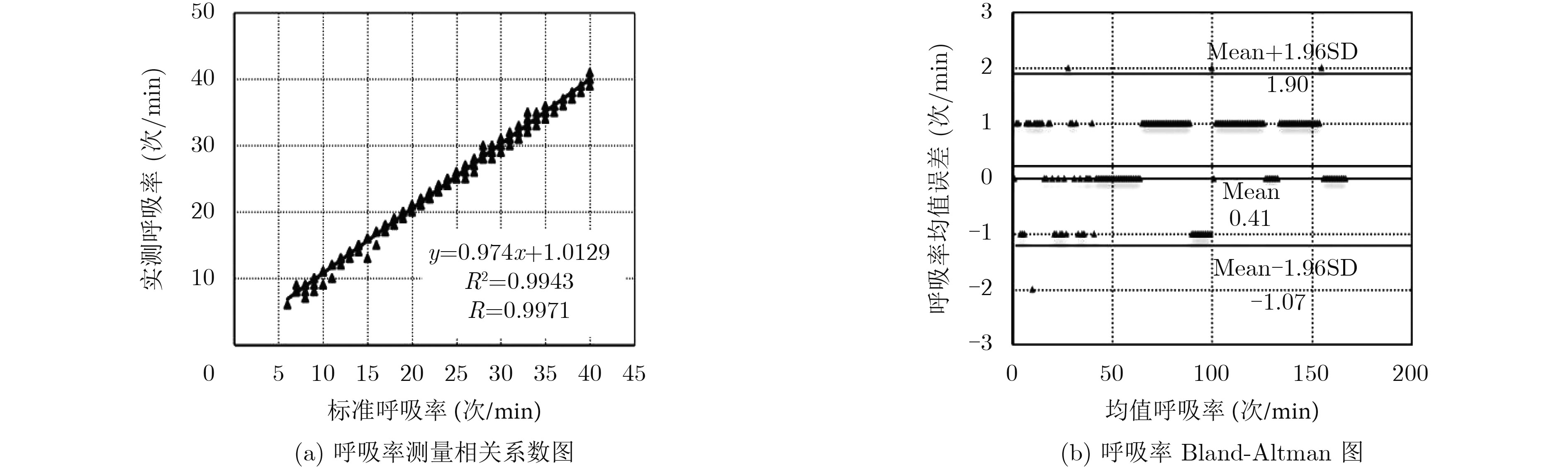

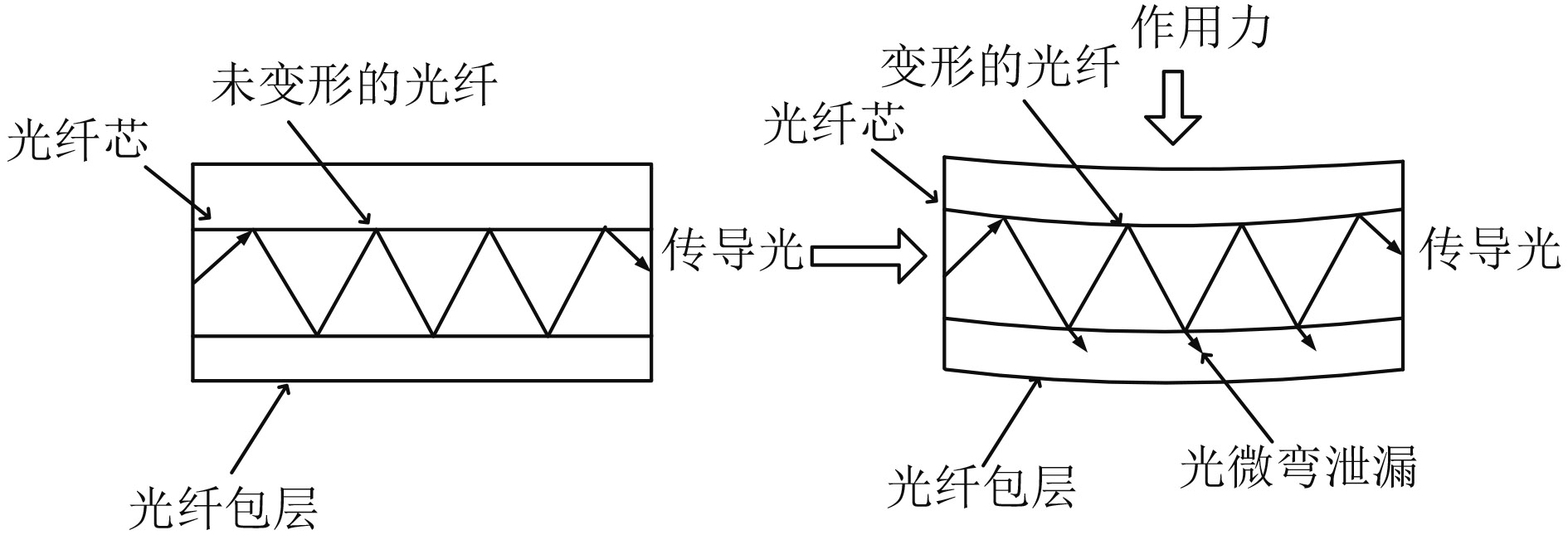

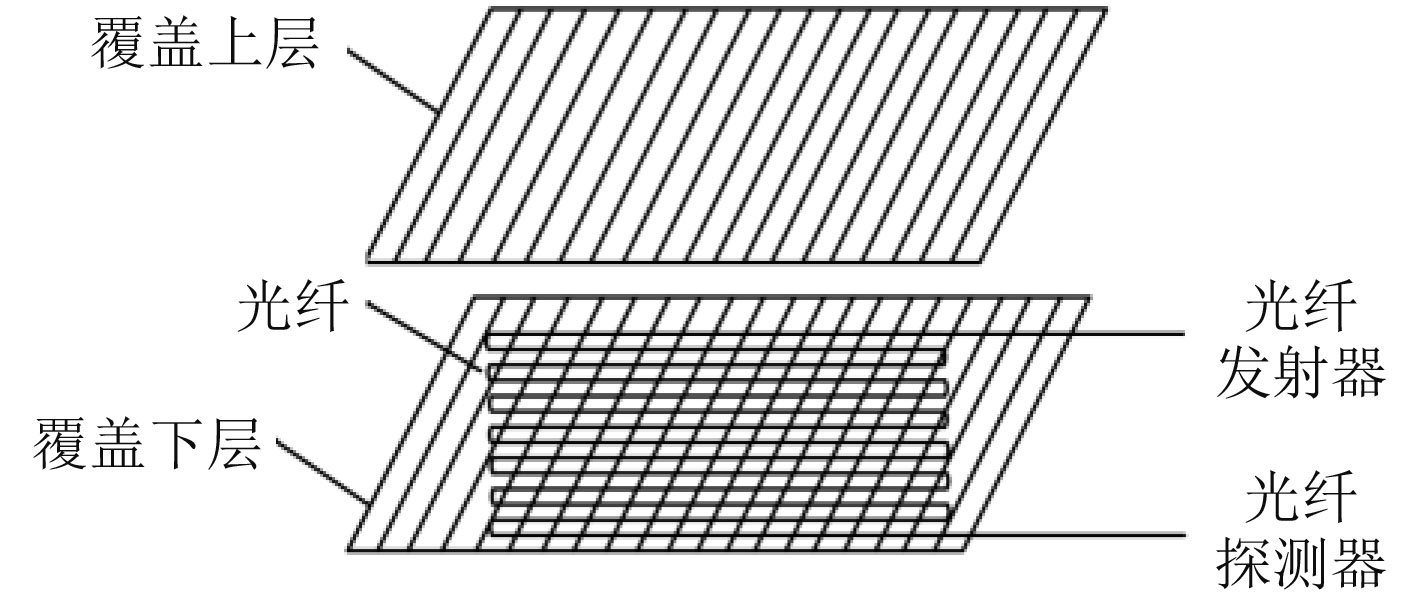

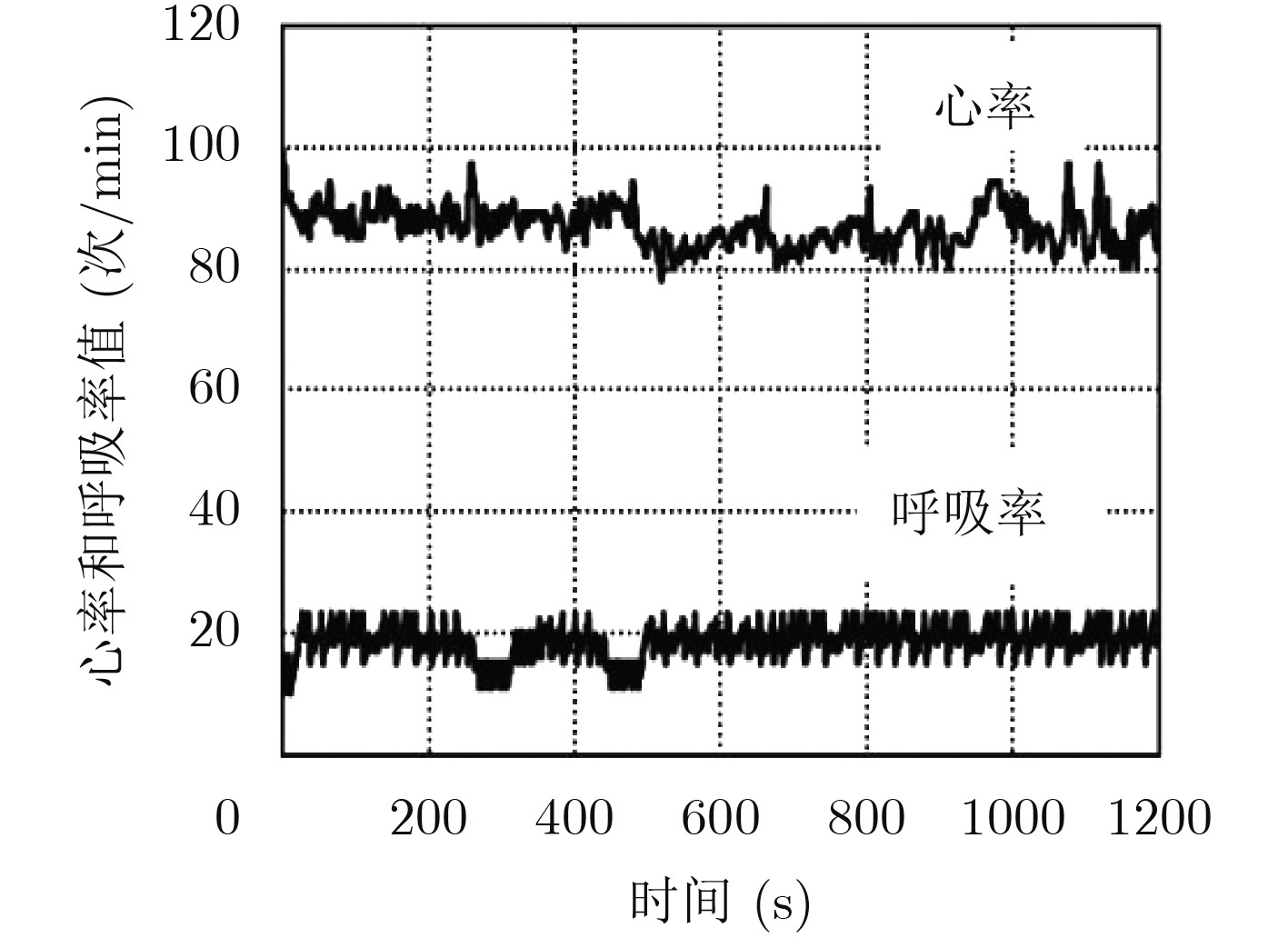

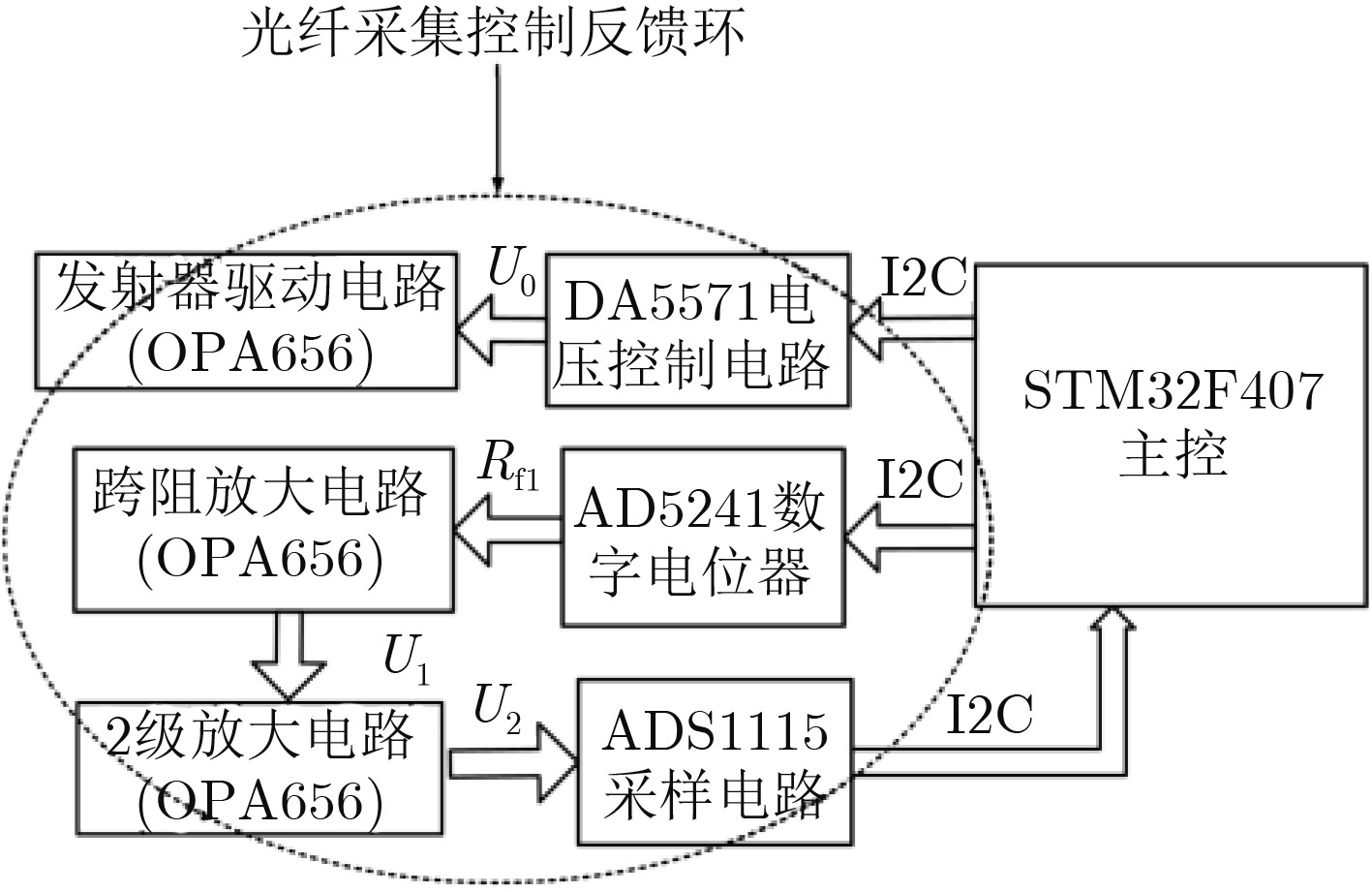

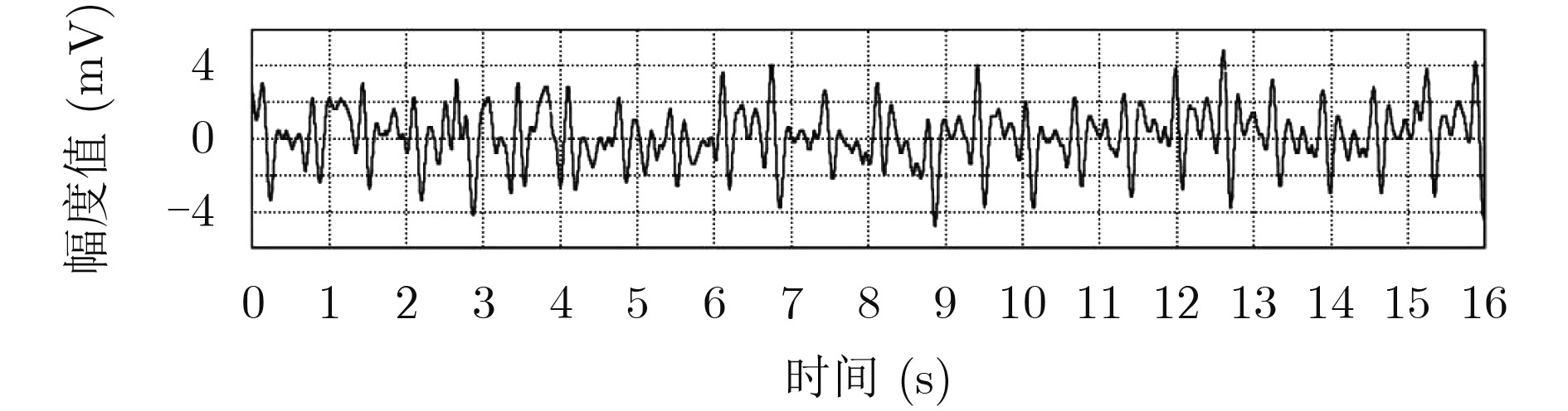

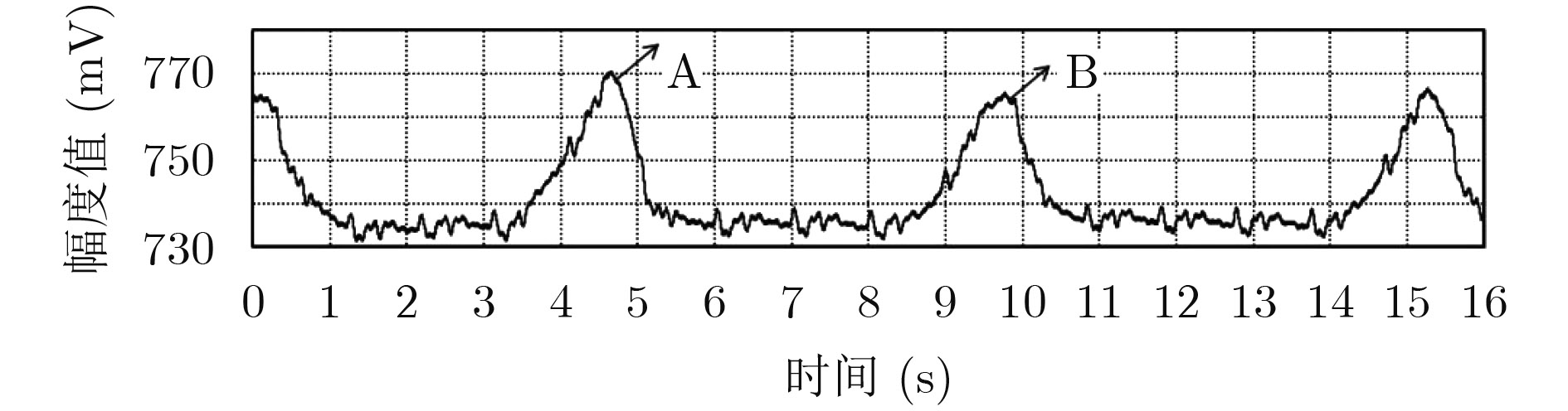

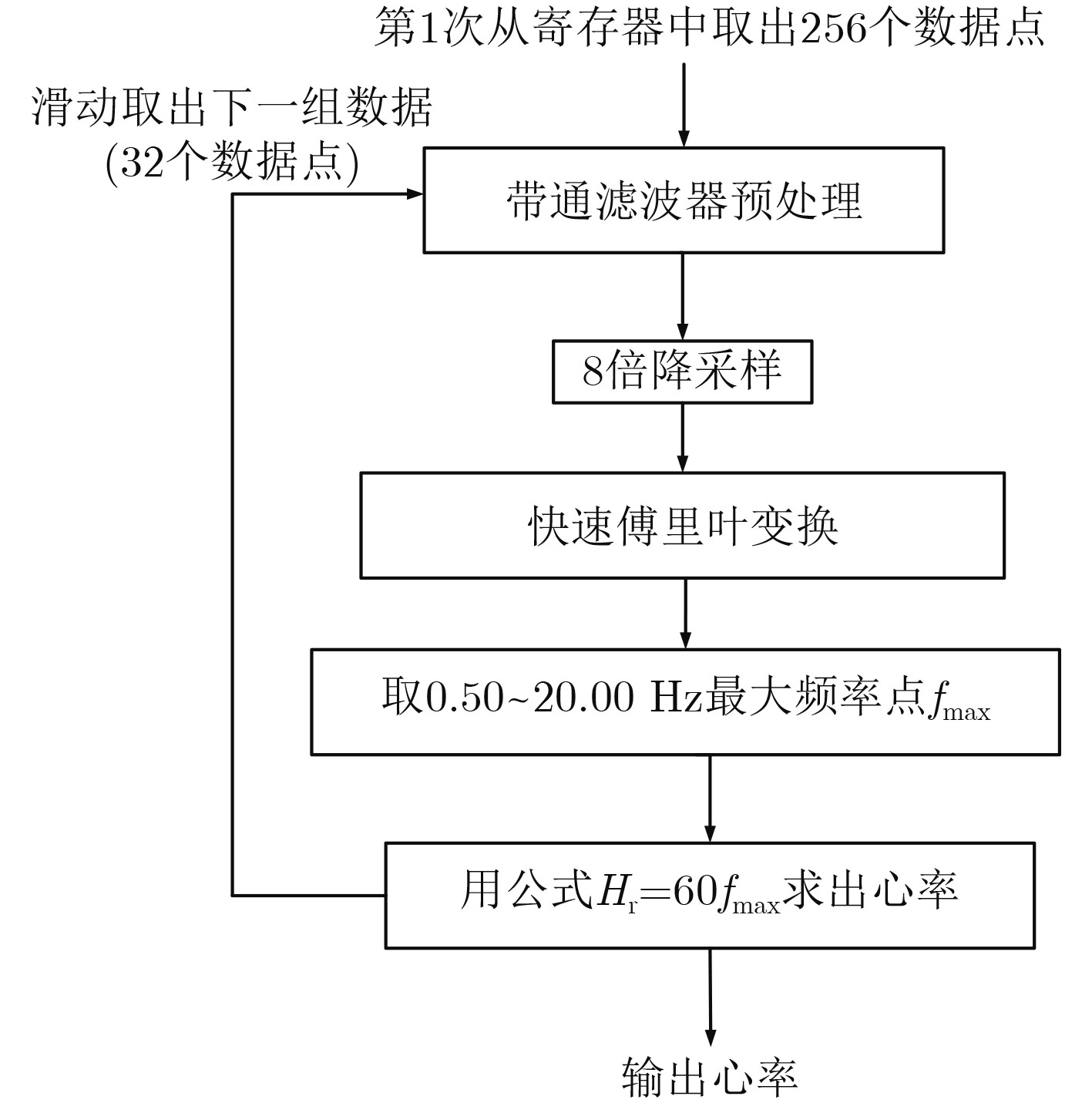

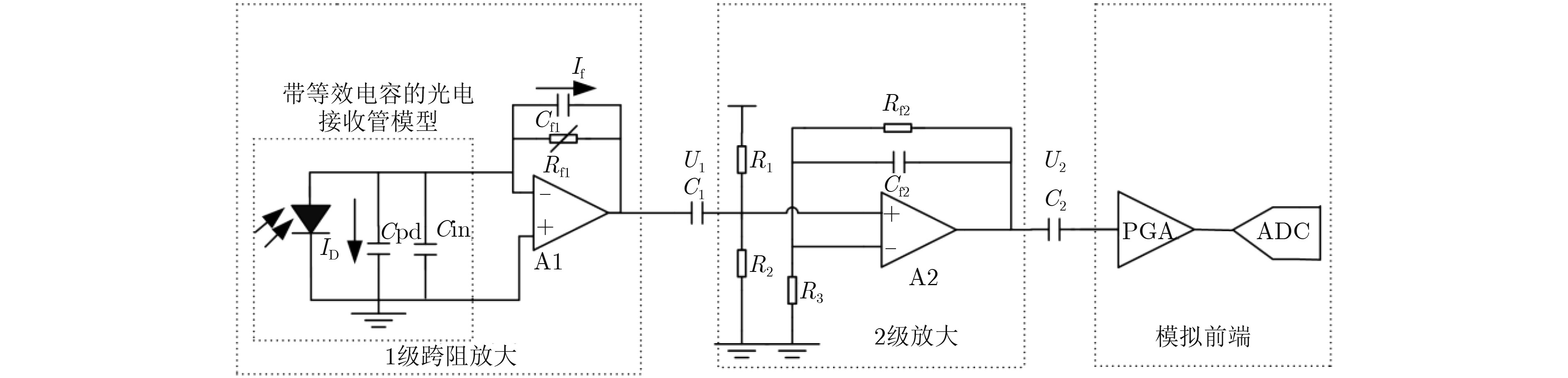

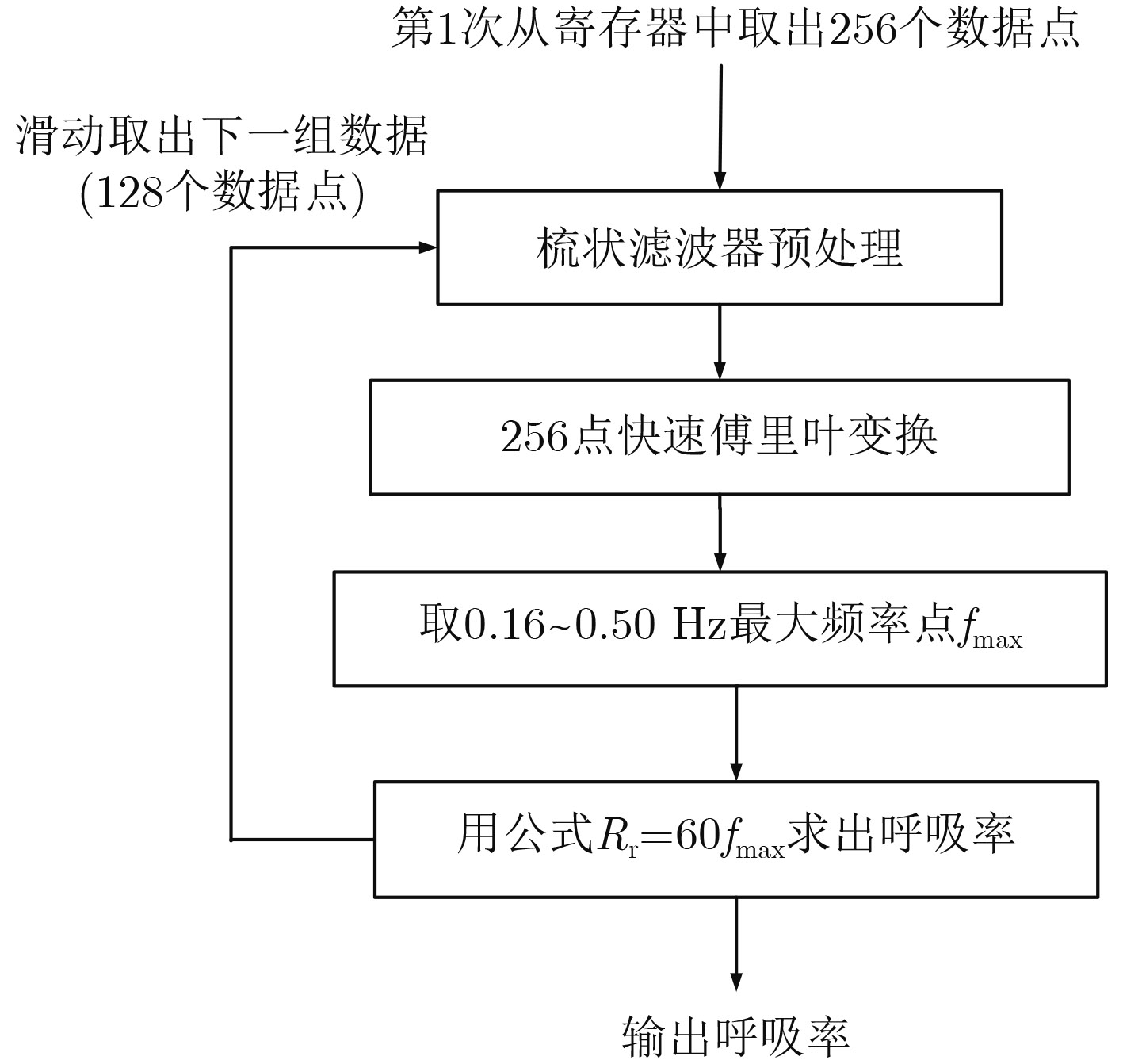

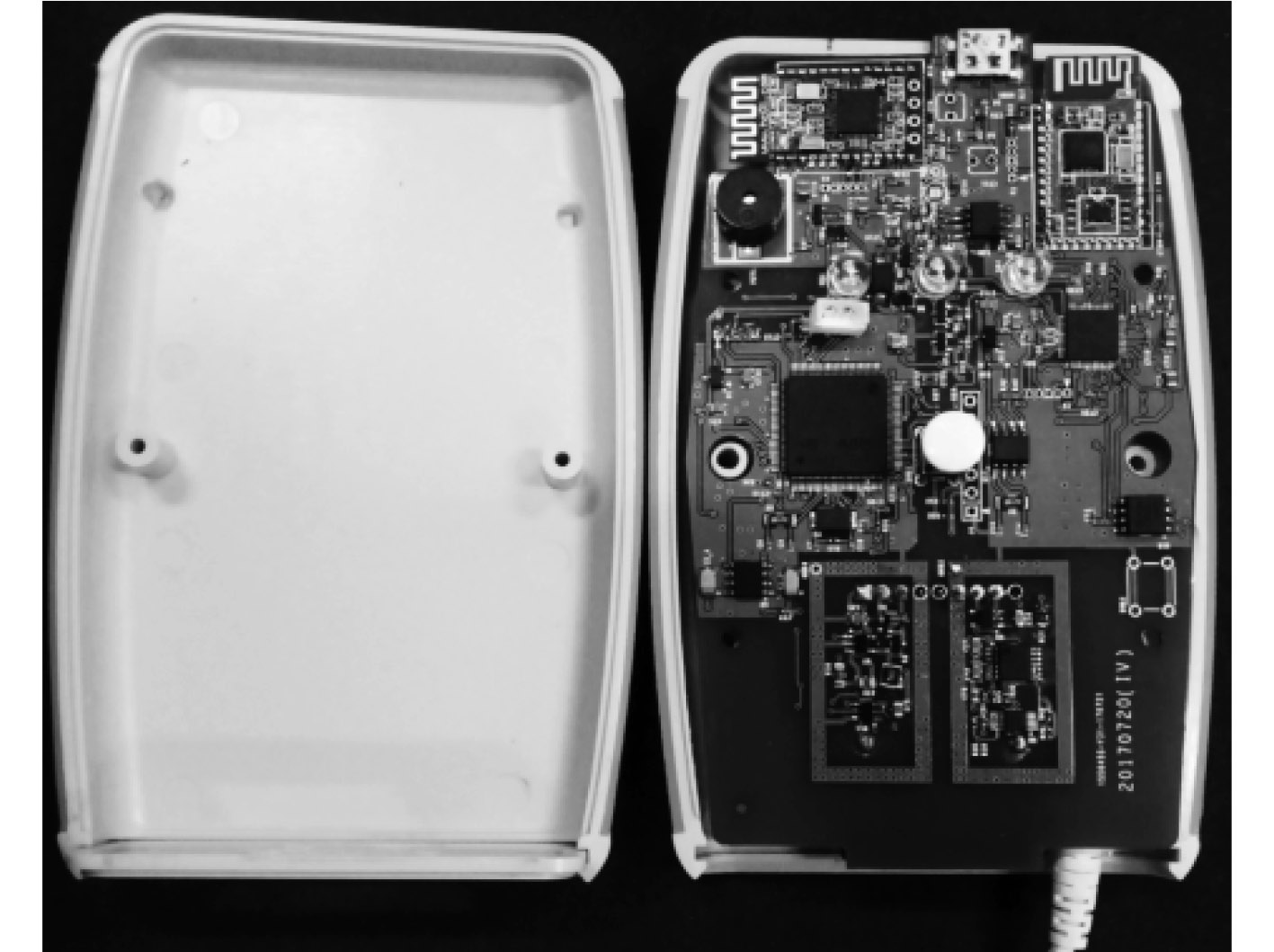

Conventionally, the physiological monitoring system obtains singnal by electrode or bandage which is connected with skins and has disadvantages such as: uncomfortable and bad compliance to users. In order to overcome those problems, a new physiological monitoring system, which is based on the principle that micro bend of optical-fiber induced by weak movement of physiology can change the light intensity to get BallistoCardioGram (BCG) signal, is developed. In such system, the respiration rate, heart rate and body movement are obtained by self-adaption detecting the tiny variation of light intensity. In order to protect fiber and enhance the stability and reliability of system, the fiber is embedded into mattress or cushion with a sandwich structure. Simultaneously, it makes the system have high sensitivity that the fiber is uniformly routed with serpentine-curve shape in the middle of mattress or cushion. It is illustrated by the measurement in several hospitals that the mean error of heart rate is –0.26±2.80 times/min within 95% the confidence interval (±1.96SD) with a correlation 0.9984 to the standard values. It is exhibited as well that the mean error respiration rate is 0.41±1.49 times/min within 95% the confidence interval (±1.96SD) with a correlation 0.9971 to the standard values. It is suggested that the developed system can be senselessly used under zero load and is promised in future.
- Fiber optic sensor,
- Ballistocardiogram,
- Heart rate,
- Respiration rate

FullText(HTML)

References(18)

References

DOVSKY V, et al. Smart helmet: Wearable multichannel ECG and EEG[J]. IEEE Journal of Translational Engineering in Health and Medicine, 2016: 270011 doi: 10.1109/JTEHM.2016.2609927

VROSENBERG W V, CHANWIMALUEANG T, GOVER doi: 10.1109/JTEHM.2016.2609927

HASSAN M A, MALIK A S, FOFI D, et al. Heart rate estimation using facial video: A review[J]. Biomedical Signal Processing and Control, 2017, 38(8): 346–360 doi: 10.1016/j.bspc.2017.07.004

LIU M, JIANG F, JIANG H, et al. Low-power, noninvasive measurement system for wearable ballistocardiography in sitting and standing positions[J]. Computers in Industry, 2017, 91(10): 24–32 doi: 10.1016/j.compind.2017.05.005

FAUSTMAN D L. Methods of treating and diagnosing disease using biomarkers for bcg therapy: WIPO, WO2017059132A1[P]. 2017-04-06.

PETRINI V P, MATTIA V D M D, LEO A D L D, et al. Contactless Monitoring of Respiratory Activity Using Electromagnetic Waves for Ambient Assisted Living Framework: Feasibility Study and Prototype Realization[M]. London, UK, The Institution of Engineering and Technology, 2017: 30–40.

CHEN Z, LAU D, TEO J T, et al. Simultaneous measurement of breathing rate and heart rate using a microbend multimode fiber optic sensor[J]. Journal of Biomedical Optics, 2014, 19(5): 057001 doi: 10.1117/1.JBO.19.5.057001

YANG X, CHEN Z, ELVIN C S M, et al. Textile fiber optic microbend sensor used for heartbeat and respiration monitoring[J]. Sensors Journal IEEE, 2015, 15(2): 757–761 doi: 10.1109/JSEN.2014.2353640

DEEPU C J, CHEN Z, JU T T, et al. A smart cushion for real-time heart rate monitoring[C]. 2012 IEEE Biomedical Circuits and Systems Conference, Hsinchu, China, 2012: 53–56.

ZHU Y, ZHANG H, JAYACHANDRAN M, et al. Ballistocardiography with fiber optic sensor in headrest position: A feasibility study and a new processing algorithm[C]. Engineering in Medicine and Biology Society (EMBC), 35th Annual International Conference of the IEEE EMBS, Osaka, Japan, 2013: 5203–5206.

CHEN Zhihao, TEO J T, NG S H, et al. Monitoring respiration and cardiac activity during sleep using microbend fiber sensor: A clinical study and new algorithm[C]. Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Chicago, USA, 2014: 5377–5380.

NI Hongbo, HE Mingjie, XU Guxing, et al. Extracting heartbeat intervals using self-adaptive method based on ballistocardiography(BCG)[C]. International Conference on Smart Homes and Health Telematics, Paris, France, 2017: 37–47.

肖玲, 李仁发, 罗娟. 体域网中一种基于压缩感知的人体动作识别方法[J]. 电子与信息学报, 2013, 35(1): 119–125 doi: 10.3724/SP.J.1146.2012.00936

XIAO Ling, LI Renfa, and LUO Juan. Recognition of human activity based on compressed sensing in body sensor networks[J]. Journal of Electronics&Information Technology, 2013, 35(1): 119–125 doi: 10.3724/SP.J.1146.2012.00936

高发荣, 王佳佳, 席旭刚, 等. 基于粒子群优化-支持向量机方法的下肢肌电信号步态识别[J]. 电子与信息学报, 2015, 37(5): 1154–1159 doi: 10.11999/JEIT141083

GAO Farong, WANG Jiajia, XI Xugang, et al. Gait recognition for lower extremity electromyographic signals based on PSO-SVM method[J]. Journal of Electronics&Information Technology, 2015, 37(5): 1154–1159 doi: 10.11999/JEIT141083

ZHAO W, NI H, ZHOU X, et al. Identifying sleep apnea syndrome using heart rate and breathing effort variation analysis based on ballistocardiography[C]. Engineering in Medicine and Biology Society, Milan, Italia, 2015: 4536–4539.

JOSE S K, SHAMBHARKAR C M, and CHUNKATH J. HRV analysis using ballistocardiogram with LabVIEW[C]. 2015 International Conference on Computing and Communications Technologies, Chennai, India, 2015: 128–132.

ROSALES L, SU B Y, SKUBIC M, et al. Heart rate monitoring using hydraulic bed sensor ballistocardiogram[J]. Journal of Ambient Intelligence&Smart Environments, 2017, 9(2): 193–207 doi: 10.3233/AIS-170423

SHIN J H, HWANG S H, CHANG M H, et al. Heart rate variability analysis using a ballistocardiogram during Valsalva manoeuvre and post exercise[J]. Physiological Measurement, 2011, 32(8): 1239–1264 doi: 10.1088/0967-3334/32/8/015

NISHYAMA M, MIYAMOTO M, and WATANABE K. Respiration and body movement analysis during sleep in bed using hetero-core fiber optic pressure sensors without constraint to human activity[J]. Journal of Biomedical Optics, 2011, 16(1): 017002 doi: 10.1117/1.3528008
