互补衰减学习的图像分类网络

袁姮; 田雯月; 张晟翀

doi:10.11999/JEIT260751

互补衰减学习的图像分类网络

doi: 10.11999/JEIT260751 cstr: 32379.14.JEIT260751

袁姮^1, ,,
田雯月^1,,
张晟翀²

1.
辽宁工程技术大学软件学院葫芦岛 125105
2.
光电信息控制和安全技术重点实验室天津 300308

基金项目: 国家自然科学基金(61601213)，辽宁省自然科学基金(20170540426)，辽宁省教育厅重点基金(LJYL049)

详细信息

作者简介:
袁姮：女，博士，副教授，研究方向为图像与视觉信息计算、模式识别与人工智能，邮箱　lntuyuanheng@163.com

田雯月：女，在读研究生，研究方向为图像与视觉信息计算、模式识别与人工智能，邮箱　15642274116@163.com

张晟翀：男，高级工程师，研究方向为数字信号处理、模式识别与人工智能

通讯作者:
袁姮　lntuyuanheng@163.com

中图分类号: TP391
计量
- 文章访问数: 7
- HTML全文浏览量: 0
- PDF下载量: 1
- 被引次数: 0
出版历程
- 收稿日期: 2026-04-10
- 修回日期: 2026-08-26
- 录用日期: 2026-08-26
- 网络出版日期: 2026-09-02

Image Classification Network Based on Complementary Decay Learning

1.
Software College of Liaoning Technical University, Liaoning Huludao 125105, China
2.
Key Laboratory of Optoelectronic Information Control and Security Technology, Tianjin 300308, China

Funds: National Natural Science Foundation of China (61601213),, Natural Science Foundation of Liaoning Province (20170540426), Key Foundation of Education Department of Liaoning Province (LJYL049)

摘要

摘要: 针对卷积神经网络在复杂场景中过度依赖正相关特征响应，导致特征关注由目标主体向局部区域偏移的问题，该文提出互补衰减学习的图像分类网络(CDLNet)。首先，提出空间互补衰减(SCD)模块，将特征划分为正响应、负响应与全局响应三类分支，并分别进行幅值衰减调节，使前景细节、背景结构与整体信息在空间上得到保留；然后，设计通道互补衰减(CCD)模块，通过对通道幅值施加指数衰减处理，降低少数高响应通道的主导作用，保留中低幅值通道信息；随后，设计互补衰减注意力(CDA)模块，并嵌入残差块中，实现空间结构与通道语义的协同调节。在CIFAR-10、CIFAR-100、SVHN、Imagenette、Imagewoof和ImageNet数据集上分别取得96.68%、81.81%、97.38%、92.45%、85.46%和62.00%的分类准确率。实验结果表明，CDLNet能够有效缓解高响应特征主导引起的特征关注漂移问题，增强低幅值与负响应信息的表达能力，提升图像分类能力。
- 图像分类 /
- 神经网络 /
- 互补衰减学习机制 /
- 互补衰减注意力
Abstract: Objective Image classification depends on complete and discriminative feature representations. Existing convolutional neural networks usually enhance positive and high-amplitude responses through activation functions and attention mechanisms. However, excessive reliance on dominant positive responses may shift attention from the whole object to local salient regions, while negative and low-amplitude responses containing edge, texture, and foreground-background transition information are often weakened. To address this problem, a Complementary Decay Learning Network (CDLNet) is proposed to suppress high-response dominance and preserve complementary feature information. Methods Inspired by the signal attenuation mechanism of the biological visual system, CDLNet introduces complementary decay learning into a residual network. The Spatial Complementary Decay (SCD) module divides features into positive-response, negative-response, and global-response branches, and applies differentiated decay to preserve salient regions, boundary details, and contextual information (Fig.2). The Channel Complementary Decay (CCD) module attenuates high-response channels while retaining middle- and low-response channels, thereby reducing channel dominance and promoting cooperative channel representation (Fig.3). The Complementary Decay Attention (CDA) module integrates SCD and CCD in parallel and is embedded into ResNet residual blocks to jointly regulate spatial structures and channel semantics (Fig.4, Fig.6). Results and Discussions Experiments are conducted on CIFAR-10, CIFAR-100, SVHN, Imagenette, Imagewoof, and ImageNet datasets. CDLNet achieves classification accuracies of 96.68%, 81.81%, 97.38%, 92.45%, 85.46%, and 62.88%, respectively. Compared with ResNet-34 and representative classification networks, CDLNet obtains higher accuracy on multiple datasets (Table 5, Table 6). Ablation experiments demonstrate that removing either SCD or CCD reduces classification accuracy, indicating that spatial and channel complementary decay both contribute to feature regulation (Table 4, Table 5). Visualization results show that CDLNet can enhance target regions, preserve structural details, and suppress irrelevant background responses (Fig.1, Fig.12). Although CDA increases parameters and computation, the accuracy improvement shows a reasonable balance between performance and complexity (Table 3). Conclusions CDLNet introduces spatial and channel complementary decay mechanisms into residual networks. By suppressing excessive high-response dominance and preserving negative-response and low-amplitude information, the proposed method improves the completeness and balance of feature representations, alleviates attention drift, and enhances image classification performance. Future work will further optimize the decay strategy and model complexity to improve efficiency and generalization.
- Image classification /
- Residual network /
- Complementary decay attention /
- Complementary decay learning mechanism

HTML全文

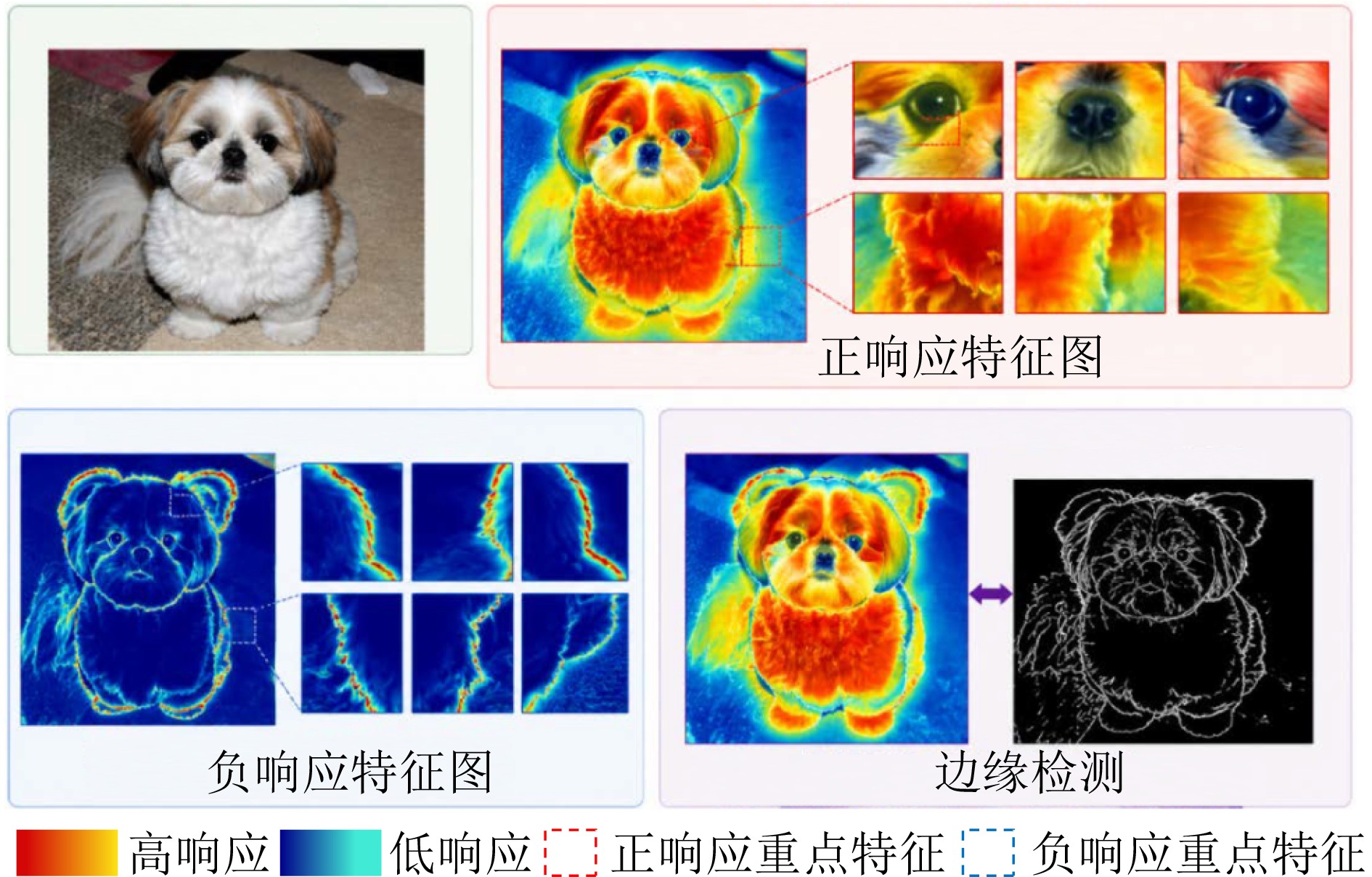

图 1 正负响应与边缘结构对应关系示意图

Figure 1. Schematic diagram of the correspondence between positive and negative responses and edge structures

下载: 全尺寸图片幻灯片

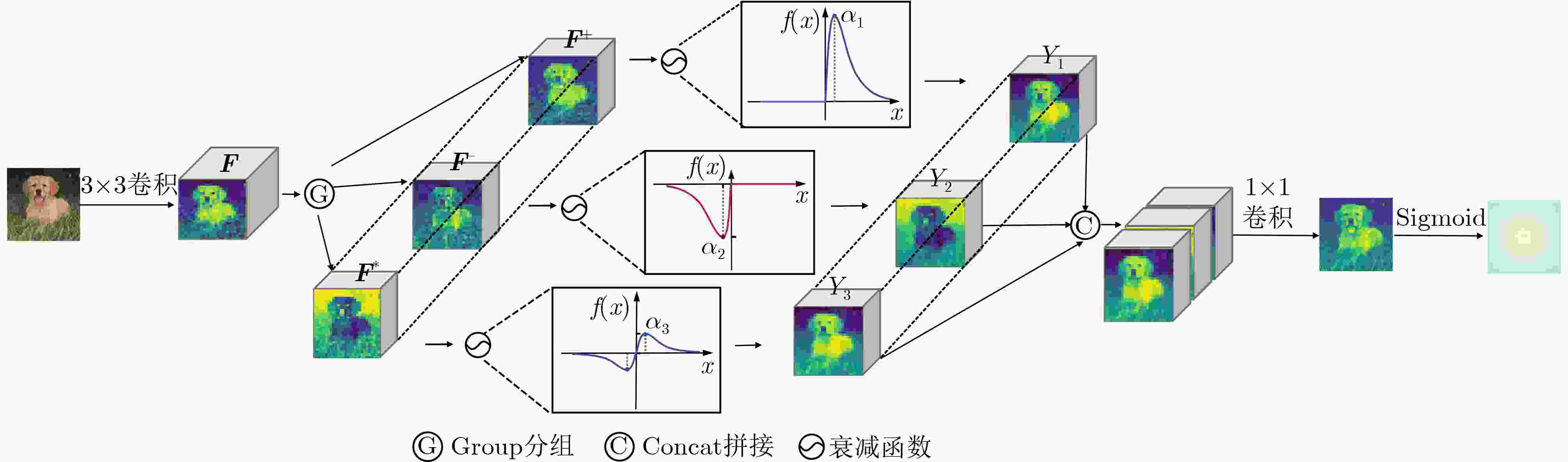

图 2 SCD模块结构图

Figure 2. SCD module structure diagram

下载: 全尺寸图片幻灯片

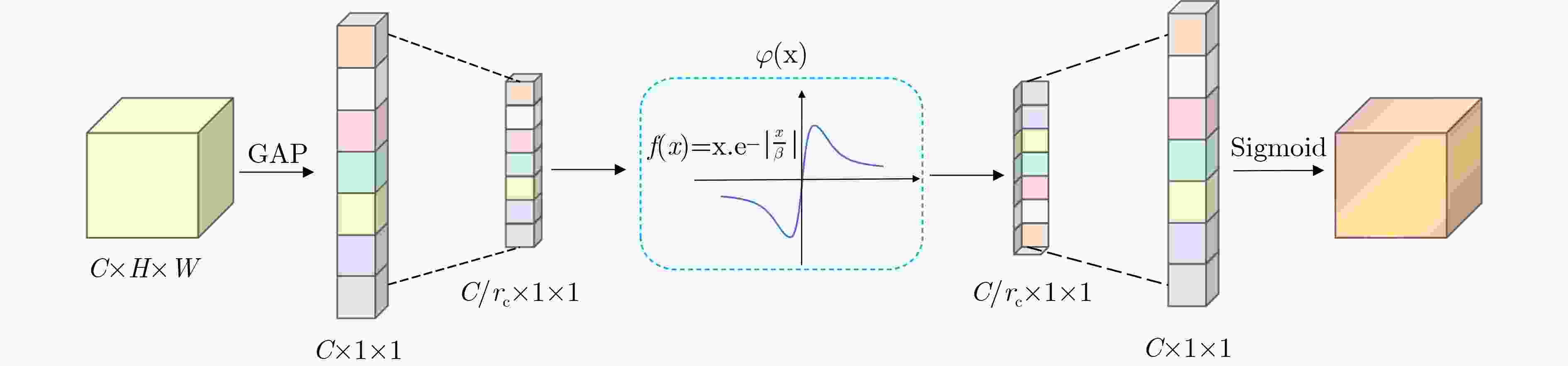

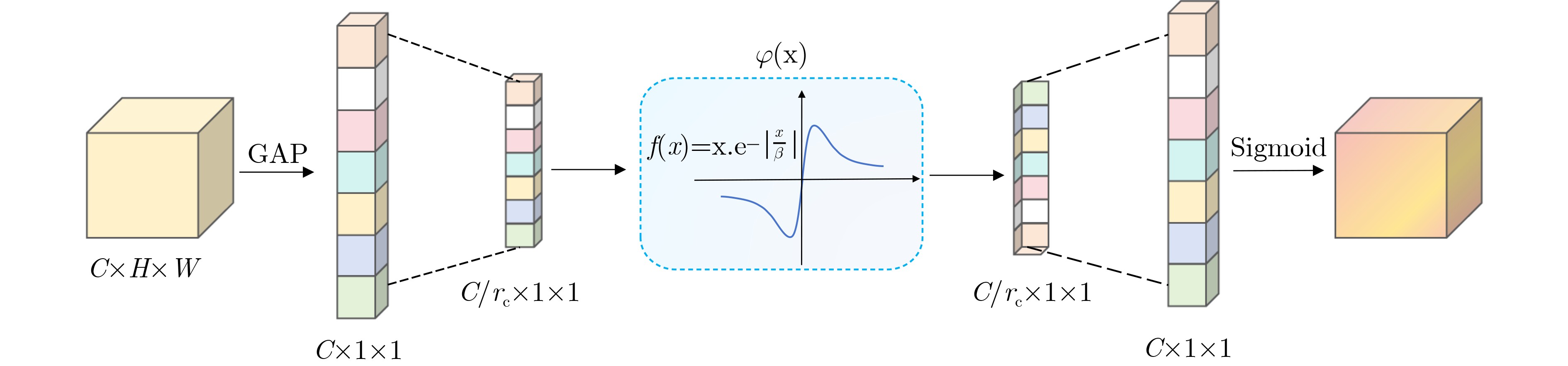

图 3 CCD模块结构图

Figure 3. Structure diagram of CCD module

下载: 全尺寸图片幻灯片

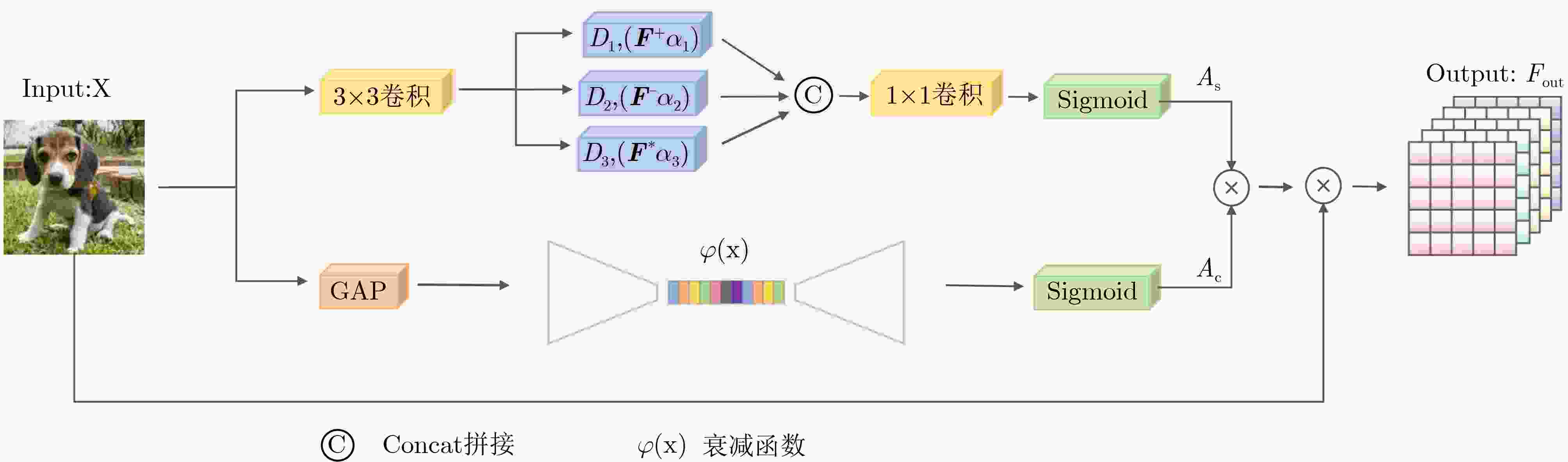

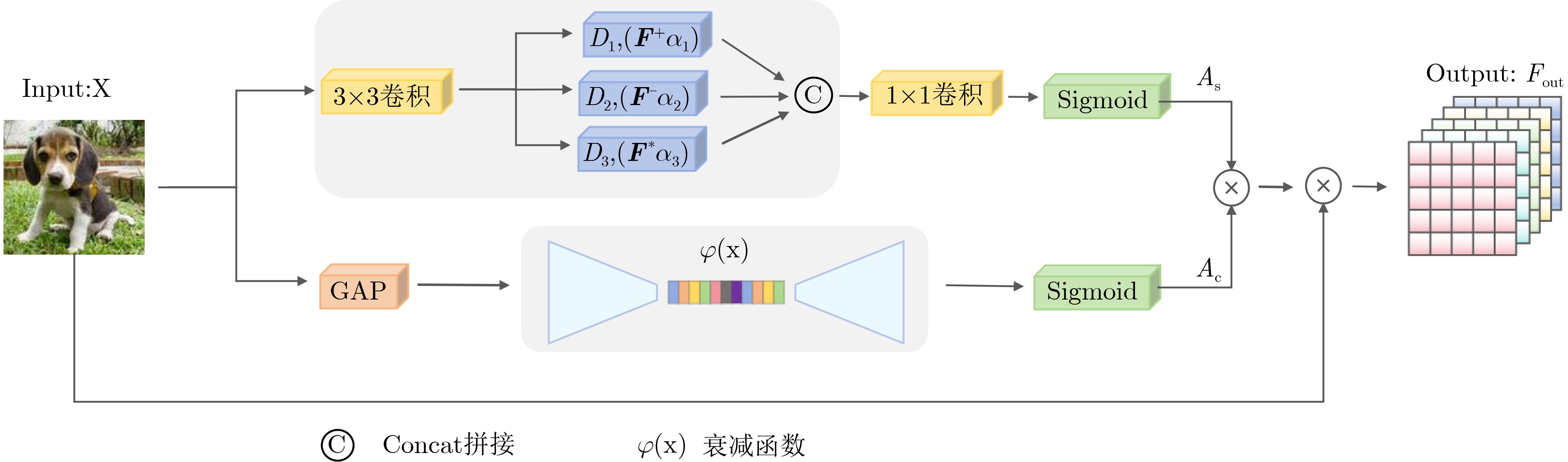

图 4 CDA模块结构图

Figure 4. Structure diagram of CDA module

下载: 全尺寸图片幻灯片

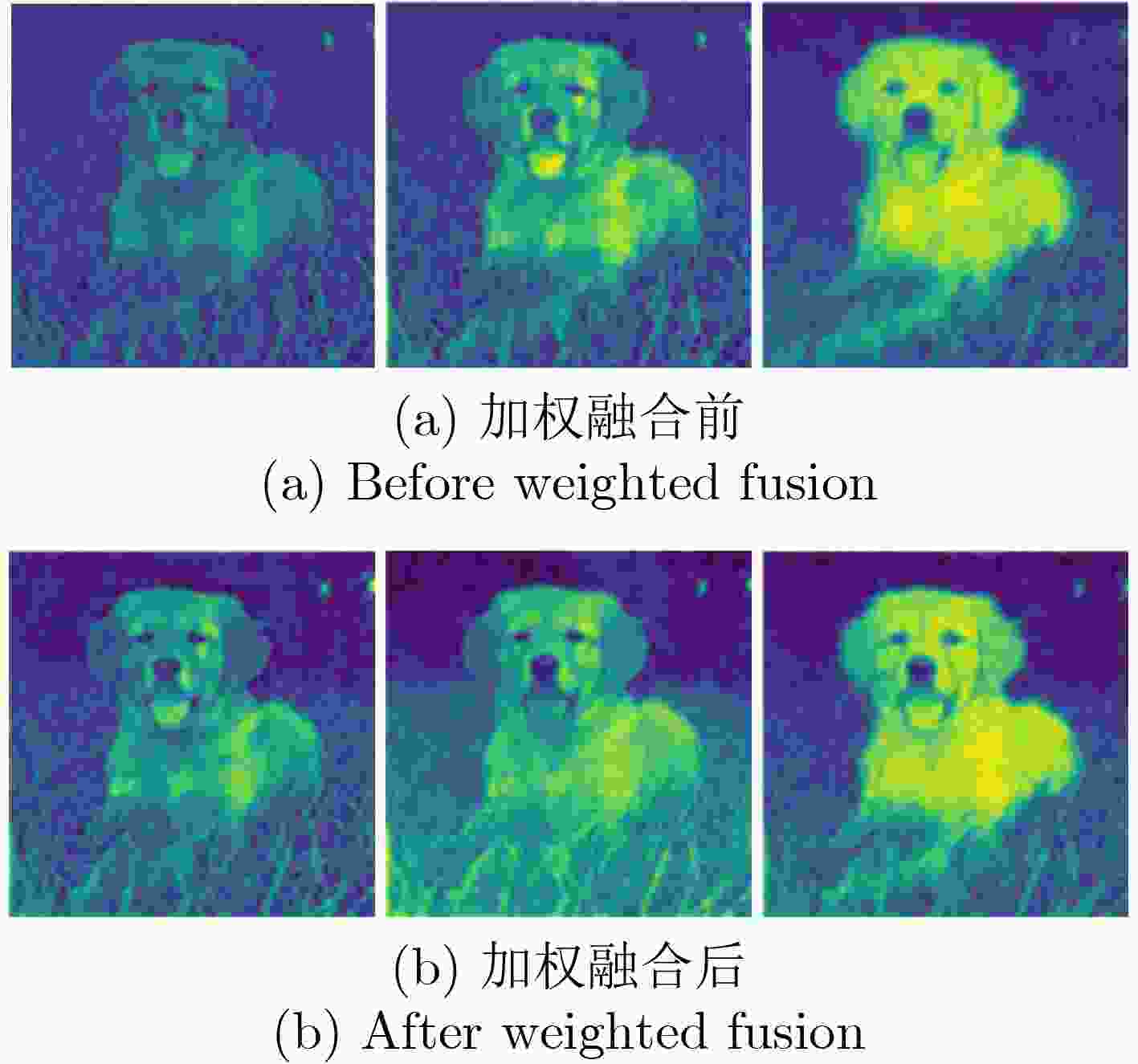

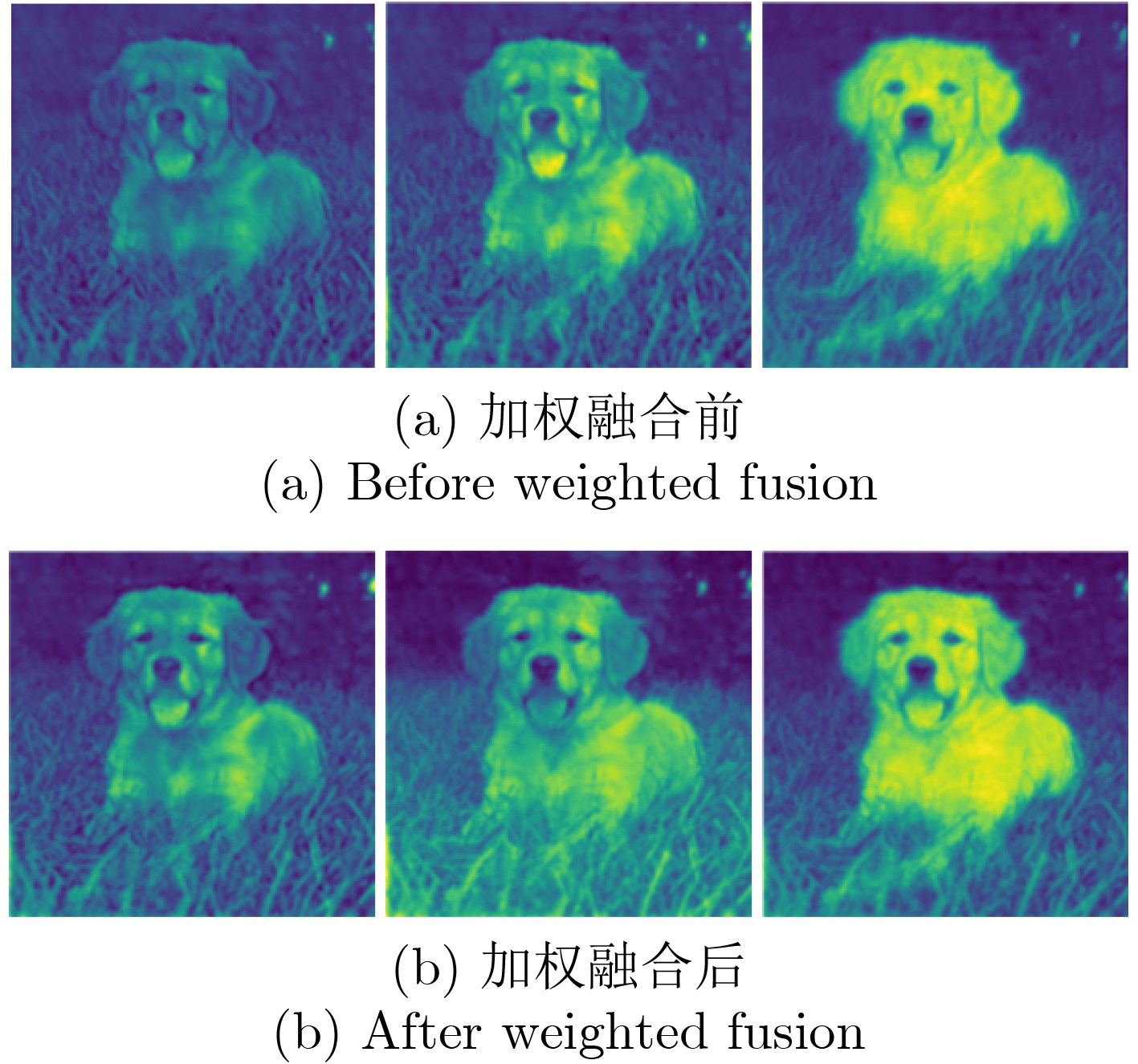

图 5 加权融合前后特征图像对比

Figure 5. Comparison of feature images before and after weighted fusion

下载: 全尺寸图片幻灯片

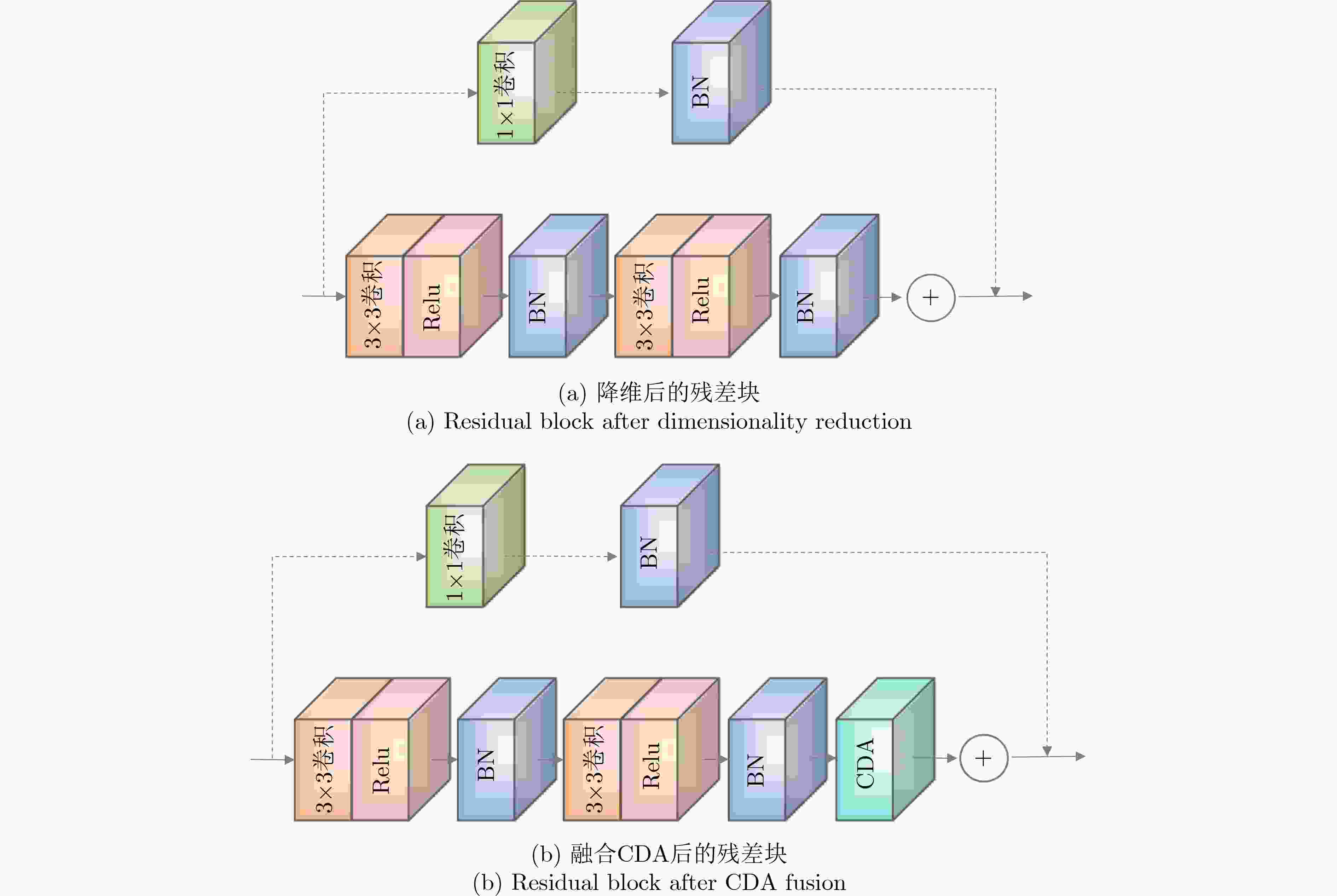

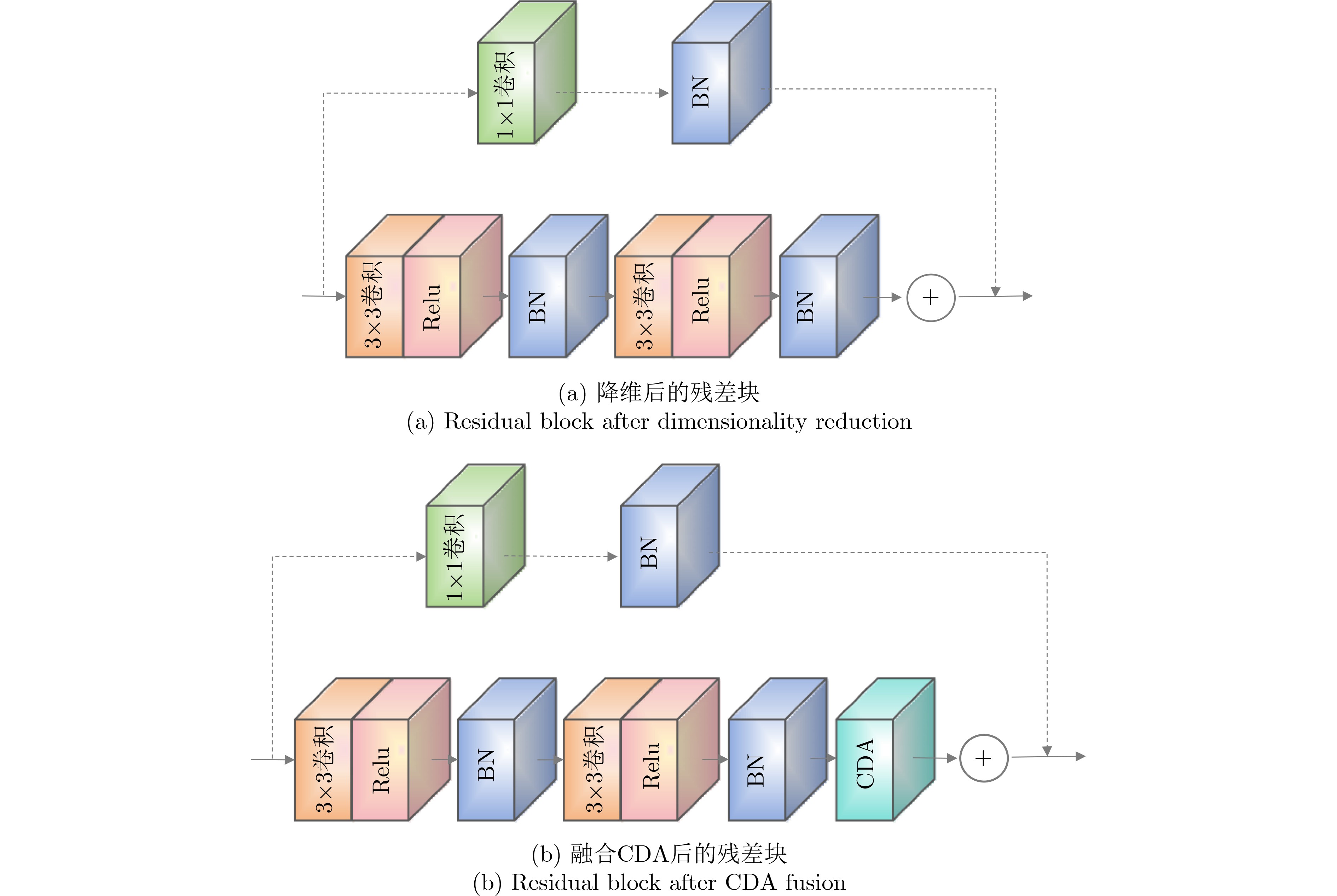

图 6 两种残差块

Figure 6. Two types of residual blocks

下载: 全尺寸图片幻灯片

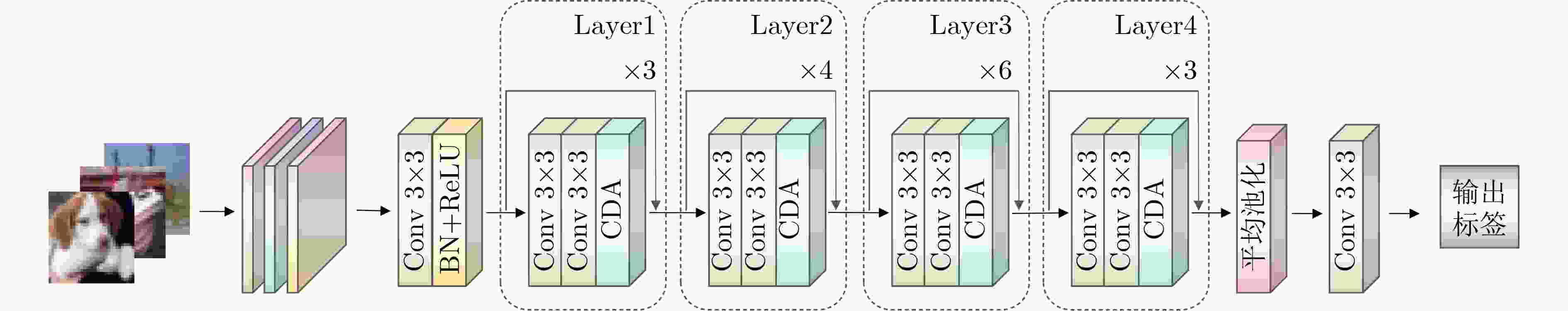

图 7 CDLNet总体架构

Figure 7. Overall architecture of CDLNet

下载: 全尺寸图片幻灯片

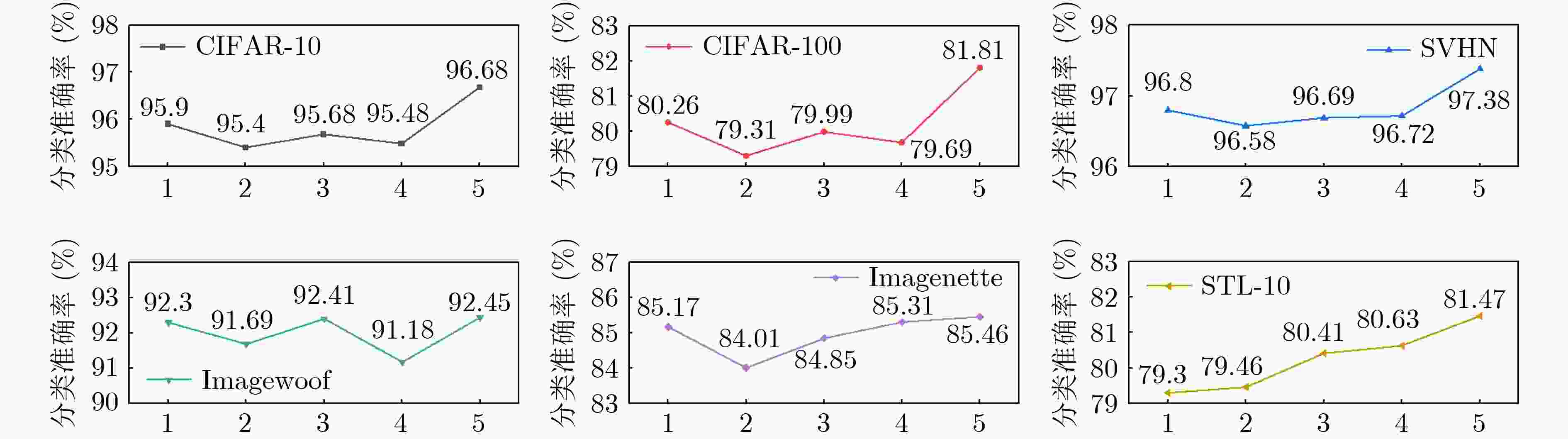

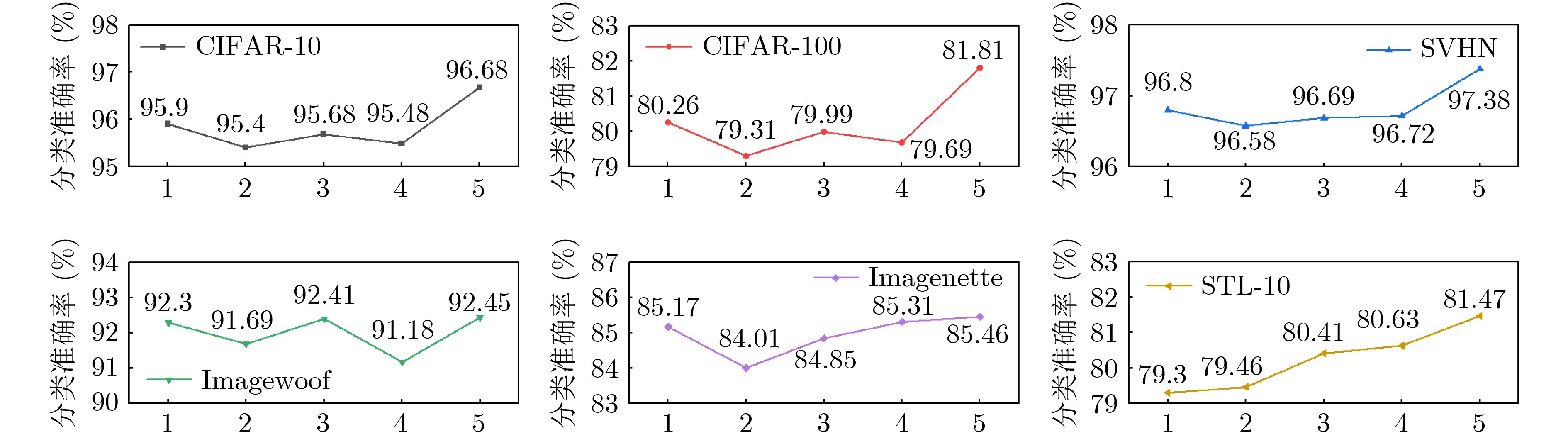

图 8 SCD通道分配对分类准确率的影响

Figure 8. The impact of SCD channel allocation on classification

下载: 全尺寸图片幻灯片

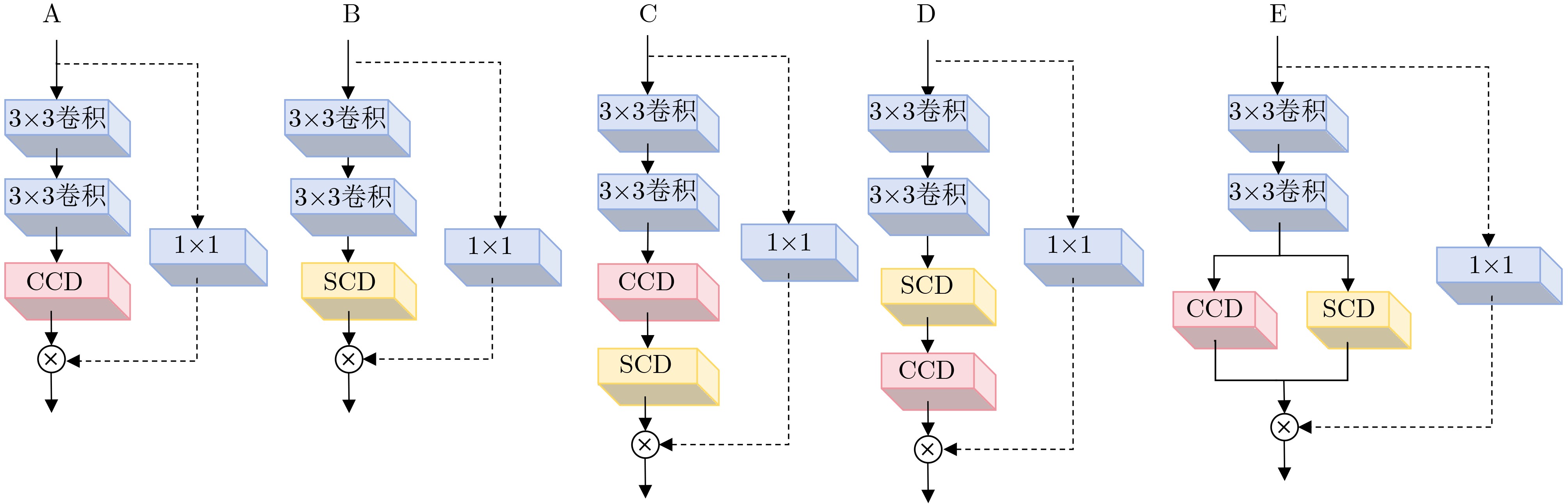

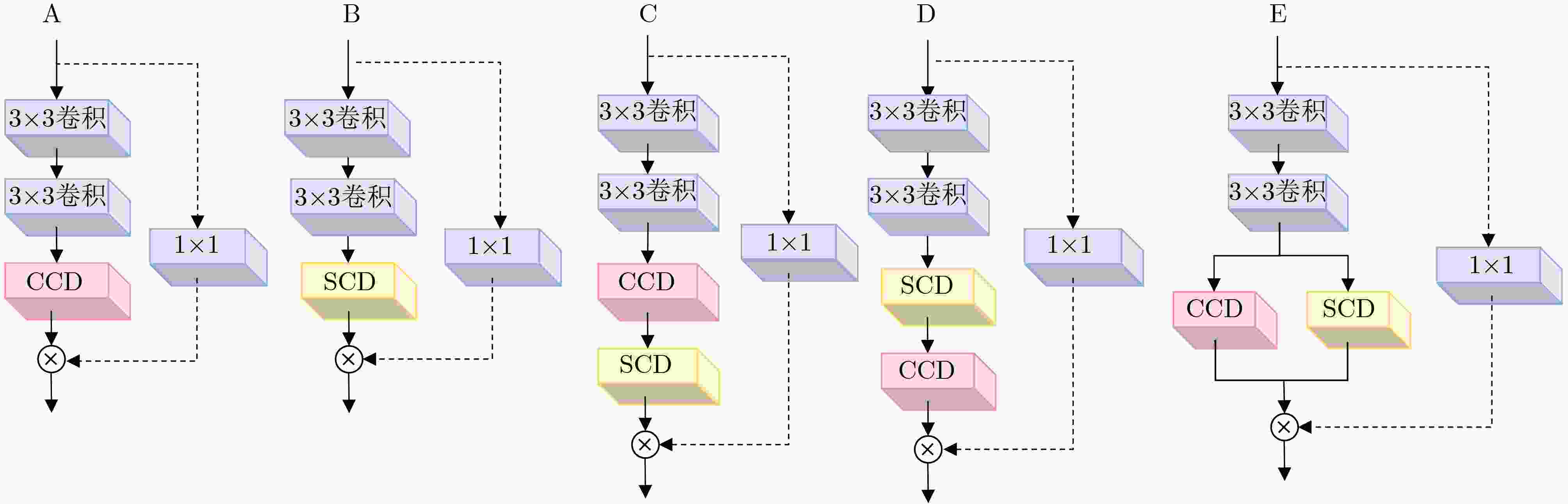

图 9 CDA内部组合结构图

Figure 9. Internal combination structure diagram of CDA

下载: 全尺寸图片幻灯片

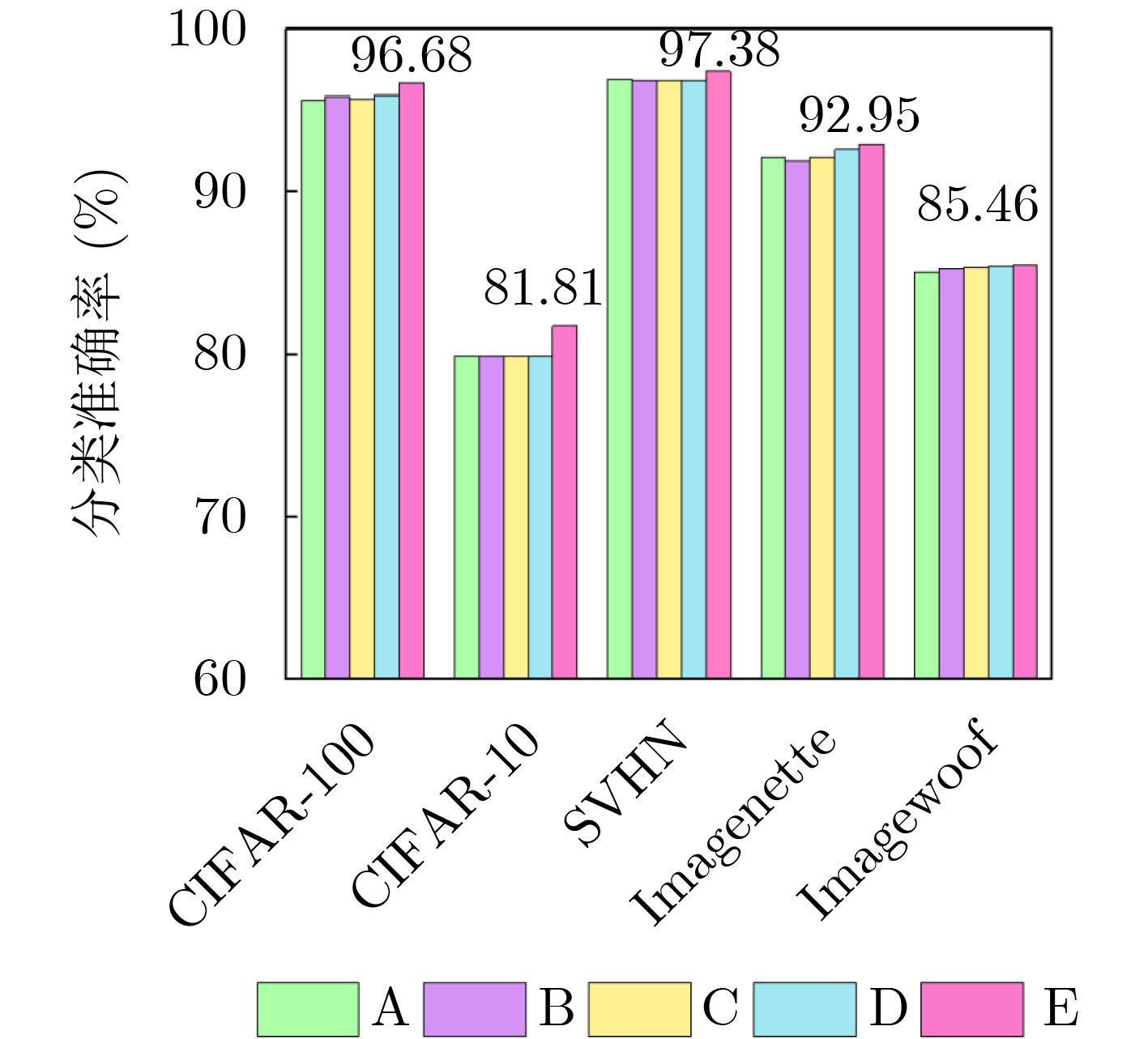

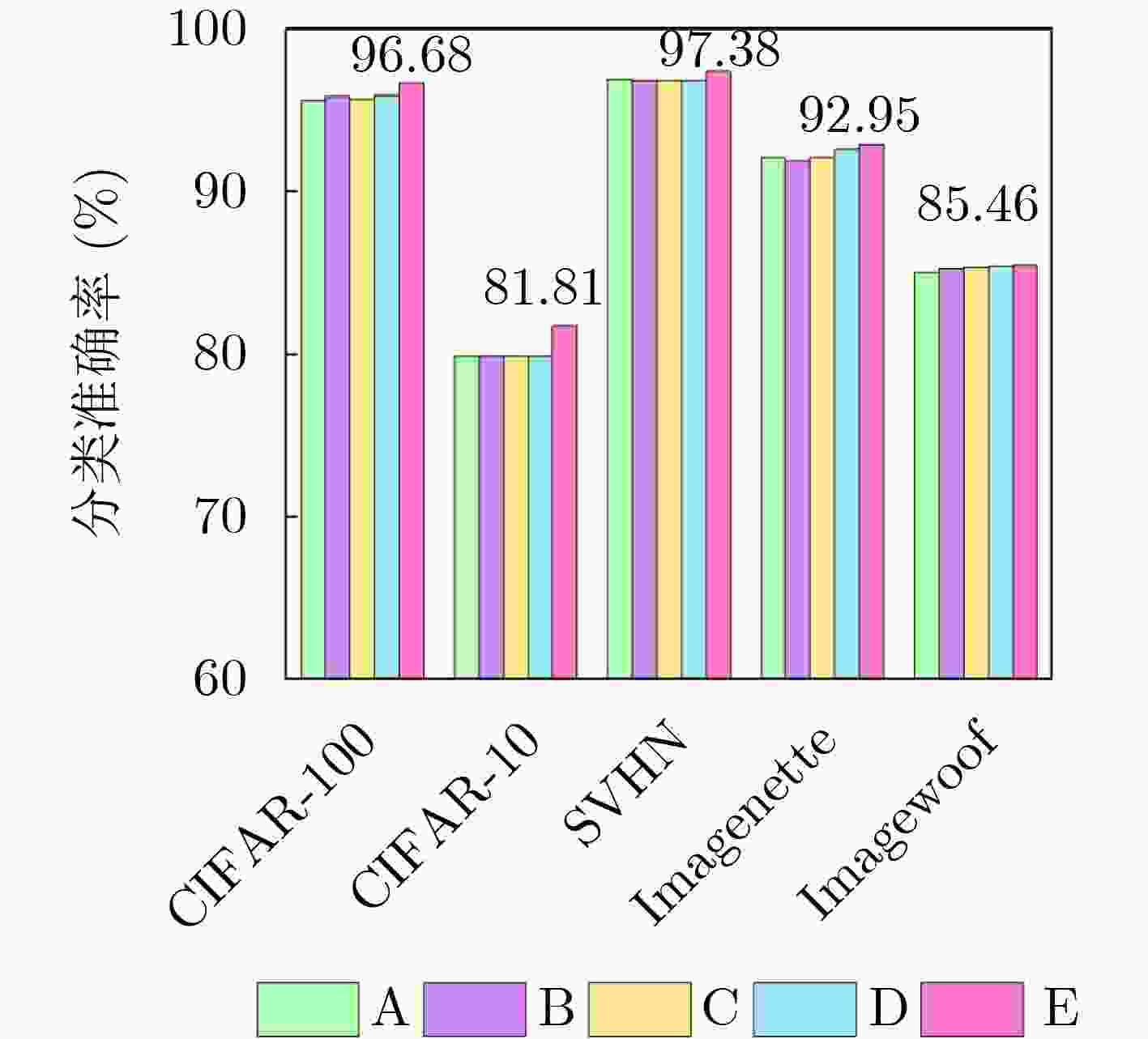

图 10 CDA内部组合方式对分类准确率的影响

Figure 10. The impact of CDA internal combination methods on classification accuracy

下载: 全尺寸图片幻灯片

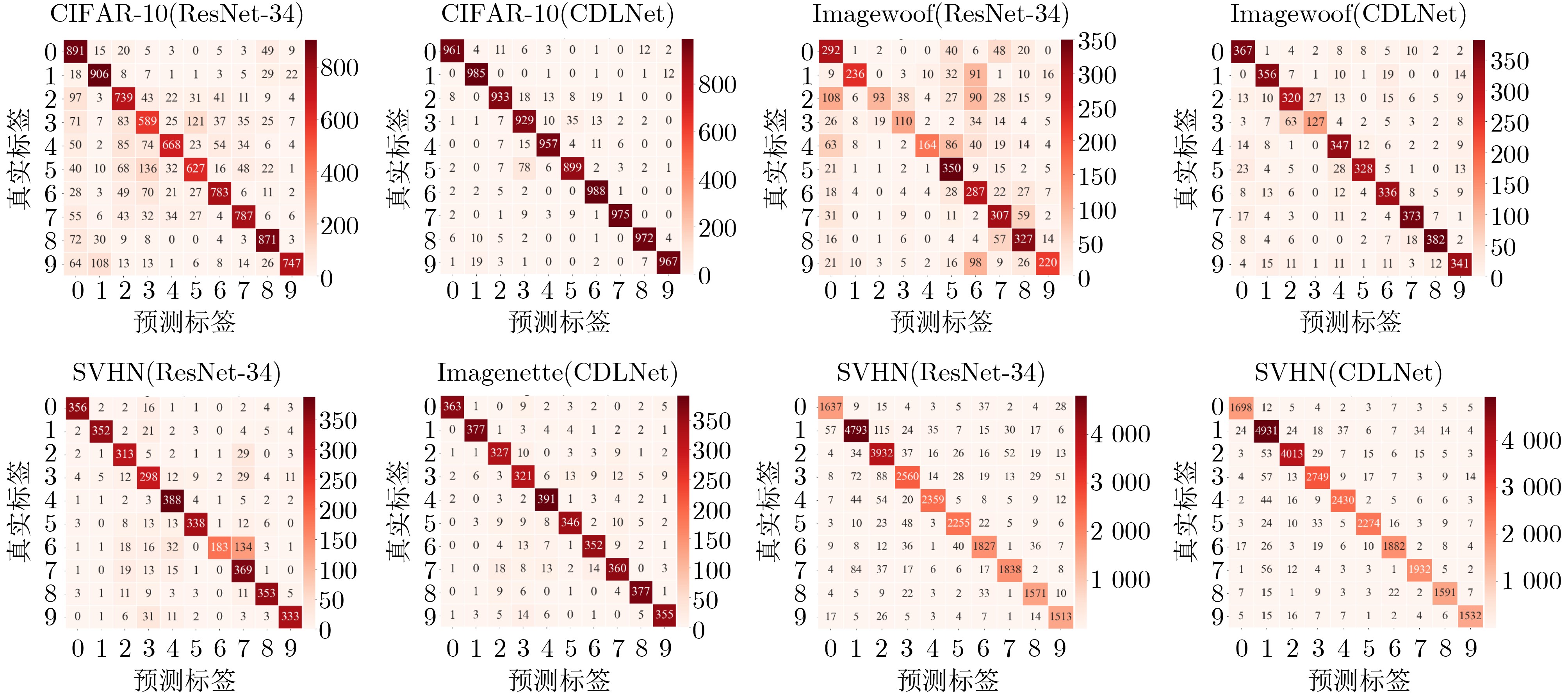

图 11 ResNet-34和CDLNet在4个数据集上的混淆矩阵

Figure 11. Confusion matrices of ResNet-34 and CDLNet on four datasets

下载: 全尺寸图片幻灯片

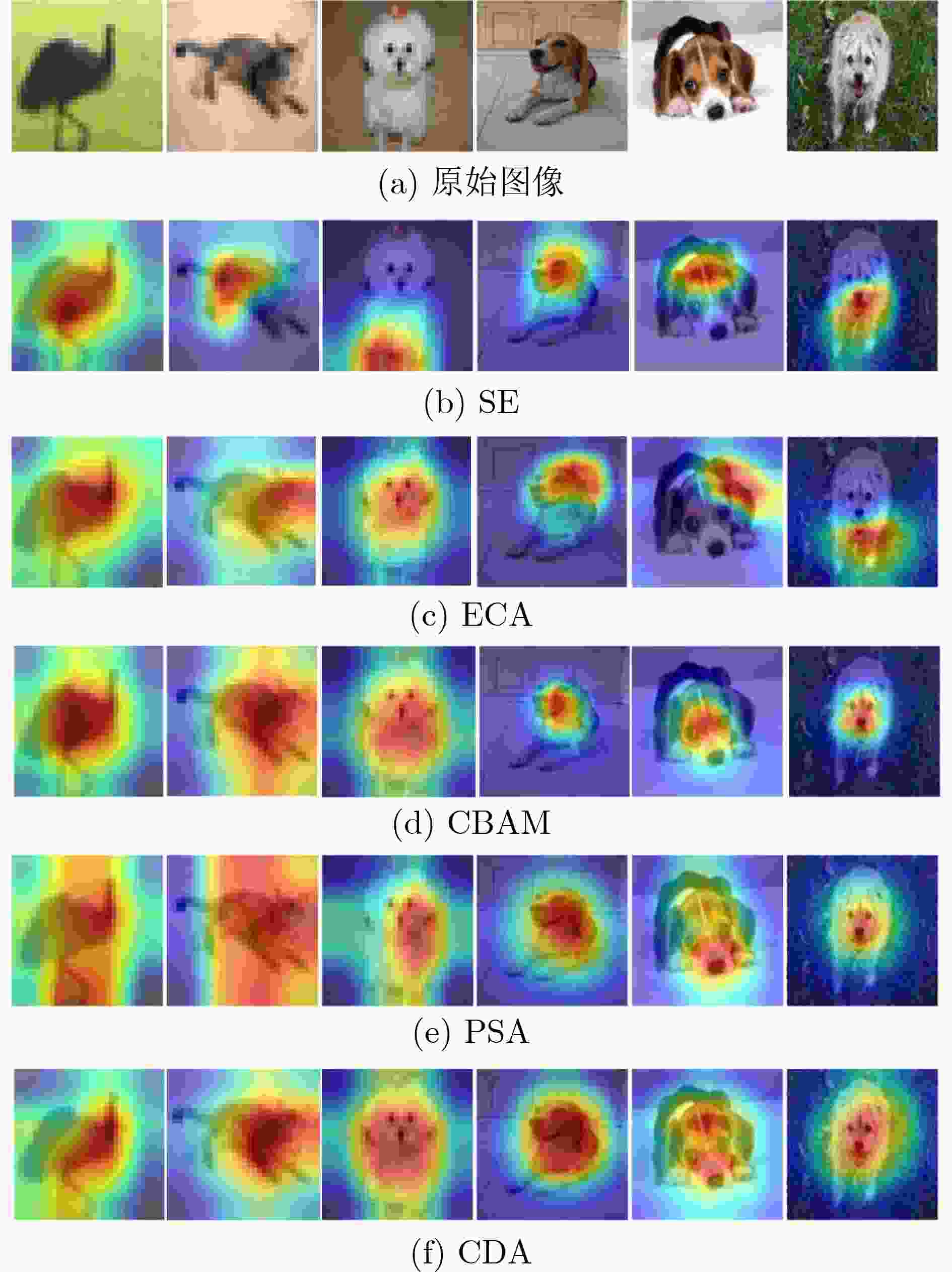

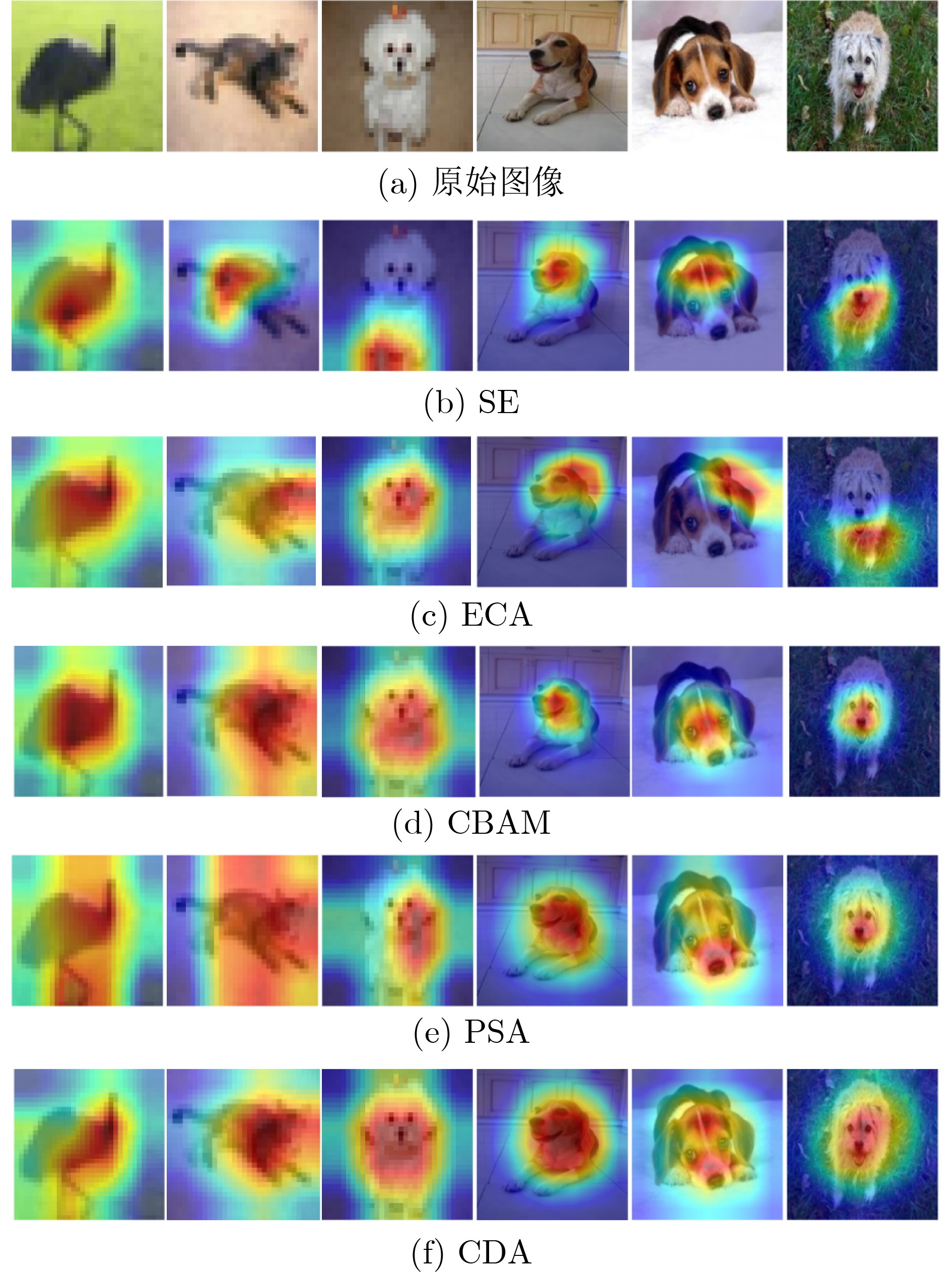

图 12 注意力机制热力图对比

Figure 12. Comparison of heatmaps of attention mechanisms

下载: 全尺寸图片幻灯片

表 1 实验数据集

Table 1. Experimental datasets

名称	尺寸	类别	训练样本	测试样本
CIFAR-10	32×32	10	50000	10000
CIFAR-100	32×32	100	50000	10000
SVHN	32×32	10	73257	26032
Imagenette	224×224	10	9469	3925
Imagewoof	224×224	10	9025	3929
STL-10	96×96	10	5000	8000
ImageNet	32×32	1000	1281167	50000

下载: 导出CSV

表 2 复杂度和训练时间对比

Table 2. Complexity and training time comparison

网络	分辨率	Params(M)	FLOPs(G)	Time(h)
ResNet-34	32×32	21.33	1.16	2.22
CDLNet	32×32	32.92	1.94	4.54
ResNet-34	224×224	21.29	3.68	1.41
CDLNet	224×224	32.93	6.05	3.31

下载: 导出CSV

表 3 β值对CCD模块性能的影响

Table 3. Impact of β value on CCD module performance

β	分类准确率/%
β	CIFAR-10	CIFAR-100	SVHN	Imagenette	Imagewoof
1	95.51	80.15	96.75	92.40	85.43
2	95.50	79.71	97.11	92.40	85.28
3	95.76	79.96	96.73	92.07	84.70
4	95.50	79.79	96.94	91.26	84.85
5	96.68	81.81	97.38	92.45	85.46
6	95.72	79.43	96.81	91.97	85.23
7	95.69	79.73	96.56	92.36	84.55
8	95.84	79.51	96.77	91.77	85.05
9	95.55	79.79	96.83	92.43	84.55

下载: 导出CSV

表 4 CDLNet的消融实验结果

Table 4. Ablation experiment results of CDLNet

网络	分类准确率/%
网络	CIFAR-10	CIFAR-100	SVHN	Imagenette	Imagewoof
CDLNet	96.68	81.82	97.38	92.48	85.47
Net1	93.87	75.21	96.39	89.26	83.29
Net2	93.87	74.24	96.42	89.62	83.06
Net3	87.21	68.74	91.60	─	─

下载: 导出CSV

表 5 不同网络在ImageNet数据集上的分类结果

Table 5. Classification results of different networks on ImageNet

网络	Params/M	FLOPs/G	ImageNet/%
ResNet-34	21.33	1.16	60.88
WRN-28-10^[17]	37.10	5.24	59.04
GLPool^[26]	21.83	1.49	57.84
DSRNet^[27]	23.20	1.54	58.22
ff-EBMs^[28]	21.4	0.65	46.00
iGPT-L^[29]	1362	1546	60.32
BH-HRNet32^[30]	12.36	0.16	56.00
EM-Softmax^[31]	10.3	0.94	49.22
hEP^[32]	4.14	0.16	36.50
DP^[33]	43.99	0.34	41.48
CDLNet	32.93	1.94	62.88

下载: 导出CSV

表 6 ImageNet数据集上的分类结果

Table 6. Classification results on the ImageNet dataset

网络	Val-Acc%	Top-1/%	Top-5/%
ResNet-34	59.97	60.88	83.27
ResNet-34+SCD	60.74	61.46	83.86
ResNet-34+CCD	61.18	61.92	84.18
CDLNet	62.00	62.88	84.67

下载: 导出CSV

表 7 各网络在5个数据集上的分类准确率

Table 7. Classification accuracies of different networks on five datasets

网络	CIFAR-10%	CIFAR-100%	SVHN%	Imagenette%	Imagewoof%
ResNet-34^[2]	88.10	72.35	91.74	86.75	77.82
CAPR-DenseNet^[3]	94.24	78.84	94.95	87.72	77.91
EfficientNets^[13]	94.01	75.96	93.32	88.01	77.93
GhostNet^[14]	94.92	77.15	93.86	87.83	78.22
QKFormer^[15]	96.18	80.26	97.13	88.32	81.65
SSLLNet^[16]	95.51	79.23	96.91	87.93	80.89
WideResnet-28-10^[17]	95.83	79.50	95.21	88.34	78.71
TLENet^[18]	95.46	78.42	96.83	87.62	80.57
RepViT-M0.9^[19]	95.88	80.21	97.02	90.91	83.47
DCDENet^[20]	96.66	80.08	96.35	91.87	84.52
Couplformer^[21]	93.54	73.92	94.26	87.91	77.89
ATONet^[22]	94.51	78.54	95.21	86.67	80.19
FDPRNet^[23]	95.70	80.01	96.96	90.83	83.41
SCAM-Net^[24]	96.28	80.40	97.25	91.62	84.18
FasterNet-T2^[25]	95.62	79.84	96.94	90.38	82.76
CDLNet	96.68±0.08	81.81±0.09	97.38±0.04	92.45±0.10	85.46±0.11

下载: 导出CSV
