Ka波段增强型负载调制的超宽带高效率Doherty功率放大器研究

杨琳; 闫成宇; 王彦平; 张明; 王保柱; 韩琦; 何宇航; 侯卫民; 李康

doi:10.11999/JEIT260514

Ka波段增强型负载调制的超宽带高效率Doherty功率放大器研究

doi: 10.11999/JEIT260514 cstr: 32379.14.JEIT260514

1.
河北科技大学信息科学与工程学院石家庄 050018
2.
北方工业大学人工智能与计算机学院北京 100144
3.
西安电子科技大学集成电路学院西安 710003

基金项目: 国家自然科学基金(62441401)，国家重点研发计划(2022YFB4400400)，国家重点实验室基础科学研究创新基金(IFN20230113)，河北省重大科技支撑项目(24290201Z)，河北省自然科学基金(F2024208020)，河北省教育厅青年拔尖人才项目(BJK2024089)

详细信息

作者简介:
杨琳：女，副教授，博士，硕士生导师，研究方向为无线通信前端芯片技术，微波毫米波集成电路

闫成宇：男，硕士研究生，研究方向为微波毫米波功率放大器技术

王彦平：男，研究员，博士，博士生导师，研究方向为雷达成像安全监测技术、遥感智能信息处理及应用

张明：男，副教授，博士，硕士生导师，研究方向为电磁波调控，可重构超表面天线

王保柱：男，教授，博士，硕士生导师，研究方向为微电子与光电子技术、半导体材料与器件、电路与系统应用

韩琦：男，讲师，博士，硕士生导师，研究方向为光通信芯片和太赫兹探测器

何宇航：男，讲师，博士，硕士生导师，研究方向为新型半导体材料的太赫兹光子学、电磁超材料的设计与调控

侯卫民：男，教授，博士，硕士生导师，研究方向为阵列信号处理、无线通信

李康：男，副教授，博士，硕士生导师，研究方向为毫米波功率器件、太赫兹器件

通讯作者:
侯卫民　jerry.ioa.bj@hotmail.com

中图分类号: TN43
计量
- 文章访问数: 8
- HTML全文浏览量: 9
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2026-04-27
- 修回日期: 2026-06-24
- 录用日期: 2026-06-24
- 网络出版日期: 2026-07-02

Research on Ka-band Enhanced Load Modulation Ultra-wideband High-efficiency Doherty Power Amplifier

1.
School of Information Science and Engineering, Hebei University of Science and Technology, Shijiazhuang 050018, China
2.
School of Artificial Intelligence and Computer Science, North China University of Technology, Beijing 100144, China
3.
School of Integrated Circuit, Xidian University, Xi’an 710003, China

Funds: National Natural Science Foundation of China (No.62441401)，National Key Research and Development Program of China (No. 2022YFB4400400), National Key Laboratory of Basic Scientific Research for Innovation Fund (No. IFN20230113), Major Science and Technology Support Project of Hebei Province (No.24290201Z), Hebei Natural Science Foundation (No. F2024208020), Science and Technology Project of Hebei Education Department (No. BJK2024089)

摘要

摘要: Ka波段是未来新一代高通量卫星的核心频段，卫星通信发射系统对功率放大器提出了高回退效率的严苛要求。Doherty功率放大器(DPA)通过有源负载调制显著提高了功率回退状态下的工作效率，但Doherty架构的固有阻抗变换网络严重限制了其工作带宽，同时，其在毫米波段的饱和与回退效率均大幅下降，这成为制约其在毫米波高通量卫星通信系统中应用的关键瓶颈。针对上述问题，本文提出了一种超宽带增强型有源负载调制技术，有效突破Doherty功率放大器带宽和回退效率相互制约的瓶颈，实现毫米波Doherty架构的效率增强和带宽扩展。同时，创新的提出了一种超宽带相位补偿非等分功率分配网络，扩展了高效率带宽，同时缩小了芯片面积。为验证所提理论，基于0.15 μm GaN工艺，设计了一款毫米波超宽带高效率Doherty功率放大器芯片，最终在24-33 GHz(相对带宽达到31.6%)的超宽频带内，实现了21.8-23.8 dB的小信号增益，28.9-31.0 dBm的饱和输出功率，饱和功率附加效率(PAE)为25.2%-33.5%，6dB回退PAE为15.5%-19.8%。在目前所报道的相近频带的毫米波GaN Doherty功放中，具有最高的小信号增益及饱和PAE，高的饱和输出功率和6 dB回退PAE等一系列优异性能，同时在目前所报道的2-3级DPA芯片中具有最小的芯片面积。
- 卫星通信 /
- 毫米波 /
- Doherty功率放大器 /
- 超宽带 /
- 高效率
Abstract: Objective The Ka band has become the main direction of satellite communication, which requires the core component of its transmission system, the millimeter-wave power amplifier, to be more compact in size. Meanwhile, to maximize spectral efficiency, millimeter-wave satellite communication signals will have a high peak-to-average power ratio (PAPR). Therefore, it is crucial to design a millimeter-wave power amplifier with high saturation efficiency, high back-off efficiency, and compact size. Doherty power amplifiers (DPAs) are renowned for their high efficiency and excellent linearity in power back-off states and have become a key solution to these problems. However, Doherty power amplifiers face the issue of a relatively narrow operating frequency band. Moreover, when the operating frequency extends to the millimeter-wave band, their efficiency also drops significantly. Thus, overcoming the narrowband and low efficiency problems of millimeter-wave Doherty power amplifiers is a critical challenge that needs to be addressed urgently in the satellite communication transmission chain. Methods This paper presents an ultra-wideband enhanced active load modulation technique that effectively addresses the fundamental trade-off between bandwidth and back-off efficiency in Doherty power amplifiers. The proposed technique enables optimal impedance transformation for both carrier and peak amplifiers across an ultra-wide frequency band, while introducing an adjustable fundamental impedance bias matching network (ITBN) and a dual-drive impedance regulation mechanism. This improvement enhances load modulation performance while extending the bandwidth of load modulation behavior, achieving simultaneous efficiency enhancement and bandwidth expansion in the millimeter-wave Doherty architecture. Furthermore, a broadband phase compensation technique is integrated with an unequal power division network. This integration facilitates sufficient load modulation over ultra-wide bandwidth while maintaining precise phase difference compensation between carrier and peak paths. The proposed ultra-wideband phase-compensated power division network extends the high-efficiency bandwidth while reducing the overall chip area. Results and Discussions A millimeter-wave ultra-wideband high-efficiency Doherty power amplifier chip was designed and fabricated based on a 0.15-μm GaN process to validate the proposed technology. Within the ultra-wide frequency band of 24–33 GHz, the fabricated chip achieves a small-signal gain of 21.8-23.8 dB with excellent gain flatness (±1 dB). It delivers a saturated output power of 28.9-31.0 dBm, corresponding to a saturated power-added efficiency (PAE) of 25.2%-33.5%, and a 6 dB output power back-off PAE of 15.5%-19.8%. Compared with state-of-the-art similar frequency-band GaN Doherty power amplifiers, the proposed design exhibits a maximum fractional bandwidth of 31.6%, highest small-signal gain and saturated PAE, high saturated output power and 6-dB back-off PAE. Furthermore, it features the smallest chip area among reported three-stage DPA chips. Conclusions This paper presents an ultra-wideband enhanced active load modulation method, which achieves multi-frequency impedance tuning and thus realizes sufficient active load modulation throughout the entire working frequency band. At the same time, a novel ultra-wideband phase compensation unequal power distribution network is proposed, significantly reducing the chip area. To verify the proposed method, a millimeter-wave ultra-wideband high-efficiency Doherty power amplifier chip was fabricated using a 0.15-μm GaN process. Measurement results show that in the wideband range of 24 to 33 GHz, the small-signal gain is 21.8 to 23.8 dB, and the saturated output power is 28.9 to 31.0 dBm. The corresponding saturated PAE is 25.2% to 33.5%, and the 6 dB back-off PAE is 15.5% to 19.8%. Compared with the reported GaN Doherty power amplifiers in similar frequency bands, this paper achieves a maximum relative bandwidth of 31.6%, demonstrating excellent performance, including high small-signal gain, excellent saturated PAE, excellent saturated output power, and 6 dB back-off PAE. Moreover, it has the smallest chip area among the reported 2-3-stage DPA MMICs. These measurement results validate the effectiveness of the proposed technology and demonstrate the strong application potential of this chip in millimeter-wave satellite communication transmission systems.
- Satellite Communications /
- Millimeter Wave /
- Doherty Power Amplifier /
- Ultra-Wideband /
- High Efficiency

HTML全文

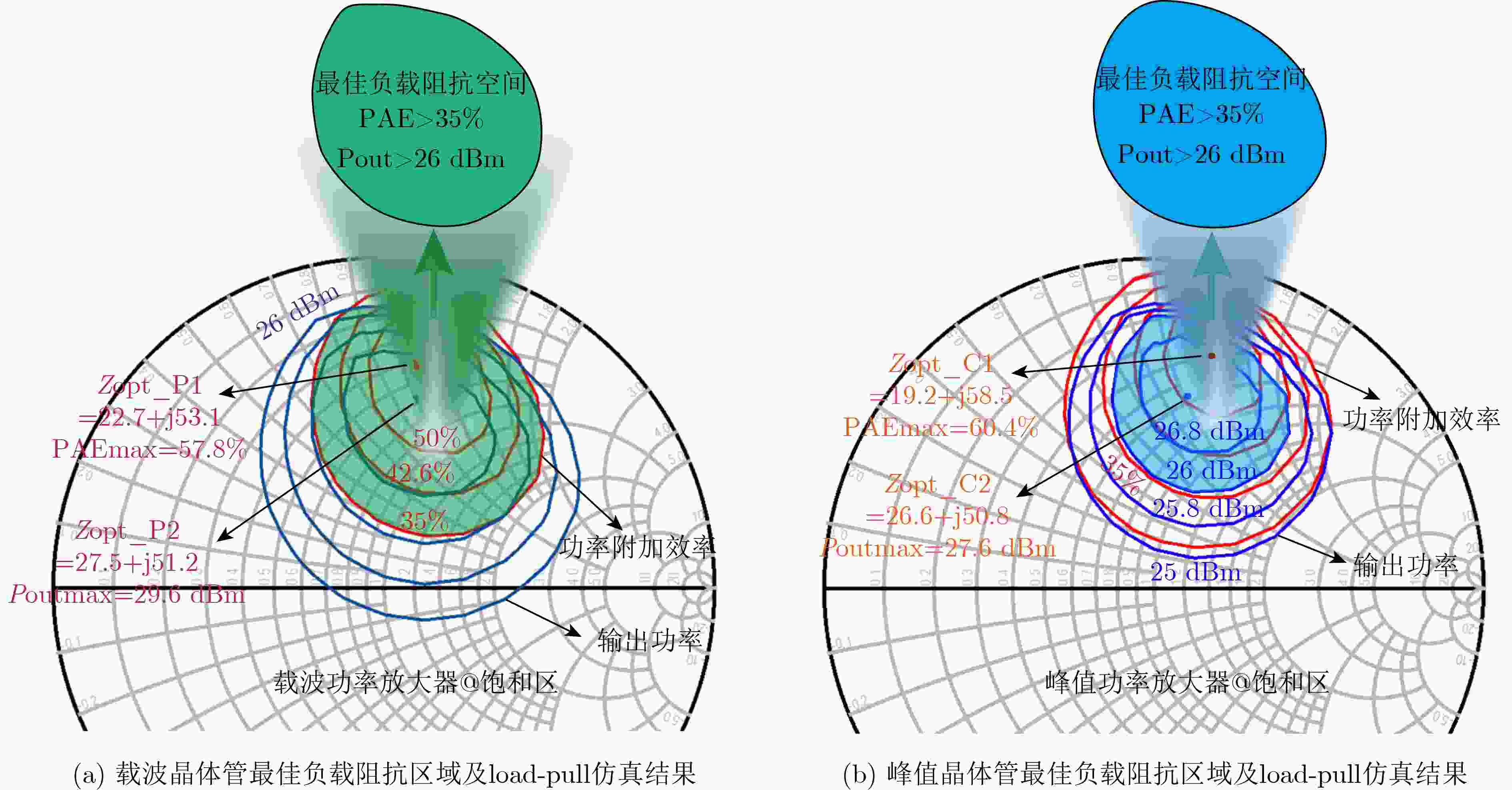

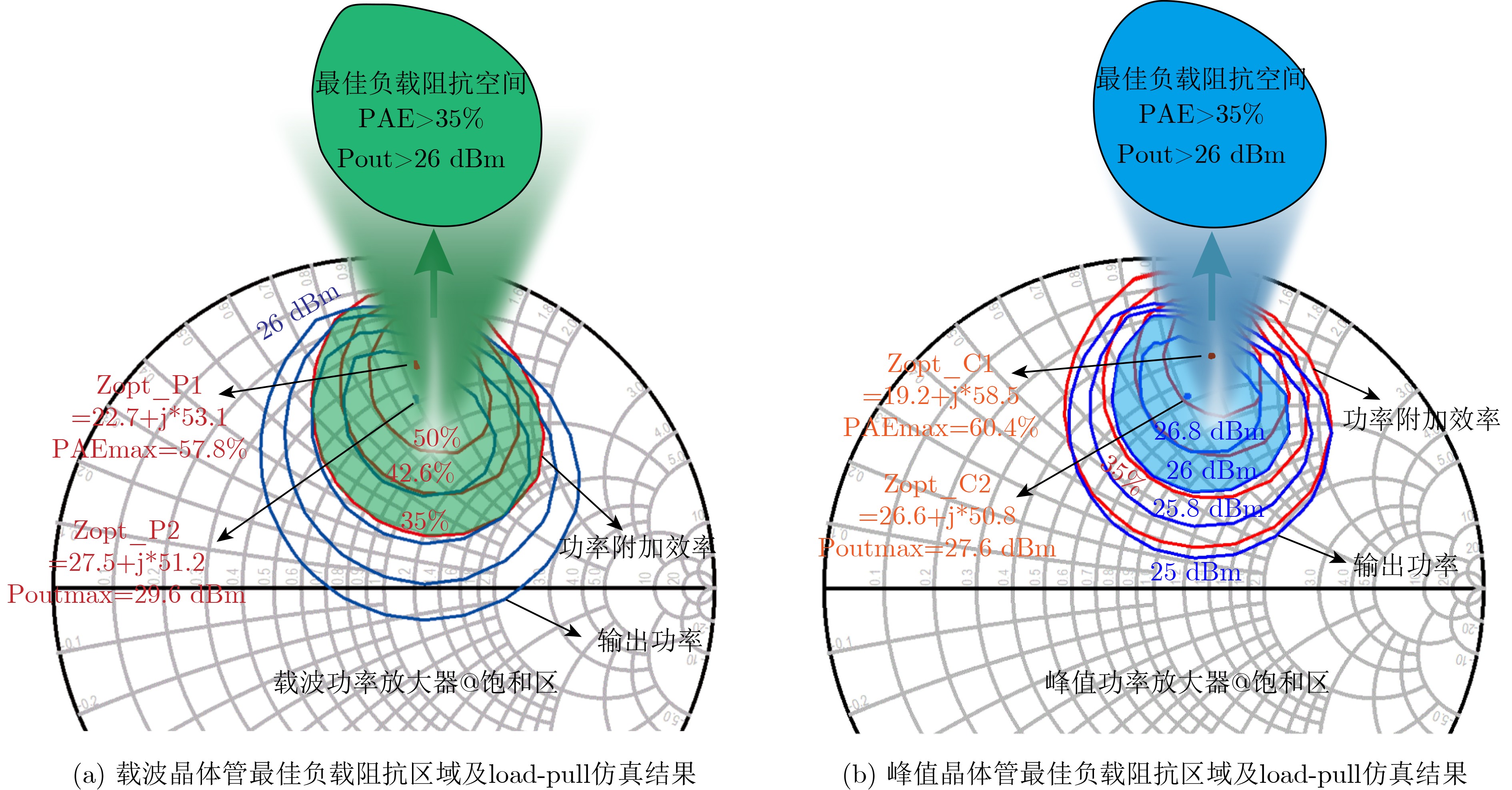

图 1 载波与峰值晶体管最佳负载阻抗空间

下载: 全尺寸图片幻灯片

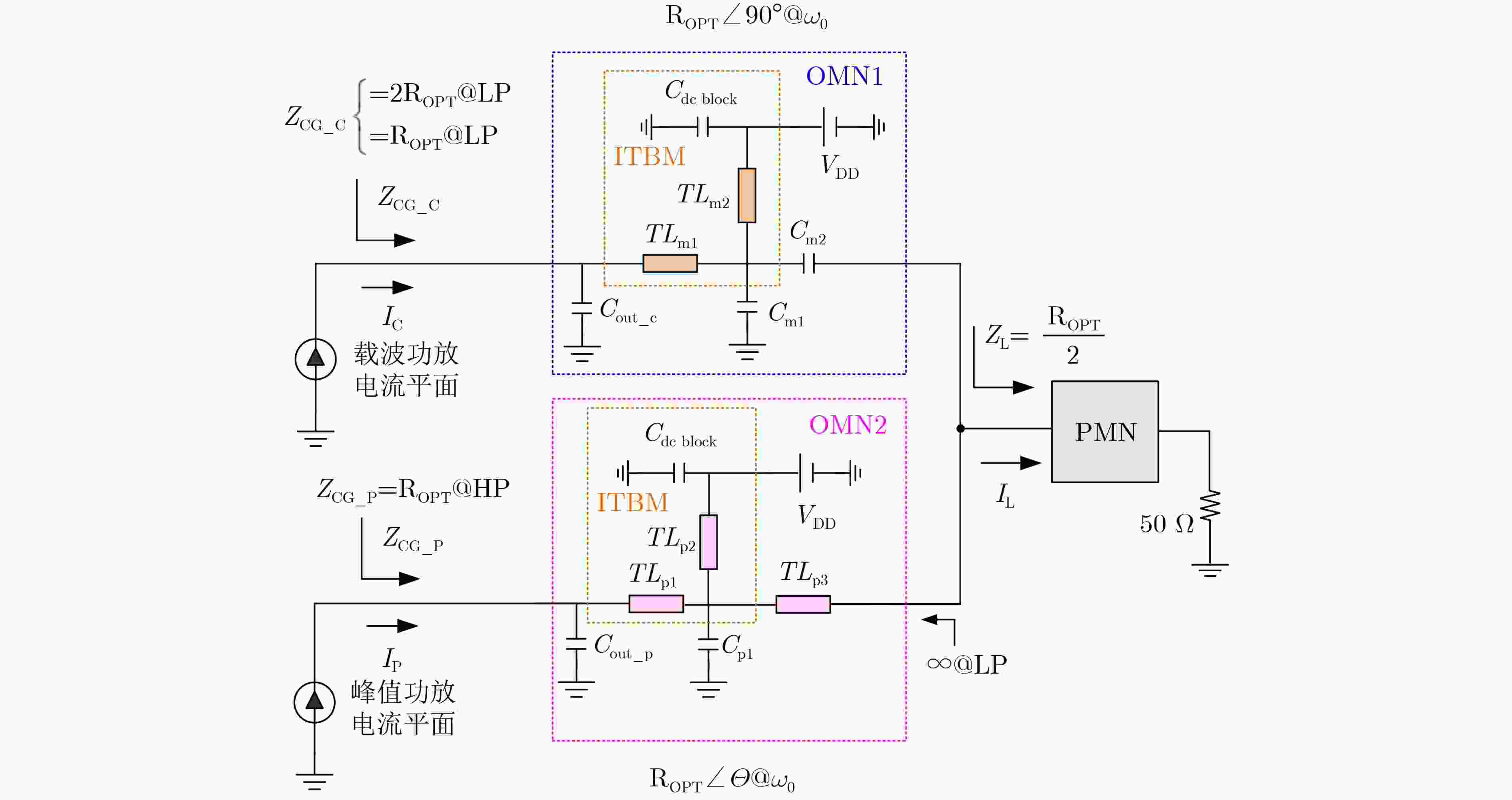

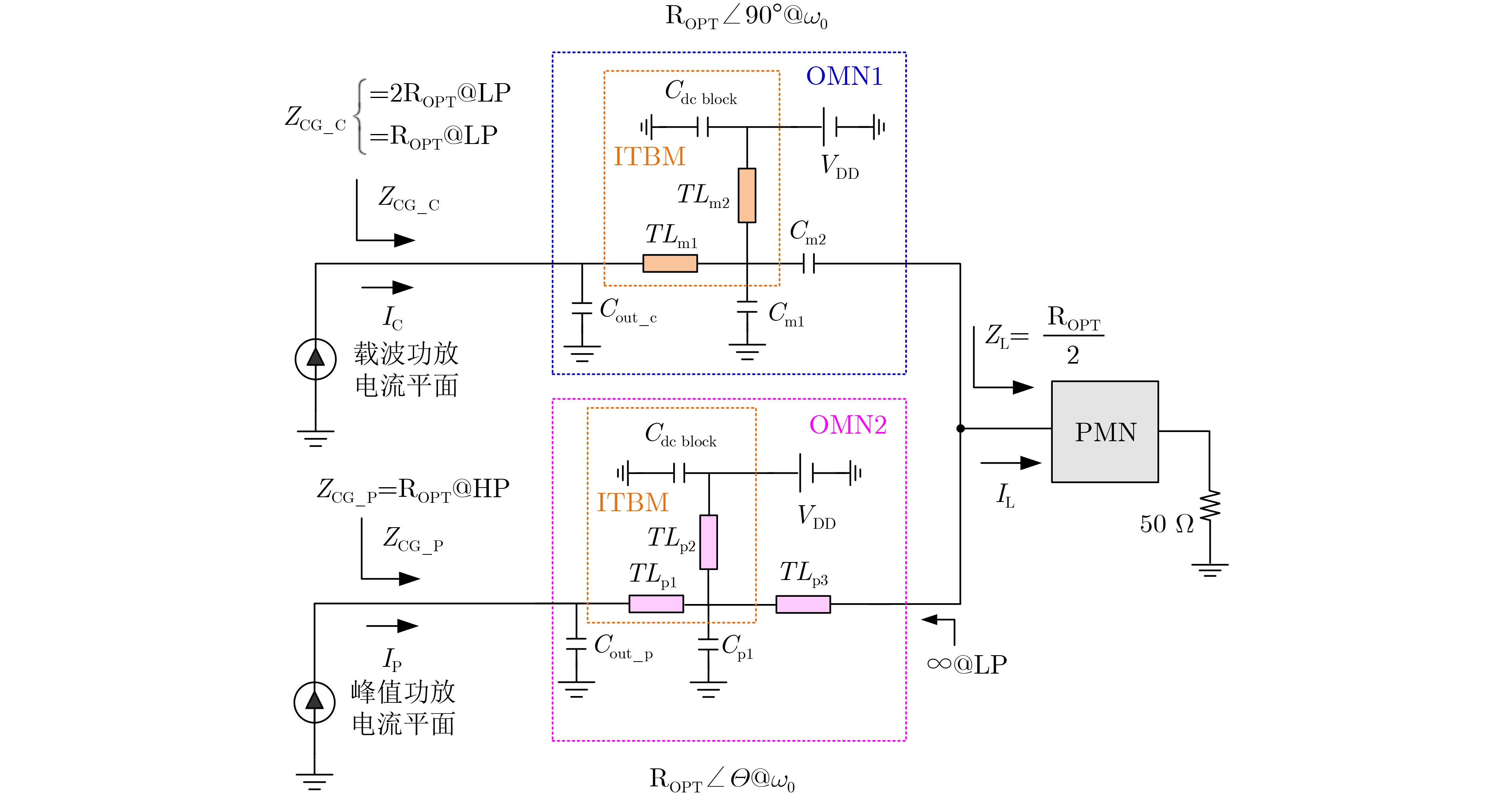

图 2 提出的新型超宽带增强型有源负载调制网络

下载: 全尺寸图片幻灯片

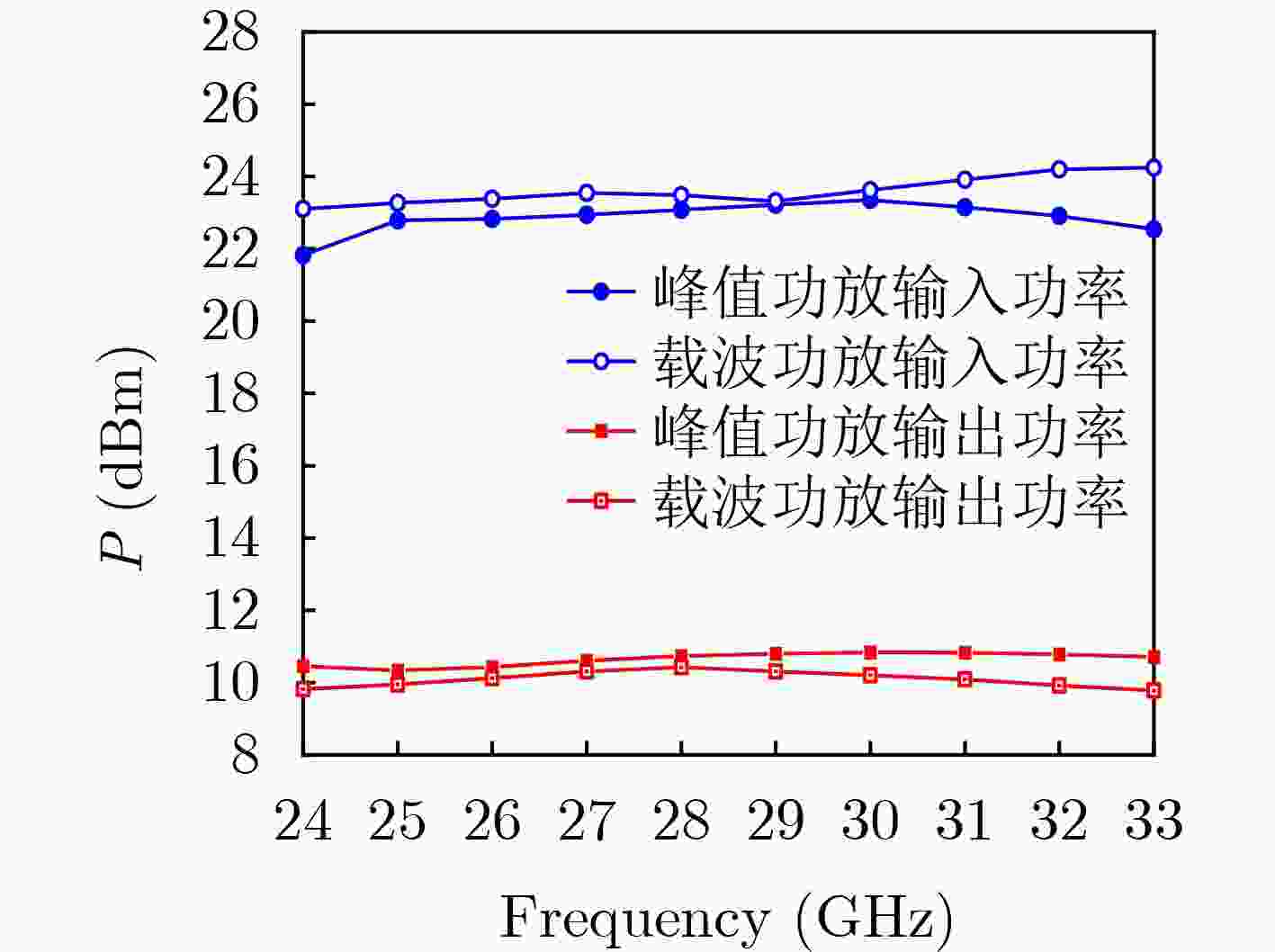

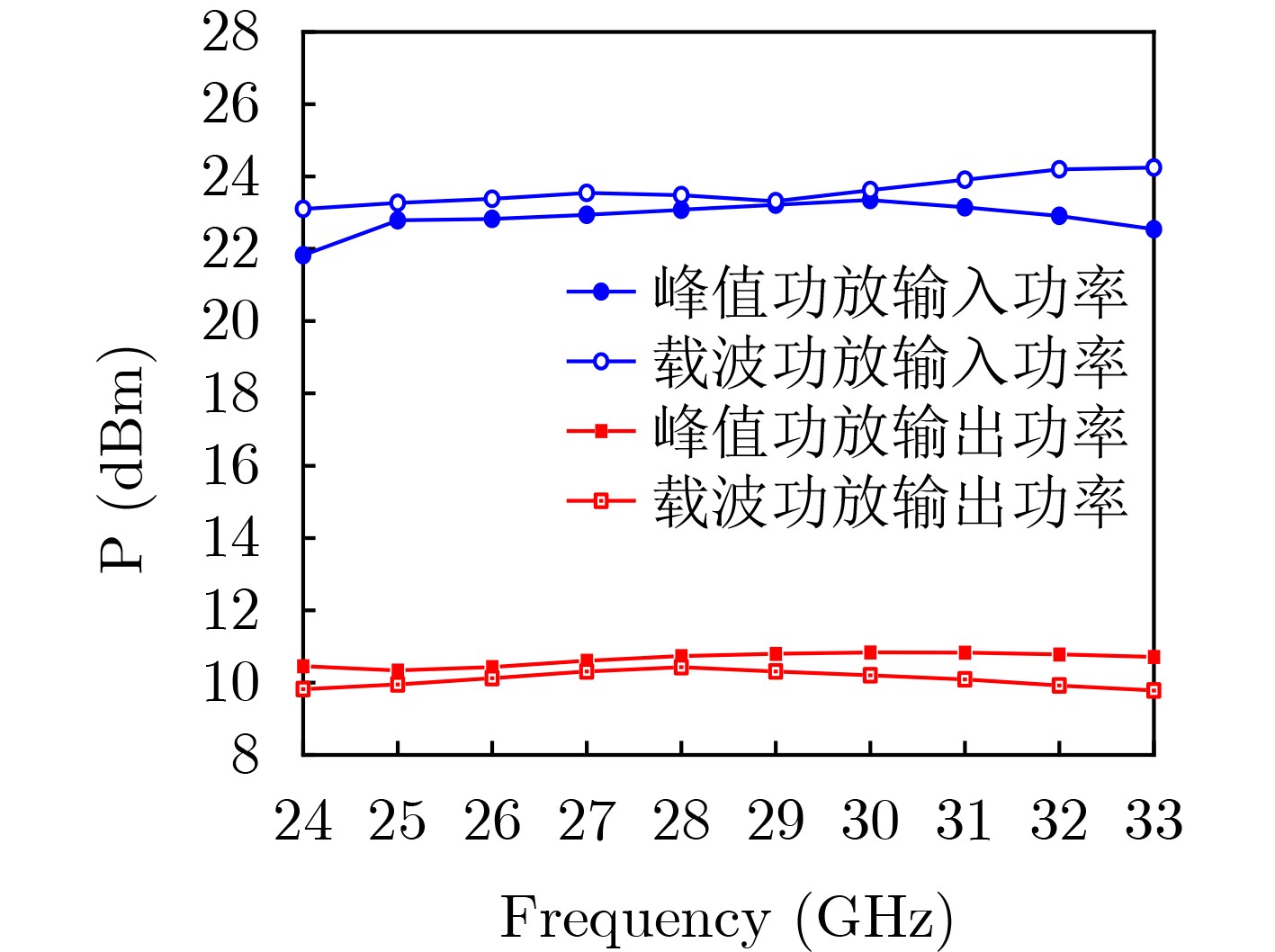

图 3 载波与峰值功放输入/输出功率仿真结果

下载: 全尺寸图片幻灯片

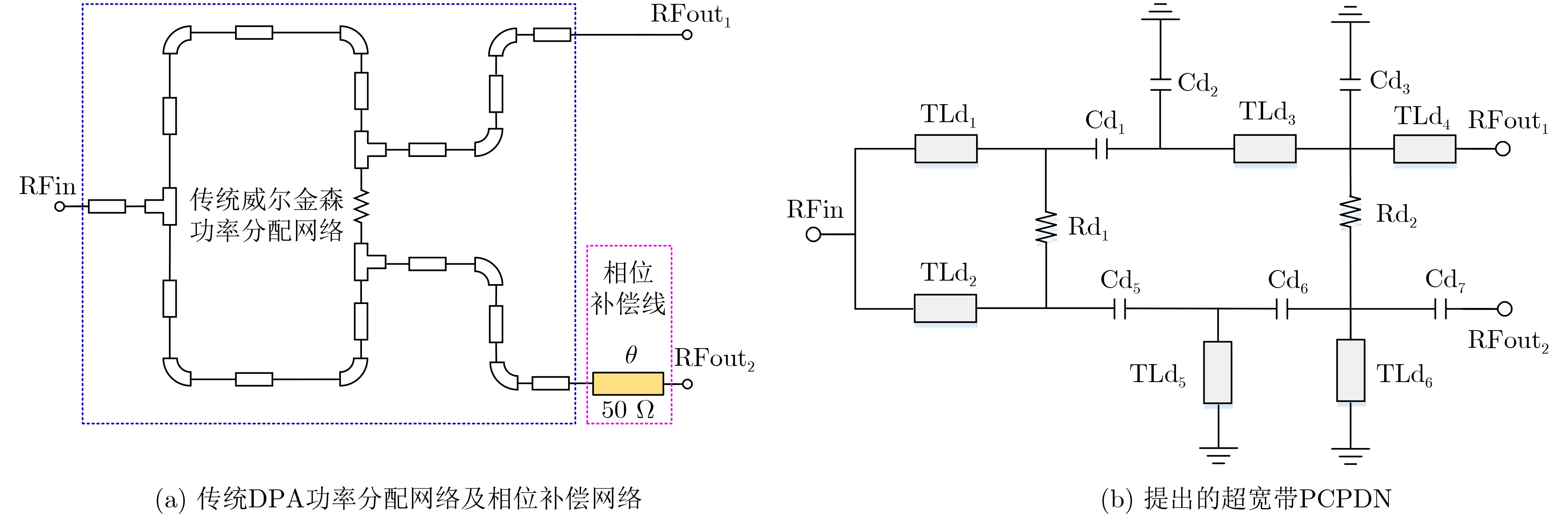

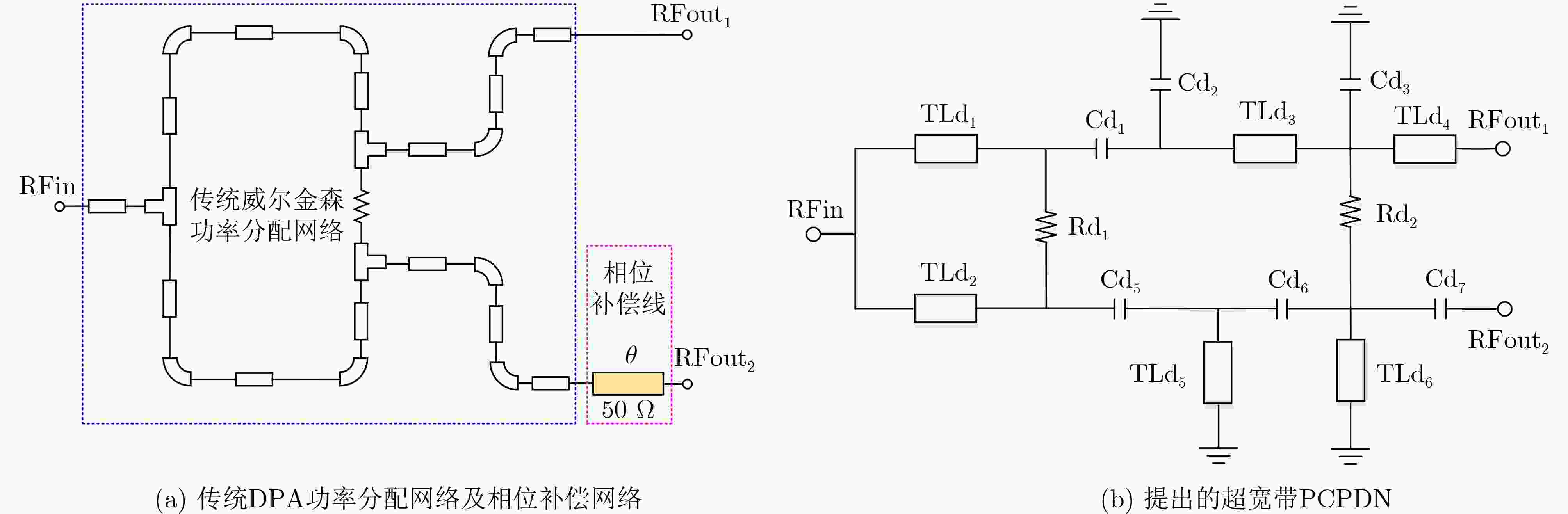

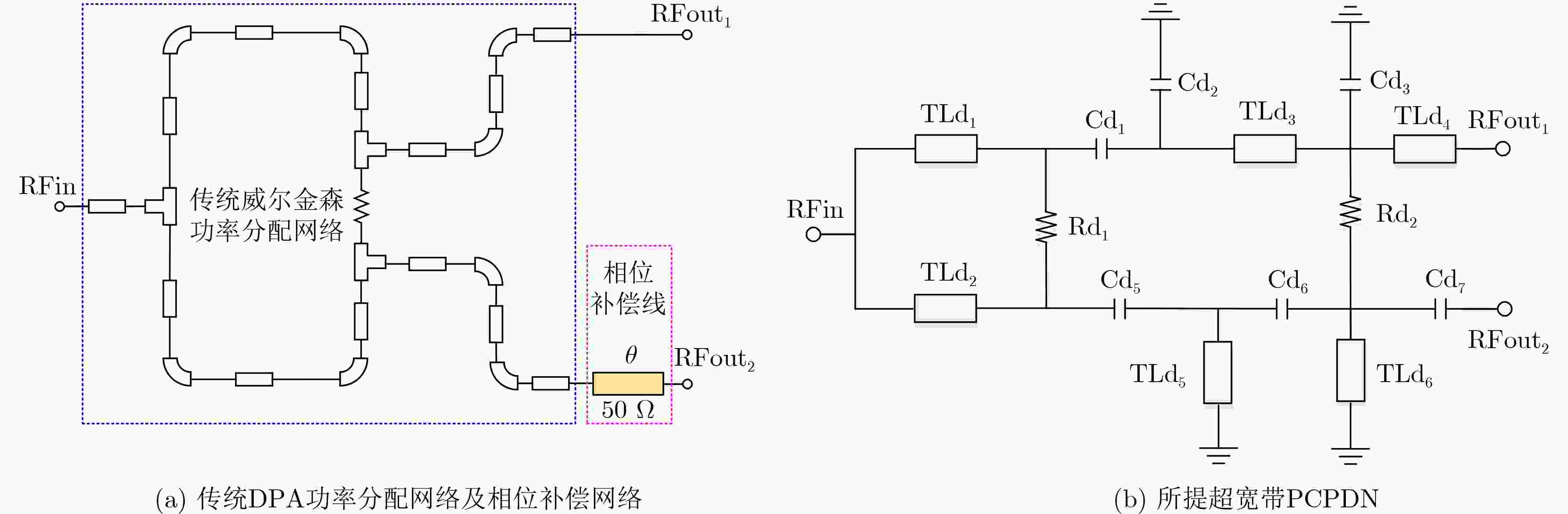

图 4 所提出的超宽带PCPDN与传统结构对比图

下载: 全尺寸图片幻灯片

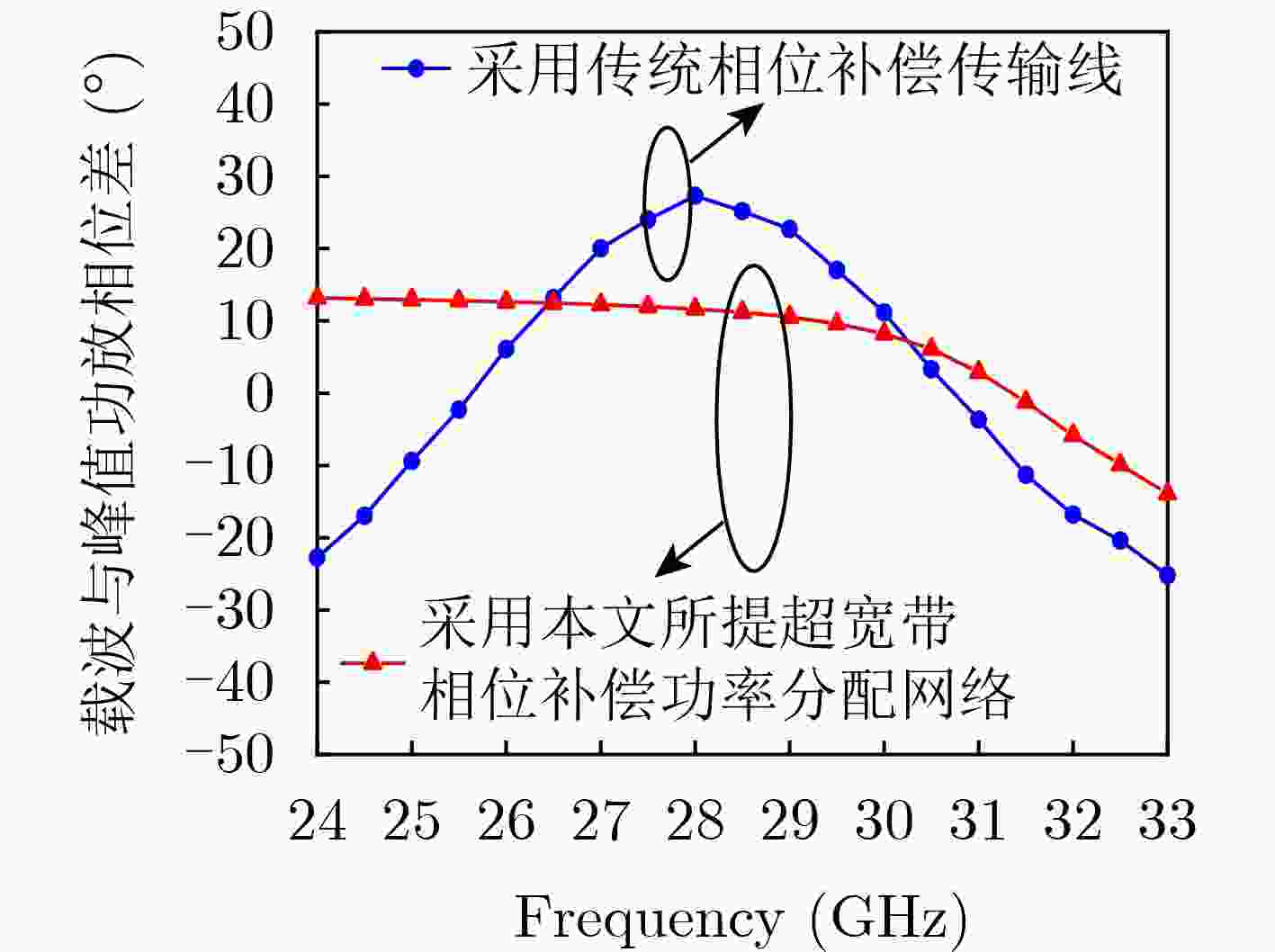

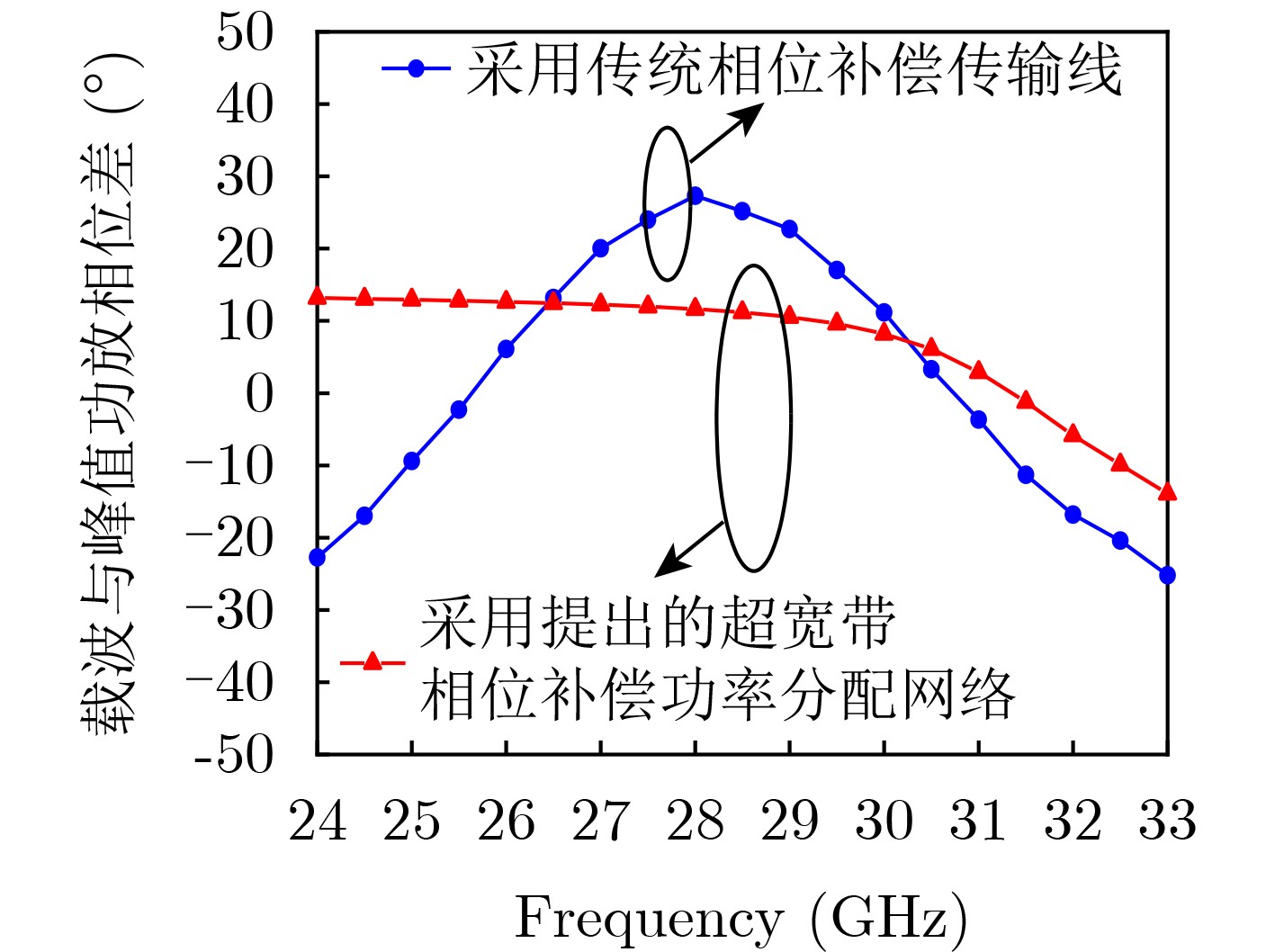

图 5 提出的新型超宽带PCPDN和传统的相位补偿传输线效果对比

下载: 全尺寸图片幻灯片

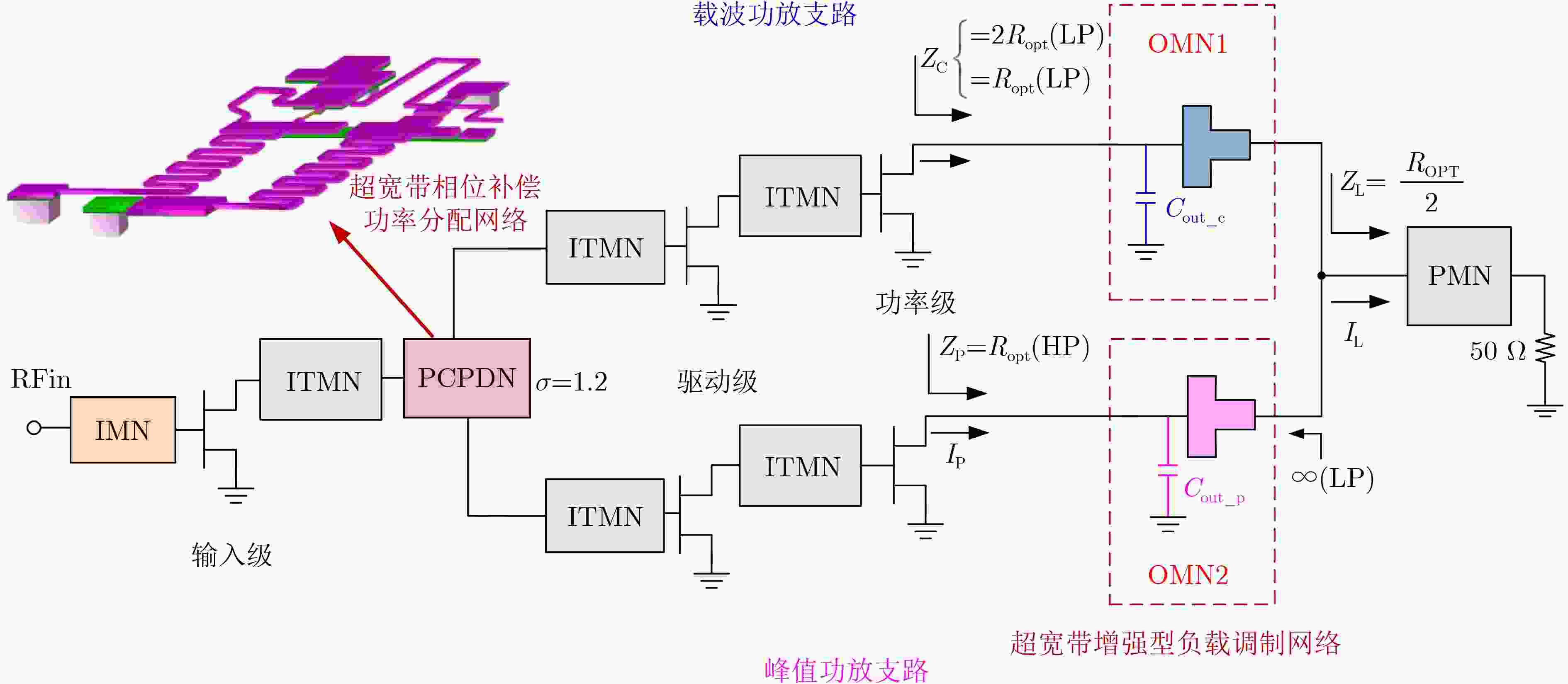

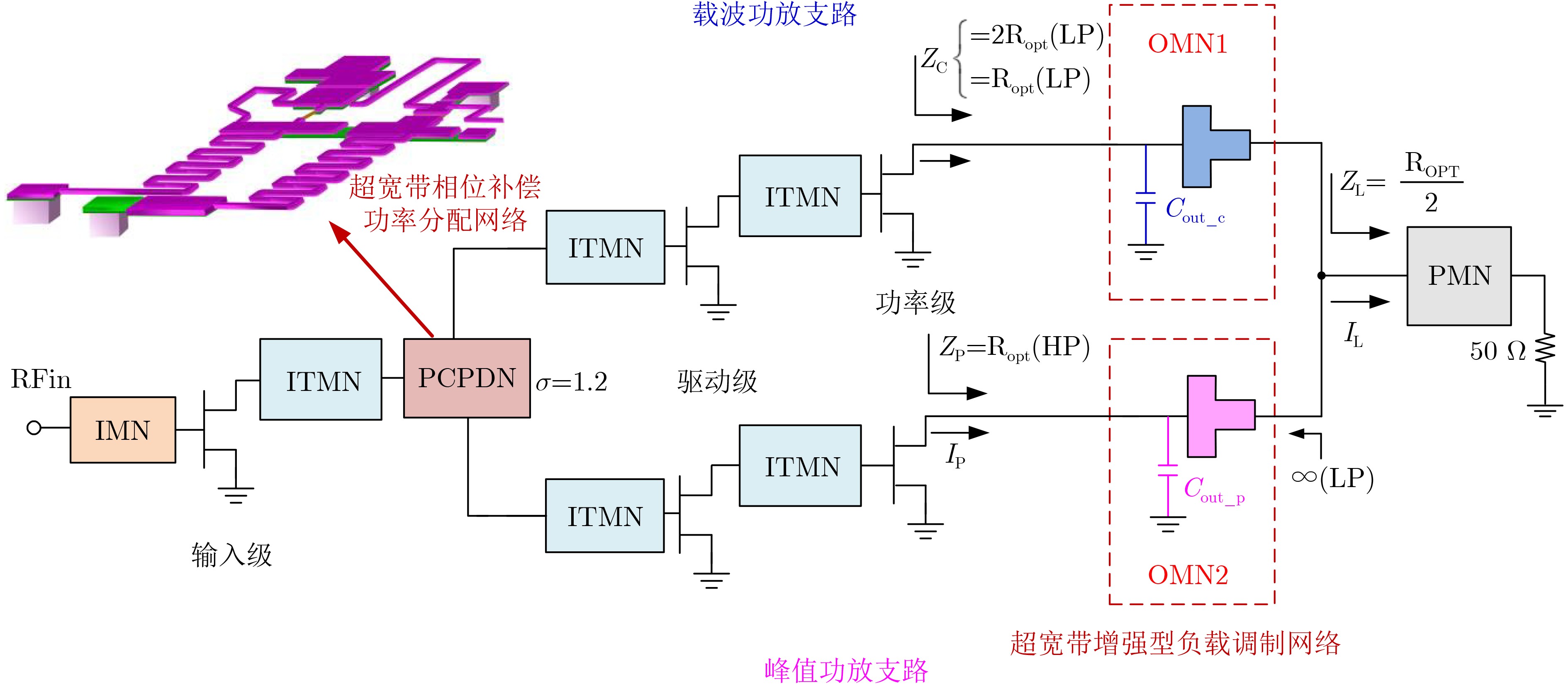

图 6 三级毫米波超宽带紧凑型高效率Doherty功率放大器简化结构图

下载: 全尺寸图片幻灯片

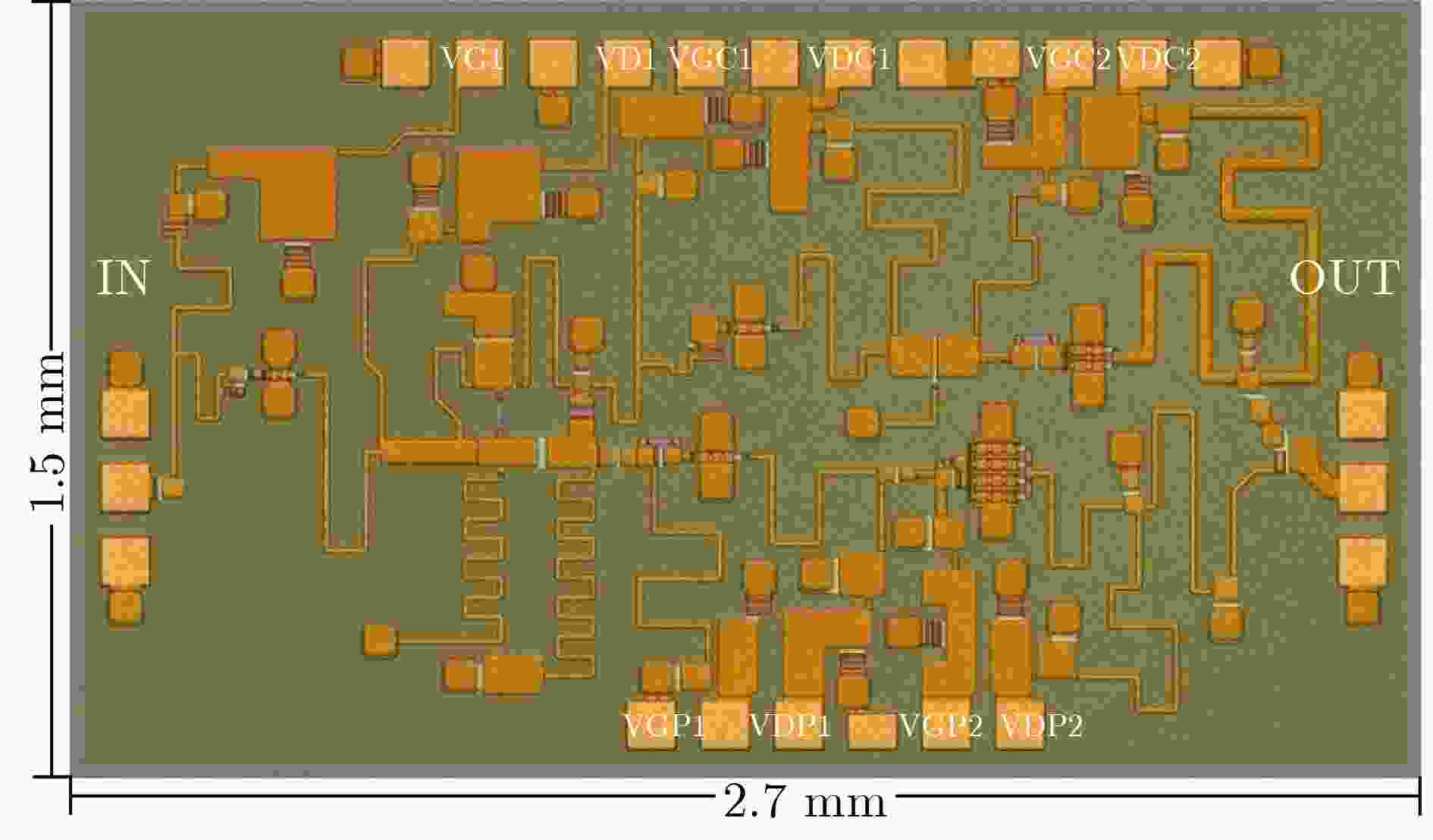

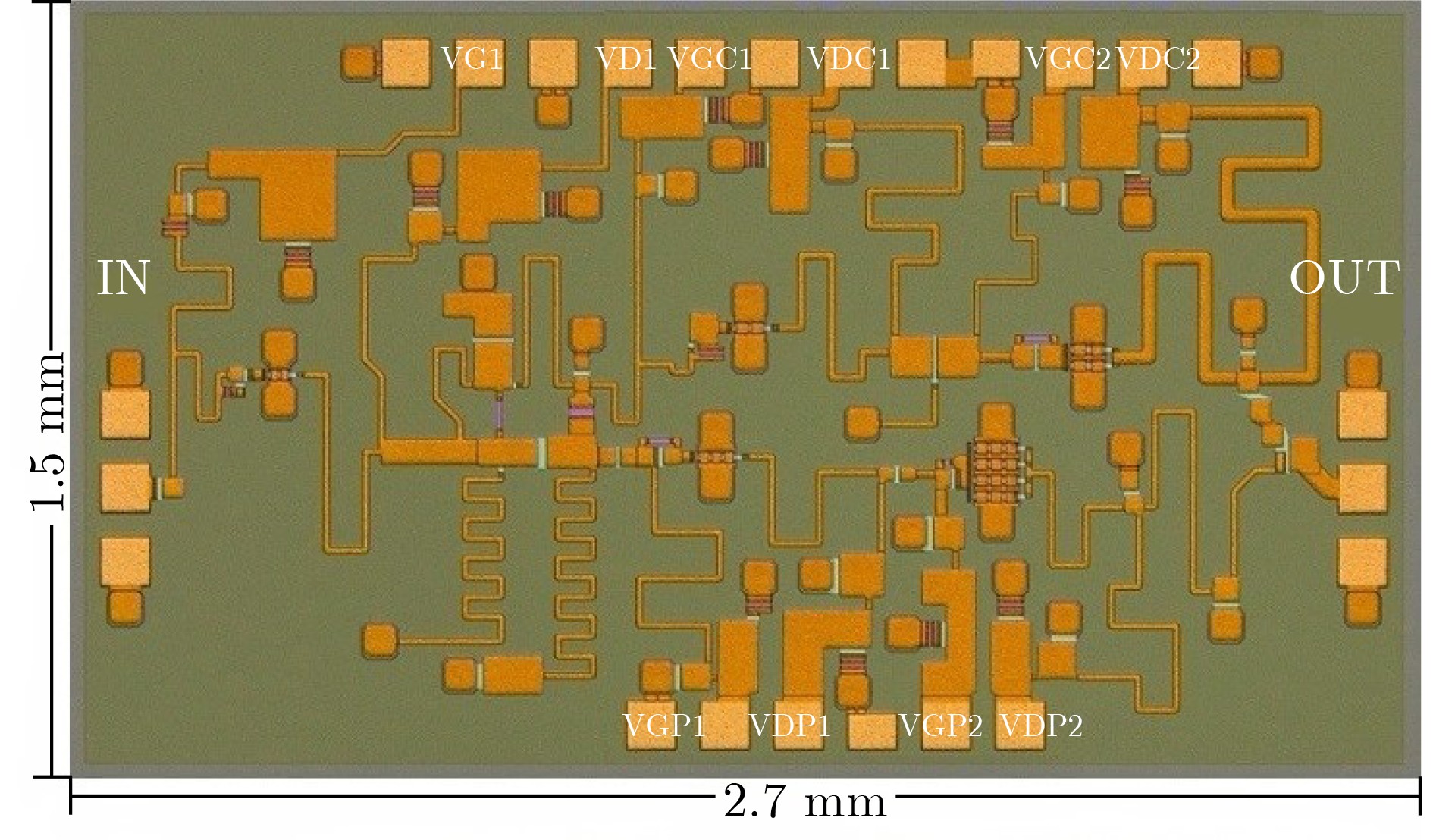

图 7 24-33 GHz超宽带高效率Doherty功率放大器芯片照片

下载: 全尺寸图片幻灯片

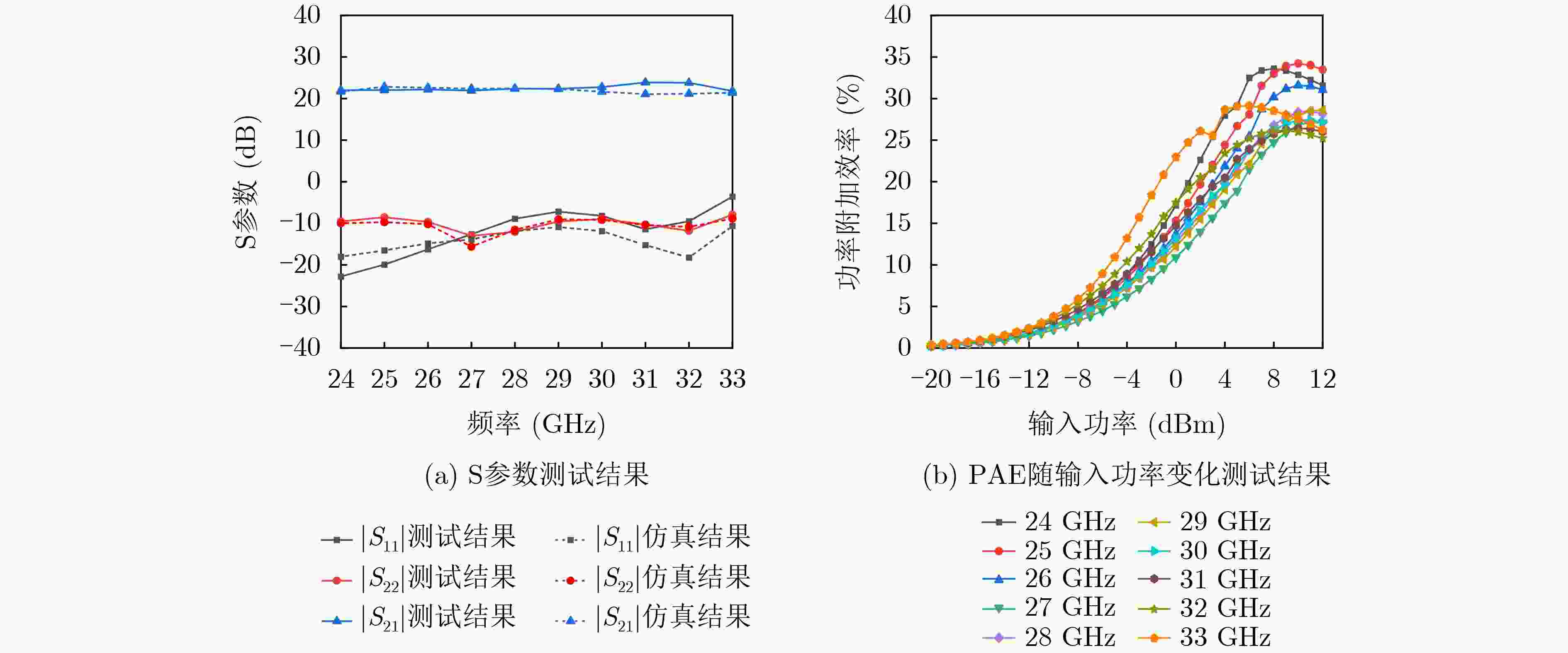

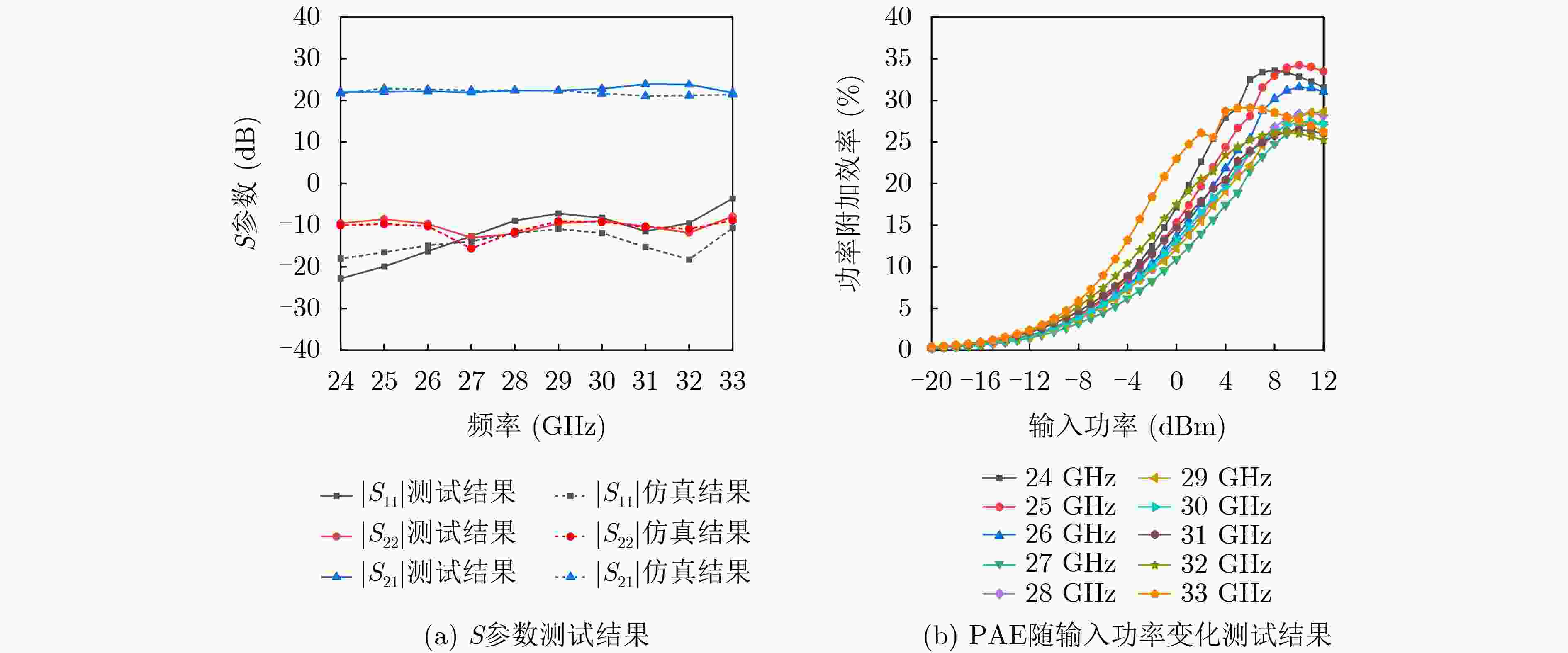

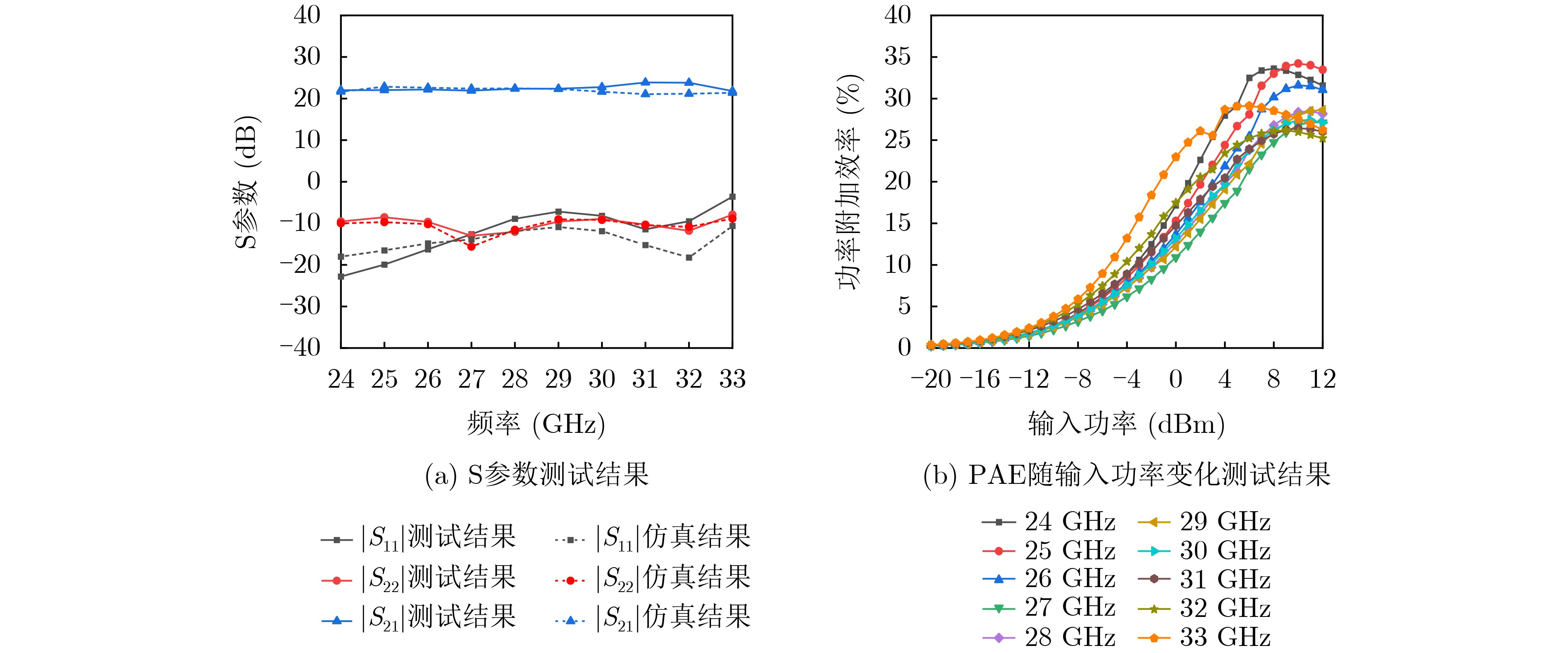

图 8 芯片S参数及PAE随输入功率变化测试结果

下载: 全尺寸图片幻灯片

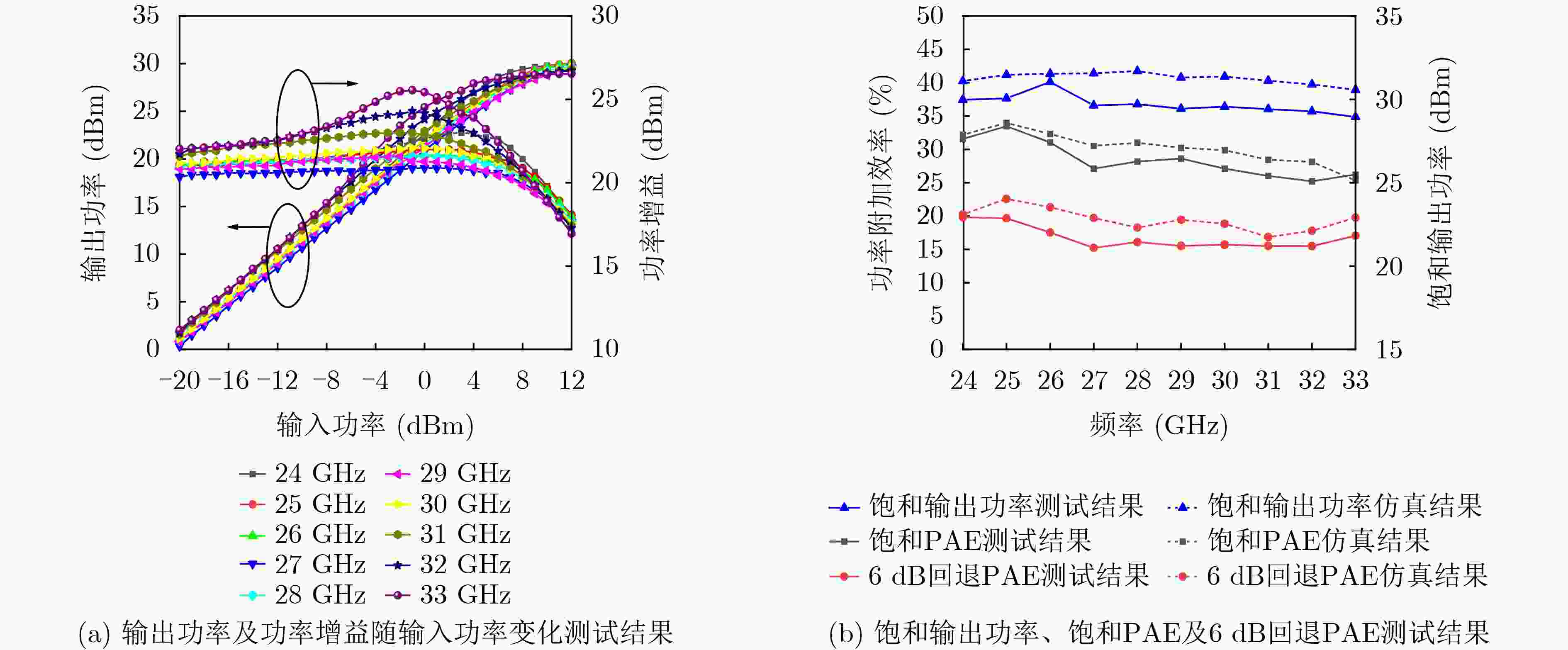

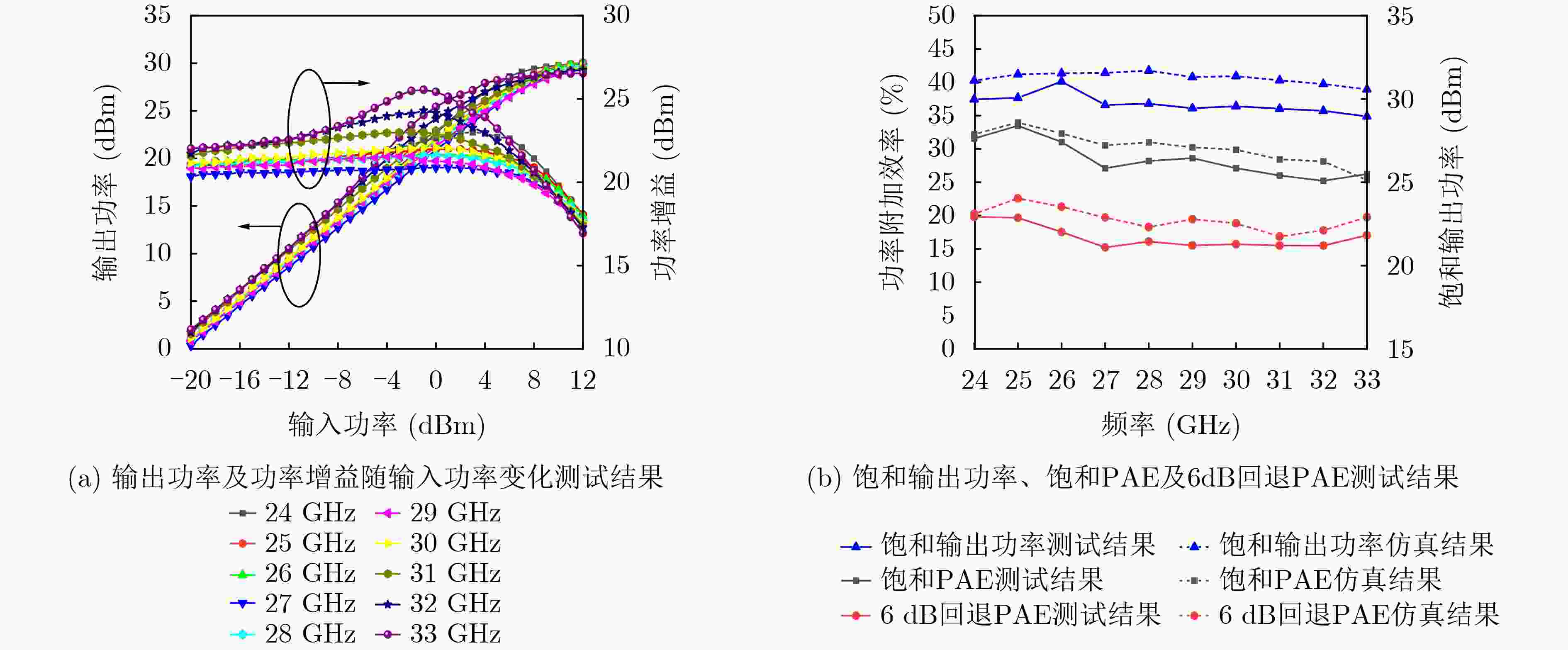

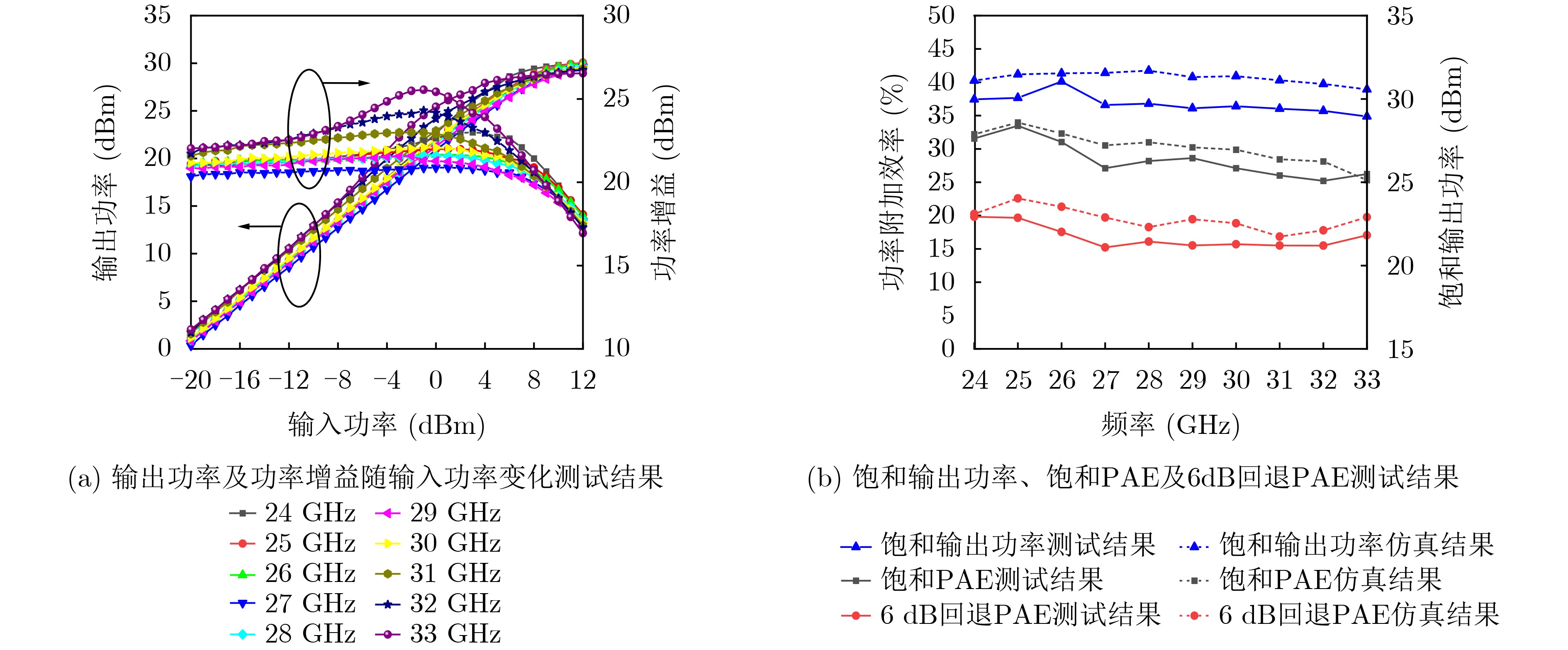

图 9 芯片输出功率及功率增益随输入功率变化、饱和输出功率、饱和PAE及6dB回退PAE测试结果

下载: 全尺寸图片幻灯片

表 1 与目前报道的毫米波GaN DPA MMIC性能对比表

参考文献	频率 (GHz)	相对带宽(%)	级数	Psat (dBm)	增益 (dB)	PAE(%) @Psat	PAE(%)@ 6dB PBO	芯片面积(mm²)	年份	所采用工艺
[11]	24-28	15.4	2	36.8-38.1	16.4-20	29.7-36.8	18.6-32^a	7.44	2024	0.15um GaN
[15]	24-28	15.4	2	35.4-36	14.9-19.7	27.8-36.8	18.1-30.1	5.95	2022	0.15um GaN
[16]	24-30	22.2	2	31.6-32.7	9.8-14.9	20-27.6	18.2-22.4	6.3	2025	0.12um GaN
[17]	24-29	18.9	2	34.8-36.1	15.7-19.5	25-31.7	19-24.8	5.32	2024	0.15um GaN
[18]	28-29.5	5.2	3	34.6	13	24	21	11.78	2024	0.15um GaN
[19]	29.1	-	1	30	9	44	28	5.38	2022	0.15um GaN
本文	24-33	31.6	3	28.9-31.0	21.8-23.8	25.2-33.5	15.5-19.8	4.05	2026	0.15um GaN
注：a:8dB回退效率

下载: 导出CSV

参考文献(19)

[1]	王雪, 孟姝宇, 钱志鸿. 面向6G全域融合的智能接入关键技术综述[J]. 电子与信息学报, 2024, 46(5): 1613–1631. doi: 10.11999/JEIT231224. WANG Xue, MENG Shuyu, and QIAN Zhihong. An overview of key technologies for intelligent access toward 6G full-domain convergence[J]. Journal of Electronics & Information Technology, 2024, 46(5): 1613–1631. doi: 10.11999/JEIT231224.
[2]	FU Zihao, LI Mingxuan, MA T G, et al. Millimeter-wave GaAs ultra-wideband medium power amplifier and broadband high-power power amplifier for 5G/6G applications[J]. IEEE Journal on Emerging and Selected Topics in Circuits and Systems, 2024, 14(1): 111–121. doi: 10.1109/JETCAS.2024.3356010.
[3]	TANG Miao, WANG Xin, JIANG Yi, et al. Efficiency Enhancement of 5.8-GHz power amplifier using average power tracking for microwave power transmission[J]. IEEE Microwave and Wireless Technology Letters, 2025, 35(8): 1210–1213. doi: 10.1109/LMWT.2025.3567481.
[4]	AHMAD A Z, SHUKOOR M S, and RAWAT K. GaN MMIC-based fully integrated multioctave distributed power amplifiers for C-Ku band[J]. IEEE Microwave and Wireless Technology Letters, 2025, 35(11): 1831–1834. doi: 10.1109/LMWT.2025.3589729.
[5]	YAO Yao, SHI Weimin, PANG Jingzhou, et al. Design of a dual-input Doherty power amplifier with selectable output port[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2023, 70(4): 1405–1409. doi: 10.1109/TCSII.2022.3223928.
[6]	华均, 许高明, 陈景豪, 等. 等效跨导补偿的负载调制增强准理想Doherty射频功率放大器研究[J]. 电子与信息学报, 2026, 48(1): 429–435. doi: 10.11999/JEIT250789. HUA Jun, XU Gaoming, CHEN Jinghao, et al. Research on load modulation enhancement of quasi-ideal Doherty power amplifier with equivalent transconductance compensation[J]. Journal of Electronics & Information Technology, 2026, 48(1): 429–435. doi: 10.11999/JEIT250789.
[7]	CHEN Yifei, CHOI W, SHIN J, et al. Comprehensive analysis of coupled transmission lines for broadband high-efficiency Doherty power amplifiers[J]. IEEE Transactions on Microwave Theory and Techniques, 2025, 73(8): 4937–4953. doi: 10.1109/TMTT.2025.3546727.
[8]	IBRAHIM Y and NIKNEJAD A. A 23–28-GHz doherty power amplifier with a PVT insensitive power detection for adaptive biasing[J]. IEEE Solid-State Circuits Letters, 2025, 8: 41–44. doi: 10.1109/LSSC.2025.3528055.
[9]	FENG Jiahao, CHENG Tianyu, DONG Haitang, et al. A 25-to-34-GHz doherty power amplifier with reconfigurable output network[J]. IEEE Microwave and Wireless Technology Letters, 2025, 35(9): 1352–1355. doi: 10.1109/LMWT.2025.3569562.
[10]	REN Meng, GAO Ruibin, LIU Shuang, et al. Design of wideband Doherty power amplifier using inverse continuous class-F mode[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2024, 71(9): 4176–4180. doi: 10.1109/TCSII.2024.3379992.
[11]	LIU Ruijia, ZHU Xiaowei, XIA Jing, et al. A 24-to-28-GHz asymmetric GaN MMIC doherty power amplifier with 32% PAE at 8-dB back-off using optimal phase dispersion inverter[J]. IEEE Microwave and Wireless Technology Letters, 2024, 34(10): 1174–1177. doi: 10.1109/LMWT.2024.3450752.
[12]	SHI Weimin, SHI Wen, PENG Jun, et al. Design and analysis of continuous-mode Doherty power amplifier with second harmonic control[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2021, 68(7): 2247–2251. doi: 10.1109/TCSII.2021.3051734.
[13]	黄超意, 聂泽宁, 熊珉. 输入谐波相位控制的宽带高效率连续逆F类功率放大器[J]. 电子与信息学报, 2024, 46(8): 3428–3435. doi: 10.11999/JEIT231202. HUANG Chaoyi, NIE Zening, and XIONG Min. Broadband high-efficiency continuous inverse class-F power amplifier based on input harmonic phase control[J]. Journal of Electronics & Information Technology, 2024, 46(8): 3428–3435. doi: 10.11999/JEIT231202.
[14]	ZHANG Xiaohan, GUO Hao, and CHI Taiyun. A millimeter-wave four-way Doherty power amplifier with over-GHz modulation bandwidth[J]. IEEE Journal of Solid-State Circuits, 2024, 59(12): 3898–3914. doi: 10.1109/JSSC.2024.3453321.
[15]	LIU Ruijia, ZHU Xiaowei, XIA Jing, et al. A 24–28-GHz GaN MMIC synchronous Doherty power amplifier with enhanced load modulation for 5G mm-wave applications[J]. IEEE Transactions on Microwave Theory and Techniques, 2022, 70(8): 3910–3922. doi: 10.1109/TMTT.2022.3176818.
[16]	LIU Ruijia, JIA Haoyang, QI Lin, et al. A 24-to-30-GHz GaN MMIC Doherty power amplifier using reduced peaking intrinsic output impedance for bandwidth extension[J]. IEEE Microwave and Wireless Technology Letters, 2025, 35(3): 362–365. doi: 10.1109/LMWT.2025.3528628.
[17]	LIU Ruijia, QI Lin, and ZHU Anding. A linearity-improved 24–29-GHz GaN MMIC Doherty power amplifier with reconfigurable self-adaptive peaking gate bias network[J]. IEEE Transactions on Microwave Theory and Techniques, 2024, 72(12): 6845–6856. doi: 10.1109/TMTT.2024.3409944.
[18]	GIOFRÈ R, PIACIBELLO A, CAMARCHIA V, et al. A two-way GaN doherty amplifier for 5G FR2 with extended back-off range[J]. IEEE Microwave and Wireless Technology Letters, 2024, 34(3): 314–317. doi: 10.1109/LMWT.2024.3350435.
[19]	ISHIKAWA R, SESHIMO T, TAKAYAMA Y, et al. A 28-GHz-band GaN HEMT MMIC Doherty power amplifier designed by load resistance division adjustment[C]. 2021 16th European Microwave Integrated Circuits Conference, London, United Kingdom, 2022: 241–244. doi: 10.23919/EuMIC50153.2022.9783948.
