A Dual-polarized Magnetoelectric Dipole Antenna Array with Differential Feeding
-

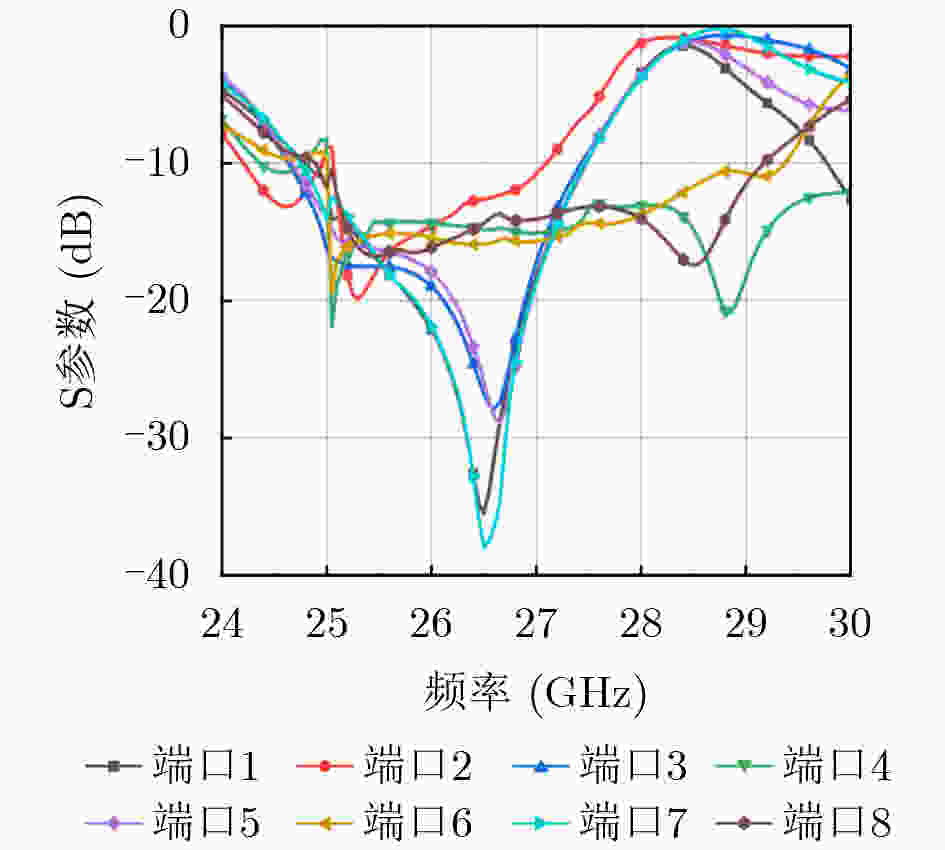

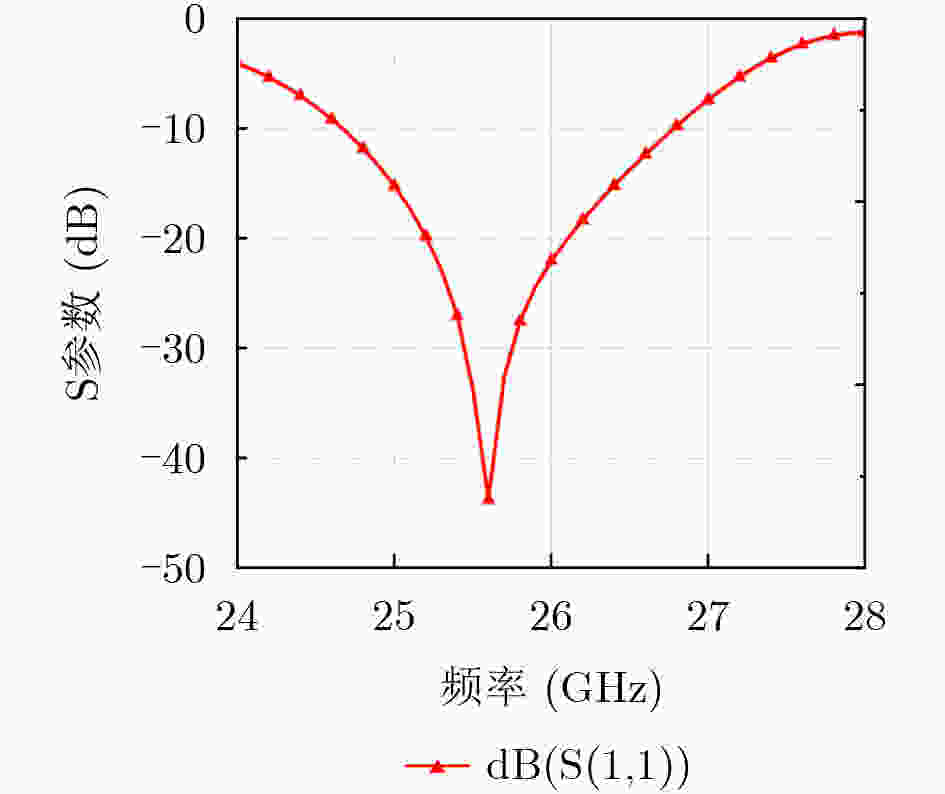

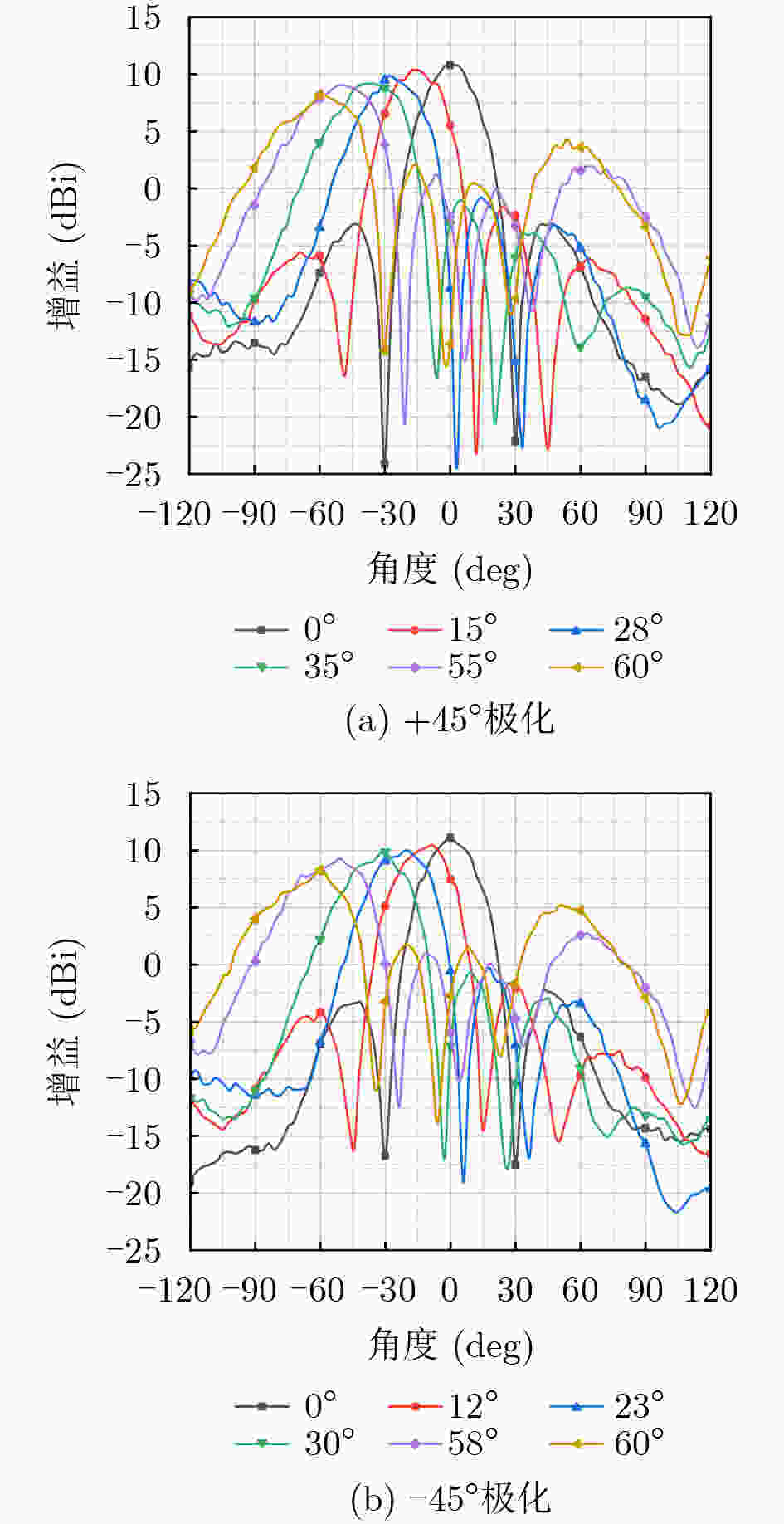

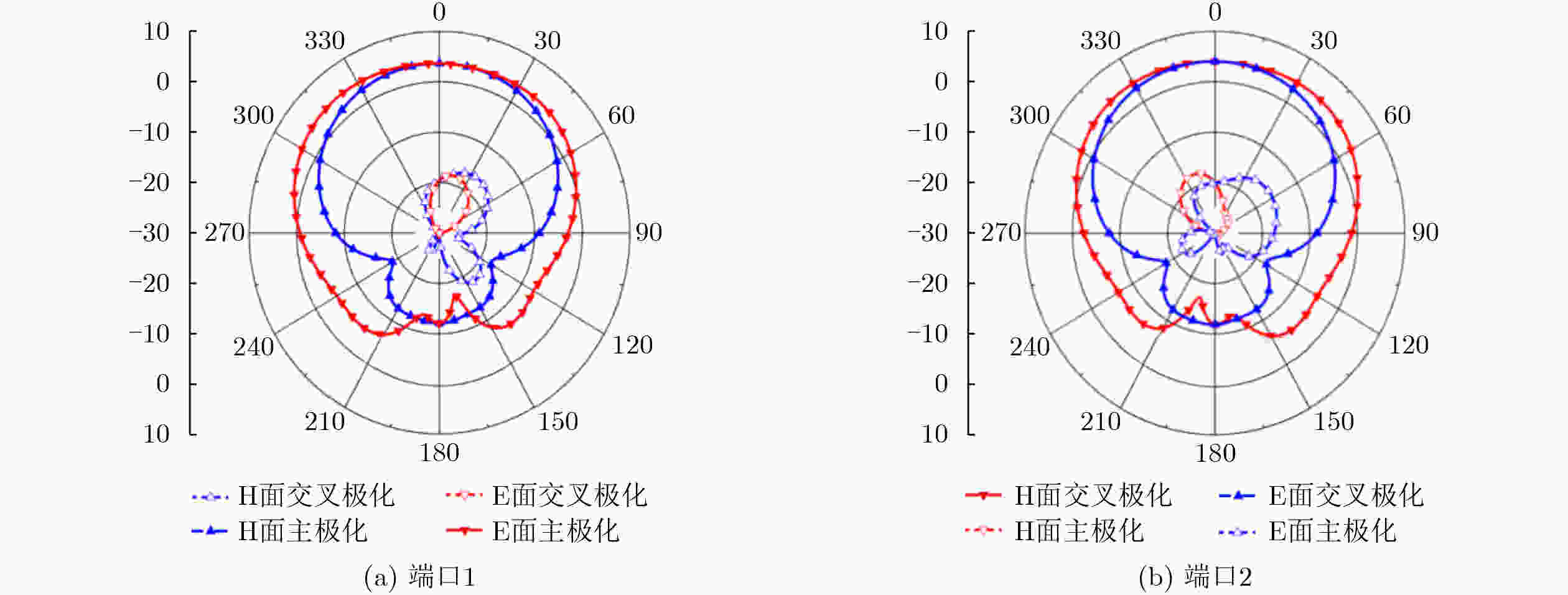

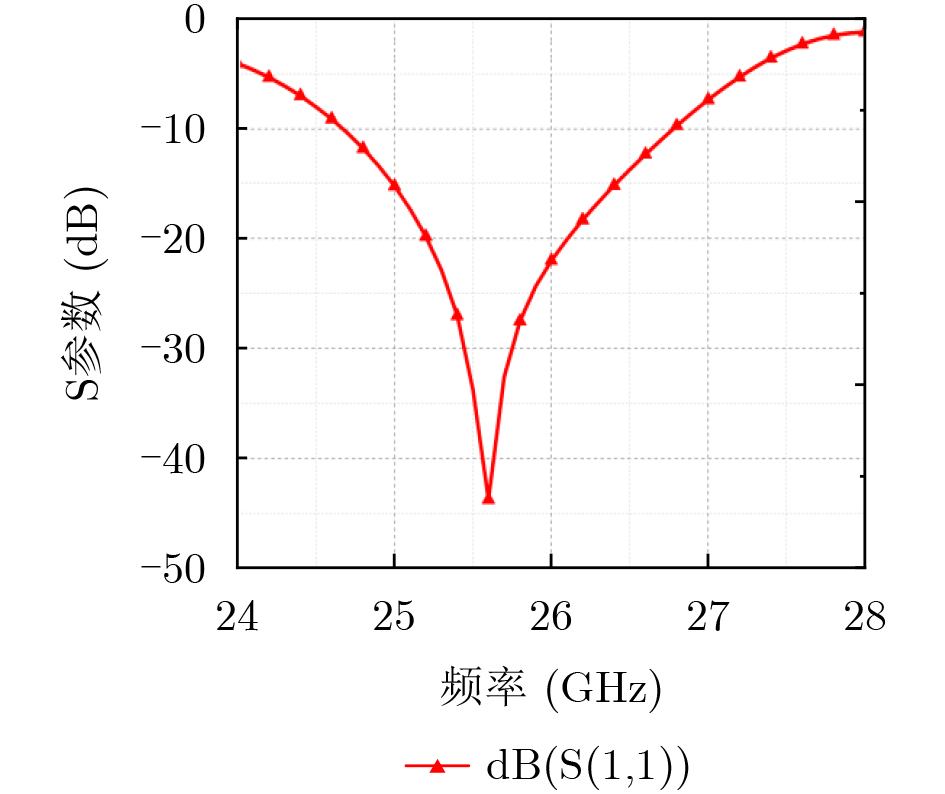

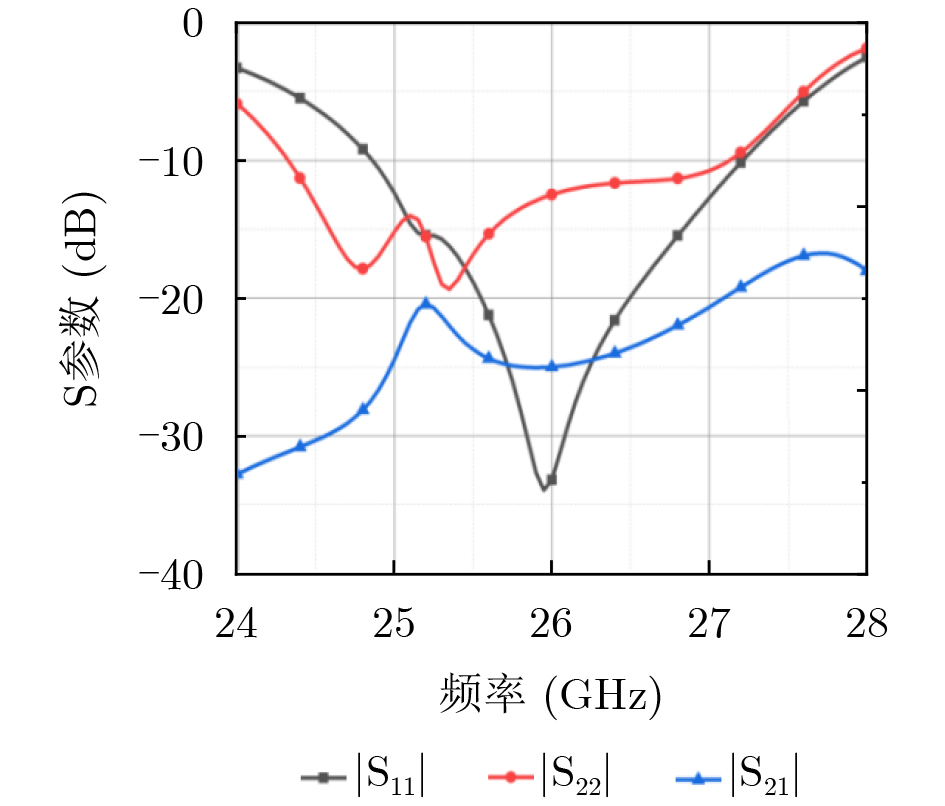

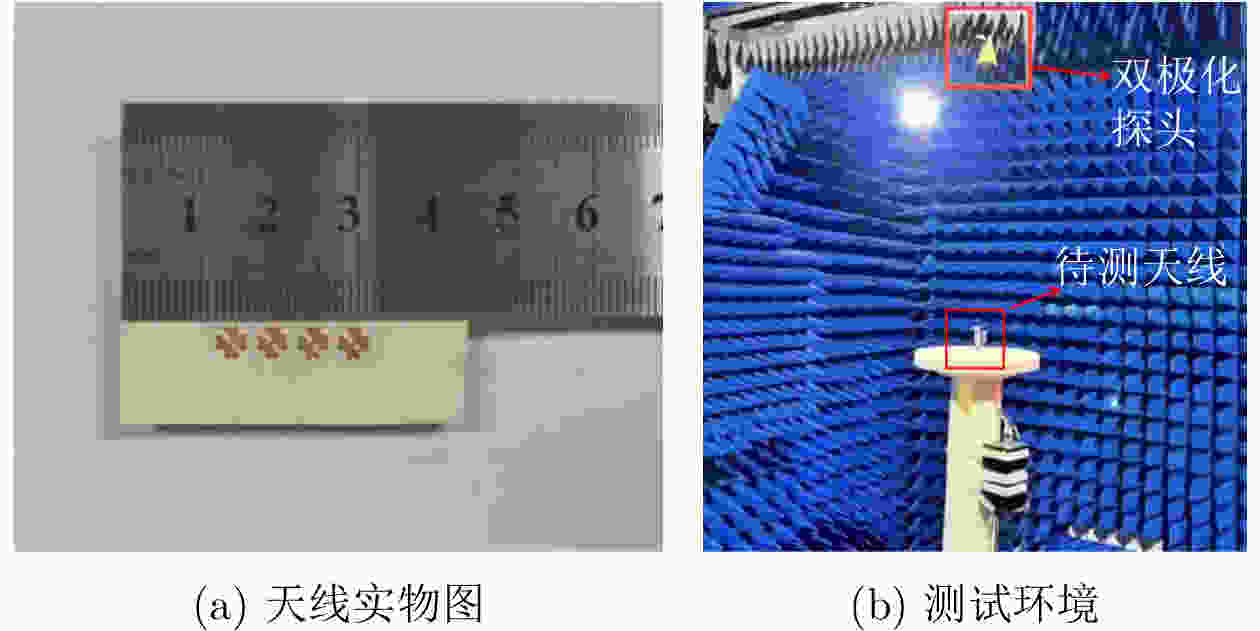

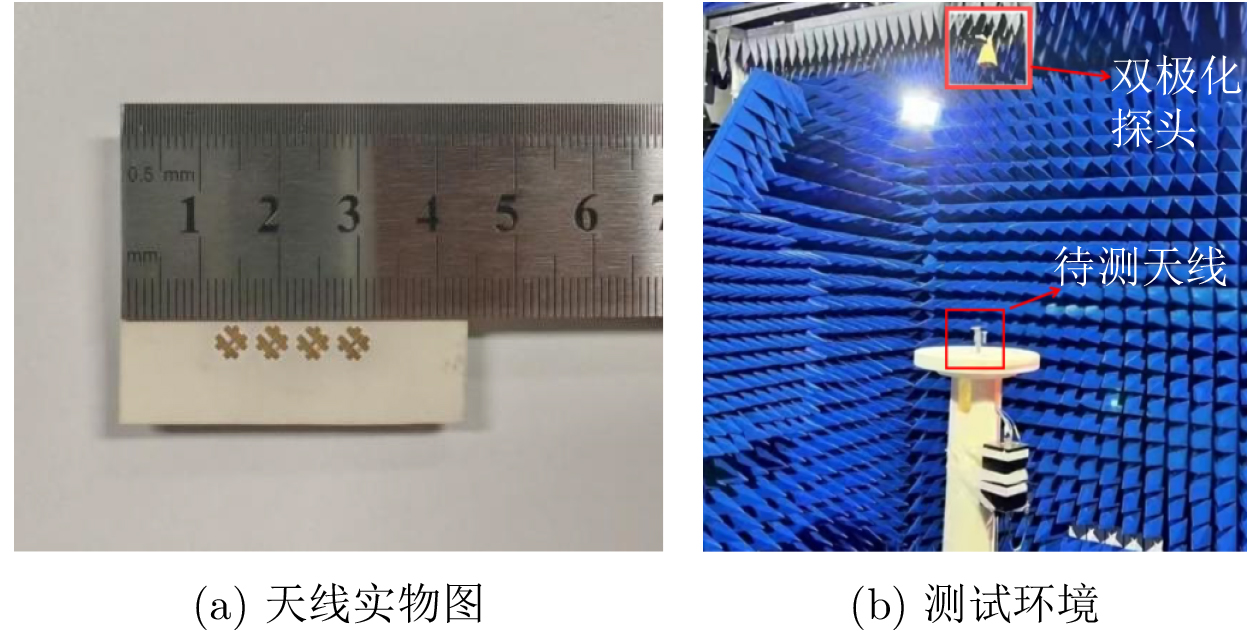

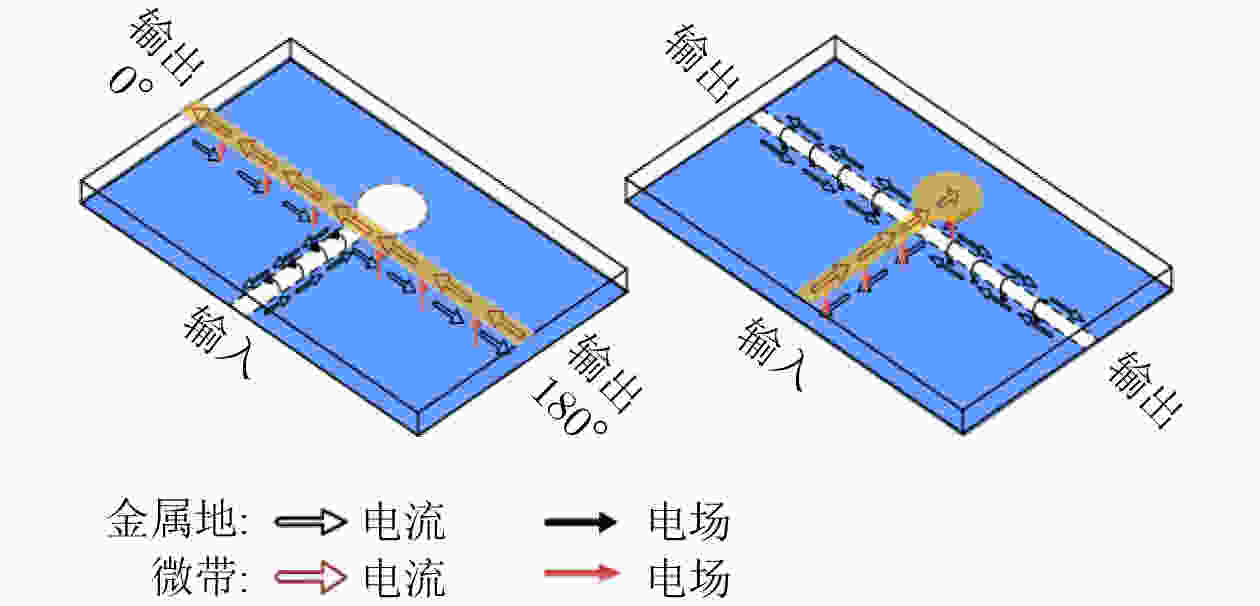

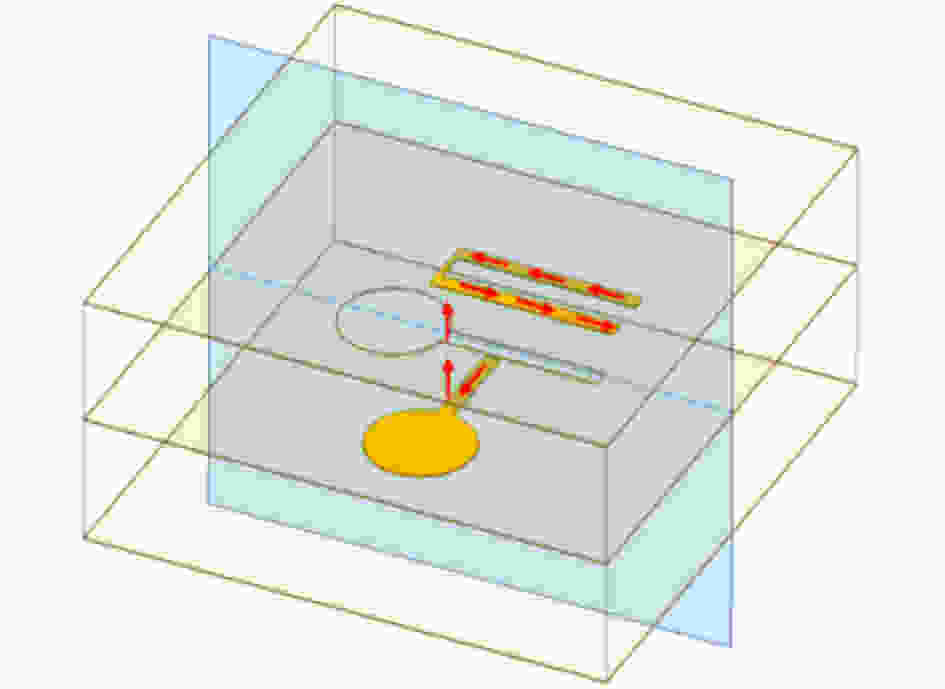

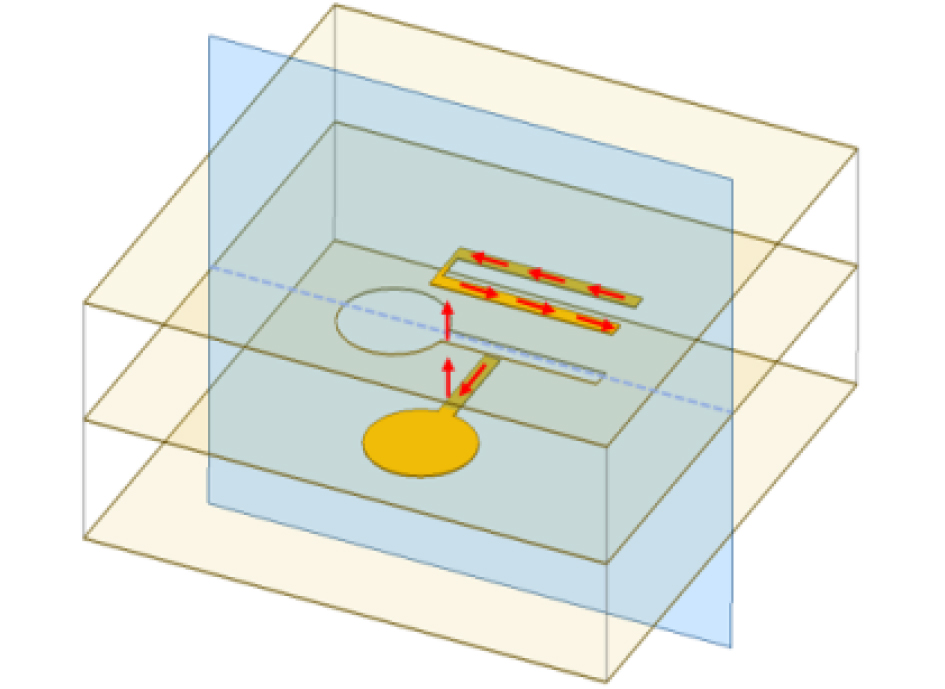

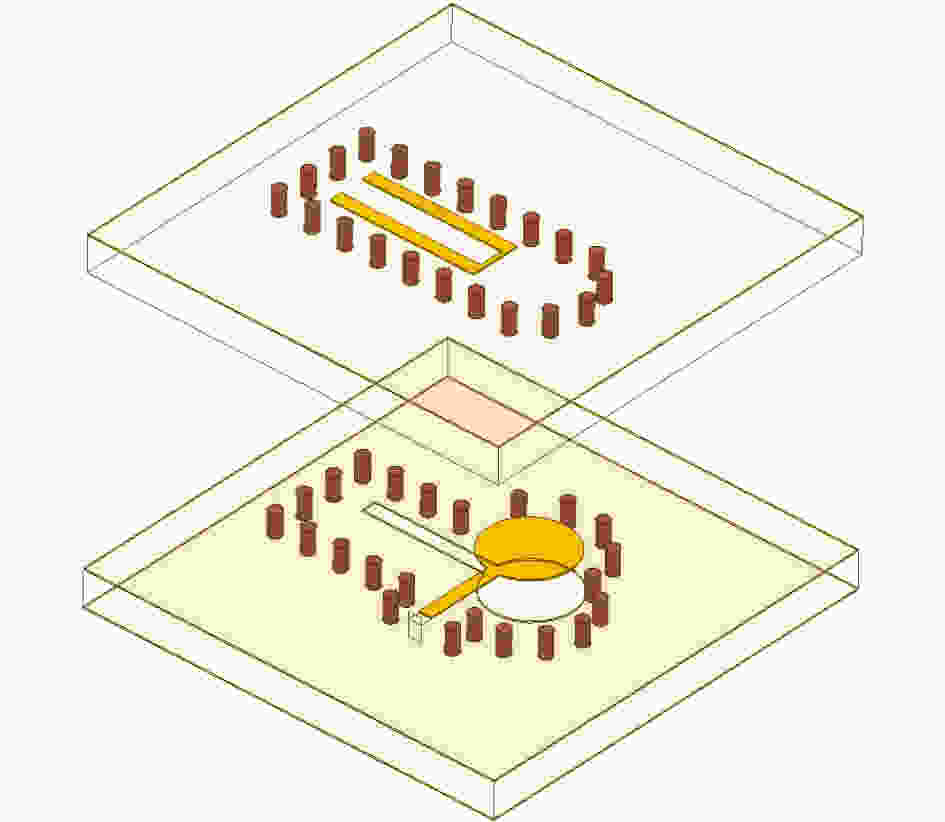

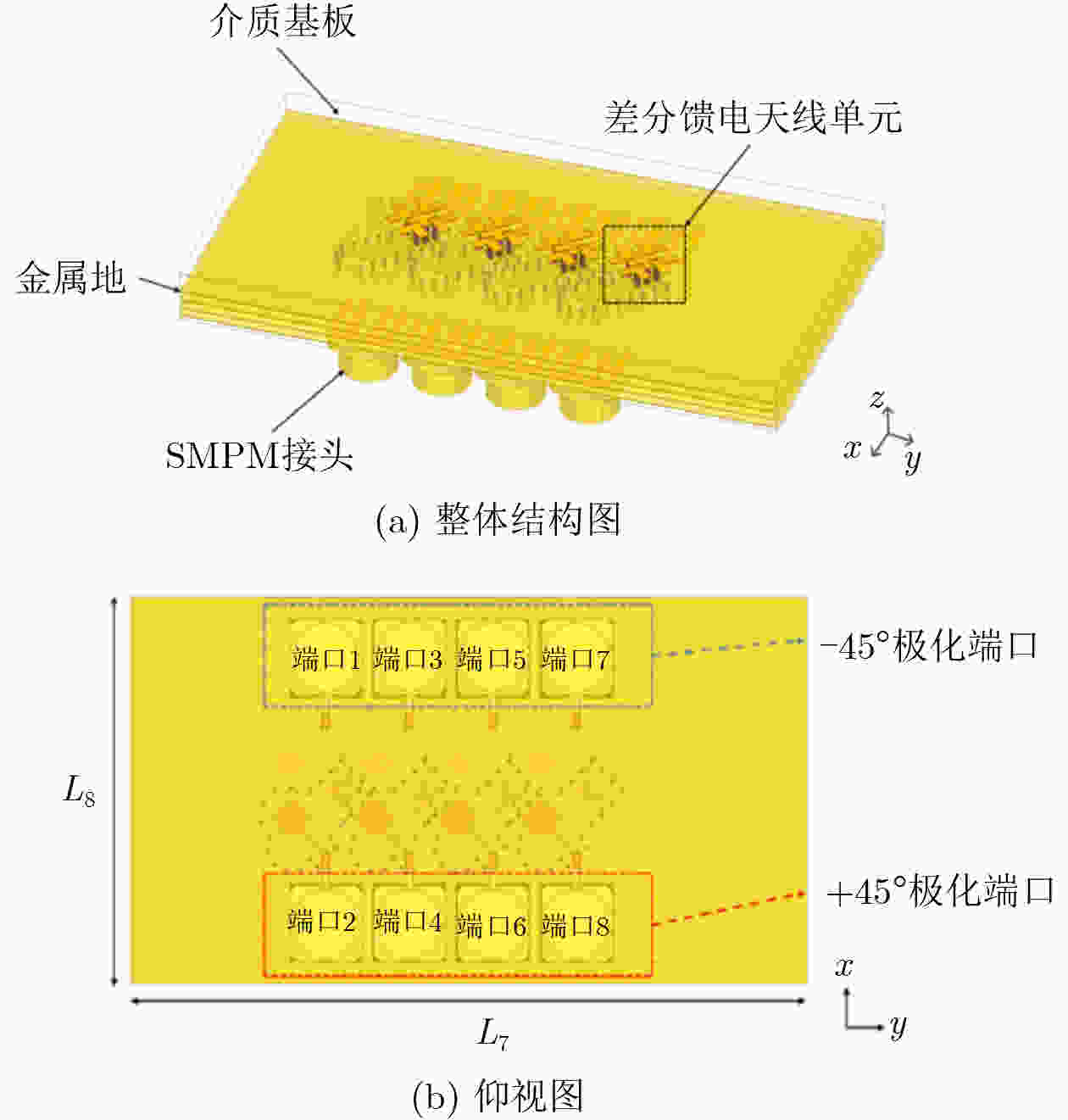

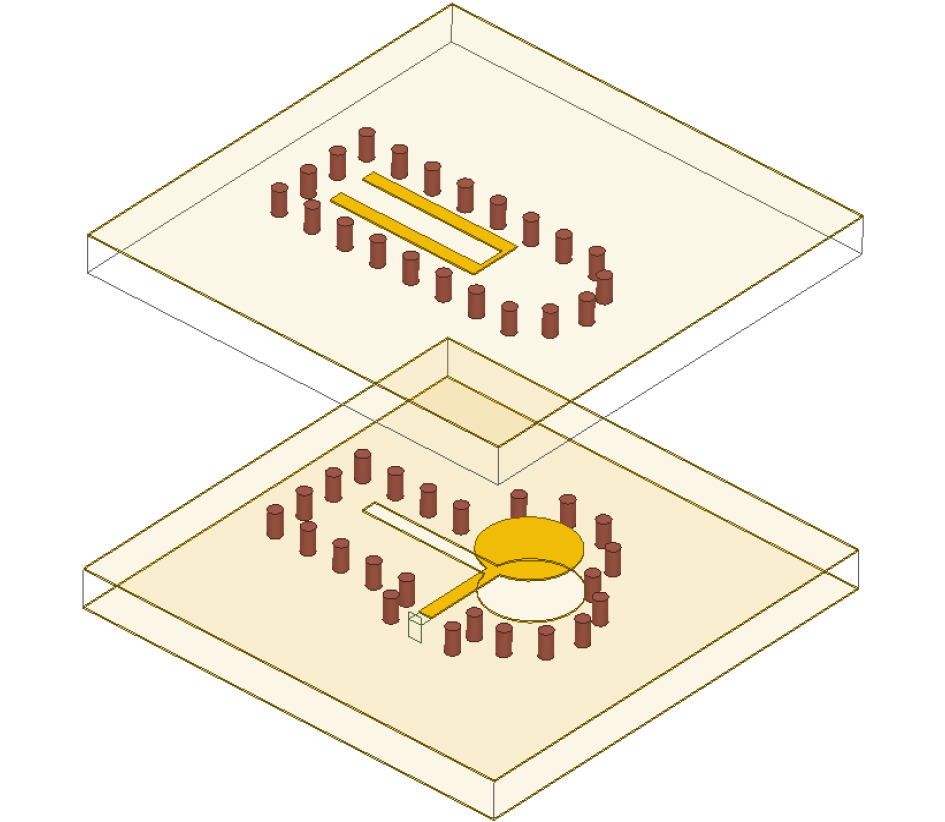

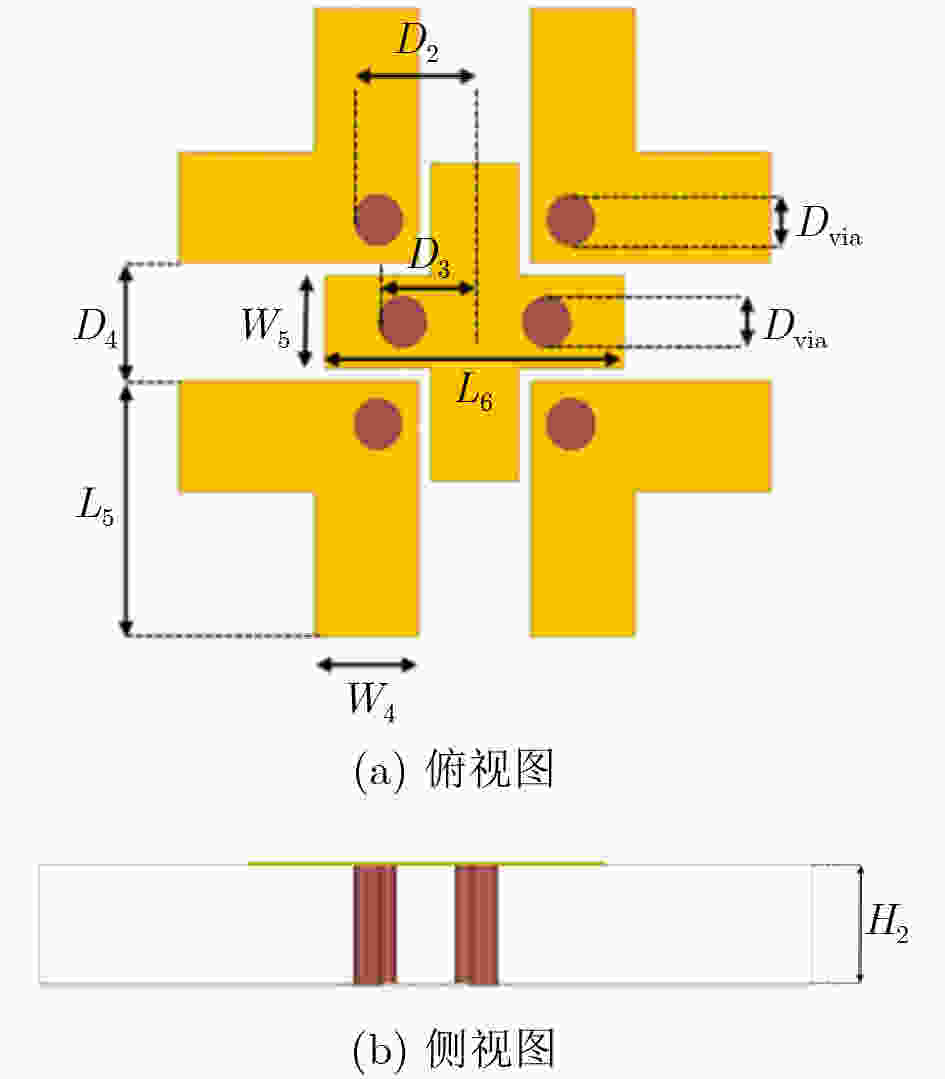

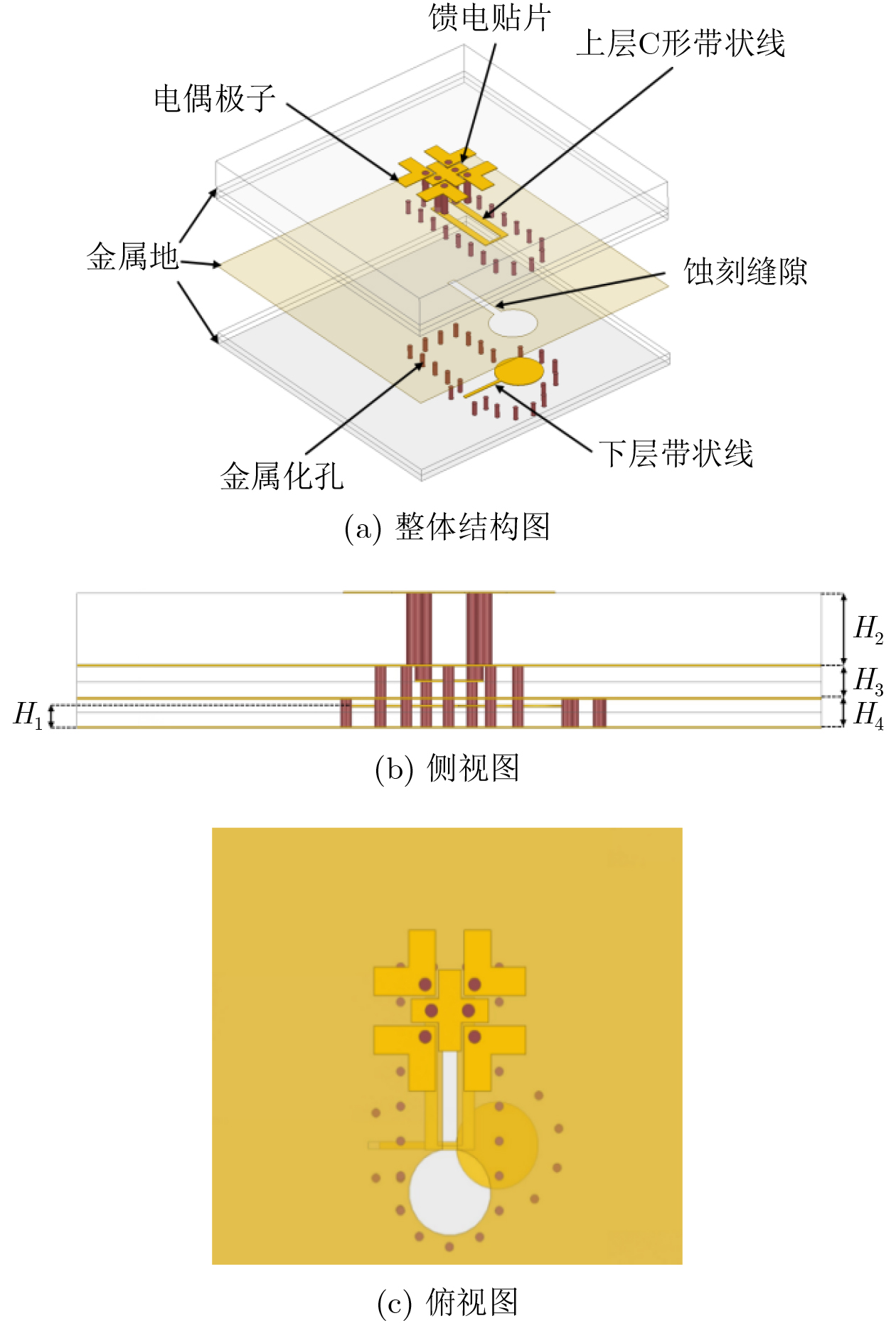

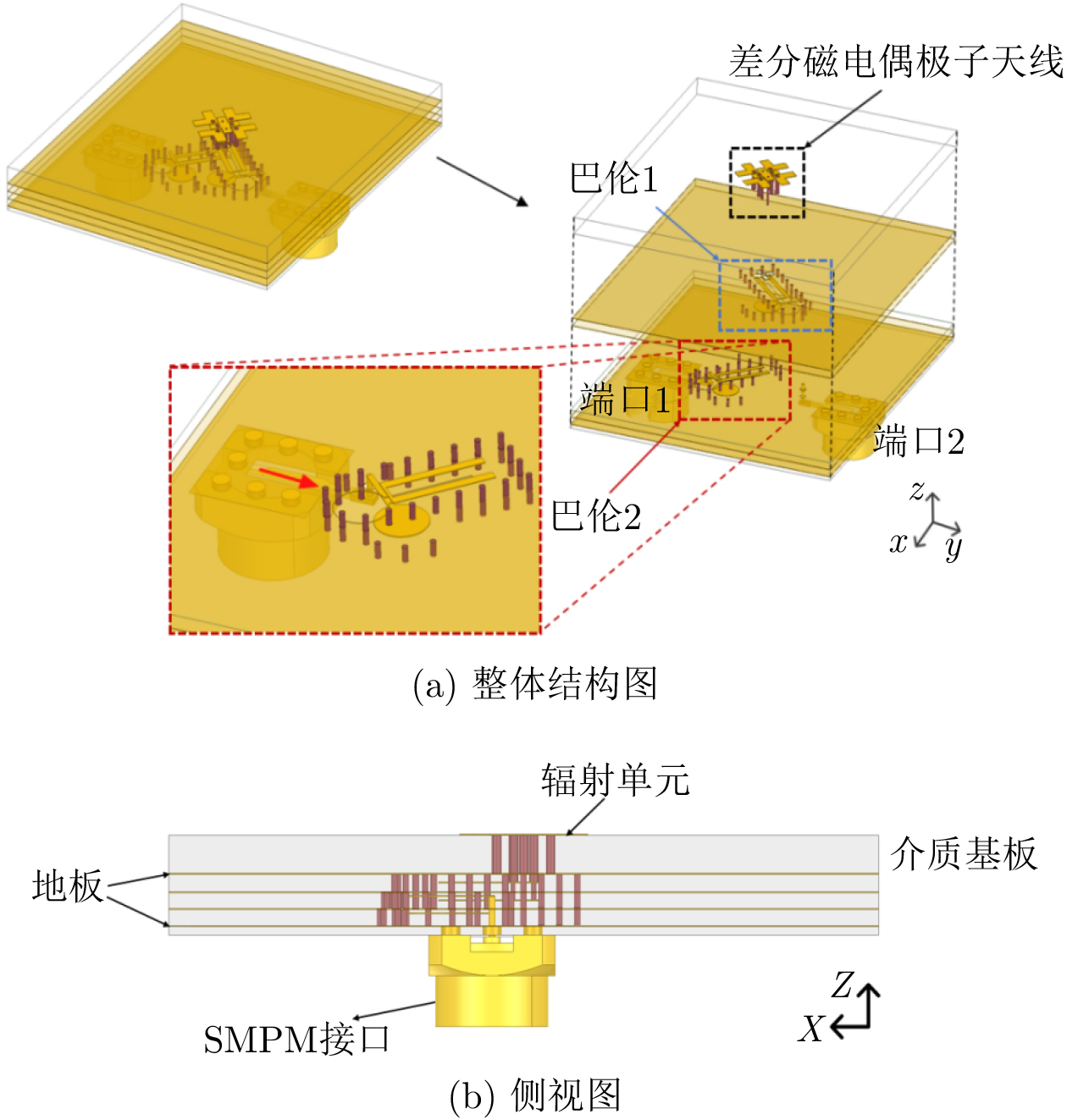

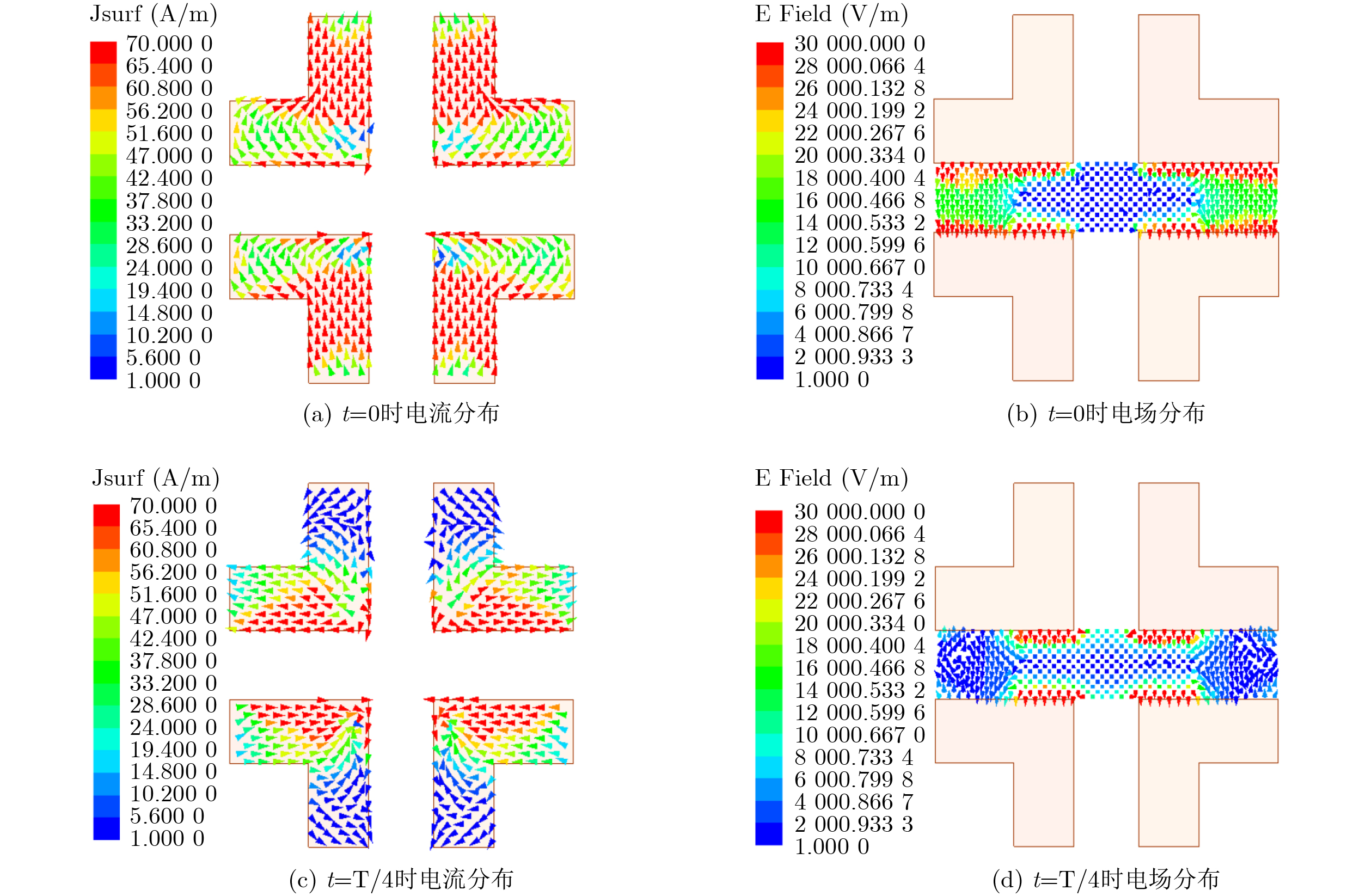

摘要: 随着5G毫米波通信系统对终端天线高增益、宽波束扫描及高信道容量的需求，本文针对兼具宽频带与稳定辐射特性的磁电偶极子天线，提出并设计了一种加载差分馈电的双极化天线阵列。旨在通过差分馈电结构抑制共模干扰、实现低交叉极化特性，并解决差分天线与单端射频电路的高效集成问题。本文首先设计了一种基于带状线-缝隙-带状线的叠层差分馈电巴伦。该巴伦采用T型缝隙-微带转换结构，实现了单端信号至差分信号的高效、宽带转换，为后续天线设计提供了良好的馈电基础。在此基础上，完成了单极化差分馈电磁电偶极子天线的设计与性能验证。进而，将研究扩展至双极化阵列。通过优化双极化差分馈电单元结构，并合理规划阵列排布，最终研制了一款1×4双极化差分馈电磁电偶极子天线阵列。该设计有效平衡了宽频带、宽角波束扫描与高集成度等多重性能指标。结果表明，所提出的阵列方案能够满足5G毫米波终端对高性能天线模组的要求，为相关工程应用提供了一种有效的技术路径。Abstract:

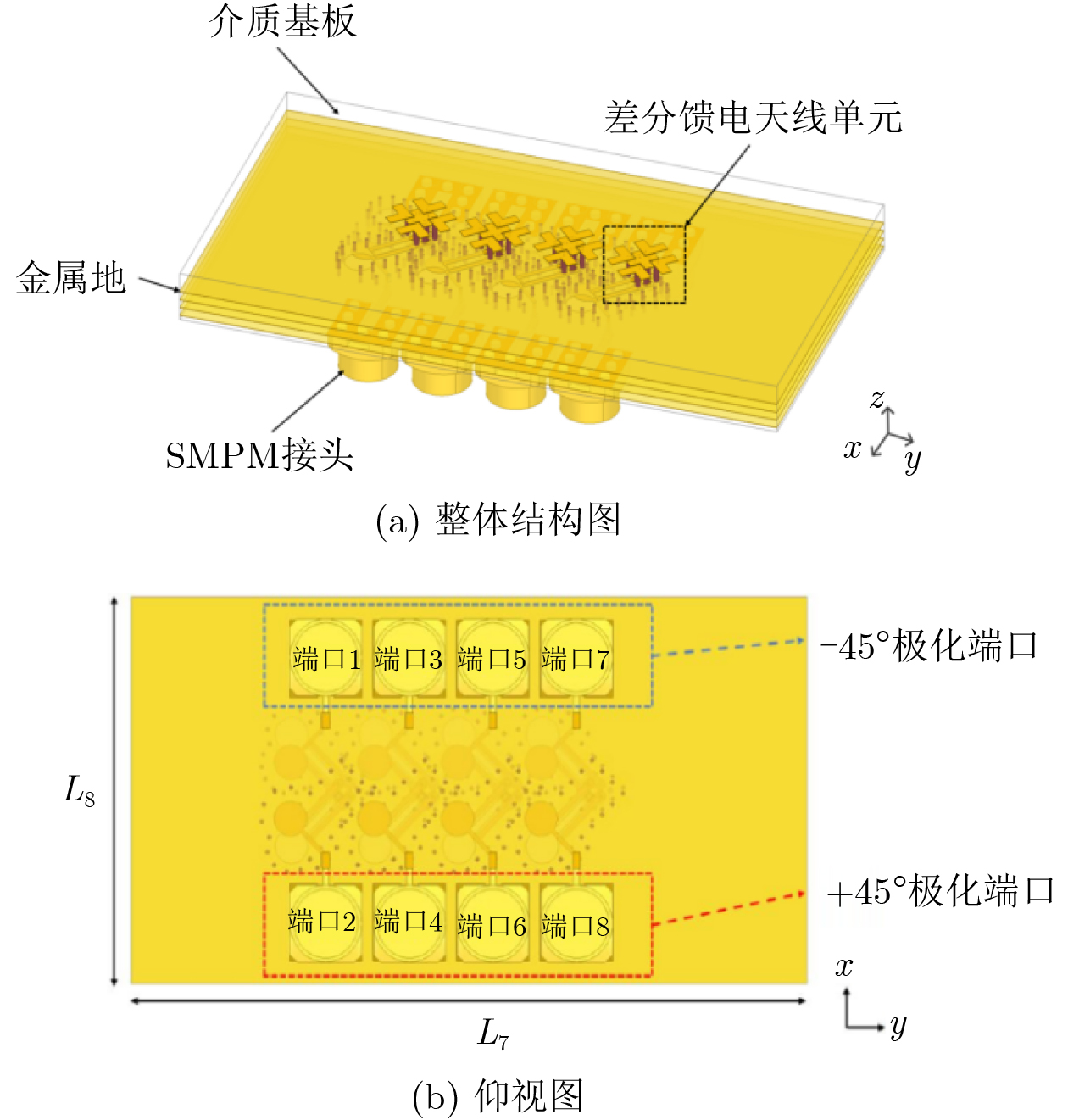

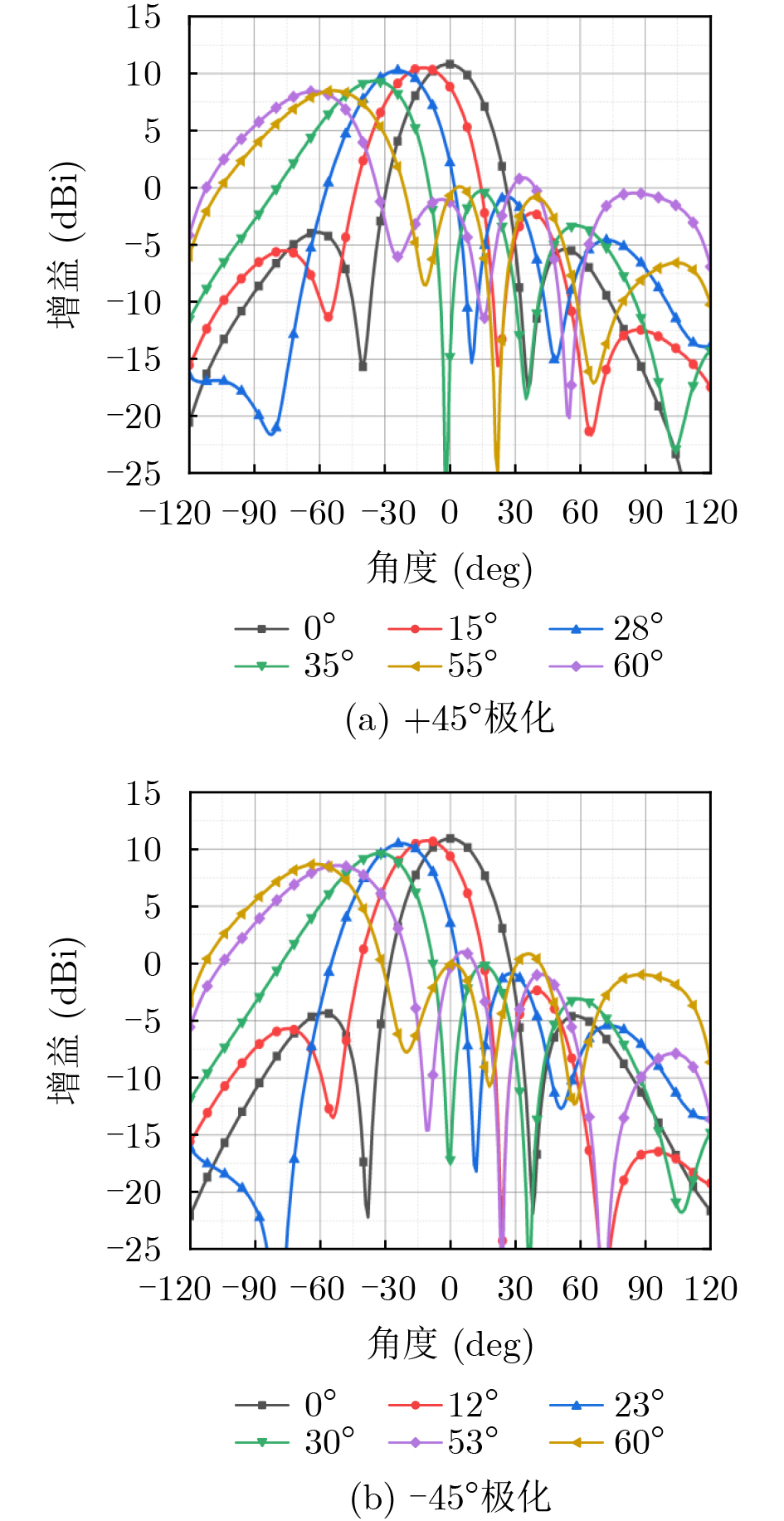

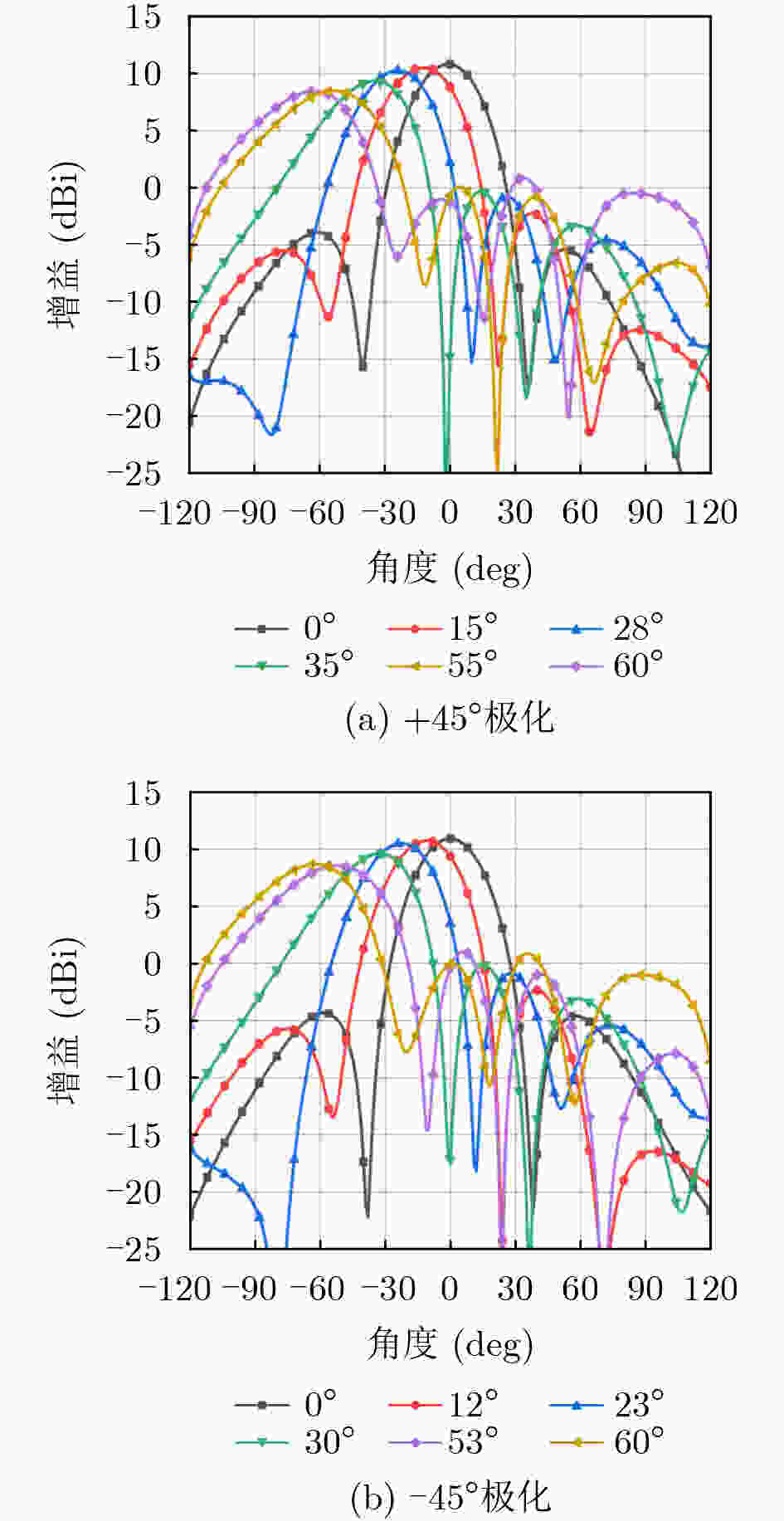

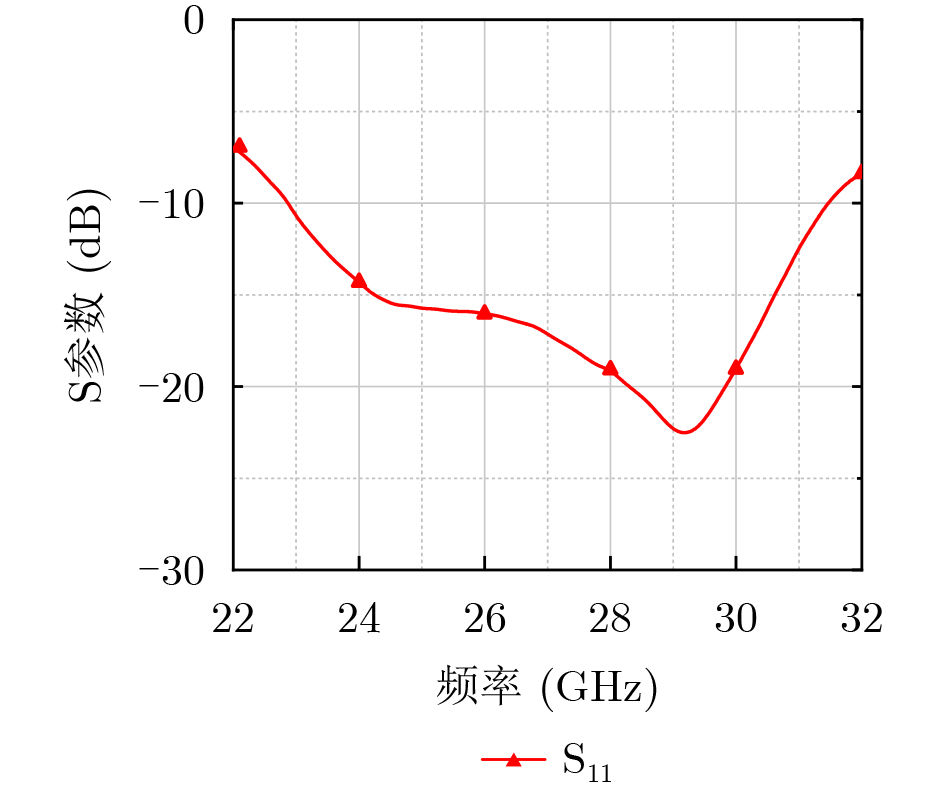

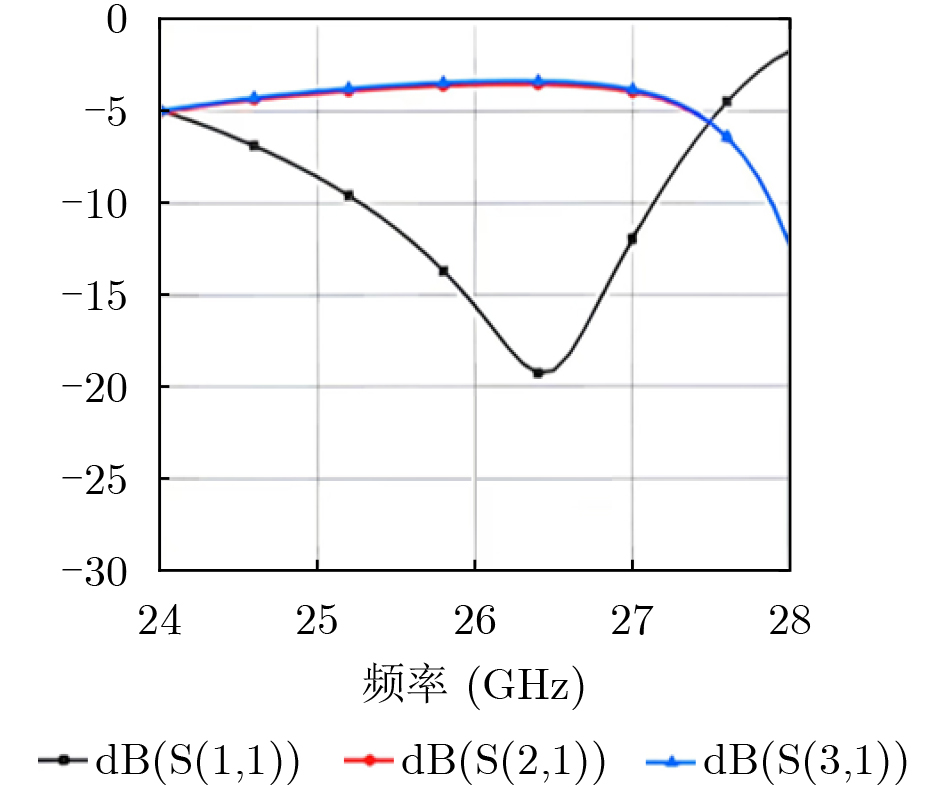

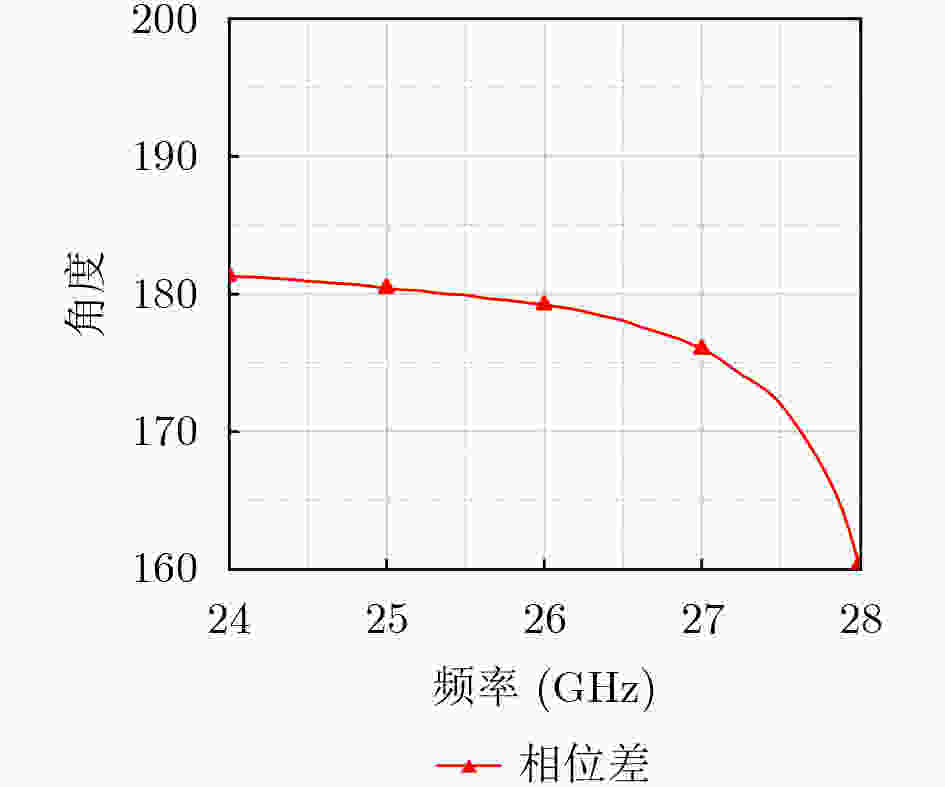

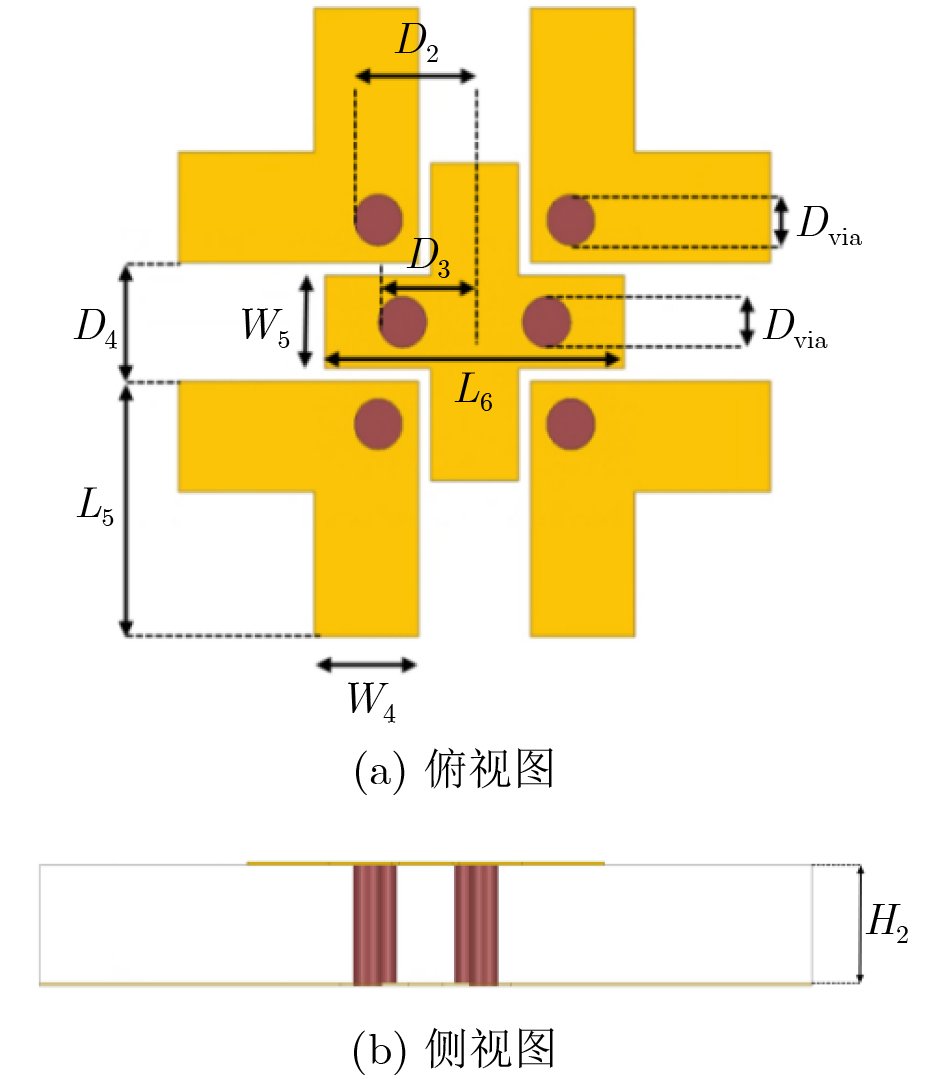

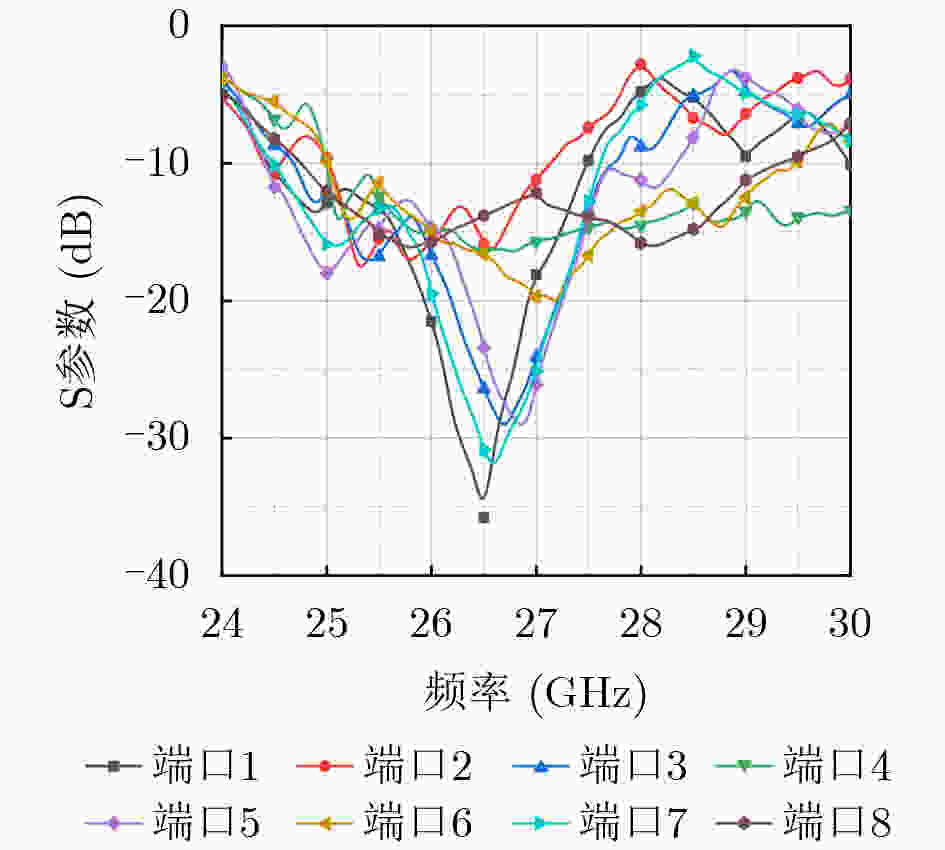

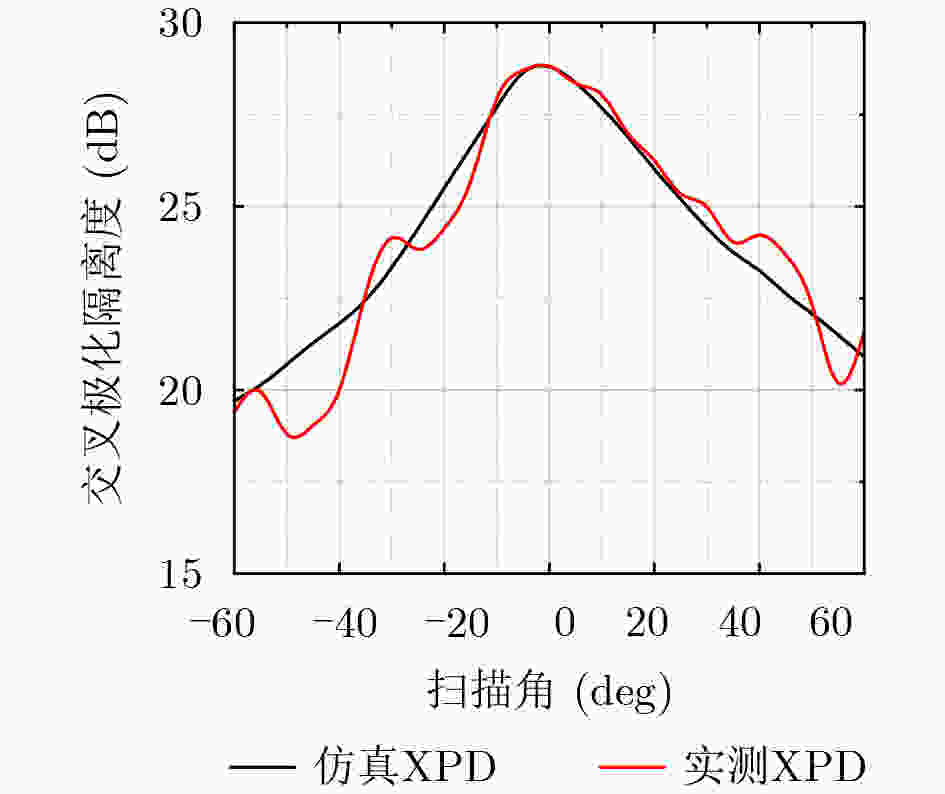

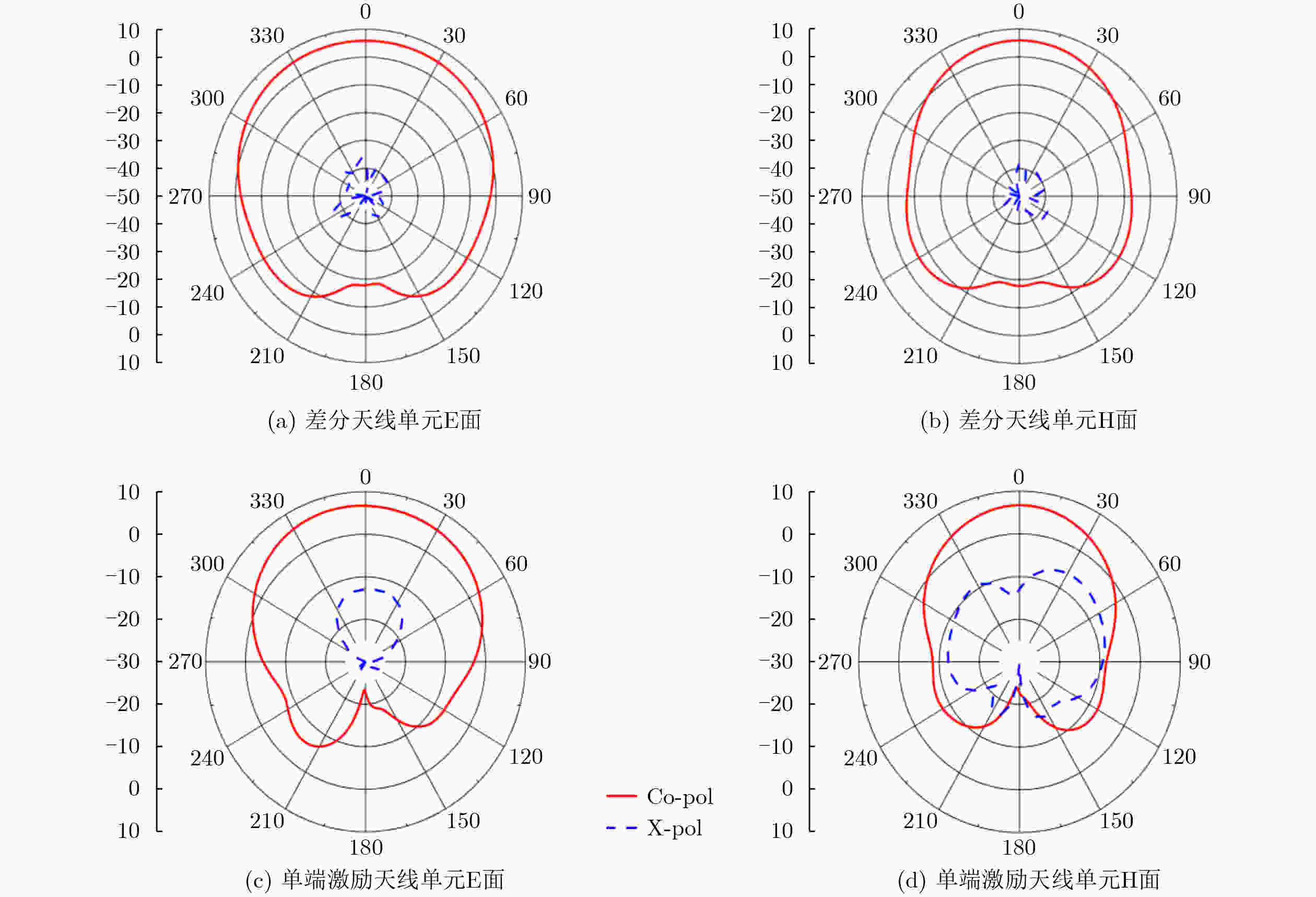

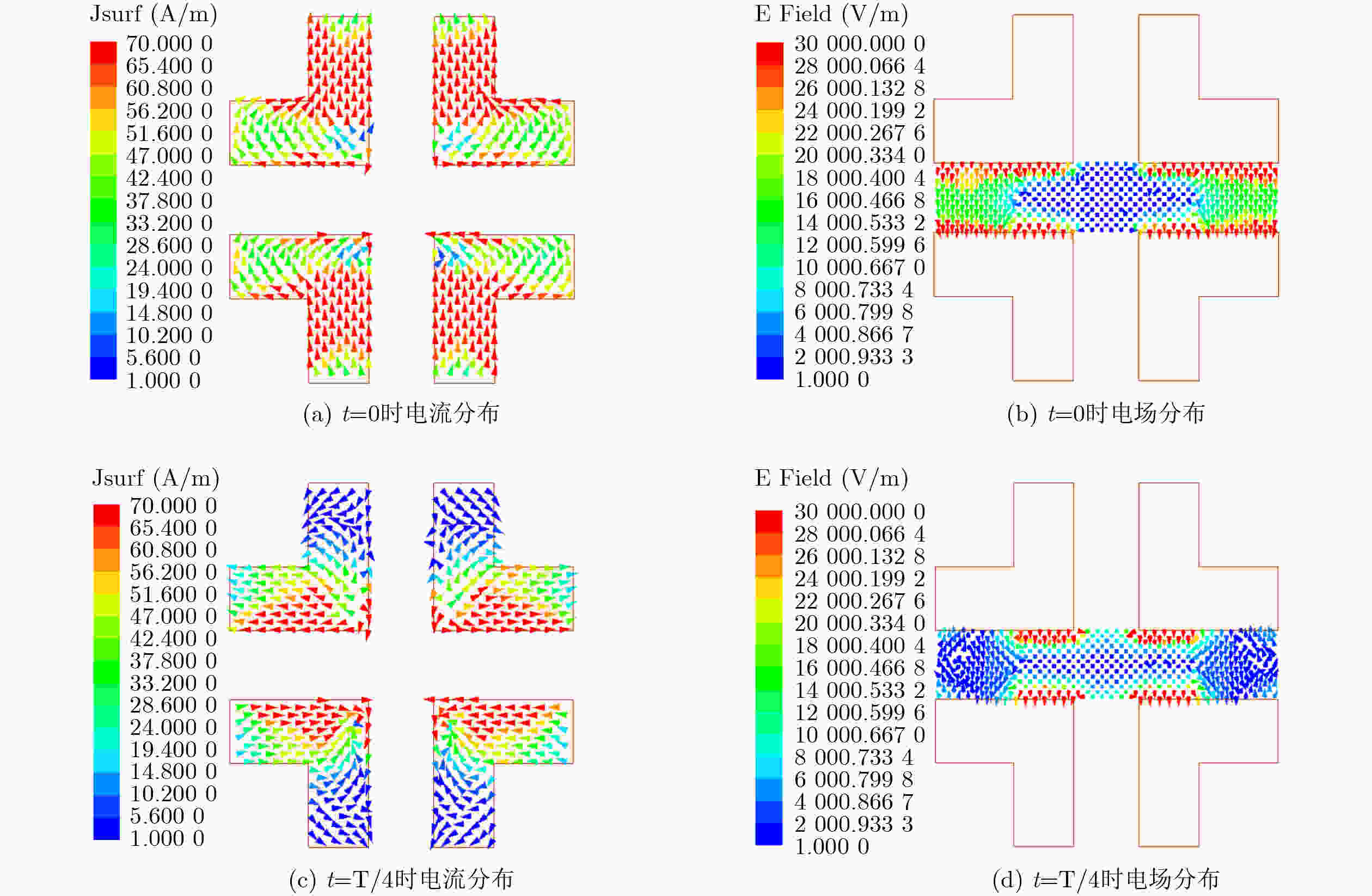

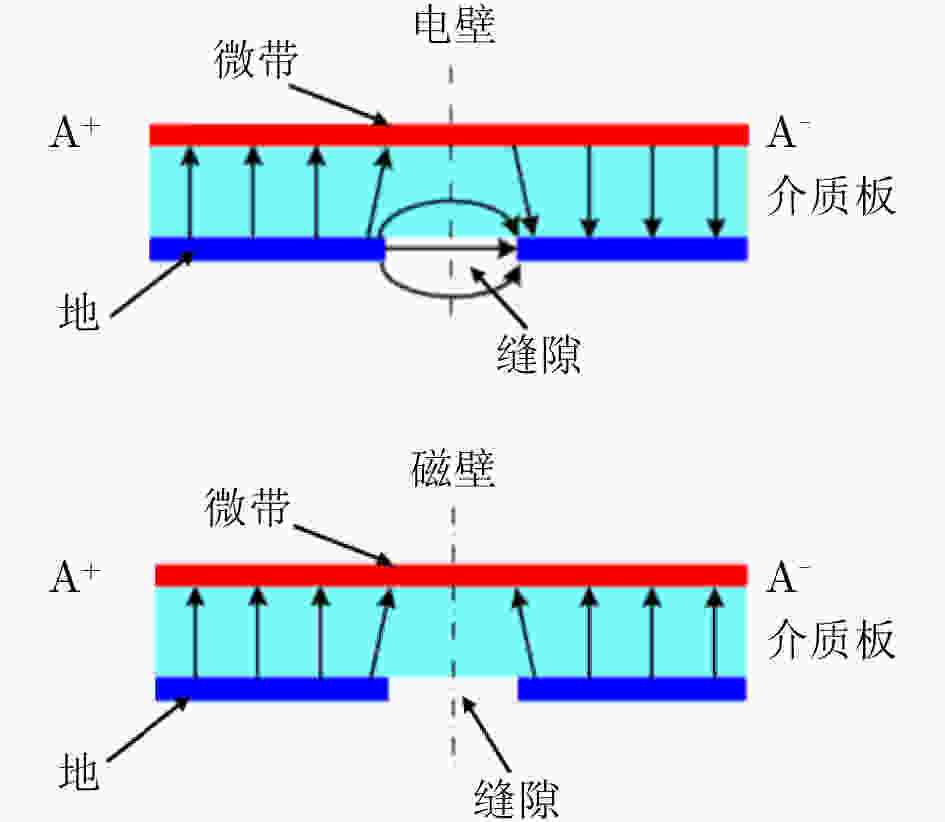

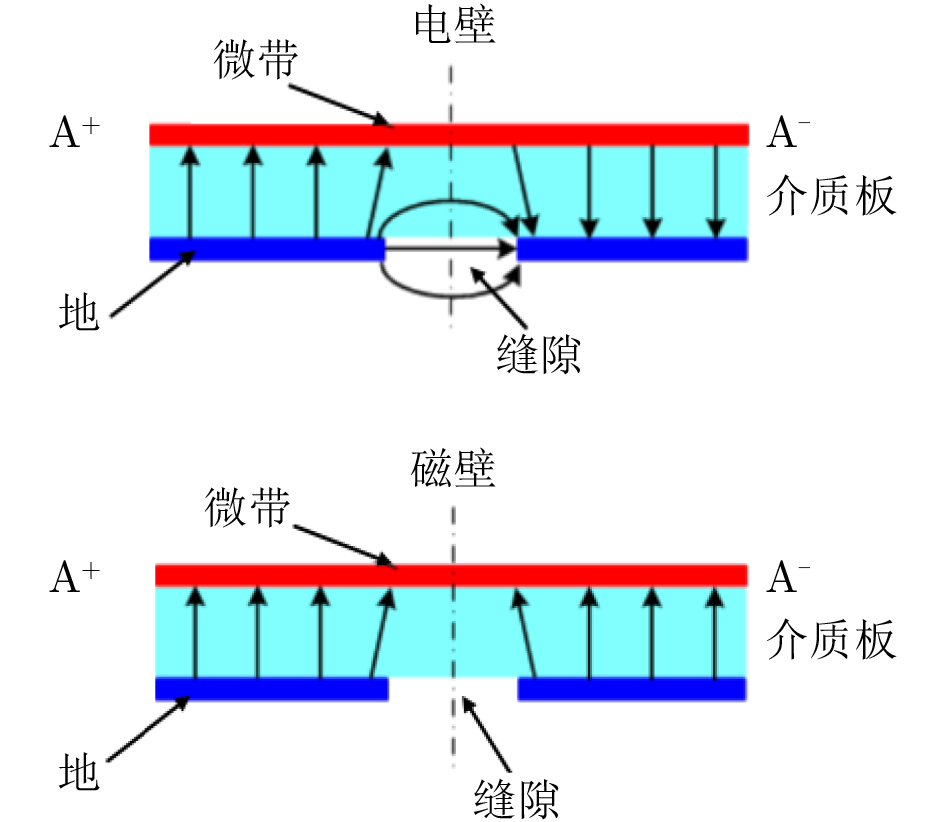

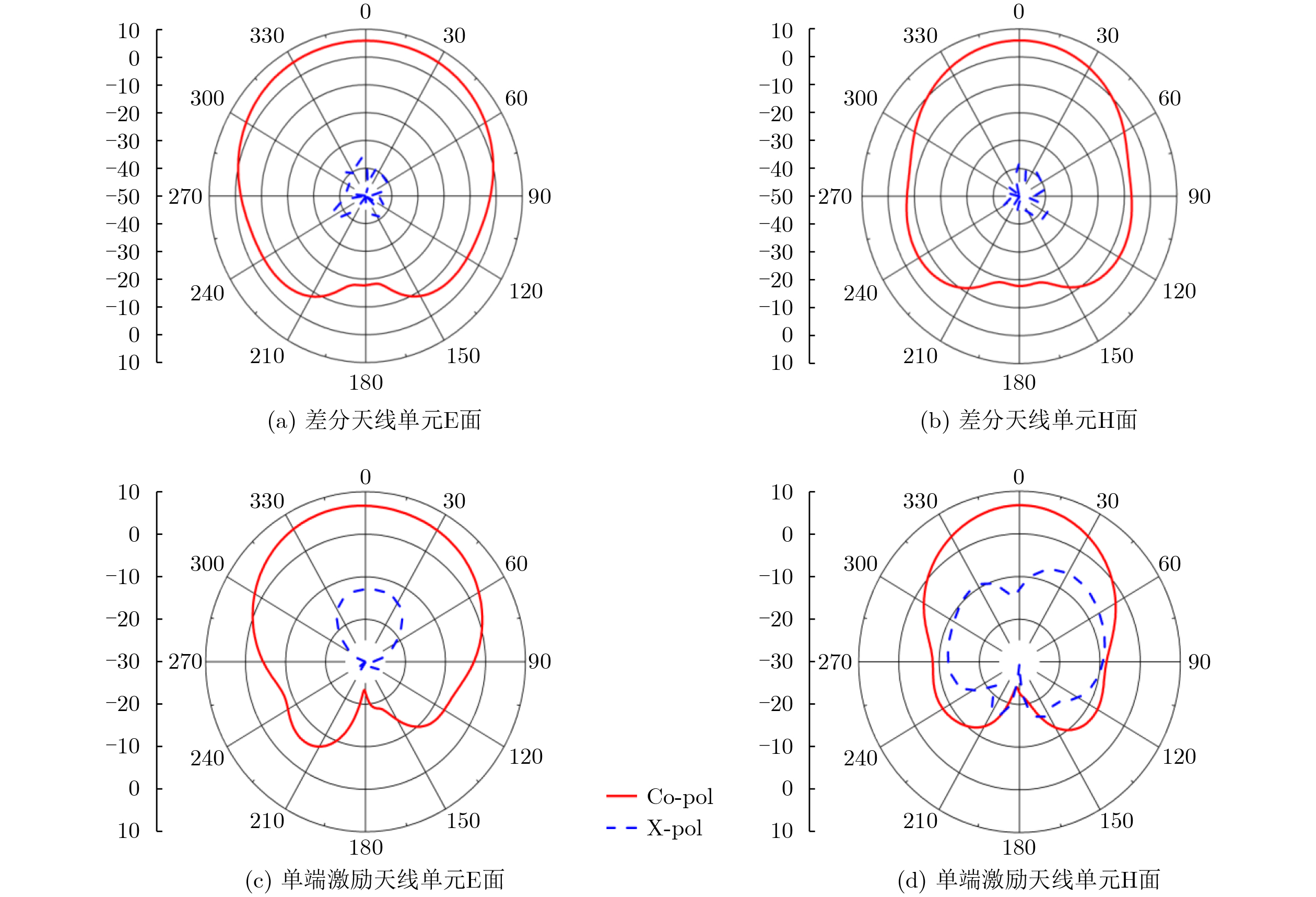

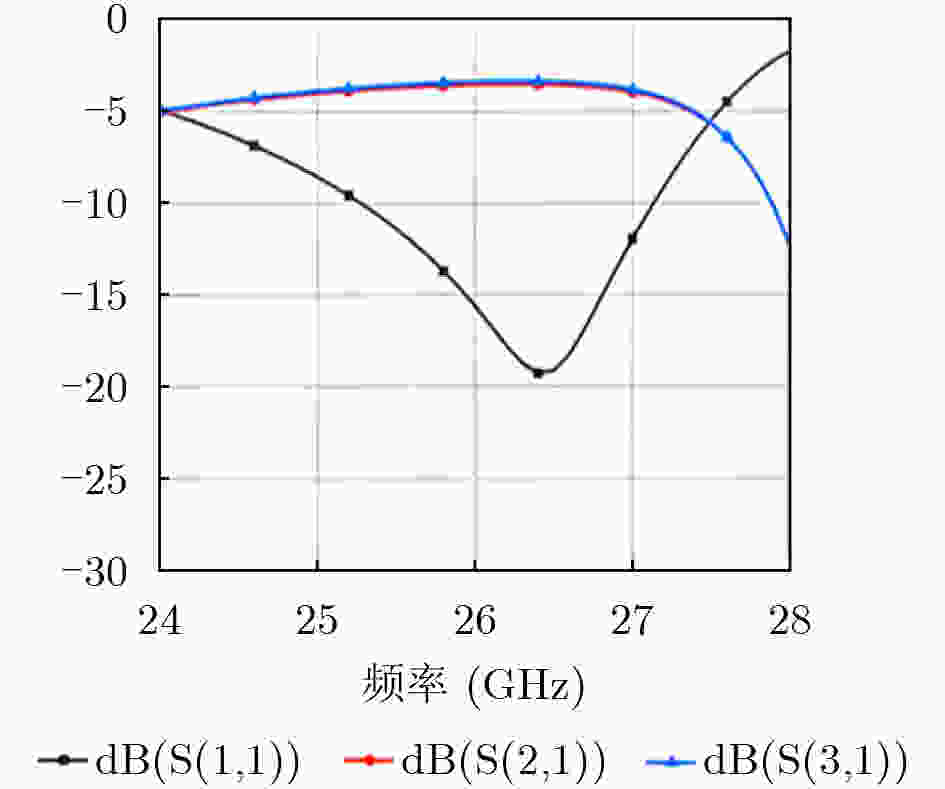

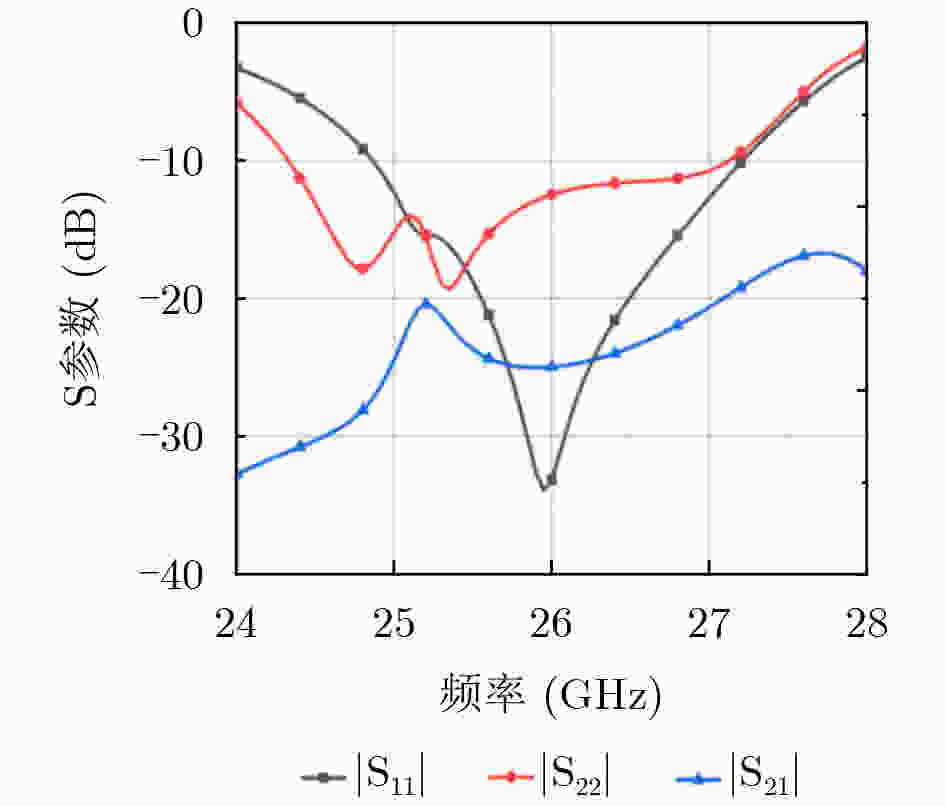

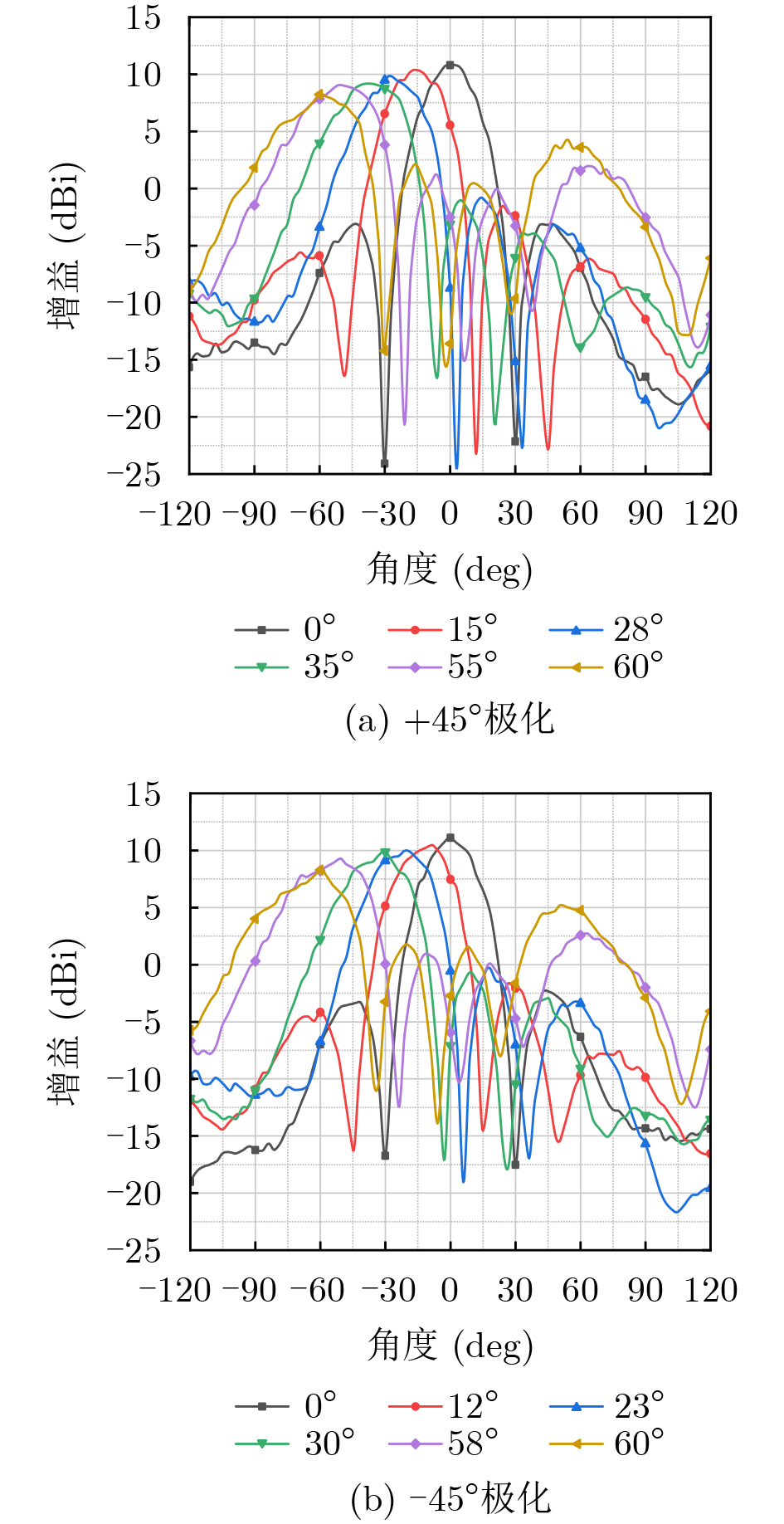

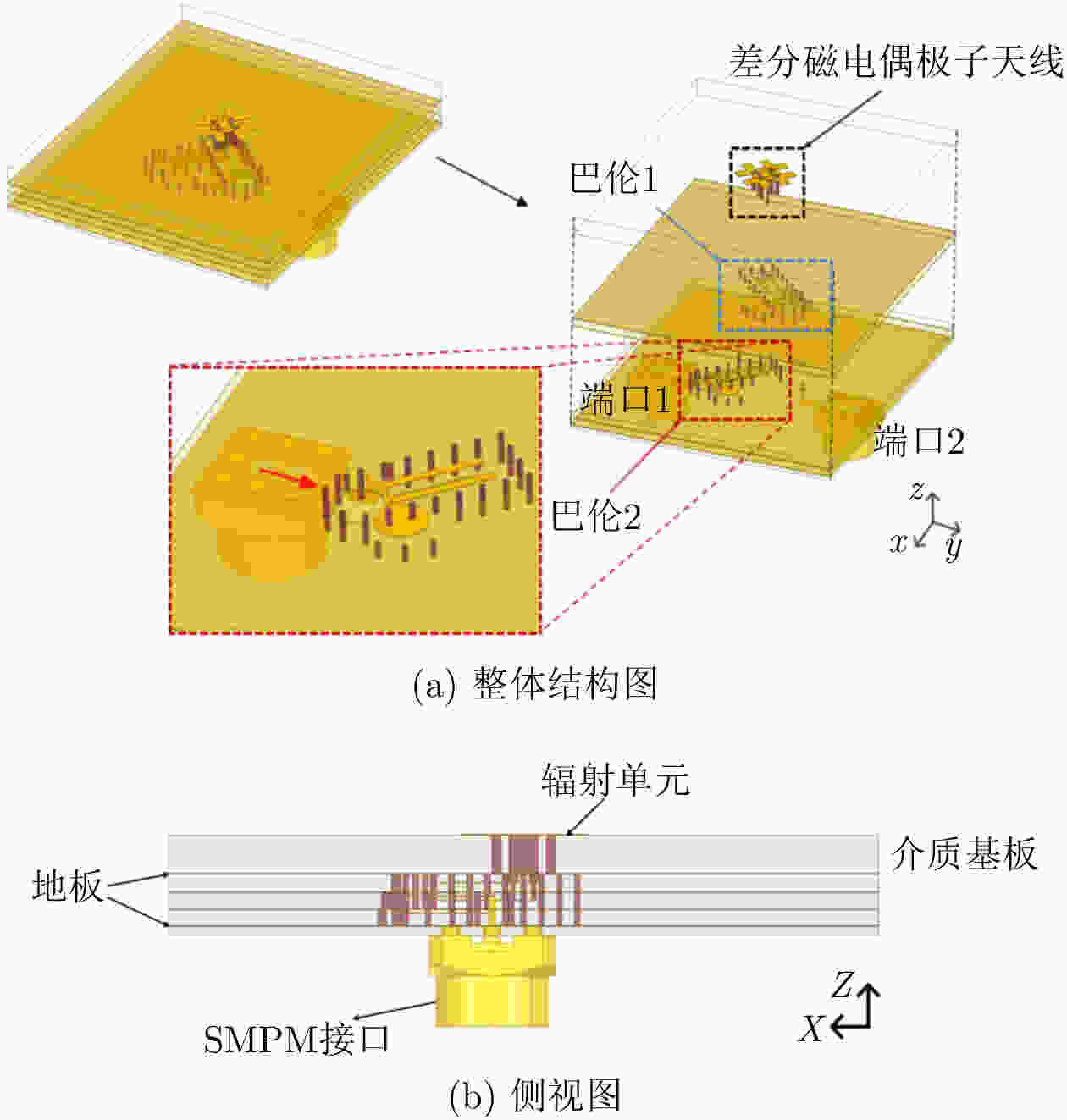

Objective This work aims to address key challenges in 5G millimeter-wave terminal antennas by designing a compact, high-performance dual-polarized array. While existing designs often face trade-offs among bandwidth, beam-scanning range, and integration complexity, this study proposes a novel differentially-fed magnetoelectric dipole array. The core innovation involves a stacked stripline-slot-stripline balun to enable efficient single-ended-to-differential conversion and optimized array design. The objective is to realize an integrated solution that simultaneously achieves wideband operation, low cross-polarization, wide-angle scanning, and high density, advancing practical antenna technology for 5G millimeter-wave applications. Methods The research employs a structured design methodology, beginning with the development of a novel stacked differential balun based on a stripline-slot-stripline configuration to achieve efficient single-ended-to-differential conversion. Subsequently, a single-polarized magnetoelectric dipole antenna element is designed and integrated with this balun, with its performance thoroughly characterized. Finally, the design is extended by orthogonally integrating two such elements to form a dual-polarized unit, which is then used to construct a 1×4 linear array. The entire process involves iterative full-wave electromagnetic simulation and optimization to balance key performance metrics, including wideband impedance matching, high port isolation, wide beam-scanning capability with stable gain, and effective suppression of grating lobes and mutual coupling. Results and Discussions The optimized 1×4 dual-polarized differentially-fed magnetoelectric dipole antenna array with an element spacing of 4.6 mm (0.4λ@26 GHz) achieves an excellent trade-off between grating lobe suppression and inter-element coupling reduction. The measured –10 dB reflection coefficient bandwidths reach 25–29.4 GHz for the +45° polarization port and 25–27.7 GHz for the –45° polarization port ( Fig. 18 ), with slight matching differences arising from the incomplete structural symmetry of the baluns under two polarization modes (Fig. 13 ). At the 26 GHz operating frequency, both polarization modes of the array deliver a peak gain of 10.7–11 dBi, supporting effective wide-angle beam scanning of ±60° with a gain attenuation of no more than 3 dB in the main lobe (Fig. 21 ). The measured radiation performance is highly consistent with the simulated results, with minor errors caused by the extreme dimensional sensitivity of the millimeter-wave band and slight deviations in high-precision processing and test assembly. Moreover, the array maintains stable low cross-polarization characteristics and high port isolation across the entire operating band due to comprehensive optimization measures including equal-length feed lines, symmetric layout, ground pad shielding and metalized via electromagnetic isolation (Fig. 16 ), which effectively suppress inter-element mutual coupling and parasitic radiation, and ensure the consistency of radiation performance for dual polarization modes, thus meeting the stringent performance requirements of 5G millimeter-wave terminal antenna modules.Conclusions This paper presents a dual-polarized magnetoelectric dipole antenna array with differential feeding for 5G millimeter-wave applications. Through the design of a novel stacked stripline-slot-stripline balun and the optimization of the radiating structure and array layout, a balanced performance integrating wide bandwidth, high gain, low cross-polarization, and wide-angle scanning is achieved. The differential balun enables efficient single-ended-to-differential conversion with excellent amplitude and phase balance across the target band. The implemented 1×4 array, with an optimized element spacing of 4.6 mm (0.4λ), demonstrates a simulated peak gain of 11 dBi at 26 GHz and supports effective beam scanning over ±60° with a gain variation of less than 3 dB. The overall design validates the feasibility of utilizing a differentially-fed magnetoelectric dipole architecture to meet the stringent requirements of 5G millimeter-wave terminals for compact, high-performance antenna modules. Future work may focus on scaling the array to larger configurations and further integration with beamforming integrated circuits (BFICs). -
Key words:
- 5G millimeter-wave /
- differential feeding /
- magnetoelectric dipole /
- dual-polarized /
- array antenna
-
[1] 鲍瑞瑞. 毫米波宽带磁电偶极子天线的研究[D]. [硕士论文], 北京邮电大学, 2025. doi: 10.26969/d.cnki.gbydu.2025.002033.BAO Ruirui. Research on millimeter wave broadband magnetoelectric dipole antenna[D]. [Master dissertation], Beijing University of Posts and Telecommunications, 2025. doi: 10.26969/d.cnki.gbydu.2025.002033. [2] 苏小珂. 基于人工磁导体的阵列天线低散射技术研究[D]. [硕士论文], 电子科技大学, 2024. doi: 10.27005/d.cnki.gdzku.2024.003635.SU Xiaoke. Research on low scattering technology of array antenna based on artificial magnetic conductor[D]. [Master dissertation], University of Electronic Science and Technology of China, 2024. doi: 10.27005/d.cnki.gdzku.2024.003635. [3] ZHANG Ke, WAN Fengshuo, TONG Xuanfeng, et al. A low-profile, wide-angle scanning phased array based on dual-mode patch elements for vehicular millimeter-wave applications[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2024, 71(2): 602–606. doi: 10.1109/TCSII.2023.3312934. [4] FAN Xiaoxue and WANG Yan. Compact wide-beam scanning dual-polarized mmWave array for mobile terminals[J]. IEEE Antennas and Wireless Propagation Letters, 2024, 23(2): 763–767. doi: 10.1109/LAWP.2023.3336058. [5] 魏文元. 天线原理[M]. 2版. 北京: 国防工业出版社, 1985: 64–78. (查阅网上资料, 未找到本条文献版本信息, 请确认).WEI Wenyuan. Antenna Principle[M]. 2nd ed. Beijing: National Defense Industry Press, 1985: 64–78. (查阅网上资料, 未找到本条文献英文信息, 请确认). [6] LIU Duixian, GU Xiaoxiong, BAKS C W, et al. Antenna-in-package design considerations for Ka-band 5G communication applications[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(12): 6372–6379. doi: 10.1109/TAP.2017.2722873. [7] GU Xiaoxiong, LIU Duixian, HASEGAWA Y, et al. Antenna-in-package integration for a wideband scalable 5G millimeter-wave phased-array module[J]. IEEE Microwave and Wireless Components Letters, 2021, 31(6): 682–684. doi: 10.1109/LMWC.2021.3071917. [8] SADHU B, PAIDIMARRI A, LIU Duixian, et al. A 24–30-GHz 256-element dual-polarized 5G phased array using fast on-chip beam calculators and magnetoelectric dipole antennas[J]. IEEE Journal of Solid-State Circuits, 2022, 57(12): 3599–3616. doi: 10.1109/JSSC.2022.3204807. [9] KIM W, BANG J, and CHOI J. A cost-effective antenna-in-package design with a 4 × 4 dual-polarized high isolation patch array for 5G mmWave applications[J]. IEEE Access, 2021, 9: 163882–163892. doi: 10.1109/ACCESS.2021.3133284. [10] ZHAO Luyu, HE Yuqi, ZHAO Ge, et al. Scanning angle extension of a millimeter-wave antenna array using electromagnetic band gap ground[J]. IEEE Transactions on Antennas and Propagation, 2022, 70(8): 7264–7269. doi: 10.1109/TAP.2022.3164244. [11] LIU Hui, LIU Chuanhao, LV Songzhao, et al. Compact magneto-electric dipole array with wide beam scanning range for 5G NR bands[J]. IEEE Access, 2023, 11: 88489–88497. doi: 10.1109/ACCESS.2023.3305500. [12] LU Rong, YU Chao, ZHU Yuanwei, et al. Millimeter-wave dual-band dual-polarized SIW cavity-fed filtenna for 5G applications[J]. IEEE Transactions on Antennas and Propagation, 2022, 70(11): 10104–10112. doi: 10.1109/TAP.2022.3209265. [13] WEI Feng, ZHAO Xibei, XU Le, et al. Single-ended-to-balanced broadband/filtering planar magic-Ts with high common-mode suppression[J]. IEEE Transactions on Microwave Theory and Techniques, 2021, 69(7): 3236–3245. doi: 10.1109/TMTT.2021.3074061. [14] WEI Feng, ZHAO Xibei, and SHI Xiaowei. A balanced filtering quasi-Yagi antenna with low cross-polarization levels and high common-mode suppression[J]. IEEE Access, 2019, 7: 100113–100119. doi: 10.1109/ACCESS.2019.2931141. [15] CHANG Yinchen, HSU C C, MAGRAY M I, et al. A novel dual-polarized wideband and miniaturized low profile magneto-electric dipole antenna array for mmWave 5G applications[J]. IEEE Open Journal of Antennas and Propagation, 2021, 2: 326–334. doi: 10.1109/OJAP.2021.3061961. [16] 谢树娟. 5G毫米波频段的圆极化可重构磁电偶极子天线研究[D]. [硕士论文], 中国科学技术大学, 2025. doi: 10.27517/d.cnki.gzkju.2025.001872.XIE Shujuan. Research on circularly polarized reconfigurable magneto-electric dipole antenna in 5G millimeter wave band[D]. [Master dissertation], University of Science and Technology of China, 2025. doi: 10.27517/d.cnki.gzkju.2025.001872. -
