基于多频谱特征交互与动态融合的航天器6D位姿估计

童伟; 林茜; 严颖; 林金星; 李涛; 吴奇

doi:10.11999/JEIT260452

基于多频谱特征交互与动态融合的航天器6D位姿估计

doi: 10.11999/JEIT260452 cstr: 32379.14.JEIT260452

童伟^{1, 2, 3},
林茜⁴,
严颖^{1, 5, ,},
林金星²,
李涛¹,
吴奇⁶

1.
南京信息工程大学自动化学院南京市 210044
2.
南京邮电大学自动化学院南京市 210023
3.
社会计算与认知智能教育部重点实验室大连市 116024
4.
山西大学计算机与信息技术学院太原市 030031
5.
安徽建筑大学机械与电气工程学院合肥市 230009
6.
上海交通大学计算机学院上海市 200042

基金项目: 国家自然科学基金(62405145)，江苏省自然科学基金(BK20240641)，社会计算与认知智能教育部重点实验室开放基金(SCCI2023YB02)，南京信息工程大学人才启动经费，江苏高校教育信息化研究课题(2025JSETKT158)

详细信息

作者简介:
林金星：男，教授，研究方向为深度学习

李涛：男，教授，院长，研究方向为人机交互

吴奇：男，教授，研究方向为视脑力交互

通讯作者:
严颖　ying.yan@nuist.edu.cn

中图分类号: TN911.73, TP391
计量
- 文章访问数: 108
- HTML全文浏览量: 29
- PDF下载量: 20
- 被引次数: 0
出版历程
- 收稿日期: 2026-04-15
- 修回日期: 2026-08-17
- 录用日期: 2026-08-17
- 网络出版日期: 2026-08-26

Multi-frequency Feature Interaction and Dynamic Fusion for Spacecraft 6D Pose Estimation

TONG Wei^{1, 2, 3},
LIN Xi⁴,
YAN Ying^{1, 5
, ,},
LIN Jinxing²,
LI Tao¹,
WU Qi⁶

1.
School of Automation, Nanjing University of Information Science and Technology, Nanjing 210044, China
2.
School of Automation, Nanjing University of Posts and Telecommunications, Nanjing 210023, China
3.
Key Laboratory of Social Computing and Cognitive Intelligence, Dalian 116024, China
4.
School of Computer and Information Technology, Shanxi University, Taiyuan 030031, China
5.
School of Mechanical and Electrical Engineering, Anhui Jianzhu University, Hefei 230009, China
6.
Computer College, Shanghai Jiaotong University, Shanghai 200042, China

Funds: The National Natural Science Foundation of China(62405145), The Natural Science Foundation of Jiangsu Province(BK20240641), Key Laboratory of Social Computing and Cognitive Intelligence(SCCI2023YB02), Nanjing University of Information Science & Technology, Quality Assurance and Evaluation of higher Education in Jiangsu Province (2025JSETKT158)

摘要

摘要: 航天器的6自由度位姿估计，是指确定目标航天器相对于服务航天器在空间坐标系中的相对姿态的处理过程。该技术是失效卫星清理、太空垃圾捕获、航天器在轨操控、空间站交会对接等一系列近距离操作任务的关键步骤。近年来，基于卷积神经网络(CNN)的6D位姿估计方法受到广泛关注，但其过度依赖卷积网络结构，容易导致对图像纹理的敏感，并缺乏对远程上下文信息的有效建模能力。此外，当前主流方法通常采用由目标检测与姿态估计构成的流水线设计，其特征提取多样性有限，对低光照和复杂背景干扰较为敏感。针对上述问题，该文提出一种基于多频谱特征交互与动态融合的航天器位姿估计网络。首先，该网络利用不同感受野的主干网络分别提取图像的空间高频特征(如语义与边缘细节)和空间低频特征(如全局结构信息)；在此基础上，基于Transformer的特征匹配机制，进行自特征与跨特征注意力交互，实现长范围上下文信息的聚合；为进一步利用丰富的频域特征表示，引入频率引导特征模块，动态融合多频谱特征。最后，在航天器位姿估计数据集上的大量实验表明，所提方法具有竞争力，并展现了较强的泛化能力，相比于现有方法具有优势。
- 在轨操控 /
- 交会对接 /
- 位姿估计 /
- 特征交互 /
- 空间频率特征
Abstract: Spacecraft Six-Dimensional (6D) pose estimation aims to determine the relative pose of a target spacecraft with respect to a servicing spacecraft in a spatial coordinate system. It is a key step in close-range operations, including defunct satellite removal, space debris capture, on-orbit spacecraft manipulation, and space station rendezvous and docking. In recent years, Convolutional Neural Network (CNN)-based 6D pose estimation methods have received considerable attention. However, their strong dependence on convolutional architectures makes them sensitive to image textures and limits their ability to model long-range contextual information effectively. Moreover, mainstream methods typically adopt a pipeline consisting of object detection followed by pose estimation. Such methods provide limited diversity in feature extraction and are sensitive to low-light conditions and complex background interference. To address these problems, a spacecraft pose estimation network based on multi-frequency feature interaction and dynamic fusion is proposed. Backbone networks with different receptive fields are first used to separately extract spatial high-frequency features, such as semantic and edge details, and spatial low-frequency features, such as global structural information. A Transformer-based feature interaction mechanism is then used to perform self-attention and cross-attention between the two types of features, thereby aggregating long-range contextual information. To further exploit rich frequency-domain representations, a frequency-guided feature module is introduced to dynamically fuse multi-frequency features. Extensive experiments on spacecraft pose estimation datasets demonstrate that the proposed method achieves competitive performance and strong generalization capability compared with existing methods. Objective The local receptive fields of CNN operators limit their ability to capture long-range dependencies. By contrast, Transformers with multi-head self-attention are more effective in globally modeling long-range contextual information and are well suited to multiscale targets and small spacecraft at long distances. Therefore, improving the extraction and interaction of spatial high- and low-frequency features is essential for increasing the accuracy of spacecraft pose estimation. Methods A 6D pose estimation network based on Transformer-based multi-frequency feature interaction and dynamic fusion is proposed. The framework consists of two branches. A ResNet-18 branch is used to extract spatial high-frequency features, including semantic and edge information, which are also used for spacecraft semantic segmentation. A DarkNet-53 branch is used to extract spatial low-frequency features that emphasize global structural information. A Transformer-based feature interaction module is then designed to model interactions between the high- and low-frequency features through self-attention and cross-attention. This mechanism aggregates long-range contextual information, increases the diversity of feature representations for texture-poor spacecraft images, and facilitates network optimization. A frequency-guided dynamic feature fusion module is further introduced to integrate the multi-frequency features. Results and Discussions The proposed method estimates spacecraft 6D pose through multi-frequency feature interaction and dynamic fusion. On the SwissCube dataset, it achieves an overall ADI-0.1d accuracy of 82.31%, exceeding those of CA-SpaceNet (79.39%) and WDR* (78.78%). On the SPEED dataset, the combined error eq + et is 0.0299, which is 22.3% lower than that of CA-SpaceNet (0.0385) and 25.2% lower than that of WDR* (0.0400). The qualitative results in Fig. 5 and Fig. 7 show that the predicted keypoints are closer to the ground truth, particularly for challenging images dominated by low-frequency content and affected by complex backgrounds. Ablation experiments further show that the feature interaction module alone increases the overall accuracy from 79.39% to 80.67%, whereas the addition of frequency-guided dynamic fusion further increases it to 82.31%. These results demonstrate that the proposed framework improves the robustness of spacecraft pose estimation and provides more reliable pose predictions for on-orbit servicing and spacecraft rendezvous and docking. Conclusions To improve the accuracy of spacecraft 6D pose estimation under challenging space imaging conditions, a multi-frequency feature interaction mechanism and a semantic segmentation branch using semantic and edge information are introduced. Long-range contextual information from spatial high- and low-frequency features is aggregated to improve feature representation. In addition, a frequency-guided dynamic feature fusion module is introduced to exploit rich frequency-domain representations. Comprehensive comparisons with mainstream methods on the SwissCube and SPEED datasets demonstrate that the proposed method improves feature representation and increases the robustness of spacecraft pose estimation under complex interference.
- On-orbit manipulation /
- Rendezvous and docking /
- Pose estimation /
- Feature interaction /
- Multi-frequency features

HTML全文

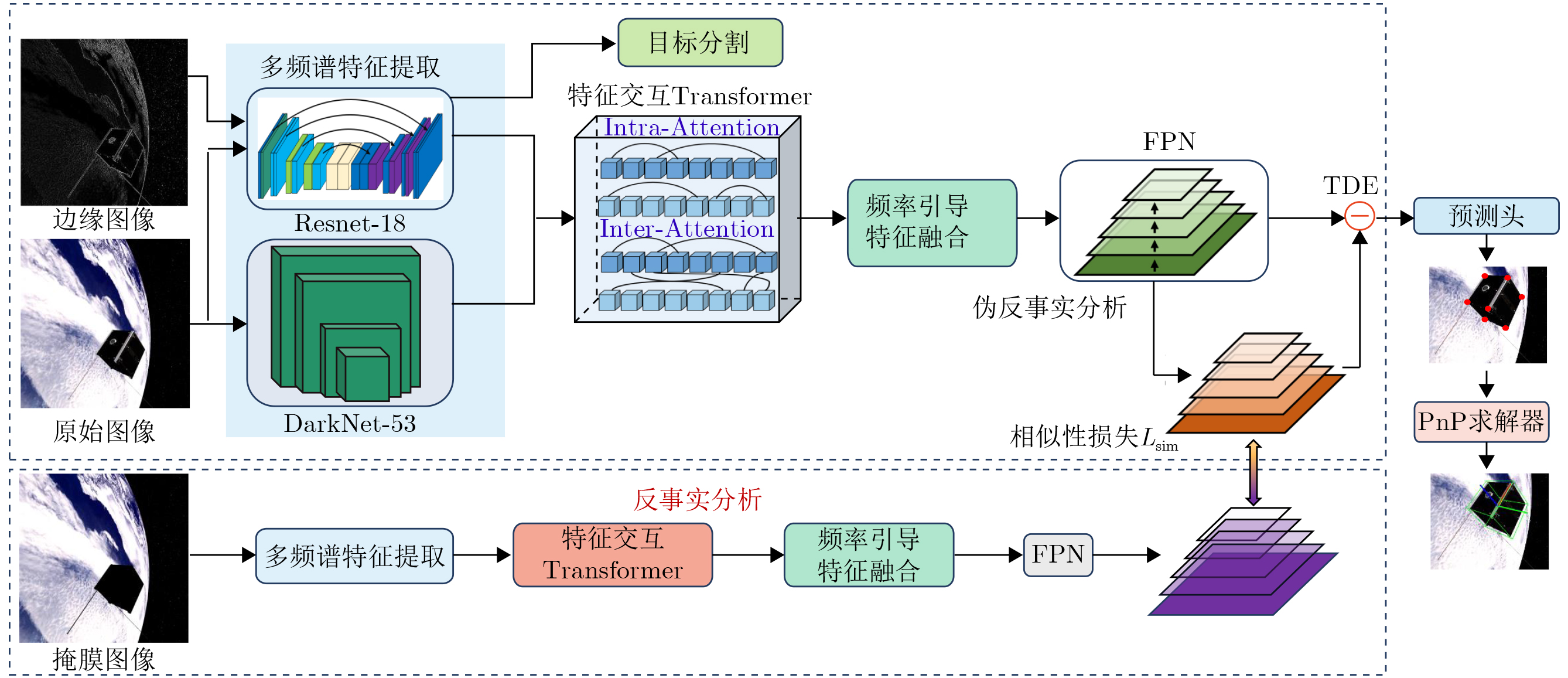

图 1 所提出的基于Transformer多频谱特征交互的航天器6D位姿估计网络结构

下载: 全尺寸图片幻灯片

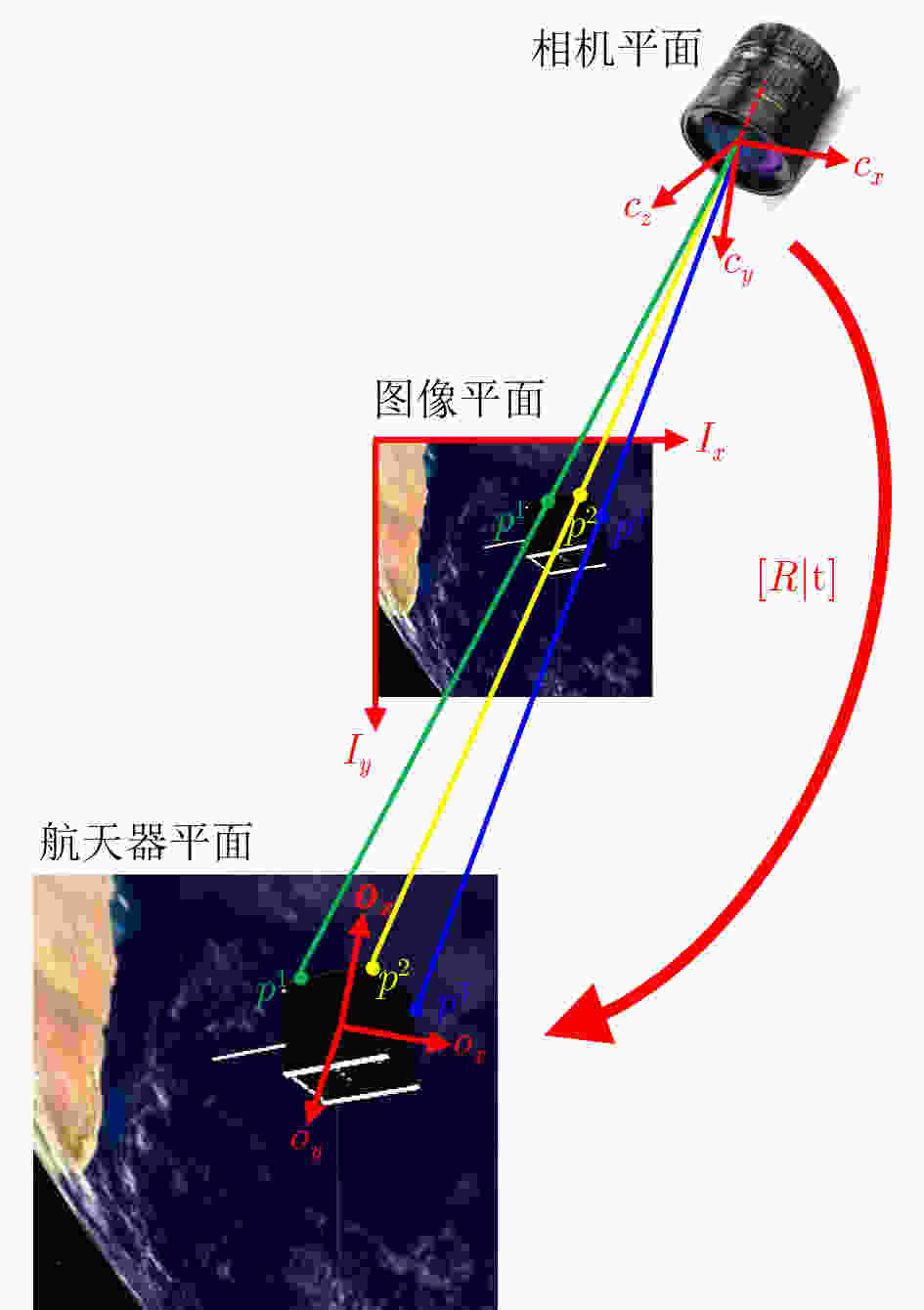

图 2 基于PnP特征点匹配的位姿估计示意图

下载: 全尺寸图片幻灯片

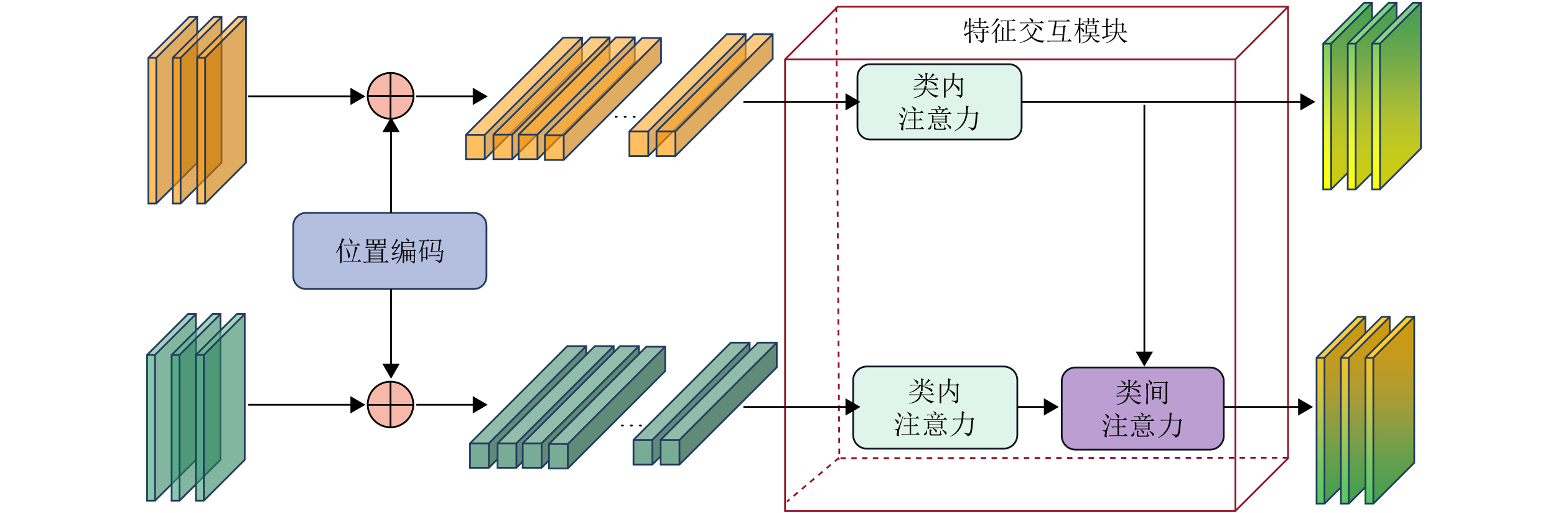

图 3 基于多频谱特征交互的网络结构示意图

下载: 全尺寸图片幻灯片

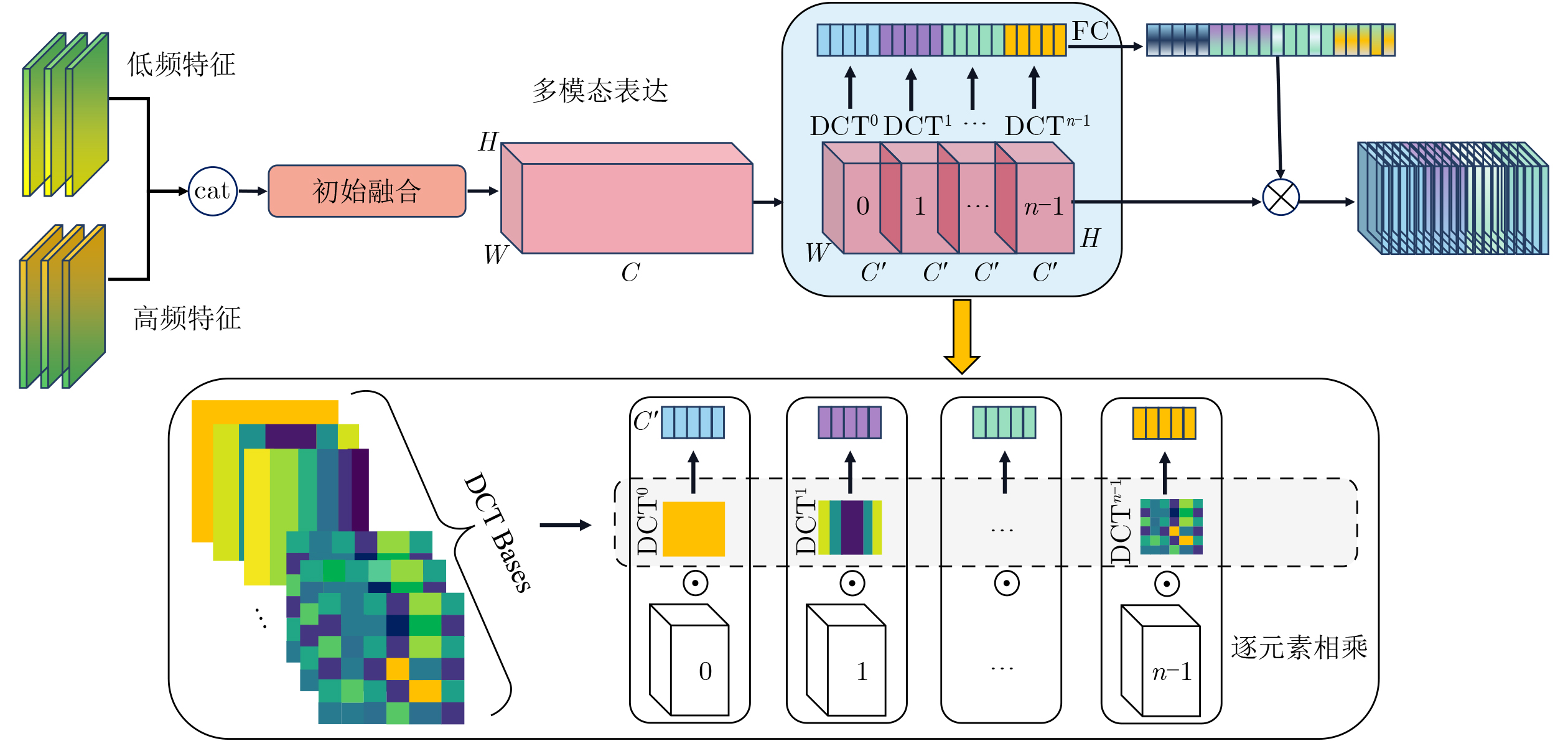

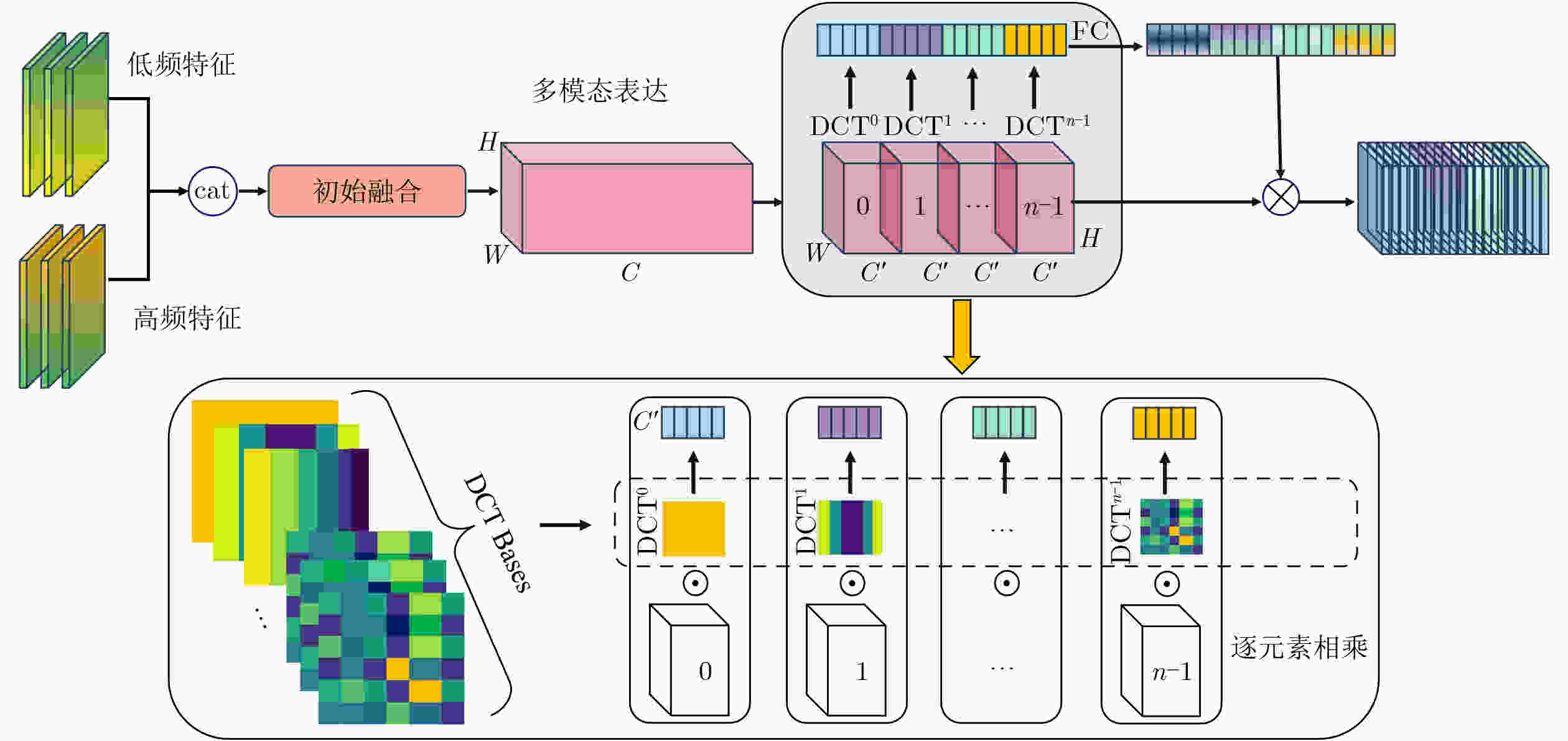

图 4 频率引导的多频谱特征融合结构示意图

下载: 全尺寸图片幻灯片

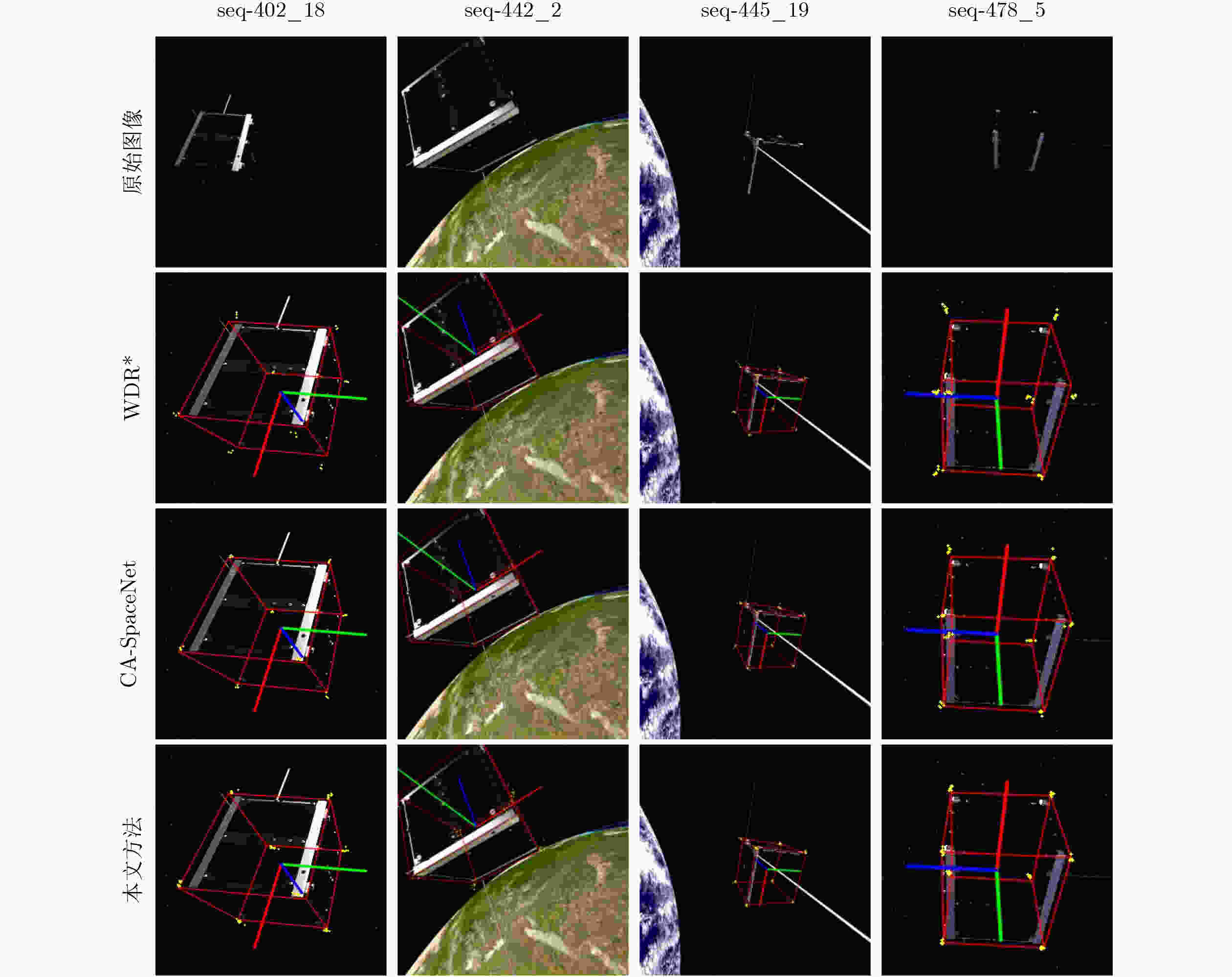

图 5 本文方法、WDR*以及CA-SpaceNet生成的预测关键点的可视化

下载: 全尺寸图片幻灯片

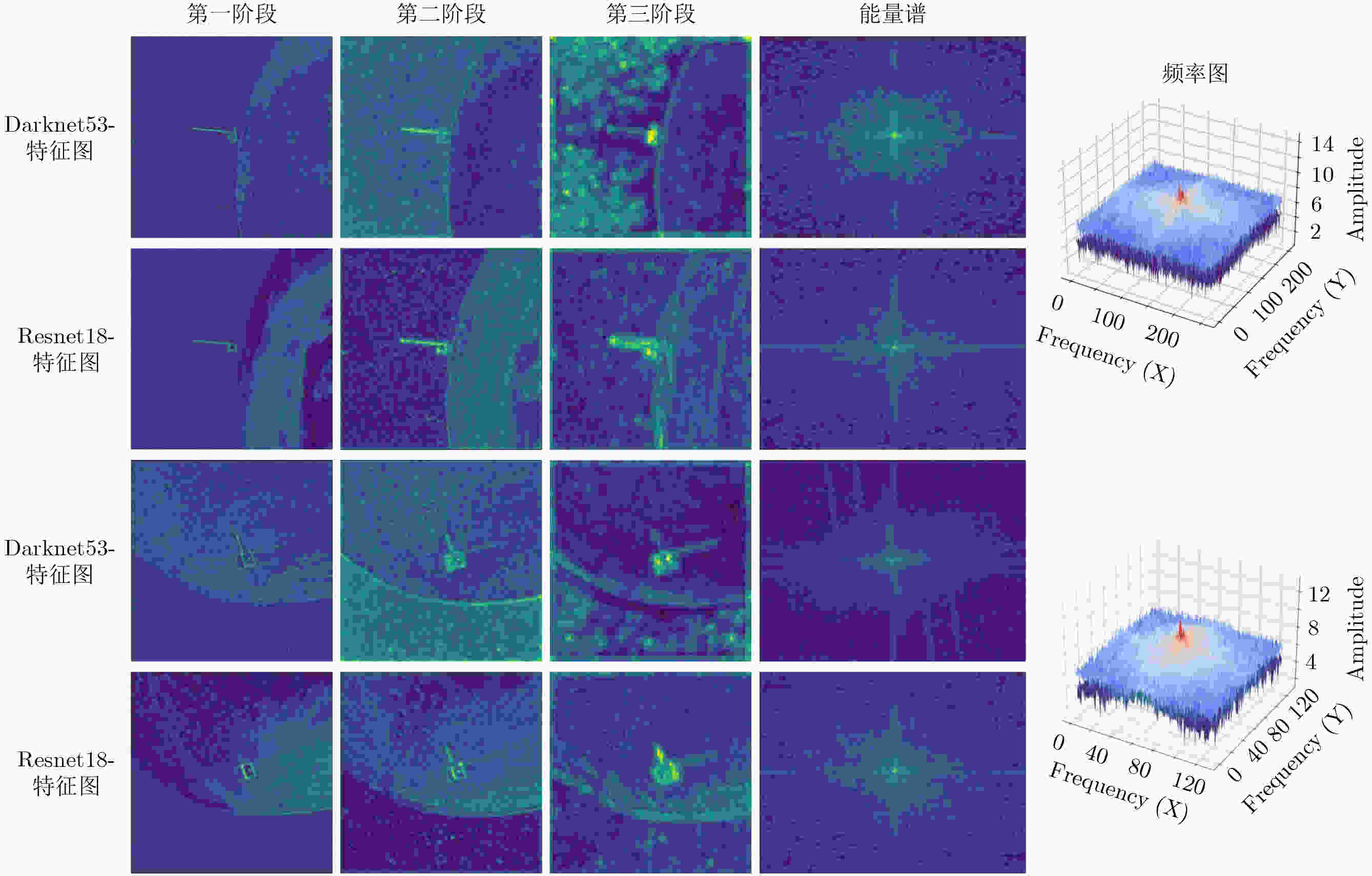

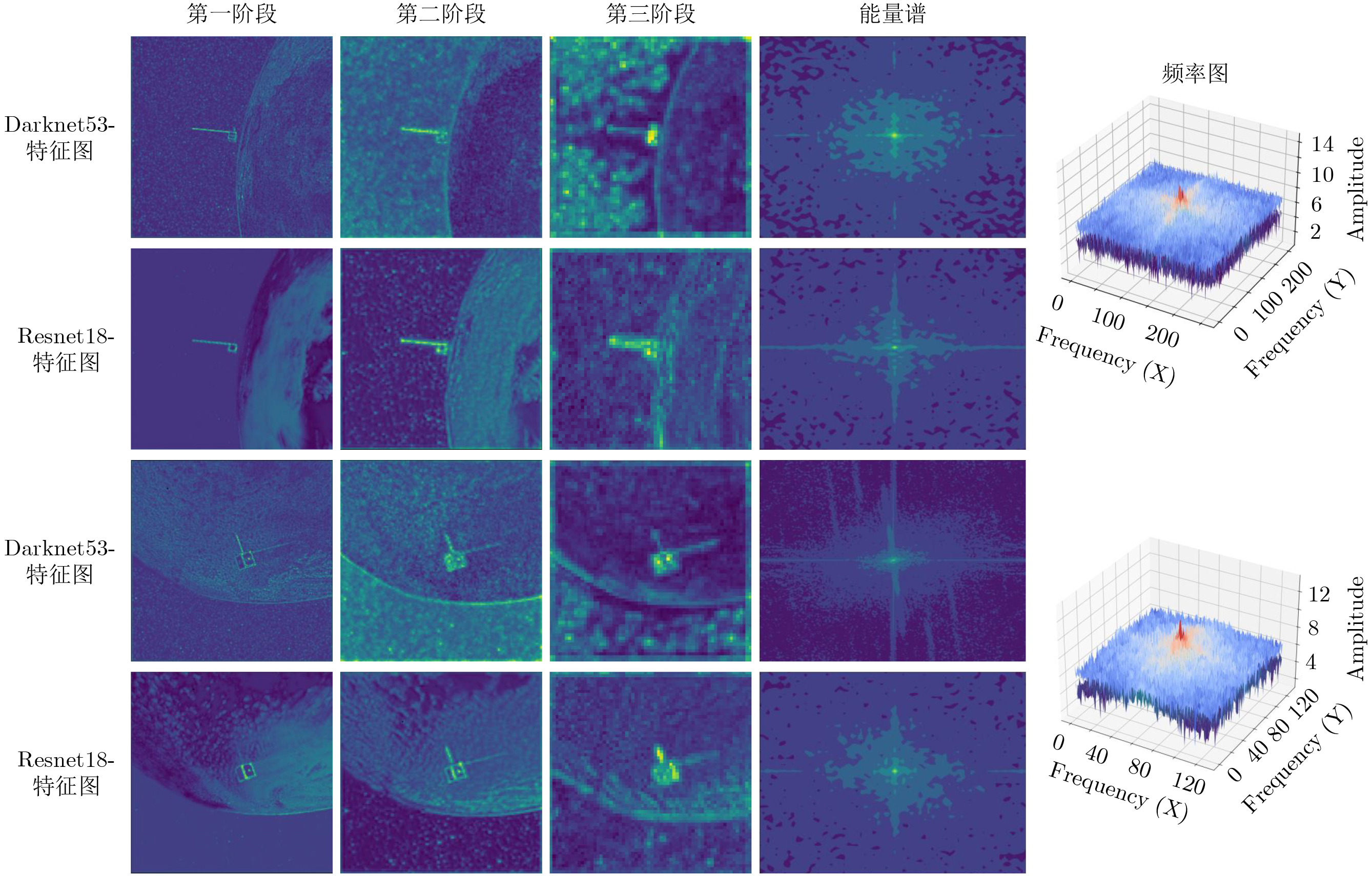

图 6 Resnet18分支和DarkNet分支的层次特征图和能谱值可视化

下载: 全尺寸图片幻灯片

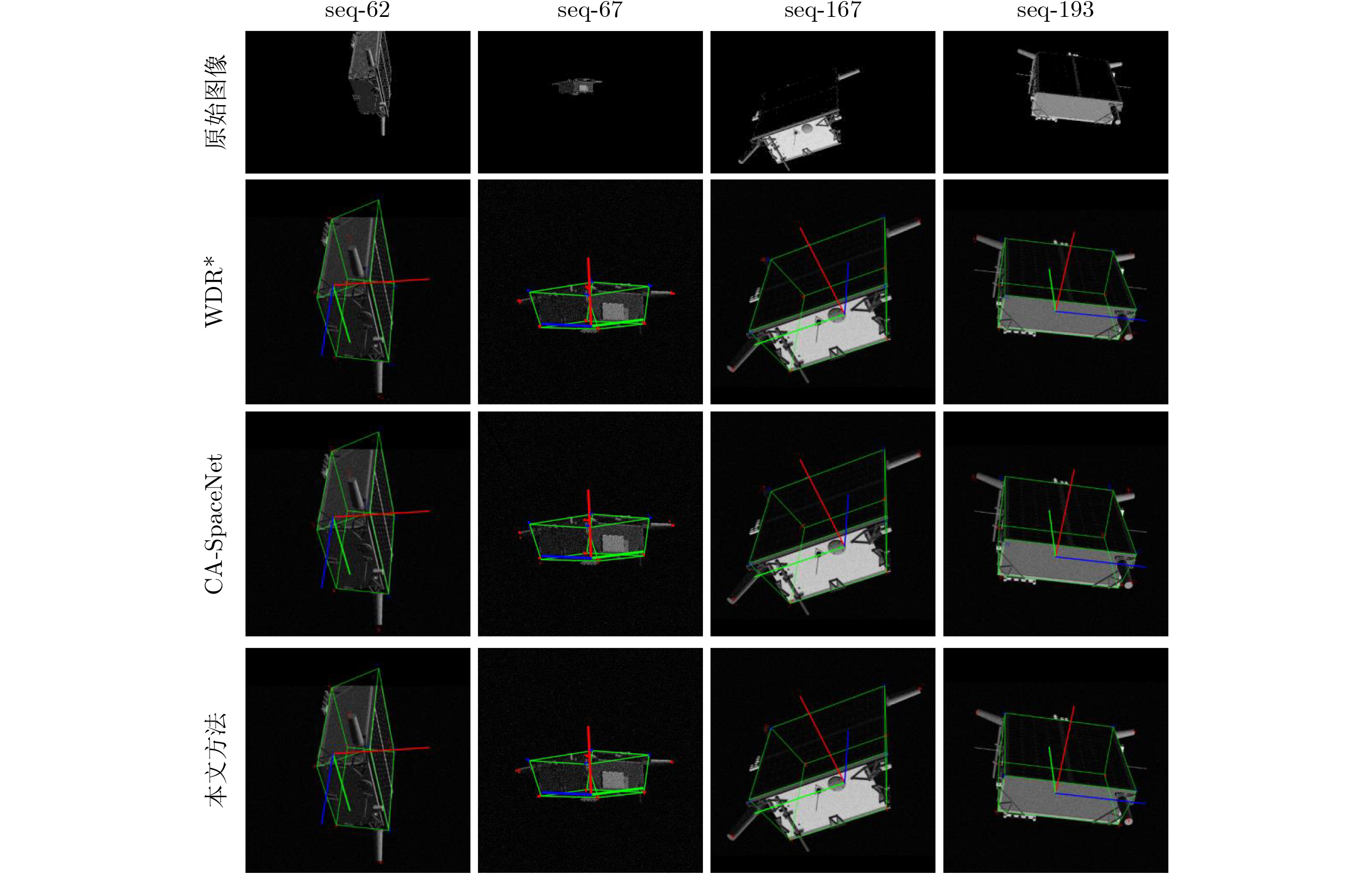

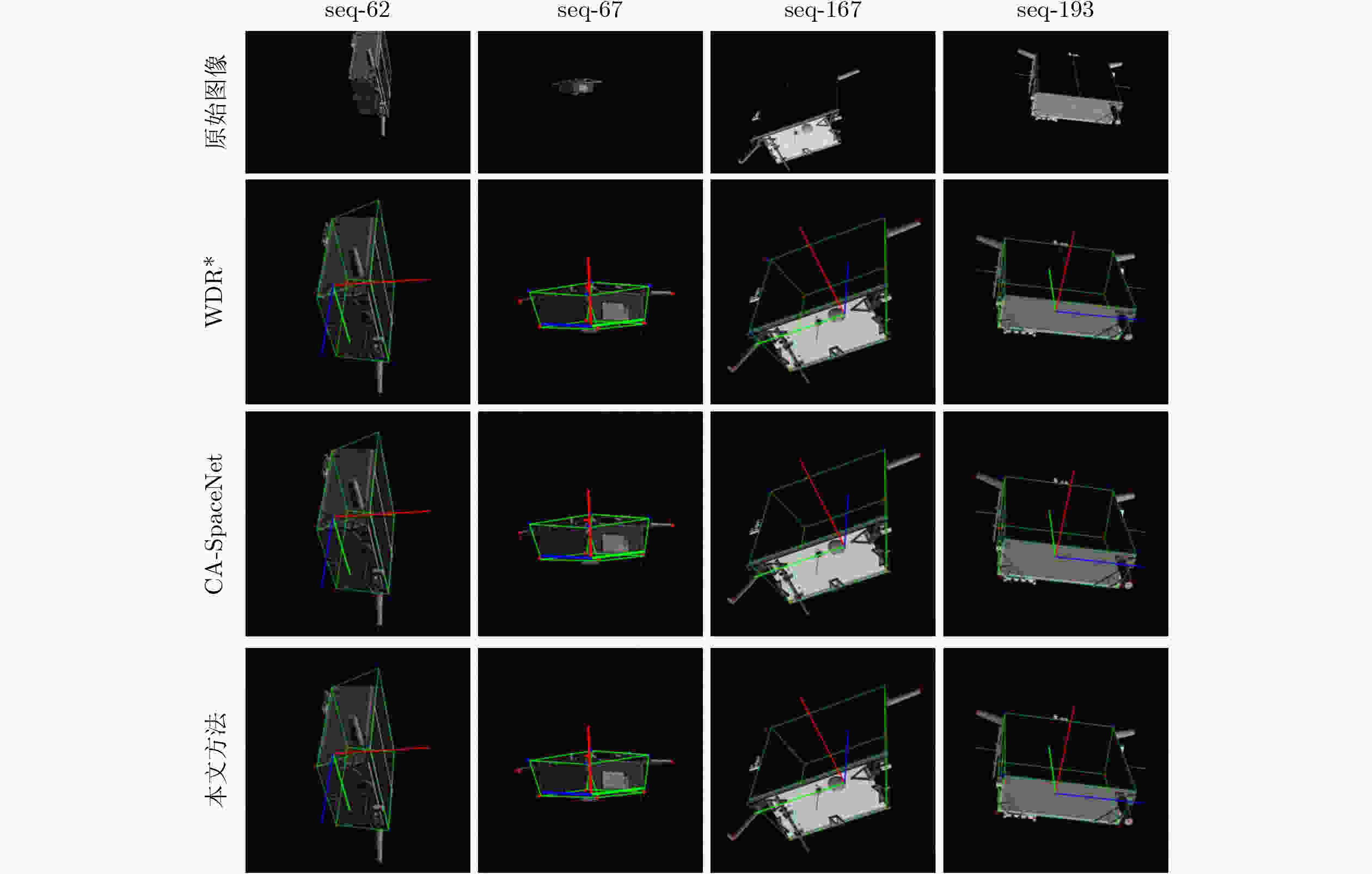

图 7 本文方法与基准方法所生成的预测关键点的可视化

下载: 全尺寸图片幻灯片

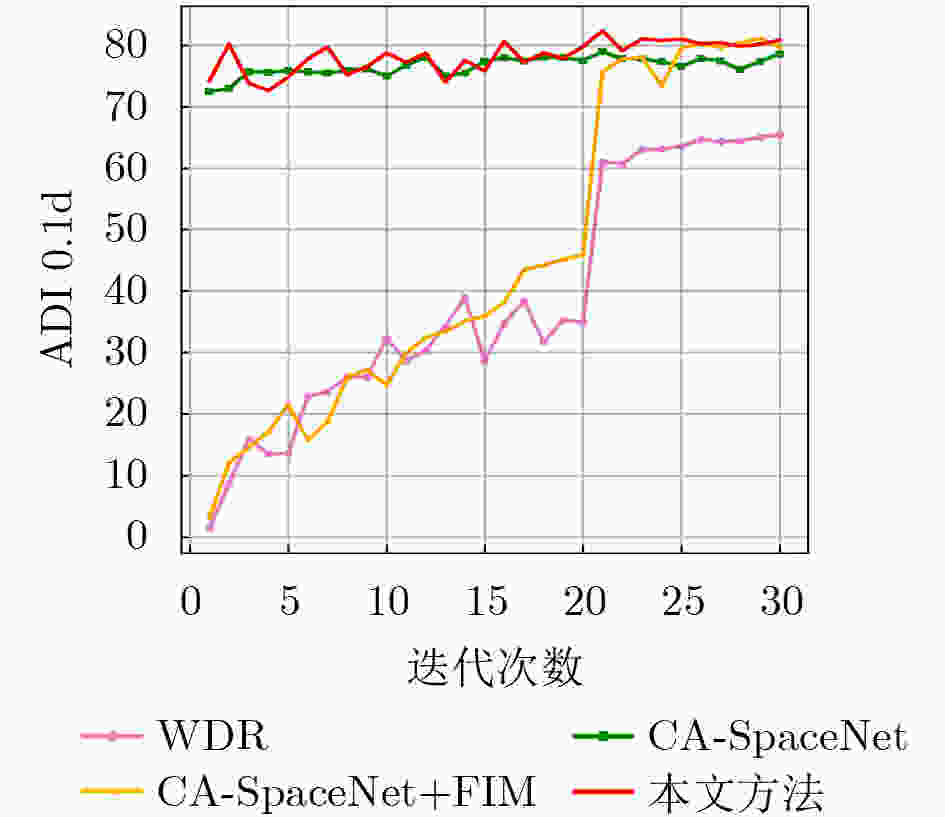

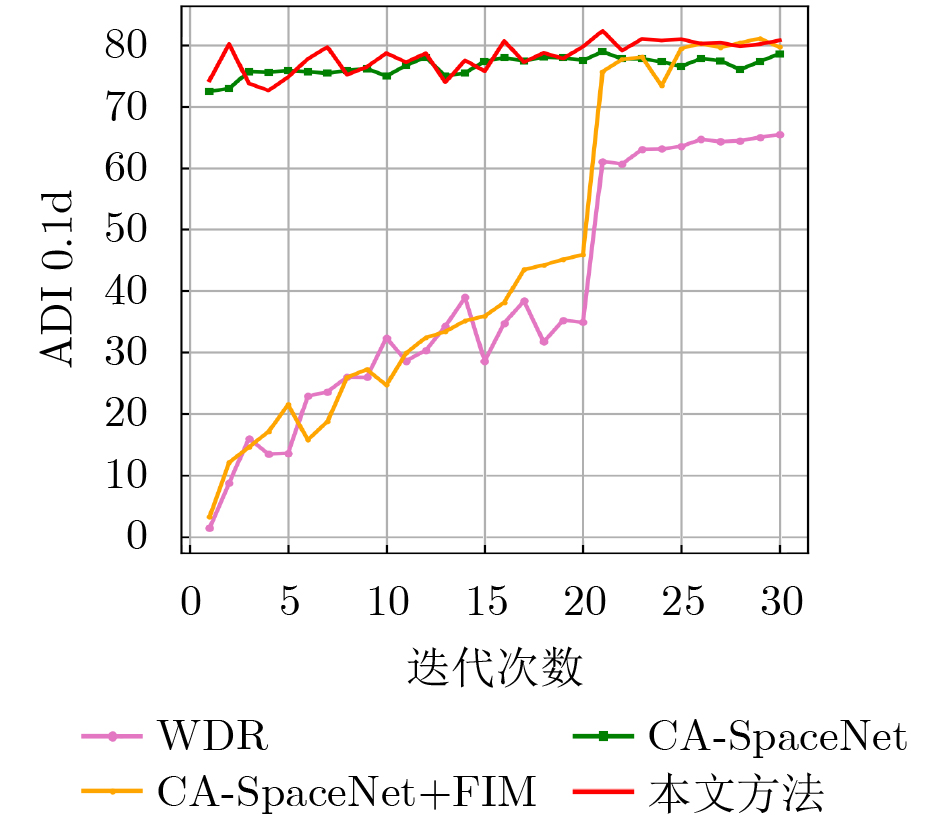

图 8 与基准方法在训练阶段的ADI 0.1d对比

下载: 全尺寸图片幻灯片

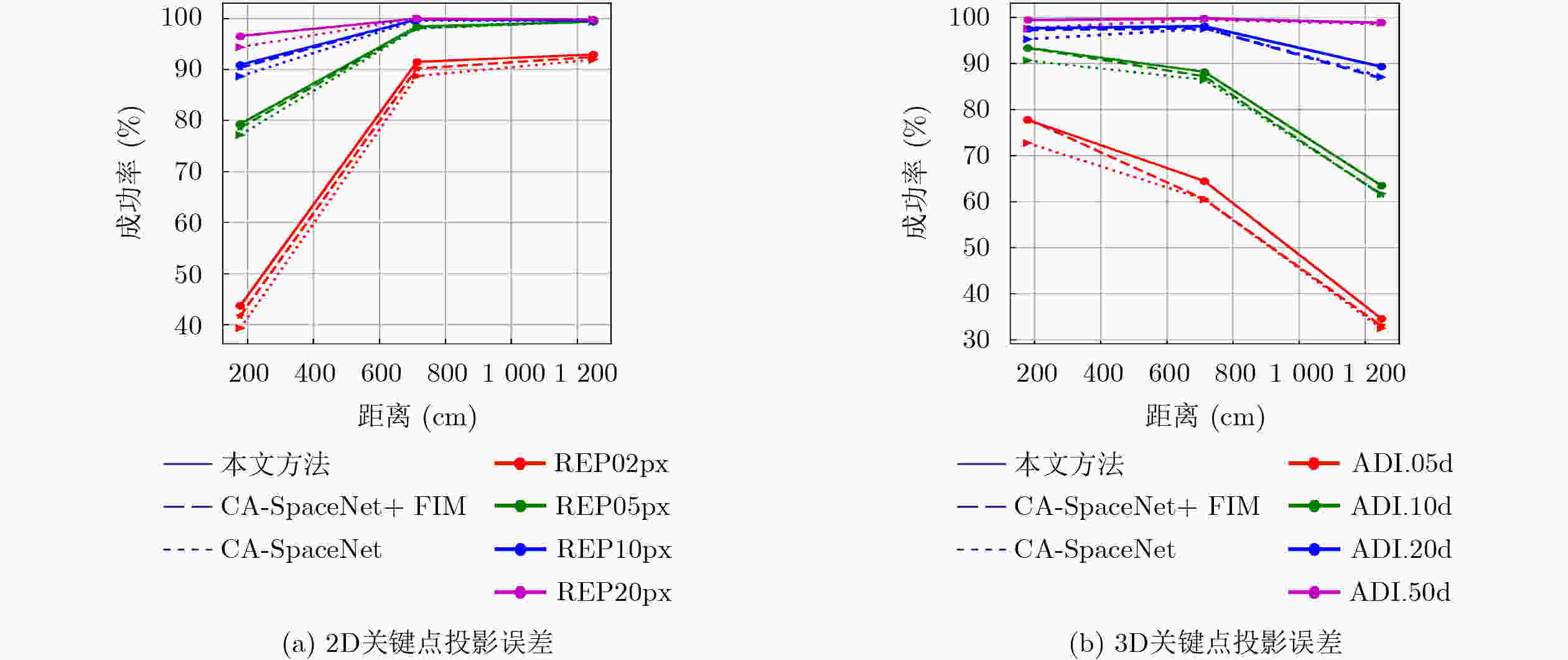

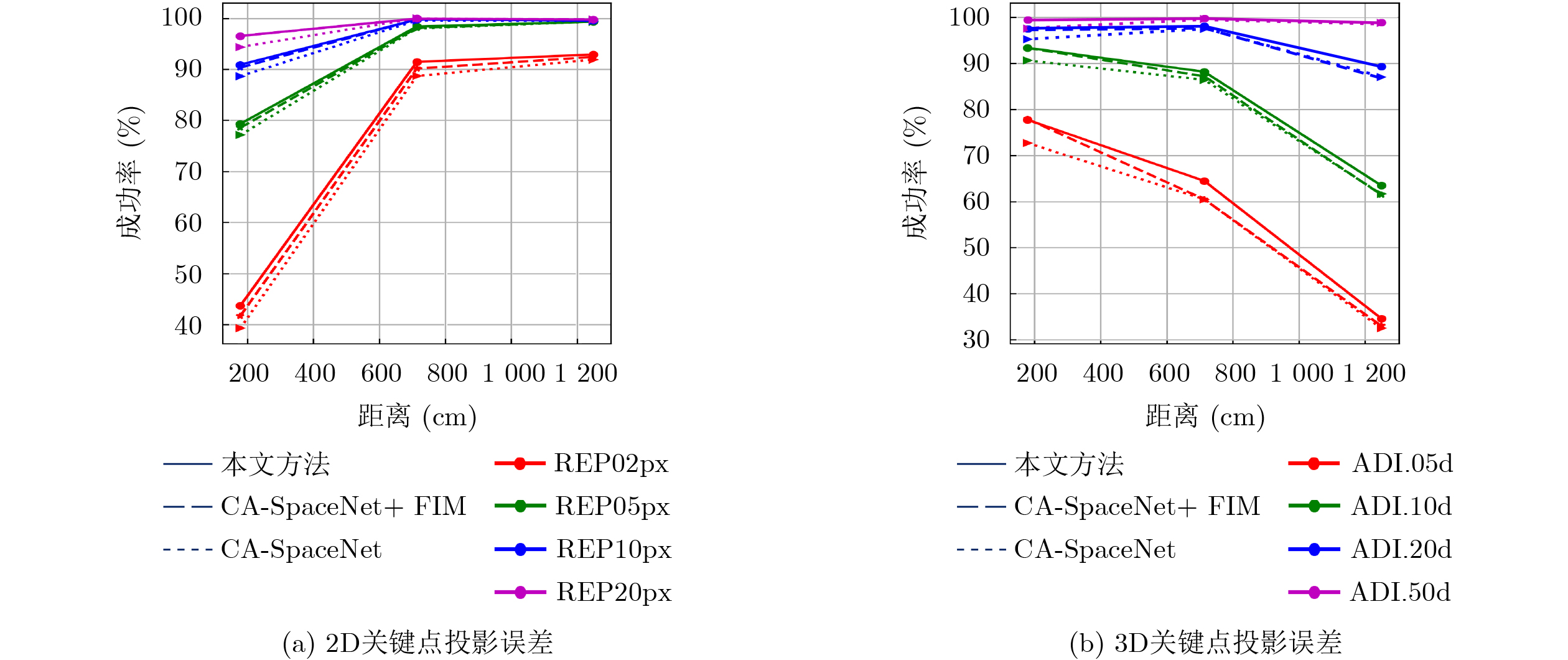

图 9 不同模型组合方法预测关键点在2D与3D投影的误差对比

下载: 全尺寸图片幻灯片

表 1 与主流方法在SWISSCUBE数据集的定量比较结果

方法	Near ↑‌	Medium ↑‌	Far ↑‌	All ↑‌
SegDriven^[26]	41.1	22.9	7.1	21.8
SegDriven-Z^[26]	52.6	45.4	29.4	43.2
DLR^[17]	63.8	47.8	28.9	46.8
WDR	65.2	48.7	31.9	47.9
WDR*	92.37	84.16	61.27	78.78
CA-SpaceNet	91.01	86.32	61.72	79.39
DTSE-SpaceNet	92.57	88.74	64.42	81.65
WDR +本文方法	96.24	88.82	63.13	81.09
CA-SpaceNet+本文方法	95.76	90.61	65.12	82.31

下载: 导出CSV

表 2 在SPEED数据集的交叉验证定量比较结果

指标	1	2	3	4	5	mean	std
Mean $ {e}_{{\mathrm{q}}} $	0.023058	0.022846	0.022311	0.023072	0.022629	0.022783	0.000286
Median $ {e}_{{\mathrm{q}}} $	0.017626	0.017660	0.017817	0.017887	0.017896	0.017772	0.000113
Mean $ {e}_{{\mathrm{t}}} $	0.007490	0.007149	0.007460	0.007267	0.007178	0.007308	0.000141
Median $ {e}_{{\mathrm{t}}} $	0.005309	0.005074	0.004966	0.005180	0.005117	0.005129	0.000114
Mean S	0.030548	0.029995	0.029771	0.030339	0.029807	0.030092	0.000304
Median S	0.022935	0.022734	0.022783	0.023067	0.023013	0.0229064	0.000128

下载: 导出CSV

表 3 与主流方法在SPEED数据集的定量比较结果

模型	$ {{e}}_{\mathrm{q}}+{{e}}_{\mathrm{t}} $
SLAB Baseline^[27]	0.0626
pedro-fairspace^[11]	0.0571
WDR*	0.0400
CA-SpaceNet	0.0385
本文方法	0.0299

下载: 导出CSV

表 4 不同模型组合方法在SWISSCUBE数据集的定量比较结果

方法	Near ↑‌	Medium ↑‌	Far ↑‌	All ↑‌
CA-SpaceNet	91.01	86.32	61.72	79.39
CA-SpaceNet + Transformer特征交互	95.02	88.20	63.49	80.67
CA-SpaceNet + Transformer特征交互	(+4.01)	(+1.88)	(+1.77)	(+1.28)
本文方法	95.76	90.61	65.12	82.31
本文方法	(+4.65)	(+4.29)	(+3.40)	(+2.92)

下载: 导出CSV

表 5 与主流方法的模型参数定量比较结果

模型	模型参数(M)	模型大小(MB)
WDR*	52.1	205.2
CA-SpaceNet	51.3	205.17
DTSE-SpaceNet	51.9	206.2
本文方法	62.4	249.6

下载: 导出CSV
