噪声感知不动点网络的太赫兹超大规模MIMO信道估计

张华卫; 牛亚宁; 蒋占军; 刘英挺

doi:10.11999/JEIT260420

噪声感知不动点网络的太赫兹超大规模MIMO信道估计

doi: 10.11999/JEIT260420 cstr: 32379.14.JEIT260420

兰州交通大学兰州 730070

基金项目: 国家自然科学基金(62561037), 甘肃省自然科学基金 (26JRRA053)

详细信息

作者简介:
张华卫：男，高级工程师，研究方向为无线通信、深度学习等，邮箱　zhanghuawei@lzjtu.edu.cn

牛亚宁：男，硕士生，研究方向为无线通信、信道估计、深度学习等，邮箱　12241981@stu.lzjtu.edu.cn

蒋占军：男，教授，研究方向为移动通信、信道估计、正交时频空等

刘英挺：男，副教授，研究方向为无线通信、非正交多址通信、反向散射通信等

通讯作者:
牛亚宁　12241981@stu.lzjtu.edu.cn

中图分类号: TN911.7
计量
- 文章访问数: 32
- HTML全文浏览量: 12
- PDF下载量: 2
- 被引次数: 0
出版历程
- 修回日期: 2026-07-06
- 录用日期: 2026-07-06
- 网络出版日期: 2026-07-19

THz UM-MIMO Channel Estimation via a Noise-Conditioned Fixed-Point Network

School of Electronic and Information Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China

Funds: The National Natural Science Foundation of China(62561037), Natural Science Foundation of Gansu Province (26JRRA053)

摘要

摘要: 针对太赫兹超大规模MIMO系统在混合场传播与AoSA架构下，现有压缩感知与深度展开方法在低信噪(SNR)及噪声统计失配条件下易出现性能饱和与泛化性较差问题。为此，该文提出一种噪声条件化不动点展开网络FPN-NCAS。该方法在保持不动点理论框架的同时，将由重复导频差分获得的粗噪声功率估计值作为条件控制量耦合至非线性恢复过程，从而实现随噪声水平自适应调节的估计策略。在此基础上，设计噪声条件化的块稀疏近端恢复模块Block Shrink，通过噪声感知阈值与平滑切换机制增强混合场稀疏结构恢复能力；构造Token-Gate模块对子阵级特征进行轻量可靠性校准，并构建G-HMTD模块对主恢复后的残余误差进行全局—局部协同细化。仿真结果表明，所提方法在不同SNR条件下均取得更优的归一化均方误差(NMSE)性能；此外，在多种非理想信道与噪声条件下，所提方法仍表现出良好的鲁棒性。
- 太赫兹通信 /
- 超大规模MIMO /
- 信道估计 /
- 不动点网络 /
- 噪声条件化
Abstract: Objective Terahertz(THz)ultra-massive multiple-input multiple-output(UM-MIMO)systems are expected to support future high-capacity wireless communications. However, accurate channel estimation remains difficult under hybrid near-/far-field propagation and array-of-subarrays(AoSA)architectures, where limited radio-frequency chains, low signal-to-noise ratio(SNR), noise uncertainty, and structural perturbations degrade compressed observations. Existing compressed sensing, Bayesian inference, and deep unfolding methods usually rely on fixed statistical assumptions, limiting their adaptability across different SNR and mismatch conditions. To address these issues, this paper proposes a noise-conditioned fixed-point network, termed FPN-NCAS(FPN Noise-Conditioned AoSA-aligned Shrinkage), for robust THz UM-MIMO channel estimation. The objective is to improve estimation accuracy, cross-SNR adaptability, robustness, and iterative stability by introducing noise awareness into nonlinear recovery. Methods FPN-NCAS is developed based on an OAMP-style fixed-point unfolding framework. A coarse noise-power estimate is obtained from repeated pilot differences and injected into the nonlinear recovery module as an explicit conditioning variable. After each linear update, the vector-domain estimate is reshaped into an AoSA-aligned tensor to exploit subarray-level structural priors. The nonlinear restoration chain contains three components. Token-Gate performs lightweight subarray reliability pre-calibration to suppress unreliable responses under low-SNR or structurally inconsistent conditions. Block Shrink serves as the core noise-conditioned block-sparse proximal operator, where a smooth dual-threshold mechanism balances strong denoising at low SNR and structure preservation at medium-to-high SNR. G-HMTD(Gated Hybrid Multi-scale Transformer Denoiser)further refines residual errors by combining local multi-scale enhancement and global contextual modeling. Bridge relaxation and nonlinear residual scaling are also introduced to improve inter-stage stability. Results and Discussions Simulation results show that FPN-NCAS consistently outperforms LS, OAMP, ISTA-Net+, FPN-OAMP, and FPN-OTFN over the 0–20 dB SNR range (Figure 6). At SNR = 0 dB, FPN-NCAS achieves approximately 3.0 dB and 1.9 dB NMSE gains over FPN-OAMP and FPN-OTFN, respectively; at SNR = 20 dB, the gains increase to about 4.5 dB and 2.6 dB (Figure 6(a)). The convergence curves show that FPN-NCAS reaches a stable plateau after about three layers at SNR = 5 dB and about five layers at SNR = 15 dB, indicating stable fixed-point iteration behavior (Figure 6(b), Figure 6(c)). Repeated-pilot analysis shows that four repeated pilot pairs introduce only 3.13% extra pilot overhead while reducing the relative standard deviation of the coarse noise estimate to 25.00%. Under moderate noise-power mismatch, NMSE degradation is generally within 0.3 dB. The method also remains robust under colored Gaussian noise, impulsive noise, field-region shifts, path-number variation, AoSA subarray shuffle, and RF gain/phase mismatch (Figure 7, Figure 8). Ablation results indicate that Block Shrink is the dominant contributor, while Token-Gate and G-HMTD provide complementary gains through structural calibration and residual refinement (Figure 9). Conclusions This paper proposes FPN-NCAS for noise-conditioned fixed-point channel estimation in THz UM-MIMO systems. By integrating repeated-pilot-based noise conditioning, AoSA-aware feature reshaping, Token-Gate calibration, Block Shrink recovery, and G-HMTD refinement, the proposed method improves NMSE performance, robustness, and iterative stability under different SNR and non-ideal conditions. However, the improved performance is accompanied by higher inference complexity. Future work will focus on lightweight implementation and extensions to wideband, multi-user, and hardware-impaired THz communication scenarios.
- THz communications /
- Ultra-Massive MIMO /
- Channel estimation /
- Fixed-Point Network /
- Noise conditioning

HTML全文

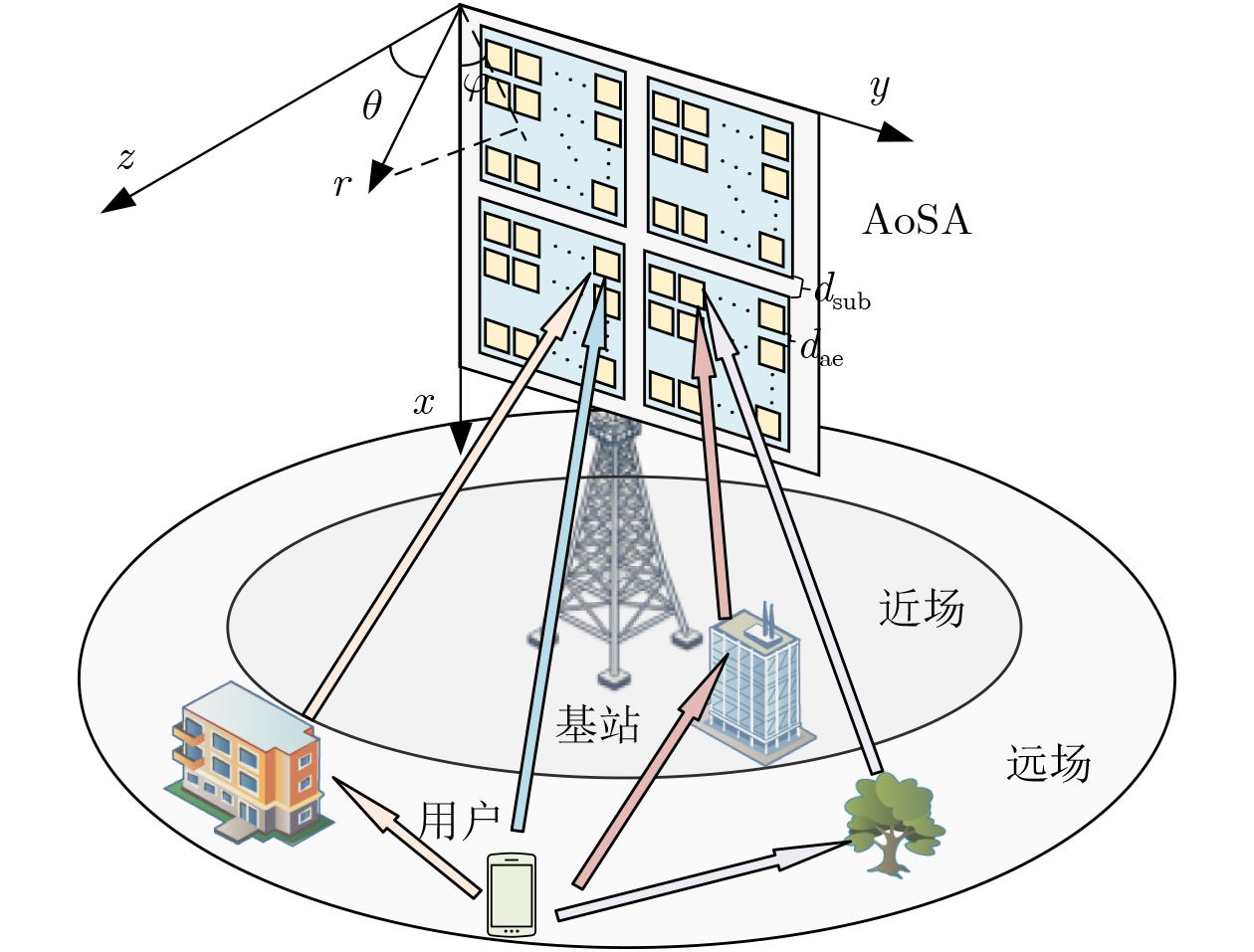

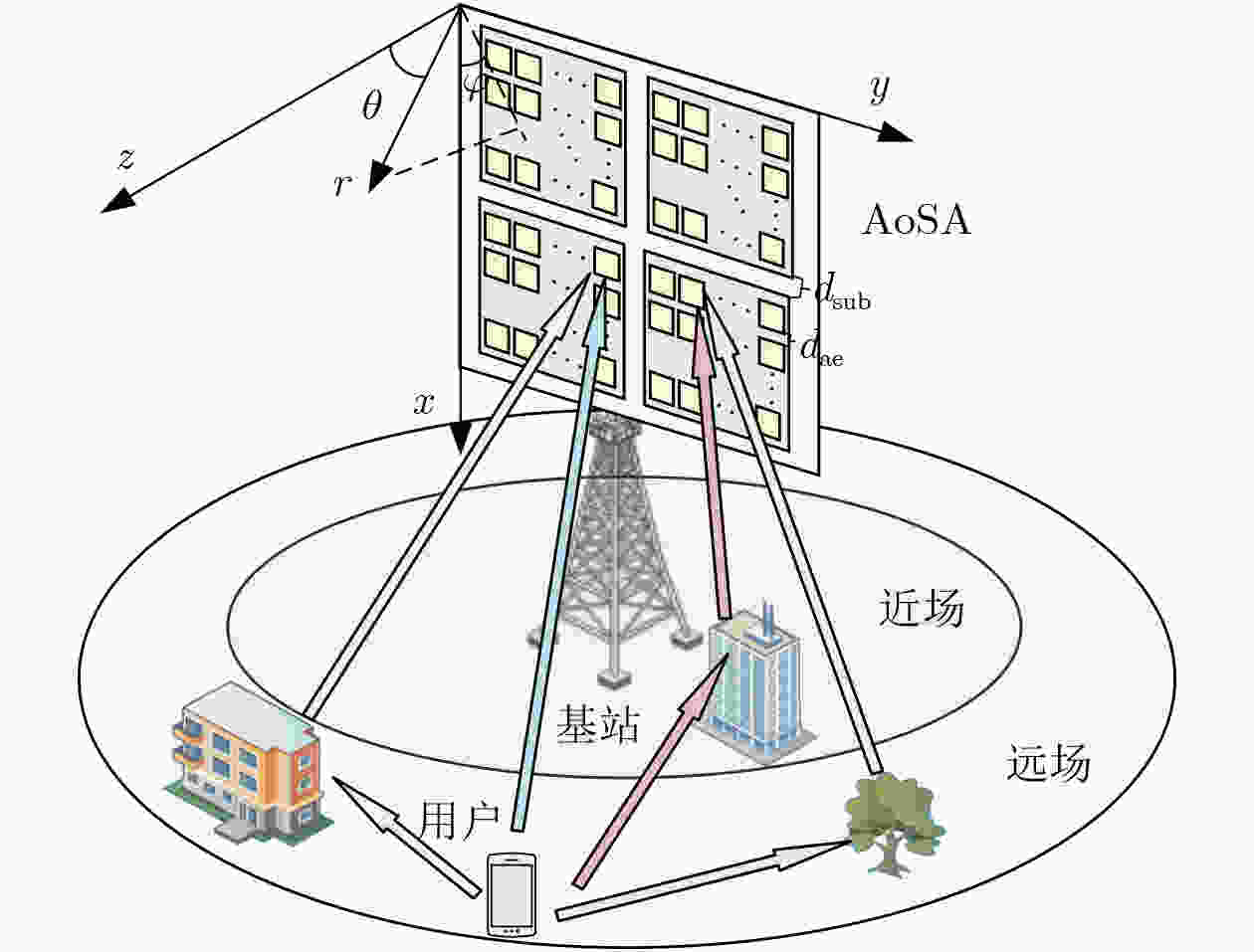

图 1 系统模型

下载: 全尺寸图片幻灯片

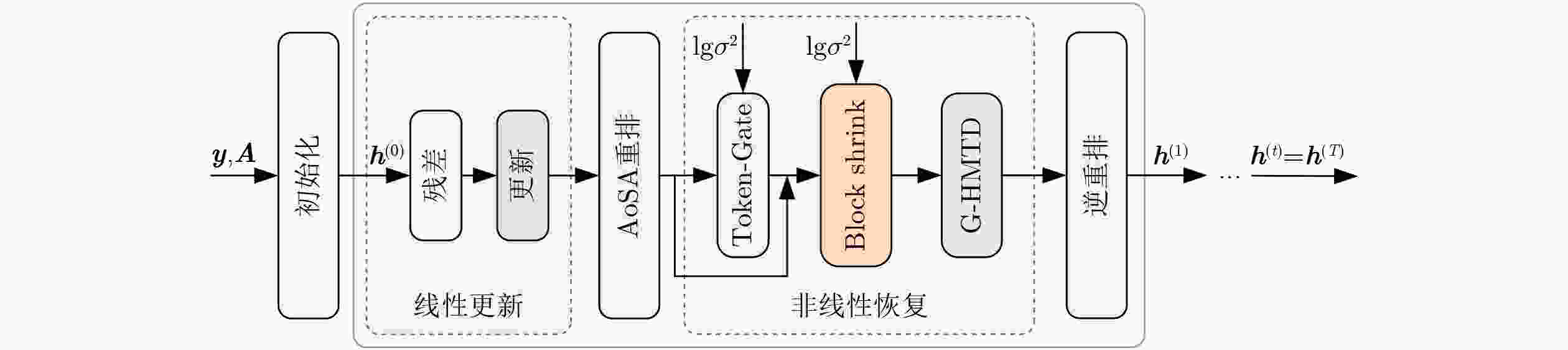

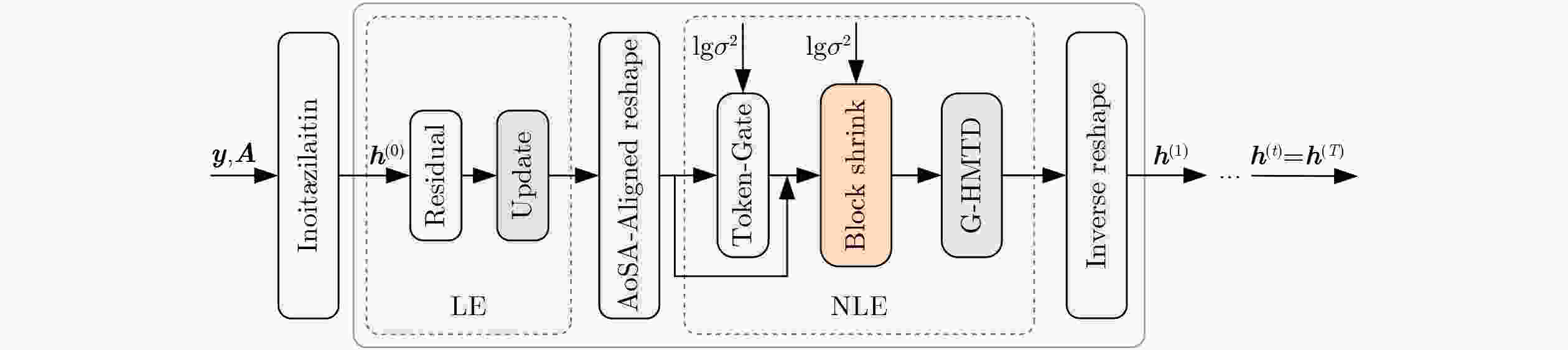

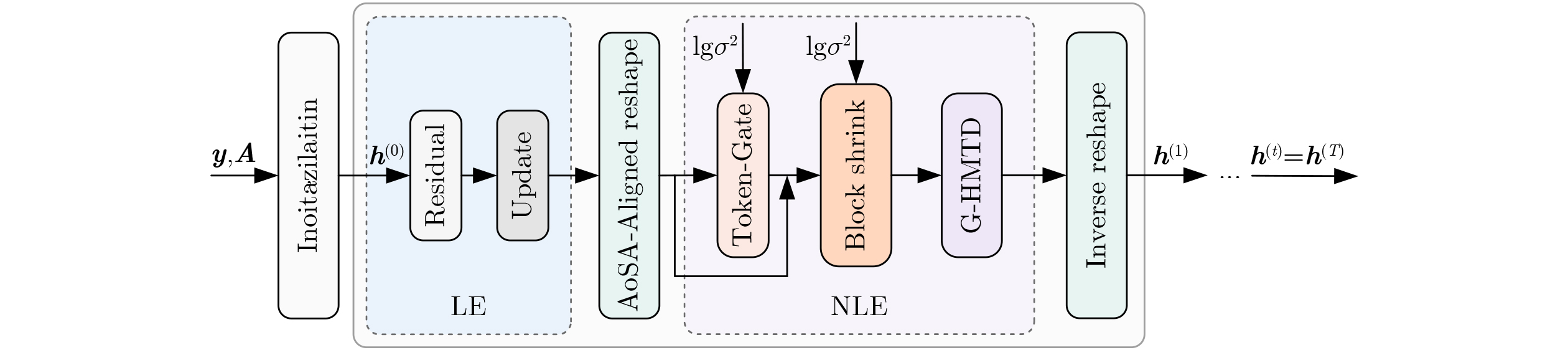

图 2 整体算法框架

下载: 全尺寸图片幻灯片

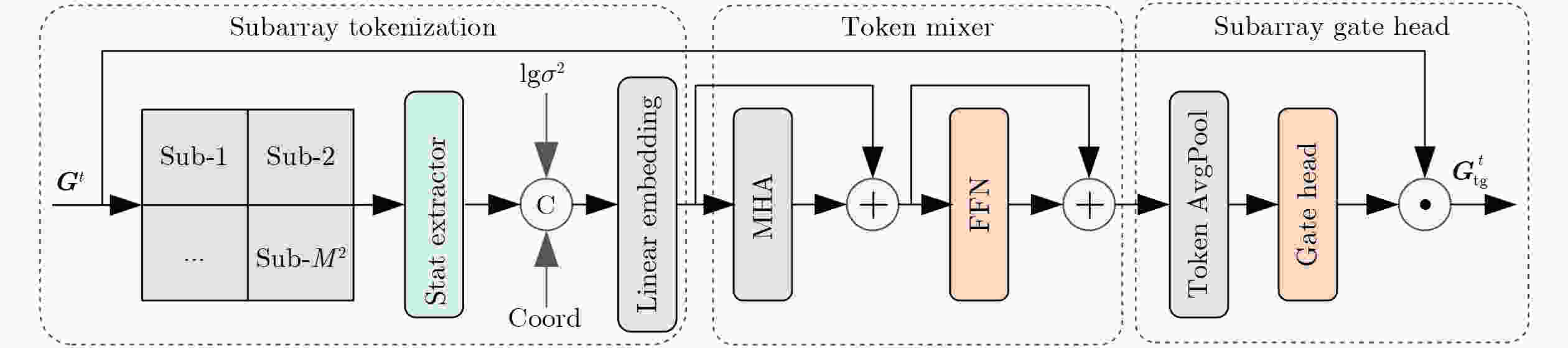

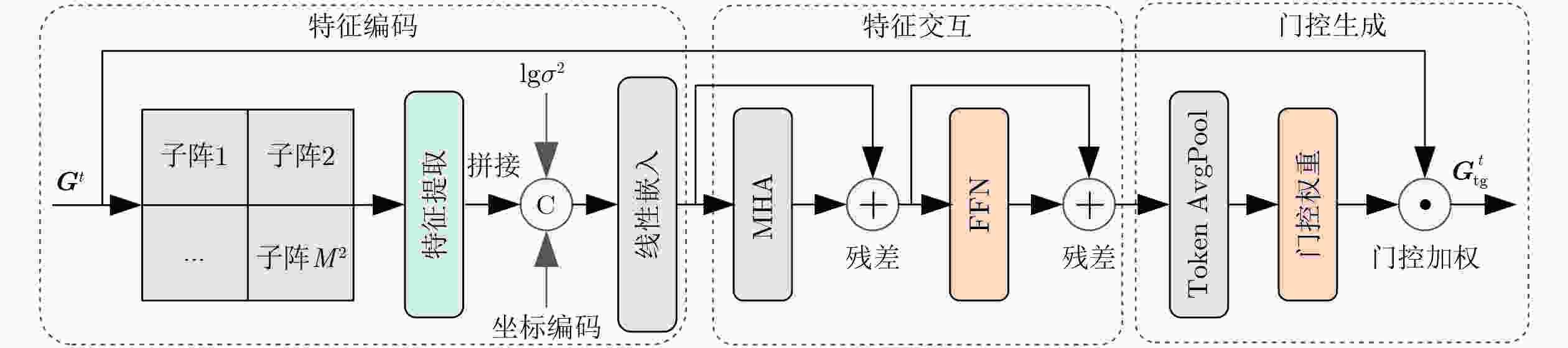

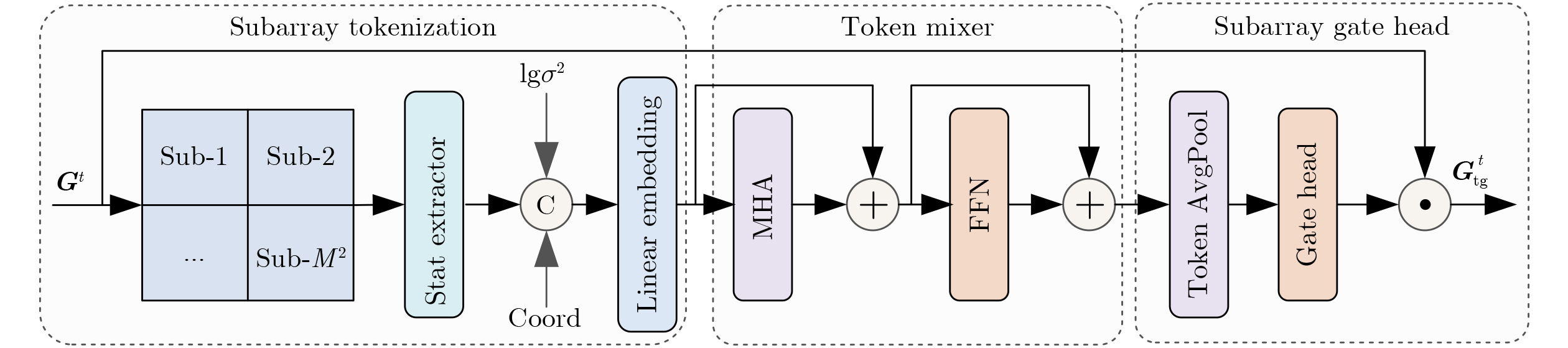

图 3 Token-Gate

下载: 全尺寸图片幻灯片

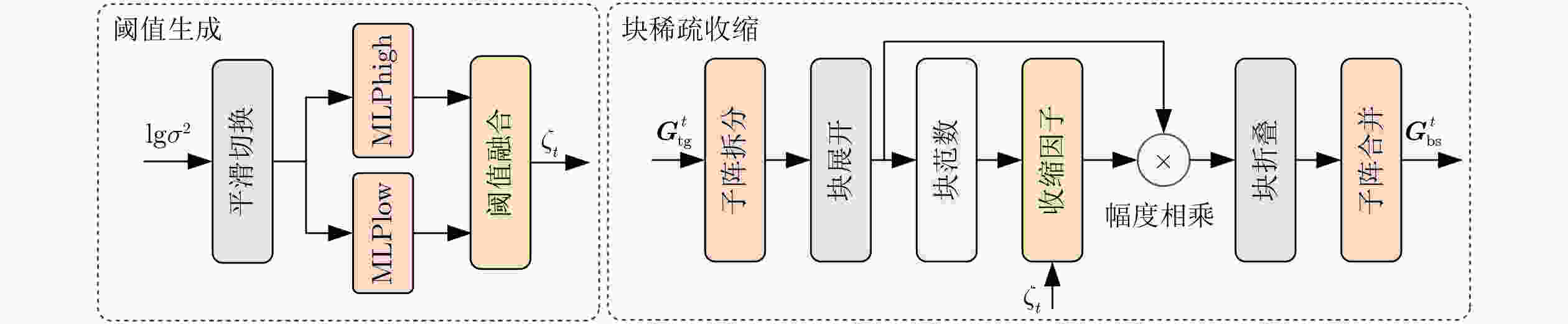

图 4 Block Shrink

下载: 全尺寸图片幻灯片

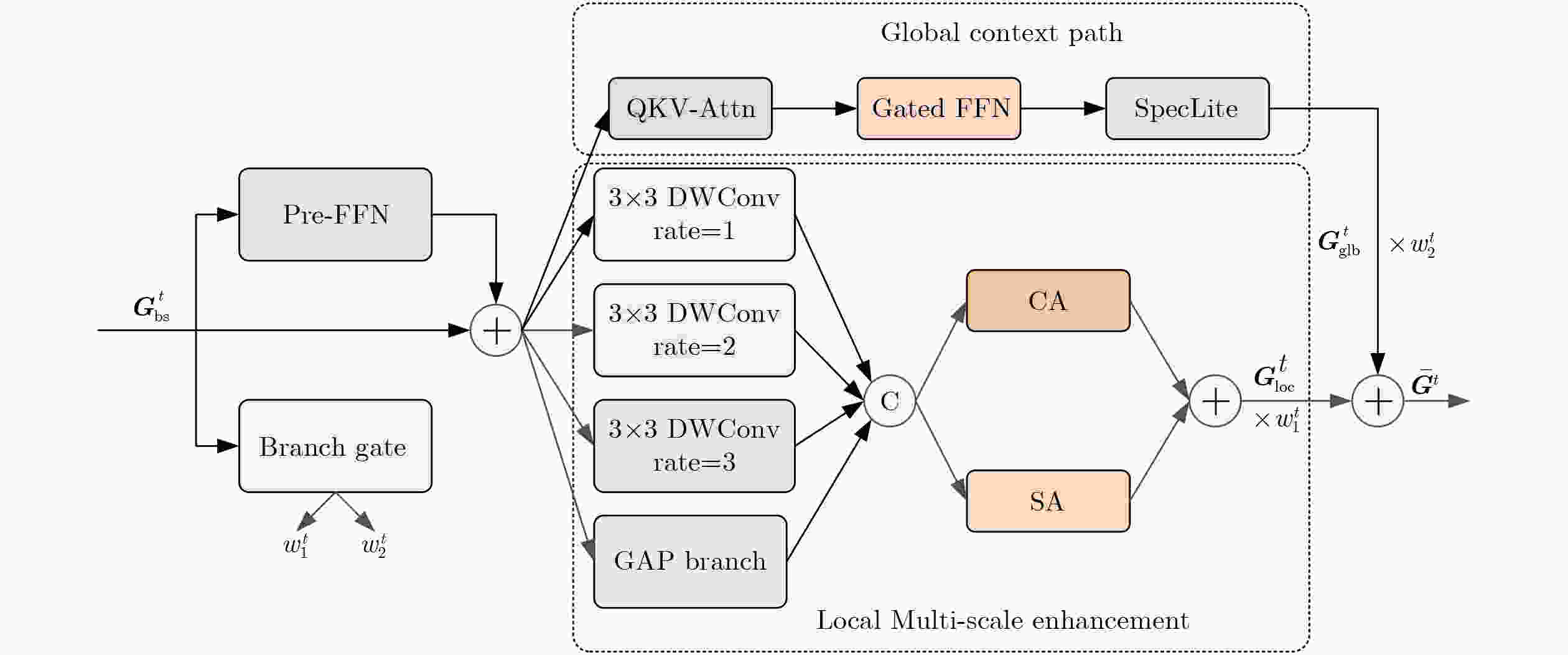

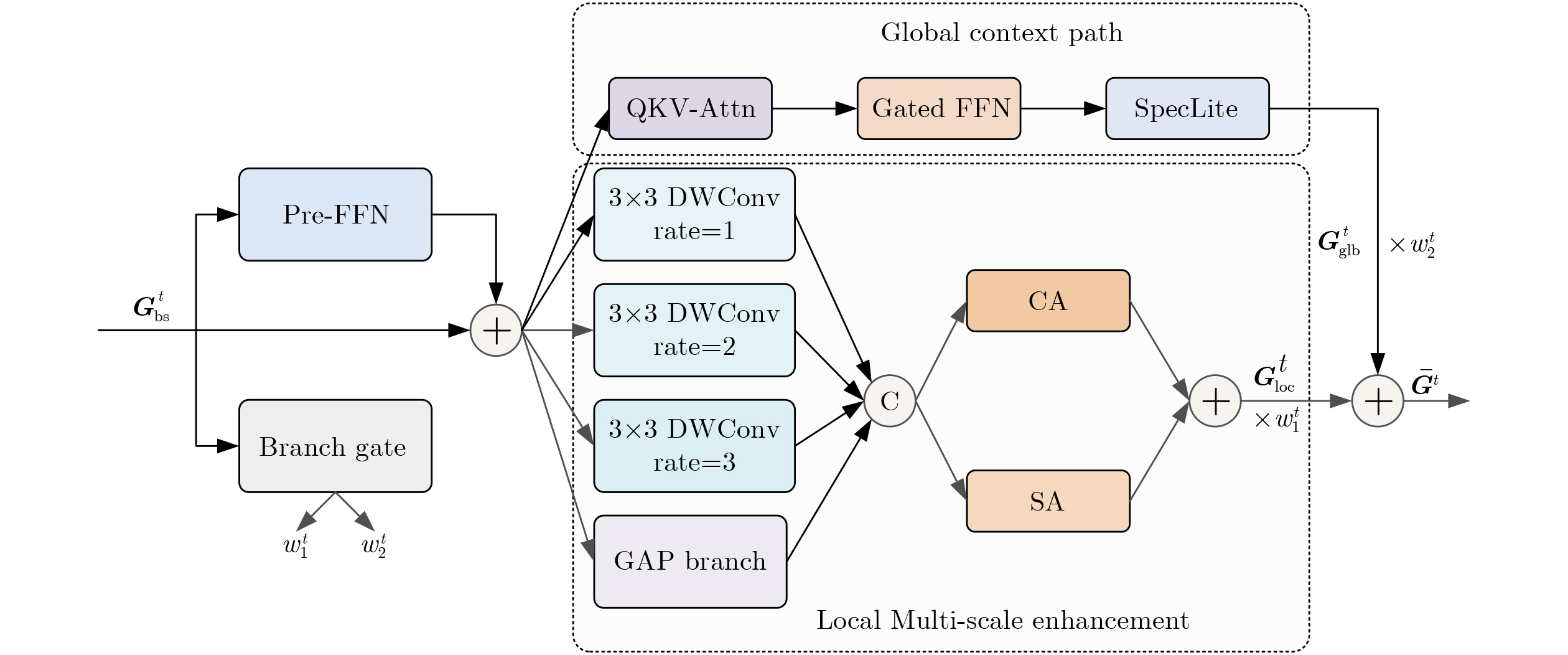

图 5 G-HMTD

下载: 全尺寸图片幻灯片

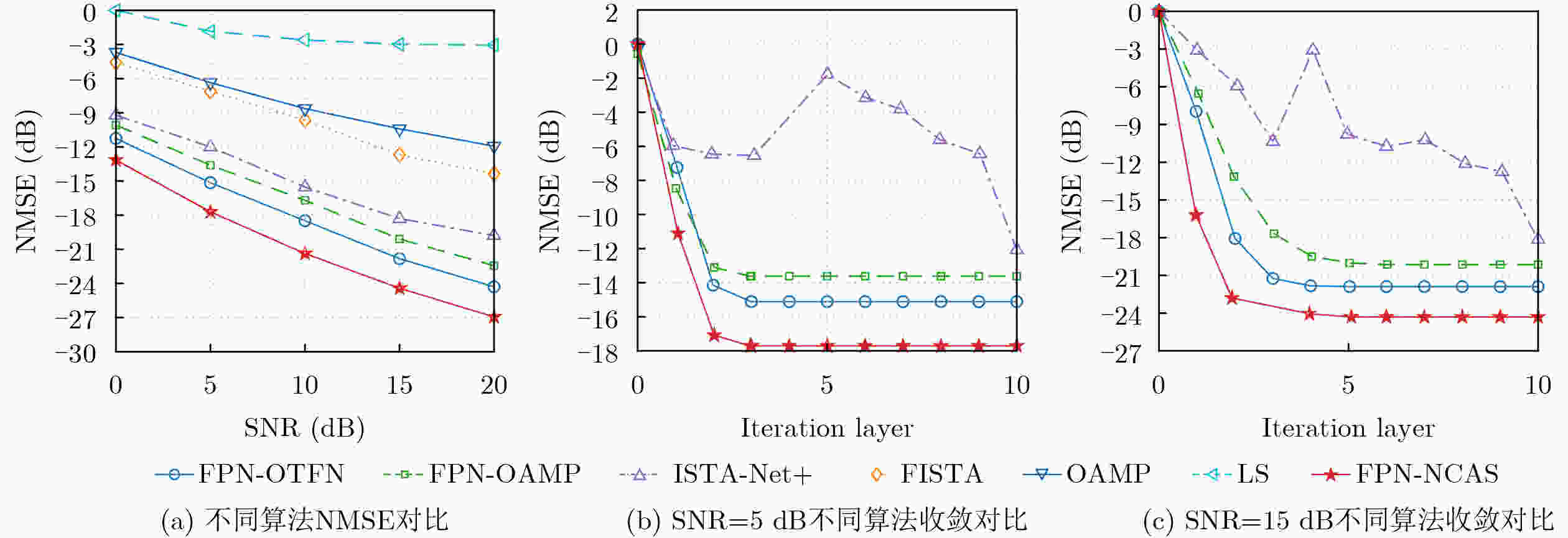

图 6 不同算法NMSE及算法收敛对比

下载: 全尺寸图片幻灯片

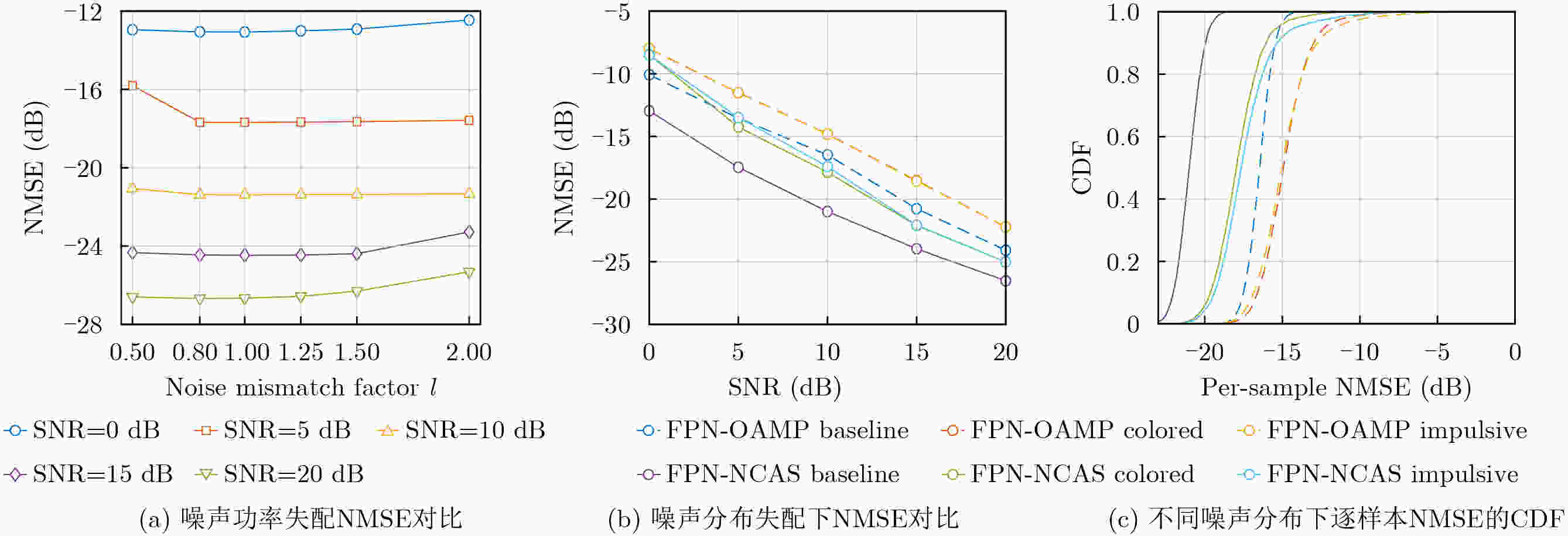

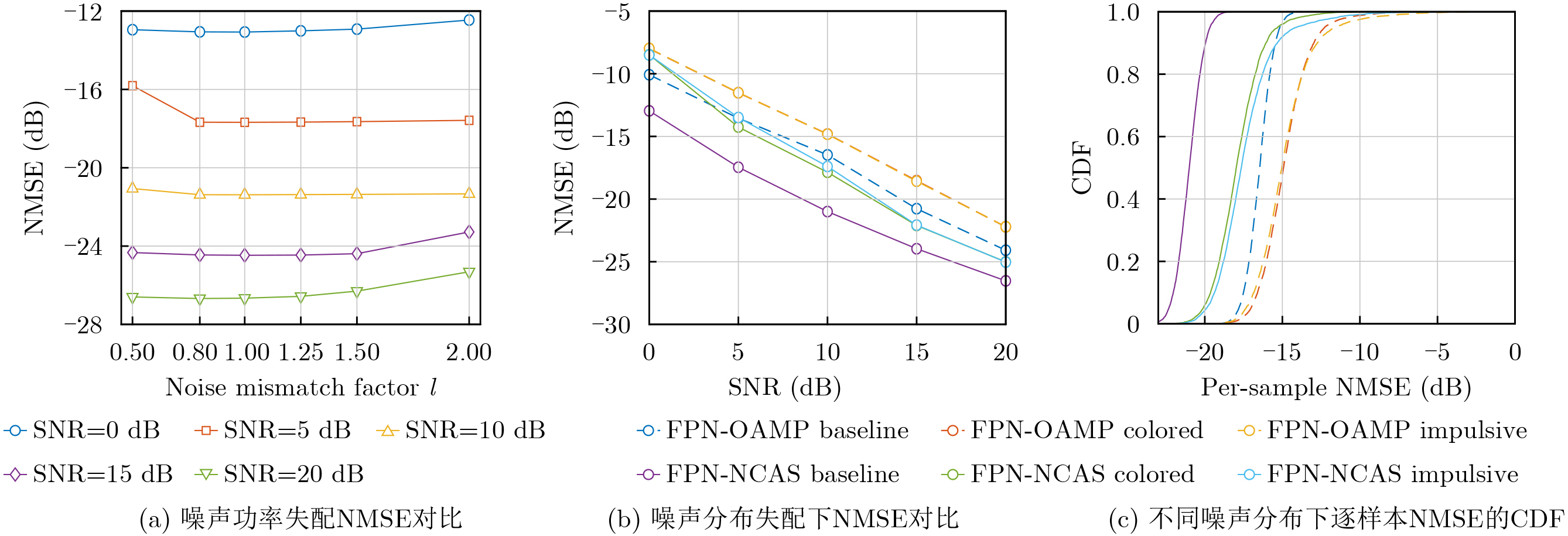

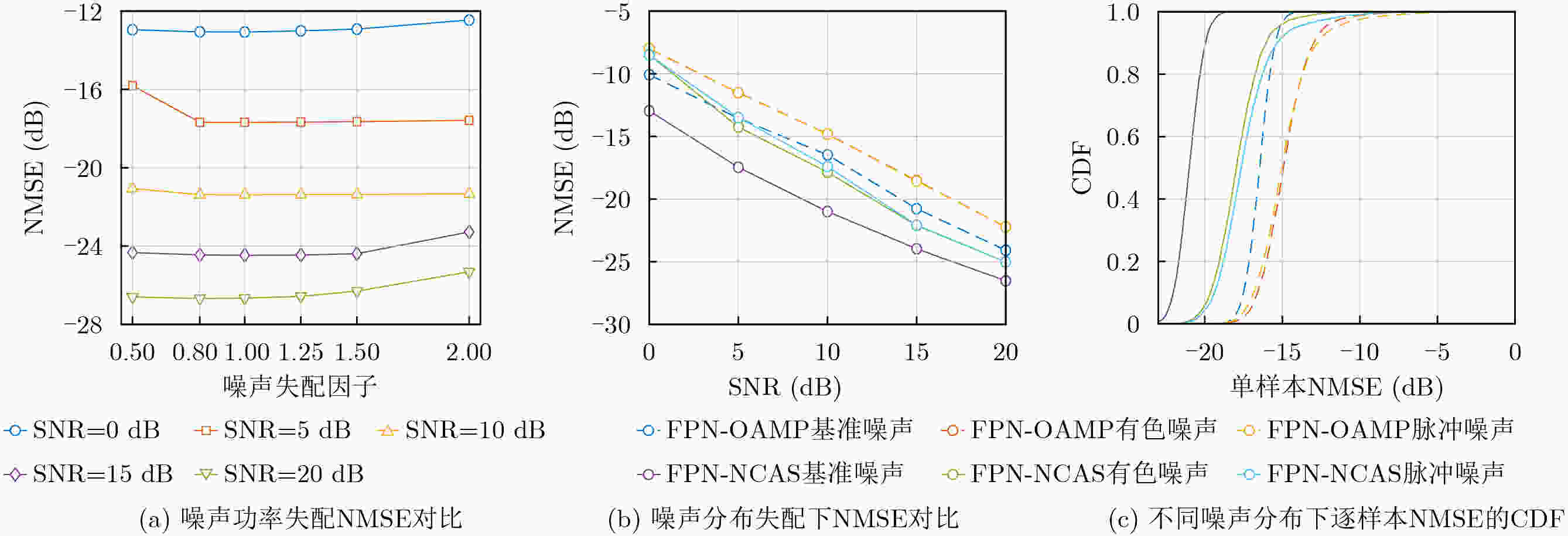

图 7 噪声功率与噪声分布失配

下载: 全尺寸图片幻灯片

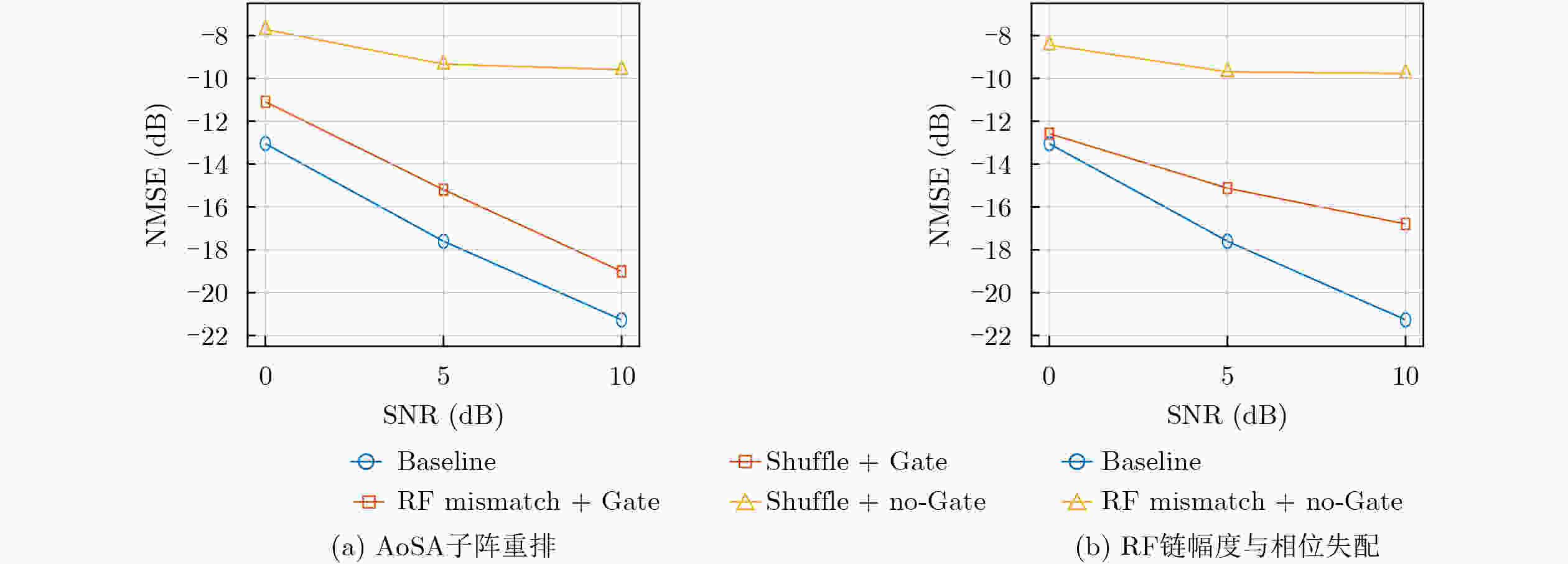

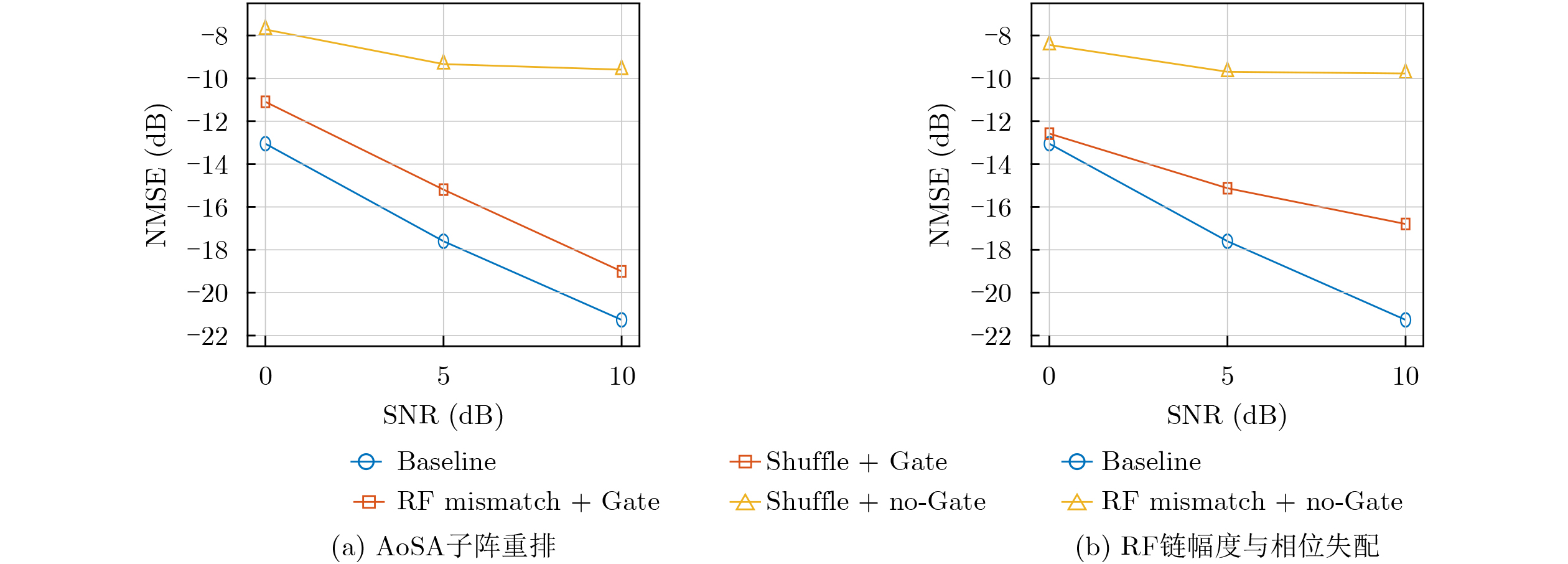

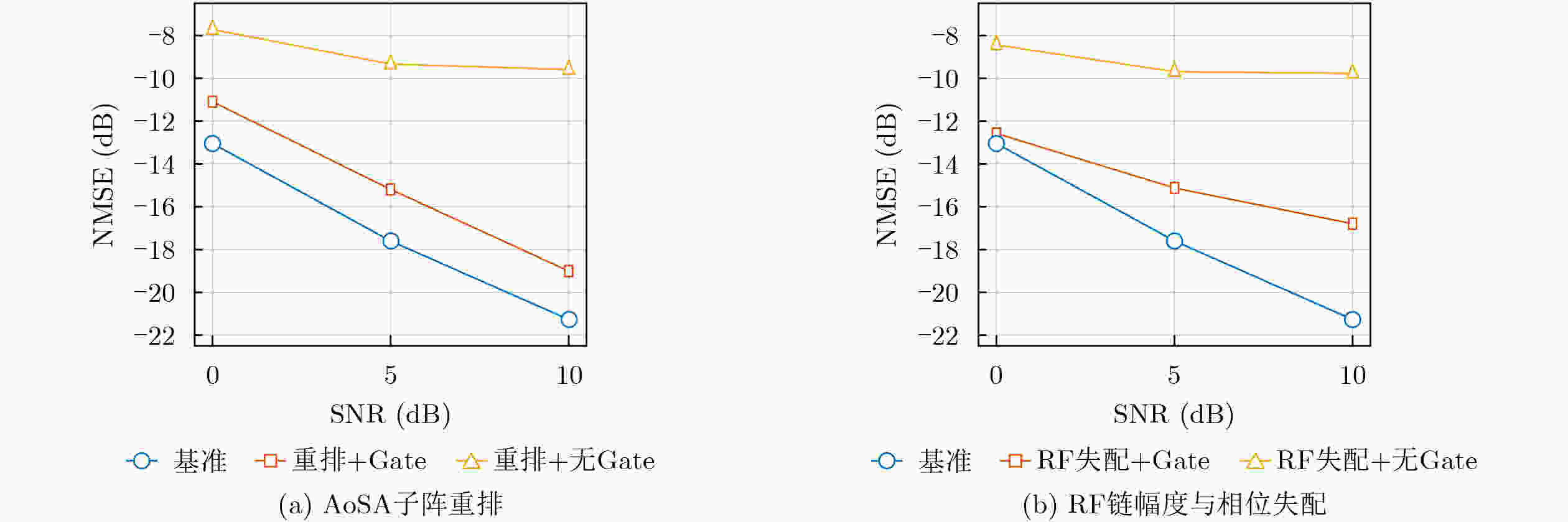

图 8 AoSA子阵顺序重排与RF振幅相位失配

下载: 全尺寸图片幻灯片

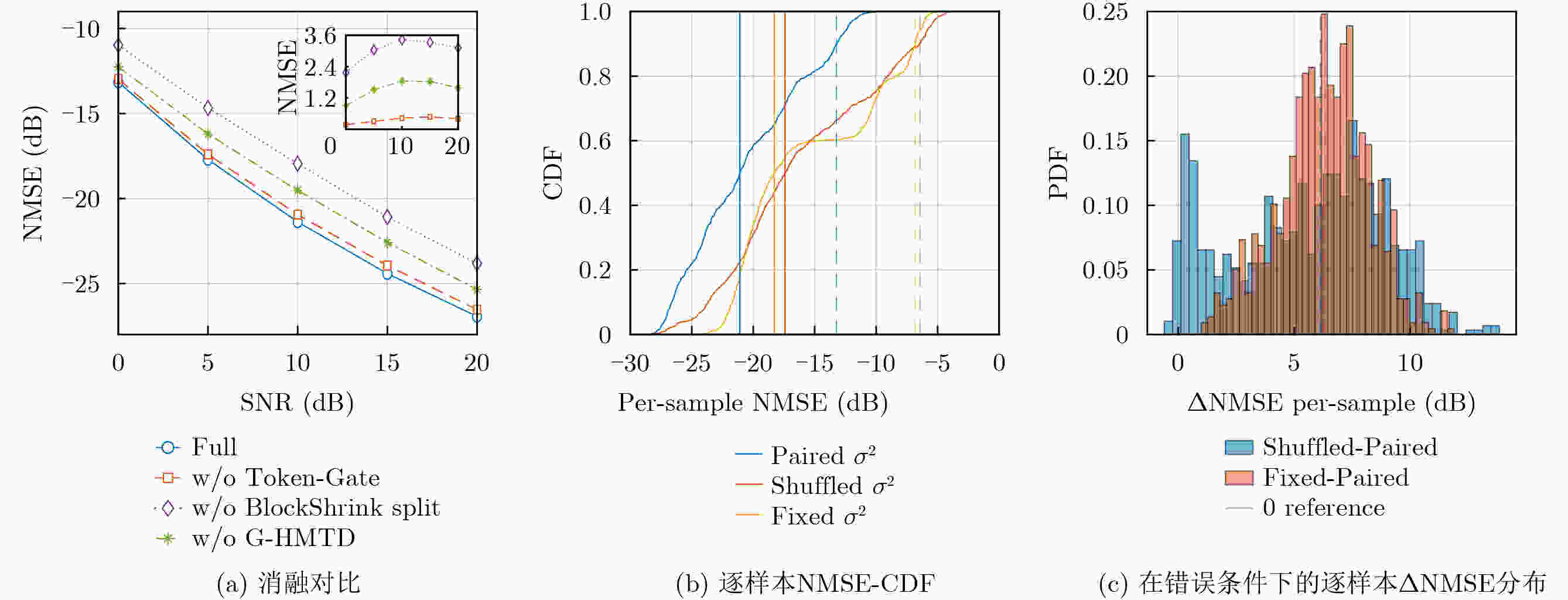

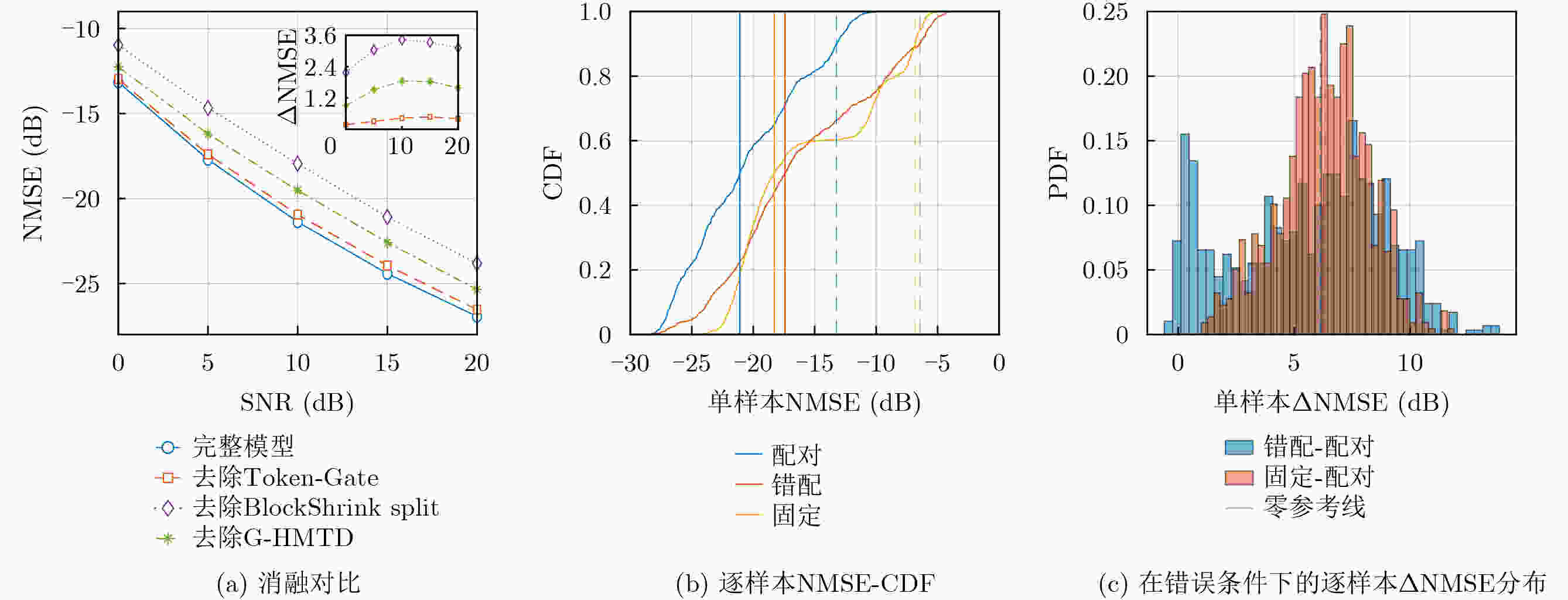

图 9 消融对比与噪声条件化可视化验证

下载: 全尺寸图片幻灯片

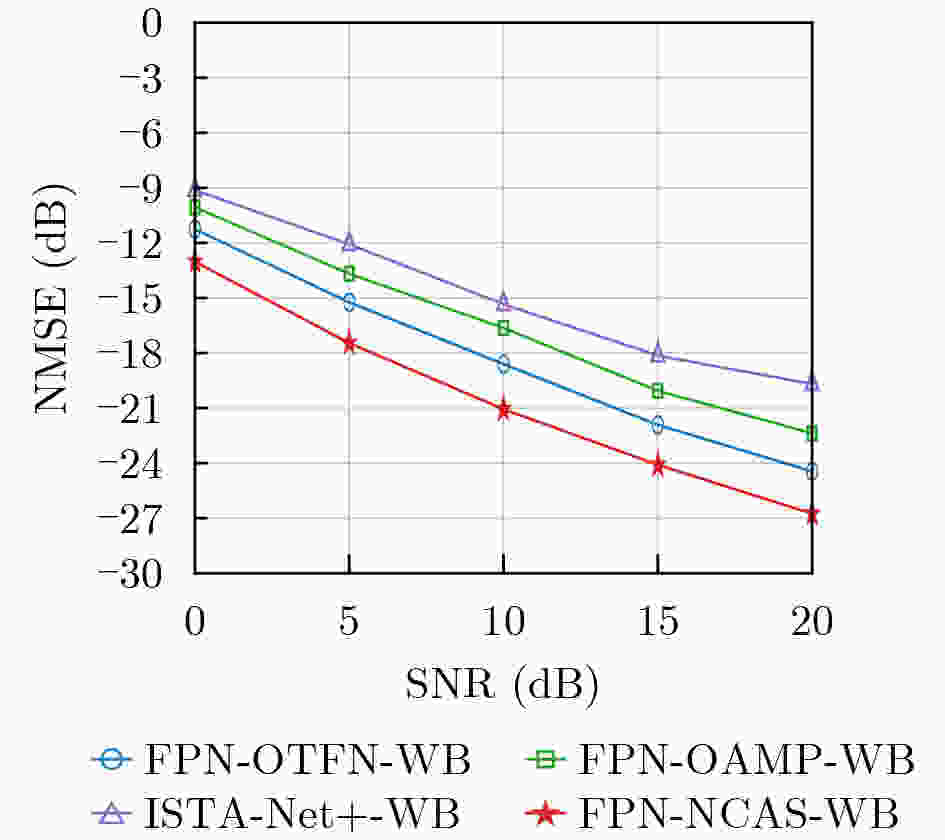

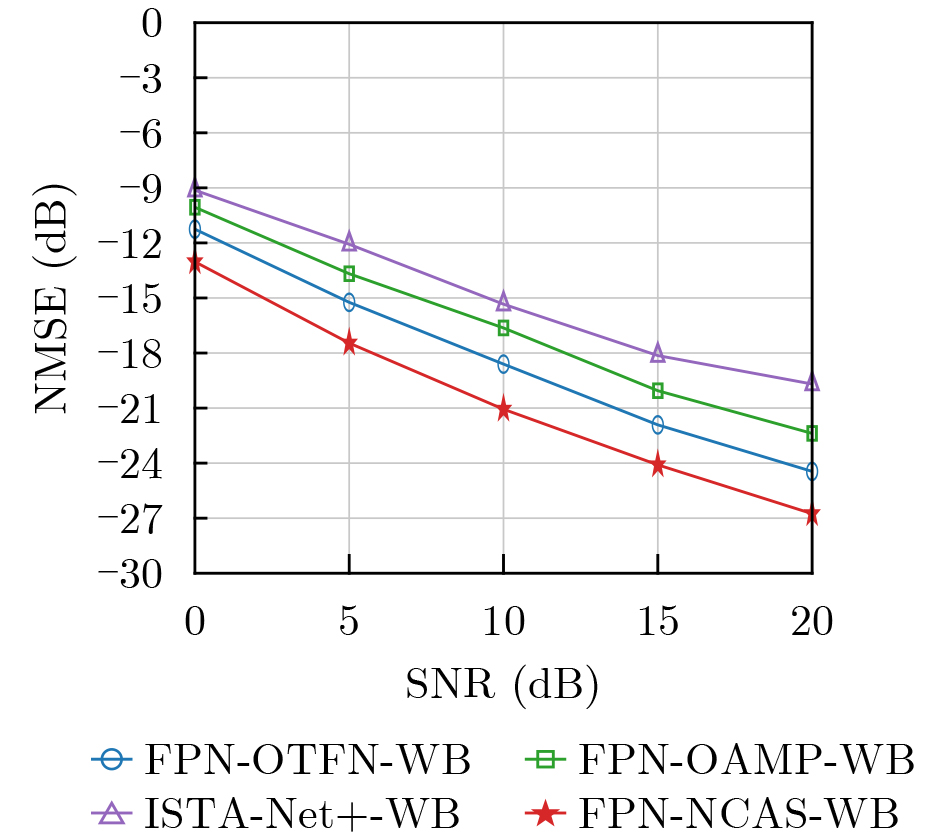

图 10 宽带场景下NMSE对比

下载: 全尺寸图片幻灯片

表 1 部分信道仿真参数

参数	载波频率 $ f $/GHz	子阵数量 $ {M}^{2} $	天线单元数量 $ {N}^{2} $	天线间距 $ {d}_{\mathrm{ae}} $/m	子阵间距 $ {d}_{\mathrm{sub}} $/m	导频长度 $ Q $	总路径数 $ L $
取值	300	4	256	2×10^–4	0.056	128	5

下载: 导出CSV

表 2 不同重复导频对下的噪声估计敏感性

$ {\mathrm{Q}}_{1} $	导频开销	相对标准差	0 dB	5 dB	10 dB	15 dB	20 dB
1	0.78%	50.00%	–12.94	–17.57	–21.32	–24.42	–26.58
2	1.56%	35.36%	–13.02	–17.64	–21.36	–24.45	–26.63
4	3.13%	25.00%	–13.07	–17.68	–21.38	–24.47	–26.66
8	6.25%	17.68%	–13.09	–17.69	–21.39	–24.48	–26.67
16	12.50%	12.50%	–13.10	–17.70	–21.40	–24.48	–26.67

下载: 导出CSV

表 3 不同分布与主路径数条件下的 NMSE 对比

测试项	分布/条件变化	NMSE	相对变化
区域分布外推	混合场→近场	–20.57 dB	+0.15 dB
区域分布外推	混合场→远场	–20.64 dB	+0.08 dB
主路径数偏移	L=3–4	平均 -21.84 dB	–1.22 dB
主路径数基线	L=5	平均 –20.62 dB	0
主路径数偏移	L=6–7	平均 –19.22 dB	+1.40 dB

下载: 导出CSV

表 4 RF链幅度相位随机扰动下的Token-Gate统计验证

项目	统计对象/方法	均值	标准差	0 dB	5 dB	10 dB
幅度扰动	$ {\alpha }_{i} $	1.005	0.101	-	-	-
相位扰动	$ {\phi }_{i} $	0 rad	0.20 rad	-	-	-
NMSE	RF mismatch + no-Gate	-	-	-7.665 ± 0.523	-8.931 ± 0.765	-8.856 ± 0.883
NMSE	RF mismatch + Gate	-	-	-10.794 ±1.083	-13.001 ±1.892	-13.510 ± 2.501
改善量	no-Gate − Gate	-	-	3.130 ± 0.563	4.071 ± 1.145	4.654 ± 1.657

下载: 导出CSV

表 5 不同模型的复杂度对比

模型	固定迭代层数	可训练参数量/M	计算量/G	平均推理时间/ms
OAMP	-	-	0.065	7.71
ISTA-Net+	15	0.454	0.181	31.76
FPN-OAMP	15	0.362	0.888	64.89
FPN-OTFN	15	0.179	0.701	150.47
FPN-NCAS	15	0.523	1.764	251.33

下载: 导出CSV
