AI赋能的实时音频信源信道联合编码研究

周通; 陈宏智; 许佳龙; 孙鹏; 姜大洁; 刘健康

doi:10.11999/JEIT260379

AI赋能的实时音频信源信道联合编码研究

doi: 10.11999/JEIT260379 cstr: 32379.14.JEIT260379

维沃软件技术有限公司北京 100015

详细信息

作者简介:
周通：女，现任vivo通信研究院预研专家，研究方向为通信与AI融合技术

陈宏智：男，现任vivo通信预研工程师，研究方向为通信与AI融合技术和AI感知辅助通信．

许佳龙：男，现任vivo通信研究院预研工程师，研究方向为基于AI的联合信源信道编码，基于AI的无线通信物理层技术

孙鹏：男，高级工程师，研究方向为massive MIMO，AI等

姜大洁：男，高级工程师，现任vivo通信研究院预研总监，研究方向为通感一体化、AI与通信结合等

刘健康：男，现任vivo通信研究院验证专家，研究方向为数据面，IoT-NTN，语音AI Codec等

通讯作者:
周通　tong.zhou@vivo.com

中图分类号: TN926.1
计量
- 文章访问数: 49
- HTML全文浏览量: 29
- PDF下载量: 6
- 被引次数: 0
出版历程
- 修回日期: 2026-07-08
- 录用日期: 2026-07-08
- 网络出版日期: 2026-07-22

Research on AI-Enabled Real-Time Audio Joint Source-Channel Coding

vivo Mobile Communication Co. Ltd., Beijing 10015, China

摘要

摘要: 目前，第三代合作伙伴计划(3rd Generation Partnership Project, 3GPP)的业务与系统技术规范组第4工作组(TSG SA Working Group 4, SA4) 已经开始研究基于人工智能(Artificial Intelligence, AI)的语音编解码器。本文首次以3GPP地球静止轨道(Geostationary Earth Orbit, GEO)语音典型的物理层参数配置与目前SA4正在研究的Descript 音频编解码器(Descript Audio Codec, DAC)作为评估基线，保证了基线结果的公平性，并首次提出了总功率限制的DAC信源信道调制联合优化方案、恒模限制的DAC信源信道调制联合优化方案和DAC信源信道联合编解码方案。在语音质量可接受的前提下，所提方案相比于基线方案有2.5 dB～4 dB的覆盖增益。希望为GEO语音的后续研究提供有益思路。
- GEO语音 /
- 信源信道联合编码 /
- 联合信源信道编码调制 /
- AI
Abstract: Currently, the 3rd Generation Partnership Project (3GPP) Technical Specification Group Service and System Aspects Working Group 4 (TSG SA Working Group 4, SA4) has begun researching Artificial Intelligence (AI)-based audio codecs. Based on the Descript Audio Codec (DAC) being studied by SA4, this paper presents a joint optimization scheme for DAC source-channel coding and modulation with total power constraints, a joint optimization scheme for DAC source-channel coding and modulation with constant modulus constraints, and a DAC joint source-channel coding scheme. Furthermore, simulation evaluation is conducted using the typical physical layer parameter configuration of 3GPP Geostationary Earth Orbit (GEO) voice scenario. Finally, preliminary research suggestions are made, with the hope of providing useful insights for the subsequent research on GEO voice. Objective In recent years, Joint Source-Channel Coding (JSCC) has gained widespread attention in academia and industry. In academia, the sources studied for JSCC include video, image, and audio. However, the industry has not focused on these sources as in academia, but rather on JSCC where channel state information (CSI) is considered as the source. The reason the industry has not considered JSCC for video and images is due to two main factors. First, for video and images, 3GPP generally does not conduct independent research, but instead directly reuses source compression standards developed by external organizations such as the Moving Picture Experts Group (MPEG) and the Joint Photographic Experts Group (JPEG). Second, it is constrained by the challenges of the source-channel coding architecture. For example, in joint source-channel coding at the application layer, the channel information obtained at the application layer is often outdated, which limits the potential gains of source-channel coding. However, the situation is quite different for audio. Audio coding and decoding are designed independently by 3GPP, and currently, 3GPP SA4 is researching AI-based speech coding and decoding. Moreover, in GEO speech scenarios, where satellites remain largely stationary relative to ground stations and the channel changes slowly, the physical layer CSI can be transmitted to the application layer, overcoming the issue of outdated channel information. This makes the research on JSCC for audio more promising within 3GPP, compared to JSCC for video or image sources. Methods This paper firstly uses the typical physical layer parameter configurations of 3GPP GEO voice and the DAC encoder, currently being studied by SA4, as an evaluation baseline, ensuring the fairness of the proposed scheme’s gain evaluation. Based on this, the paper proposes the integration of DAC with channel coding and modulation to improve audio quality in low-bitrate scenarios. First, the total power constrained (TPC) DAC-JSCCM scheme is considered, which offers the maximum potential gain due to the joint optimization of source coding, channel coding, and modulation. Then, considering the high PAPR (Peak-to-Average Power Ratio) impact on the power amplifier, the paper proposes a constant-envelope constrained (CEC) DAC-JSCCM scheme. Finally, since the modulation symbols included in RTP payload require significant changes to the existing protocol, a DAC-JSCC scheme that is more compatible with current protocols is proposed, where bit sequences are included in RTP payload. Results and Discussions In the evaluation of baseline scheme 1, the link-level simulation at the physical layer is first conducted to obtain the relationship between SNR and BLER for an input length of 64 bits using a 1/3 Turbo code. Then, assuming that the error rate of an audio frame is the same as the BLER, the transmission error rate of an RTP packet containing L audio frames is calculated. According to the existing processing logic, if one audio frame in an RTP packet is transmitted with an error, the entire RTP packet will be discarded. In real-time communication, VoIP, or speech enhancement scenarios, a PESQ score of 2.5 is generally considered the minimum usable threshold, and voice quality below this score is regarded as unsuitable for professional or commercial services. Therefore, in GEO voice calls, we choose PESQ = 2.5 as the reference point. When PESQ = 2.5, the TPC DAC-JSCCM and CEC DAC-JSCCM provide a coverage gain of approximately 4 dB compared to baseline scheme 1 (Fig.4). The DAC-JSCC scheme offers a coverage gain of 2.5 dB compared to baseline scheme 1 (Fig.4). The coverage gains of DAC-JSCCM and DAC-JSCC come from the application layer performing joint source-channel coding, which avoids the cliff effect caused by using Turbo coding at the physical layer. When the Complementary Cumulative Distribution Function (CCDF) of Peak-to-Average Power Ratio (PAPR) is $ {10}^{-3} $, the TPC DAC-JSCCM is 4 dB higher than the QPSK modulation, with sharper signal peaks, higher requirements for power amplifier linearity, and is more prone to distortion. In contrast, the CEC DAC-JSCCM is very close to the QPSK modulated PAPR. Conclusions This paper proposes the Total Power Constrained DAC-JSCCM, Constant Modulus Constrained DAC-JSCCM, and DAC-JSCCM schemes, based on the DAC codec currently being researched by SA4. Simulations are conducted using the typical physical layer configuration of the existing 3GPP GEO voice scenario. The simulation results show that, when the PESQ is 2.5 (the minimum usable threshold), compared to DAC combined with existing physical layer transmission technologies, the proposed DAC-JSCCM provides a coverage gain of 4 dB, while the proposed DAC-JSCC scheme provides a coverage gain of 2.5 dB. SA4 is currently researching more advanced GEO voice codecs beyond DAC, and we will extend our research by combining better GEO voice codecs in the future.
- GEO Voice /
- Joint Source-channel Coding (JSCC) /
- Joint Source-channel Coding and Modulation (JSCCM) /
- AI

HTML全文

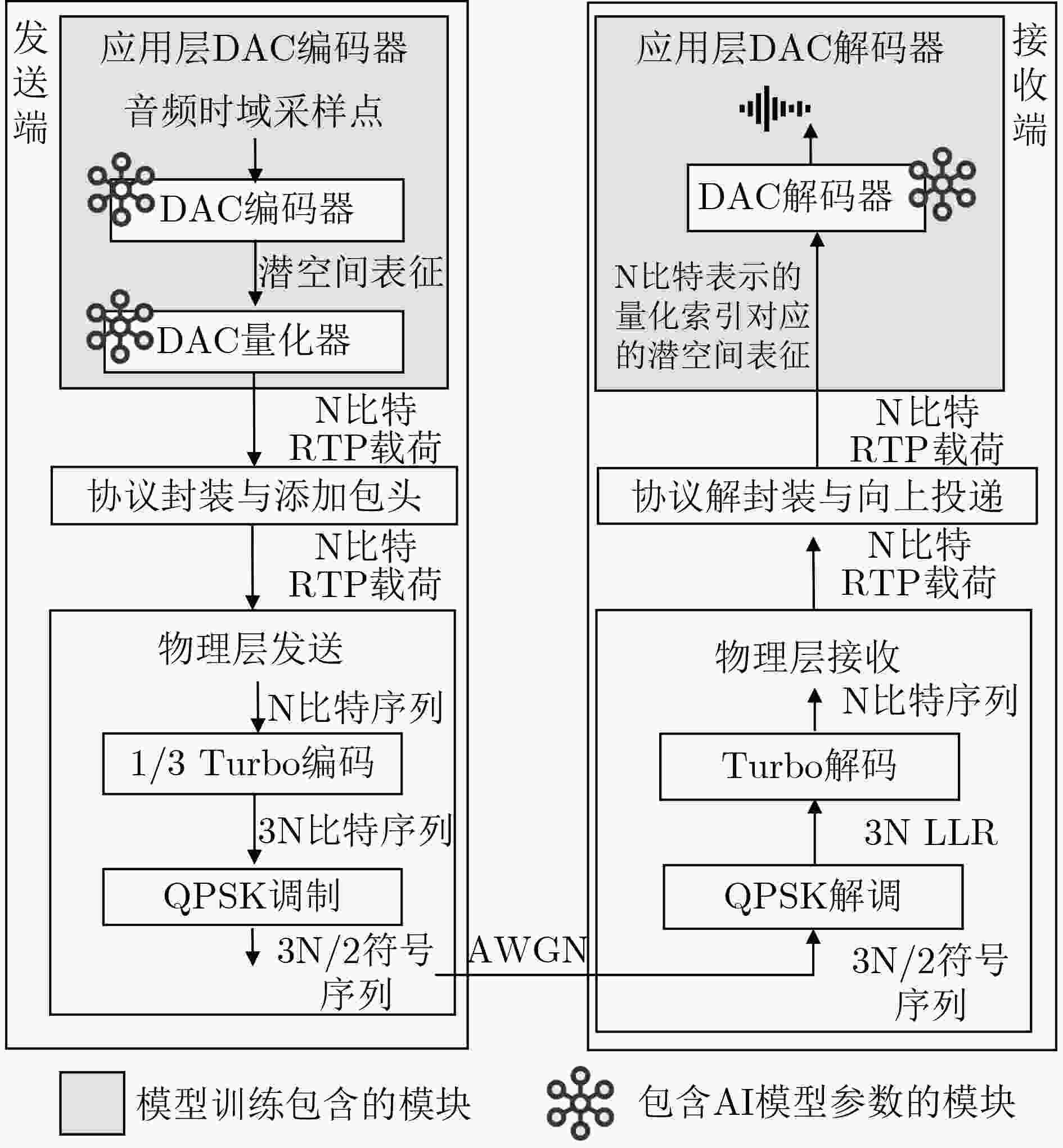

图 1 应用层DAC与物理层传输方案的处理流程

下载: 全尺寸图片幻灯片

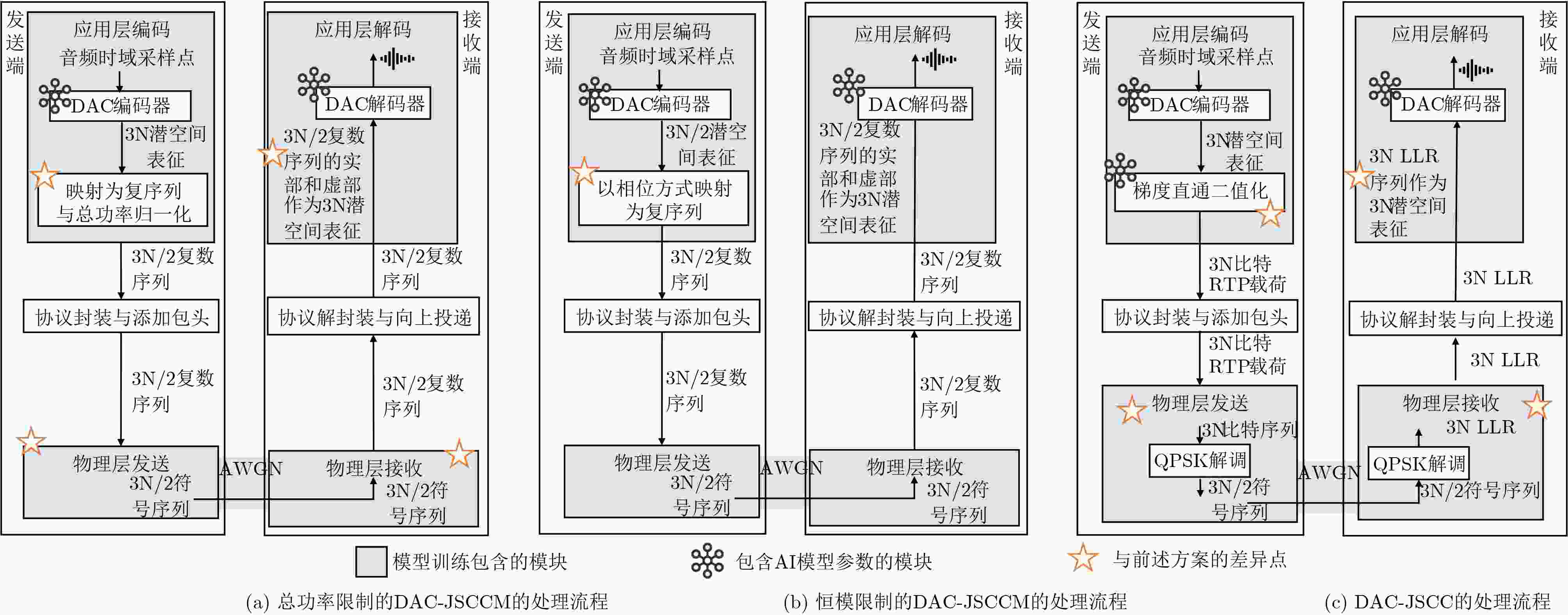

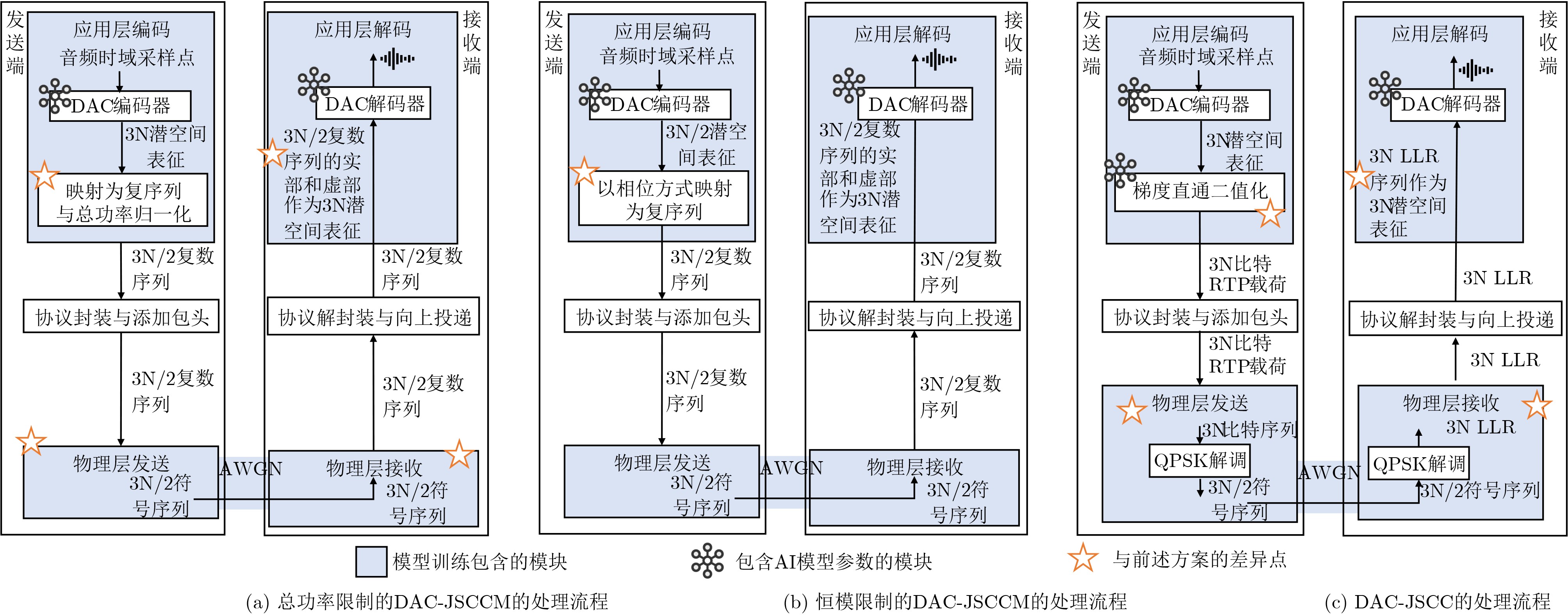

图 2 提出3种方案的处理流程

下载: 全尺寸图片幻灯片

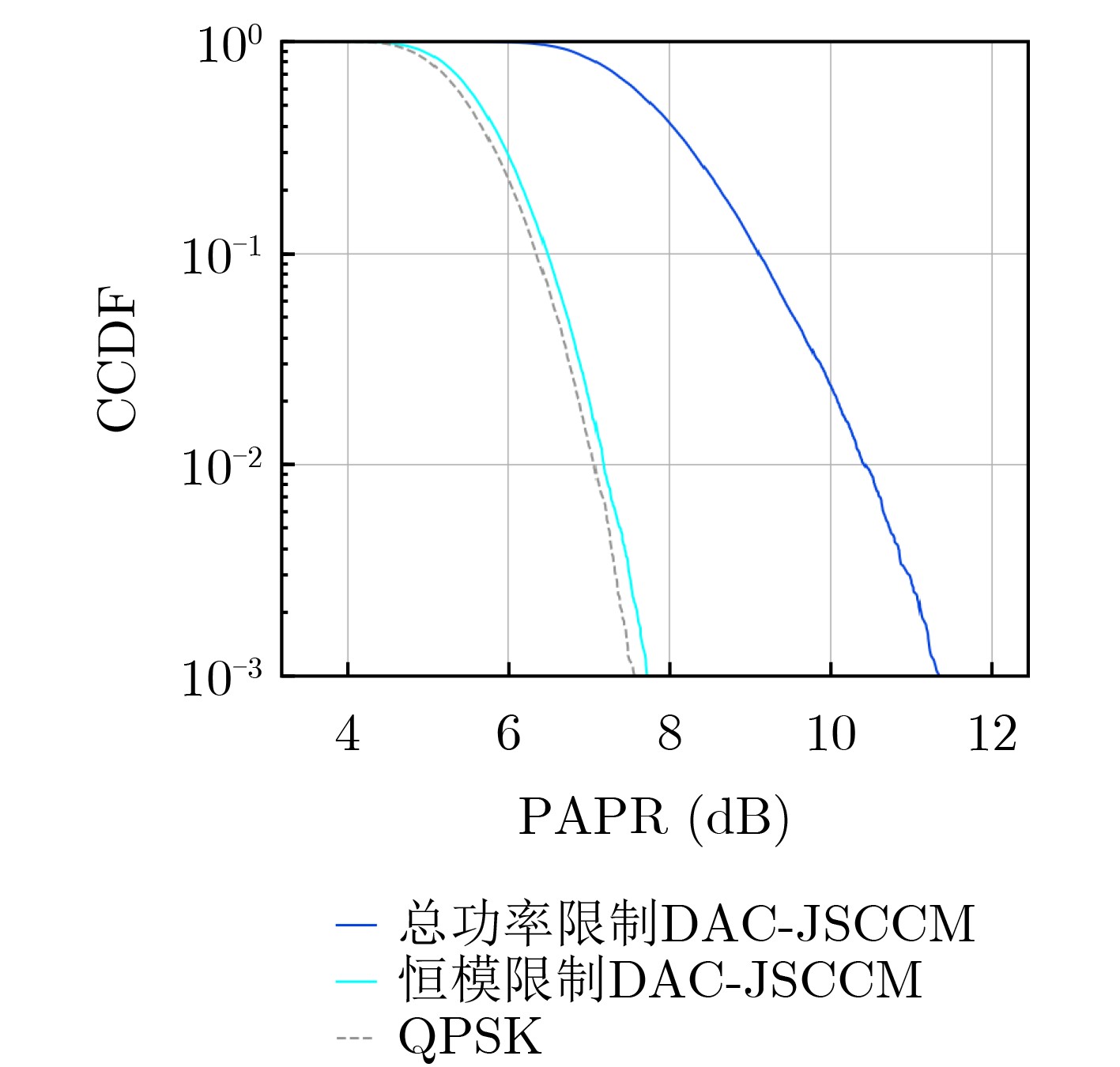

图 5 提出方案1、2与QPSK的PAPR CCDF对比

下载: 全尺寸图片幻灯片

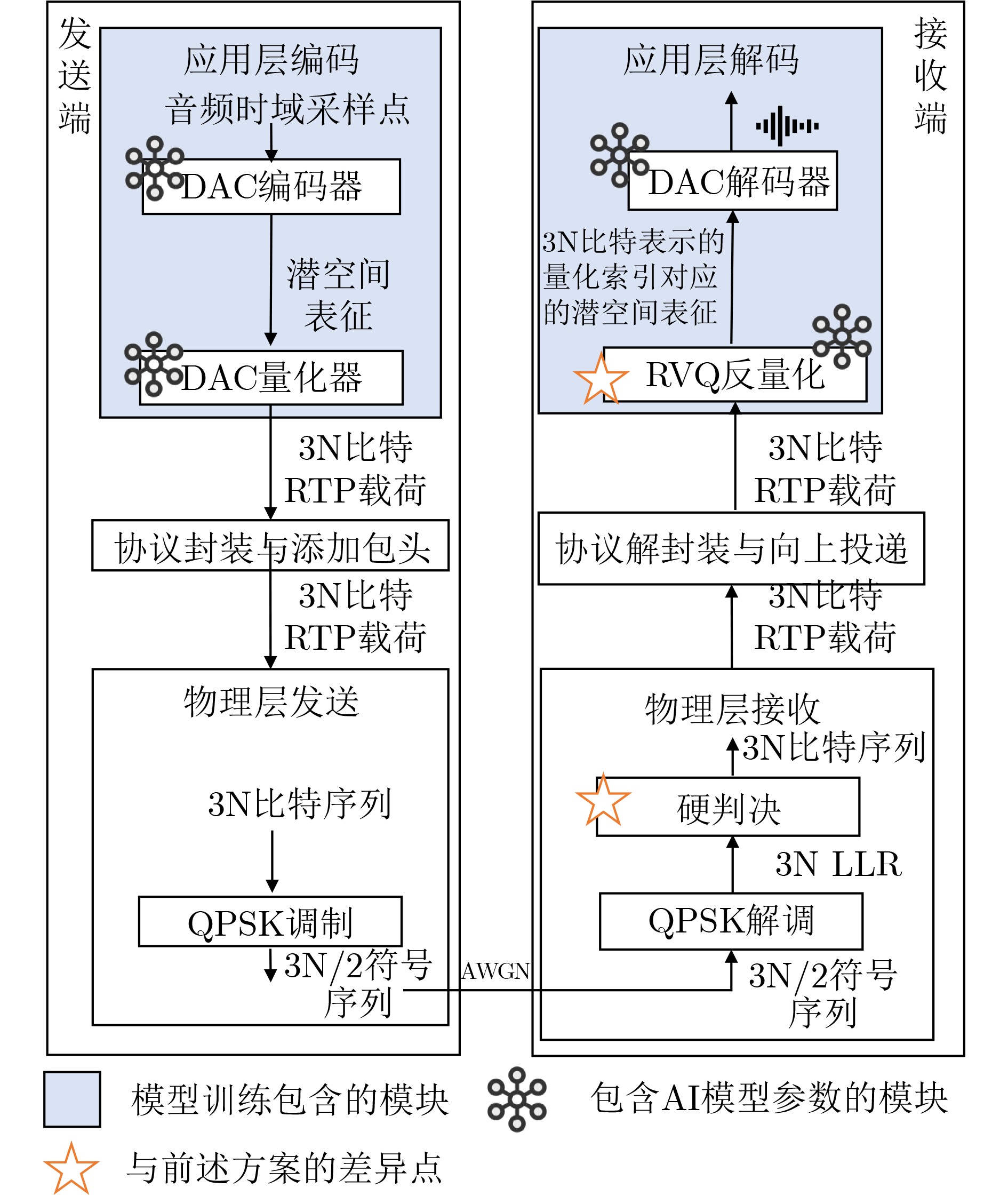

图 3 基线方案2 DAC-物理层无信道编码方案的处理流程

下载: 全尺寸图片幻灯片

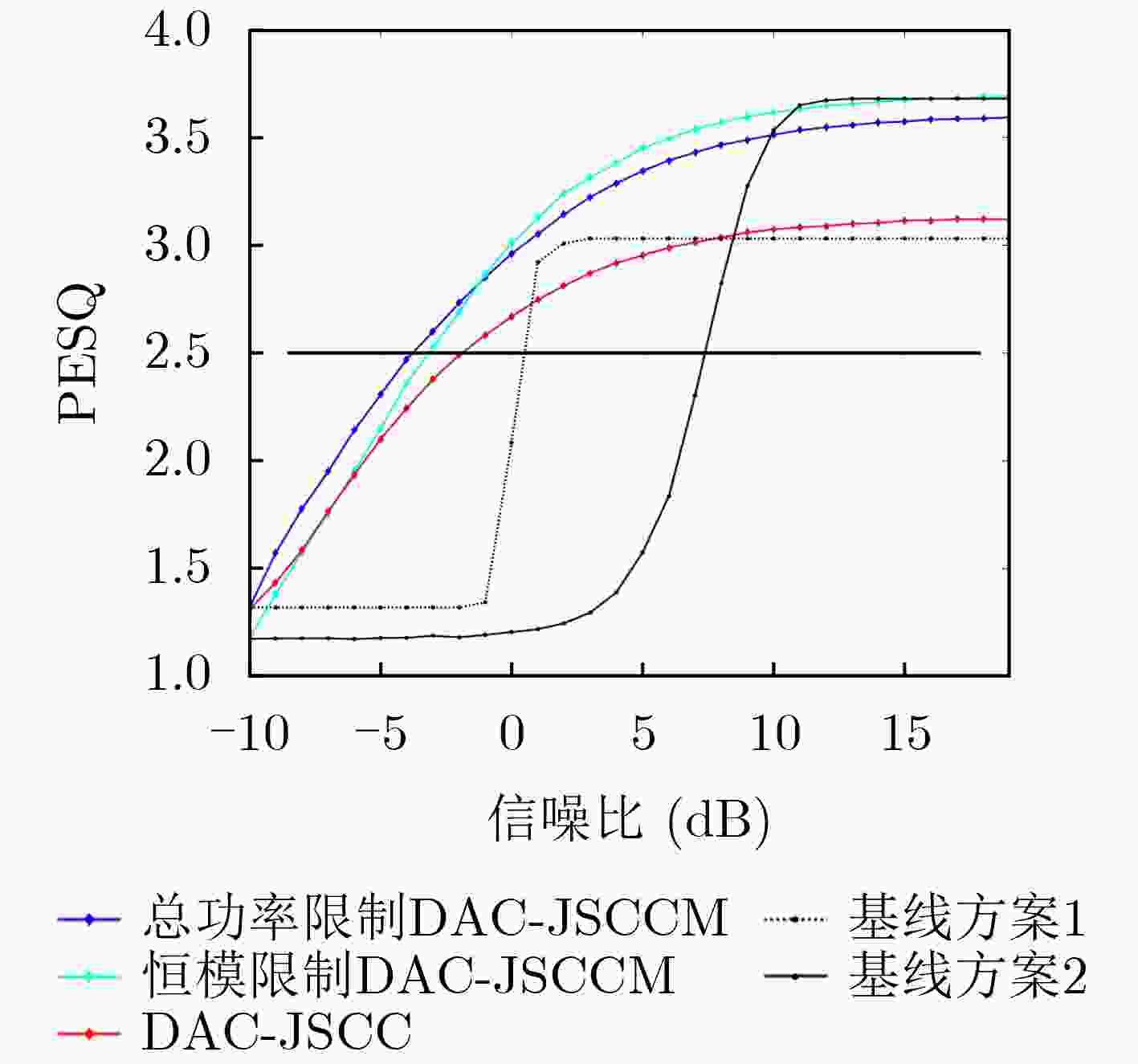

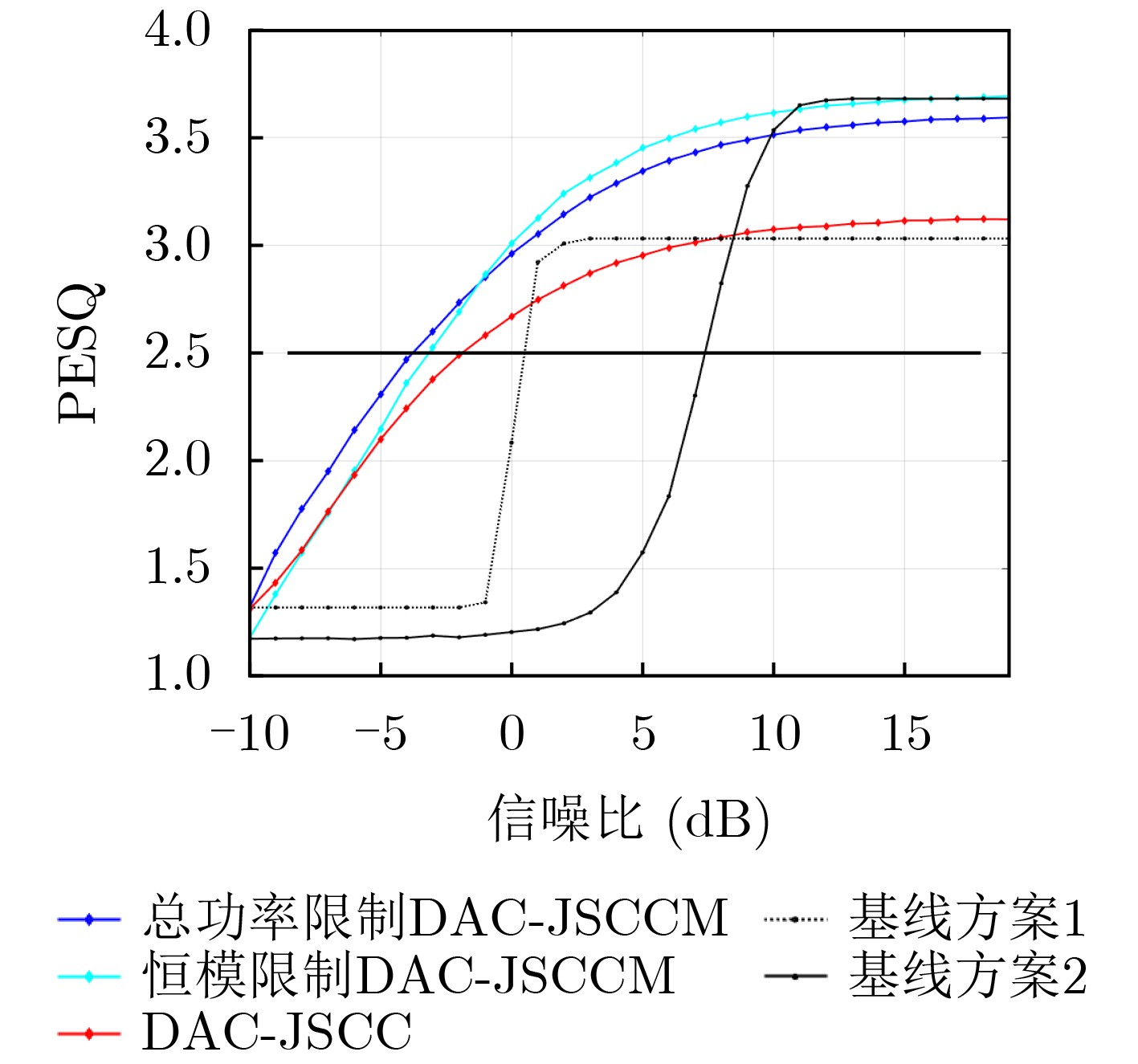

图 4 提出方案与基线方案的信噪比与PESQ对比

下载: 全尺寸图片幻灯片

表 1 仿真参数设置

参数	基线方案1	基线方案2	总功率限制 DAC- JSCCM	恒模限制 DAC- JSCCM	DAC- JSCC
应用层输出 (N=64)	N比特	3N 比特	3N /2 复数	3N /2 复数	3N比特
物理层调制方式	QPSK	QPSK	无	无	QPSK
物理层信道编码	1/3 Turbo	1/3 无	无	无	无
训练信噪比 (dB)	无	无	[–5,10)	[–5,10)	[–5,10)
DAC下采样输出维度	1024	1024	192	96	192
RVQ码本数	8	24	无	无	无
码本大小	256	256	无	无	无

下载: 导出CSV

表 2 信噪比与误块率表(64比特长度，1/3 Turbo编码)

信噪比(dB)	误块率
–6	1
–5	1
–4	1
–3	0.925
–2	0.665
–1	0.236
0	0.0464
1	0.0039
2	0.0004
3	0
4	0
5	0
6	0
7	0

下载: 导出CSV
