忆阻器轻量化门控循环单元网络模型设计

华宏虎; 许佳; 张博昊; 王伟; 李智炜; 刘海军

doi:10.11999/JEIT260152

忆阻器轻量化门控循环单元网络模型设计

doi: 10.11999/JEIT260152 cstr: 32379.14.JEIT260152

国防科技大学，电子科学学院长沙 410073

基金项目: 国家自然科学基金资助项目 (62074166, 62304254, 62104256, 62404253, U23A20322)

详细信息

作者简介:
华宏虎：男，国防科技大学电子科学学院博士生，研究方向为忆阻器智能计算架构等

许佳：女，国防科技大学电子科学学院硕士生，研究方向为忆阻器智能计算架构等

张博昊：男，国防科技大学电子科学学院博士生，研究方向为忆阻器智能计算架构等

王伟：男，国防科技大学电子科学学院副研究员，研究方向为忆阻器材料、器件和忆阻器类脑芯片等

李智炜：男，国防科技大学电子科学学院副研究员，研究方向为忆阻器智能计算架构

刘海军：男，国防科技大学电子科学学院副教授，研究方向为忆阻器智能计算架构、先进集成电路等

通讯作者:
刘海军　liuhaijun@nudt.edu.cn

中图分类号: TN601; TP183
计量
- 文章访问数: 15
- HTML全文浏览量: 9
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-06-02
- 录用日期: 2026-06-24
- 网络出版日期: 2026-07-04

Design of Lightweight Gated Recurrent Unit Network Model Based on Memristor

College of Electronic Science and Technology, National University of Defense Technology, Changsha 410073, China

Funds: Project supported by the National Natural Science Foundation of China (62074166, 62304254, 62104256, 62404253, U23A20322)

摘要

摘要: 忆阻器门控循环单元 (Gated Recurrent Unit, GRU) 网络对于时序数据处理系统的嵌入式部署提供了新的解决途径，但是由于网络规模大、权值精度高，难以直接部署到嵌入式端侧设备。因此，本文开展了忆阻器轻量化GRU网络模型设计研究，构建了能够部署在有限资源上的GRU网络模型，设计了忆阻器交叉阵列的映射方式，提出了基于性能分析与器件感知的融合量化方法，综合考虑网络性能与权值部署、激活函数计算的不同器件实现方式，使用权值对称量化、激活值非对称量化的策略对忆阻器GRU网络模型进行量化，采用权值加噪的方式提升网络模型对忆阻器件非理想因素的包容性。仿真实验表明，本文所设计的忆阻器GRU网络模型在公开的UrbanSound8K数据集上的分类准确率为93.94%，量化至6 bit后模型分类准确率为92.68%，相比于全精度的Dilated Convolution、LM-MFCC+GRU、TFFS-DNN模型分别高出14.68%、0.68%、3.94%，且权值加噪训练能够有效提升轻量化网络模型对忆阻器件非理想因素的适应能力。此外，还验证了该网络模型在真假轨迹判别任务上的性能，在自建的真假轨迹数据集上的分类准确率为97.35%，量化至6 bit后分类准确率仅下降0.84%。
- 门控循环单元 /
- 忆阻器 /
- 网络模型量化 /
- 城市音频分类
Abstract: Objective With the slowdown of CMOS technology scaling and the inherent memory-computation separation in von Neumann architectures, traditional computing systems face critical bottlenecks in processing increasingly large-scale data. Memristors, which offer high integration density, fast switching speed, and inherent synaptic plasticity, provide a promising pathway to overcome these limitations. Their crossbar arrays naturally support vector-matrix multiplication in the analog domain, enabling energy-efficient in-memory computing. Among sequential data processing models, the Gated Recurrent Unit (GRU) network has emerged as a key recurrent neural network variant, demonstrating superior performance in time-series tasks such as trajectory prediction and audio recognition. However, conventional hardware implementations of GRU networks suffer from frequent data movement between memory and processing units, leading to high energy consumption and low throughput. Although memristor-based GRU implementations offer significant advantages in energy efficiency and computational parallelism, the large parameter size and high weight precision of GRU networks impose substantial hardware costs and reliability challenges when deployed on resource-constrained memristor arrays. Furthermore, device non-idealities, including conductance fluctuations and nonlinear modulation, can substantially degrade model accuracy. Existing memristor-GRU solutions lack comprehensive consideration of these device imperfections, and current quantization methods treat weights and activations uniformly without accounting for their distinct hardware implementation constraints. This paper addresses these challenges through a hardware-algorithm co-design approach. Methods This paper proposes a lightweight memristor-based GRU network model. A 1T1R (one-transistor-one-resistor) memristor crossbar array is adopted for weight mapping and analog multiply-accumulate (MAC) operations. To accommodate signed weights while memristor conductance values are strictly non-negative, each weight is mapped to a differential pair of positive and negative conductance matrices. The linear mapping between trained weights and memristor conductance values is defined through a transformation formula involving scaling and offset factors. To address the distinct hardware implementation requirements of weights and activations, a fusion quantization method based on performance analysis and device awareness is introduced. Specifically, symmetric quantization is applied to weights mapped to the memristor array, as the zero-centered quantization range simplifies write-driver circuit design by eliminating the need for zero-point storage and computation. In contrast, asymmetric quantization is employed for activation values, which are computed in peripheral circuits without involving online memristor state programming, thereby preserving the dynamic range and minimizing quantization error. To mitigate the impact of memristor conductance fluctuations, a weight noising training mechanism is incorporated into quantization-aware training (QAT). Gaussian noise, with intensity determined by the device variation parameter, is injected into quantized weights during each forward propagation. This approach acts as a strong regularizer, guiding the model to converge to flatter loss landscapes and learn robust features insensitive to weight perturbations. The straight-through estimator is used for gradient backpropagation, enabling updates to full-precision floating-point weights while noise is dynamically sampled in each forward pass. Results and Discussions On the public UrbanSound8K dataset for urban sound classification, the full-precision proposed model achieves 93.94% classification accuracy. After applying the fusion quantization method, the 6-bit quantized model maintains 92.68% accuracy, with only a 1.26% degradation despite an 81.25% reduction in weight precision (Table 1). This performance surpasses that of comparison models including Dilated Convolution (78.00%), LM-MFCC+GRU (92.00%), TFFS-DNN (88.74%), TFCNN (93.10%), and CL-Transformer (92.95%) at their full-precision settings (Table 2). When evaluated under noisy input conditions with signal-to-noise ratios ranging from -10 dB to 10 dB, the 6-bit quantized model exhibits comparable or superior robustness compared to its full-precision counterpart, demonstrating the effectiveness of the fusion quantization approach (Table 3). Analysis from storage, hardware, and device feasibility perspectives indicates that 6-bit quantization reduces weight storage from 5.6 MB to 1.05 MB, achieving an 81.2% compression rate, with only 2.8 million memristor cells required based on the 1T1R mapping scheme. Regarding robustness to device non-idealities, weight noising training significantly improves performance under conductance fluctuations (Fig. 7). When the device variation range reaches 14%, noising training improves accuracy from 82.97% to 91.14%; at the worst-case variation of 28%, it improves accuracy from 54.23% to 87.01% (Fig. 7), confirming that the proposed training strategy effectively enhances model adaptability to memristor imperfections. On a self-constructed true/false trajectory dataset, the model achieves 97.35% accuracy at full precision and 96.51% at 6-bit quantization, with only a 0.84% degradation, outperforming the Dilated Convolution baseline at equivalent quantization levels (Table 4). Furthermore, to demonstrate generalization across diverse sequential tasks, the model is evaluated on lithium-ion battery state-of-charge (SOC) estimation using a public dataset. The 6-bit quantized model achieves root mean square errors (RMSE) of 1.48%, 0.79%, and 0.74% at temperatures of 0°C, 25°C, and 45°C, respectively, outperforming the existing memristor-based GRU implementation and showing consistent superiority across all evaluated quantization bit-widths of 6 bits and above (Table 5). Conclusions This paper presents a lightweight GRU network model tailored for memristor-based hardware deployment. Through device-aware fusion quantization and weight noising training integrated with QAT, the model maintains high classification performance while achieving substantial memory compression and robustness to device non-idealities. Experimental results across multiple datasets and tasks confirm that the 6-bit quantized model retains competitive accuracy and demonstrates stable performance, providing a practical solution for deploying GRU networks on resource-constrained memristor-based edge computing platforms.
- Gated Recurrent Unit (GRU) /
- memristor /
- network model quantification /
- urban sound classification

HTML全文

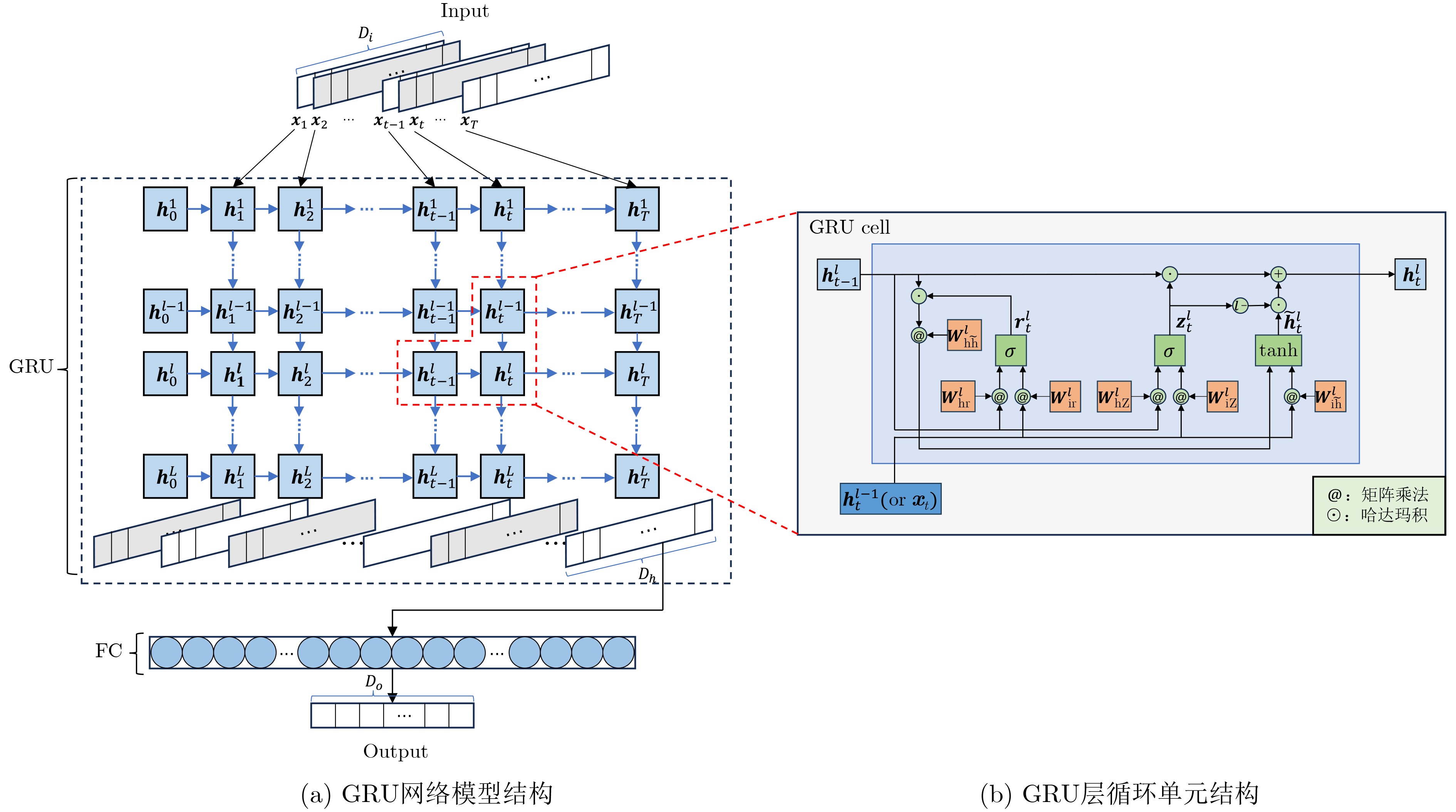

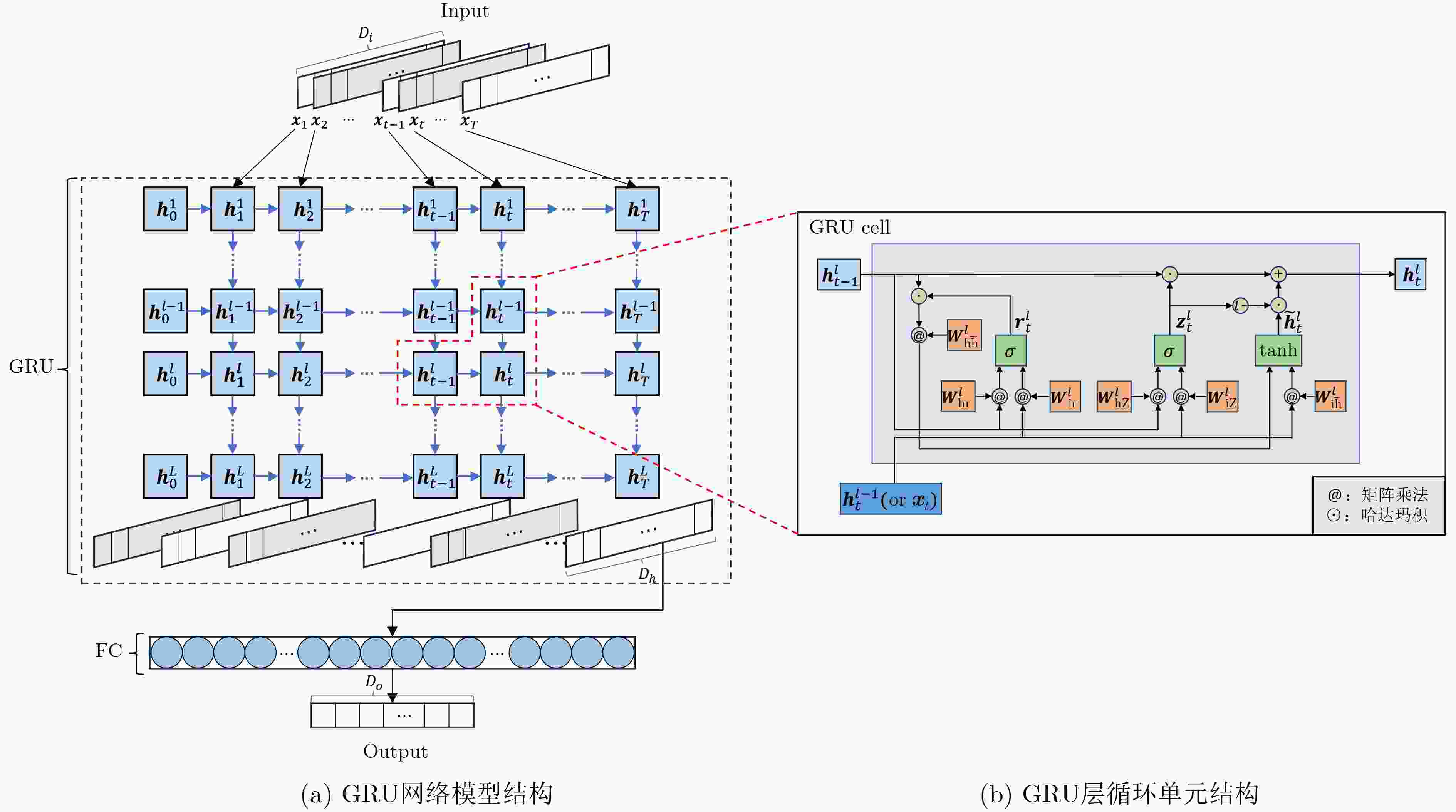

图 1 GRU网络结构及其核心单元结构

下载: 全尺寸图片幻灯片

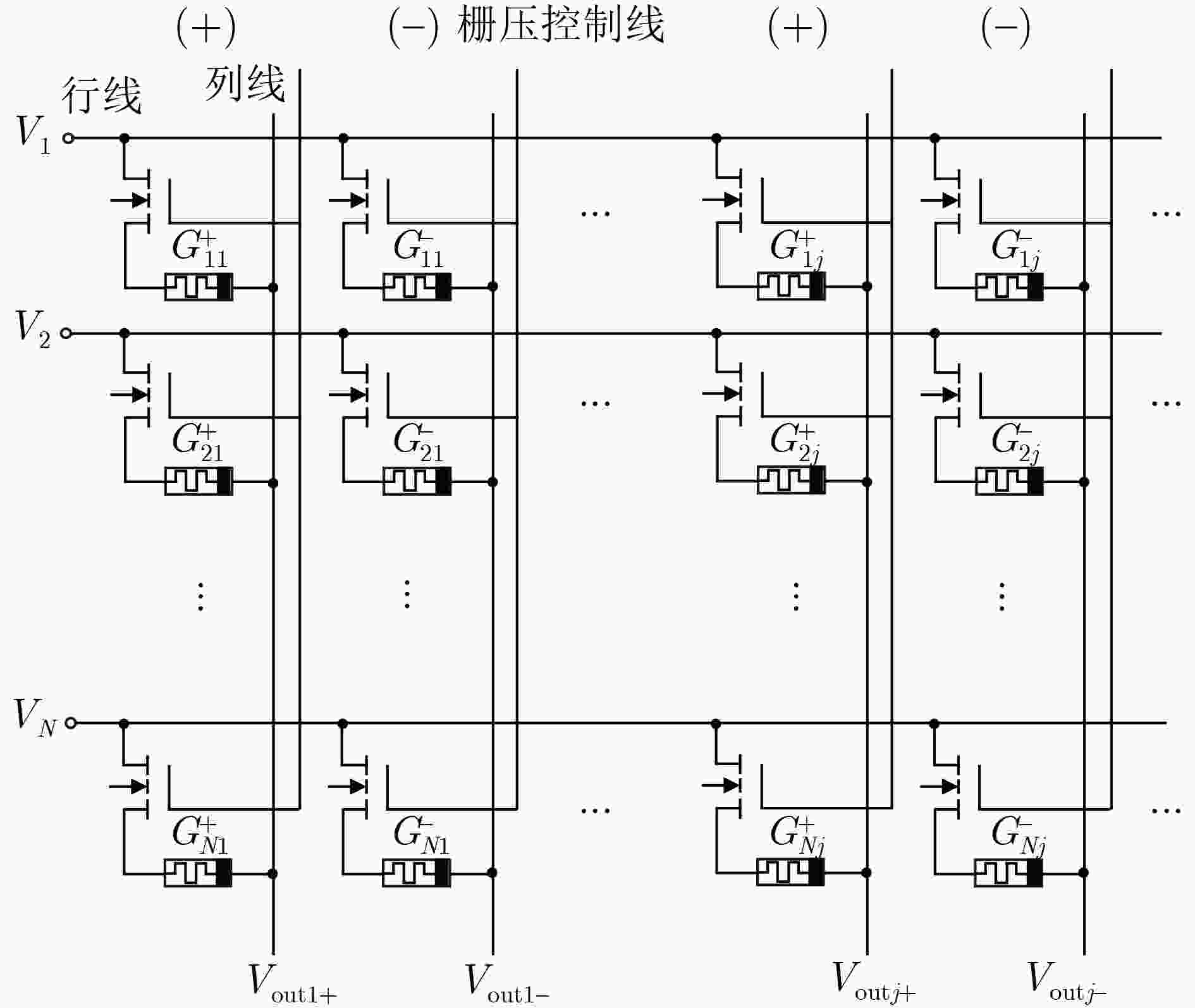

图 2 1T1R忆阻器交叉阵列

下载: 全尺寸图片幻灯片

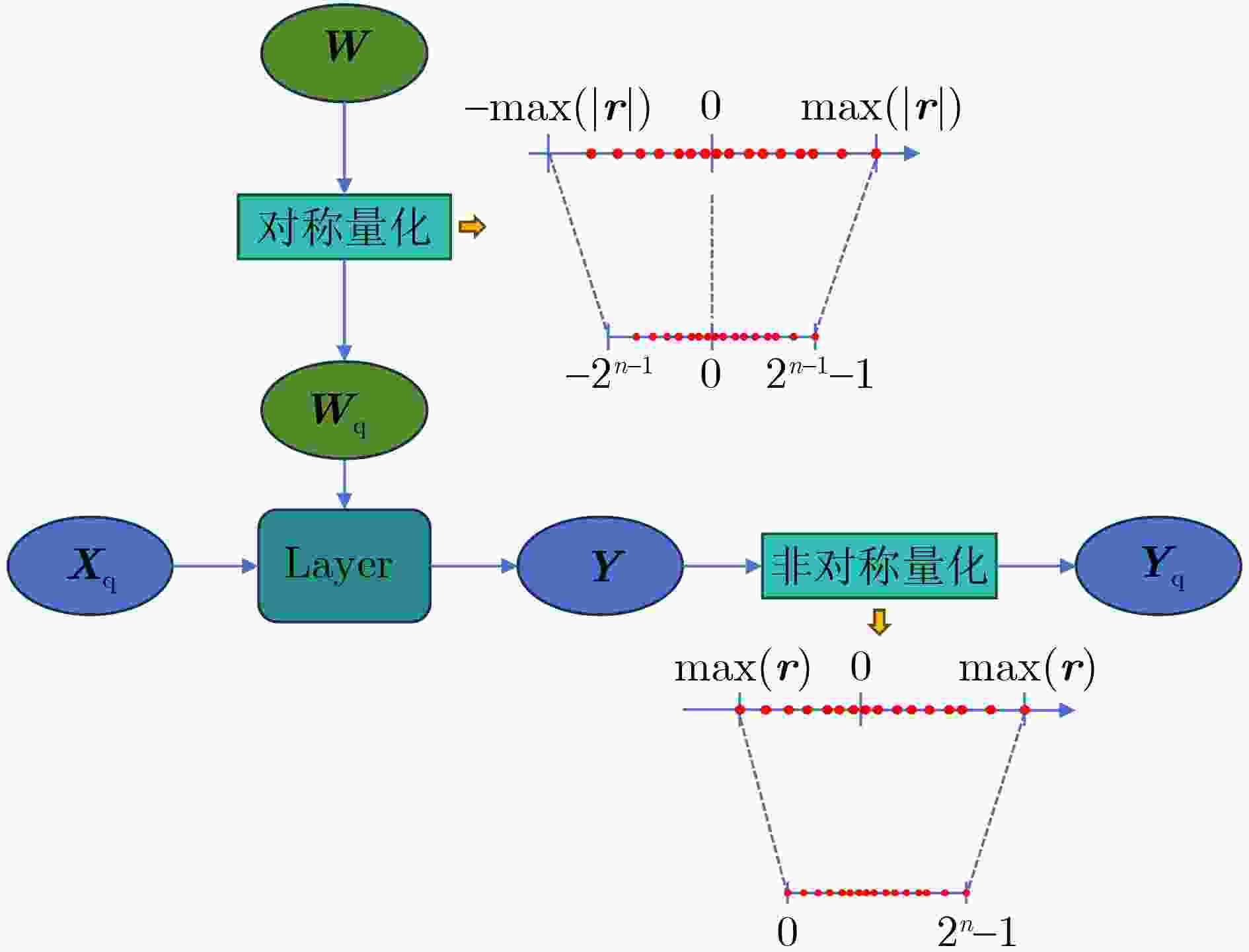

图 3 基于性能分析与器件感知的融合量化方法

下载: 全尺寸图片幻灯片

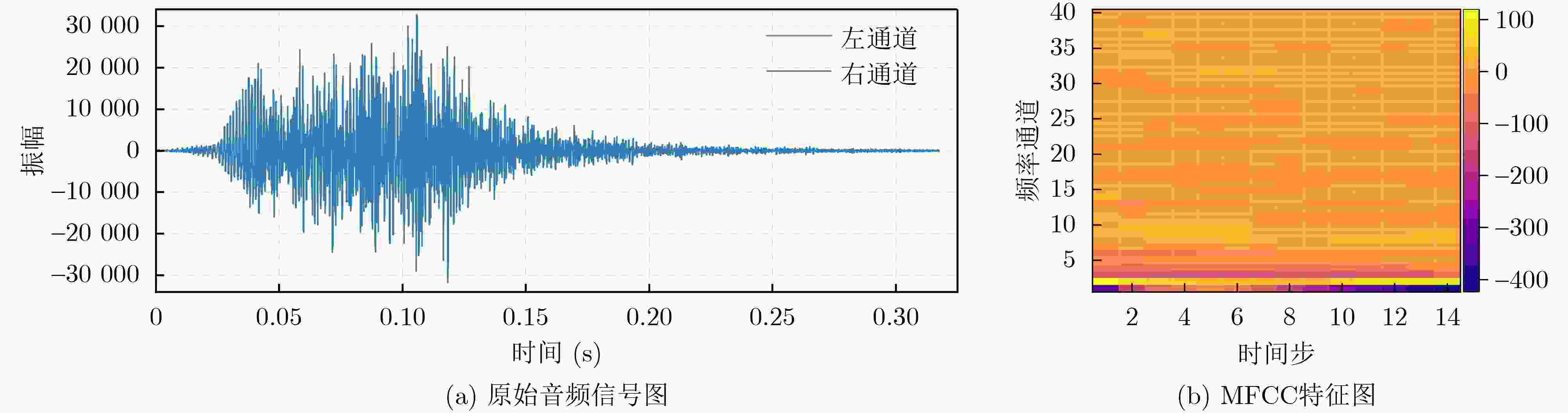

图 4 狗叫声可视化示例

下载: 全尺寸图片幻灯片

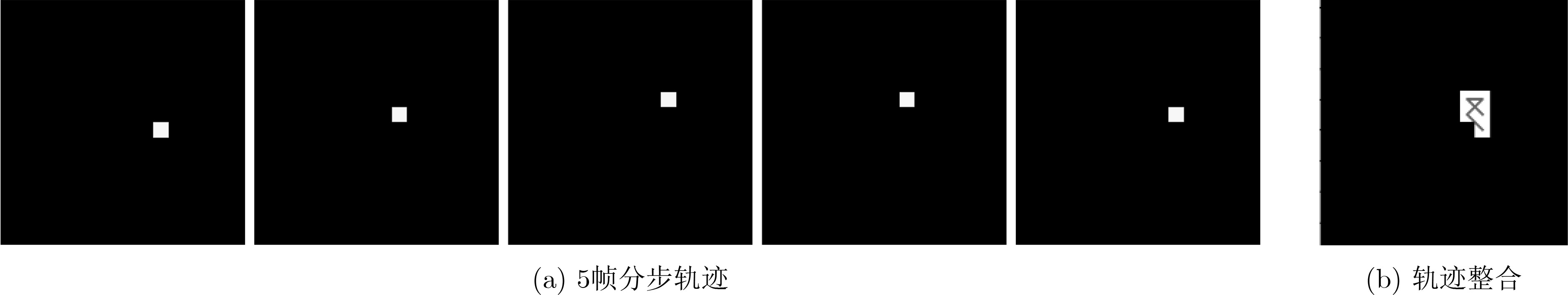

图 5 假轨迹示例

下载: 全尺寸图片幻灯片

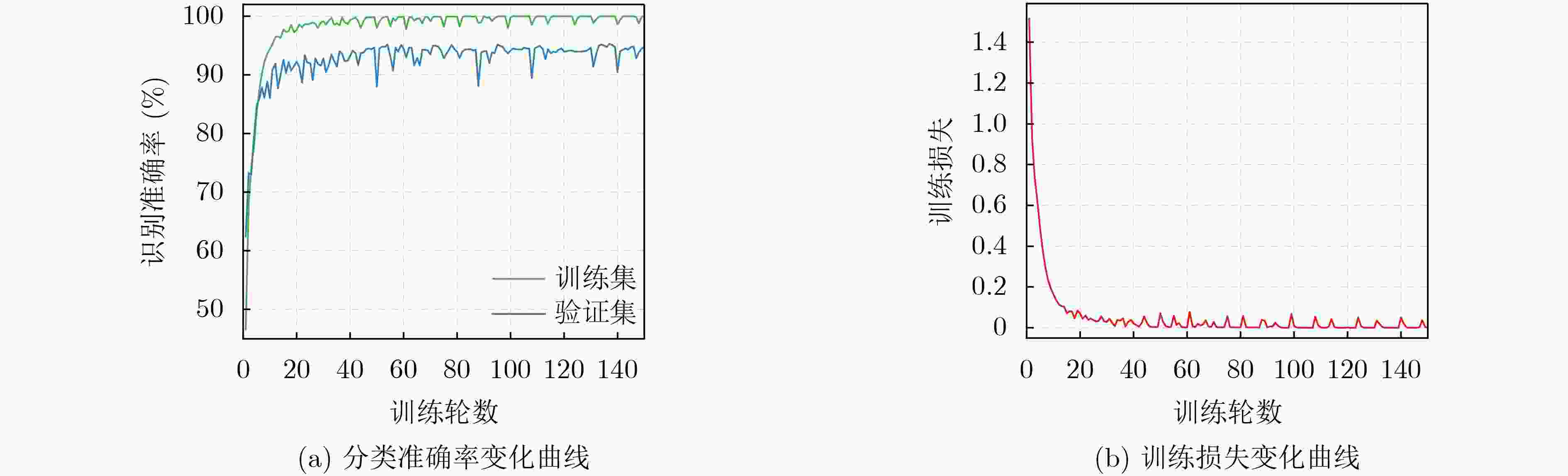

图 6 面向城市音频分类任务的GRU网络模型训练情况

下载: 全尺寸图片幻灯片

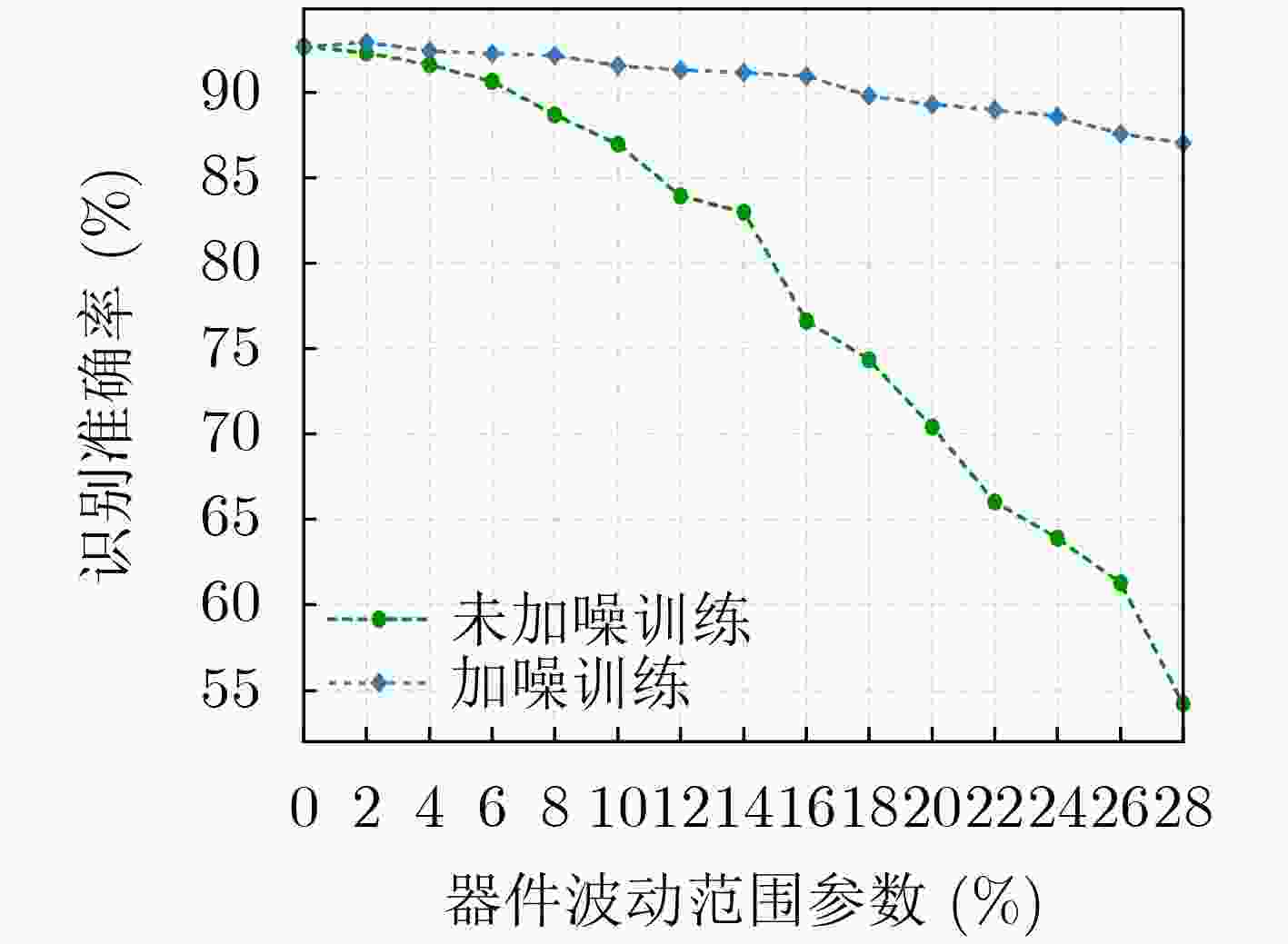

图 7 考虑器件波动性的轻量化GRU网络模型的分类准确率变化情况

下载: 全尺寸图片幻灯片

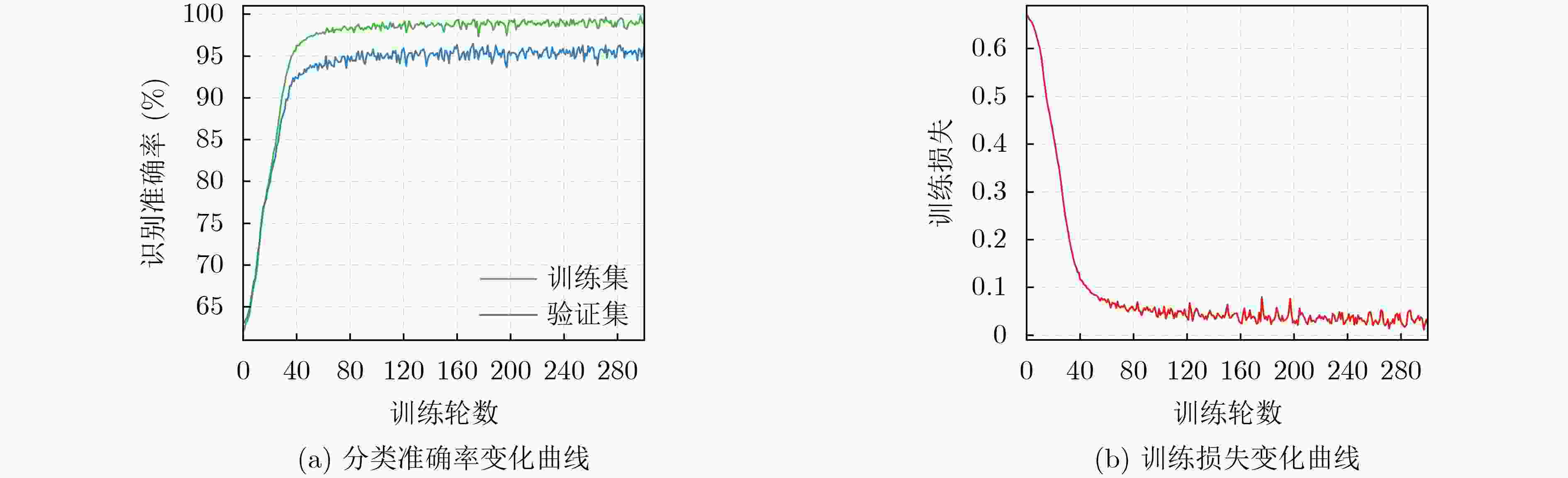

图 8 面向真假轨迹判别任务的GRU网络模型训练情况

下载: 全尺寸图片幻灯片

表 1 面向城市音频分类任务的轻量化GRU网络模型分类性能

量化精度 (bit)	分类准确率 (%)
2	12.01
3	36.96
4	51.26
5	78.15
6	92.68
7	93.59
8	93.71
16	93.82

下载: 导出CSV

表 2 与其他模型在UrbanSound8K数据集上的性能对比

模型	分类准确率 (%)	权值精度 (bit)	参数量 (M)
Dilated Convolution[15]	78.00	32	-
LM-MFCC+GRU[16]	92.00	32	0.7
TFCNN[17]	93.10	32	1.6
TFFS-DNN[18]	88.74	32	-
CL-Transformer[19]	92.95	32	-
Ours(Before quantification)	93.94	32	1.4
Ours(quantification of 6 bit)	92.68	6	1.4

下载: 导出CSV

表 3 在UrbanSound8K数据集上加入不同SNR水平噪声时GRU网络模型的分类性能

SNR (dB)	分类准确率 (%)
SNR (dB)	全精度模型	6 bit量化模型
-10	34.44	38.79
-5	69.91	70.25
0	79.52	85.24
5	84.04	87.30
10	92.11	90.96

下载: 导出CSV

表 4 面向真假轨迹判别任务的轻量化GRU网络模型和Dilated Convolution^[15]模型的分类性能

量化精度 (bit)	分类准确率 (%)
量化精度 (bit)	Ours	Dilated Convolution[15]
2	63.44	65.53
3	63.72	75.53
4	68.28	90.14
5	91.40	90.65
6	96.51	90.56
7	97.16	90.65
8	97.26	90.60
16	97.30	90.98

下载: 导出CSV

表 5 不同模型对各种环境温度下FUDS的SOC估计性能RMSE (%)

模型	环境温度 (℃)
模型	0	25	45
Memristor-based GRU[20]	2.18	1.36	1.23
Ours (full precision)	1.26	0.58	0.56
Ours (16 bit)	1.57	0.62	0.52
Ours (8 bit)	1.39	0.58	0.52
Ours (7 bit)	1.55	0.73	0.75
Ours (6 bit)	1.48	0.79	0.74
Ours (5 bit)	2.64	1.86	1.76
Ours (4 bit)	13.33	10.50	11.75
Ours (3 bit)	22.62	23.37	24.29
Ours (2 bit)	22.24	22.81	23.82

下载: 导出CSV
