多维融合注意力增强的红外小目标检测方法

李卫星; 王帅; 陈怀宇; 盛卫东

doi:10.11999/JEIT260040

多维融合注意力增强的红外小目标检测方法

doi: 10.11999/JEIT260040 cstr: 32379.14.JEIT260040

1.
国防科技大学电子科学学院长沙 410073
2.
中国科学院西安光学精密机械研究所西安 710061

基金项目: 国家自然科学基金(62401589, 62403476)

详细信息

作者简介:
李卫星：男，副教授，研究方向为红外图像处理及轻量化

王帅：男，副教授，研究方向为边缘计算

陈怀宇：男，助理研究员，研究方向为红外图像处理

盛卫东：男，副研究员，研究方向为光电探测

通讯作者:
盛卫东　shengweidong07@nudt.edu.cn

中图分类号: TN216
计量
- 文章访问数: 33
- HTML全文浏览量: 39
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2026-01-13
- 修回日期: 2026-06-27
- 录用日期: 2026-07-06
- 网络出版日期: 2026-07-19

Infrared Small Target Detection Enhanced by Multi-dimensional Fusion Attention

1.
College of Electronic Science and Technology, National University of Defense Technology, Changsha 410073, China
2.
Xi'an Institute of Optics and Precision Mechanics, Chinese Academy of Sciences, Xi’an 710061, China

Funds: The National Natural Science Foundation of China (62401589, 62403476)

摘要

摘要: 针对红外小目标在深层卷积神经网络中特征弥散、易受复杂背景干扰而导致检测性能下降的问题，提出一种基于多维融合注意力机制的红外小目标检测方法。设计通道-空间注意力特征增强模块，通过并行分支结构聚合跨维度显著性特征，抑制目标特征在深层网络的弥散趋势；通过自适应跨维度信息交互，建立通道-空间的跨域依赖关系，增强微弱目标在深层网络的特征响应。该方法仅需极低计算复杂度即可灵活嵌入基线模型，实现目标深度特征聚拢。在NUDT-SIRST数据集上的实验表明，所提方法在高杂波、低信噪比场景下表现出更强的鲁棒性和泛化能力。基于自研的轻量化智能处理单元进行边缘部署性能验证，实测单帧推理时延为46.7 ms，满足工程应用中实时性与高精度要求。
- 红外小目标 /
- 注意力机制 /
- 特征融合 /
- 边缘推理
Abstract: Objective Infrared imaging boasts advantages such as long operating range, wide coverage, strong concealment, and all-weather visibility, making it widely applicable in aerospace target surveillance, maritime emergency rescue, forest fire monitoring, and earth remote sensing. Infrared payloads are typically mounted on platforms like satellites and aircraft, capturing images over long distances where targets appear small in the imagery and lack distinct texture and morphological features. Due to weak thermal radiation signals, targets are prone to being submerged in strong clutter. Current infrared small target detection networks face several key challenges. First, target segmentation networks expand the receptive field through continuous down-sampling, which can cause the features of infrared small targets to be easily lost in the deeper layers of neural networks. Second, features in the deeper neural network layers tend to diffuse. Therefore, under the constraints of long-range imaging and complex backgrounds, achieving high-precision and highly reliable infrared small target detection remains a research hotspot in the field of infrared imaging. Methods A channel-spatial Multi-Dimensional Fusion Attention Mechanism (MFAM) is proposed to address the challenges of small target size and feature diffusion in deep networks. Multi-dimensional features across channels, height, and width are captured, as well as the dependencies across these dimensions. By integrating feature fusion and cross-dimensional synergistic interaction, feature diffusion of small targets in deep networks is mitigated and the robustness of infrared small-target detection is enhanced. The channel attention and spatial attention modules are applied in parallel directly to the input feature maps, performing feature extraction and local information interaction along the channel and spatial dimensions, respectively. In the channel domain, features are compressed and processed through a Multi-layer Perceptron (MLP) to capture inter-channel relationships. In the spatial domain, Global Average Pooling (GAP) and Global Maximum Pooling (GMP) are employed to encode width and height dimensions. Finally, feature fusion is achieved via a Sigmoid activation function. Compared with traditional hybrid attention mechanisms, the channel attention module and spatial attention module are applied in parallel directly to the input feature maps. This approach enables refined encoding of the channel, height, and width dimensions under a global receptive field. Meanwhile, shallow features with spatial details and deep semantic features rich in contextual information are captured. The proposed MFAM features a plug-and-play design, allowing flexible integration into various baseline models such as ResNet and DNA-Net without introducing complex additional structures, which demonstrates excellent compatibility and generalization capability. Results and Discussions The publicly available dataset NUDT-SIRST is utilized to conduct a performance analysis of the proposed algorithm. By incorporating the proposed MFAM into the baseline DNA-Net, the Intersection over Union (IoU), detection rate (Pd), and false alarm rate (Fa) are 87.34%, 98.72% and 3.22×10^–6, respectively. Compared to CBAM, BAM, GAM, CA, and TA, MFAM improves IoU by 0.4%, 1.68%, 2.46%, 2.11%, and 1.61%, respectively(Table.1). CBAM places the spatial attention module in series of the channel attention, which may lead to information loss during feature propagation. CA and BAM only employ GAP for information encoding, overlooking the role of max pooling in deep feature extraction. TA realizes cross-dimensional dependencies through rotation operations but fails to achieve simultaneous three-dimensional interaction. MFAM simultaneously integrates channel and spatial information, enabling sufficient cross-domain interaction, and combines global average and max pooling to enhance context and detailed feature extraction capabilities, thereby achieving more refined infrared small target detection. MFAM is also embedded into ALC-Net and AMFU-Net, resulting in IoU improvements of 0.43% and 0.28% compared with CBAM(Table.2). Through ablation experiments, detection performance is compared under different attention combination strategies. Compared to the serial fusion approach, the proposed parallel structure achieves improvements of 0.37% and 0.39% in IoU and Pd, respectively, while reducing Fa by 1.41×10^–6. The advantage stems from the parallel structure applying channel and spatial attention directly to the input features, mitigating the diffusion of target features in deep networks. To validate the inference performance of the proposed algorithm on edge-side processors, a verification system is designed by using FPGA and NVIDIA Jetson AGX Xavier. Practical testing confirms that the proposed algorithm can be deployed and inferred on edge-side GPUs, with an average single-frame inference latency of 46.7 ms (Fig. 8) for 256×256 input images. Conclusions A Multi-dimensional Fusion Attention Module (MFAM) is constructed in this paper. The MFAM module achieves effective aggregation of channel and spatial salient features and enables cross-dimensional adaptive interaction, enhancing the preservation of target features in deep networks and ensuring robust output. The MFAM module exhibits favorable plug-and-play characteristics. Experiments demonstrate that the proposed algorithm performs better in metrics of IoU, Pd, and Fa. A lightweight intelligent processing unit based on FPGA+GPU is developed, which successfully achieves deployment of the algorithm on edge devices and enables high real-time inference, demonstrating promising engineering applicability and future application prospects.
- Infrared small target /
- Attention mechanism /
- Feature fusion /
- Edge intelligence

HTML全文

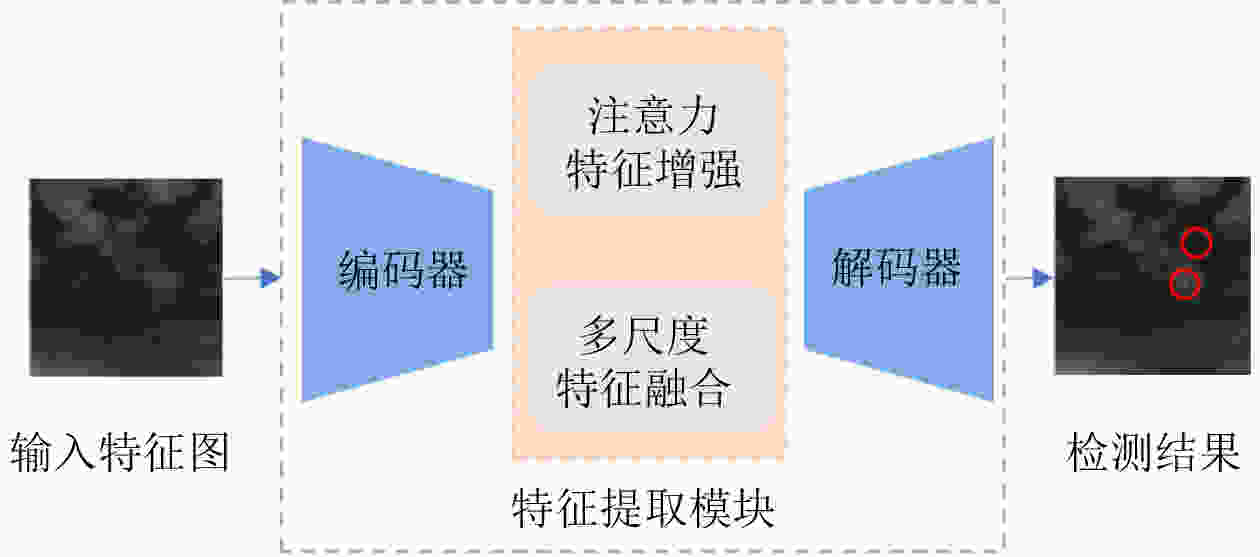

图 1 基于注意力机制的红外小目标检测总体架构

下载: 全尺寸图片幻灯片

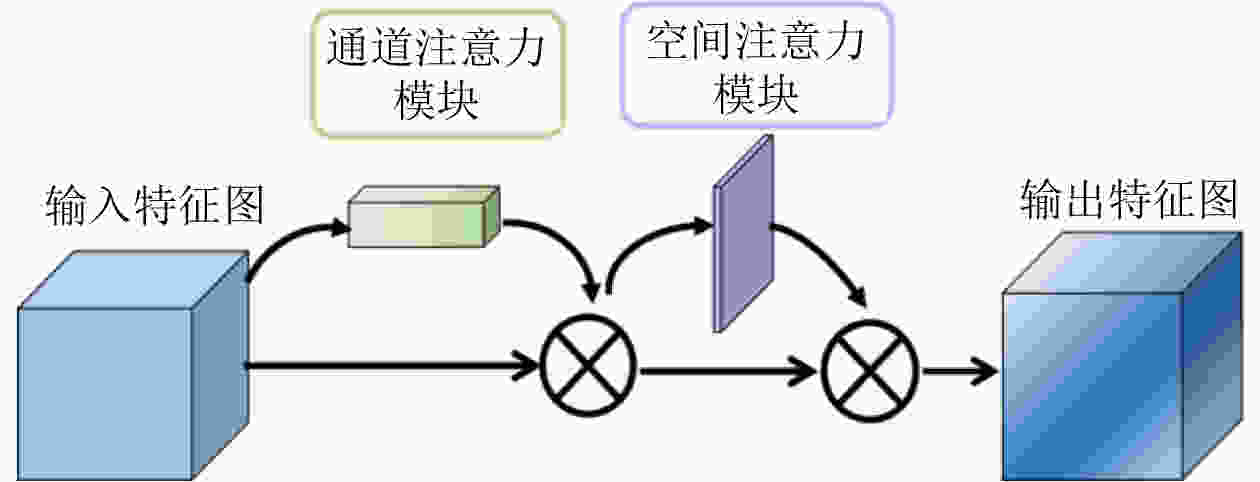

图 2 通道-空间注意力机制

下载: 全尺寸图片幻灯片

图 3 基于多维融合注意力机制的网络结构

下载: 全尺寸图片幻灯片

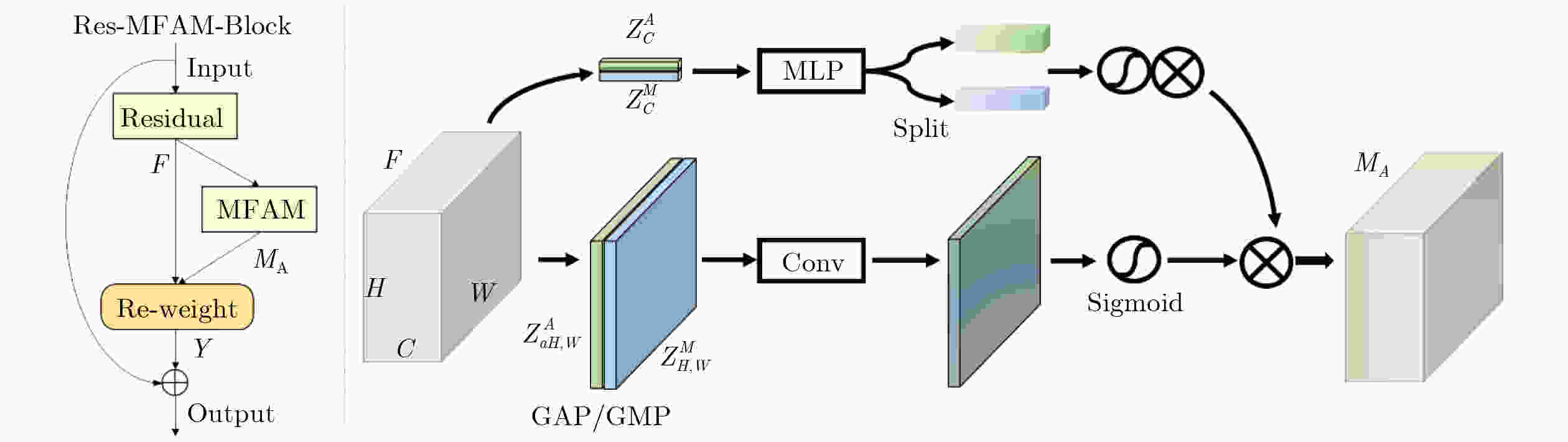

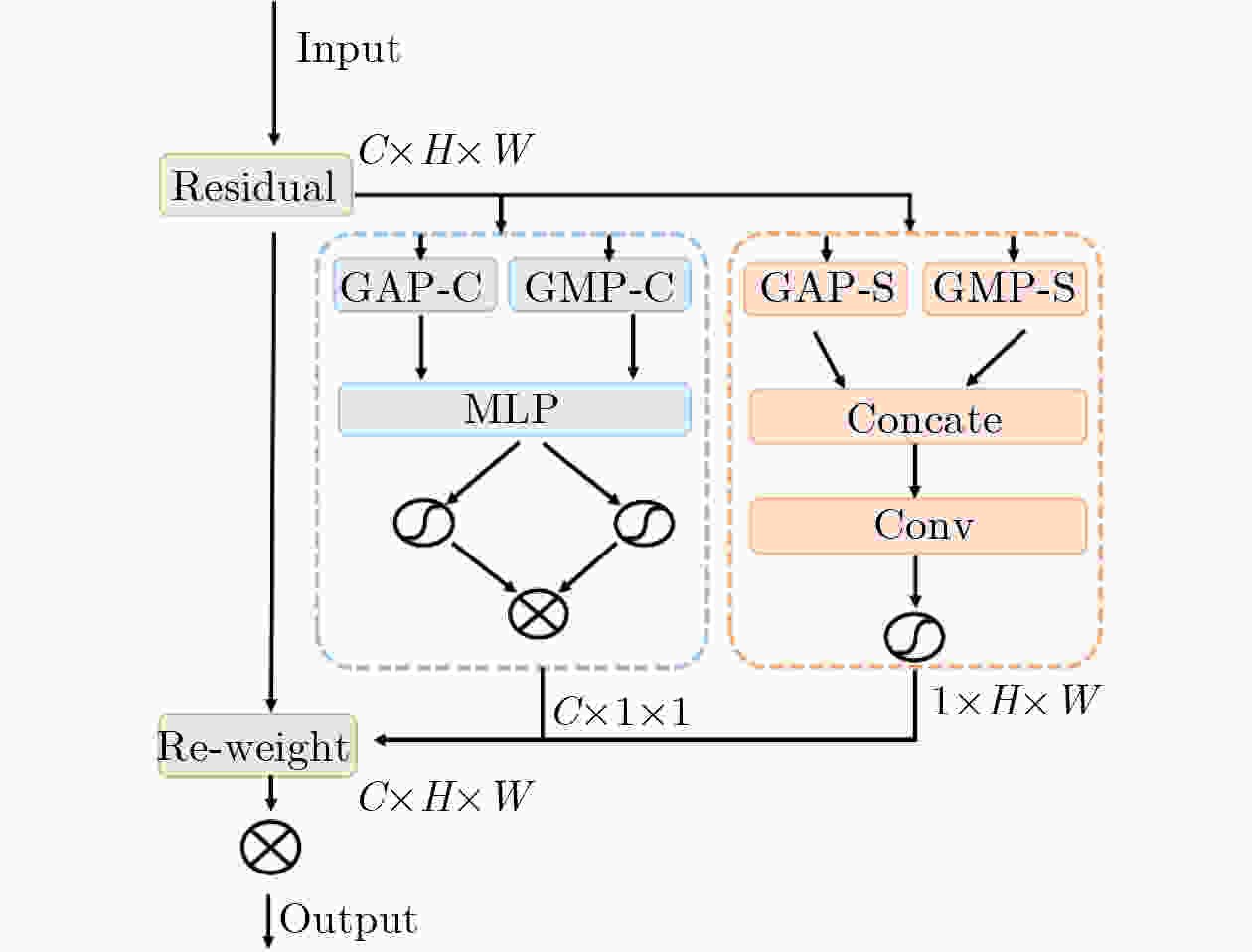

图 4 MFAM计算流程

下载: 全尺寸图片幻灯片

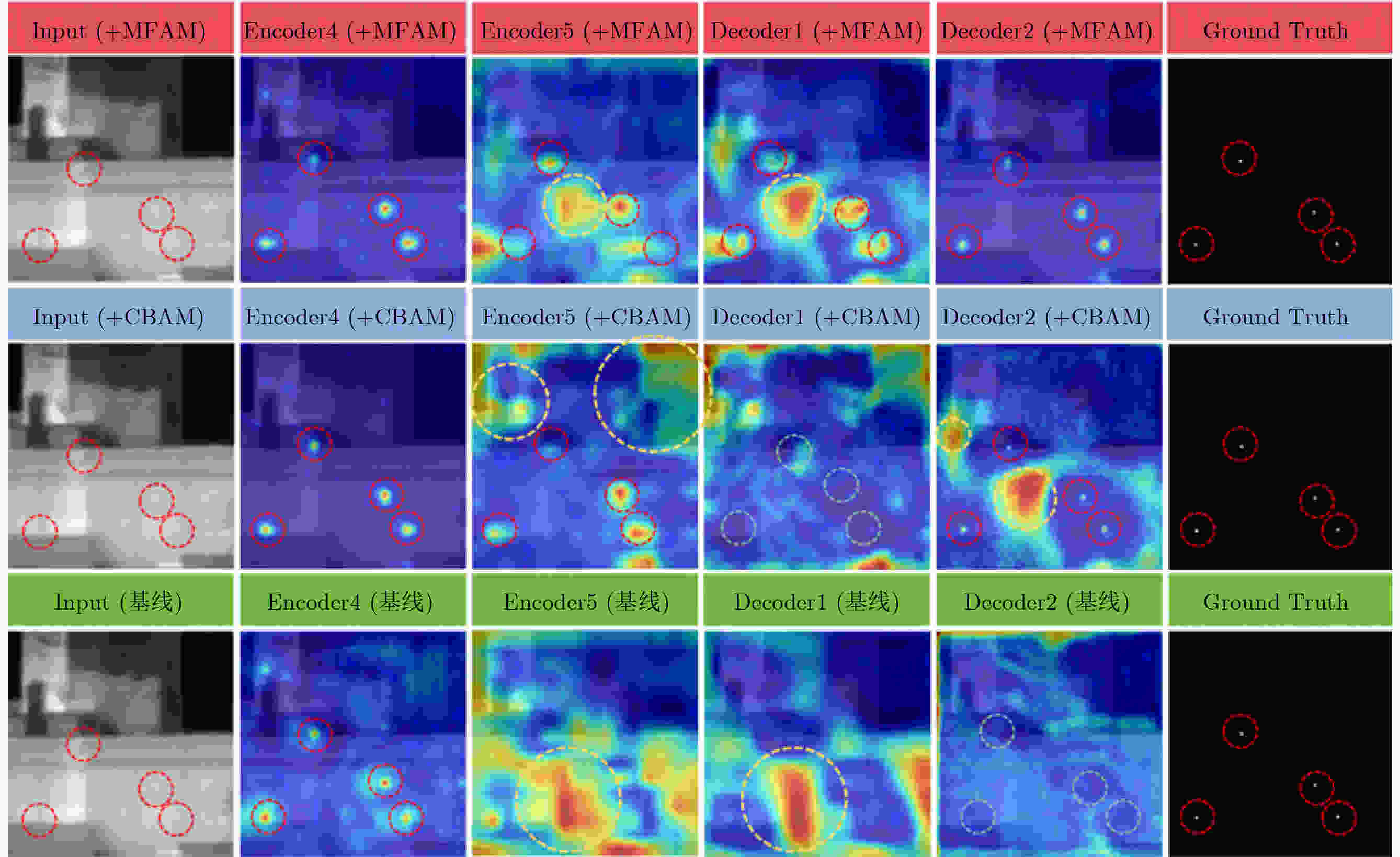

图 5 不同注意力机制的特征图可视化对比

下载: 全尺寸图片幻灯片

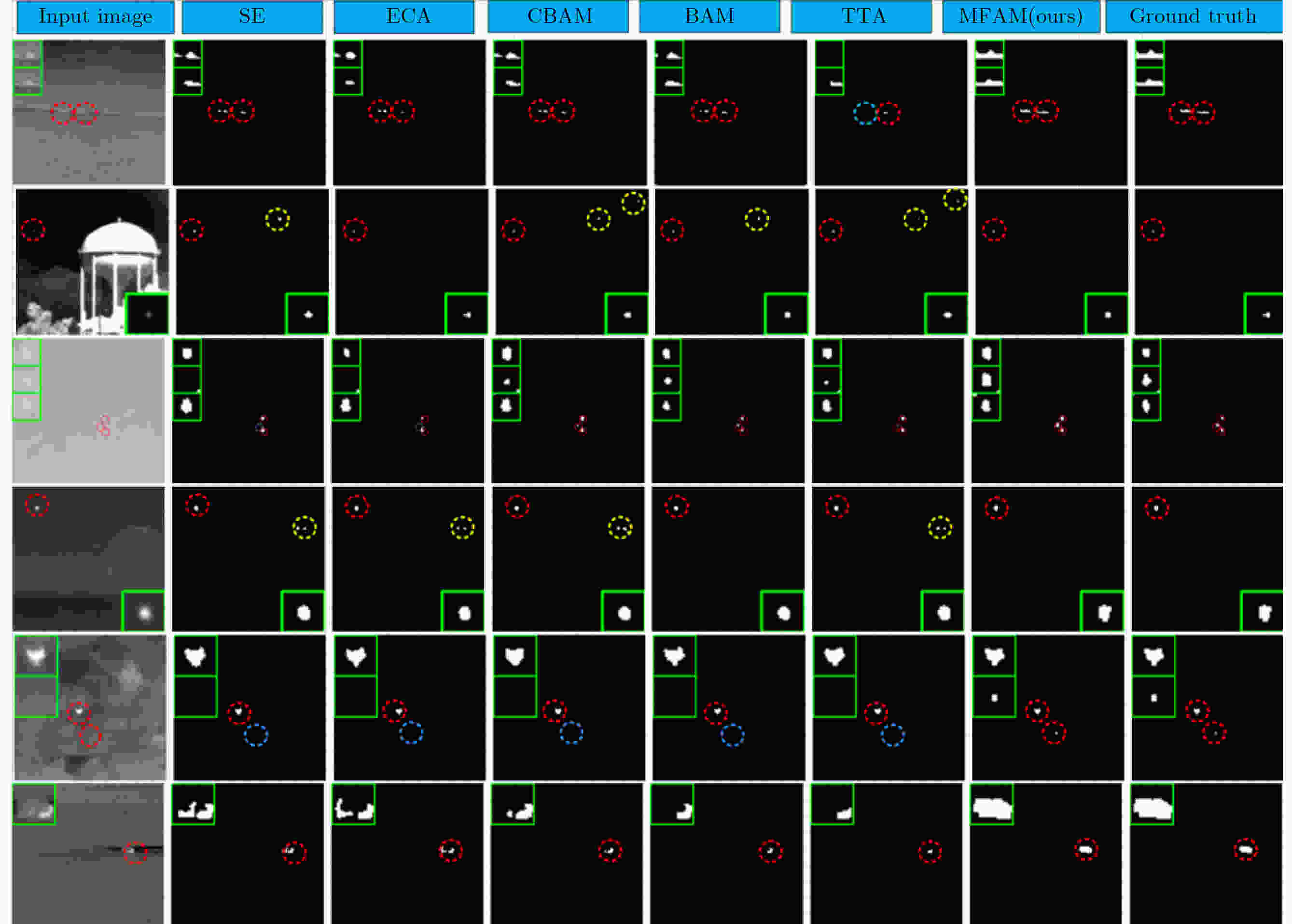

图 6 不同注意力机制的红外小目标检测二维可视化图

下载: 全尺寸图片幻灯片

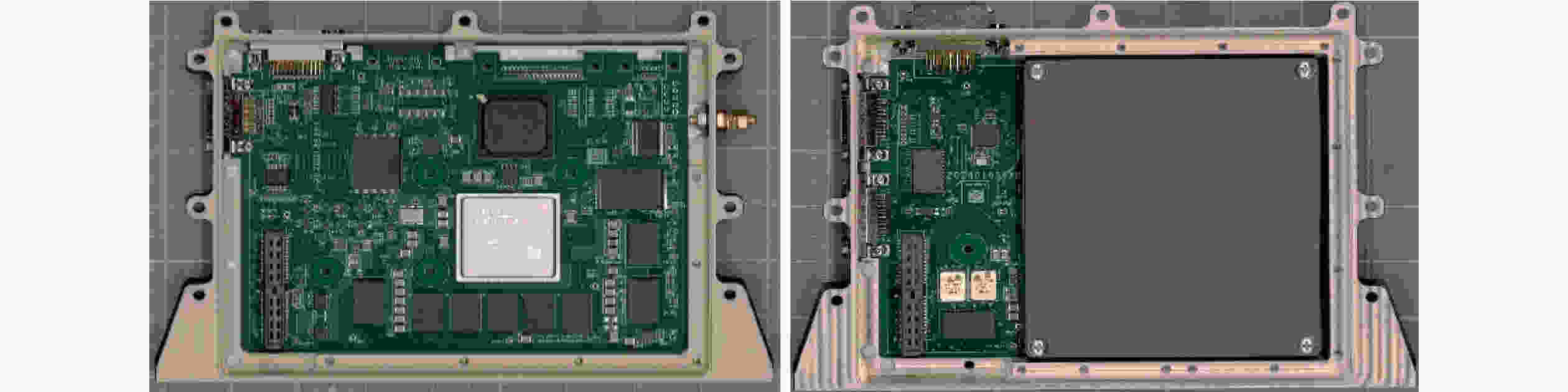

图 7 自研FPGA和GPU处理模块

下载: 全尺寸图片幻灯片

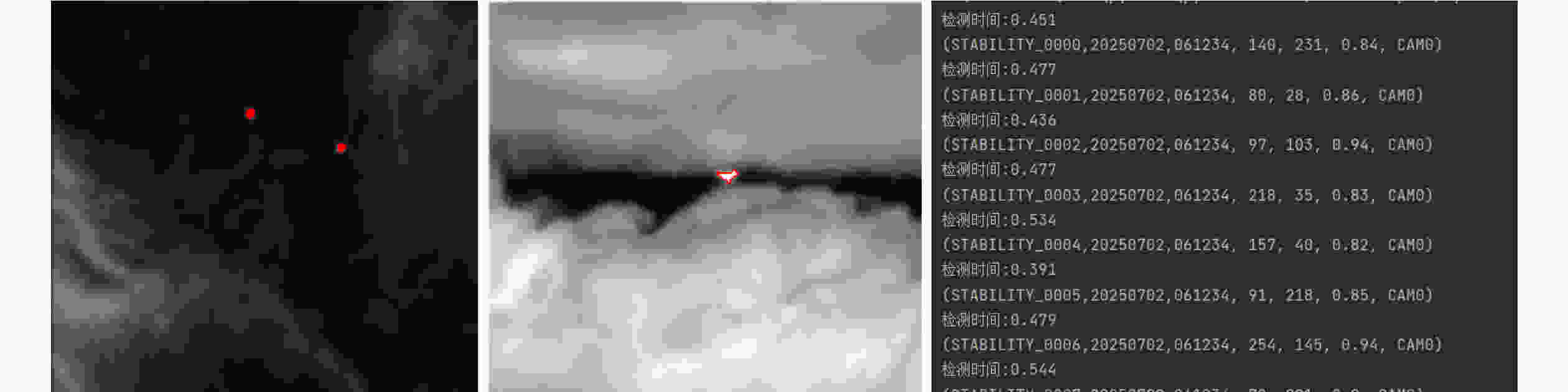

图 8 边缘侧推理结果及时间

下载: 全尺寸图片幻灯片

表 1 不同算法目标检测性能(NUDT-SIRST)

类型	算法	IoU/(%)	Pd/(%)	Fa/(×1e-6)
传统算法	Top-Hat	20.7	78.41	166.7
	IPI	17.76	74.49	41.23
	RIPT	29.44	91.85	344.3
深度学习算法	DNA-Net(基线)	85.39	97.67	9.49
	+SE	86.2	98.64	3.98
	+SK	85.3	98.41	12.8
	+ECA	85.50	98.41	6.78
	+CBAM	86.94	98.2	3.24
	+BAM	85.66	98.2	5.79
	+GAM	84.88	98.41	33.96
	+CA	85.25	97.57	9.77
	+TA	85.75	98.31	12.82
	+MFAM(本文)	87.34	98.72	3.22

下载: 导出CSV

表 2 注意力模块嵌入不同基线模型的性能

算法	IoU/(%)	Pd/(%)	Fa/(×1e-6)
ALC-Net (基线)	71.9	97.14	29
+CBAM	72.15	95.24	4.16
+MFAM (本文)	72.58	97.46	8.92
AMFU-Net (基线)	81.17	97.04	32.24
+CBAM	83.04	98.41	15.49
+MFAM (本文)	83.32	97.35	11.4

下载: 导出CSV

表 3 不同注意力融合方式的性能对比

算法	IoU/(%)	Pd/(%)	Fa/(×1e-6)
基线模型	85.39	97.67	9.49
+C	86.78	98.18	8.95
+S	85.27	97.43	13.24
+CS，串联	86.97	98.33	4.63
+CS，并联(本文)	87.34	98.72	3.22

下载: 导出CSV

表 4 不同信息编码方式的性能对比

算法	IoU/(%)	Pd/(%)	Fa/(×1e-6)
基线模型	85.39	97.67	9.49
GAP	85.86	98.12	9.43
GMP	86.98	98.43	6.75
GAP+GMP(本文)	87.34	98.72	3.22

下载: 导出CSV
