SHAP可信阈值决策驱动的MOSFET剩余寿命预测研究

刘金凤; 吴秋雪; HERBERTHo-Ching Iu

doi:10.11999/JEIT251379

SHAP可信阈值决策驱动的MOSFET剩余寿命预测研究

doi: 10.11999/JEIT251379 cstr: 32379.14.JEIT251379

1.
哈尔滨理工大学模式识别与信息感知黑龙江省重点实验室哈尔滨 150080
2.
西澳大学电气电子与计算机工程学院西澳大利亚 6009

基金项目: 黑龙江省自然科学基金(LH2023E086)

详细信息

作者简介:
刘金凤：女，副教授，研究方向为电力电子器件驱动控制、分布式控制、智能控制策略研究

吴秋雪：女，硕士生，研究方向为功率MOSFET阈值划分与寿命预测

HERBERTHo-Ching Iu：男，教授，研究方向为功率器件驱动控制、忆阻器建模与逻辑电路应用

通讯作者:
吴秋雪　wqxwqx6666@163.com

中图分类号: TN386.1
计量
- 文章访问数: 7
- HTML全文浏览量: 4
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2025-12-30
- 修回日期: 2026-04-20
- 录用日期: 2026-04-23
- 网络出版日期: 2026-05-13

SHAP-based Reliable Threshold Decision-driven Remaining Useful Life Prediction for MOSFETs

1.
Heilongjiang Province Key Laboratory of Pattern Recognition and Information Perception, Harbin University of Science and Technology, Harbin 150080, China
2.
School of Electrical, Electronic and Computer Engineering, University of Western Australia, Crawley , WA 6009, Australia

Funds: The Natural Science Foundation of Heilongjiang Province (LH2023E086)

摘要

摘要: 针对功率MOSFET传统固定阈值预警法与物理失效机理脱节的问题，该文提出一种融合可解释人工智能(XAI)的寿命预测框架。首先，设计一种自适应双阈值划分策略，融合K-means聚类与近端策略优化(PPO)算法；该策略以聚类获得的初始解为搜索起点，构建兼顾区间比例、状态转移灵敏度激励及阈值间距惩罚的多目标奖励函数，引导智能体优化阈值，实现退化阶段的精准划分。其次，为增强对黑盒决策过程的理解，引入SHAP可解释性分析，从特征与机理关联层面验证阈值决策的合理性。分析表明，低阈值由健康期稳态特征主导，满足安全基线要求；高阈值则由后期加速退化动力学特征主导，精准定位临界点，该分析证实了阈值决策的可信性与透明性。在此基础上，当退化数据超越可信低阈值时触发预警机制，并采用结合残差连接的堆叠门控循环单元(R-SGRU)进行剩余寿命预测。在NASA数据集上的实验表明，该模型预测性能显著优于长短期记忆网络(LSTM)和时间卷积网络(TCN)等多种模型，测试集MSE低于0.001 5，R²高于0.98。该研究不仅为MOSFET早期预警提供了精确可靠的决策支持，更通过可解释技术建立了数据特征与物理机理的关联，推动了人工智能在器件预测领域向可信、可靠方向发展。
- 功率MOSFET /
- 近端策略优化 /
- 剩余寿命预测 /
- SHAP可解释性 /
- 残差连接的堆叠门控循环单元
Abstract: To address the disconnect between conventional fixed-threshold early warning methods for power MOSFETs and their physical failure mechanisms, this paper proposes a lifetime prediction framework that integrates Explainable Artificial Intelligence (XAI). First, an adaptive dual-threshold partitioning strategy is designed by combining K-means clustering with the Proximal Policy Optimization (PPO) algorithm. The initial solution obtained by K-means is used as the search starting point. A multi-objective reward function is then constructed to balance interval proportion, state-transition sensitivity, and threshold-spacing penalties. This function guides the agent in threshold optimization and enables accurate partitioning of degradation stages. Second, SHAPley additive explanations (SHAP) analysis is introduced to improve the interpretability of the black-box decision-making process. It verifies the rationality of threshold decisions from the perspective of feature-mechanism correlations. The results show that the low threshold is mainly governed by steady-state features in the healthy stage and meets the safety baseline requirement. The high threshold is dominated by dynamic features of late-stage accelerated degradation and accurately identifies the critical point. These findings confirm the reliability and transparency of the threshold decisions. Based on this framework, an early warning mechanism is triggered when degradation data exceed the reliable low threshold. A Residual-connected Stacked Gated Recurrent Unit (R-SGRU) is then used for Remaining Useful Life (RUL) prediction. Experiments on the NASA dataset show that the proposed model outperforms several baseline models, including Long Short-Term Memory (LSTM) and Temporal Convolutional Network (TCN). The test-set Mean Squared Error (MSE) is below 0.001 5, and R² is above 0.98. This study provides accurate and reliable decision support for early warning in MOSFETs. It also links data features with physical mechanisms through explainable techniques, supporting the development of trustworthy artificial intelligence for device prognostics. Objective This study addresses two key issues in power MOSFET lifetime prognostics: the disconnect between conventional fixed-threshold early warning methods and physical mechanisms, and the limited interpretability of existing approaches. A framework integrating adaptive dual-threshold partitioning with XAI is proposed to support predictive maintenance with both physical credibility and high prediction accuracy. Methods An adaptive dual-threshold partitioning strategy is proposed by integrating K-means clustering with PPO reinforcement learning. Threshold positions are optimized using a multi-objective reward function to accurately identify degradation stages. SHAP analysis is used to quantify the contributions of 13-dimensional morphological features based on Shapley values. This validates the physical rationality of threshold decisions from a mechanistic perspective. When degradation data exceed the low threshold, an early warning is triggered. The R-SGRU network is then used for RUL prediction by capturing long-term dependencies through its gating mechanism. The proposed method is validated using the NASA dataset, forming a complete technical route from intelligent early warning to accurate prediction. Results and Discussions The thresholds optimized by PPO achieve the best performance across all metrics (Table 1). SHAP analysis reveals the physical rationale for the threshold decisions. In the healthy stage, the low threshold is mainly governed by steady-state features. By contrast, the high threshold is determined by accelerated degradation dynamics. This result establishes a quantitative correlation between data-driven results and physical failure mechanisms. SHAP interaction heatmaps (Figs. 6 and 7) further show the synergistic effects among features. Device failure is a complex process driven by the coordinated evolution of multiple features. The R-SGRU prediction model based on the optimized thresholds shows excellent performance on the NASA dataset (Table 5). Across the four device groups, the model achieves an MSE below 0.001 5 and an R2 above 0.98, outperforming the baseline models. Conclusions This study proposes an XAI-based framework for predicting the RUL of power MOSFETs. For threshold partitioning, an adaptive dual-threshold strategy combining K-means clustering and PPO reinforcement learning is adopted. A multi-objective reward function enables accurate identification of nonlinear degradation stages, and its performance is validated across four test devices. For interpretability, SHAP analysis provides mechanistic support for threshold decisions. The results show that low thresholds depend on steady-state features in the healthy period, whereas high thresholds are dominated by late-stage accelerated degradation features. This pattern is consistent with actual failure mechanisms. Feature interaction heatmaps reveal complex cooperative effects among multiple features and improve the understanding of the decision-making process. The R-SGRU prediction model shows strong time-series modeling capability and ensures high stability and accuracy. This work establishes a complete technical route from intelligent early warning to accurate prediction. It achieves adaptive threshold optimization and links data-driven results with physical mechanisms through interpretability analysis. The findings provide reliable support for the intelligent operation and maintenance of power MOSFETs.

HTML全文

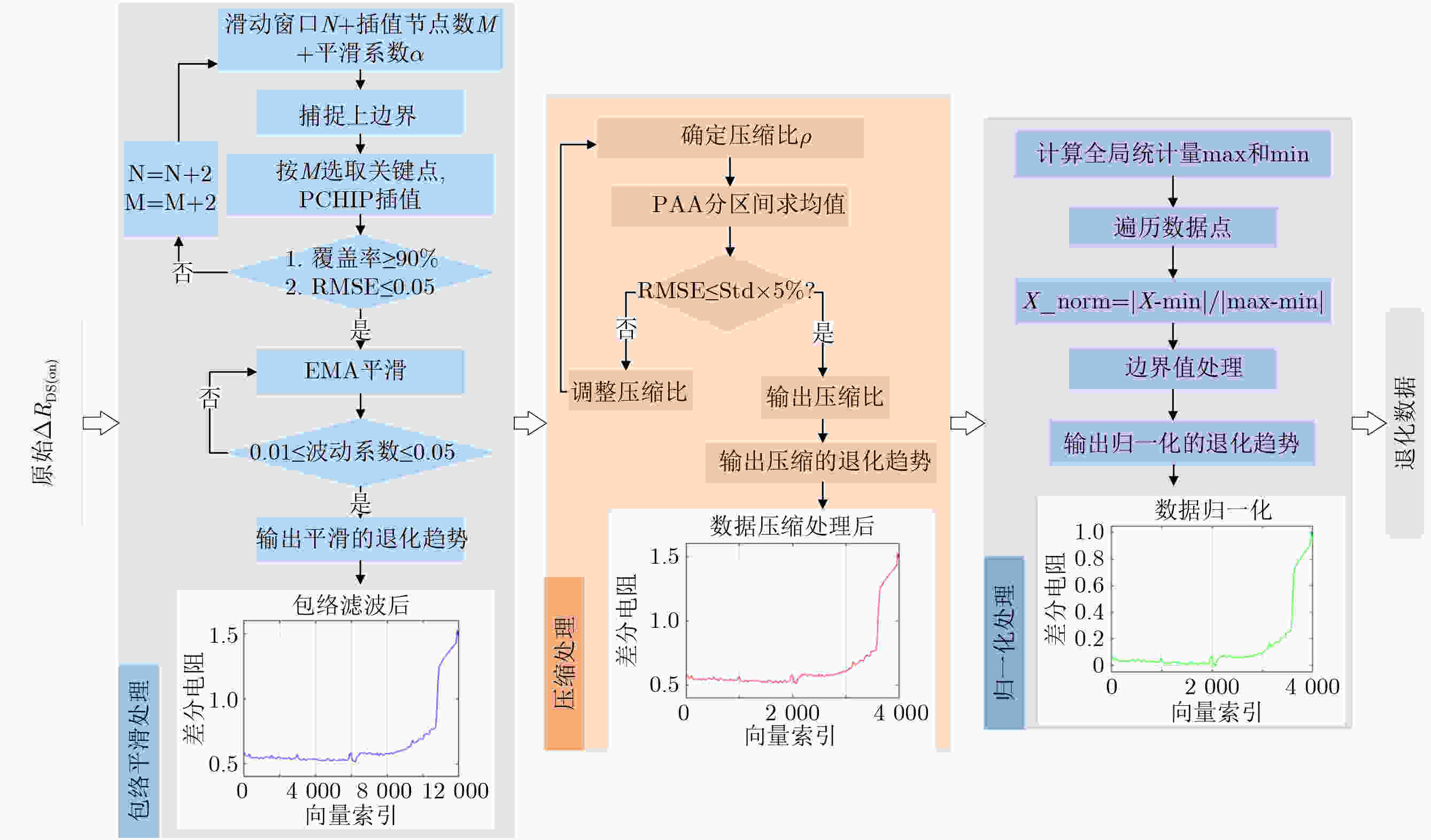

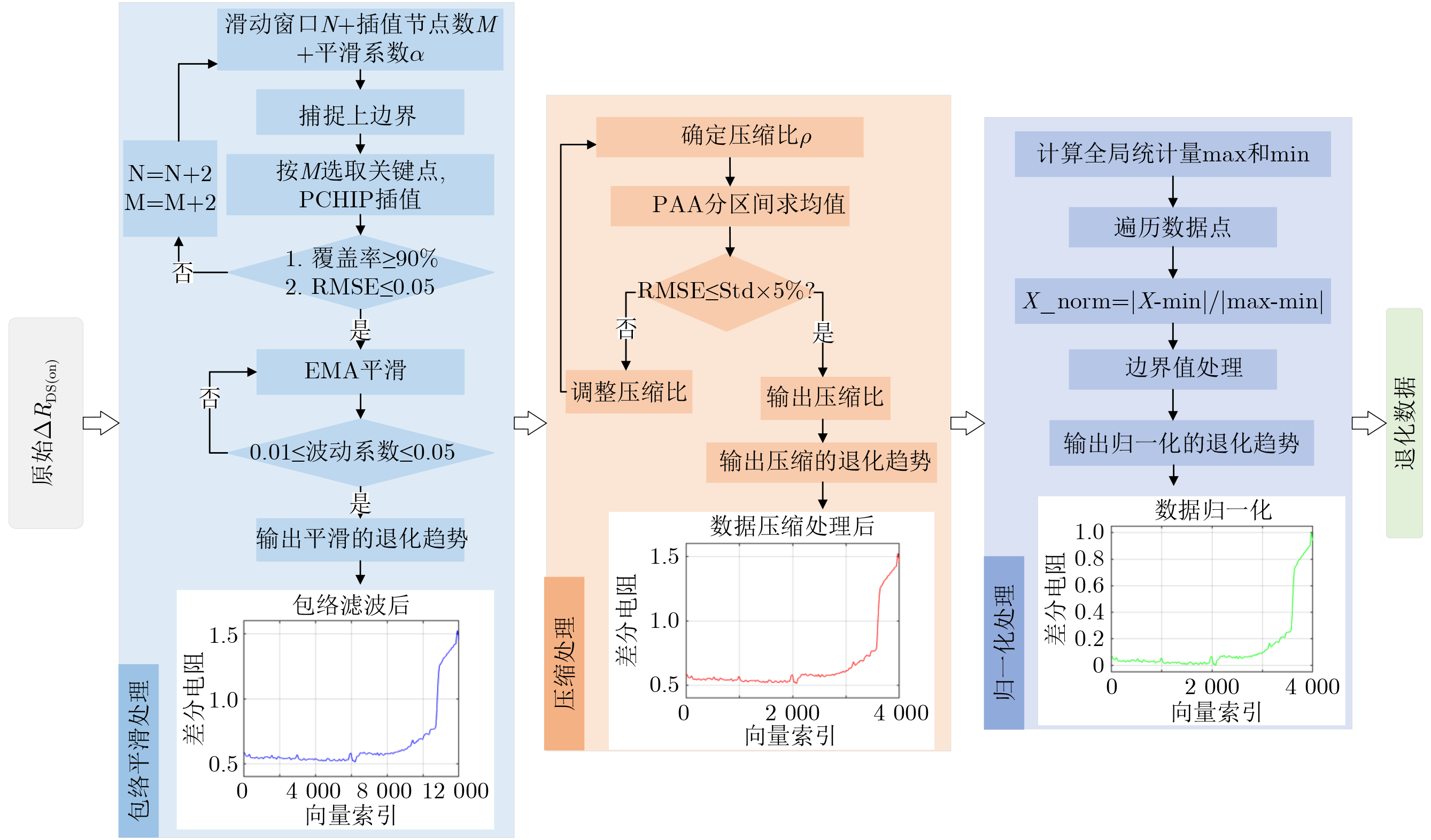

图 1 预处理流程图

下载: 全尺寸图片幻灯片

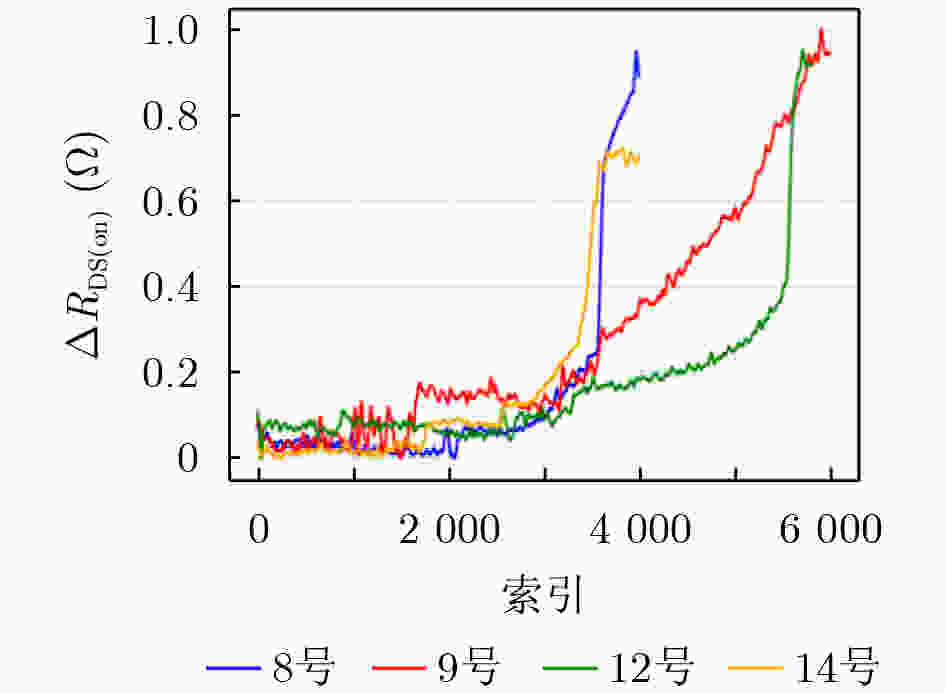

图 2 功率MOSFET退化失效曲线图

下载: 全尺寸图片幻灯片

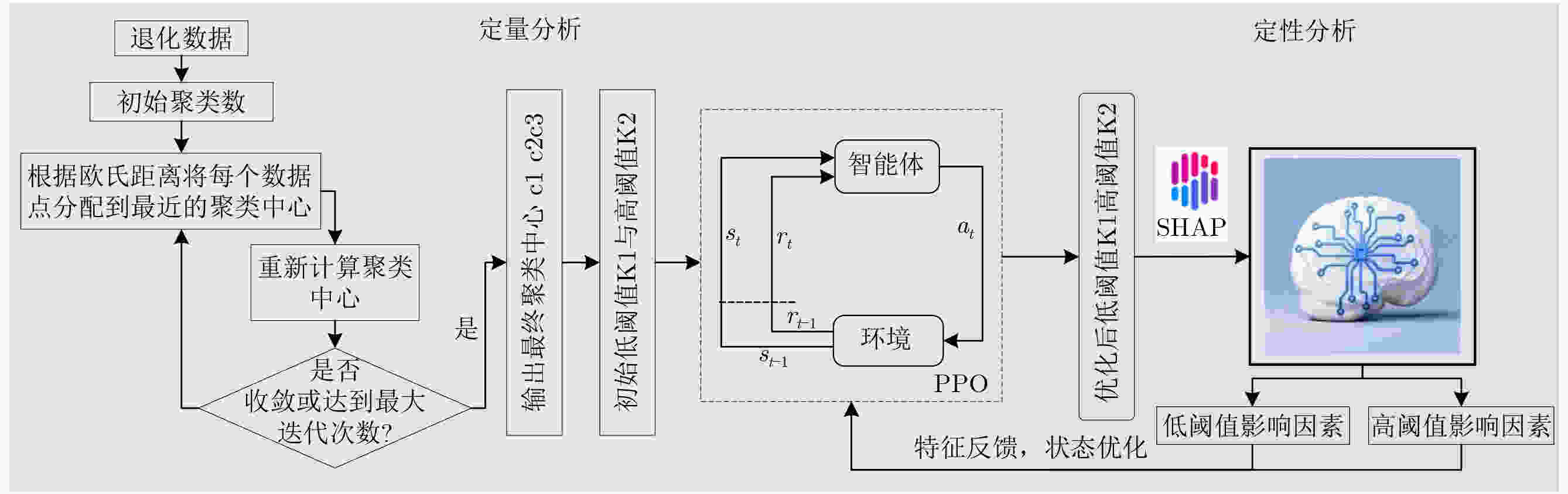

图 3 阈值划分整体流程图

下载: 全尺寸图片幻灯片

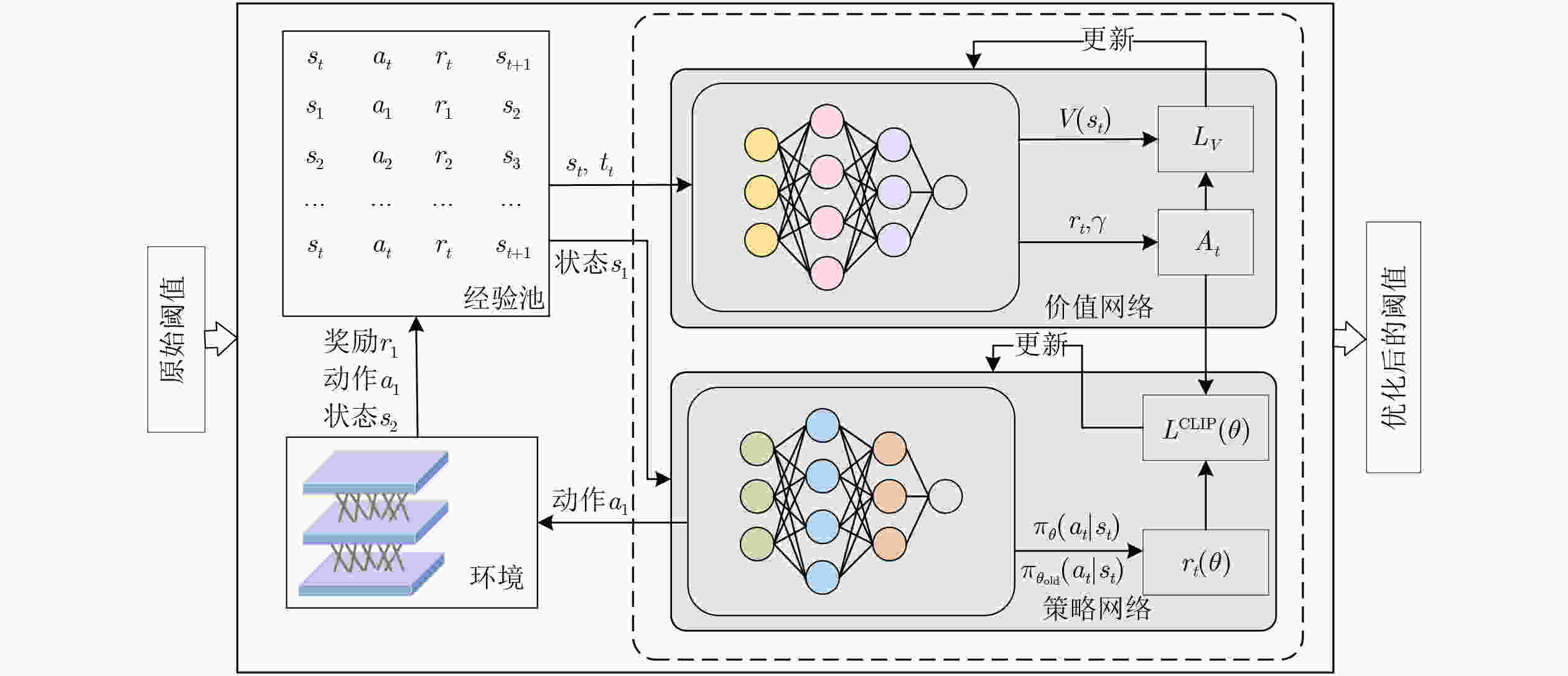

图 4 PPO阈值优化流程图

下载: 全尺寸图片幻灯片

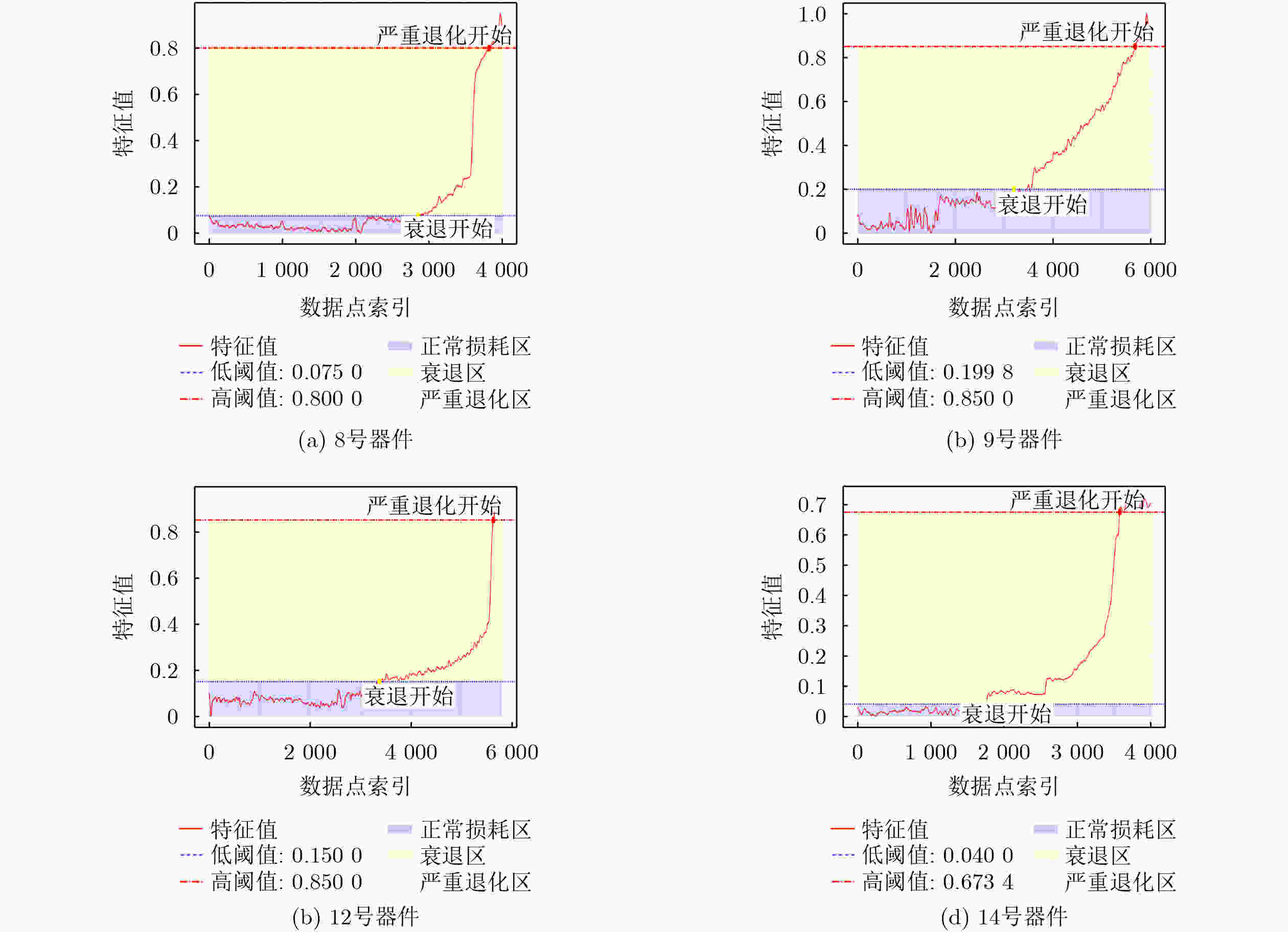

图 5 PPO阈值优化结果图

下载: 全尺寸图片幻灯片

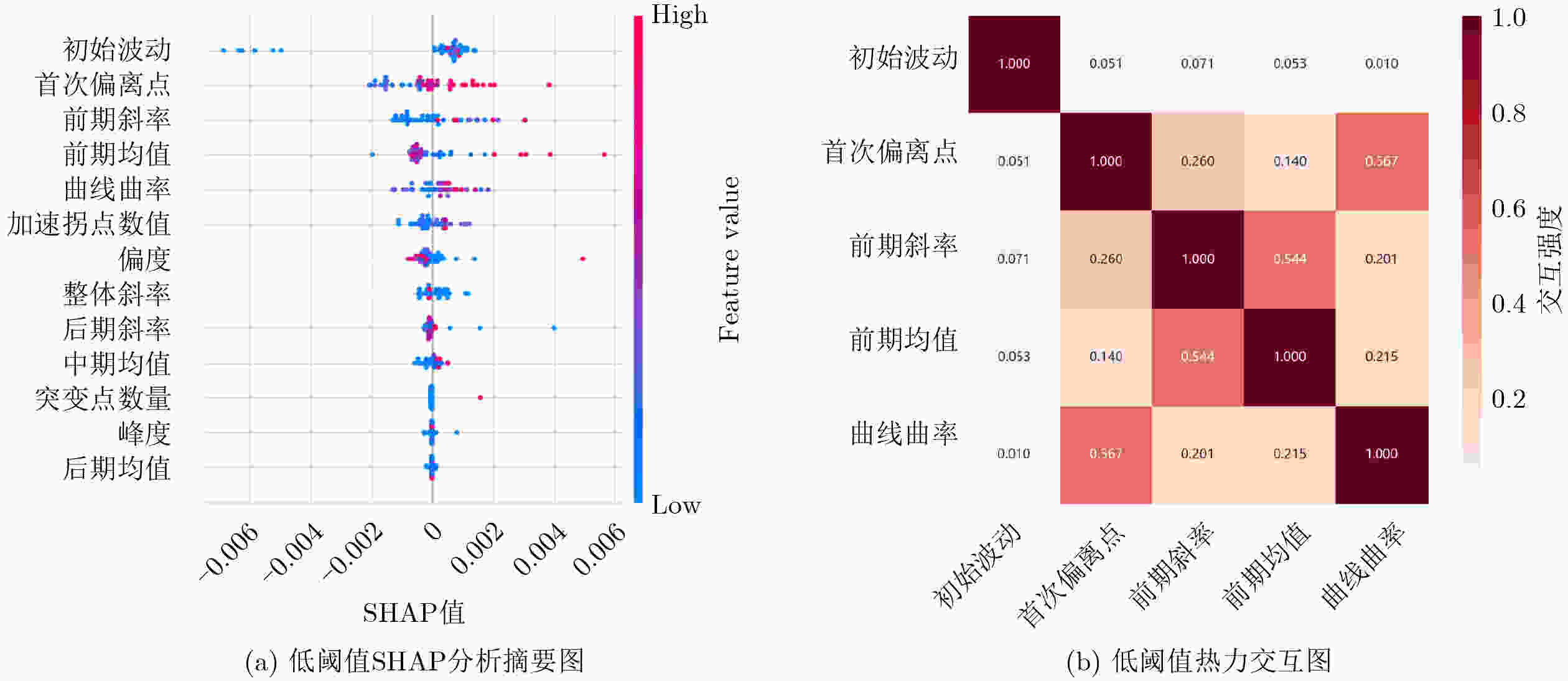

图 6 低阈值SHAP分析结果图

下载: 全尺寸图片幻灯片

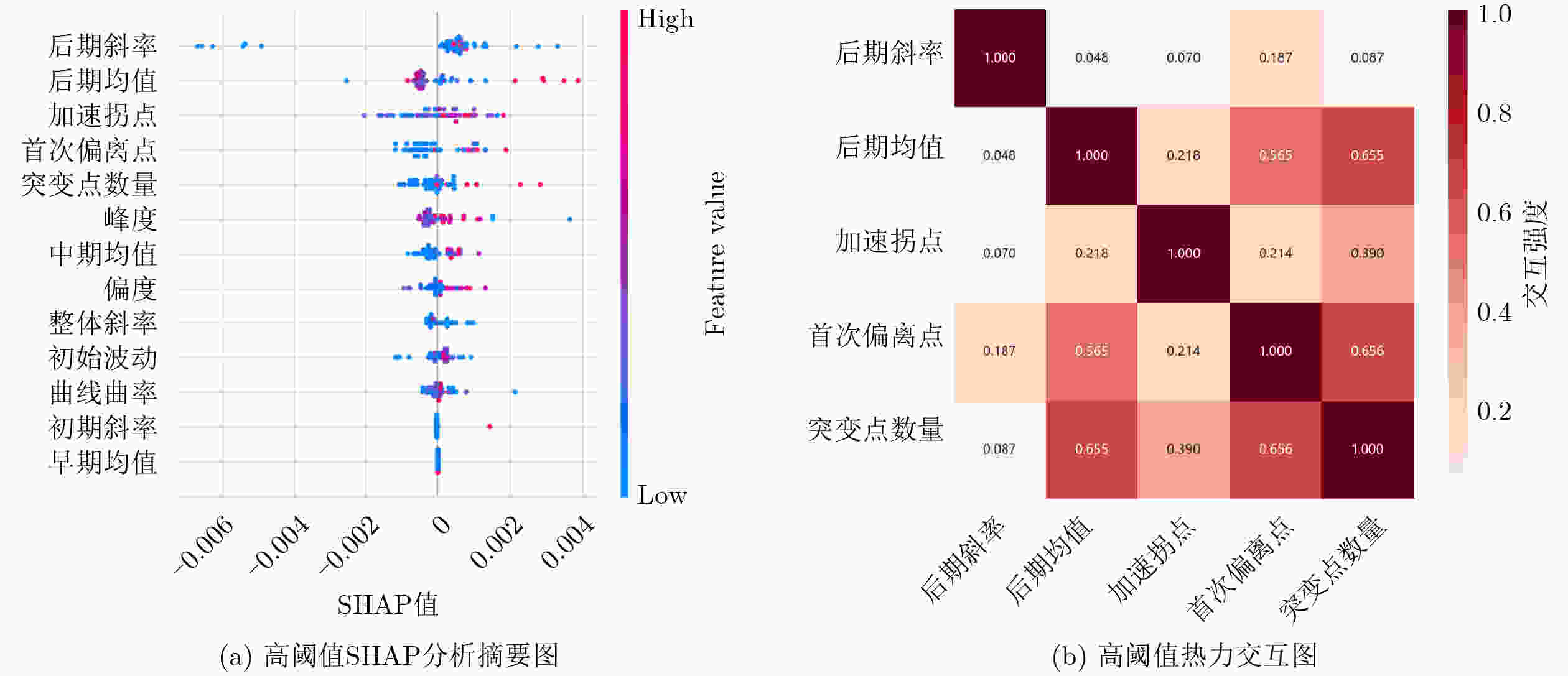

图 7 高阈值SHAP分析结果图

下载: 全尺寸图片幻灯片

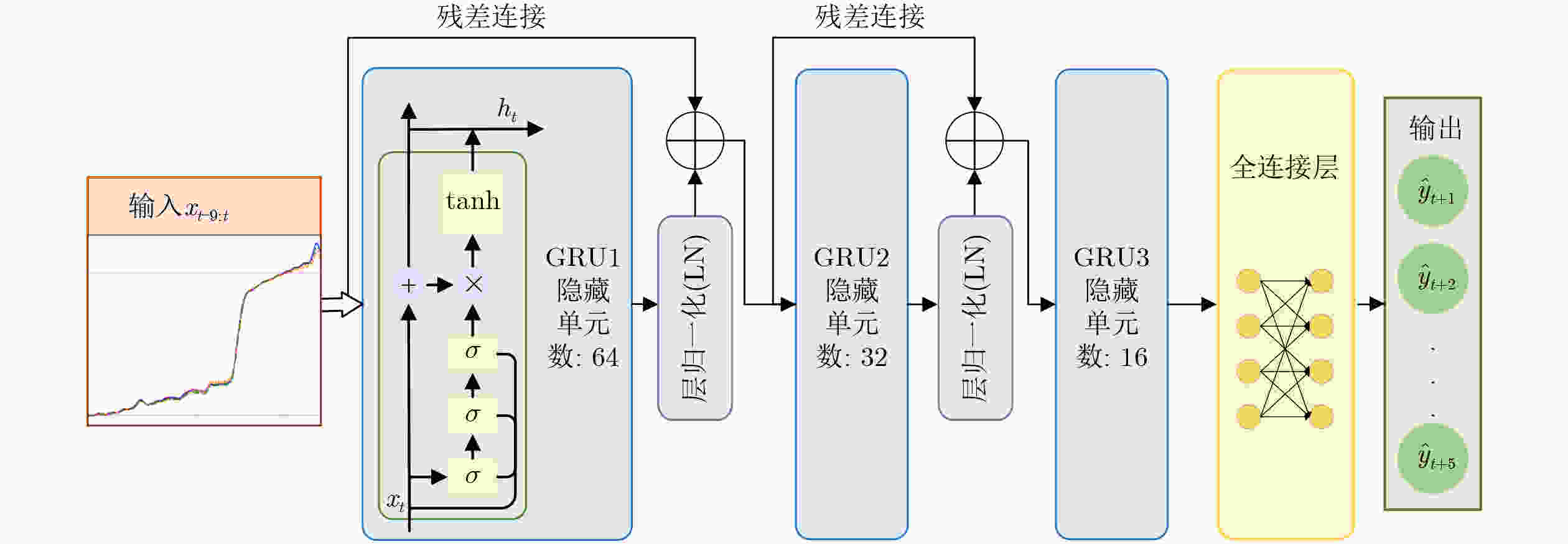

图 8 网络结构图

下载: 全尺寸图片幻灯片

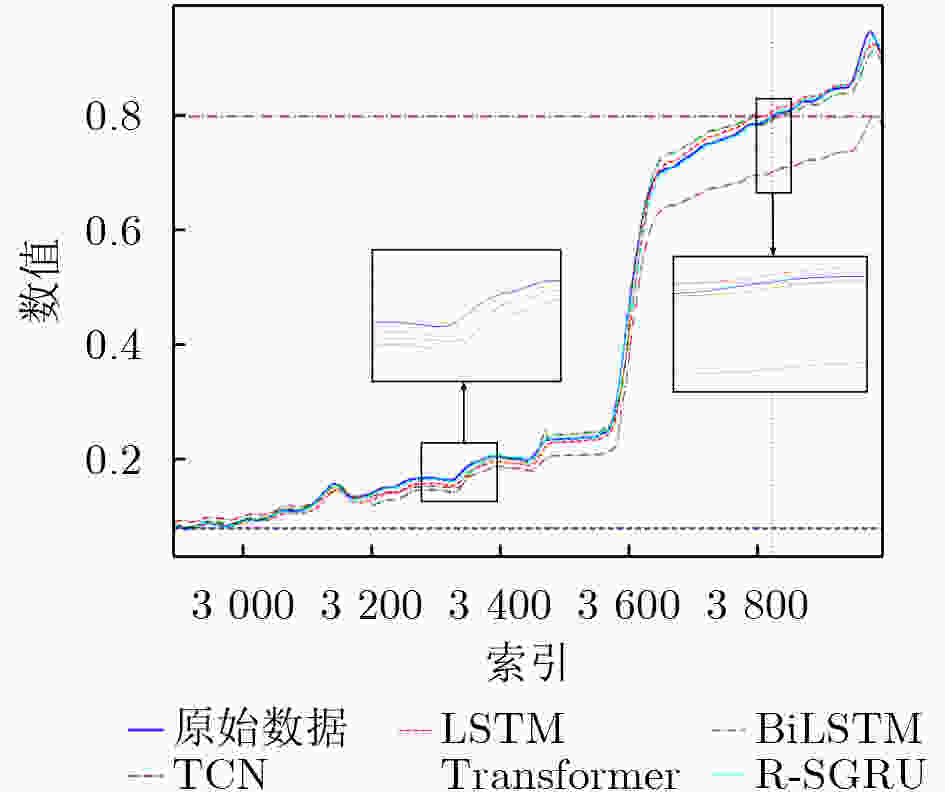

图 9 预测结果对比图

下载: 全尺寸图片幻灯片

表 1 阈值性能对比表

划分方法	MSE	R²	预警比例(%)
固定阈值	0.001987	0.976051	16.23
K-means	0.001953	0.977837	8.35
变化点	0.001599	0.978407	8.32
分位数	0.001698	0.977378	20.05
贝叶斯优化	0.001553	0.978950	26.37
PPO	0.00150	0.983891	15.68

下载: 导出CSV

表 2 低阈值SHAP分析全局重要性表

特征	SHAP值
初始波动	0.001315
首次偏离点	0.000960
前期斜率	0.000898
前期均值	0.000847
曲线曲率	0.000545

下载: 导出CSV

表 3 高阈值SHAP分析全局重要性表

特征	SHAP值
后期斜率	0.001333
后期均值	0.000778
加速拐点	0.000701
首次偏离点	0.000650
突变点数量	0.000440

下载: 导出CSV

表 4 模型消融实验精度对比

方法	MSE	R²	训练时间(s)	预警准确率(%)
GRU	0.001622	0.975846	59.61	93.56
SGRU	0.001675	0.977097	158.30	94.97
R-SGRU	0.0015	0.983891	167.64	95.11

下载: 导出CSV

表 5 多种预测方法精度对比

方法	MSE	R²	训练时间(s)	预警准确率(%)
LSTM	0.002127	0.967152	56.69	94.82
BiLSTM	0.001688	0.971866	102.02	94.88
TCN	0.001695	0.971414	463.96	93.21
Transformer	0.001598	0.974956	531.94	94.03
本文方法	0.0015	0.983891	167.64	95.11

下载: 导出CSV

表 6 器件剩余寿命预测误差对比(min)

器件	低阈值	实际剩余寿命	预测剩余寿命	误差
8号	95.2	32.4	32.1	0.3
9号	106.6	83.7	84.1	0.4
12号	112.6	75.3	75.6	0.3
14号	58.6	60.2	60.4	0.2

下载: 导出CSV

表 7 模型跨器件泛化性能验证结果

测试器件	训练器件	MSE	R²
8号	9,12,14号	0.005548	0.93
9号	8,12,14号	0.008145	0.90
12号	8,9,14号	0.004257	0.94
14号	8,9,12号	0.009348	0.89

下载: 导出CSV

表 8 模型在不同退化阶段的预测性能

训练数据比例(%)	MSE	R²
40	0.016641	0.872
50	0.009604	0.911
60	0.004489	0.943

下载: 导出CSV
