干扰对消条件下幅相误差对相控阵雷达测角误差的研究

詹思恒; 周亮; 沈若彬; 张嘉毫; 王彬; 孟进

doi:10.11999/JEIT251195

干扰对消条件下幅相误差对相控阵雷达测角误差的研究

doi: 10.11999/JEIT251195 cstr: 32379.14.JEIT251195

詹思恒^{1, 2},
周亮^2, ,,
沈若彬²,
张嘉毫²,
王彬¹,
孟进^{2, 3}

1.
电子科技大学电子科学与工程学院成都 611731
2.
海军工程大学全国电磁能技术重点实验室武汉 430033
3.
乾元实验室杭州 310024

基金项目: 乾元国家实验室课题(S-KYZZ-F-02-202506-0060)

详细信息

作者简介:
詹思恒：男，硕士生，研究方向雷达主瓣抗干扰等

周亮：男，副教授，研究方向雷达电磁攻防技术等

沈若彬：男，博士生，研究方向电磁兼容等

张嘉毫：男，副教授，研究方向雷达电磁攻防技术等

王彬：男，副教授，研究方向高功率微波技术等

孟进：男，教授，研究方向雷达电磁攻防技术等

通讯作者:
周亮　zh201314l@nue.edu.cn

中图分类号: TN958.92
计量
- 文章访问数: 11
- HTML全文浏览量: 1
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-03-24
- 录用日期: 2026-03-24
- 网络出版日期: 2026-05-03

A Study of the Effects of Amplitude and Phase Errors on the Angle-Measurement Accuracy of Phased Array Radar under Interference Cancellation Conditions

ZHAN Siheng^{1, 2},
ZHOU Liang^{2
, ,},
SHEN Ruobin²,
ZHANG Jiahao²,
WANG Bin¹,
MENG Jin^{2, 3}

1.
School of Electronic Science and Engineering, University of Electronic Science and Technology of China, Chengdu 611731, China
2.
National Key Laboratory of Electromagnetic Energy Technology, Naval University of Engineering, Wuhan 430033, China
3.
Qianyuan National Laboratory, Hangzhou 310024, China

Funds: Qianyuan Laboratory Project (S-KYZZ-F-02-202506-0060)

摘要

摘要: 主瓣压制干扰严重削弱雷达探测性能。干扰对消可抑制其影响，但易使主瓣畸变并引入测角误差。以未设差差通道的单脉冲体制相控阵雷达为对象，采用正态分布描述接收通道幅相误差波动特性，建立“干扰对消-和差测角”联合模型，通过蒙特卡洛仿真分析幅相误差在干扰对消前后对雷达测角误差的影响规律。结果表明：通道幅相差异不改变对消前后目标角度变化趋势；无干扰时，通道幅相误差引入的目标测角误差在波束法向附近最小；存在干扰并实施对消时，对消后通道幅相误差引入的目标测角误差在波束法向附近达到峰值，在远离法向后误差快速下降。研究为主瓣压制干扰条件下、采用对消且未设差差通道的单脉冲相控阵雷达测角误差评估与工程应用提供参考。
- 相控阵雷达 /
- 和差测角 /
- 主瓣压制干扰 /
- 自适应干扰对消 /
- 幅相误差
Abstract: Objective The electromagnetic environment is becoming increasingly complex, and mainlobe interference constrains the detection performance of phased array radars. Adaptive interference cancellation (AIC) can effectively suppress such interference but leads to mainlobe pattern distortion and introduces azimuth angle measurement errors. Most existing studies focus on interference cancellation mechanisms, with little attention paid to the angle measurement errors introduced by this technique. Amplitude-phase channel errors in the radar receive channel also degrade angle measurement accuracy. This paper investigates the influence of amplitude-phase channel errors in the receive channel on the angle measurement errors of monopulse phased array radars equipped with no difference-difference channel. Methods A monopulse phased array radar with no difference-difference channel is studied, and the amplitude-phase errors in the receiving channels are modeled as a normal distribution. The mean shows the systematic offset and the standard deviation shows random fluctuations. The operation principles of phased array radar receivers, monopulse radar systems, angle measurement theory, and mainlobe interference suppression and cancellation theory are introduced. Two angle measurement models are established through theoretical derivation: an ideal reference model and an amplitude-phase error model. Simulation results show that the radar’s effective angle measurement range is ±2.5° under ideal interference-free and error-free conditions. The jamming source is set at –1.2°, and the angle measurement results are taken as a reference for subsequent experiments. Monte Carlo simulations (100 independent tests for each parameter set) are used to analyze the statistical characteristics of angle measurement errors. Heatmaps are used to clearly show the absolute errors and obtain their variation laws. Results and Discussions (1) When there is no channel amplitude-phase error, the jamming angle is fixed at –1.2°; prior to interference cancellation, the target bearing matches the true value. After cancellation, the absolute error between the target signal and the true value near the beam normal is less than or equal to 0.1°, but null dips near the jamming angle cause abrupt changes in azimuth angle, and the error increases as the deviation from the beam normal increases. (2) Before cancellation, the azimuth angle measurement error increases with the absolute value of the amplitude mean and the incident angle, reaching a peak of approximately >0.06° at an amplitude mean of ±0.9 dB and an incident angle of ±2.5°. Within an incident angle range of ±2°, the error is typically <0.02°; when the amplitude mean is fixed, the error increases with the amplitude standard deviation; when the phase standard deviation is fixed, the error increases with the absolute value of the phase mean; it exceeds 0.15° at a phase mean of ±0.9°, and reaches approximately 0.6° at a phase standard deviation of 6° and an incident angle of ±2.5°. (3) After cancellation, phase error is most sensitive at an incident angle of 0.5°, where the azimuth angle measurement error reaches 0.4°. Outside this region, the error can be controlled within 0.2° and decreases rapidly as the deviation from the beam normal increases. Conclusions This paper quantifies the impact of amplitude-phase errors in the receiving channel on azimuth angle measurement errors before and after interference cancellation. The main conclusions are as follows: (1) Both amplitude and phase errors cause random fluctuations in azimuth angle measurements, with phase errors having a more significant impact; (2) In the absence of jamming, azimuth angle measurement errors are smallest near the beam axis and increase as the measurement approaches the boundaries of the effective angle measurement range; (3) In the presence of jamming and during cancellation, the azimuth angle measurement error peaks near the beam normal and decays rapidly. This study provides engineering guidance for azimuth angle measurement error assessment, error budgeting, and mainlobe interference suppression. Future research will focus on non-normal amplitude-phase errors, calibration dynamics, scenarios with multiple jamming sources, and experimental validation.
- Phased Array Radar /
- Sum-Difference Angle Measurement /
- Mainlobe Suppression Jamming /
- Adaptive Interference Cancellation /
- Amplitude-Phase Error

HTML全文

图 1 相控阵雷达接收机处理流程

下载: 全尺寸图片幻灯片

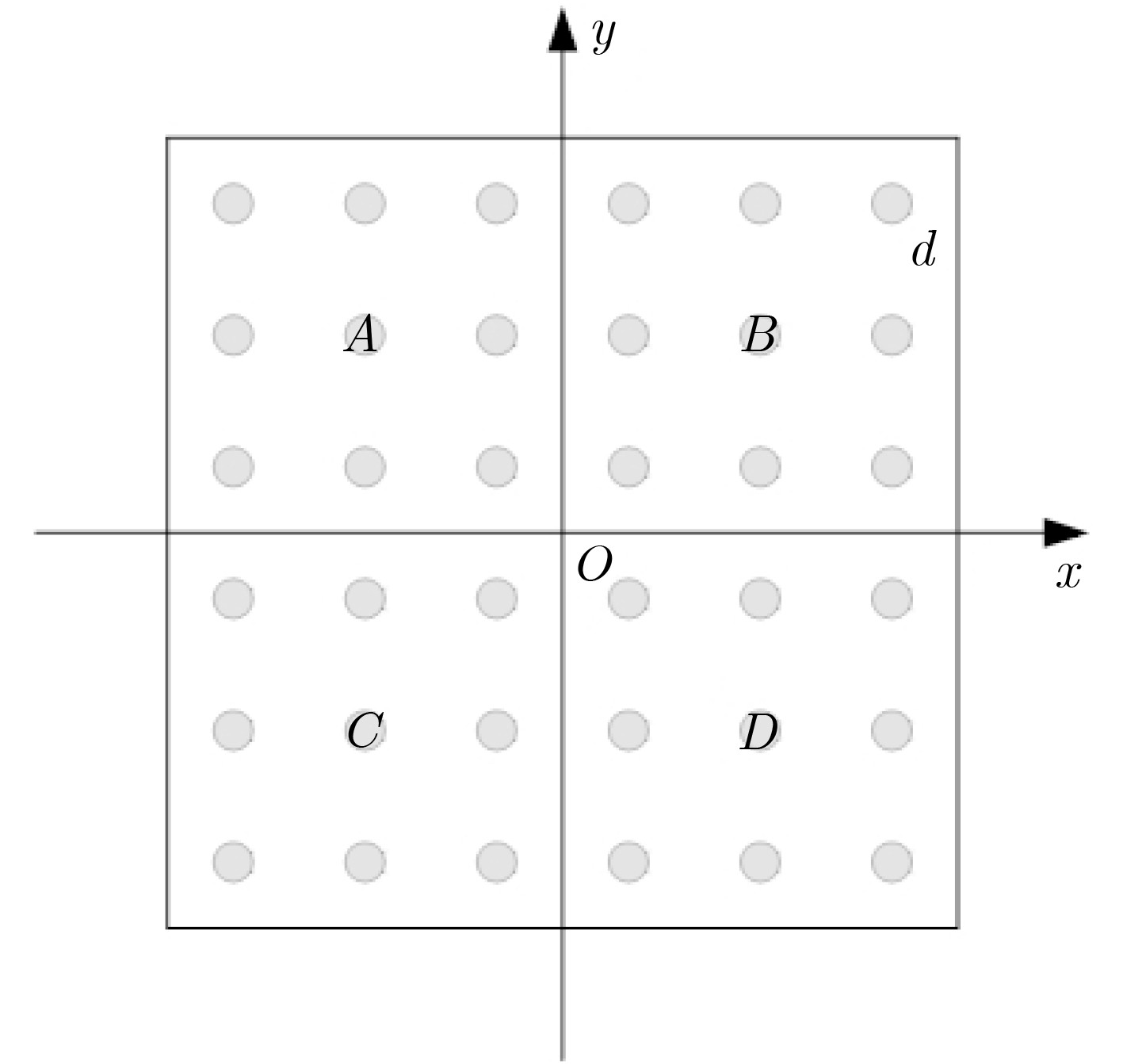

图 2 相控阵阵列平面示意图

下载: 全尺寸图片幻灯片

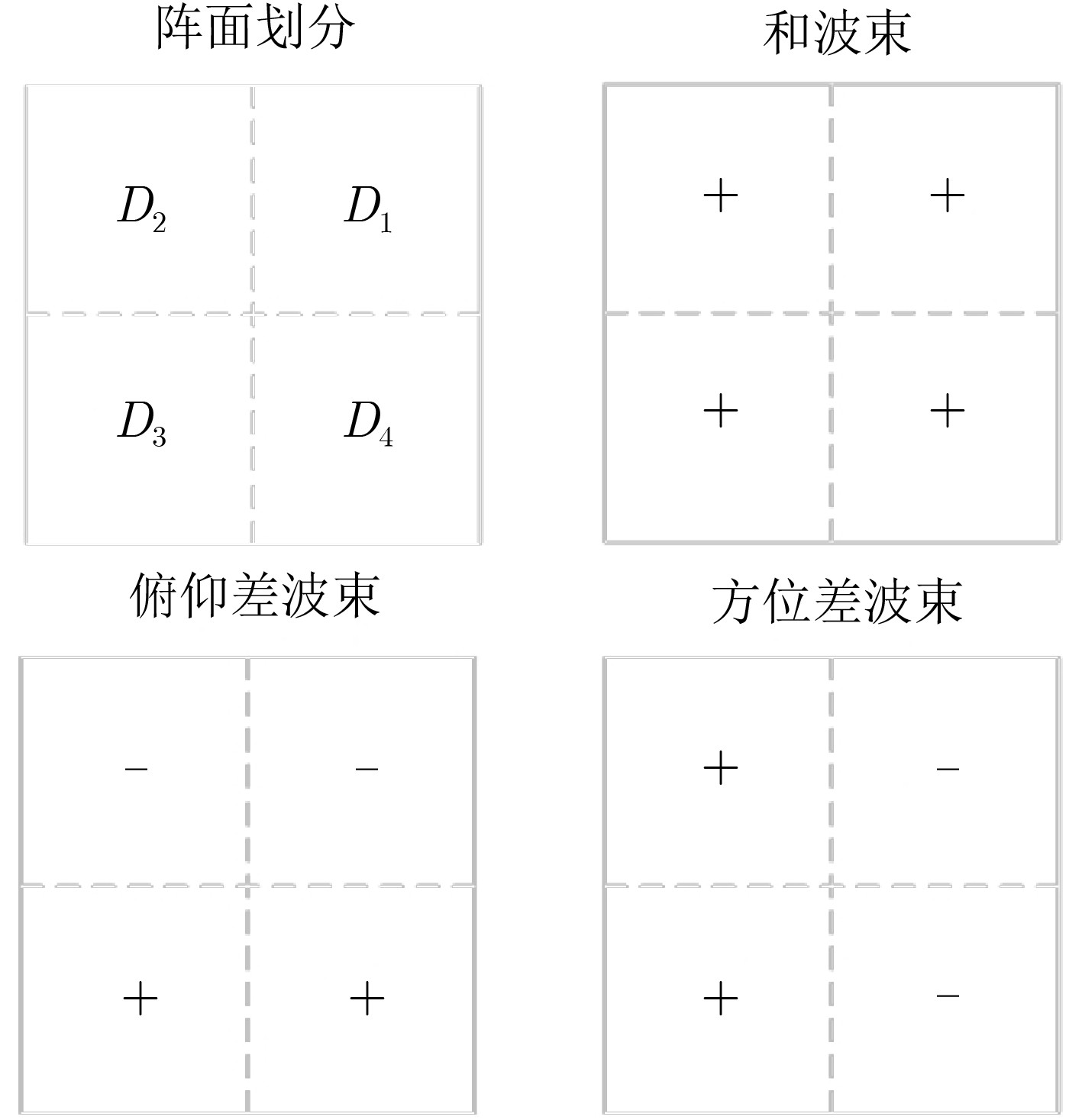

图 3 和差波束形成示意图

下载: 全尺寸图片幻灯片

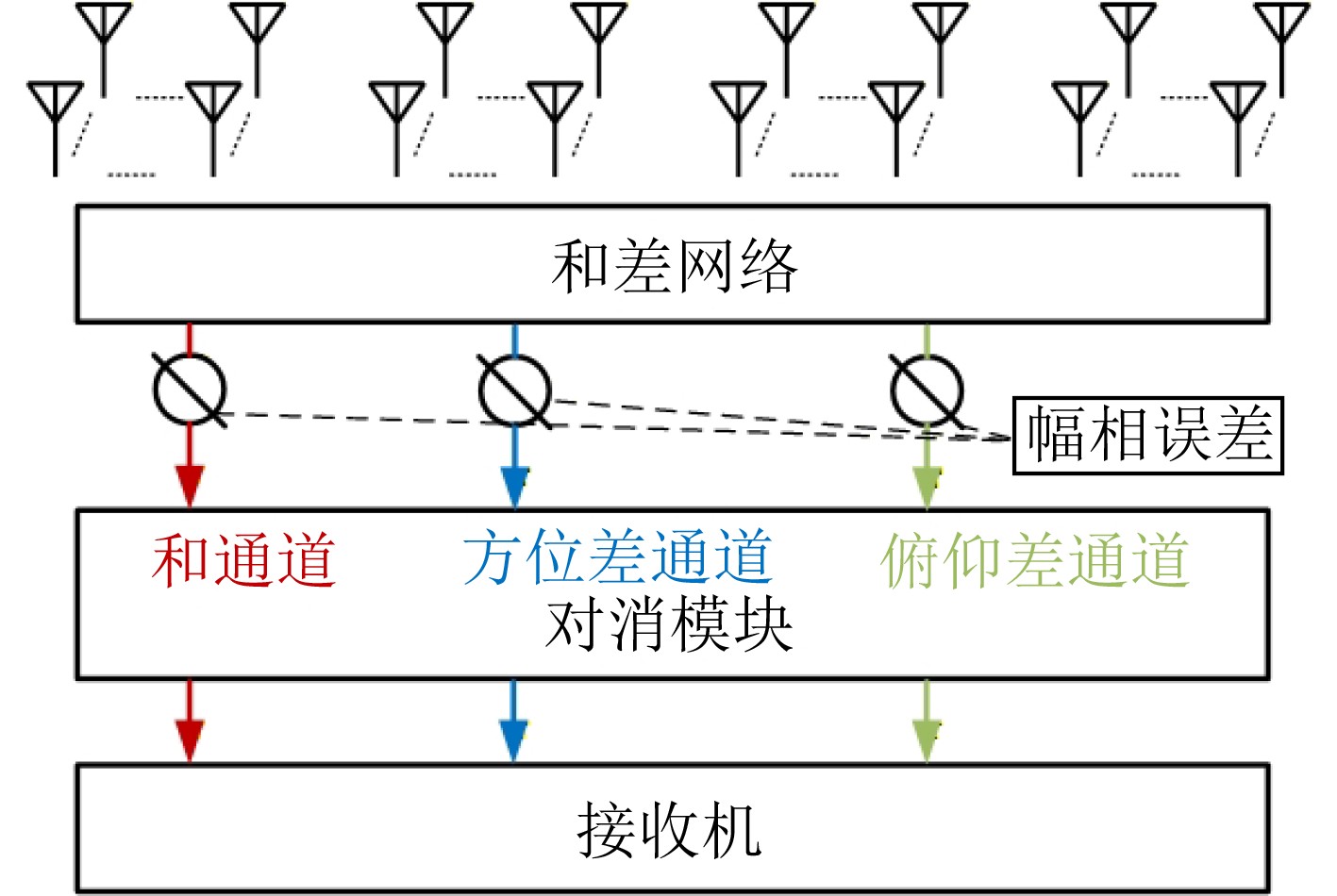

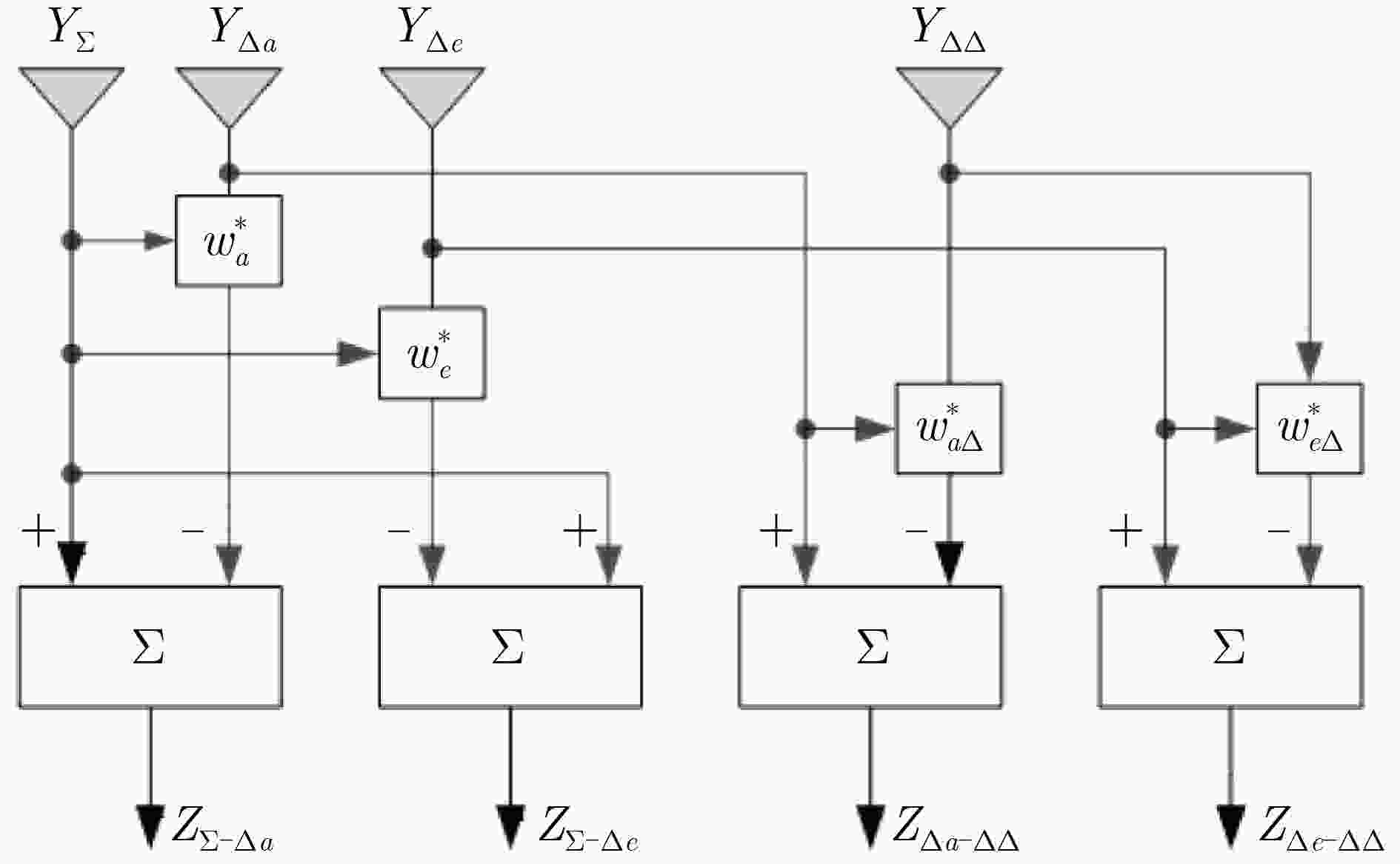

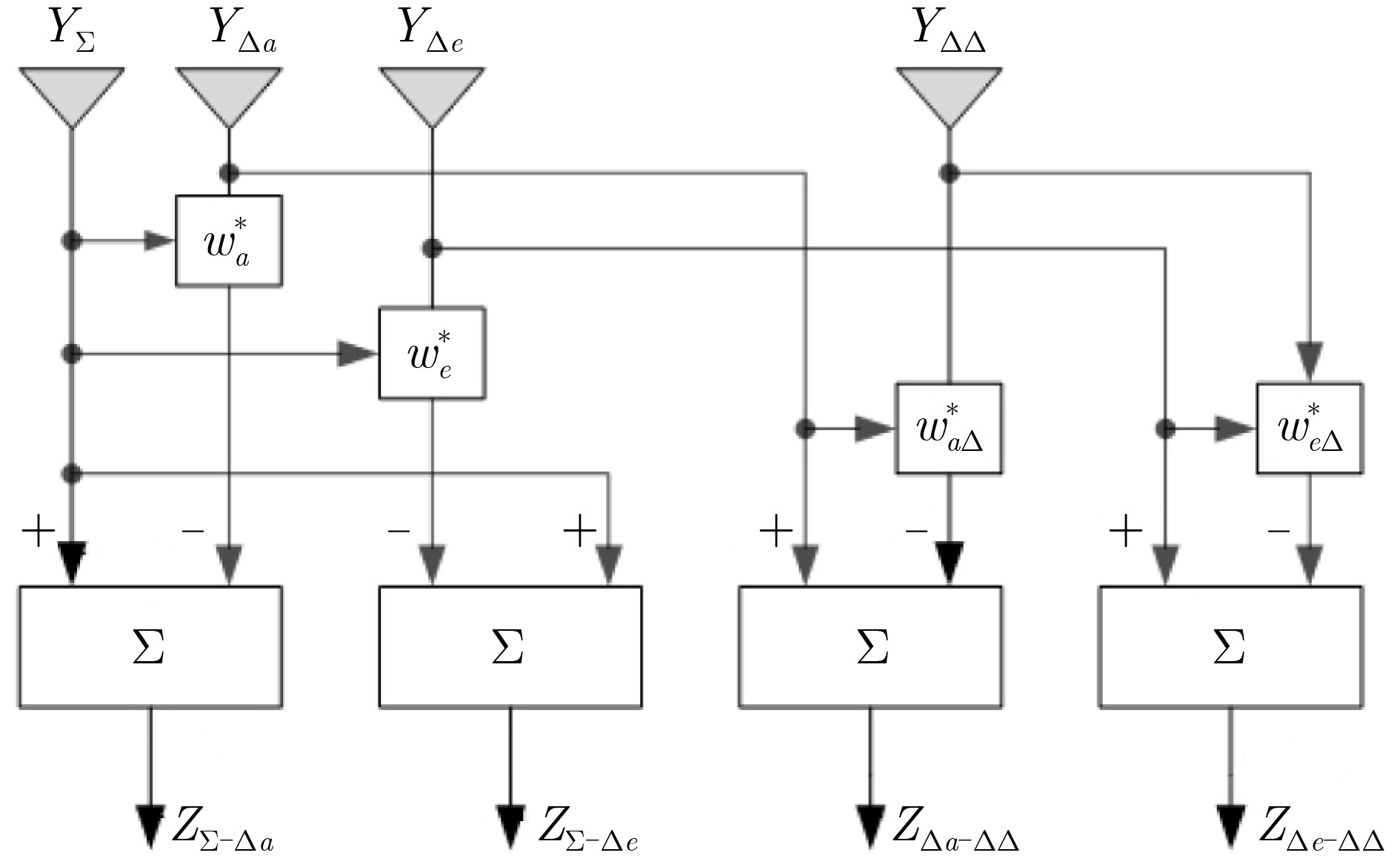

图 4 复用差波束取样的干扰对消原理图

下载: 全尺寸图片幻灯片

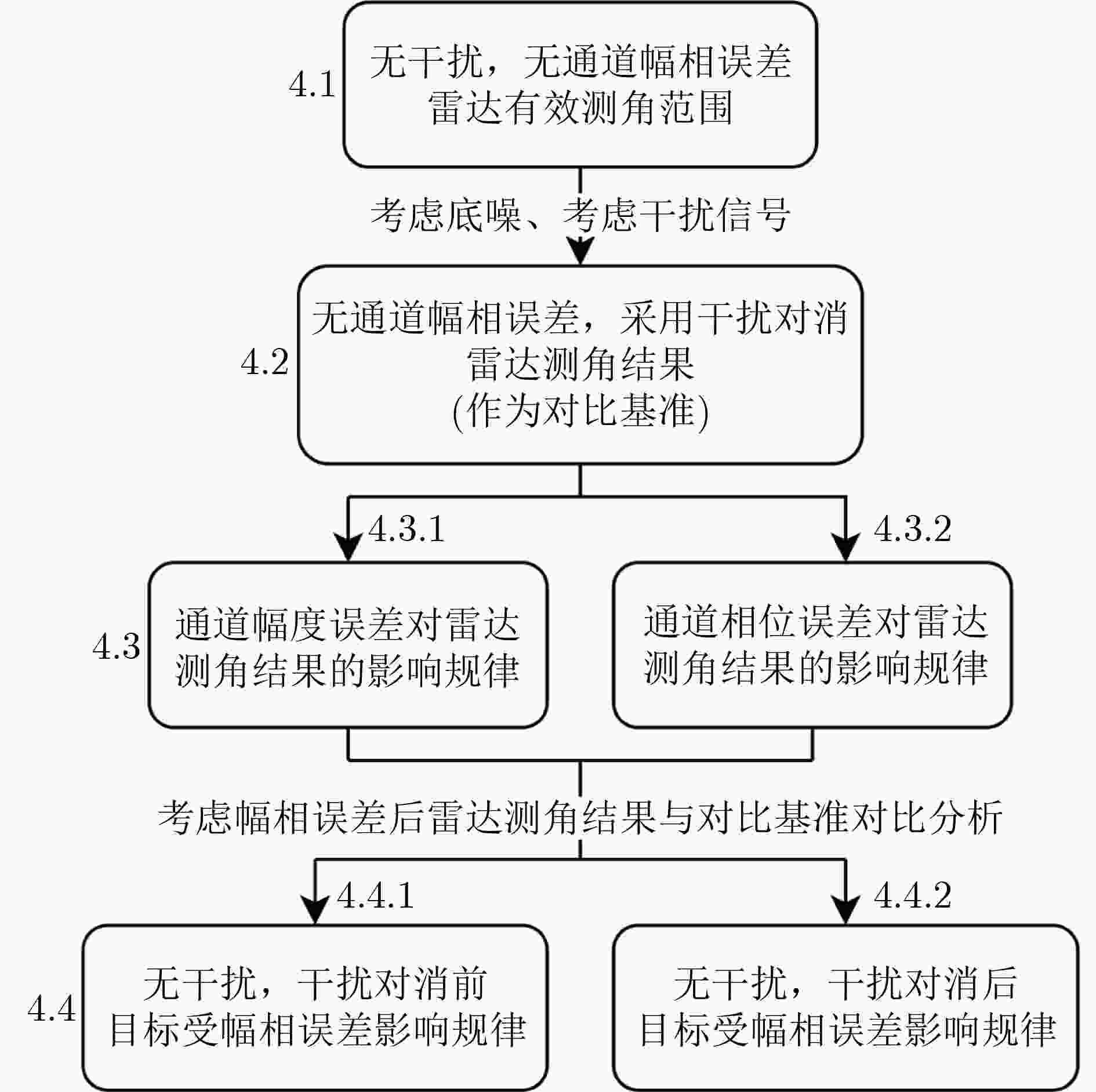

图 5 分析幅相误差对雷达测角误差影响流程图

下载: 全尺寸图片幻灯片

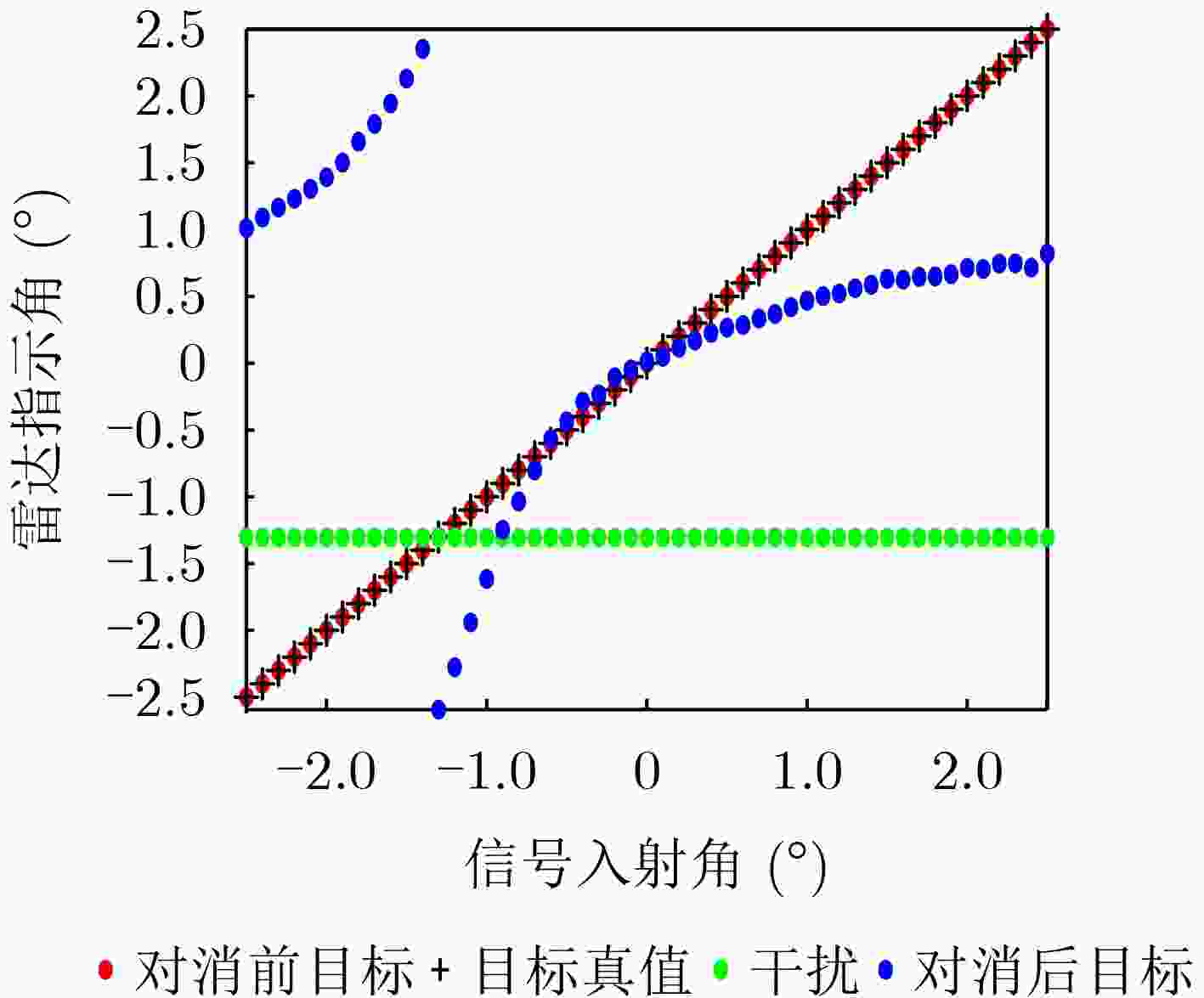

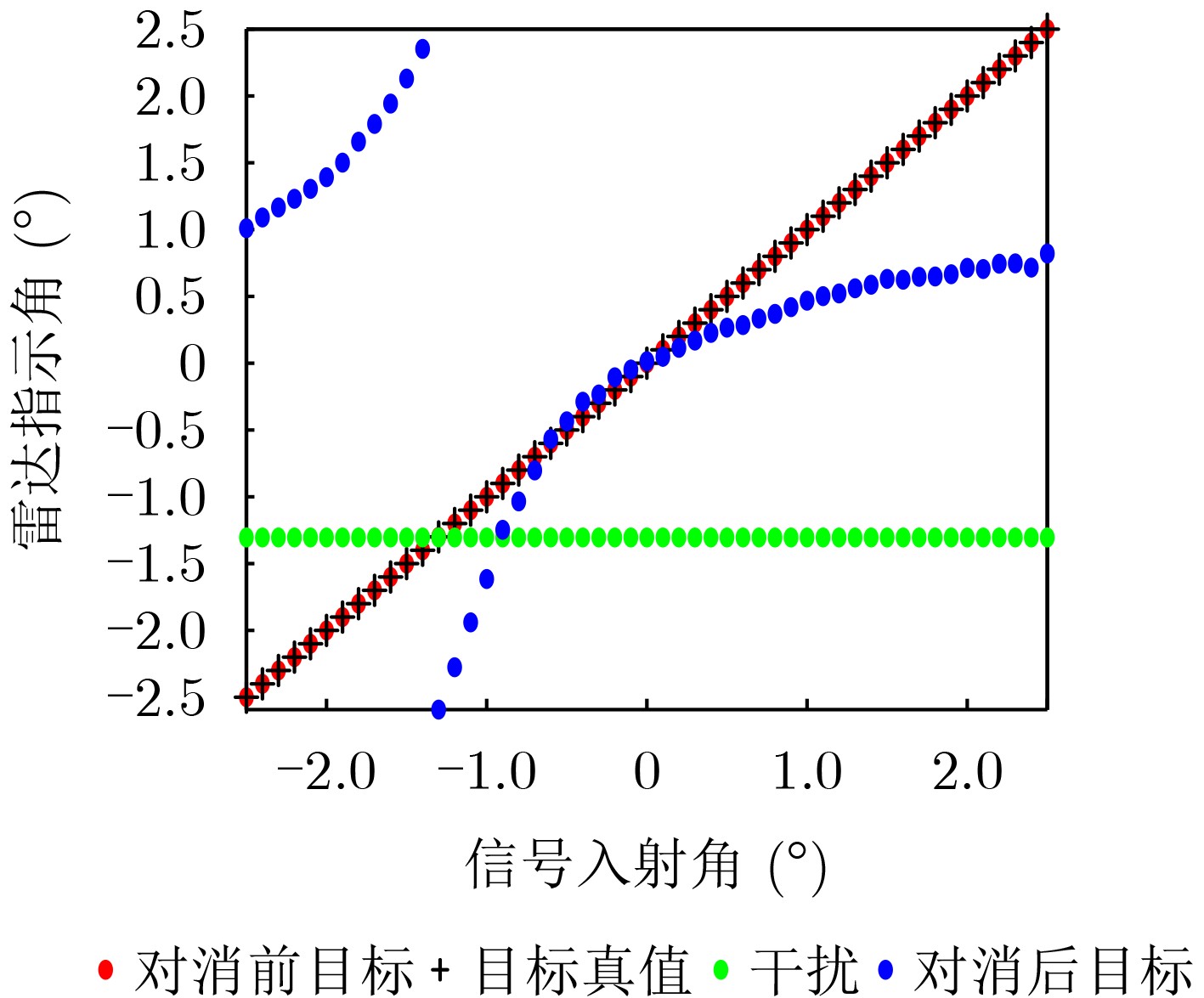

图 6 无通道幅相误差雷达测角结果图

下载: 全尺寸图片幻灯片

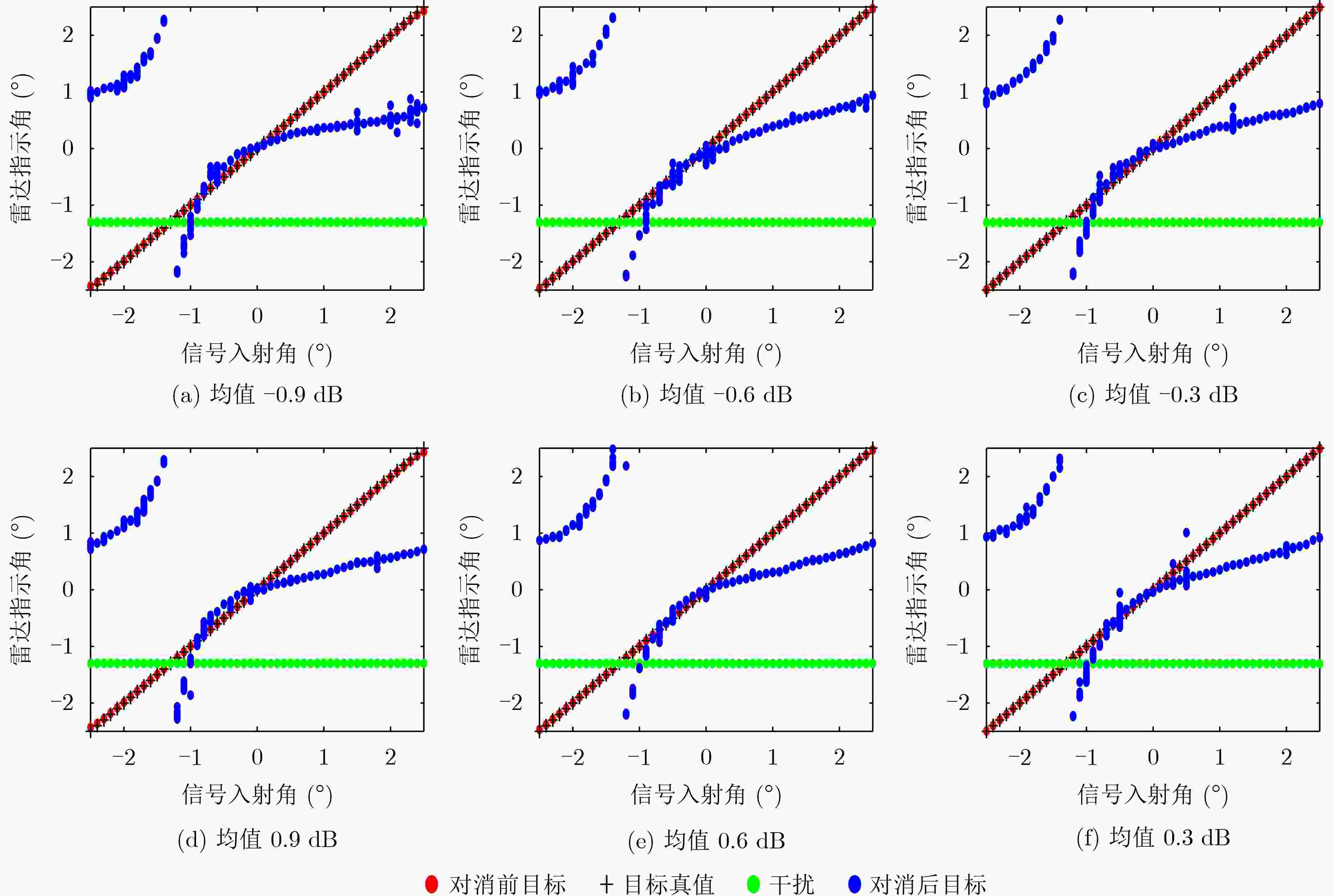

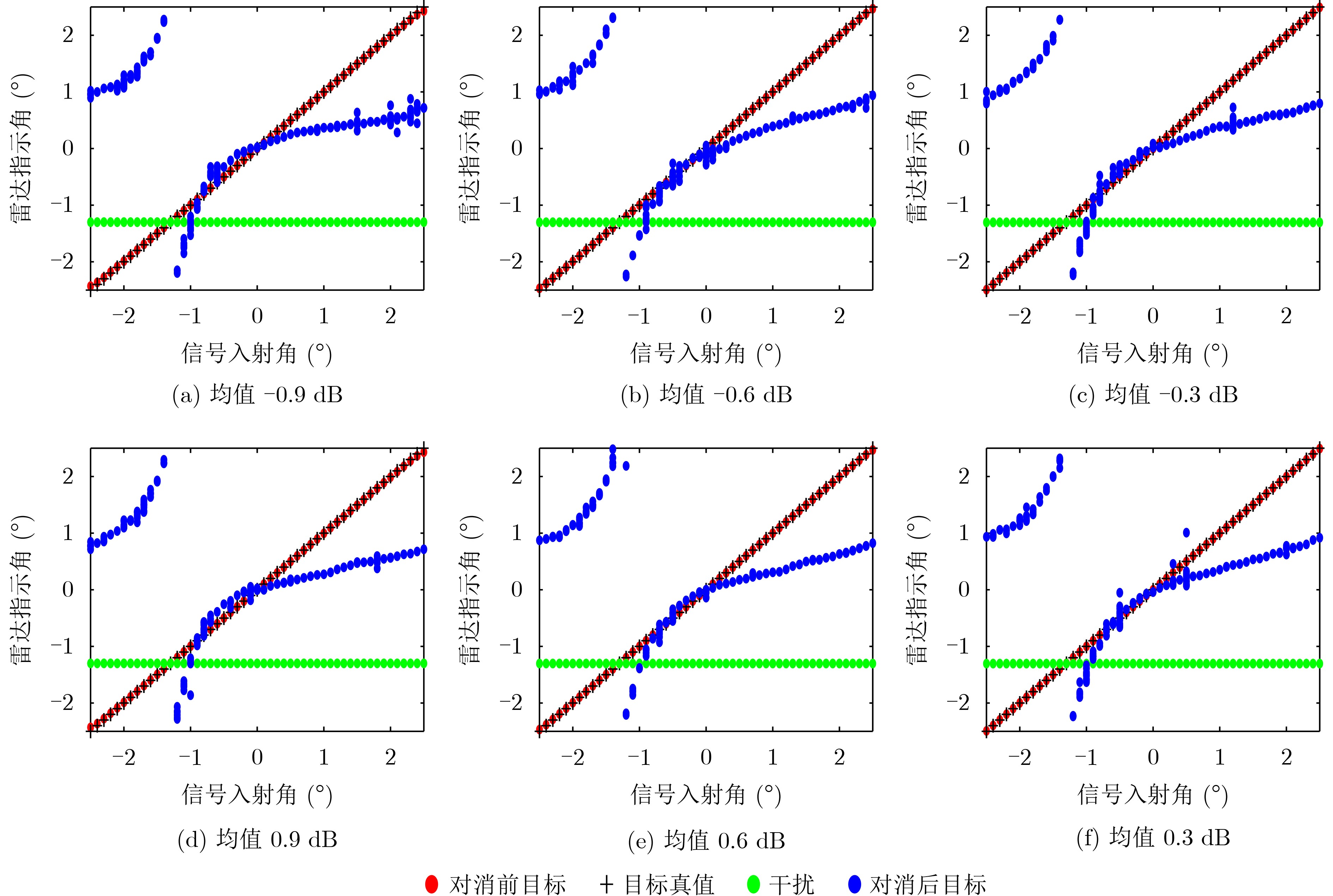

图 7 幅度误差标准差为0 dB、幅度误差均值变化对雷达测角精度影响的对比图

下载: 全尺寸图片幻灯片

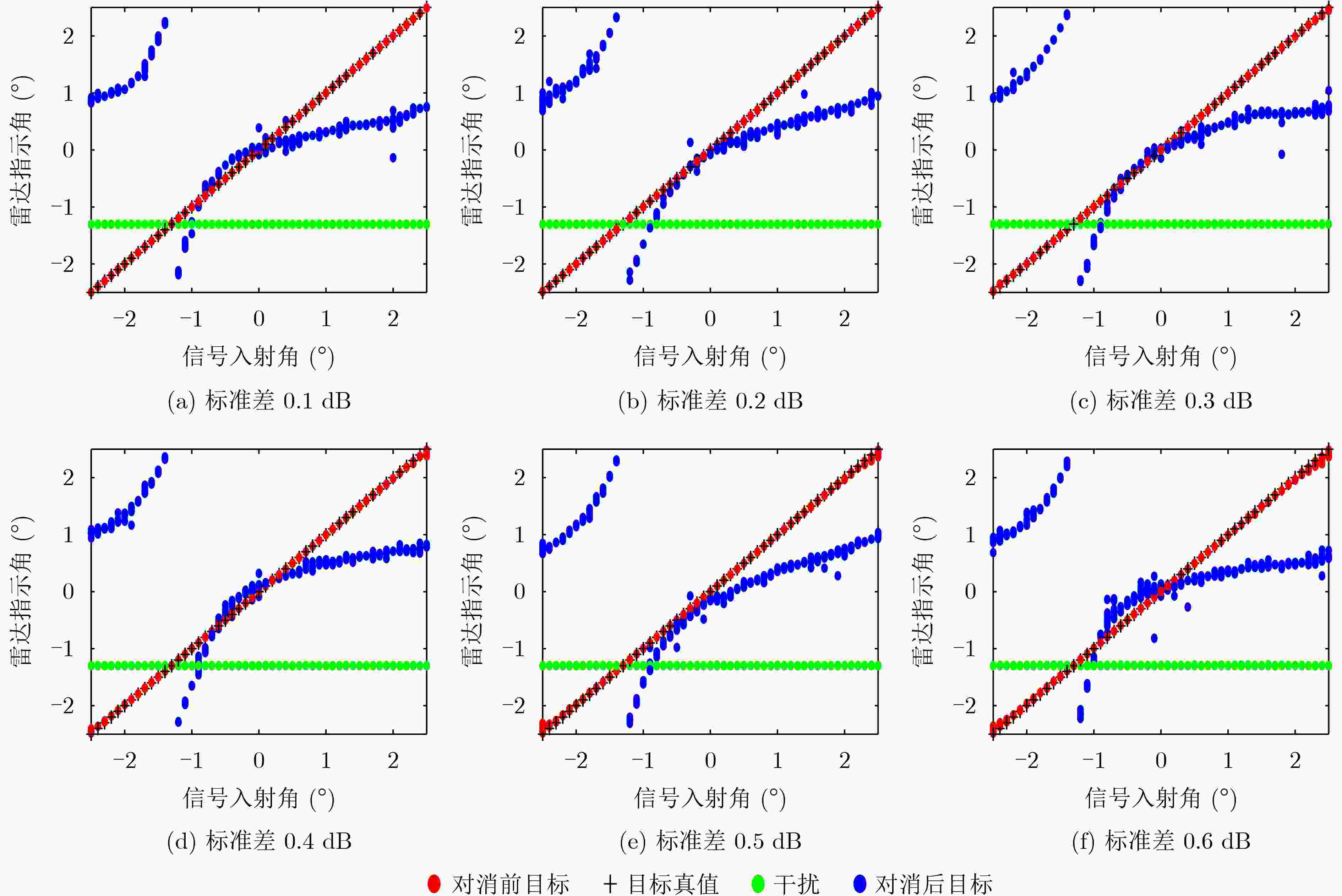

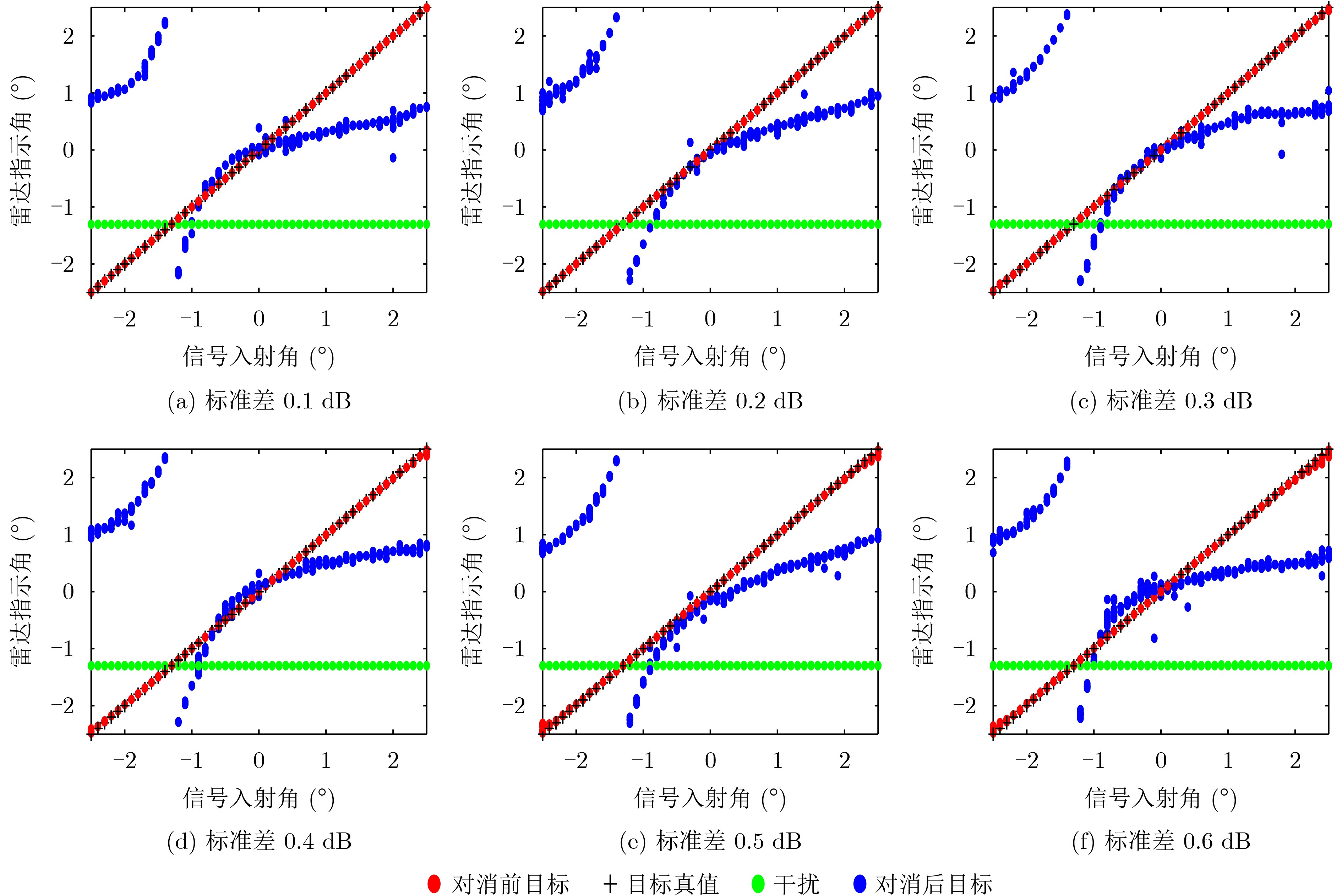

图 8 幅度误差均值为0 dB、幅度误差标准差变化对雷达测角精度影响的对比图

下载: 全尺寸图片幻灯片

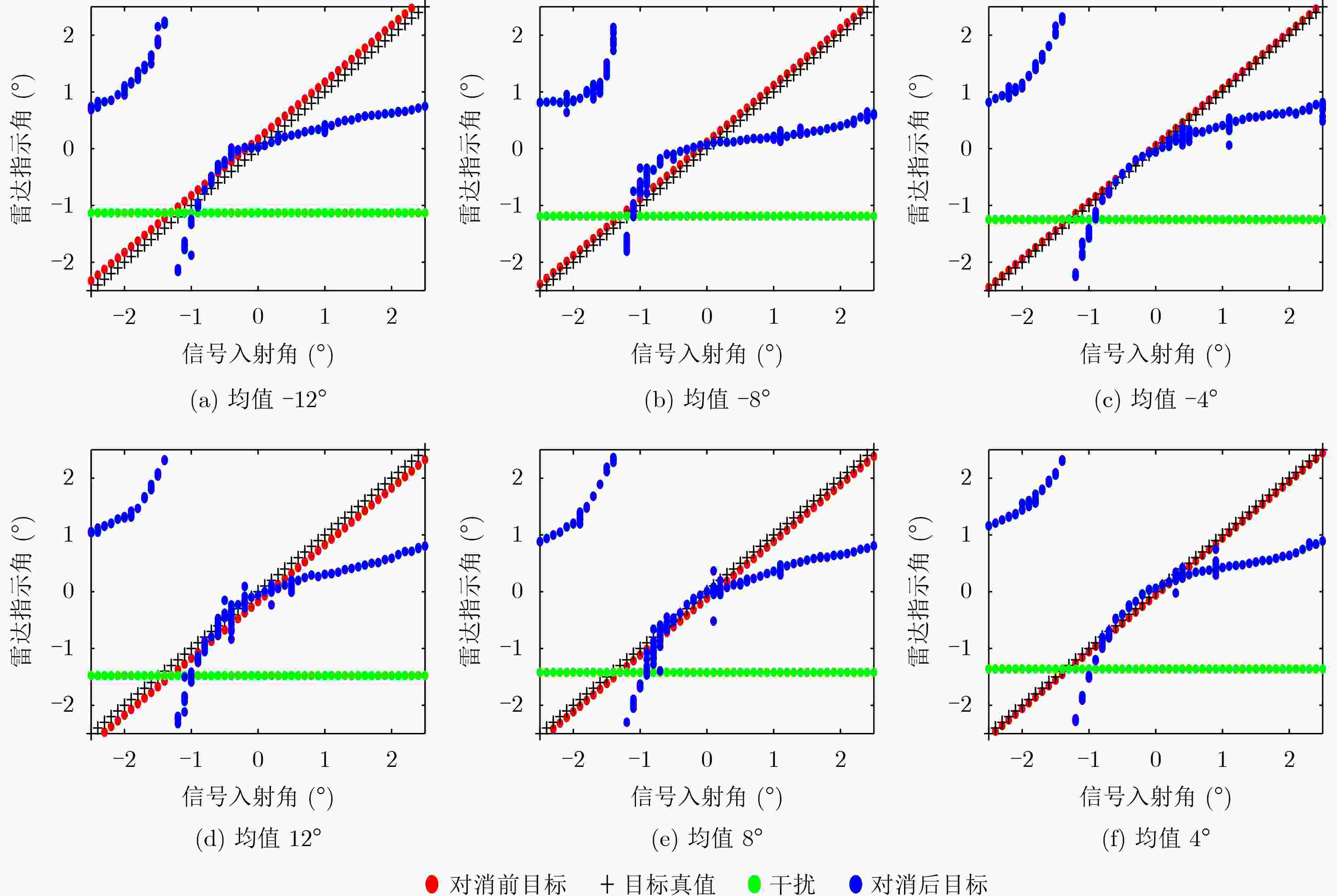

图 9 相位误差度标准差为0dB、相位误差均值变化对雷达测角精度影响的对比图

下载: 全尺寸图片幻灯片

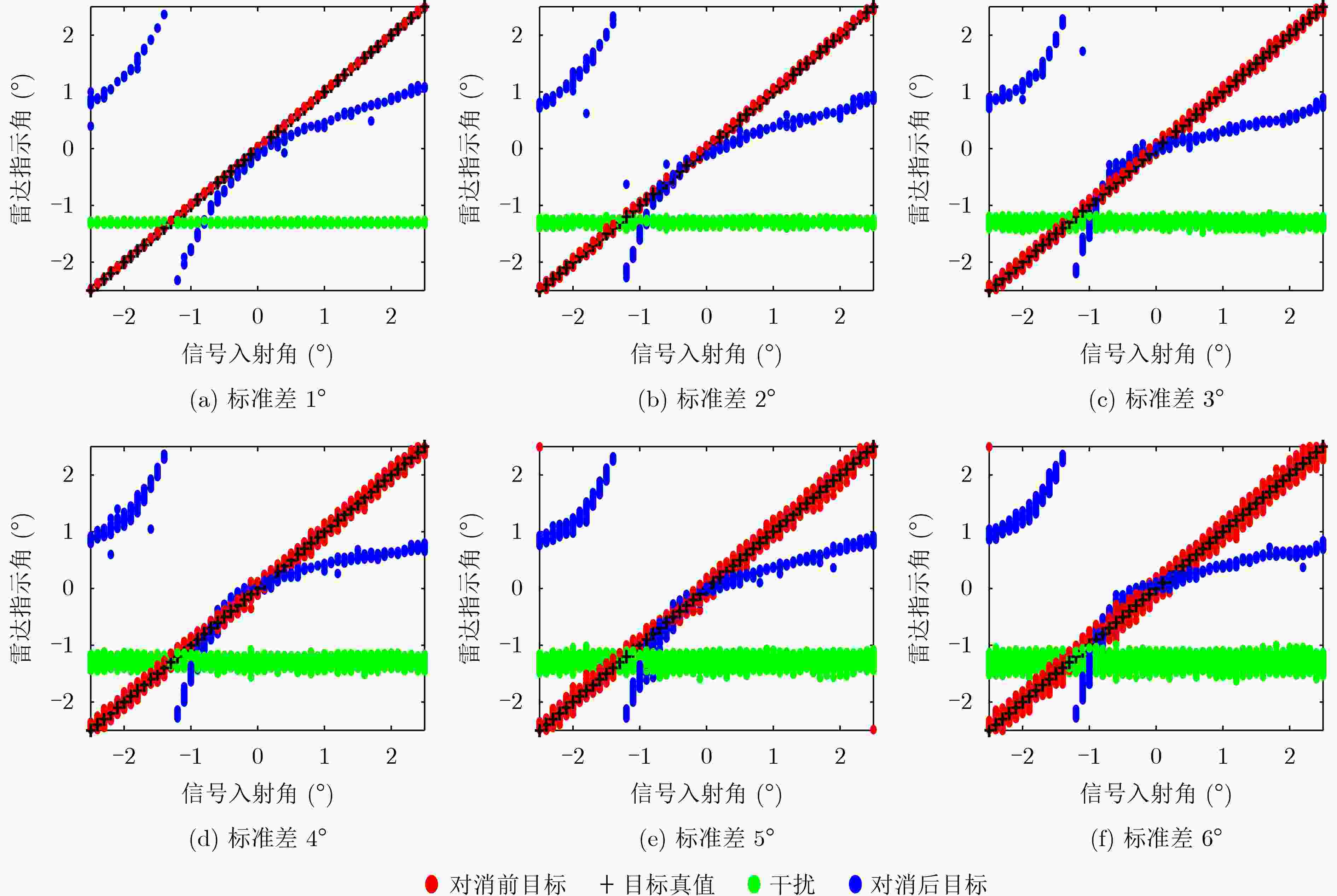

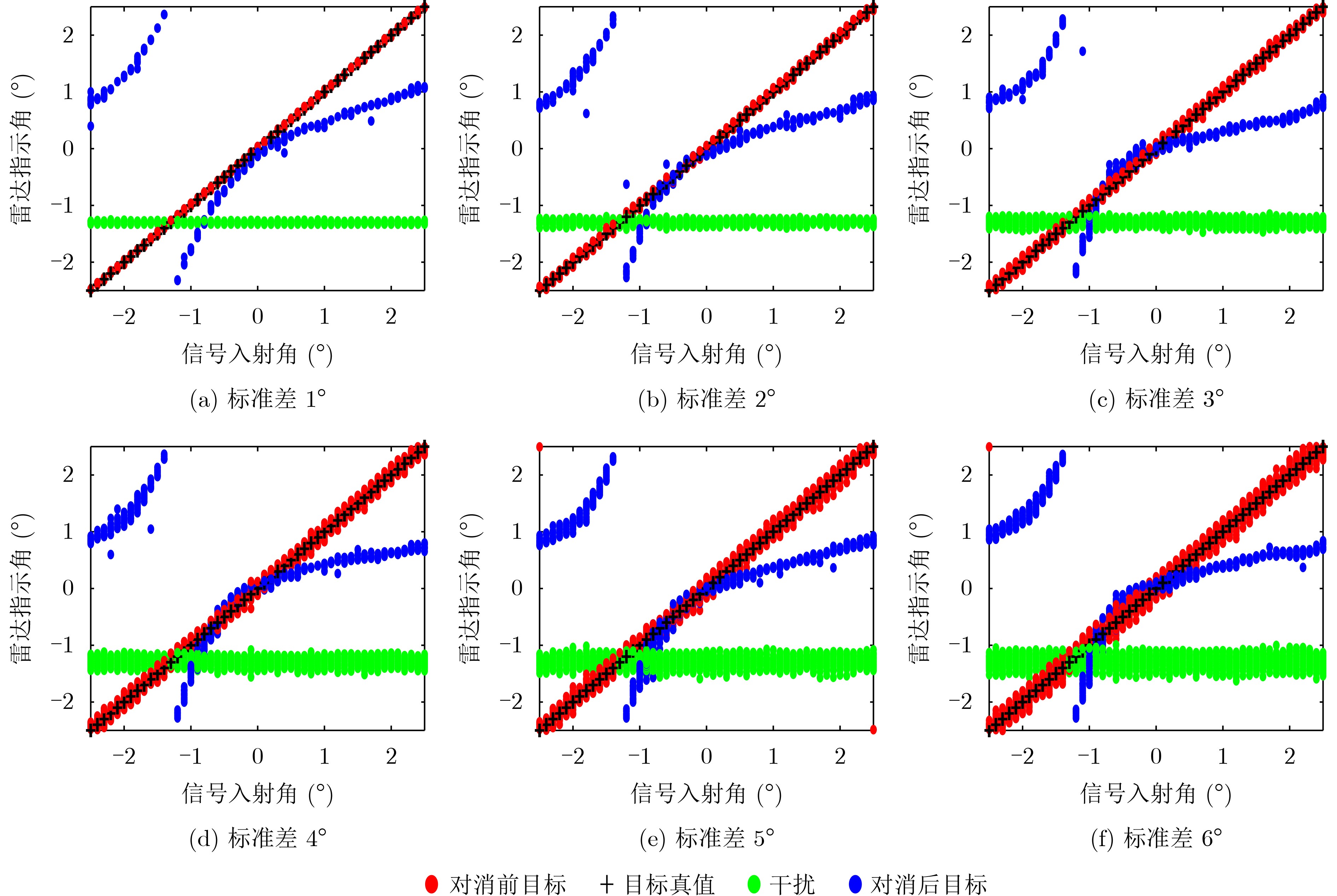

图 10 相位均值为0dB、相位标准差变化对雷达测角精度影响的对比图

下载: 全尺寸图片幻灯片

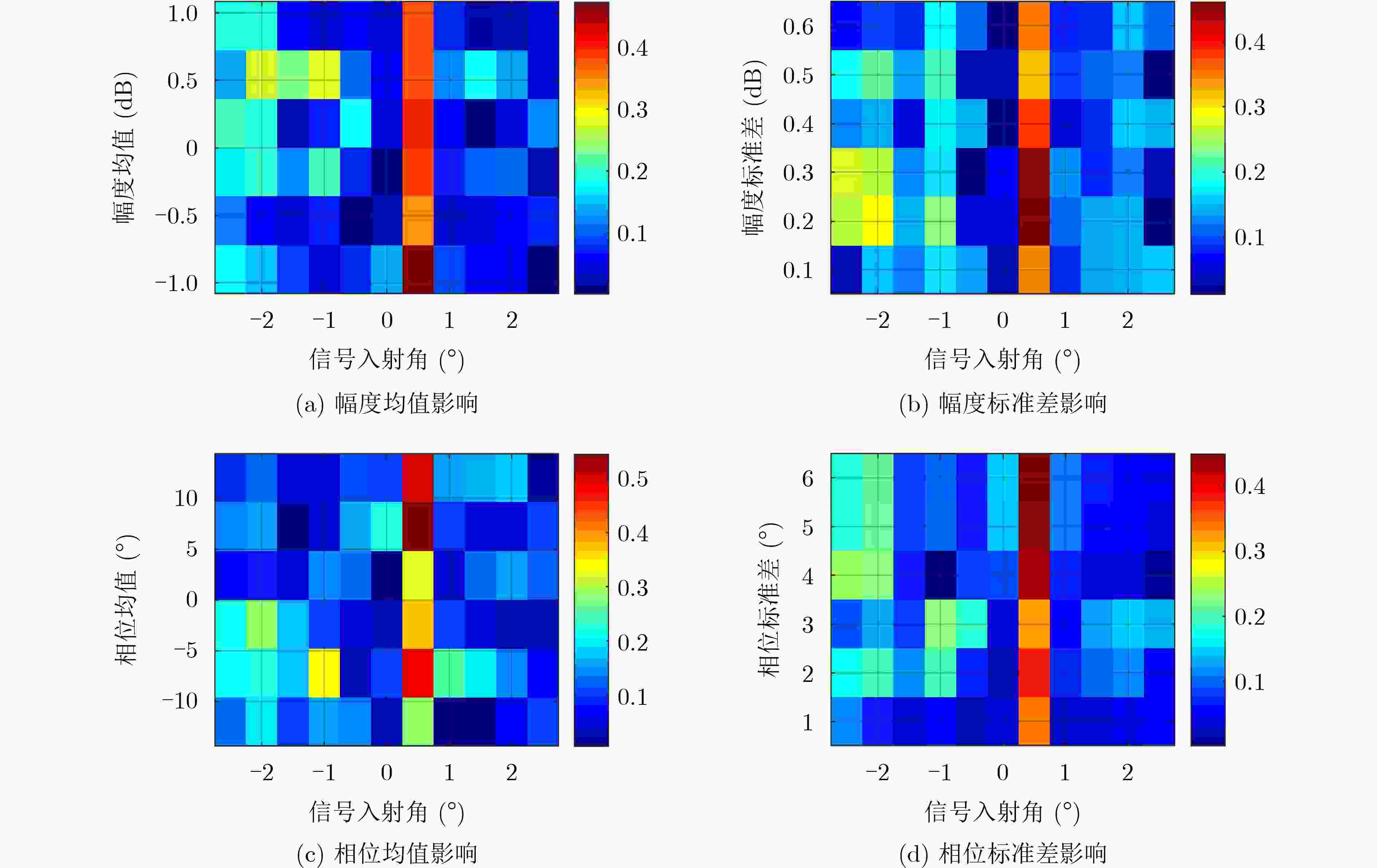

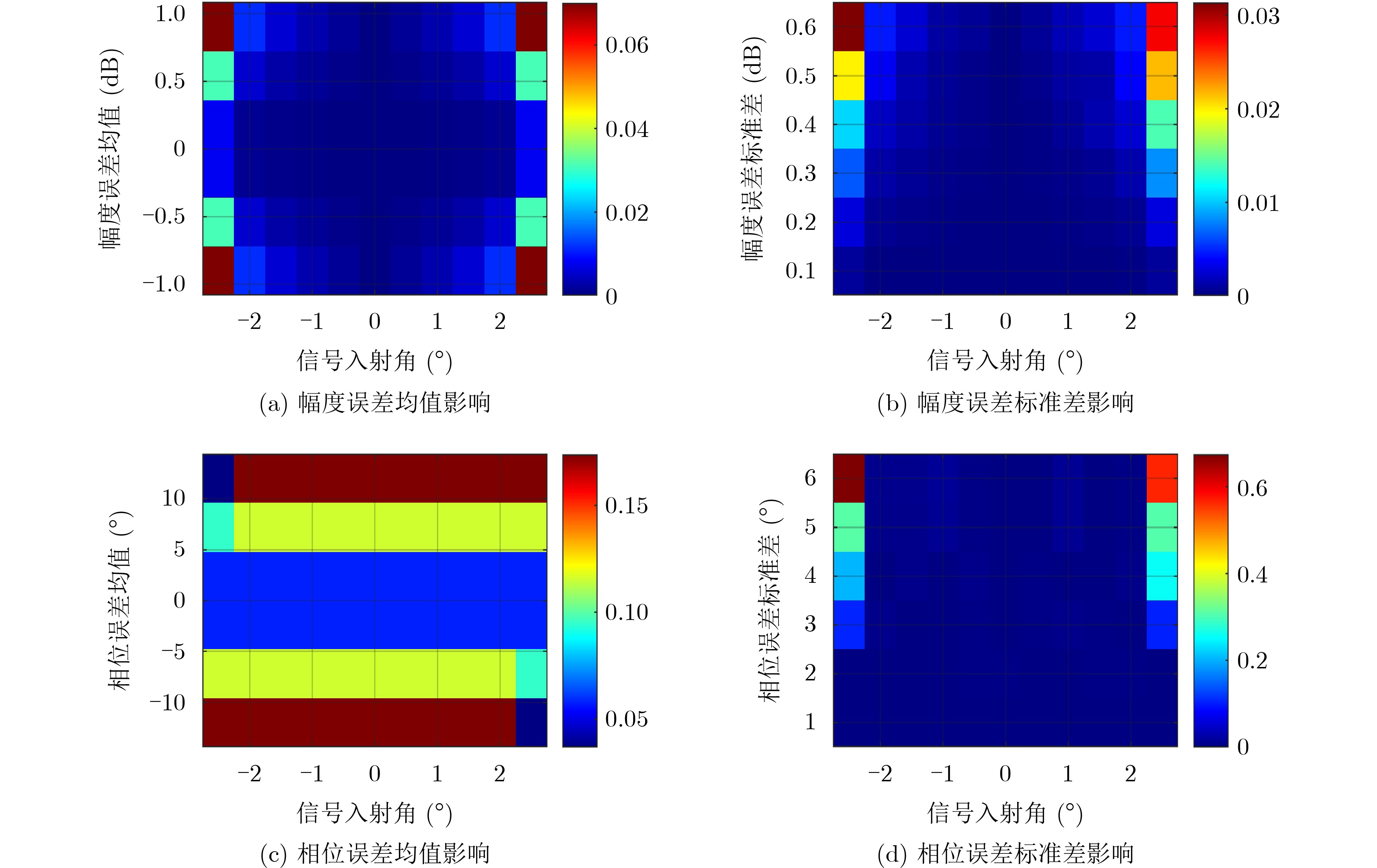

图 11 对消前目标受通道幅相误差影响的绝对误差热力图

下载: 全尺寸图片幻灯片

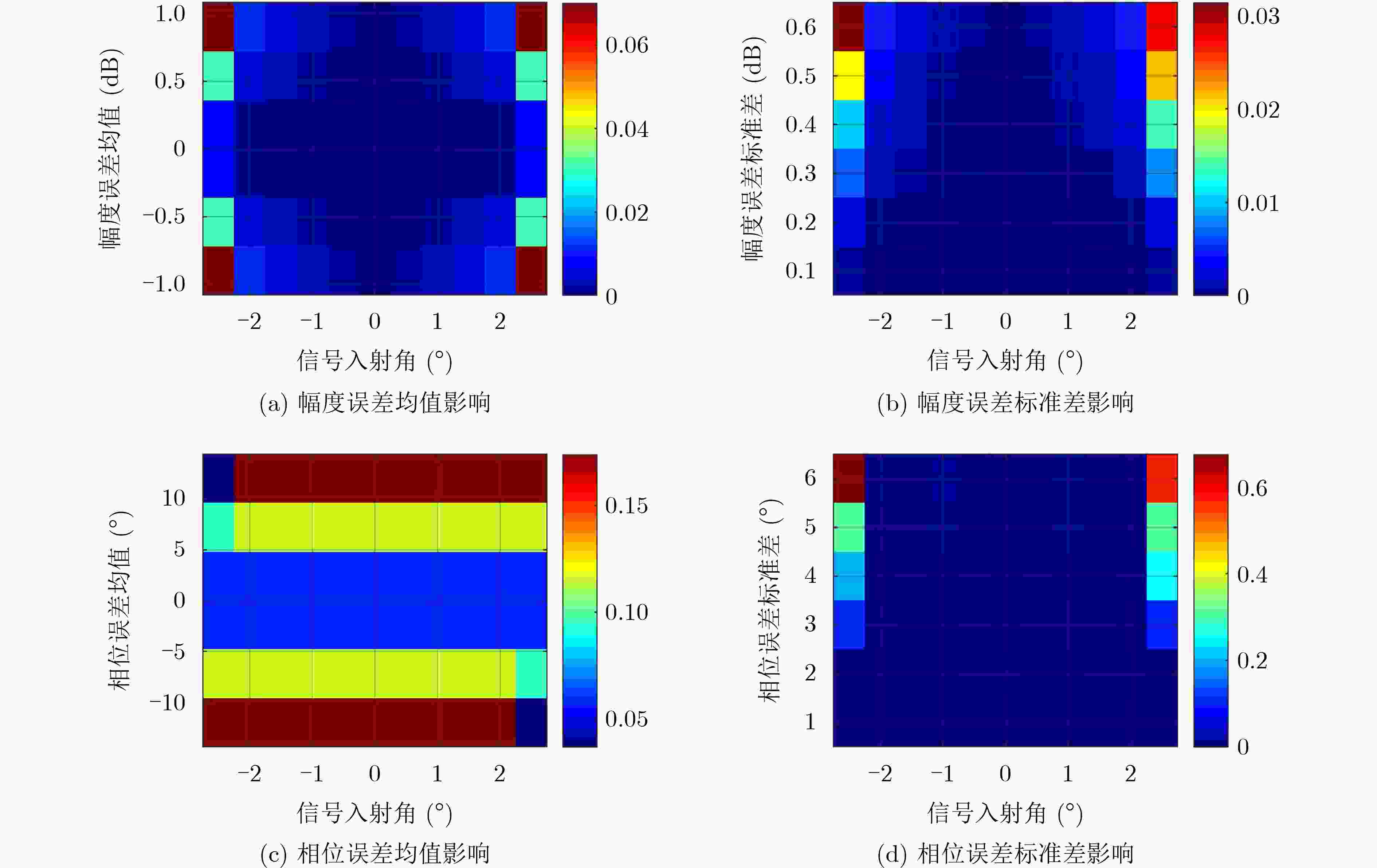

图 12 对消后目标受通道幅相误差影响的绝对误差热力图
